帶有分面網格的啞鈴圖出錯，無法創建并排圖

我嘗試用刻面網格并排繪制啞鈴圖，但遇到了一些有趣的錯誤。

錯誤：至少一層必須包含所有分面變數：Trial_type，Session.。

• 情節丟失Trial_type，Session.
• 缺少第 1 層 Session.
• 缺少第 2 層 Session.
• 缺少第 3 層 Session.
• 缺少第 4 層 Session.
• 缺少第 5 層Trial_type，Session.
• 缺少第 6 層Session. 運行rlang::last_error()以查看錯誤發生的位置。另外： 警告訊息： 1：在 min(x) 中：沒有非缺失的 min 引數；回傳 Inf 2：在 max(x) 中：沒有非缺失的 max 引數；回傳 -Inf 3：在 min(x) 中：沒有非缺失的 min 引數；回傳 Inf 4：在 max(x) 中：沒有非缺失的 max 引數；回傳 -Inf

data10A <- structure(list(Session = c(1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2), conditon2 = structure(c(10L,
4L, 12L, 6L, 11L, 5L, 1L, 7L, 3L, 9L, 2L, 8L, 10L, 4L, 12L, 6L,
11L, 5L, 1L, 7L, 3L, 9L, 2L, 8L), .Label = c("CEN_LLL", "CTL_LLL",
"IPS_LLL", "CEN_RRR", "CTL_RRR", "IPS_RRR", "CEN_RLR", "CTL_RLR",
"IPS_RLR", "CEN_LRL", "CTL_LRL", "IPS_LRL"), class = "factor"),
    Trial_type = structure(c(2L, 1L, 2L, 1L, 2L, 1L, 1L, 2L,
    1L, 2L, 1L, 2L, 2L, 1L, 2L, 1L, 2L, 1L, 1L, 2L, 1L, 2L, 1L,
    2L), .Label = c("Retention", "Transfer"), class = "factor"),
    NormalizedJerk_102 = c(1270.168699, 2099.703957, 3259.268053,
    1152.257445, 3810.890123, 4601.918336, 1792.371775, 1288.768888,
    2699.08162, 1650.968794, 2018.457394, 6159.567785, 931.350429,
    1053.84252, 1611.673955, 1034.363607, 5352.195367, 2499.83996,
    1560.678962, 915.3845866, 1948.757464, 1341.815274, 2113.732859,
    2051.140838), NormalizedJerk_104 = c(853.7034116, 924.8554548,
    2268.966702, 675.7160839, 2442.874632, 1603.954653, 1010.111276,
    794.1752256, 1313.813984, 1197.638788, 1039.577947, 3125.131019,
    561.2311988, 767.7541159, 1019.744071, 769.6067294, 2232.404471,
    1292.509181, 884.8343164, 663.0273865, 1230.369444, 717.8466364,
    1536.027898, 1027.358586), key = c("Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk", "Change in normalized jerk",
    "Change in normalized jerk")), row.names = c(NA, -24L), class = c("tbl_df",
"tbl", "data.frame"))

  library(tidyverse)
  library(dumbbell)
 dumbbell::dumbbell(data10A, id = "conditon2", key = "Trial_type",
          leg = "Test",
          column1 = "NormalizedJerk_102",
          column2 = "NormalizedJerk_104",
          delt = 1, lab1 = "Pre-test", lab2 = "Post-test",
          p_col1 = "black", p_col2 = "grey40",
          textsize = 4, segsize = 1.5,
          pointsize = 2.5,
          title = "Change in Normalized jerk from Pre- to Post-test")
   facet_wrap( Trial_type ~ Session., scales="free", ncol=2)
   theme(axis.text.x = element_text(size = 12, face = "bold"),
         axis.text.y = element_text(size = 11, face = "bold"),
         legend.position = "right",
         legend.text = element_text(size = 12),
         legend.title = element_text(size = 14),
         strip.text = element_text(face = "bold", size = 14, color = "black"))


uj5u.com熱心網友回復：

問題是dumbbell::dumbbell在通過ggplot2. 除其他事項外，在此步驟中會洗掉不必要的列，即僅dumbbell保留引數中指定的列，而在您的情況下包括您的Session列的所有其他列將被洗掉。因此，您無法通過Session.

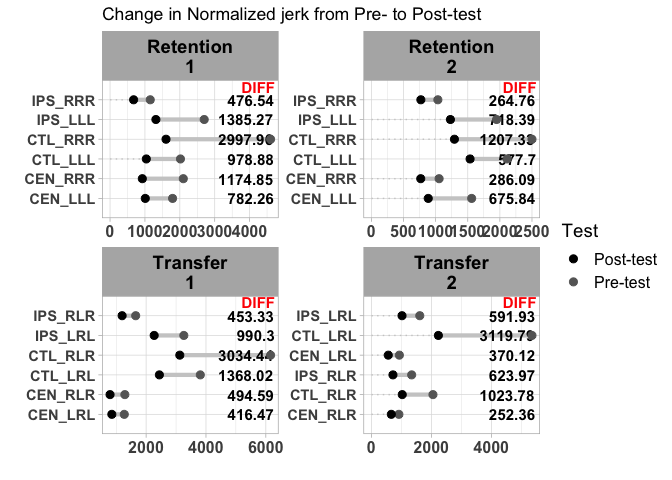

一個解決辦法是一個新的關鍵列添加到您的資料，是一個簡單的互動Trial_type和Session。然后您可以將此鍵列傳遞給key引數 offdumbbell并可以用作分面變數：

library(ggplot2)
library(dumbbell)

data10A$key <- paste(data10A$Trial_type, data10A$Session, sep = "\n")
dumbbell::dumbbell(data10A, id = "conditon2", key = "key",
                   leg = "Test",
                   column1 = "NormalizedJerk_102",
                   column2 = "NormalizedJerk_104",
                   delt = 1, lab1 = "Pre-test", lab2 = "Post-test",
                   p_col1 = "black", p_col2 = "grey40",
                   textsize = 4, segsize = 1.5,
                   pointsize = 2.5,
                   title = "Change in Normalized jerk from Pre- to Post-test")
  facet_wrap( ~ key, scales="free", ncol=2)
  theme(axis.text.x = element_text(size = 12, face = "bold"),
        axis.text.y = element_text(size = 11, face = "bold"),
        legend.position = "right",
        legend.text = element_text(size = 12),
        legend.title = element_text(size = 14),
        strip.text = element_text(face = "bold", size = 14, color = "black"))

^{由reprex 包(v2.0.1)于 2021 年 11 月 14 日創建}

標籤：r ggplot2 刻面
