繪制廣義線性混合模型(GLMM)：分類變數和數值變數的混合

我想使用二項式負廣義線性混合模型（GLMM）繪制（分類）和（數字）ladenant函式中回應變數數量之間的關系，但沒有成功。我嘗試做：Biomatemp

#Packages
library(lme4)
library(ggplot2)
library(ggeffects)

#Open my dataset
myds<-read.csv("https://raw.githubusercontent.com/Leprechault/trash/main/my_glmm_dataset.csv")
myds <- myds[,-c(3)] # remove bad character variable

# Negative binomial GLMM
m.laden.1  <- glmer.nb(ladenant ~ Bioma    poly(temp,2)   scale(UR)   (1 | formigueiro), data = DataBase)

# Plot the results
mydf <- ggpredict(m.laden.1, terms = c("temp","Bioma"))
ggplot(mydf, aes(x, predicted), group = Bioma)
  geom_point(DataBase, aes(temp, ladenant), alpha = 0.5)   # Observed ladenant response variable
  geom_line()
  geom_ribbon(aes(ymin = conf.low, ymax = conf.high), alpha = .1)

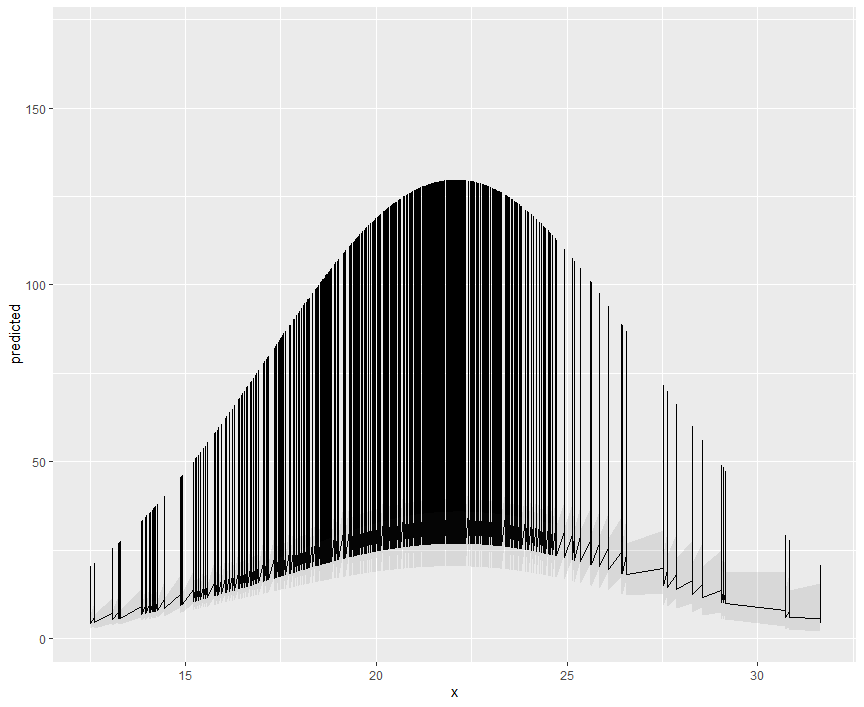

我有一個不太好的情節，因為我沒有每一Bioma行和temp變數的壞行：

但是物件mydf規范包含Bioma變數：

mydf

# # Predicted counts of ladenant

# # Bioma = Atlantic Forest

# temp | Predicted |         95% CI
# ---------------------------------
#   10 |      1.88 | [ 0.81,  4.35]
#   15 |     12.95 | [ 9.11, 18.40]
#   20 |     32.61 | [26.42, 40.25]
#   25 |     30.00 | [23.51, 38.28]
#   30 |     10.08 | [ 4.79, 21.24]
#   35 |      1.24 | [ 0.24,  6.43]

# # Bioma = Transition

# temp | Predicted |          95% CI
# ----------------------------------
#   10 |      6.84 | [ 3.04,  15.42]
#   15 |     47.17 | [34.05,  65.34]
#   20 |    118.79 | [92.27, 152.94]
#   25 |    109.29 | [76.84, 155.43]
#   30 |     36.73 | [16.17,  83.44]
#   35 |      4.51 | [ 0.82,  24.71]

# # Bioma = Pampa

# temp | Predicted |         95% CI
# ---------------------------------
#   10 |      1.42 | [ 0.70,  2.90]
#   15 |      9.80 | [ 7.47, 12.86]
#   20 |     24.69 | [18.74, 32.52]
#   25 |     22.71 | [16.46, 31.35]
#   30 |      7.63 | [ 3.65, 15.96]
#   35 |      0.94 | [ 0.19,  4.67]

# Adjusted for:
# *          UR = 82.78
# * formigueiro = 0 (population-level)

Plaese，對改善這個情節有什么幫助嗎？

uj5u.com熱心網友回復：

我認為您只需要注意兩個物件mydsand 中變數的不同名稱mydf，以及將它們放置在對各種geoms的呼叫中的位置：

library(lme4)
#> Loading required package: Matrix
library(ggplot2)
library(ggeffects)

#Open my dataset
myds<-read.csv("https://raw.githubusercontent.com/Leprechault/trash/main/my_glmm_dataset.csv")
myds <- myds[,-c(3)] # remove bad character variable

# Negative binomial GLMM
m.laden.1 <- glmer.nb(ladenant ~ Bioma    poly(temp,2)   scale(UR)   (1 | formigueiro),
                      data = myds)

# Plot the results
mydf <- ggpredict(m.laden.1, terms = c("temp [all]", "Bioma"))

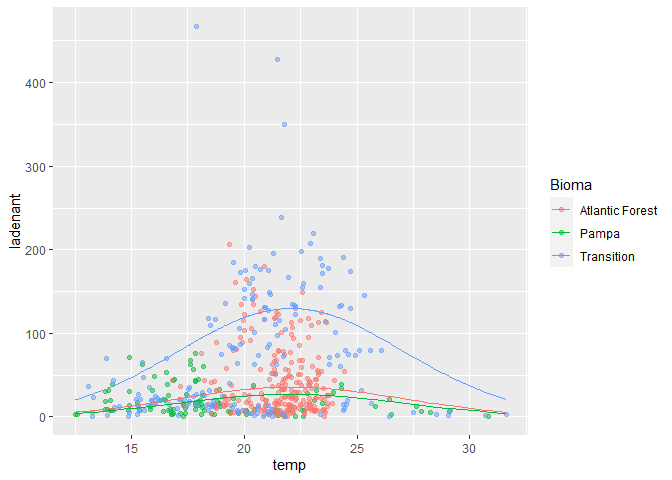

ggplot(mydf, aes(x, predicted))
  geom_point(data=myds, aes(temp, ladenant, color = Bioma), alpha = 0.5)
  geom_line(aes(color = group))
  labs(x = "temp", y = "ladenant")

請注意，我沒有包括你的geom_ribbon，因為conf.low和conf.high都NA在曲線的上半部分，這使得它看起來很混亂。

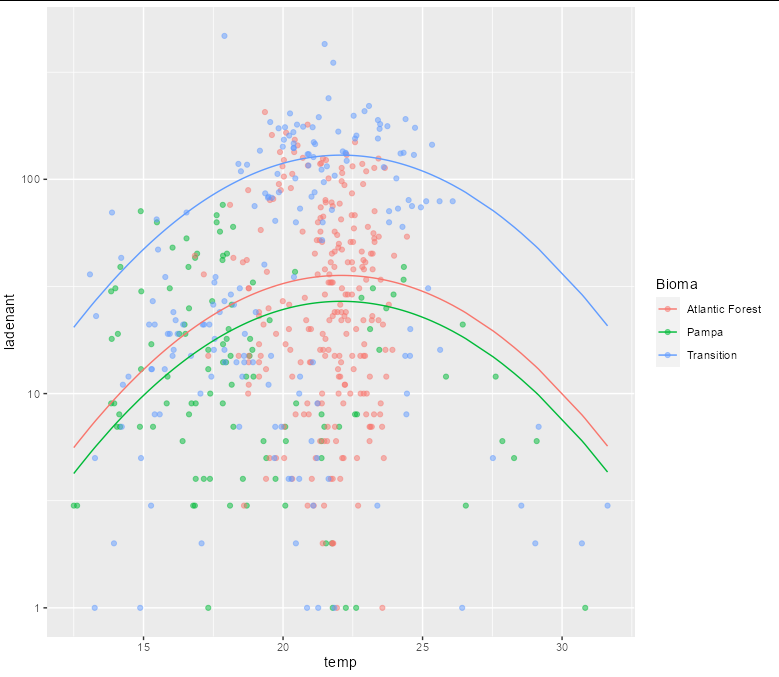

順便說一下，該圖在 log y 尺度下可能會提供更多資訊：

ggplot(mydf, aes(x, predicted))
  geom_point(data=myds, aes(temp, ladenant, color = Bioma), alpha = 0.5)
  geom_line(aes(color = group))
  scale_y_log10()
  labs(x = "temp", y = "ladenant")

^{由reprex 包( v2.0.0 )于 2021 年 11 月 12 日創建}

uj5u.com熱心網友回復：

您還可以使用plot()，它回傳一個 ggplot 物件，并根據需要添加其他層。

library(lme4)
#> Loading required package: Matrix
library(ggplot2)
library(ggeffects)

#Open my dataset
myds<-read.csv("https://raw.githubusercontent.com/Leprechault/trash/main/my_glmm_dataset.csv")
myds <- myds[,-c(3)] # remove bad character variable

# Negative binomial GLMM
m.laden.1  <- glmer.nb(ladenant ~ Bioma    poly(temp,2)   scale(UR)   (1 | formigueiro), data = myds)

mydf <- ggpredict(m.laden.1, terms = c("temp [all]","Bioma"))

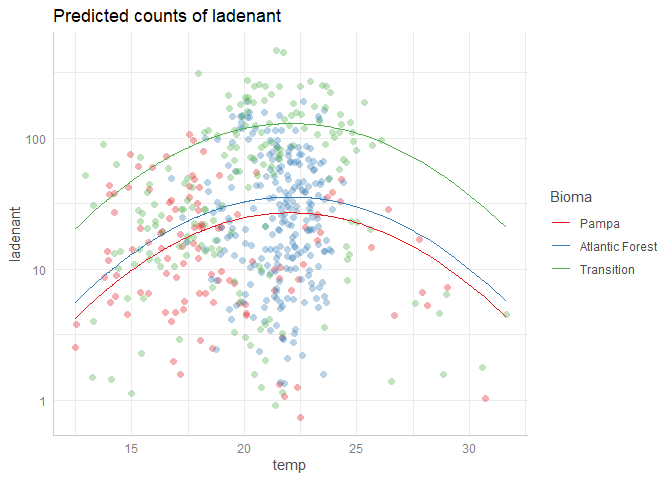

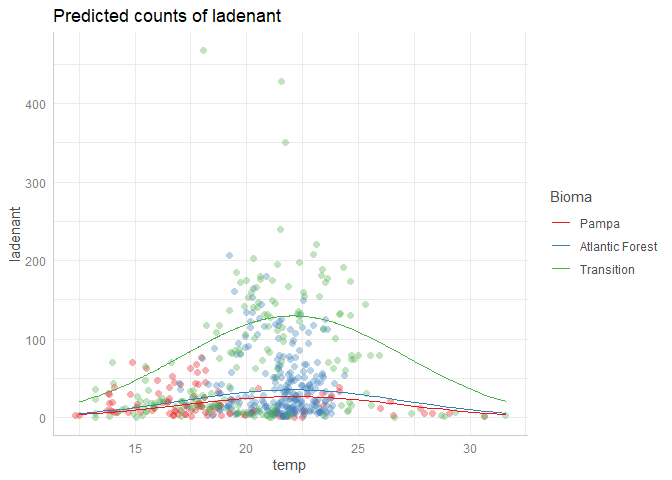

plot(mydf, add.data = TRUE, ci = FALSE)

plot(mydf, add.data = TRUE, ci = FALSE)   ggplot2::scale_y_log10()
#> Scale for 'y' is already present. Adding another scale for 'y', which will
#> replace the existing scale.

^{由reprex 包(v2.0.1)于 2021 年 11 月 17 日創建}
