R中Shiny應用程式中的圖形布局；使布局更簡潔

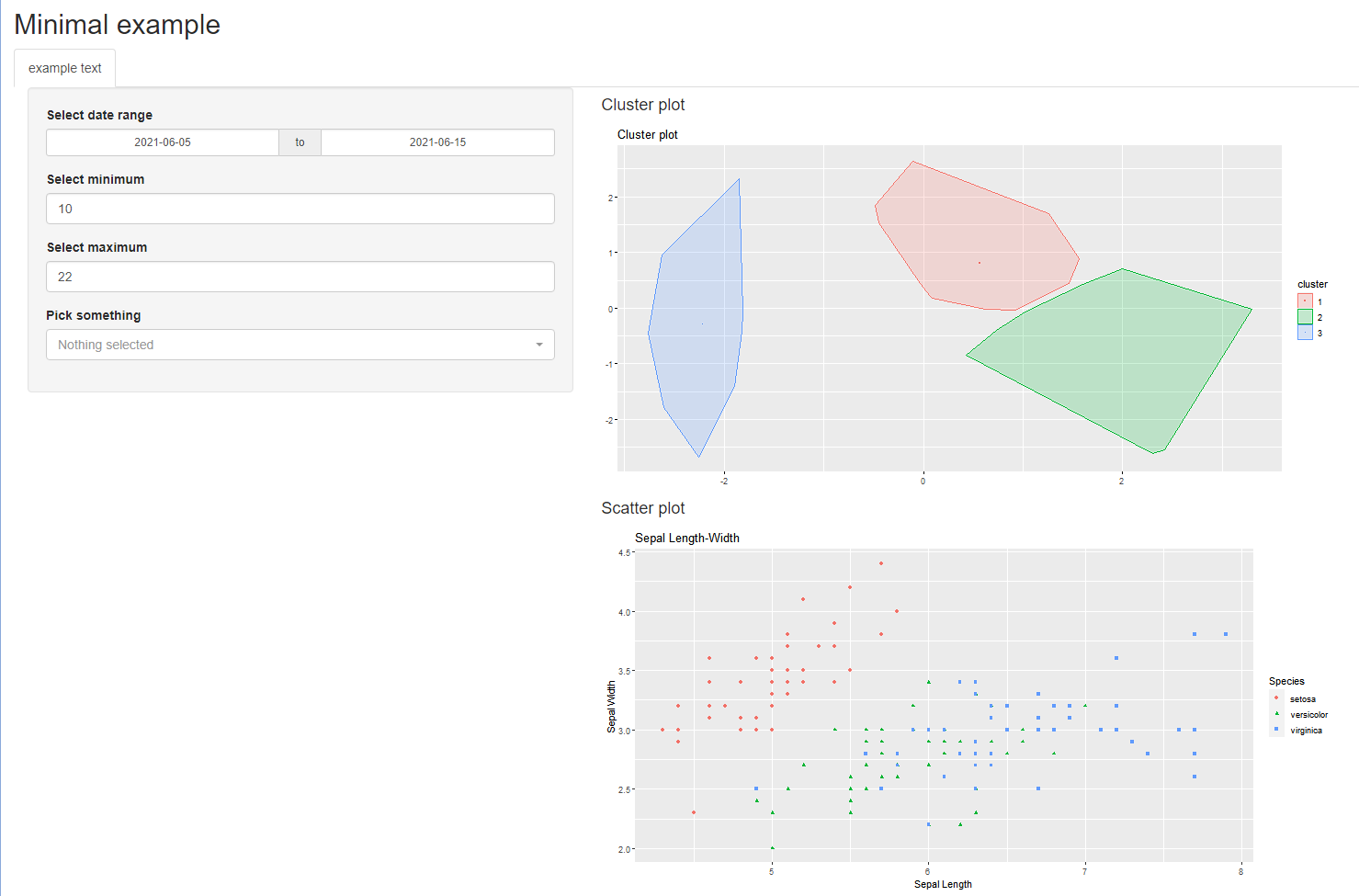

我正在用 R 開發一個閃亮的應用程式，我需要一些關于如何通過使其更簡潔來改進應用程式布局的指示。我sidebarPanel在列結構中有一些圖，上半部分看起來像這樣：-

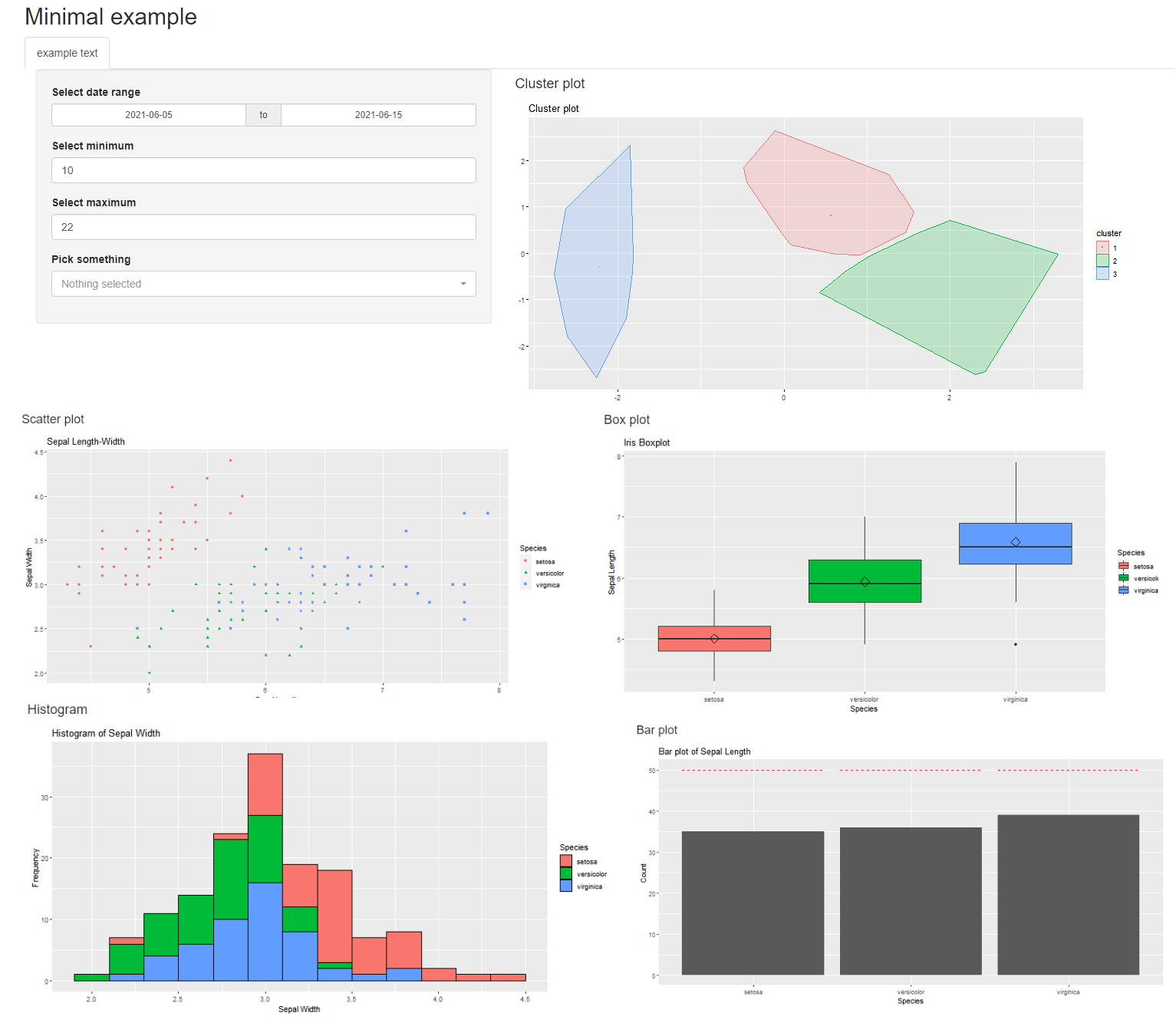

隨著更多的情節進一步下降。然而，我想在第一個情節之后，有些人坐在下面sidebarPanel和兩個兩個，像這樣：-

這是我的代碼：-

#libraries ====================================
library(shiny)
library(tidyverse)
library(ggplot2)
library(cluster)    # clustering algorithms
library(factoextra) # clustering algorithms & visualization




#filter choices=================================


choices1 = c("AAA","BBB","CCC","DDD")




#ui===============================




ui<-fluidPage(
  titlePanel('Minimal example'),
  tabsetPanel(

    tabPanel("example text",
             #sidebarLayout(
             sidebarPanel(width = 4,
                          dateRangeInput("daterangeinput", "Select date range", format = "yyyy-mm-dd",
                                         start = min("2021-06-05"),
                                         end = max("2021-06-15")),
                          numericInput("start", "Select minimum",10,min=0, max=23),
                          numericInput("end", "Select maximum",22, min=0, max=23),
                          pickerInput("choice", "Pick something",
                                      choices = choices1, options = list('actions-box'=TRUE,'live-search'=TRUE), multiple = T)),
             mainPanel(fluidRow(
               column(width = 8, h4("Cluster plot"), plotOutput("clusterplot", width = "100%")),
               column(width = 8, h4("Scatter plot"),plotOutput("scatterplot", width="100%")),
               column(width = 8, h4("Box plot"),plotOutput("boxplot", width ="100%")),
               column(width = 8, h4("Histogram"),plotOutput("histogram", width ="100%")),
               column(width = 8, h4("Bar plot"),plotOutput("barplot", width ="100%")))),
    )#end of tabpanel
  )#end of tabset panel
)#end of fluidpage/UI




#server ==========================


server<-function(input,output,session){


  #clustering
  scaledData <- scale(iris[,1:4])
  irisCluster <- kmeans(scaledData, center=3, nstart=20)
  irisCluster


    output$scatterplot<-renderPlot({

      scatter <- ggplot(data=iris, aes(x = Sepal.Length, y = Sepal.Width))
      scatter   geom_point(aes(color=Species, shape=Species))
        xlab("Sepal Length")    ylab("Sepal Width")
        ggtitle("Sepal Length-Width")


    })



    output$boxplot<-renderPlot({

      box <- ggplot(data=iris, aes(x=Species, y=Sepal.Length))
      box   geom_boxplot(aes(fill=Species))
        ylab("Sepal Length")   ggtitle("Iris Boxplot")
        stat_summary(fun.y=mean, geom="point", shape=5, size=4)
    })





    output$histogram<-renderPlot({

      histogram <- ggplot(data=iris, aes(x=Sepal.Width))
      histogram   geom_histogram(binwidth=0.2, color="black", aes(fill=Species))
        xlab("Sepal Width")    ylab("Frequency")   ggtitle("Histogram of Sepal Width")

    })


    output$barplot<-renderPlot({

      set.seed(1234)
      iris1 <- iris[sample(1:nrow(iris), 110), ]
      hline <- data.frame(Species=c("setosa", "versicolor", "virginica"), hline=as.vector(table(iris$Species)))
      hline


      bar <- ggplot(data=iris1, aes(x=Species))
      bar   geom_bar()
        xlab("Species")    ylab("Count")   ggtitle("Bar plot of Sepal Length")
        geom_errorbar(data=hline, aes(y=hline, ymin=hline, ymax=hline), col="red", linetype="dashed")

    })

    #cluster plot ======================

    output$clusterplot<-renderPlot({

      fviz_cluster(irisCluster, data = scaledData, geom = "")
        theme(axis.title.x = element_blank(), axis.title.y = element_blank())

    })


}


shinyApp(ui,server)

有人可以告訴我我需要對它進行UI哪些調整，以便我可以獲得所需的輸出嗎？

謝謝！

uj5u.com熱心網友回復：

您可以將除第一個之外的所有其他圖放在單獨的行中，如下所示：

ui<-fluidPage(
  titlePanel('Minimal example'),
  tabsetPanel(

    tabPanel("example text",
             #sidebarLayout(
             sidebarPanel(width = 4,
                          dateRangeInput("daterangeinput", "Select date range", format = "yyyy-mm-dd",
                                         start = min("2021-06-05"),
                                         end = max("2021-06-15")),
                          numericInput("start", "Select minimum",10,min=0, max=23),
                          numericInput("end", "Select maximum",22, min=0, max=23),
                          shinyWidgets::pickerInput("choice", "Pick something",
                                      choices = choices1, options = list('actions-box'=TRUE,'live-search'=TRUE), multiple = T)),
             mainPanel(
               fluidRow(
                 column(width = 8, h4("Cluster plot"), plotOutput("clusterplot", width = "100%"))
                 )
               )
             )
    ),
  fluidRow(
    column(width = 6, h4("Scatter plot"),plotOutput("scatterplot", width="100%")),
    column(width = 6, h4("Box plot"),plotOutput("boxplot", width ="100%")),
    column(width = 6, h4("Histogram"),plotOutput("histogram", width ="100%")),
    column(width = 6, h4("Bar plot"),plotOutput("barplot", width ="100%"))
    )
  )

如果您希望左側的繪圖與側邊欄面板對齊，您可以將它們的寬度調整為“4”。
