所以我得到了幫助來改變我圖表上不同方面的比例。建議使用下面的代碼，但現在我無法將標簽和軸刻度的字體設為粗體。在我使用的舊代碼中

theme(
     axis.text.x = element_text(size = 12,face="bold"),#, angle = 10, hjust = .5, vjust = .5),axis.text.y = element_text(size = 12, face = "bold"),
     axis.title.y = element_text(vjust= 1.8, size = 16),
     axis.title.x = element_text(vjust= -0.5, size = 16),
     axis.title = element_text(face = "bold"))

但它不起作用。

tgc <- structure(list(Group = structure(c(1L, 1L, 1L, 1L, 1L, 1L, 1L,
1L, 1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L,
2L), .Label = c("Visible", "Remembered"), class = "factor"),
    Condition = structure(c(1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 3L,
    3L, 3L, 3L, 1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 3L, 3L, 3L, 3L
    ), .Label = c("CEN", "IPS", "CTL"), class = "factor"), test = structure(c(1L,
    1L, 2L, 2L, 1L, 1L, 2L, 2L, 1L, 1L, 2L, 2L, 1L, 1L, 2L, 2L,
    1L, 1L, 2L, 2L, 1L, 1L, 2L, 2L), .Label = c("Pre-test", "Post-test"
    ), class = "factor"), Session = structure(c(1L, 2L, 1L, 2L,
    1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
    2L, 1L, 2L, 1L, 2L), .Label = c("Adaptation", "Post-adaptation"
    ), class = "factor"), N = c(12, 12, 12, 12, 12, 12, 12, 12,
    12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12,
    12), EE = c(2.134379625, 0.333942625, 1.742841125, 0.317361916666667,
    2.84197270833333, 0.307057416666667, 2.403112375, 0.281202,
    3.49590529166667, 0.305657666666667, 2.85211466666667, 0.3131155,
    1.44857545833333, 0.269328166666667, 1.740270875, 0.243361833333333,
    2.10702266666667, 0.286209125, 2.145855125, 0.305474083333333,
    1.60016616666667, 0.281528625, 1.94182179166667, 0.294655916666667
    ), sd = c(0.727246182828044, 0.0816168443914292, 0.549168068103643,
    0.0894916121701392, 1.14554677132408, 0.0958562360654162,
    1.06827971273128, 0.0953131237162305, 1.18204258551111, 0.0896670491921828,
    1.32864473484909, 0.109865886496798, 0.605344957514288, 0.0815454655757737,
    0.833908172662699, 0.0798994165789182, 1.11582277105041,
    0.0976064300150272, 0.667812406644538, 0.142929179817685,
    0.686043669971901, 0.109794818975944, 1.39509308576833, 0.161854932615856
    ), se = c(0.209937889711449, 0.0235607535398997, 0.158531165974993,
    0.0258340031883217, 0.330690868396632, 0.0276713118479362,
    0.308385789857611, 0.0275145288174349, 0.341226302469221,
    0.0258846474942731, 0.383546697661249, 0.0317155495718416,
    0.174748037086728, 0.0235401482506832, 0.240728553983119,
    0.0230649748349663, 0.322110288616933, 0.0281765493219072,
    0.192780836372198, 0.0412601002213964, 0.198043748767058,
    0.0316950341456936, 0.402728684306467, 0.0467234944577166
    ), ci = c(0.462070179795855, 0.0518568689018959, 0.348924743722983,
    0.0568602576432562, 0.727845693918804, 0.0609041467375754,
    0.678752547059741, 0.0605590696140879, 0.751034027967696,
    0.0569717250090983, 0.844180589754564, 0.069805453951774,
    0.384617836383033, 0.0518115169661108, 0.529839974927164,
    0.0507656673296478, 0.708959965158704, 0.0620161669201078,
    0.424307760005262, 0.0908128682911871, 0.435891352085212,
    0.0697602998032695, 0.886399857701764, 0.102837717929058)), row.names = c(NA,
-24L), class = "data.frame")

ls_p <-
   tgc %>%
   split(., .$Session) %>%
   map(function(x){
     ggplot(x, aes(x = Condition, y = EE, fill = test))
       geom_errorbar(aes(ymin = EE - se, ymax = EE   se, group = test), position = position_dodge(0.5), width = .1)
       geom_col(width = 0.5, color = "black", position = "dodge")
       labs(x= "Workspace", y = "EE (cm)")
       scale_fill_manual("Test:", values = c("grey80", "grey20"))
       facet_nested(. ~ Session   Group, scales = "free_y")
       cowplot::theme_half_open()
   })

 wrap_plots(ls_p)   plot_layout(guides = "collect") &
   theme(legend.position = "bottom", legend.margin=margin(t=0, r=3, b=5, l=3, unit="cm"))   theme(aspect.ratio = 3/2)


uj5u.com熱心網友回復：

使用拼湊而成的主題時，您有兩種選擇。您可以在情節級別（使用 ）或拼湊級別（使用&）執行此操作。下面只是使用這兩個選項的一種方式，用于演示目的。

為什么你應該theme()只呼叫一次？

多次呼叫主題在技術上并沒有錯，但它會使代碼變得混亂。為什么那么糟糕？您很容易產生錯誤/錯誤，因為很容易創建相互矛盾的主題呼叫。

library(tidyverse)
library(ggh4x)
library(patchwork)

ls_p <-
  tgc %>%
  split(., .$Session) %>%
  map(function(x){
    ggplot(x, aes(x = Condition, y = EE, fill = test))
      geom_errorbar(aes(ymin = EE - se, ymax = EE   se, group = test), position = position_dodge(0.5), width = .1)
      geom_col(width = 0.5, color = "black", position = "dodge")
      labs(x= "Workspace", y = "EE (cm)")
      scale_fill_manual("Test:", values = c("grey80", "grey20"))
      facet_nested(. ~ Session   Group, scales = "free_y")
      cowplot::theme_half_open()
      theme(axis.text.x = element_text(size = 12,face="bold"),#, angle = 10, hjust = .5, vjust = .5),axis.text.y = element_text(size = 12, face = "bold"),
            axis.title.y = element_text(vjust= 1.8, size = 16),
            axis.title.x = element_text(vjust= -0.5, size = 16),
            axis.title = element_text(face = "bold"))
  })

wrap_plots(ls_p)   plot_layout(guides = "collect") &
  theme(legend.position = "bottom",
        aspect.ratio = 3/2)

uj5u.com熱心網友回復：

有用。我認為您錯過了添加內容的訂單/位置theme。

wrap_plots(ls_p)   plot_layout(guides = "collect") &
  theme(legend.position = "bottom", legend.margin=margin(t=0, r=3, b=5, l=3, unit="cm"))   theme(aspect.ratio = 3/2)
  theme(
    axis.text.x = element_text(size = 12,face="bold"),#, angle = 10, hjust = .5, vjust = .5),axis.text.y = element_text(size = 12, face = "bold"),
    axis.title.y = element_text(vjust= 1.8, size = 16),
    axis.title.x = element_text(vjust= -0.5, size = 16),
    axis.title = element_text(face = "bold"))

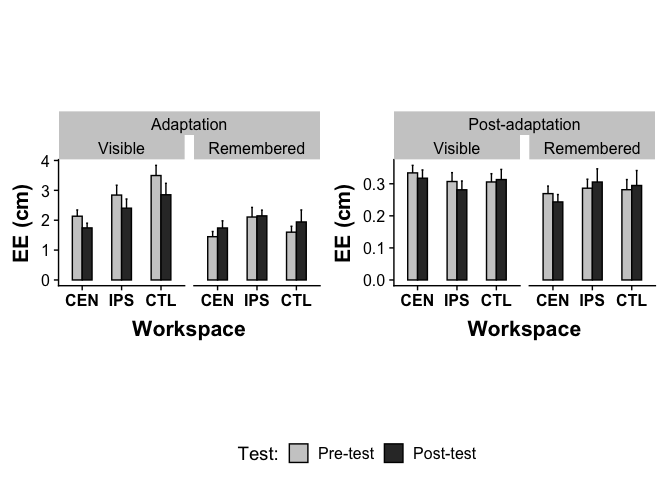

沒有theme東西的情節
