KubernetesNGINX入口控制器404未找到/未找到物件

我正在 Udemy 學習一門課程，我是Kubernetes世界的新手，我正在嘗試在 Kubernetes 中配置入口 nginx 控制器，但是當我在指定的 URL 發送請求時它回傳404 not found，我已經 10 天了試圖解決它，我看過類似的問題，但他們的答案都沒有對我有用。當我更改檔案中的某些內容時，我還使用Skaffold在docker hub 上自動構建/部署影像。

我的快遞應用服務器：

app.get('/api/users/currentuser', (req, res) => {
  res.send('Hi there');
});

app.listen(3000, () => {
  console.log('[Auth] - Listening on port 3000');
});

ingress-srv.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-srv
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/use-regex: 'true'
spec:
  rules:
    - host: ticketing.com
      http:
        paths:
          - path: /api/users/?(.*)
            pathType: Prefix
            backend:
              service:
                name: auth-srv
                port:
                  number: 3000

auth-depl.yaml（身份驗證部署和 srv）

apiVersion: apps/v1
kind: Deployment
metadata:
  name: auth-depl
spec:
  replicas: 1
  selector:
    matchLabels:
      app: auth
  template:
    metadata:
      labels:
        app: auth
    spec:
      containers:
        - name: auth
          image: myusername/auth:latest
---
apiVersion: v1
kind: Service
metadata:
  name: auth-srv
spec:
  type: ClusterIP
  selector:
    app: auth
  ports:
    - name: auth
      protocol: TCP
      port: 3000
      targetPort: 3000

skaffold.yaml檔案：

apiVersion: skaffold/v2beta25
kind: Config
deploy:
  kubectl:
    manifests:
      - ./infra/k8s/*
build:
  local:
    push: false
  artifacts:
    - image: egzonkrs/auth
      context: auth
      docker:
        dockerfile: Dockerfile
      sync:
        manual:
          - src: 'src/**/*.ts'
            dest: .

Dockerfile：

FROM node:alpine

WORKDIR /app
COPY package.json .
RUN npm install
COPY . .

CMD ["npm", "start"]

I also executed command from NGINX Ingress Controller docs:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.0.5/deploy/static/provider/cloud/deploy.yaml

I also changed hosts.file in the system: 127.0.0.1 ticketing.com

Logs:

kubectl get pods

NAME                         READY   STATUS    RESTARTS   AGE
auth-depl-5f89899d9f-wtc94   1/1     Running   0          6h33m

kubectl get svc

NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
auth-srv     ClusterIP   10.96.23.71   <none>        3000/TCP   23h
kubernetes   ClusterIP   10.96.0.1     <none>        443/TCP    25h

kubectl get pods --namespace=ingress-nginx

NAME                                        READY   STATUS      RESTARTS   AGE
ingress-nginx-admission-create-7fm56        0/1     Completed   0          23h
ingress-nginx-admission-patch-5vflr         0/1     Completed   1          23h
ingress-nginx-controller-5c8d66c76d-89zhp   1/1     Running     0          23h

kubectl get ing

NAME          CLASS    HOSTS           ADDRESS     PORTS   AGE
ingress-srv   <none>   ticketing.com   localhost   80      23h

kubectl describe ing ingress-srv

Name:             ingress-srv
Namespace:        default
Address:          localhost
Default backend:  default-http-backend:80 (<error: endpoints "default-http-backend" not found>)
Rules:
  Host           Path  Backends
  ----           ----  --------
  ticketing.com
                 /api/users/?(.*)   auth-srv:3000 (10.1.0.10:3000)
Annotations:     kubernetes.io/ingress.class: nginx
                 nginx.ingress.kubernetes.io/use-regex: true
Events:
  Type    Reason  Age                 From                      Message
  ----    ------  ----                ----                      -------
  Normal  Sync    22m (x18 over 23h)  nginx-ingress-controller  Scheduled for sync

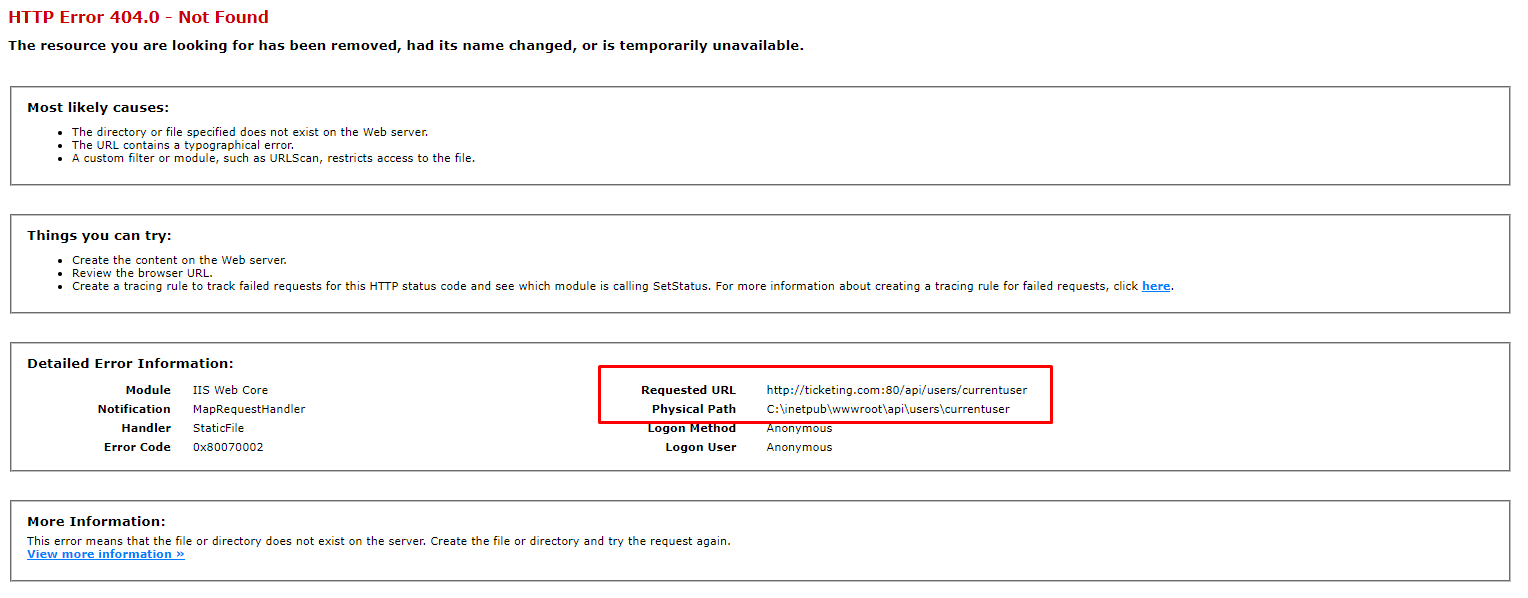

Could there be a problem with the Windows IIS web server? since I previously configured something for another project, and in the screenshot above I see:

Requested URL      http://ticketing.com:80/api/users/currentuser
Physical Path      C:\inetpub\wwwroot\api\users\currentuser

Also the screenshot shows the port :80 at the requested URL but I have the server port 3000? when i request at https it returns:

502 Bad Gateway
nginx

also C:\inetpub\wwwroot is strange to me.

Any ideas would help me a lot with continuing the course.

uj5u.com熱心網友回復：

經過幾天的研究，我終于解決了問題，問題出在我在 ASP.NET core 中處理專案時啟用的 IIS Web Server，我將其卸載并解決了問題。

如何從 Windows 10 卸載 IIS：

• 轉到控制面板 > 程式和功能
• 單擊打開或關閉 Windows 功能
• 向下滾動到 Internet 資訊服務
• 單擊 Internet Information Services 旁邊的方塊，使其變為空
• 單擊“確定”并重新啟動 PC（必需）。
