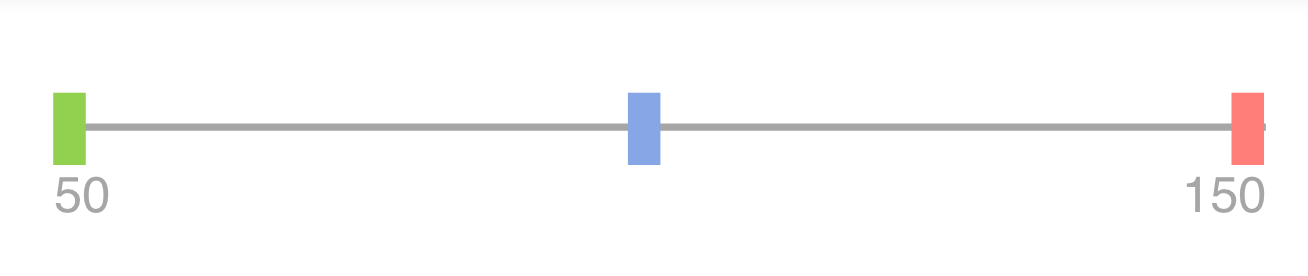

我想在一個滑塊中添加多個滑塊。如果您不清楚我要問什么，請參考下圖
我希望這三個方塊滑動并獲取它們的值。我進行了一些搜索，但找不到任何 Flutter 小部件或支持的插件。
我嘗試使用堆疊并Slider在同一位置使用多個小部件，但它也不起作用。（我知道這不是一個好方法。）
我怎樣才能做到這一點。在同一行上有多個滑塊并獲取值。非常感謝任何幫助或想法。
uj5u.com熱心網友回復：
使用Stack三個滑塊不起作用，因為它被重疊。
Slider3X出于好奇，我做了這個。這里幾乎沒有什么需要解決的，起點和終點缺少一些小數位置。
Gist 上的代碼，飛鏢墊
class Slider3x extends StatefulWidget {
const Slider3x({
Key? key,
required this.onSliderUpdate,
this.size = const Size(5, 10),
this.min = 0,
this.max = 1.0,
this.colorX = Colors.green,
this.colorY = Colors.blue,
this.colorZ = Colors.redAccent,
}) : super(key: key);
final Function(double? x, double? y, double? z) onSliderUpdate;
///size of moveable 3x point ??, forgot the name maybe thumbs
final Size size;
final double? min;
final double? max;
final Color colorX;
final Color colorY;
final Color colorZ;
@override
State<Slider3x> createState() => _Slider3xState();
}
class _Slider3xState extends State<Slider3x> {
/// three slider position
double? x;
double? y;
double? z;
final double tapSpacesArea = .05;
// currect active slider , help to prevent overlLAp while sliding
int activeSliderNumber = 0;
//* Update sldier
void _updateSlider(double dx, double maxWidth) {
final tapPosition = dx;
//* update logic
if (tapPosition <= 0 || tapPosition >= maxWidth) {
return;
}
//* update on UI based on slider number
if (activeSliderNumber == 0) {
setState(() {
x = tapPosition;
});
} else if (activeSliderNumber == 1) {
setState(() {
y = tapPosition;
});
} else if (activeSliderNumber == 2) {
setState(() {
z = tapPosition;
});
}
//pass value on main widget
widget.onSliderUpdate(
dp(_generateSliderValue(maxWidth: maxWidth, x: x!)),
dp(_generateSliderValue(maxWidth: maxWidth, x: y!)),
dp(_generateSliderValue(maxWidth: maxWidth, x: z!)),
);
}
//round number
double dp(double val, {int places = 2}) {
num mod = pow(10.0, places);
return ((val * mod).round().toDouble() / mod);
}
//* calculate slider value
double _generateSliderValue({
required double maxWidth,
required double x,
}) {
// x is slider original position on width:maxWidth
return (widget.max! - widget.min!) * (x / maxWidth) widget.min!;
}
//* select ActiveSlider, fixed overLap issue
//* slider Selector logic
void _selectSlider({
required double maxWidth,
required double tapPosition,
}) {
final maxArea = maxWidth * tapSpacesArea;
if ((tapPosition - x!).abs() < maxArea) {
setState(() {
activeSliderNumber = 0;
});
} else if ((tapPosition - y!).abs() < maxArea) {
setState(() {
activeSliderNumber = 1;
});
} else if ((tapPosition - z!).abs() < maxArea) {
setState(() {
activeSliderNumber = 2;
});
}
}
@override
Widget build(BuildContext context) {
return Padding(
padding: const EdgeInsets.all(8.0),
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
SizedBox(
height: 50,
child: LayoutBuilder(builder: (context, constraints) {
final maxWidth = constraints.maxWidth - 10;
x = x ?? 0;
y = y ?? constraints.maxWidth / 2;
z = z ?? maxWidth;
return Stack(
alignment: Alignment.center,
children: [
Positioned(
left: x,
child: Container(
height: activeSliderNumber == 0
? widget.size.height * 1.5
: widget.size.height,
width: widget.size.width,
color: widget.colorX,
),
),
//* paint Y
Positioned(
left: y,
child: Container(
height: activeSliderNumber == 1
? widget.size.height * 1.5
: widget.size.height,
width: widget.size.width,
color: widget.colorY,
),
),
//* paint z
Positioned(
left: z,
child: Container(
height: activeSliderNumber == 2
? widget.size.height * 1.5
: widget.size.height,
width: widget.size.width,
color: widget.colorZ,
),
),
const Divider(
endIndent: 10,
),
GestureDetector(
onTapDown: (details) => _selectSlider(
maxWidth: maxWidth,
tapPosition: details.localPosition.dx),
onPanUpdate: (details) =>
_updateSlider(details.localPosition.dx, maxWidth),
),
],
);
}),
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text(
widget.min.toString(),
),
Text(
widget.max.toString(),
),
],
)
],
),
);
}
}
