我有一個如下的資料框（可重現的資料）：
import pandas as pd
import numpy as np
from datetime import datetime
np.random.seed(365)
rows = 2
start_date=datetime.strptime('2020-01-01 00:00:00', '%Y-%m-%d %H:%M:%S')
data = np.random.uniform(2.1, 6.5, size=(rows, cols))
index = pd.bdate_range(start_date, freq='H', periods=rows)
df = pd.DataFrame(data=data, index=index, columns=['Ta']) #Ta: Room temperature
Ta
2020-01-01 00:00:00 6.242405
2020-01-01 01:00:00 4.923052
2020-01-01 02:00:00 5.112286
2020-01-01 03:00:00 4.689673
2020-01-01 04:00:00 4.493104
2020-01-01 05:00:00 3.719512
2020-01-01 06:00:00 5.473153
2020-01-01 07:00:00 3.442055
2020-01-01 08:00:00 4.045178
2020-01-01 09:00:00 2.585951
2020-01-01 10:00:00 4.028845
2020-01-01 11:00:00 5.411510
2020-01-01 12:00:00 3.383155
2020-01-01 13:00:00 5.997180
2020-01-01 14:00:00 6.485442
2020-01-01 15:00:00 4.240901
2020-01-01 16:00:00 3.637405
2020-01-01 17:00:00 2.766216
2020-01-01 18:00:00 6.024569
2020-01-01 19:00:00 5.503587
2020-01-01 20:00:00 5.532941
2020-01-01 21:00:00 4.251602
2020-01-01 22:00:00 4.444596
2020-01-01 23:00:00 2.935362
我試圖繪制一整天的溫度，但我看不到特定日期的刻度線。只有第一個出現，我想看到每個勾號。
這是代碼：
df['Ta'].plot(figsize=(20,12),legend=True,subplots=True,ylim=(0,12),
xticks=list(df.index.values),fontsize=10,grid=True,
rot=0, xlim=(pd.Timestamp('2020-01-01 00:00:00'),pd.Timestamp('2020-01-01 23:00:00')))

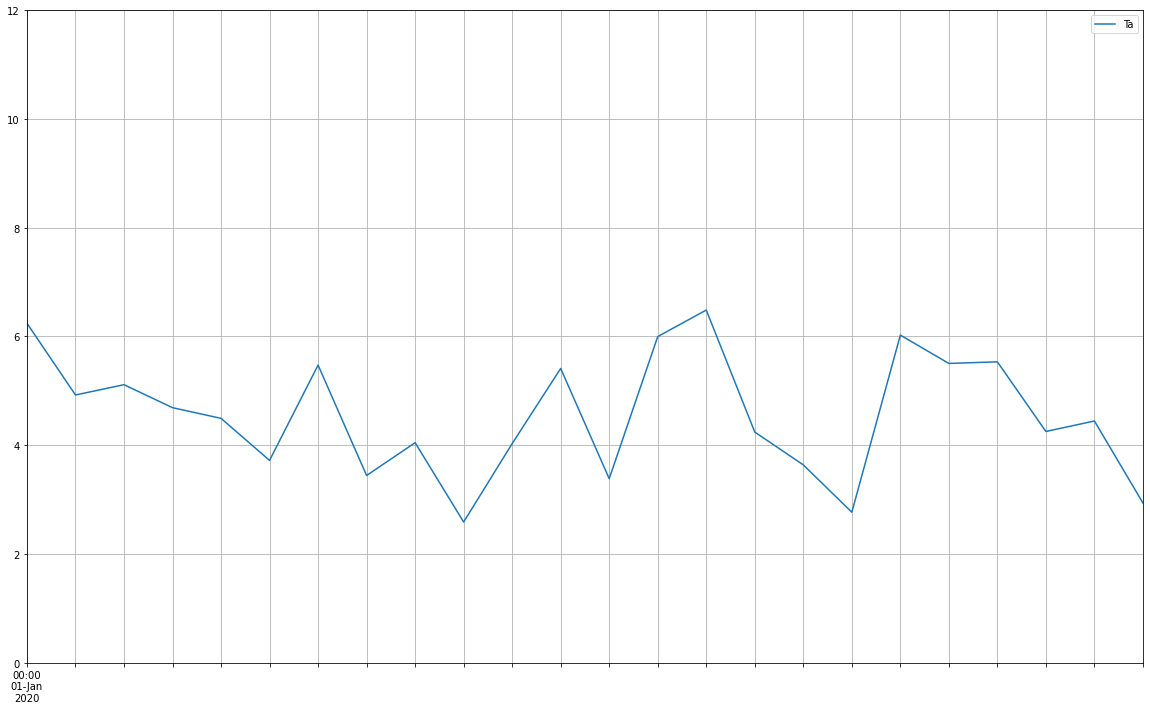

陰謀
我已經嘗試了我手上的一切，但我無法弄清楚。
uj5u.com熱心網友回復：
使用 matplotlib 注釋將標簽附加到圖表：
data="""Date,Ta
2020-01-01 00:00:00,6.242405
2020-01-01 01:00:00,4.923052
2020-01-01 02:00:00,5.112286
2020-01-01 03:00:00,4.689673
2020-01-01 04:00:00,4.493104
2020-01-01 05:00:00,3.719512
2020-01-01 06:00:00,5.473153
2020-01-01 07:00:00,3.442055
2020-01-01 08:00:00,4.045178
2020-01-01 09:00:00,2.585951
2020-01-01 10:00:00,4.028845
2020-01-01 11:00:00,5.411510
2020-01-01 12:00:00,3.383155
2020-01-01 13:00:00,5.997180
2020-01-01 14:00:00,6.485442
2020-01-01 15:00:00,4.240901
2020-01-01 16:00:00,3.637405
2020-01-01 17:00:00,2.766216
2020-01-01 18:00:00,6.024569
2020-01-01 19:00:00,5.503587
2020-01-01 20:00:00,5.532941
2020-01-01 21:00:00,4.251602
2020-01-01 22:00:00,4.444596
2020-01-01 23:00:00,2.935362
"""
def plot_df(df, x, y, title="", xlabel='Date', ylabel='Value', dpi=100):
plt.figure(figsize=(20,12), dpi=dpi)
plt.plot(x, y, color='tab:red')
plt.xlim([pd.Timestamp('2020-01-01 00:00:00'),pd.Timestamp('2020-01-01 23:00:00')])
plt.ylim(0,12)
items=range(0,len(df))
for index in items:
y2=y[index]
x2=x[index]
value="{:.2f}".format(y2)
plt.annotate(xy=[x2,y2],s=value)
plt.gca().set(title=title, xlabel=xlabel, ylabel=ylabel)
plt.show()
df = pd.read_csv(StringIO(data), sep=',', index_col=0,parse_dates=['Date'])
plot_df(df, x=df.index, y=df.Ta, title='Temparature')

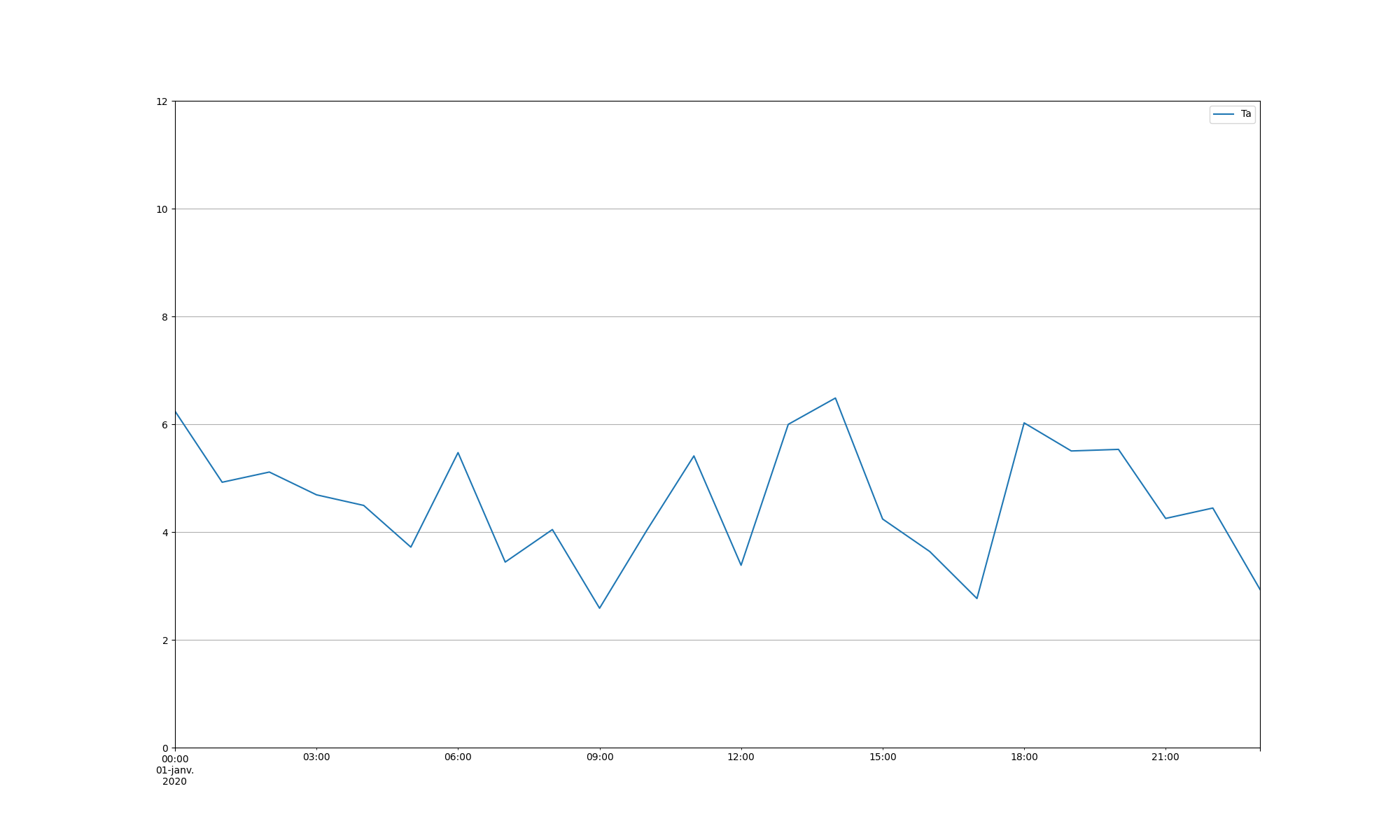

uj5u.com熱心網友回復：
在繪圖之前過濾資料框：
df.loc[df.index.normalize() == '2020-01-01'] \
.plot(figsize=(20,12), legend=True, subplots=True,
ylim=(0,12), fontsize=10, grid=True)
