帶有Pythonseaborn的兩側分組條形圖

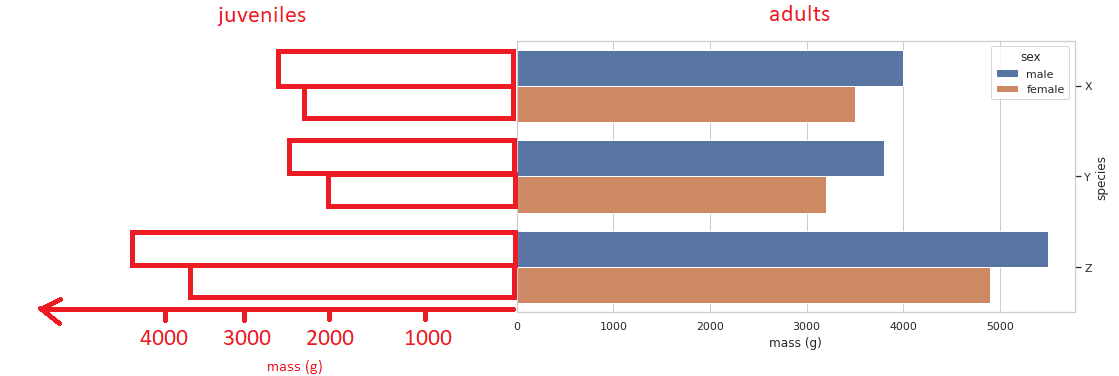

我正在嘗試繪制一個類似于

uj5u.com熱心網友回復：

嘗試這樣的事情：

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# data
data = {'species': ['X', 'X', 'Y', 'Y', 'Z', 'Z', 'X', 'X', 'Y', 'Y', 'Z', 'Z'],
        'sex': ['male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female'],
        'mass (g)': [4000, 3500, 3800, 3200, 5500, 4900, 2500, 2100, 2400, 2000, 4200, 3800],
        'age': ['adult', 'adult', 'adult', 'adult', 'adult', 'adult', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile']}
df = pd.DataFrame(data)

# convert juvenile mass to negative
df.loc[df.age.eq('juvenile'), 'mass (g)'] = df['mass (g)'].mul(-1)

# plot
sns.set_theme(style="whitegrid")
fig, ax = plt.subplots(figsize=(10,5))
df_reshape = df.set_index(['species','sex','age']).unstack(['age','sex'])['mass (g)']
df_reshape.loc[:, 'adult'].plot.barh(ax=ax)
df_reshape.loc[:, 'juvenile'].plot.barh(legend=False, ax=ax)
plt.show()

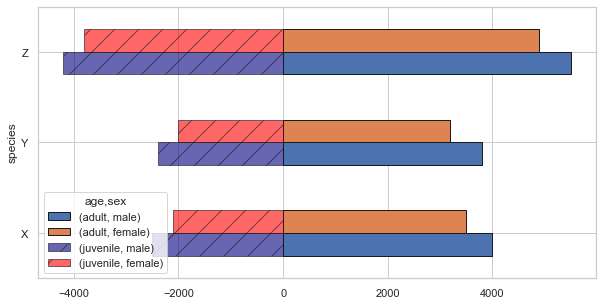

輸出：

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# data
data = {'species': ['X', 'X', 'Y', 'Y', 'Z', 'Z', 'X', 'X', 'Y', 'Y', 'Z', 'Z'],
        'sex': ['male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female'],
        'mass (g)': [4000, 3500, 3800, 3200, 5500, 4900, 2500, 2100, 2400, 2000, 4200, 3800],
        'age': ['adult', 'adult', 'adult', 'adult', 'adult', 'adult', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile']}
df = pd.DataFrame(data)

# convert juvenile mass to negative
df.loc[df.age.eq('juvenile'), 'mass (g)'] = df['mass (g)'].mul(-1)

# plot
sns.set_theme(style="whitegrid")
fig, ax = plt.subplots(figsize=(10,5))
df_reshape = df.set_index(['species','sex','age']).unstack(['age','sex'])['mass (g)']
df_reshape.loc[:, ['adult']].plot.barh(ax=ax, edgecolor='k')
df_reshape.loc[:, ['juvenile']].plot.barh(ax=ax, label='Juvenile', color=['navy','red'], alpha=.6, edgecolor='k', hatch='/')
plt.show()

輸出：

uj5u.com熱心網友回復：

如果混合正值和負值，默認情況下，seaborn 的條形圖會將它們平均化。

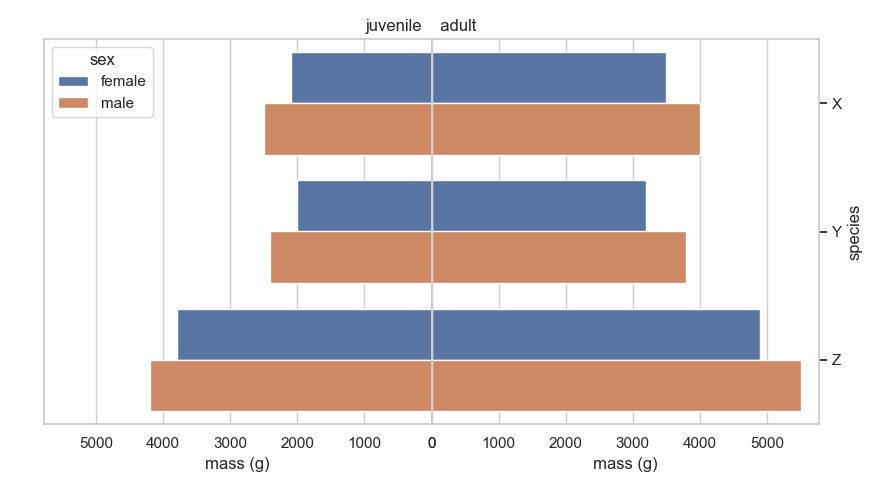

您可以背靠背繪制兩個條形圖并反轉左側的條形圖：

from matplotlib import pyplot as plt
import seaborn as sns
import pandas as pd

data = {'species': ['X', 'X', 'Y', 'Y', 'Z', 'Z', 'X', 'X', 'Y', 'Y', 'Z', 'Z'],
        'sex': ['male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female'],
        'mass (g)': [4000, 3500, 3800, 3200, 5500, 4900, 2500, 2100, 2400, 2000, 4200, 3800],
        'age': ['adult', 'adult', 'adult', 'adult', 'adult', 'adult', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile']}
df = pd.DataFrame(data)
df['sex'] = pd.Categorical(df['sex'])  # make hue column categorical, forcing a fixed order

sns.set_theme(style='whitegrid')
fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(10, 5), sharey=True, gridspec_kw={'wspace': 0})


# draw adult subplot at the right
sns.barplot(data=df[df['age'] == 'adult'], x='mass (g)', y='species', hue='sex',
            ci=False, orient='horizontal', dodge=True, ax=ax2)
ax2.yaxis.set_label_position('right')
ax2.tick_params(axis='y', labelright=True, right=True)
ax2.set_title('  ' 'adult', loc='left')
ax2.legend_.remove()  # remove the legend; the legend will be in ax1

# draw juvenile subplot at the left
sns.barplot(data=df[df['age'] == 'juvenile'], x='mass (g)', y='species', hue='sex',
            ci=False, orient='horizontal', dodge=True, ax=ax1)

# optionally use the same scale left and right
xmax = max(ax1.get_xlim()[1], ax2.get_xlim()[1])
ax1.set_xlim(xmax=xmax)
ax2.set_xlim(xmax=xmax)

ax1.invert_xaxis()  # reverse the direction
ax1.tick_params(labelleft=False, left=False)
ax1.set_ylabel('')
ax1.set_title('juvenile' '  ', loc='right')

plt.tight_layout()
plt.show()

seaborn 的條形圖的一個有趣功能是，它還可以對給定資料框的值進行平均，每個人都有一行（并計算置信區間）。

uj5u.com熱心網友回復：

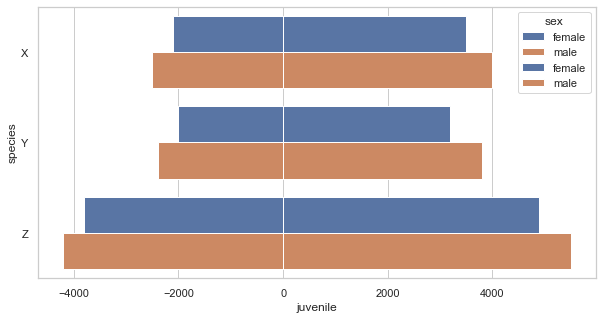

我只是使用 `pivot 來正確地塑造資料

import pandas as pd
import seaborn as sns

# data
data = {'species': ['X', 'X', 'Y', 'Y', 'Z', 'Z', 'X', 'X', 'Y', 'Y', 'Z', 'Z'],
        'sex': ['male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female', 'male', 'female'],
        'mass (g)': [4000, 3500, 3800, 3200, 5500, 4900, 2500, 2100, 2400, 2000, 4200, 3800],
        'age': ['adult', 'adult', 'adult', 'adult', 'adult', 'adult', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile', 'juvenile']}
df = pd.DataFrame(data)

# convert juvenile mass to negative
df.loc[df.age.eq('juvenile'), 'mass (g)'] = df['mass (g)'].mul(-1)

# pivot data
df=df.pivot(columns=['age'], index=['species', 'sex'], values=['mass (g)']).reset_index()
df = df.set_index(['species', 'sex'])['mass (g)'].reset_index()

# plot
sns.set_theme(style="whitegrid")
fig, ax = plt.subplots(figsize=(10,5))
sns.barplot(data=df, x='adult', y='species', hue='sex', ci=False, orient='horizontal', dodge=True)
sns.barplot(data=df, x='juvenile', y='species', hue='sex', ci=False, orient='horizontal', dodge=True)
