如何將兩個均值圖放在一個不同比例的平面上？

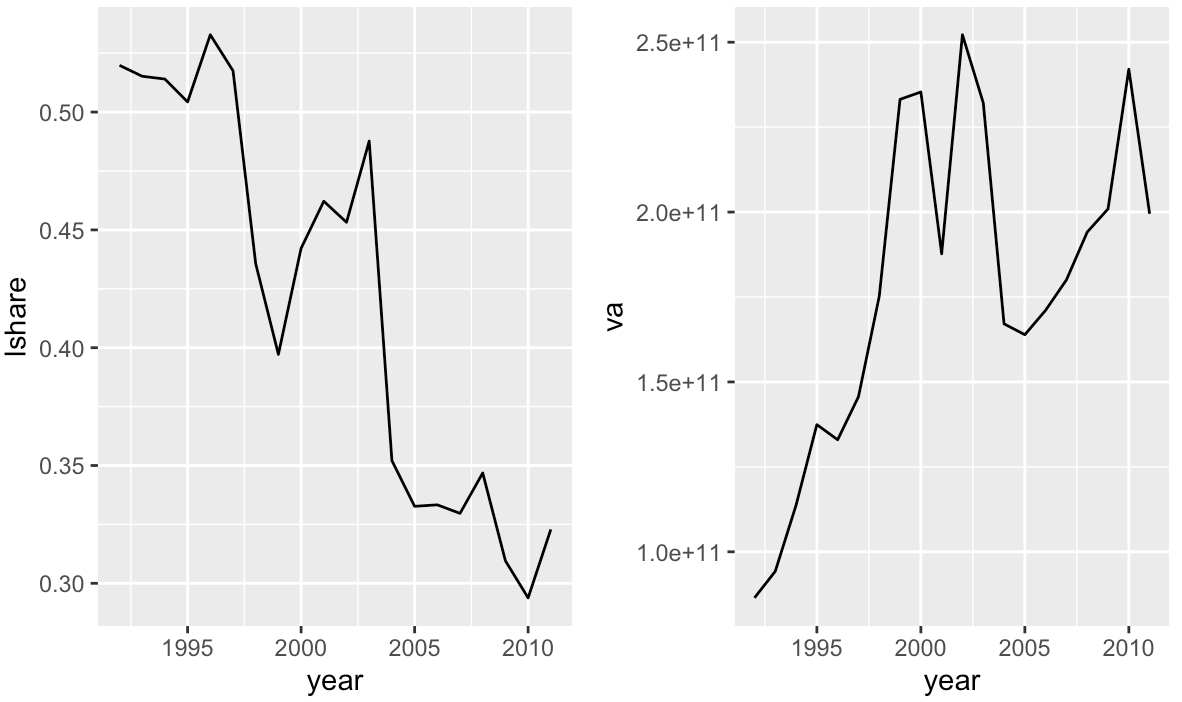

我獲得了兩個單獨的平均圖。有沒有什么簡單的方法可以將它們組合在一個平面上，用不同的線條顏色？棘手的部分是每個都有不同的比例，所以我想把一個 ( lshare) 比例放在 y 軸的左側，另一個 ( va) 放在 y 軸的右側。

p1 <- ggplot(df, aes(x = year, y = lshare))   stat_summary(geom = "line", fun.y = mean)

p2 <- ggplot(df, aes(x = year, y = va))   stat_summary(geom = "line", fun.y = mean)

grid.arrange(p1, p2, ncol = 2)

uj5u.com熱心網友回復：

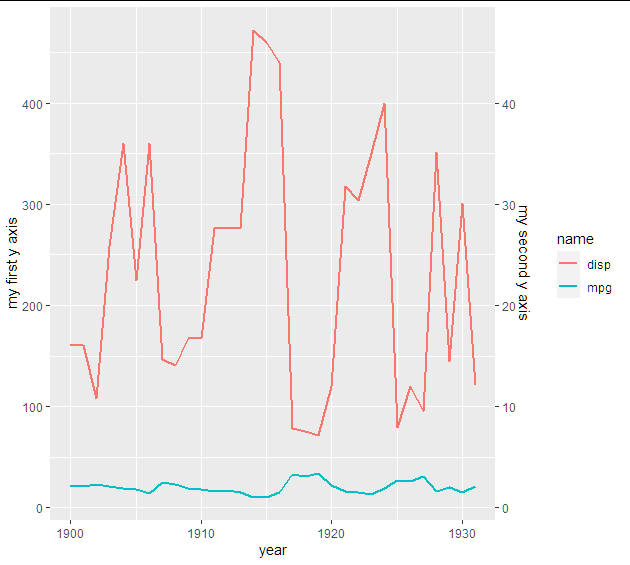

更新2：結合所有：

library(tidyverse)
mtcars %>%
  select(mpg, disp) %>%
  mutate(year = 1900:1931) %>%
  pivot_longer(
    c(mpg, disp)
  ) %>%
  ggplot(aes(x=year, y=value, group=name, color=name))
  stat_summary(fun =mean, geom="line", size=1)
  scale_y_continuous(
    name = "my first y axis",
    sec.axis = sec_axis(~./10, name="my second y axis")
  )

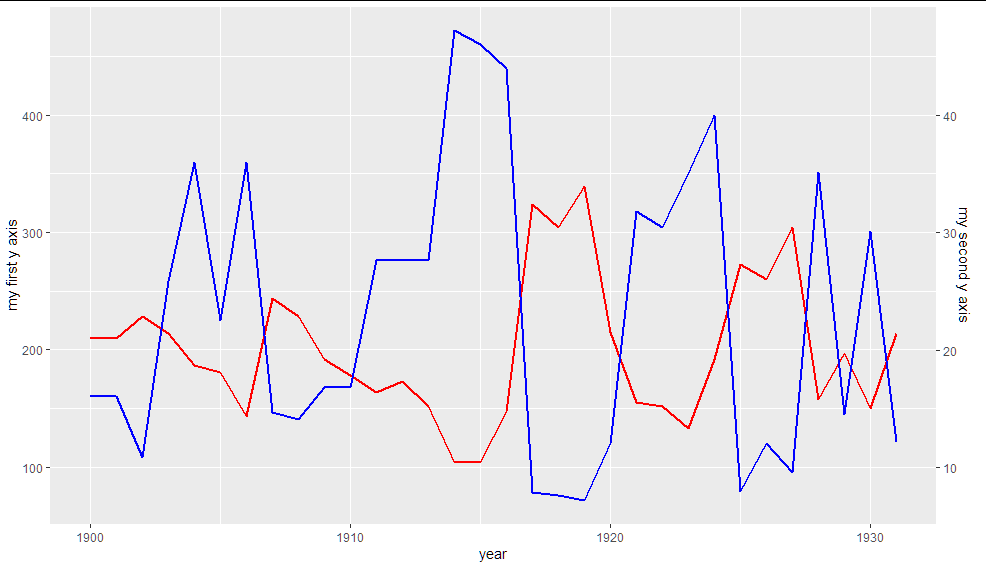

更新：如何按要求添加第二個 y 軸：

library(tidyverse)
mtcars %>%
  select(mpg, disp) %>%
  mutate(year = 1900:1931) %>%
  ggplot(aes(x=year))
  geom_line(aes(y=mpg*10), size=1, color="red")
  geom_line(aes(y=disp), size=1, color="blue")
  scale_y_continuous(
    name = "my first y axis",
    sec.axis = sec_axis(~./10, name="my second y axis")
  )

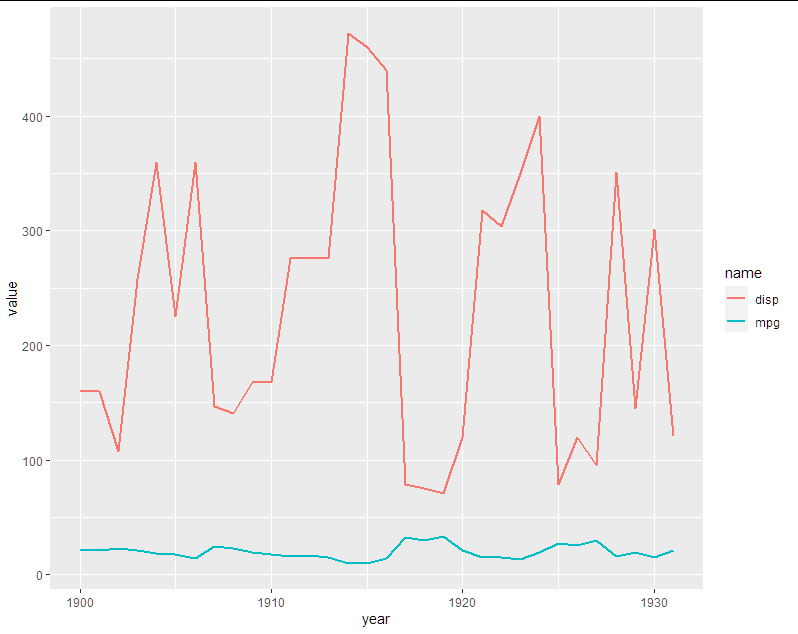

第一個答案： 這是mtcars資料集的可重現示例：

library(tidyverse)
mtcars %>%
  select(mpg, disp) %>%
  mutate(year = 1900:1931) %>%
  pivot_longer(
    c(mpg, disp)
  ) %>%
  ggplot(aes(x=year, y=value, group=name, color=name))
  stat_summary(fun =mean, geom="line", size=1)

uj5u.com熱心網友回復：

正如@jdobres 評論的那樣，您可以使用facet_wrap()，如下例所示。只需在您的data.frame.

set.seed(1)

# sample data
year <- 1:20
lshare <- 0.50 - 0.02 * year   rnorm(length(year), sd = 3)
df <- data.frame(year = c(year, year), lshare = c(lshare, lshare))
df$group <- factor(gl(2, length(year)))

# plot
ggplot(df, aes(x = year, y = lshare, colour = group))
  stat_summary(geom = "line", fun.y = mean, size = 1)
  facet_wrap(~ group)

添加

根據您在發布此答案后看到的編輯，facet_wrap()當您想要兩個不同的 y 軸時也可以使用。您只需使用sec_axis().

set.seed(1)

# sample data
year <- 1:20
lshare <- 0.50 - 0.02 * year   rnorm(length(year), sd = 3)
noise <- abs(rnorm(length(lshare), mean = 150, sd = 100))
df <- data.frame(year = c(year, year), lshare = c(lshare, lshare   noise))
df$group <- factor(gl(2, length(year)))

# set two limits
ylim_left <- with(subset(df, group == 1), c(min(lshare), max(lshare)))
ylim_right <- with(subset(df, group == 2), c(min(lshare), max(lshare)))

axis_right <- diff(ylim_left)/diff(ylim_right)
axis_left <- ylim_left[1] - axis_right * ylim_right[1]

# plot
ggplot(df, aes(x = year, y = lshare, colour = group))
  stat_summary(geom = "line", fun = mean, size = 1)
  facet_wrap(~ group)
  scale_y_continuous(sec.axis = sec_axis(~ (. - axis_left)/axis_right))

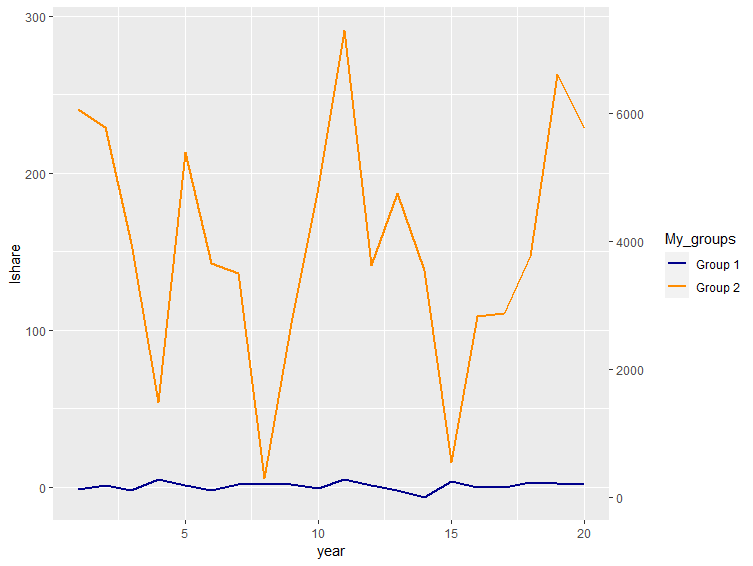

加法2

如果您想將這兩行放在同一個窗格中，您可以使用以下代碼行中的內容。請注意，我使用與第一次添加相同的資料（見上文）。

# set two limits
ylim_left <- with(subset(df, group == 1), c(min(lshare), max(lshare)))
ylim_right <- with(subset(df, group == 2), c(min(lshare), max(lshare)))

axis_right <- diff(ylim_left)/diff(ylim_right)
axis_left <- ylim_left[1] - axis_right * ylim_right[1]

# plot
ggplot(df, aes(colour = group))
  stat_summary(data = subset(df, group == 1),
               mapping = aes(x = year, y = lshare),
               geom = "line", fun = mean, size = 1)
  stat_summary(data = subset(df, group == 2),
               mapping = aes(x = year, y = lshare),
               geom = "line", fun = mean, size = 1)
  scale_y_continuous(sec.axis = sec_axis(~ (. - axis_left)/axis_right))
  scale_colour_manual(name = 'My_groups',
                      values = c('1' = "blue4", '2' = "darkorange"),
                      labels = c('Group 1', 'Group 2'))
