如何繪制多個每日時間序列，在指定的觸發時間對齊？

問題：

我有一個df看起來像這樣的資料框：

                                  value  msg_type
date
2022-03-15 08:15:10 00:00         122    None
2022-03-15 08:25:10 00:00         125    None
2022-03-15 08:30:10 00:00         126    None
2022-03-15 08:30:26.542134 00:00  127    ANNOUNCEMENT
2022-03-15 08:35:10 00:00         128    None
2022-03-15 08:40:10 00:00         122    None
2022-03-15 08:45:09 00:00         127    None
2022-03-15 08:50:09 00:00         133    None
2022-03-15 08:55:09 00:00         134    None
....
2022-03-16 09:30:09 00:00         132    None
2022-03-16 09:30:13.234425 00:00  135    ANNOUNCEMENT
2022-03-16 09:35:09 00:00         130    None
2022-03-16 09:40:09 00:00         134    None
2022-03-16 09:45:09 00:00         135    None
2022-03-16 09:50:09 00:00         134    None

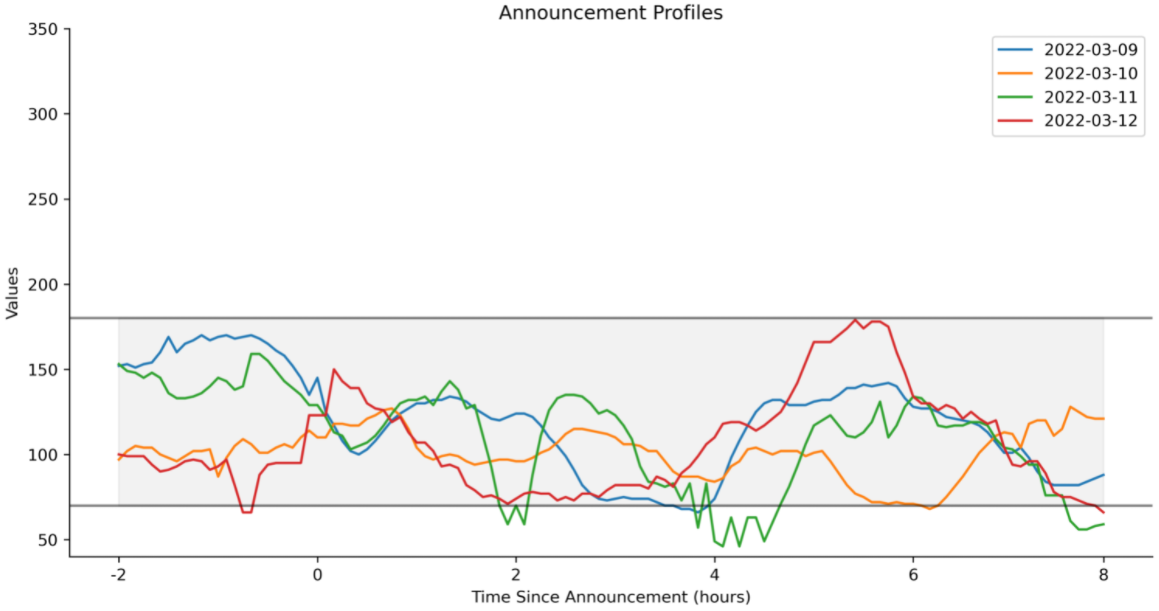

資料以大約 5 分鐘的value間隔出現，但訊息可以隨時出現。我正在嘗試values每天繪制一條線，其中 x 軸的范圍從 t=-2 小時到 t= 8 小時，并且ANNOUNCEMENT發生在 t=0（見下圖）。

因此，例如，如果ANNOUNCEMENT3/15 上午 8:30 和 3/16 上午 9:30 再次發生，則應該有兩行：

• 3/15 的一行繪制從上午 6:30 到下午 4:30 的資料，以及
• 3/16 的一行繪制從上午 7:30 到下午 5:30 的資料，

兩者共享相同的 x 軸，范圍從 -2 到 8，ANNOUNCEMENTt=0。

我試過的：

I am able to do this currently by finding the index position of an announcement (e.g. say it occurs at row 298 -> announcement_index = 298), generating an array of 120 numbers from -24 to 96 (representing 10 hours at 5 minutes per number -> x = np.arange(-24, 96, 1)), then plotting

sns.lineplot(x, y=df['value'].iloc[announcement_index-24:announcement_index 96])

While this does mostly work (see image below), I suspect it's not the correct way to go about it. Specifically, trying to add more info to the plot (like a different set of 'value' markers) at specific times is difficult because I would need to convert the timestamp into this arbitrary 24-96 value range.

How can I make this same plot but by utilizing the datetime index instead? Thank you so much!

uj5u.com熱心網友回復：

假設索引已經被轉換

完整代碼：

import io
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

s = '''
date,value,msg_type
2022-03-15 08:15:10 00:00,122,None
2022-03-15 08:25:10 00:00,125,None
2022-03-15 08:30:10 00:00,126,None
2022-03-15 08:30:26.542134 00:00,127,ANNOUNCEMENT
2022-03-15 08:35:10 00:00,128,None
2022-03-15 08:40:10 00:00,122,None
2022-03-15 08:45:09 00:00,127,None
2022-03-15 08:50:09 00:00,133,None
2022-03-15 08:55:09 00:00,134,None
2022-03-16 09:30:09 00:00,132,None
2022-03-16 09:30:13.234425 00:00,135,ANNOUNCEMENT
2022-03-16 09:35:09 00:00,130,None
2022-03-16 09:40:09 00:00,134,None
2022-03-16 09:45:09 00:00,135,None
2022-03-16 09:50:09 00:00,134,None
'''
df = pd.read_csv(io.StringIO(s), index_col=0, parse_dates=['date'])

# create intervals from -1H to  2H of the index
dl, dr = -1, 2
left = df.index   pd.Timedelta(f'{dl}H')
right = df.index   pd.Timedelta(f'{dr}H')
df['interval'] = pd.arrays.IntervalArray.from_arrays(left, right)

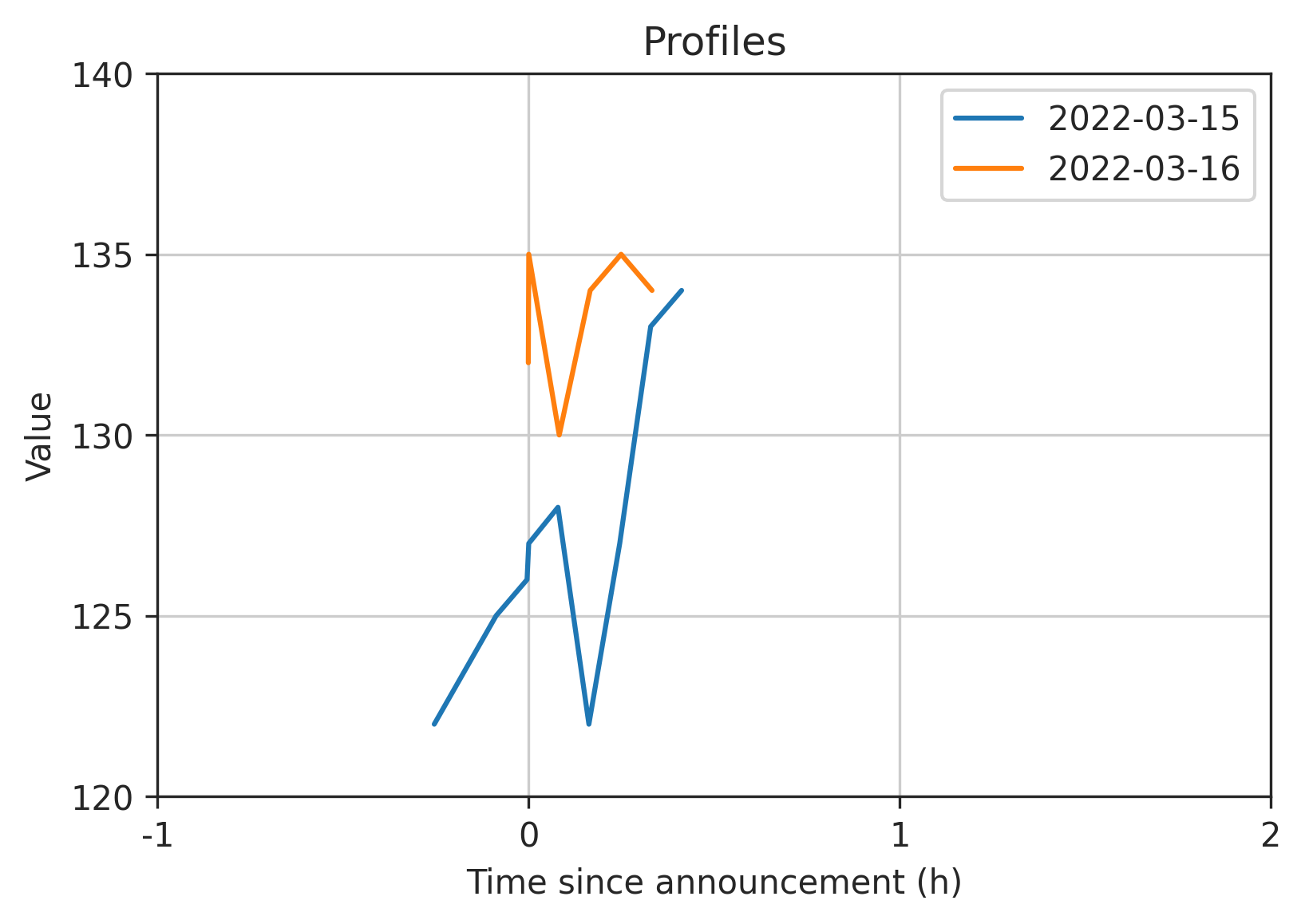

# plot each announcement's interval.left to interval.right
fig, ax = plt.subplots()
for ann in df.loc[df['msg_type'] == 'ANNOUNCEMENT')].itertuples():
    window = df.loc[ann.interval.left:ann.interval.right] # extract interval.left to interval.right
    window.index -= ann.Index                             # compute time since announcement
    window.index = window.index.total_seconds()           # convert to seconds since announcement

    window.plot(ax=ax, y='value', label=ann.Index.date())
    deltas = np.arange(dl, dr   1)
    ax.set(xticks=deltas * 3600, xticklabels=deltas)      # set tick labels to hours since announcement

ax.grid()
ax.legend()

標籤：python pandas datetime matplotlib seaborn
