將基礎R圖遷移到ggplot2

這是來自 25k 列資料集的 10 列節選：

bnc7log_t <- structure(c(3.8073549220576, 17.0416377642775, 14.1180488428888,
                         10.5507467853832, 9.01959072835788, 15.3172006034227, 0, 6.85798099512757,
                         17.3531640594242, 14.2536997813742, 1, 13.9409558756115, 13.8783383498952,
                         11.5783726913608, 6.85798099512757, 15.013933264159, 14.1180488428888,
                         16.2415363334906, 14.4605198895249, 16.2071287425943, 6.52356195605701,
                         6.85798099512757, 17.0416377642775, 12.0864679934641, 10.1786648510065,
                         14.1270270430046, 17.0416377642775, 14.2651022184843, 16.2071287425943,
                         16.2071287425943, 3.16992500144231, 0, 16.2071287425943, 1.58496250072116,
                         8.24317398347295, 16.2071287425943, 16.2071287425943, 10.8470573460913,
                         3.90689059560852, 14.4809794856131, 12.111787735801, 10.4325419003883,
                         16.2071287425943, 16.2071287425943, 6.39231742277876, 15.3172006034227,
                         5.95419631038687, 15.3426997374694, 15.8411957647929, 16.2071287425943,
                         9.18487534290828, 15.101770541626, 16.9654686605993, 10.5449644327892,
                         11.7780771295354, 10.4429434958487, 16.2071287425943, 9.63662462054365,
                         14.1249290466025, 16.4715482109991, 15.2312961941021, 16.4566110995749,
                         15.950419202689, 16.2071287425943, 1, 2.8073549220576, 5.70043971814109,
                         12.5636729598275, 3.58496250072116, 3), .Dim = c(7L, 10L), .Dimnames = list(
                           c("f1log", "f2log", "f3log", "f4log", "f5log", "f6log", "f7log"
                           ), NULL))

我正在繪制資料，base R但執行需要很長時間，可能是由于for回圈：

plot(bnc7log_t[,1],
     main = paste0("Within-turn corpus frequencies in 7-word turns\n(N = ", ncol(bnc7log_t), " turns)"),
     cex.main = 0.9, cex.axis = 0.9, cex.lab = 0.9,
     ylab = "Within-turn frequencies (log2)",
     xlab = "Turn positions",
     ylim = c(0,18),
     type = "n", col = "grey", frame = F,
     xaxt = "n")
axis(1, at = 1:7, labels = paste0("w", 1:7), cex.axis = 0.8)
grid(nx = 10)

for(i in 1:ncol(bnc7log_t)){
  lines(jitter(bnc7log_t[,i], factor = 2),
        type = "l"
        )
}

我敢肯定執行速度更快ggplot2-情節如何遷移到ggplot2？

uj5u.com熱心網友回復：

這接近你想要的嗎？

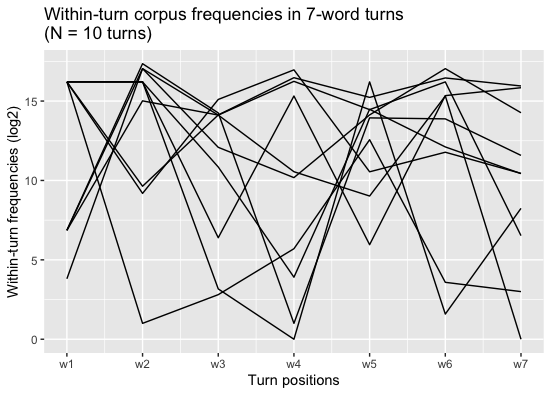

library(tidyverse)

as_tibble(bnc7log_t) %>%
  mutate(Row=1:7) %>%
  pivot_longer(
    starts_with("V"),
    values_to="Value",
    names_to="Column"
  ) %>%
  ggplot()
    geom_line(aes(x=Row, y=Value, group=Column))
    labs(
      x="Turn positions",
      y="Within-turn frequencies (log2)",
      title=paste0("Within-turn corpus frequencies in 7-word turns\n(N = ", ncol(bnc7log_t), " turns)")
    )
    scale_x_continuous(breaks=1:7, labels=paste0("w", 1:7))

uj5u.com熱心網友回復：

這里有兩個解決方案，其中一個是基本的 R 解決方案，盡管它沒有被要求。這是因為很多時候被遺忘的函式可能比問題中的回圈matplot更快地完成這項作業。for

bnc7log_t <- structure(
  c(3.8073549220576, 17.0416377642775, 14.1180488428888,
    10.5507467853832, 9.01959072835788, 15.3172006034227, 0, 6.85798099512757,
    17.3531640594242, 14.2536997813742, 1, 13.9409558756115, 13.8783383498952,
    11.5783726913608, 6.85798099512757, 15.013933264159, 14.1180488428888,
    16.2415363334906, 14.4605198895249, 16.2071287425943, 6.52356195605701,
    6.85798099512757, 17.0416377642775, 12.0864679934641, 10.1786648510065,
    14.1270270430046, 17.0416377642775, 14.2651022184843, 16.2071287425943,
    16.2071287425943, 3.16992500144231, 0, 16.2071287425943, 1.58496250072116,
    8.24317398347295, 16.2071287425943, 16.2071287425943, 10.8470573460913,
    3.90689059560852, 14.4809794856131, 12.111787735801, 10.4325419003883,
    16.2071287425943, 16.2071287425943, 6.39231742277876, 15.3172006034227,
    5.95419631038687, 15.3426997374694, 15.8411957647929, 16.2071287425943,
    9.18487534290828, 15.101770541626, 16.9654686605993, 10.5449644327892,
    11.7780771295354, 10.4429434958487, 16.2071287425943, 9.63662462054365,
    14.1249290466025, 16.4715482109991, 15.2312961941021, 16.4566110995749,
    15.950419202689, 16.2071287425943, 1, 2.8073549220576, 5.70043971814109,
    12.5636729598275, 3.58496250072116, 3),
  .Dim = c(7L, 10L),
  .Dimnames = list(
    c("f1log", "f2log", "f3log", "f4log", "f5log", "f6log", "f7log"),
    NULL))

suppressPackageStartupMessages({
  library(dplyr)
  library(tidyr)
  library(ggplot2)
})

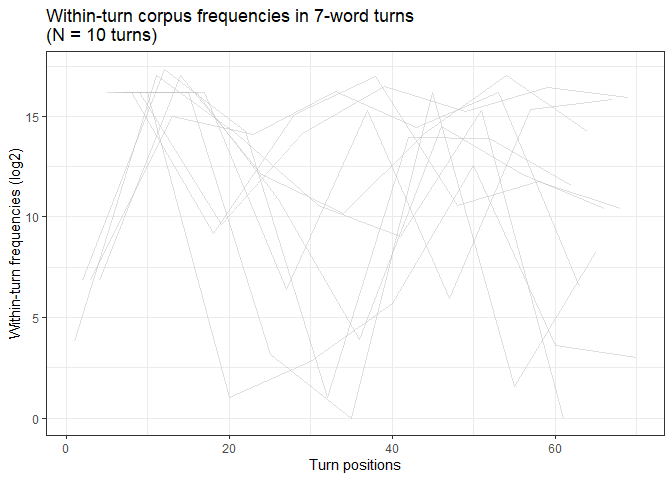

matplot(
  bnc7log_t, type = "l", lty = "solid", col = "grey",
  main = paste0("Within-turn corpus frequencies in 7-word turns\n(N = ", ncol(bnc7log_t), " turns)"),
  cex.main = 0.9, cex.axis = 0.9, cex.lab = 0.9,
  ylab = "Within-turn frequencies (log2)",
  xlab = "Turn positions"
)

bnc7log_t %>%
  as.data.frame() %>%
  pivot_longer(everything()) %>%
  tibble::rownames_to_column("x") %>%
  mutate(x = as.integer(x)) %>%
  ggplot(aes(x, value, group = name))
  geom_line(colour = "grey", alpha = 0.5)
  labs(x = "Turn positions", y = "Within-turn frequencies (log2)")
  ggtitle(paste0("Within-turn corpus frequencies in 7-word turns\n(N = ", ncol(bnc7log_t), " turns)"))
  theme_bw()

^{由reprex 包于 2022-04-25 創建(v2.0.1)}
