我有以下資料框：
plot_dat <- structure(list(Trial = c("Trial1", "Trial1", "Trial1", "Trial2",
"Trial2", "Trial2", "Trial2", "Trial2", "Trial3", "Trial3", "Trial3",
"Trial3", "Trial3", "Trial4", "Trial4", "Trial4", "Trial5", "Trial5",
"Trial5", "Trial5", "Trial6", "Trial6", "Trial6", "Trial6", "Trial6",
"Trial7", "Trial7", "Trial7", "Trial7", "Trial8", "Trial8", "Trial8",
"Trial8"), conc = structure(c(4L, 3L, 2L, 5L, 4L, 3L, 2L, 1L,
5L, 4L, 3L, 2L, 1L, 4L, 3L, 2L, 4L, 3L, 2L, 1L, 5L, 4L, 3L, 2L,
1L, 5L, 4L, 3L, 2L, 5L, 4L, 3L, 2L), .Label = c("25μg/mL", "50ug/mL",
"100μg/mL", "200μg/mL", "400μg/mL"), class = "factor"), score = c(108,
31.9, 15.1, 243, 125, 50.3, 21.3, 12, 200, 130, 73.5, 31.5, 12,
114, 48.2, 13.8, 130, 70.7, 30.7, 13.6, 260, 117, 47.3, 22.6,
12, 129, 75.8, 31.3, 11, 244, 92.6, 47, 19.5)), row.names = c(NA,
-33L), class = c("tbl_df", "tbl", "data.frame"))
它看起來像這樣：
> plot_dat
# A tibble: 33 × 3
Trial conc score
<chr> <fct> <dbl>
1 Trial1 200μg/mL 108
2 Trial1 100μg/mL 31.9
3 Trial1 50ug/mL 15.1
4 Trial2 400μg/mL 243
5 Trial2 200μg/mL 125
6 Trial2 100μg/mL 50.3
7 Trial2 50ug/mL 21.3
8 Trial2 25μg/mL 12
9 Trial3 400μg/mL 200
10 Trial3 200μg/mL 130
# … with 23 more rows
我想要做的是制作一個內部有抖動的箱形圖。抖動點應按Trial列著色。
我有這個代碼：
library(tidyverse)
plot_dat %>%
ggplot( aes(x = conc, y = score), color = Trial )
geom_boxplot(outlier.shape=NA)
geom_jitter(width = 0.01, size = 2 )
theme_bw()
xlab("")
ylab("Qubit Read (ng/uL)")

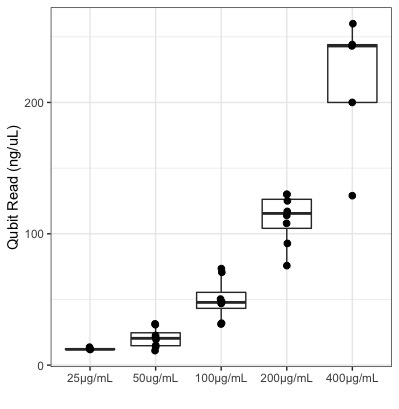

但它失敗了。它給出了這個：
正確的方法是什么？
uj5u.com熱心網友回復：
你需要在color = Trial里面aes使用geom_jitter
例子
library(tidyverse)
plot_dat %>%
ggplot(aes(x = conc, y = score))
geom_boxplot(outlier.shape=NA)
geom_jitter(aes(color = Trial))
theme_bw()
xlab("")
ylab("Qubit Read (ng/uL)")
