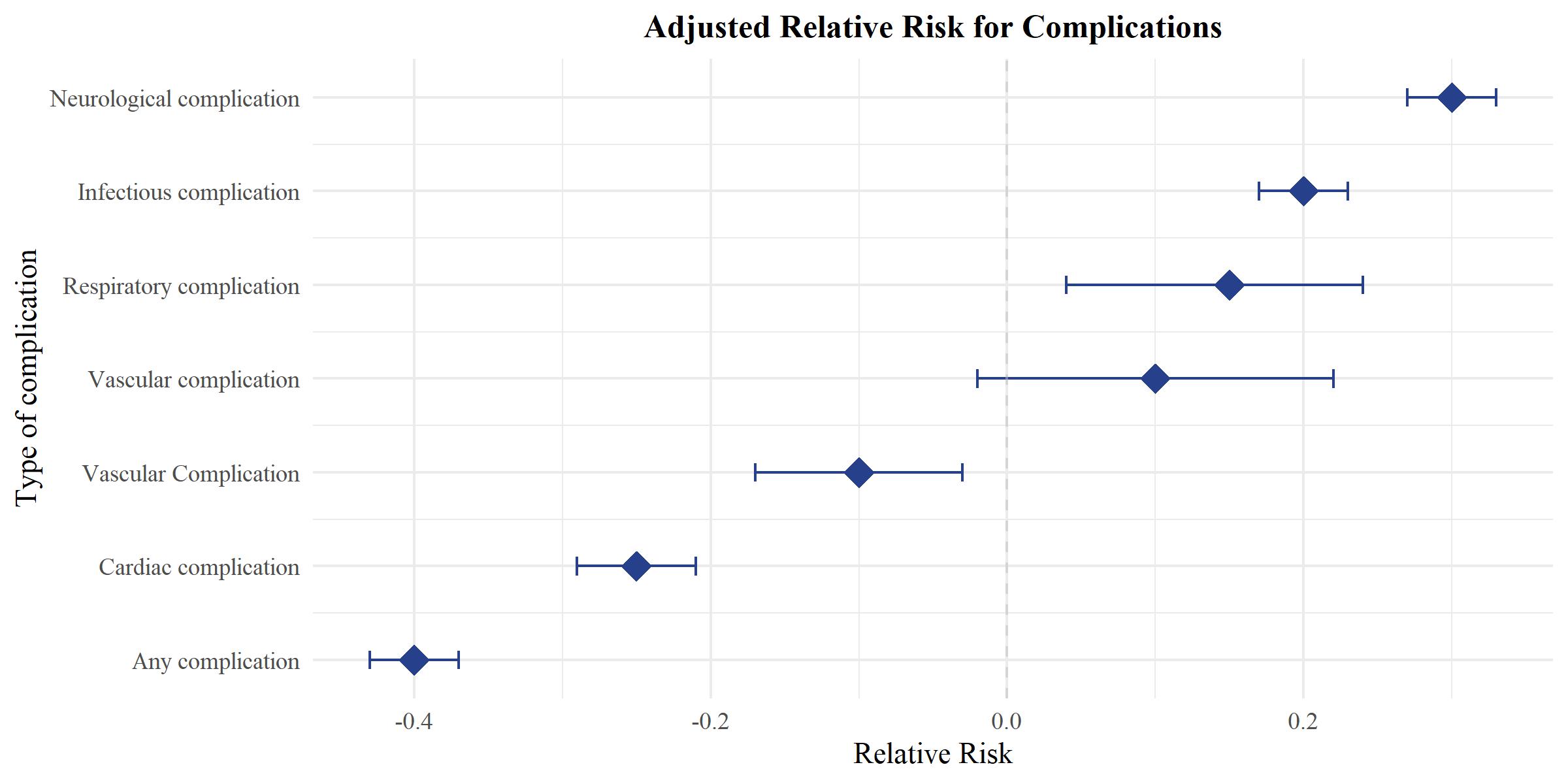

我有使用此代碼制作的圖表：

df3 <- data.frame(outcome=c("Any complication", "Cardiac complication",
                            "Vascular Complication","Vascular complication",
                            "Respiratory complication", "Infectious complication",
                            "Neurological complication"),
                 index=1:7,
                 effect=c(-.4, -.25, -.1, .1, .15, .2, .3),
                 lower=c(-.43, -.29, -.17, -.02, .04, .17, .27),
                 upper=c(-.37, -.21, -.03, .22, .24, .23, .33))

plot2 <- ggplot(data=df3, aes(y=index, x=effect, xmin=lower, xmax=upper))
  geom_point(shape="diamond", colour="royalblue4", size=5)
  geom_errorbarh(height=.2, colour="royalblue4")
  scale_y_continuous(breaks=1:nrow(df3), labels=df3$outcome)
  labs(title="Adjusted Relative Risk for Complications", x="Relative Risk", y = "Type of complication")
  geom_vline(xintercept=0, color='gray', linetype='dashed', alpha=.5)
  theme_minimal()
  plots_theme

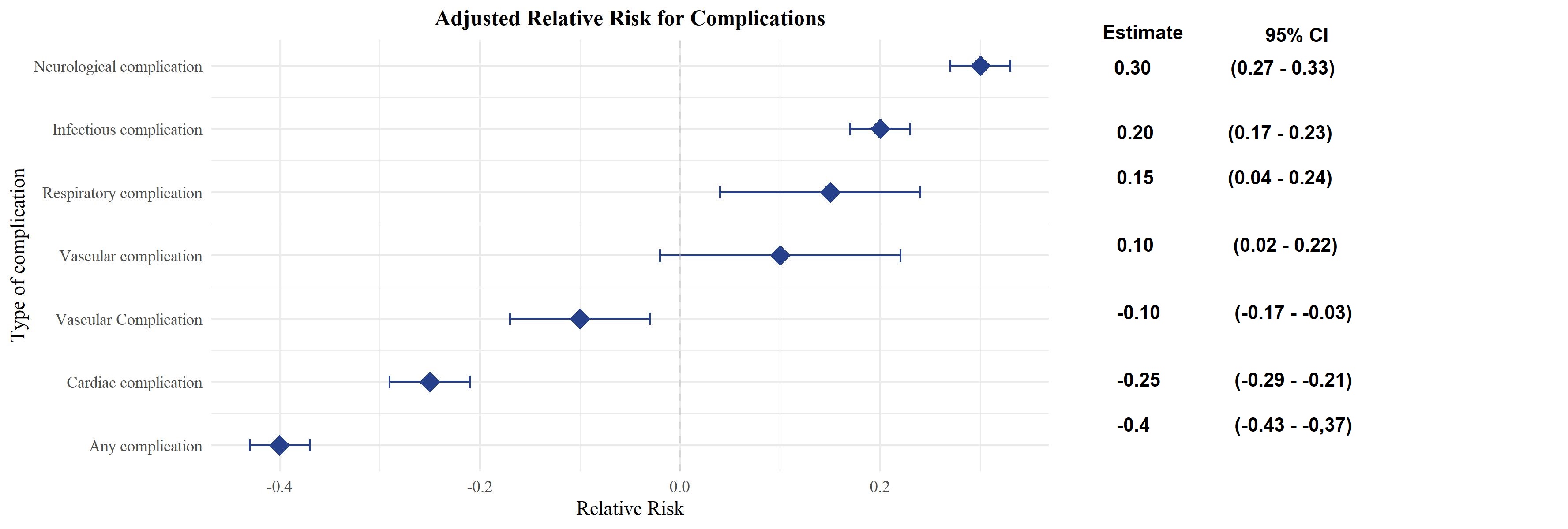

但我想在那里添加 RR、95% 置信區間和其他一些東西，如下所示：

我真的可以使用一些幫助！R在這里很新:(

uj5u.com熱心網友回復：

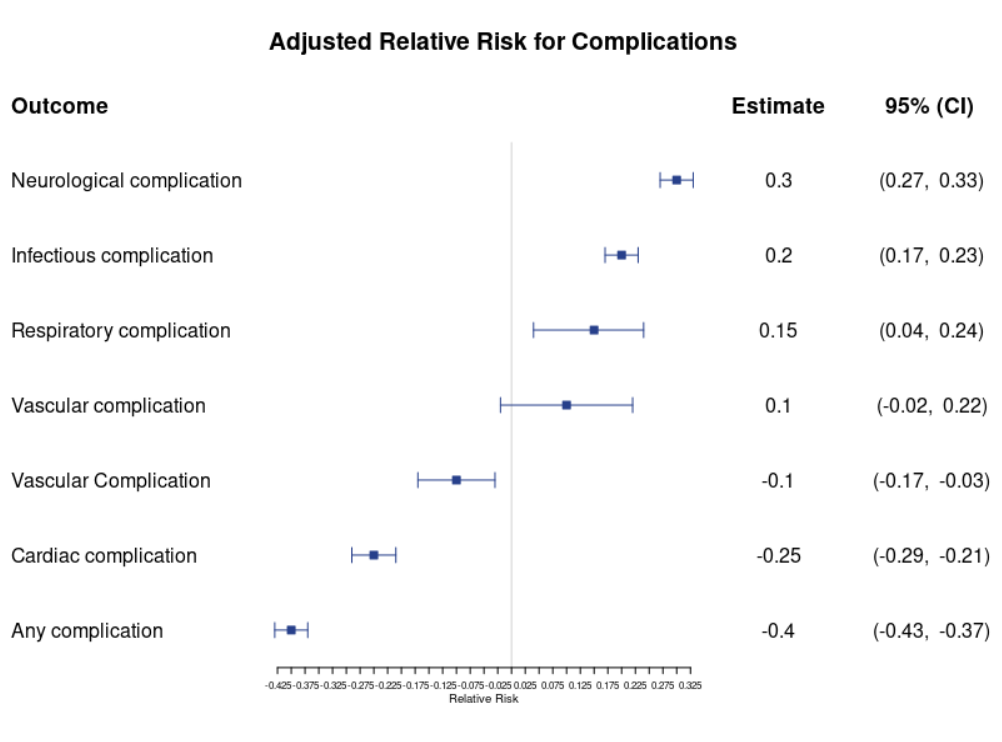

為了更容易，我會借用幾個可以制作森林圖的 R 包之一。作為快速入門，我forestplot在這里使用包作為示例：

library(tidyverse)
library(forestplot)
df3 %>%
  mutate(ci = paste0(" (", lower, ",  ", upper, ")")) %>%
  arrange(-index) %>%
  forestplot::forestplot(
    labeltext = c(outcome, effect, ci),
    mean = effect,
    low = lower,
    upper = upper,
    size = 0.1,
    graph.pos = 2,
    vertices = TRUE,
    xlab = "Relative Risk",
    title="Adjusted Relative Risk for Complications") %>%
  fp_add_header(
    outcome = c("Outcome"),
    effect = c("Estimate"),
    ci = "95% (CI)") %>%
  fp_set_style(box = "royalblue4", line = "royalblue4")

編輯

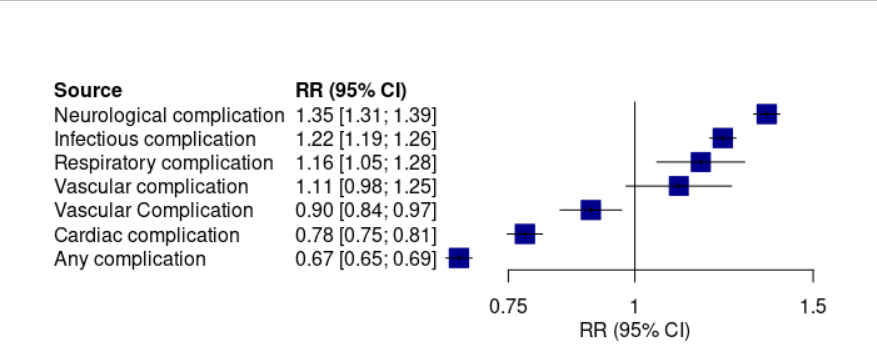

與您的問題不同，Estimate圖中顯示的值可能不是相對風險，而是回歸系數。如果您想提出相對風險，您可以利用meta套餐：

library(meta)
df3 <- df3 %>% arrange(-index)
forest_df <-metagen(lower = lower,
              upper = upper,
              TE = effect,
              data = df3,
              sm = "RR")

forest(forest_df,
       studlab = paste0(outcome),
       layout = "JAMA",
       common = FALSE,
       hetstat = FALSE,
       overall = FALSE)

使用更少的代碼和日志格式完成作業。

uj5u.com熱心網友回復：

這里有 geom_rect、geom_text 和 annotate 的一種方式。

library(ggplot2)
df3 <- data.frame(outcome=c("Any complication", "Cardiac complication",
                            "Vascular Complication","Vascular complication",
                            "Respiratory complication", "Infectious complication",
                            "Neurological complication"),
                 index=1:7,
                 effect=c(-.4, -.25, -.1, .1, .15, .2, .3),
                 lower=c(-.43, -.29, -.17, -.02, .04, .17, .27),
                 upper=c(-.37, -.21, -.03, .22, .24, .23, .33))

ggplot(data=df3, aes(y=index, x=effect, xmin=lower, xmax=upper))
  geom_point(shape="diamond", colour="royalblue4", size=5)
  geom_errorbarh(height=.2, colour="royalblue4")
  scale_y_continuous(breaks=1:nrow(df3), labels=df3$outcome)
  labs(title="Adjusted Relative Risk for Complications", x="Relative Risk", y = "Type of complication")
  geom_vline(xintercept=0, color='gray', linetype='dashed', alpha=.5)
  annotate("rect",  xmin=.5, xmax= 1, ymin=0, ymax= 8, fill = "white")
  geom_text(aes(label = paste(effect, "(", lower, ",", upper,")")) ,
            x= 0.5, hjust="left")
  scale_x_continuous(limits = c(-0.5, 1.0))
  annotate("text", label = "Estimate  - 95% CI", x = 0.5, hjust="left", y= 8)
  theme_minimal()   theme()
