之前已經以其他形式提出過類似的問題。有些可以在
要使用的一些示例資料：
library(ggplot2)
set.seed(321)
# create data
varNames <- c("x1", "x2", "x3")
df <- data.frame(
var = sample(varNames, 100, replace = T),
val = runif(100)
)
# create plot
ggplot(df, aes(x = val))
geom_density(aes(colour = var, fill = var))
facet_wrap(~var)
theme_bw()
theme(legend.position = "none")
uj5u.com熱心網友回復：
您可以使用 teunbrand 的函式，但您需要將其應用于每個方面。這里簡單地用 lapply 回圈
library(tidyverse)
library(polyclip)
#> polyclip 1.10-0 built from Clipper C version 6.4.0
## This is teunbrands function copied without any change!!
## from https://stackoverflow.com/a/64695516/7941188
fade_polygon <- function(x, y, n = 100) {
poly <- data.frame(x = x, y = y)
# Create bounding-box edges
yseq <- seq(min(poly$y), max(poly$y), length.out = n)
xlim <- range(poly$x) c(-1, 1)
# Pair y-edges
grad <- cbind(head(yseq, -1), tail(yseq, -1))
# Add vertical ID
grad <- cbind(grad, seq_len(nrow(grad)))
# Slice up the polygon
grad <- apply(grad, 1, function(range) {
# Create bounding box
bbox <- data.frame(x = c(xlim, rev(xlim)),
y = c(range[1], range[1:2], range[2]))
# Do actual slicing
slice <- polyclip::polyclip(poly, bbox)
# Format as data.frame
for (i in seq_along(slice)) {
slice[[i]] <- data.frame(
x = slice[[i]]$x,
y = slice[[i]]$y,
value = range[3],
id = c(1, rep(0, length(slice[[i]]$x) - 1))
)
}
slice <- do.call(rbind, slice)
})
# Combine slices
grad <- do.call(rbind, grad)
# Create IDs
grad$id <- cumsum(grad$id)
return(grad)
}
## now here starts the change, loop over your variables. I'm creating the data frame directly instead of keeping the density object
dens <- lapply(split(df, df$var), function(x) {
dens <- density(x$val)
data.frame(x = dens$x, y = dens$y)
}
)
## we need this one for the plot, but still need the list
dens_df <- bind_rows(dens, .id = "var")
grad <- bind_rows(lapply(dens, function(x) fade_polygon(x$x, x$y)), .id = "var")

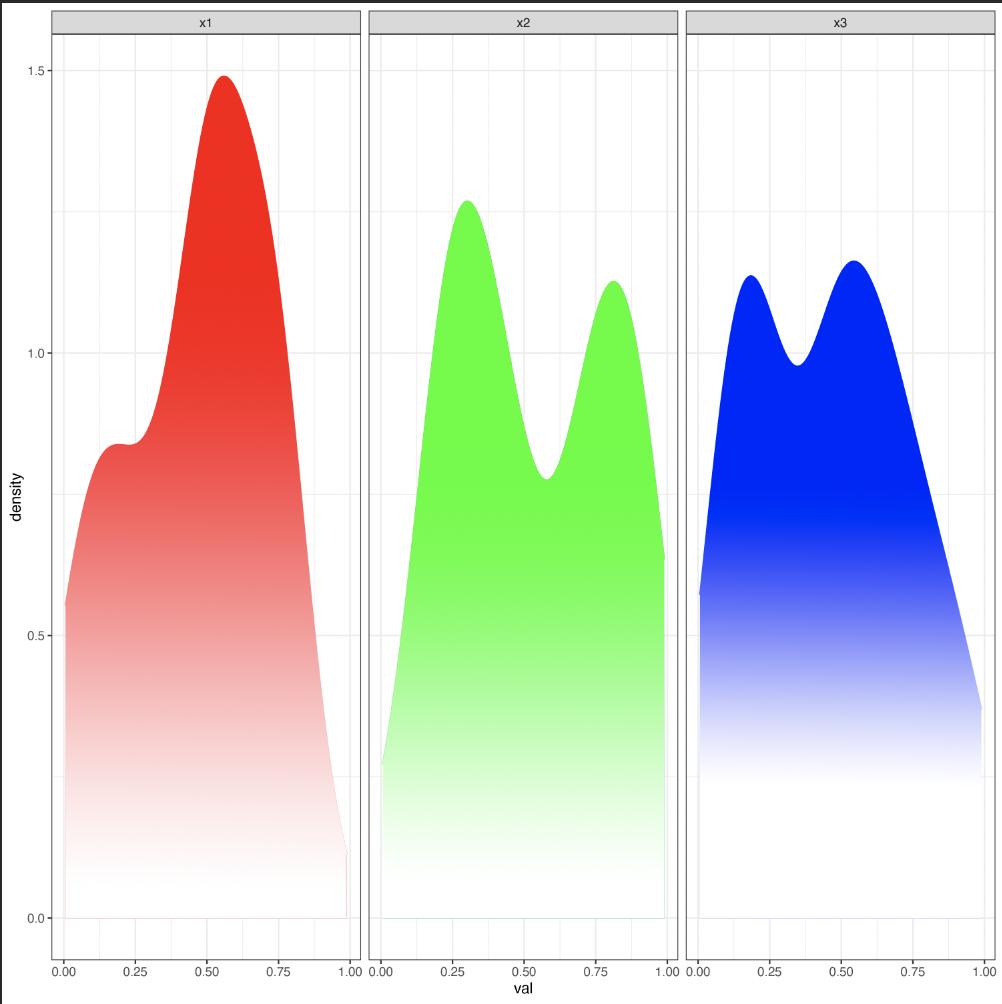

ggplot(grad, aes(x, y))
geom_line(data = dens_df)
geom_polygon(aes(alpha = value, group = id),
fill = "blue")
facet_wrap(~var)
scale_alpha_continuous(range = c(0, 1))
由reprex 包(v2.0.1)于 2021 年 12 月 5 日創建
