.net 簡單實作在H5中將word、jpg、png轉成PDF給PDF添加水印并且控制樣式和可視化編輯

2021-12-30 06:01:54 .NET開發

在寫完這三個需求之后 word轉PDF，PDF添加水印，并控制顯示的頁數，JPG轉PDF

新的需求接踵而來 將這三個功能合并 防災H5頁面上 邊學習邊記錄，后面還會整理一些做微信深度開發時所用到的一些技術

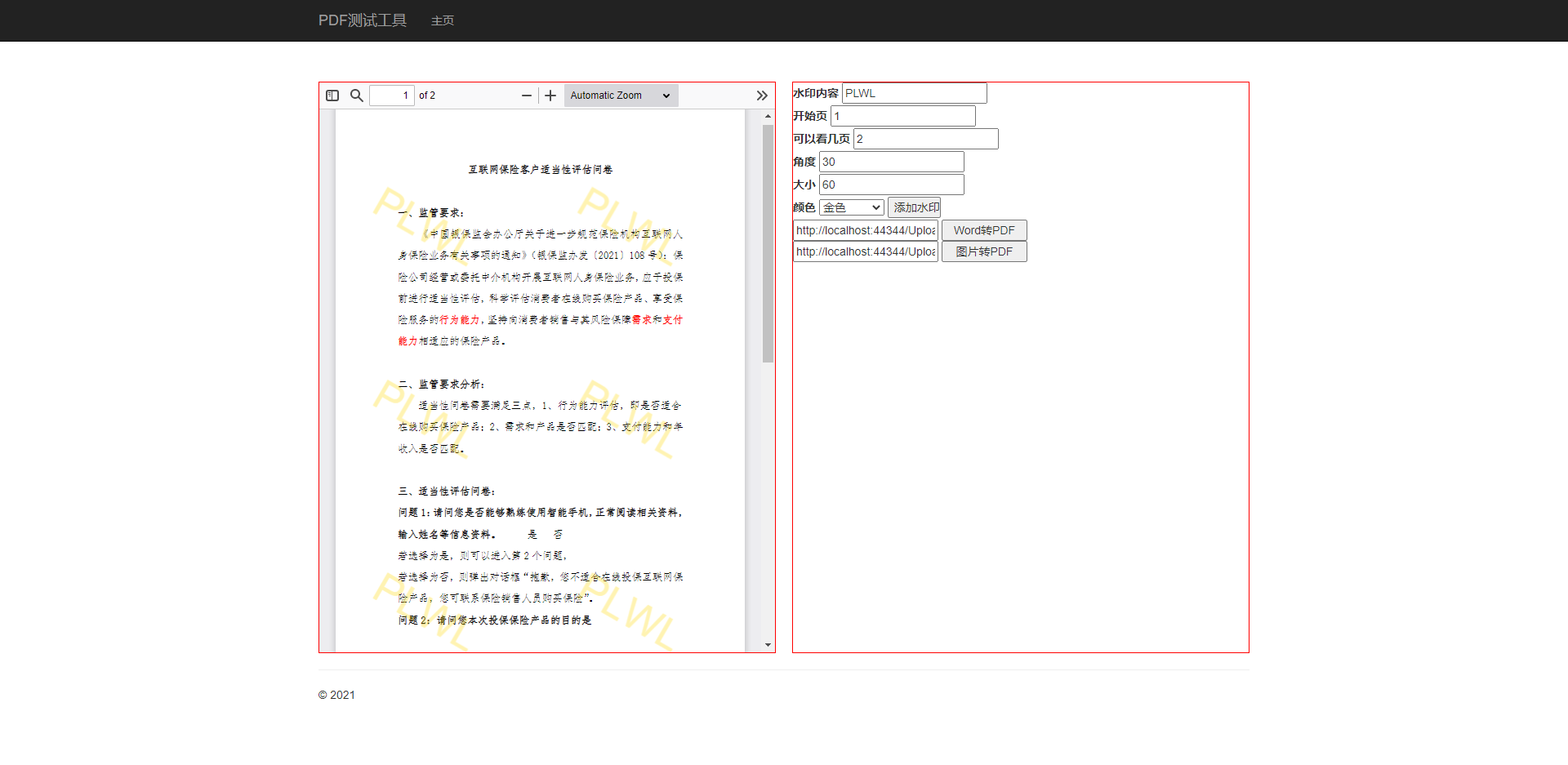

下面看實際效果



針對目前的需求只實作了這些功能 如果運用到其他專案中擴展的話會繼續更新



用到的參考



下面上代碼



前端頁面

@{
    ViewBag.Title = "Home Page";
}
<script type="text/javascript" src="~/Scripts/jquery-3.4.1.js"></script>
<script src="~/Scripts/important/jquery.scrollLoading.min.js"></script>
<script src="~/Scripts/important/fileUpload.min.js"></script>
<div style="display:flex;">
    <div id="pdfsrc" style="border:1px solid red;height:700px;width:1000px;margin-top:50px;">

        <embed src="http://localhost:44344/pdfjs/web/viewer.html?file=http://localhost:44344/aaa/aca.pdf" width="100%" height="100%"></embed>
    </div>


    <div style="border:1px solid red;height:700px;width:1000px;margin-top:50px;margin-left:20px;">
        <label>水印內容</label> <input type="text" id="mark" /><br />
        <label>開始頁</label> <input type="number" id="pageindex" /><br />
        <label>可以看幾頁</label> <input type="number" id="pagesize" /><br />
        <label>角度</label> <input type="number" id="jd" /><br />
        <label>大小</label> <input type="number" id="dx" /><br />

        <label>顏色</label>
        <select id="color">
            <option value="Blue" selected="selected">藍色</option>
            <option value="Orange">橙色</option>
            <option value="Olive">黃褐色</option>
            <option value="Navy">海軍藍</option>
            <option value="Moccasin">蛇皮色</option>
            <option value="MidnightBlue">深藍</option>
            <option value="Lime">石灰色</option>
            <option value="Maroon">紫褐色</option>
            <option value="Magenta">桃紅色</option>
            <option value="PapayaWhip">番木瓜色</option>
            <option value="SteelBlue">鋼藍色</option>
            <option value="White">白色</option>
            <option value="Yellow">黃色</option>
            <option value="Azure">蔚藍色</option>
            <option value="Black">黑色</option>
            <option value="Gold">金色</option>
            <option value="Green">綠色</option>
            <option value="Gray">灰色</option>
            <option value="Ivory">象牙色</option>

        </select>
        <input type="button" value="添加水印" id="tjsy" class="search-btn ml5" style="width:65px">

        <br />
        <input type="text" />
        <input type="file" style="display:none;" name="fileToUpload" onchange="fileSelected();" value="" id="openw" class="none" accept="application/vnd.openxmlformats-officedocument.wordprocessingml.document,application/msword" />
        <input type="button" value="Word轉PDF" id="isoks-upload" class="search-btn ml5" style="width:105px">
        <input type="hidden" id="urls" />
        <input type="hidden" id="urlsT" /><br />

        <input type="text" />
        <input type="file" style="display:none;" name="fileToUpload" onchange="fileSelectedimage();" value="" id="openimage" class="none" accept="image/png,image/jpeg" />
        <input type="button" value="圖片轉PDF" id="isoks_images" class="search-btn ml5" style="width:105px" />

    </div>
</div>

<script>

    $(function () {
        isoks_upload();
        isoks_images();
        $("#tjsy").click(function () {
            var url = $("#urls").val();
            var mark = $("#mark").val();
            if (mark == "" || url == "") {
                alert("請上傳檔案或填寫水印內容");
                return false;
            }
            var pageIndex = $("#pageindex").val();
            var pageSize = $("#pagesize").val();
            var color = $("#color").val();
            var jd = $("#jd").val();
            var dx = $("#dx").val();

            $.post("/Home/PDFAddMark", { url, mark, pageIndex, pageSize, color,jd,dx }, function (msg) {
                if (msg.State) {
                    $("#pdfsrc").html("");
                    $("#pdfsrc").html("  <embed src='http://localhost:44344/pdfjs/web/viewer.html?file=" + msg.Msg + "' width='100%' height='100%'></embed>");
                    $("#urlsT").val(msg.Msg);
                }
                else {
                    alert("失敗");
                    return false;
                }
            });
        })
    });

    /**
 * 一鍵上傳
 */

    function fileSelected() {

        var file = $this[0].files[0];
        if (file) {
            var fileSize = 0;
            if (file.size > 1024 * 1024)
                fileSize = (Math.round(file.size * 100 / (1024 * 1024)) / 100).toString() + 'MB';
            else
                fileSize = (Math.round(file.size * 100 / 1024) / 100).toString() + 'KB';
        }
        uploadFile(file);
    }

    function uploadFile(file) {
        var pageindex = $("#pageindex").val();
        var pagesize = $("#pagesize").val();

        var fd = new FormData();
        fd.append($this.attr('name'), file);
        file_uploadFileParam(fd, $this.attr('name'), "/Home/fileToUpload?pageIndex=" + pageindex + "&pageSize=" + pagesize, null, uploadComplete, uploadFailed, uploadCanceled)
    }


    function uploadComplete(evt) {
        var msg = evt.target.responseText;
        console.log(msg);
        msg = $.parseJSON(msg);

        if (msg.State) {
            $this.prev().val(msg.Msg);
            console.log(msg.Msg);
            $("#pdfsrc").html("");
            $("#pdfsrc").html("  <embed src='http://localhost:44344/pdfjs/web/viewer.html?file=" + msg.Msg + "' width='100%' height='100%'></embed>");
            $("#urls").val(msg.Msg);
            alert("成功");
            //$this.prev().prev().attr("src", msg.Msg);
        } else {
            //$.alertboxsml(msg.Msg);
            //window.location.href = "https://www.cnblogs.com/product/index";
            alert("失敗");
        }
    }

    function uploadFailed(evt) {
        $.alertboxsml("上傳失敗！");
    }

    function uploadCanceled(evt) {
        $.alertboxsml("上傳中斷！");
    }
    //一鍵上傳
    function isoks_upload() {

        $("#isoks-upload").click(function () {
            $this = $("#openw");
            $this.click();
        })
    }


    //一鍵上傳
    function isoks_images() {
        $("#isoks_images").click(function () {
            $this = $("#openimage");
            $this.click();
        })
    }

    function fileSelectedimage() {

        var file = $this[0].files[0];
        if (file) {
            var fileSize = 0;
            if (file.size > 1024 * 1024)
                fileSize = (Math.round(file.size * 100 / (1024 * 1024)) / 100).toString() + 'MB';
            else
                fileSize = (Math.round(file.size * 100 / 1024) / 100).toString() + 'KB';
        }
        uploadFileimage(file);
    }

    function uploadFileimage(file) {
        var pageindex = $("#pageindex").val();
        var pagesize = $("#pagesize").val();

        var fd = new FormData();
        fd.append($this.attr('name'), file);
        file_uploadFileParam(fd, $this.attr('name'), "/Home/ImageToPdf", null, uploadCompleteimg, uploadFailedimg, uploadCanceledimg)
    }

    function uploadCompleteimg(evt) {
        var msg = evt.target.responseText;
        console.log(msg);
        msg = $.parseJSON(msg);

        if (msg.State) {
            $this.prev().val(msg.Msg);
            console.log(msg.Msg);
            $("#pdfsrc").html("");
            $("#pdfsrc").html("  <embed src='http://localhost:44344/pdfjs/web/viewer.html?file=" + msg.Msg + "' width='100%' height='100%'></embed>");
            $("#urls").val(msg.Msg);
            alert("成功");
            //$this.prev().prev().attr("src", msg.Msg);
        } else {
            //$.alertboxsml(msg.Msg);
            //window.location.href = "https://www.cnblogs.com/product/index";
            alert("失敗");
        }
    }

    function uploadFailedimg(evt) {
        $.alertboxsml("上傳失敗！");
    }

    function uploadCanceledimg(evt) {
        $.alertboxsml("上傳中斷！");
    }

</script>



Controller里面的代碼

using System;
using System.Collections.Generic;
using System.Configuration;
using System.IO;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using KSir;
namespace PDFTest.Controllers
{
    public class HomeController : Controller
    {
        public ActionResult Index()
        {
            return View();
        }

        /// <summary>
        /// 將word轉為pdf
        /// </summary>
        /// <param name="pageIndex">開始頁</param>
        /// <param name="pageSize">可以看幾頁</param>
        /// <param name="fileToUpload">word檔案</param>
        /// <returns></returns>
        public ActionResult fileToUpload(string pageIndex, string pageSize, HttpPostedFileBase fileToUpload)
        {
            try
            {
                if (fileToUpload == null) return Json_IsoksError("系統錯誤！");
                var t = KsirUpload.Isoks_UploadFile(fileToUpload, "PDF");
                if (string.IsNullOrWhiteSpace(t))
                {
                    return Json_IsoksError("哎呀，出錯了");
                }
                var suffix = Path.GetExtension(fileToUpload.FileName);
                var pd = PDFInfo.WordToPDFWithOffice(t, t.Replace(suffix, ".pdf"), pageIndex, pageSize);
                //var url = System.Web.Configuration.WebConfigurationManager.ConnectionStrings["ImgPath"].ToString();
                var url = ConfigurationManager.AppSettings["ImgPath"];
                string path = url + "/UploadFiles/AnotherFile/PDF/" + Path.GetFileName(t).Replace(suffix, ".pdf");
                return Json_IsoksSuccess(path);
            }
            catch (Exception ex)
            {
                return Json_IsoksError("哎呀，出錯了");
            }
        }

        /// <summary>
        /// 給PDF添加水印
        /// </summary>
        /// <param name="url">PDF本地地址</param>
        /// <param name="mark">水印內容</param>
        /// <param name="pageIndex">開始頁</param>
        /// <param name="pageSize">可以看幾頁</param>
        /// <param name="color">水印顏色</param>
        /// <param name="jd">水印角度</param>
        /// <param name="dx">水印大小</param>
        /// <returns></returns>
        public ActionResult PDFAddMark(string url, string mark, string pageIndex, string pageSize, string color, float jd = -45, float dx = 24)
        {
            string str = System.AppDomain.CurrentDomain.BaseDirectory + url.Replace(ConfigurationManager.AppSettings["ImgPath"], "");
            //string strPhycicsPath = Server.MapPath(url);
            var suffix = Path.GetFileName(str).Replace(".pdf", "") + "1.pdf";

            var marks = KSir.PDFInfo.PDFAddMark(str, str.Replace(Path.GetFileName(str), suffix), mark, pageIndex, pageSize, color, jd,dx);
            if (marks)
            {
                return Json_IsoksSuccess(url.Replace(Path.GetFileName(str), suffix));
            }
            else
            {
                return Json_IsoksError("失敗");
            }
        }

        /// <summary>
        /// 圖片轉PDF
        /// </summary>
        /// <param name="fileToUpload"></param>
        /// <returns></returns>
        public ActionResult ImageToPdf(HttpPostedFileBase fileToUpload)
        {
            try
            {
                if (fileToUpload == null) return Json_IsoksError("系統錯誤！");
                var t = KsirUpload.Isoks_UploadFile(fileToUpload, "PDF");
                if (string.IsNullOrWhiteSpace(t))
                {
                    return Json_IsoksError("哎呀，出錯了");
                }
                var suffix = Path.GetExtension(fileToUpload.FileName);
                var pd = PDFInfo.ConvertJPG2PDF(t, t.Replace(suffix, ".pdf"));
                //var url = System.Web.Configuration.WebConfigurationManager.ConnectionStrings["ImgPath"].ToString();
                var url = ConfigurationManager.AppSettings["ImgPath"];
                string path = url + "/UploadFiles/AnotherFile/PDF/" + Path.GetFileName(t).Replace(suffix, ".pdf");
                return Json_IsoksSuccess(path);
            }
            catch (Exception ex)
            {
                return Json_IsoksError("哎呀，出錯了");
            }
        }


        public bool IsoksIsNullOrWhiteSpace(params string[] value)
        {
            for (int i = 0; i < value.Length; i++)
            {
                if (string.IsNullOrWhiteSpace(value[i])) return false;
            }
            return true;
        }

        #region isoks-json

        /// <summary>
        /// Json-Success
        /// Author:
        /// Return:[{State:true,Msg=Msg}]
        /// </summary>
        /// <param name="c"></param>
        /// <param name="Msg"></param>
        /// <returns></returns>
        public ActionResult Json_IsoksSuccess(object Msg, JsonRequestBehavior GetOrPost = JsonRequestBehavior.DenyGet)
        {
            return Json(new { State = true, Msg = Msg }, GetOrPost);
        }

        /// <summary>
        /// Json-Error
        /// Author:
        /// Return:[{State:true,Msg=Msg}]
        /// </summary>
        /// <param name="c"></param>
        /// <param name="Msg"></param>
        /// <returns></returns>
        public ActionResult Json_IsoksError(object Msg, JsonRequestBehavior GetOrPost = JsonRequestBehavior.DenyGet)
        {
            return Json(new { State = false, Msg = Msg }, GetOrPost);
        }

        public static class Isok
        {
            /// <summary>
            /// json-get
            /// </summary>
            public const JsonRequestBehavior Get = JsonRequestBehavior.AllowGet;
        }
        #endregion

    }
}



KsirUpload.cs 代碼

using System;
using System.Configuration;
using System.IO;
using System.Threading.Tasks;
using System.Web;

namespace KSir
{
    public static class KsirUpload
    {
        public static string Isoks_UploadImg(HttpPostedFileBase fileToUpload, string pathUri)
        {
            try
            {
                if (fileToUpload == null) return string.Empty;
                //獲取檔案后綴
                var suffix = Path.GetExtension(fileToUpload.FileName);
                if (string.IsNullOrWhiteSpace(suffix)) return string.Empty;
                if (suffix.ToLower() != ".jpg" && suffix.ToLower() != ".png" && suffix.ToLower() != ".gif" && suffix.ToLower() != ".bmp" && suffix.ToLower() != ".mp4" && suffix.ToLower() != ".avi") return string.Empty;
                var stream = fileToUpload.InputStream;
                Random r = new Random();
                var fileName = DateTime.Now.ToString("yyyyMMddHHmmssffff") + r.Next(9) + r.Next(9) + r.Next(9) + r.Next(9);
                string directory = HttpContext.Current.Server.MapPath("/UploadFiles/" + pathUri + "/");
                //判斷目錄是否存在
                if (!Directory.Exists(directory))
                {
                    Directory.CreateDirectory(directory);
                }
                var url = System.Web.Configuration.WebConfigurationManager.ConnectionStrings["ImgPath"].ToString();
                string path = url + "/UploadFiles/" + pathUri + "/" + fileName + suffix;
                var _path = directory + fileName + suffix;
                fileToUpload.SaveAs(_path);
                return path;
            }
            catch (Exception ex)
            {
                return string.Empty;
            }
        }

        public static string Isoks_UploadFile(HttpPostedFileBase fileToUpload, string pathUri)
        {
            try
            {
                if (fileToUpload == null) return string.Empty;
                //獲取檔案后綴
                var suffix = Path.GetExtension(fileToUpload.FileName);
                if (string.IsNullOrWhiteSpace(suffix)) return string.Empty;
                var stream = fileToUpload.InputStream;
                Random r = new Random();
                var fileName = DateTime.Now.ToString("yyyyMMddHHmmssffff") + r.Next(9) + r.Next(9) + r.Next(9) + r.Next(9);
                string directory = HttpContext.Current.Server.MapPath("/UploadFiles/AnotherFile/" + pathUri + "/");
                //判斷目錄是否存在
                if (!Directory.Exists(directory))
                {
                    Directory.CreateDirectory(directory);
                }
                string url = ConfigurationManager.AppSettings["ImgPath"];
                //var url = System.Web.Configuration.WebConfigurationManager.ConnectionStrings["ImgPath"].ToString();
                string path = url + "/UploadFiles/AnotherFile/" + pathUri + "/" + fileName + suffix;
                var _path = directory + fileName + suffix;
                fileToUpload.SaveAs(_path);
                return _path;
            }
            catch (Exception ex)
            {
                return string.Empty;
            }
        }

        public static string Isoks_UploadExcel(HttpPostedFileBase fileToUpload, string pathUri)
        {
            try
            {
                if (fileToUpload == null) return string.Empty;
                //獲取檔案后綴
                var suffix = Path.GetExtension(fileToUpload.FileName);
                if (string.IsNullOrWhiteSpace(suffix)) return string.Empty;
                var stream = fileToUpload.InputStream;
                Random r = new Random();
                var fileName = DateTime.Now.ToString("yyyyMMddHHmmssffff") + r.Next(9) + r.Next(9) + r.Next(9) + r.Next(9);
                string directory = HttpContext.Current.Server.MapPath("/UploadFiles/AnotherFile/" + pathUri + "/");

                //判斷目錄是否存在
                if (!Directory.Exists(directory))
                {
                    Directory.CreateDirectory(directory);
                }
                string path = "/UploadFiles/AnotherFile/" + pathUri + "/" + fileName + suffix;
                var _path = directory + fileName + suffix;
                fileToUpload.SaveAs(_path);
                return _path;
            }
            catch (Exception ex)
            {
                return string.Empty;
            }
        }

        public static byte[] StreamToBytes(Stream stream)
        {
            byte[] buffer = new byte[stream.Length];
            stream.Read(buffer, 0, buffer.Length);
            stream.Seek(0, SeekOrigin.Begin);
            return buffer;
        }


    }
}



PDFInfo.cs 代碼

using iTextSharp.text.pdf;
using Microsoft.Office.Interop.Word;
using Spire.Pdf;
using Spire.Pdf.Graphics;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Imaging;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Web;

namespace KSir
{
    public static class PDFInfo
    {
        /// <summary>
        /// 將word轉成PDF office
        /// </summary>
        /// <param name="sourcePath"></param>
        /// <param name="targetPath"></param>
        /// <returns></returns>
        public static bool WordToPDFWithOffice(string sourcePath, string targetPath, string fromPage, string toPage)
        {
            bool result = false;
            Microsoft.Office.Interop.Word.Application application = new Microsoft.Office.Interop.Word.Application();
            Document document = null;
            try
            {
                application.Visible = false;
                document = application.Documents.Open(sourcePath);
                /*
                 引數參考 https://docs.microsoft.com/zh-cn/office/vba/api/visio.document.exportasfixedformat
                 */
                int pageindex = 1;
                object Nothing = Missing.Value;
                if (!string.IsNullOrEmpty(fromPage))
                {
                    pageindex = int.Parse(fromPage);
                }
                int pagesize = document.ComputeStatistics(WdStatistic.wdStatisticPages, ref Nothing);
                if (!string.IsNullOrEmpty(toPage))
                {
                    pagesize = int.Parse(toPage);
                }

                document.ExportAsFixedFormat(targetPath, WdExportFormat.wdExportFormatPDF, false, WdExportOptimizeFor.wdExportOptimizeForPrint, WdExportRange.wdExportFromTo, pageindex, pagesize);
                result = true;
            }
            catch (Exception e)
            {
                //Console.WriteLine(e.Message);
                result = false;
            }
            finally
            {
                document.Close();
            }
            return result;
        }

        /// <summary>
        /// 給PDF檔案添加水印
        /// </summary>
        /// <param name="pdfPath">需要添加水印的pdf檔案路徑</param>
        /// <param name="targetPath">添加成功之后的檔案路徑和檔案名</param>
        /// <param name="marks">水印內容</param>
        /// <param name="fromPage">可以從第幾頁開始看</param>
        /// <param name="toPage">可以看多少頁</param>
        /// <returns></returns>
        public static bool PDFAddMark(string pdfPath, string targetPath, string marks, string pageindex, string pagesize, string color, float jd = -45, float dx = 24)
        {
            bool result = false;
            try
            {




                //創建一個新的PDF實體，然后匯入PDF檔案，
                Spire.Pdf.PdfDocument pdf = new Spire.Pdf.PdfDocument();
                pdf.LoadFromFile(pdfPath);

                //這里是因為Spire的版本問題 第一頁會被添加水印
                PdfPageBase pb = pdf.Pages.Add(); //新增一頁
                pdf.Pages.Remove(pb); //去除第一頁水印

                var a = pdf.Pages.Count;

                int fromPage = 1;
                if (!string.IsNullOrEmpty(pageindex))
                {
                    fromPage = int.Parse(pageindex);
                }
                int toPage = a;
                if (!string.IsNullOrEmpty(pagesize))
                {
                    toPage = int.Parse(pagesize);
                }
                if (fromPage > a)
                {
                    fromPage = 1;
                }

                if (fromPage > 1 && toPage < a)
                {
                    for (int i = 0; i < (a - toPage); i++)
                    {
                        pdf.Pages.Remove(pdf.Pages[pdf.Pages.Count - 1]); //去掉后面的頁數
                    }

                    for (int i = 1; i < fromPage; i++)
                    {
                        pdf.Pages.Remove(pdf.Pages[0]); //去掉前面的頁數
                    }
                }
                else if (fromPage > 1)
                {
                    for (int i = 1; i < fromPage; i++)
                    {
                        pdf.Pages.Remove(pdf.Pages[0]); //去掉前面的頁數
                    }
                }
                else if (toPage < a)
                {
                    for (int i = 0; i < (a - toPage); i++)
                    {
                        pdf.Pages.Remove(pdf.Pages[pdf.Pages.Count - 1]); //去掉后面的頁數
                    }

                }

                var col = PdfBrushes.Blue;

                if (color == "Orange")
                {
                    col = PdfBrushes.Orange;
                }
                else if (color == "Olive")
                {
                    col = PdfBrushes.Olive;
                }
                else if (color == "Navy")
                {
                    col = PdfBrushes.Navy;
                }
                else if (color == "Moccasin")
                {
                    col = PdfBrushes.Moccasin;
                }
                else if (color == "MidnightBlue")
                {
                    col = PdfBrushes.MidnightBlue;
                }
                else if (color == "Lime")
                {
                    col = PdfBrushes.Lime;
                }
                else if (color == "Maroon")
                {
                    col = PdfBrushes.Maroon;
                }
                else if (color == "Magenta")
                {
                    col = PdfBrushes.Magenta;
                }
                else if (color == "PapayaWhip")
                {
                    col = PdfBrushes.PapayaWhip;
                }
                else if (color == "SteelBlue")
                {
                    col = PdfBrushes.SteelBlue;
                }
                else if (color == "White")
                {
                    col = PdfBrushes.White;
                }
                else if (color == "Yellow")
                {
                    col = PdfBrushes.Yellow;
                }
                else if (color == "Azure")
                {
                    col = PdfBrushes.Azure;
                }
                else if (color == "Black")
                {
                    col = PdfBrushes.Black;
                }
                else if (color == "Gold")
                {
                    col = PdfBrushes.Gold;
                }
                else if (color == "Green")
                {
                    col = PdfBrushes.Green;
                }
                else if (color == "Gray")
                {
                    col = PdfBrushes.Gray;
                }
                else if (color == "Ivory")
                {
                    col = PdfBrushes.Ivory;
                }
                else
                {
                    col = PdfBrushes.Blue;
                }


                PdfPageBase page = null;
                if (pdf.Pages.Count > 0)
                {
                    for (int i = 0; i < pdf.Pages.Count; i++)
                    {
                        page = pdf.Pages[i];
                        PdfTilingBrush brush = new PdfTilingBrush(new SizeF(page.Canvas.ClientSize.Width / 2, page.Canvas.ClientSize.Height / 3));
                        brush.Graphics.SetTransparency(0.3f);//設定透明度
                        brush.Graphics.Save();
                        brush.Graphics.TranslateTransform(brush.Size.Width / 2, brush.Size.Height / 2);//設定平移變換
                        brush.Graphics.RotateTransform(jd);//設定角度
                        brush.Graphics.DrawString(marks, new Spire.Pdf.Graphics.PdfFont(PdfFontFamily.Helvetica, dx), col, 0, 0, new PdfStringFormat(PdfTextAlignment.Center));
                        brush.Graphics.Restore();
                        brush.Graphics.SetTransparency(1);//設定透明度
                        page.Canvas.DrawRectangle(brush, new RectangleF(new PointF(0, 0), page.Canvas.ClientSize));
                    }
                    pdf.SaveToFile(targetPath);
                    return true;
                }
                return result;
            }
            catch (Exception ex)
            {
                return false;
            }
        }

        #region 圖片轉PDF

        /// <summary>
        /// 圖片轉PDF
        /// </summary>
        /// <param name="jpgfile">圖片本地地址</param>
        /// <param name="pdf">生成的檔案路徑和檔案名</param>
        /// <returns></returns>
        public static bool ConvertJPG2PDF(string jpgfile, string pdf)
        {
            var document = new iTextSharp.text.Document(iTextSharp.text.PageSize.A4, 25, 25, 25, 25);
            using (var stream = new FileStream(pdf, FileMode.Create, FileAccess.Write, FileShare.None))
            {
                try
                {
                    iTextSharp.text.pdf.PdfWriter.GetInstance(document, stream);
                }
                catch (Exception ex)
                {
                }
                document.Open();
                using (var imageStream = new FileStream(jpgfile, FileMode.Open, FileAccess.Read, FileShare.ReadWrite))
                {
                    var image = iTextSharp.text.Image.GetInstance(imageStream);
                    if (image.Height > iTextSharp.text.PageSize.A4.Height - 25)
                    {
                        image.ScaleToFit(iTextSharp.text.PageSize.A4.Width - 25, iTextSharp.text.PageSize.A4.Height - 25);
                    }
                    else if (image.Width > iTextSharp.text.PageSize.A4.Width - 25)
                    {

                        image.ScaleToFit(iTextSharp.text.PageSize.A4.Width - 25, iTextSharp.text.PageSize.A4.Height - 25);
                    }
                    image.Alignment = iTextSharp.text.Image.ALIGN_MIDDLE;
                    document.Add(image);
                }
                document.Close();
            }
            return true;
        }

        /// <summary>
        /// 圖片轉pdf
        /// </summary>
        /// <param name="jpgfile">要轉換的圖片的路徑,不需要加后綴和標識的數字</param>
        /// <param name="pdfoutputpath">轉成后的檔案地址和檔案名</param>]
        /// <param name="count">圖片的數量</param>
        public static void ImageToPDF(string jpgfile, string pdfoutputpath, int count)
        {

            var document = new iTextSharp.text.Document(iTextSharp.text.PageSize.A4, 25, 25, 25, 25);
            using (var stream = new FileStream(pdfoutputpath, FileMode.Create, FileAccess.Write, FileShare.None))
            {
                iTextSharp.text.pdf.PdfWriter.GetInstance(document, stream);
                document.Open();
                for (int i = 1; i <= count; i++)
                {
                    using (var imageStream = new FileStream(jpgfile + i + ".jpg", FileMode.Open, FileAccess.Read, FileShare.ReadWrite))
                    {
                        var image = iTextSharp.text.Image.GetInstance(imageStream);
                        if (image.Height > iTextSharp.text.PageSize.A4.Height - 25)
                        {
                            image.ScaleToFit(iTextSharp.text.PageSize.A4.Width - 25, iTextSharp.text.PageSize.A4.Height - 25);
                        }
                        else if (image.Width > iTextSharp.text.PageSize.A4.Width - 25)
                        {
                            image.ScaleToFit(iTextSharp.text.PageSize.A4.Width - 25, iTextSharp.text.PageSize.A4.Height - 25);
                        }
                        image.Alignment = iTextSharp.text.Element.ALIGN_MIDDLE;
                        document.NewPage();
                        document.Add(image);
                    }
                }
                document.Close();
            }
        }
        #endregion
    }
}





學習記錄貼  有朋友發現任何不對的地方歡迎指出，有大佬有更簡潔方便的方法也希望可以告訴我 歡迎評論



本文來自博客園，作者：康Sir7，轉載請注明原文鏈接：https://www.cnblogs.com/kangsir7/p/15740557.html

轉載請註明出處，本文鏈接：https://www.uj5u.com/net/397105.html

標籤：.NET技术

上一篇：使用.NET 6開發TodoList應用(11)——使用FluentValidation和MediatR實作介面請求驗證

下一篇：（原創）WinForm中莫名其妙的小BUG——RichTextBox自動選擇字詞問題

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • WebAPI簡介

    Web體系結構： 有三個核心：資源(resource)，URL(統一資源識別符號)和表示 他們的關系是這樣的：一個資源由一個URL進行標識，HTTP客戶端使用URL定位資源，表示是從資源回傳資料，媒體型別是資源回傳的資料格式。 接下來我們說下HTTP. HTTP協議的系統是一種無狀態的方式，使用請求/ ......

    uj5u.com 2020-09-09 22:07:47 more
  • asp.net core 3.1 入口：Program.cs中的Main函式

    本文分析Program.cs 中Main()函式中代碼的運行順序分析asp.net core程式的啟動，重點不是剖析原始碼，而是理清程式開始時執行的順序。到呼叫了哪些實體，哪些法方。asp.net core 3.1 的程式入口在專案Program.cs檔案里，如下。ususing System; us ......

    uj5u.com 2020-09-09 22:07:49 more
  • asp.net網站作為websocket服務端的應用該如何寫

    最近被websocket的一個問題困擾了很久，有一個需求是在web網站中搭建websocket服務。客戶端通過網頁與服務器建立連接，然后服務器根據ip給客戶端網頁發送資訊。 其實，這個需求并不難，只是剛開始對websocket的內容不太了解。上網搜索了一下，有通過asp.net core 實作的、有 ......

    uj5u.com 2020-09-09 22:08:02 more
  • ASP.NET 開源匯入匯出庫Magicodes.IE Docker中使用

    Magicodes.IE在Docker中使用 更新歷史 2019.02.13 【Nuget】版本更新到2.0.2 【匯入】修復單列匯入的Bug，單元測驗“OneColumnImporter_Test”。問題見（https://github.com/dotnetcore/Magicodes.IE/is ......

    uj5u.com 2020-09-09 22:08:05 more
  • 在webform中使用ajax

    如果你用過Asp.net webform， 說明你也算是.NET 開發的老兵了。WEBform應該是2011 2013左右，當時還用visual studio 2005、 visual studio 2008。后來基本都用的是MVC。 如果是新開發的專案，估計沒人會用webform技術。但是有些舊版 ......

    uj5u.com 2020-09-09 22:08:50 more
  • iis添加asp.net網站，訪問提示：由于擴展配置問題而無法提供您請求的

    今天在iis服務器配置asp.net網站，遇到一個問題，記錄一下： 問題：由于擴展配置問題而無法提供您請求的頁面。如果該頁面是腳本，請添加處理程式。如果應下載檔案，請添加 MIME 映射。 WindowServer2012服務器，添加角色安裝完.netframework和iis之后，運行aspx頁面 ......

    uj5u.com 2020-09-09 22:10:00 more
  • WebAPI-處理架構

    帶著問題去思考，大家好！ 問題1：HTTP請求和回傳相應的HTTP回應資訊之間發生了什么？ 1：首先是最底層，托管層，位于WebAPI和底層HTTP堆疊之間 2：其次是 訊息處理程式管道層，這里比如日志和快取。OWIN的參考是將訊息處理程式管道的一些功能下移到堆疊下端的OWIN中間件了。 3：控制器處理 ......

    uj5u.com 2020-09-09 22:11:13 more
  • 微信門戶開發框架-使用指導說明書

    微信門戶應用管理系統，采用基于 MVC + Bootstrap + Ajax + Enterprise Library的技術路線，界面層采用Boostrap + Metronic組合的前端框架，資料訪問層支持Oracle、SQLServer、MySQL、PostgreSQL等資料庫。框架以MVC5，... ......

    uj5u.com 2020-09-09 22:15:18 more
  • WebAPI-HTTP編程模型

    帶著問題去思考，大家好！它是什么？它包含什么？它能干什么？ 訊息 HTTP編程模型的核心就是訊息抽象，表示為：HttPRequestMessage,HttpResponseMessage.用于客戶端和服務端之間交換請求和回應訊息。 HttpMethod類包含了一組靜態屬性： private stat ......

    uj5u.com 2020-09-09 22:15:23 more
  • 部署WebApi隨筆

    一、跨域 NuGet參考Microsoft.AspNet.WebApi.Cors WebApiConfig.cs中配置： // Web API 配置和服務 config.EnableCors(new EnableCorsAttribute("*", "*", "*")); 二、清除默認回傳XML格式 ......

    uj5u.com 2020-09-09 22:15:48 more
最新发布
  • C#多執行緒學習(二) 如何操縱一個執行緒

    <a href="https://www.cnblogs.com/x-zhi/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2943582/20220801082530.png" alt="" /></...

    uj5u.com 2023-04-19 09:17:20 more
  • C#多執行緒學習(二) 如何操縱一個執行緒

    C#多執行緒學習(二) 如何操縱一個執行緒 執行緒學習第一篇：C#多執行緒學習(一) 多執行緒的相關概念 下面我們就動手來創建一個執行緒，使用Thread類創建執行緒時，只需提供執行緒入口即可。（執行緒入口使程式知道該讓這個執行緒干什么事） 在C#中，執行緒入口是通過ThreadStart代理（delegate）來提供的 ......

    uj5u.com 2023-04-19 09:16:49 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    <a href="https://www.cnblogs.com/huangxincheng/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/214741/20200614104537.png" alt="" /&g...

    uj5u.com 2023-04-18 08:39:04 more
  • 記一次 .NET某醫療器械清洗系統 卡死分析

    一：背景 1. 講故事 前段時間協助訓練營里的一位朋友分析了一個程式卡死的問題，回過頭來看這個案例比較經典，這篇稍微整理一下供后來者少踩坑吧。 二：WinDbg 分析 1. 為什么會卡死 因為是表單程式，理所當然就是看主執行緒此時正在做什么? 可以用 ~0s ; k 看一下便知。 0:000> k # ......

    uj5u.com 2023-04-18 08:33:10 more
  • SignalR, No Connection with that ID，IIS

    <a href="https://www.cnblogs.com/smartstar/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/u36196.jpg" alt="" /></a>...

    uj5u.com 2023-03-30 17:21:52 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:15:33 more
  • 一次對pool的誤用導致的.net頻繁gc的診斷分析

    <a href="https://www.cnblogs.com/dotnet-diagnostic/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/3115652/20230225090434.png" alt=""...

    uj5u.com 2023-03-28 10:13:31 more
  • C#遍歷指定檔案夾中所有檔案的3種方法

    <a href="https://www.cnblogs.com/xbhp/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/957602/20230310105611.png" alt="" /></a&...

    uj5u.com 2023-03-27 14:46:55 more
  • C#/VB.NET：如何將PDF轉為PDF/A

    <a href="https://www.cnblogs.com/Carina-baby/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/2859233/20220427162558.png" alt="" />...

    uj5u.com 2023-03-27 14:46:35 more
  • 武裝你的WEBAPI-OData聚合查詢

    <a href="https://www.cnblogs.com/podolski/" target="_blank"><img width="48" height="48" class="pfs" src="https://pic.cnblogs.com/face/616093/20140323000327.png" alt="" /><...

    uj5u.com 2023-03-27 14:46:16 more

Copyright © 2010-2020 有解無憂
