驅動開發實戰之TcpClient

場景模擬

假設你有一批非標設備需要對接，對方提供了如下協議檔案：

協議概述

設備作為TCPServer，埠6666
位元組序:Little-Endian，即低地址存放低位

請求回復

需要你主動發起讀取請求:0x01 02 03 04
設備回復:0x08 01 41 D6 3D 71 1A 20

引數說明

1. 總位元組數

   (byte[0])即0x08:用于簡單的校驗

2. 運行狀態

   (byte[1])即0x01:1為運行;其他為停止

3. 設備溫度

   (byte[2]-byte[5])即0x41 D6 3D 71：單精度浮點數值26.78

4. 電機轉速

   (byte[6]-byte[7])即0x1A 20：對應16進制無符號整型，倍率0.01值66.88

驅動開發

我們根據上面的協議，開發驅動，請先瀏覽上一篇驅動簡介

創建驅動專案

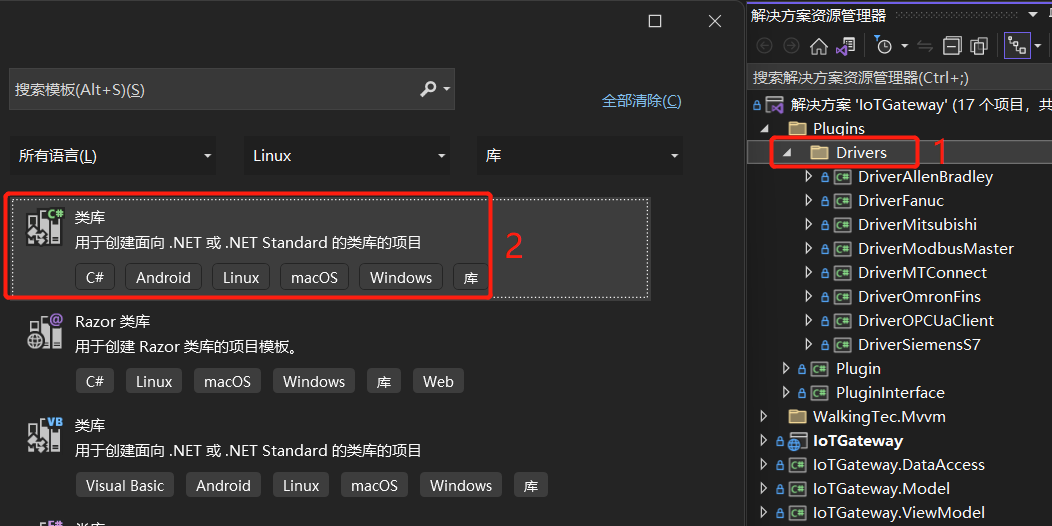

1. 在解決方案->Drivers檔案夾，右鍵添加->新建專案->C#類別庫


2. 專案名DriverSimTcpClient，放在iotgateway\Plugins\Drivers路徑下

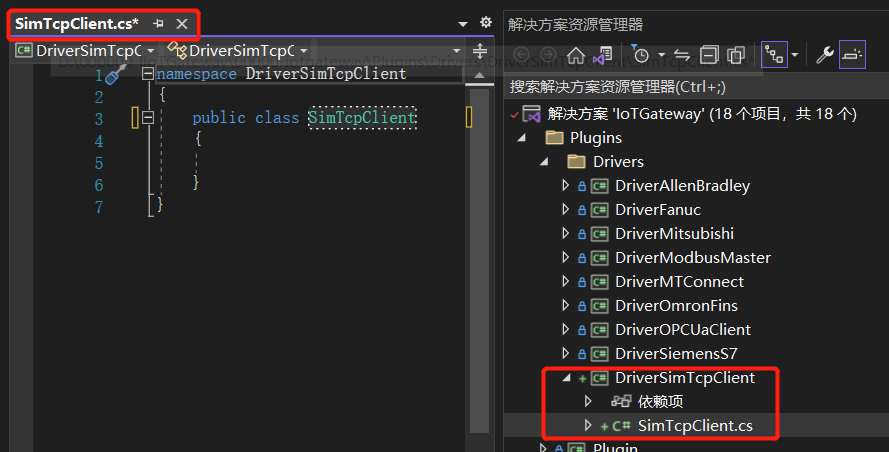

3. 修改Class1為SimTcpClient

4. 雙擊專案，修改配置


<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
  	<TargetFramework>net6.0</TargetFramework>
  	<OutputPath>../../../IoTGateway/bin/Debug/net6.0/drivers</OutputPath>
  	<CopyLocalLockFileAssemblies>true</CopyLocalLockFileAssemblies>
  	<ImplicitUsings>enable</ImplicitUsings>
  	<Nullable>enable</Nullable>
  </PropertyGroup>
  <ItemGroup>
    <PackageReference Include="SimpleTCP.Core" Version="1.0.4" />
  </ItemGroup>
  <ItemGroup>
  	<ProjectReference Include="..\..\PluginInterface\PluginInterface.csproj" />
  </ItemGroup>
</Project>

:::info 說明

OutputPath節點指定了生成專案的檔案夾

SimpleTCP.Core是一個TCP客戶端庫(你也可以自己寫)

ProjectReference節點參考了PluginInterface專案

CopyLocalLockFileAssemblies節點可以確保你參考的nuget拷貝到driver檔案夾下
:::

撰寫專案代碼

using PluginInterface;
using SimpleTCP;
using System;
using System.Text;

namespace DriverSimTcpClient
{
  [DriverSupported("SimTcpServerDevice")]
  [DriverInfoAttribute("SimTcpClient", "V1.0.0", "Copyright iotgateway? 2022-06-04")]
  public class SimTcpClient : IDriver
  {
      /// <summary>
      /// tcp客戶端
      /// </summary>
      private SimpleTcpClient? client;
      /// <summary>
      /// 快取最新的服務器回傳的原始資料
      /// </summary>
      private byte[] latestRcvData;
      #region 配置引數

      [ConfigParameter("設備Id")]
      public Guid DeviceId { get; set; }

      [ConfigParameter("IP地址")]
      public string IpAddress { get; set; } = "127.0.0.1";

      [ConfigParameter("埠號")]
      public int Port { get; set; } = 6666;

      /// <summary>
      /// 為了演示列舉型別在web端的錄入，這里沒用到 但是你可以拿到
      /// </summary>
      [ConfigParameter("連接型別")]
      public ConnectionType ConnectionType { get; set; } = ConnectionType.Long;

      [ConfigParameter("超時時間ms")]
      public int Timeout { get; set; } = 300;

      [ConfigParameter("最小通訊周期ms")]
      public uint MinPeriod { get; set; } = 3000;

      #endregion

      public SimTcpClient(Guid deviceId)
      {
          DeviceId = deviceId;
      }


      /// <summary>
      /// 判斷連接狀態
      /// </summary>
      public bool IsConnected
      {
          get
          {
              //客戶端物件不為空并且客戶端已連接則回傳true
              return client != null && client.TcpClient.Connected;
          }
      }

      /// <summary>
      /// 進行連接
      /// </summary>
      /// <returns>連接是否成功</returns>
      public bool Connect()
      {
          try
          {
              //進行連接
              client = new SimpleTcpClient().Connect(IpAddress, Port);
              client.DataReceived += Client_DataReceived;
          }
          catch (Exception)
          {
              return false;
          }
          return IsConnected;
      }
      /// <summary>
      /// 收到服務端資料
      /// </summary>
      /// <param name="sender"></param>
      /// <param name="e"></param>
      private void Client_DataReceived(object? sender, Message e)
      {
          //如果收到的資料校驗正確，則放在記憶體中
          if (e.Data.Length == 8 && e.Data[0] == 0x08)
              latestRcvData = https://www.cnblogs.com/whdong/archive/2022/06/05/e.Data;
      }

      ///

      /// 斷開連接
      ///
      /// 斷開是否成功
      public bool Close()
      {
          try
          {
              client.DataReceived -= Client_DataReceived;
              //斷開連接
              client?.Disconnect();
              return !IsConnected;
          }
          catch (Exception)
          {

              return false;
          }
      }

      ///

      /// 釋放
      ///
      public void Dispose()
      {
          try
          {
              //釋放資源
              client?.Dispose();
          }
          catch (Exception)
          {

          }
      }

      ///

      /// 發送資料
      ///
      private byte[] sendCmd = new byte[4] { 0x01, 0x02, 0x03, 0x04 };

      ///

      /// 決議并回傳
      ///
      ///
