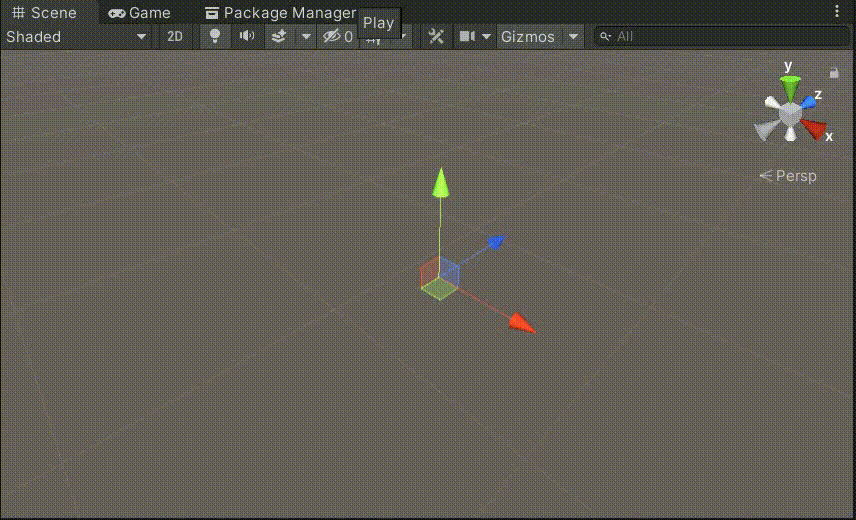

結果演示

智能巡邏兵

1. 游戲設計要求

• 創建一個地圖和若干巡邏兵(使用影片)；
• 每個巡邏兵走一個3~5個邊的凸多邊型，位置資料是相對地址，即每次確定下一個目標位置，用自己當前位置為原點計算；
• 巡邏兵碰撞到障礙物，則會自動選下一個點為目標；
• 巡邏兵在設定范圍內感知到玩家，會自動追擊玩家；
• 失去玩家目標后，繼續巡邏；
• 計分：玩家每次甩掉一個巡邏兵計一分，與巡邏兵碰撞游戲結束；

2. 程式設計要求

• 必須使用訂閱與發布模式傳訊息
  • subject：OnLostGoal
  • Publisher: ?
  • Subscriber: ?
• 工廠模式生產巡邏兵

實作程序

制作預制

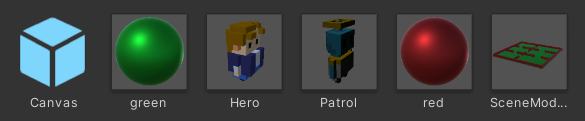

制作主角Hero、巡邏兵Patrol、地圖SceneMode的預制如下圖

主要代碼實作如下

1. GameModel.cs

   游戲邏輯主體，實作包括生產英雄、巡邏兵、移動、追捕等，在師兄博客的基礎上做了改進，實作了hero碰撞柵欄和邊界的檢測，只能從柵欄之間的空隙穿過（原實作hero可任意穿過柵欄并在走出邊界后會掉落）

   using System.Collections;
   using System.Collections.Generic;
   using UnityEngine;
   using Com.Patrols;

   public class GameModel : SSActionManager, ISSActionCallback {
       public GameObject PatrolItem, HeroItem, sceneModelItem, canvasItem;
       private SceneController scene;
       private GameObject myHero, sceneModel, canvasAndText;
       private List<GameObject> PatrolSet;
       private List<int> PatrolLastDir;
       private Holes myHoles;

       // 巡邏兵正常狀態的速度
       private const float PERSON_SPEED_NORMAL = 0.01f;
       // 巡邏兵追捕狀態的速度
       private const float PERSON_SPEED_CATCHING = 0.01f;

       void Awake() {
           PatrolFactory.getInstance().initItem(PatrolItem);
           myHoles = new Holes();
           myHoles.leftUpHole = new Hole(-4.0f, -1.0f, 16.0f, 17.0f);
           myHoles.leftMidHole = new Hole(-6.0f, -5.0f, 10.0f, 14.0f);
           myHoles.leftDownHole = new Hole(-4.0f, -1.0f, 6.5f, 7.5f);
           myHoles.MidHole = new Hole(0.0f, 1.5f, 10.0f, 14.0f);
           myHoles.rightUpHole = new Hole(2.0f, 4.0f, 17.0f, 18.0f);
           myHoles.rightMidHole = new Hole(4.5f, 5.5f, 10.0f, 14.0f);
           myHoles.rightDownHole = new Hole(2.0f, 4.0f, 8.0f, 9.0f);
       }

       protected new void Start () {
           scene = SceneController.getInstance();
           scene.setGameModel(this);

           // 生產英雄+巡邏兵
           genHero();
           genPatrols();
           sceneModel = Instantiate(sceneModelItem);
           canvasAndText = Instantiate(canvasItem);
       }

       protected new void Update() {
           base.Update();
       }


       void genHero() {
           myHero = Instantiate(HeroItem);
       }

       void genPatrols() {
           PatrolSet = new List<GameObject>(6);
           PatrolLastDir = new List<int>(6);
           Vector3[] posSet = PatrolFactory.getInstance().getPosSet();
           for (int i = 0; i < 6; i++) {
               GameObject newPatrol = PatrolFactory.getInstance().getPatrol();
               newPatrol.transform.position = posSet[i];
               newPatrol.name = "Patrol" + i;
               PatrolLastDir.Add(-2);
               PatrolSet.Add(newPatrol);
               addRandomMovement(newPatrol, true);
           }
       }

       // hero移動
       public void heroMove(int dir) {
           myHero.transform.rotation = Quaternion.Euler(new Vector3(0, dir * 90, 0));
           int index = getHeroStandOnArea();

           Vector3 herolPos = myHero.transform.position;
           float posX = herolPos.x;
           float posZ = herolPos.z;
           switch (dir) {
               case Diretion.UP:
                   heroMoveUp(index, posX, posZ);
                   // myHero.transform.position += new Vector3(0, 0, 0.1f);
                   break;
               case Diretion.DOWN:
                   heroMoveDown(index, posX, posZ);
                   // myHero.transform.position += new Vector3(0, 0, -0.1f);
                   break;
               case Diretion.LEFT:
                   heroMoveLeft(index, posX, posZ);
                   // myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   break;
               case Diretion.RIGHT:
                   heroMoveRight(index, posX, posZ);
                   // myHero.transform.position += new Vector3(0.1f, 0, 0);
                   break;
           }
       }

       private void heroMoveUp(int index, float posX, float posZ) {
           switch (index) {
               case 0:
               case 1:
               case 2:
                   if (posZ + 1 < FenchLocation.FenchTop)
                       myHero.transform.position += new Vector3(0, 0, 0.1f);
                   break;
               case 3:
                   if (posZ + 1 < FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, 0.1f);
                   } else if(myHoles.leftMidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, 1.0f);
                   }
                   break;
               case 4:
                   if (posZ + 1 < FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, 0.1f);
                   } else if(myHoles.MidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, 1.0f);
                   }
                   break;
               case 5:
                   if (posZ + 1 < FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, 0.1f);
                   } else if(myHoles.rightMidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, 1.0f);
                   }
                   break;
           }
       }

       private void heroMoveDown(int index, float posX, float posZ) {
           switch (index) {
               case 0:
                   if (posZ - 1 > FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, -0.1f);
                   } else if(myHoles.leftMidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, -1.0f);
                   }
                   break;
               case 1:
                   if (posZ - 1 > FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, -0.1f);
                   } else if(myHoles.MidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, -1.0f);
                   }
                   break;
               case 2:
                   if (posZ - 1 > FenchLocation.FenchHori) {
                       myHero.transform.position += new Vector3(0, 0, -0.1f);
                   } else if(myHoles.rightMidHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(0, 0, -1.0f);
                   }
                   break;
               case 3:
               case 4:
               case 5:
                   if (posZ - 1 > FenchLocation.FenchBottom)
                       myHero.transform.position += new Vector3(0, 0, -0.1f);
                   break;
           }
       }

       private void heroMoveLeft(int index, float posX, float posZ) {
           switch (index) {
               case 0:
               case 3:
                   if (posX - 1 > FenchLocation.FenchLeft)
                       myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   break;
               case 1:
                   if (posX - 1 > FenchLocation.FenchVertLeft) {
                       myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   } else if(myHoles.leftUpHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(-1.0f, 0, 0);
                   }
                   break;
               case 4:
                   if (posX - 1 > FenchLocation.FenchVertLeft) {
                       myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   } else if(myHoles.leftDownHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(-1.0f, 0, 0);
                   }
                   break;
               case 2:
                   if (posX - 1 > FenchLocation.FenchVertRight) {
                       myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   } else if(myHoles.rightUpHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(-1.0f, 0, 0);
                   }
                   break;
               case 5:
                   if (posX - 1 > FenchLocation.FenchVertRight) {
                       myHero.transform.position += new Vector3(-0.1f, 0, 0);
                   } else if(myHoles.rightDownHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(-1.0f, 0, 0);
                   }
                   break;
           }
       }

       private void heroMoveRight(int index, float posX, float posZ) {
           switch (index) {
               case 0:
                   if (posX + 1 < FenchLocation.FenchVertLeft) {
                       myHero.transform.position += new Vector3(0.1f, 0, 0);
                   } else if(myHoles.leftUpHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(1.0f, 0, 0);
                   }
                   break;
               case 3:
                   if (posX + 1 < FenchLocation.FenchVertLeft) {
                       myHero.transform.position += new Vector3(0.1f, 0, 0);
                   } else if(myHoles.leftDownHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(1.0f, 0, 0);
                   }
                   break;
               case 1:
                   if (posX + 1 < FenchLocation.FenchVertRight) {
                       myHero.transform.position += new Vector3(0.1f, 0, 0);
                   } else if(myHoles.rightUpHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(1.0f, 0, 0);
                   }
                   break;
               case 4:
                   if (posX + 1 < FenchLocation.FenchVertRight) {
                       myHero.transform.position += new Vector3(0.1f, 0, 0);
                   } else if(myHoles.rightDownHole.isInHole(posX, posZ)) {
                       myHero.transform.position += new Vector3(1.0f, 0, 0);
                   }
                   break;
               case 2:
               case 5:
                   if (posX + 1 < FenchLocation.FenchRight)
                       myHero.transform.position += new Vector3(0.1f, 0, 0);
                   break;
           }
       }

       // 動作結束后
       public void SSActionEvent(SSAction source, SSActionEventType eventType = SSActionEventType.Completed,
           SSActionTargetType intParam = SSActionTargetType.Normal, string strParam = null, object objParam = null) {
           if (intParam == SSActionTargetType.Normal) {
               addRandomMovement(source.gameObject, true);
           } else {
               addDirectMovement(source.gameObject);
           }
       }

       // isActive說明是否主動變向（動作結束）
       public void addRandomMovement(GameObject sourceObj, bool isActive) {
           int index = getIndexOfObj(sourceObj);
           int randomDir = getRandomDirection(index, isActive);
           PatrolLastDir[index] = randomDir;

           sourceObj.transform.rotation = Quaternion.Euler(new Vector3(0, randomDir * 90, 0));
           Vector3 target = sourceObj.transform.position;
           switch (randomDir) {
               case Diretion.UP:
                   target += new Vector3(0, 0, 1);
                   break;
               case Diretion.DOWN:
                   target += new Vector3(0, 0, -1);
                   break;
               case Diretion.LEFT:
                   target += new Vector3(-1, 0, 0);
                   break;
               case Diretion.RIGHT:
                   target += new Vector3(1, 0, 0);
                   break;
           }
           addSingleMoving(sourceObj, target, PERSON_SPEED_NORMAL, false);
       }
       int getIndexOfObj(GameObject sourceObj) {
           string name = sourceObj.name;
           char cindex = name[name.Length - 1];
           int result = cindex - '0';
           return result;
       }
       int getRandomDirection(int index, bool isActive) {
           // -1左  0上  1右  2下
           int randomDir = Random.Range(-1, 3);

           // 當碰撞時，不走同方向
           if (!isActive) {
               while (PatrolLastDir[index] == randomDir || PatrolOutOfArea(index, randomDir)) {
                   randomDir = Random.Range(-1, 3);
               }
           } else {
               while (PatrolLastDir[index] == 0 && randomDir == 2
                   || PatrolLastDir[index] == 2 && randomDir == 0
                   || PatrolLastDir[index] == 1 && randomDir == -1
                   || PatrolLastDir[index] == -1 && randomDir == 1
                   || PatrolOutOfArea(index, randomDir)) {
                   randomDir = Random.Range(-1, 3);
               }
           }
           return randomDir;
       }
       // 判斷巡邏兵是否越界
       bool PatrolOutOfArea(int index, int randomDir) {
           Vector3 patrolPos = PatrolSet[index].transform.position;
           float posX = patrolPos.x;
           float posZ = patrolPos.z;
           switch (index) {
               case 0:
                   if (randomDir == 1 && posX + 1 > FenchLocation.FenchVertLeft || randomDir == 2 && posZ - 1 < FenchLocation.FenchHori)
                       return true;
                   break;
               case 1:
                   if (randomDir == 1 && posX + 1 > FenchLocation.FenchVertRight || randomDir == -1 && posX - 1 < FenchLocation.FenchVertLeft || randomDir == 2 && posZ - 1 < FenchLocation.FenchHori)
                       return true;
                   break;
               case 2:
                   if (randomDir == -1 && posX - 1 < FenchLocation.FenchVertRight || randomDir == 2 && posZ - 1 < FenchLocation.FenchHori)
                       return true;
                   break;
               case 3:
                   if (randomDir == 1 && posX + 1 > FenchLocation.FenchVertLeft || randomDir == 0 && posZ + 1 > FenchLocation.FenchHori)
                       return true;
                   break;
               case 4:
                   if (randomDir == 1 && posX + 1 > FenchLocation.FenchVertRight || randomDir == -1 && posX - 1 < FenchLocation.FenchVertLeft || randomDir == 0 && posZ + 1 > FenchLocation.FenchHori)
                       return true;
                   break;
               case 5:
                   if (randomDir == -1 && posX - 1 < FenchLocation.FenchVertRight || randomDir == 0 && posZ + 1 > FenchLocation.FenchHori)
                       return true;
                   break;
           }
           return false;
       }

       // 巡邏兵追捕hero
       public void addDirectMovement(GameObject sourceObj) {
           int index = getIndexOfObj(sourceObj);
           PatrolLastDir[index] = -2;

           sourceObj.transform.LookAt(sourceObj.transform);
           Vector3 oriTarget = myHero.transform.position - sourceObj.transform.position;
           Vector3 target = new Vector3(oriTarget.x / 4.0f, 0, oriTarget.z / 4.0f);
           target += sourceObj.transform.position;
           addSingleMoving(sourceObj, target, PERSON_SPEED_CATCHING, true);
       }

       void addSingleMoving(GameObject sourceObj, Vector3 target, float speed, bool isCatching) {
           this.runAction(sourceObj, CCMoveToAction.CreateSSAction(target, speed, isCatching), this);
       }

       void addCombinedMoving(GameObject sourceObj, Vector3[] target, float[] speed, bool isCatching) {
           List<SSAction> acList = new List<SSAction>();
           for (int i = 0; i < target.Length; i++) {
               acList.Add(CCMoveToAction.CreateSSAction(target[i], speed[i], isCatching));
           }
           CCSequeneActions MoveSeq = CCSequeneActions.CreateSSAction(acList);
           this.runAction(sourceObj, MoveSeq, this);
       }

       // 獲取hero所在區域編號
       public int getHeroStandOnArea() {
           return myHero.GetComponent<HeroStatus>().standOnArea;
       }
   }



2. SSActionManager.cs

   用動作佇列實作巡邏兵正常和追捕這兩個動作的流暢切換和管理，包括碰撞的檢測，正常巡邏時的轉向等

   using UnityEngine;
   using System.Collections;
   using System.Collections.Generic;

   //并發順序
   public class SSActionManager : MonoBehaviour {

       private Dictionary<int, SSAction> actions = new Dictionary<int, SSAction>();
       private List<SSAction> waitingAdd = new List<SSAction>();
       private List<int> waitingDelete = new List<int>();

       protected void Start () {

   	}

       protected void Update() {
           foreach (SSAction ac in waitingAdd) {
               actions[ac.GetInstanceID()] = ac;
           }
           waitingAdd.Clear();

           foreach (KeyValuePair<int, SSAction> kv in actions) {
               SSAction ac = kv.Value;
               if (ac.destroy) {
                   waitingDelete.Add(kv.Key);
               } else if (ac.enable) {
                   ac.Update();
               }
           }

           foreach (int key in waitingDelete) {
               SSAction ac = actions[key];
               actions.Remove(key);
               Object.Destroy(ac);
           }
           waitingDelete.Clear();
       }

       public void runAction(GameObject gameObj, SSAction action, ISSActionCallback manager) {
           // 先把該物件現有的動作銷毀（與原來不同的動作型別）
           for (int i = 0; i < waitingAdd.Count; i++) {
               if (waitingAdd[i].gameObject.Equals(gameObj)) {
                   SSAction ac = waitingAdd[i];
                   waitingAdd.RemoveAt(i);
                   i--;
                   Object.Destroy(ac);
               }
           }

           foreach (KeyValuePair<int, SSAction> kv in actions) {
               SSAction ac = kv.Value;
               if (ac.gameObject.Equals(gameObj)) {
                   ac.destroy = true;
               }
           }

           action.gameObject = gameObj;
           action.transform = gameObj.transform;
           action.callBack = manager;
           waitingAdd.Add(action);
           action.Start();
       }
   }



3. PatrolBehaviour.cs

   掛載到每個巡邏兵，實作巡邏兵對hero的感知和追蹤，以及正常和追捕狀態的轉換，若處于追捕狀態，而發現玩家已不在自己的區域，說明在剛一瞬間，玩家逃離了自己區域，此時會添加隨機動作，即繼續巡邏，

   using System.Collections;
   using System.Collections.Generic;
   using UnityEngine;
   using Com.Patrols;

   public class PatrolBehaviour : MonoBehaviour {
       private IAddAction addAction;
       private IGameStatusOp gameStatusOp;

       public int ownIndex;
       // 判斷是否在追捕狀態
       public bool isCatching;

       void Start () {
           addAction = SceneController.getInstance() as IAddAction;
           gameStatusOp = SceneController.getInstance() as IGameStatusOp;

           ownIndex = getOwnIndex();
           isCatching = false;
       }

   	void Update () {
           checkNearByHero();
   	}

       int getOwnIndex() {
           string name = this.gameObject.name;
           char cindex = name[name.Length - 1];
           int result = cindex - '0';
           return result;
       }

       // 檢測所在區域有無hero
       void checkNearByHero () {
           // hero在自己區域
           if (gameStatusOp.getHeroStandOnArea() == ownIndex) {
               if (!isCatching) {
                   isCatching = true;
                   addAction.addDirectMovement(this.gameObject);
               }
           } else {
               if (isCatching) {
                   gameStatusOp.heroEscapeAndScore();
                   isCatching = false;
                   addAction.addRandomMovement(this.gameObject, false);
               }
           }
       }

       void OnCollisionStay(Collision e) {
           // 碰到圍欄，選擇下一個點移動
           if (e.gameObject.name.Contains("Patrol") || e.gameObject.name.Contains("fence") || e.gameObject.tag.Contains("FenceAround")) {
               isCatching = false;
               addAction.addRandomMovement(this.gameObject, false);
           }

           // 碰到hero，游戲結束
           if (e.gameObject.name.Contains("Hero")) {
               gameStatusOp.patrolHitHeroAndGameover();
               Debug.Log("Game Over!");
           }
       }
   }



4. GameEventManager.cs

   采用訂閱和發布模式，傳遞得分、游戲結束等訊息，當玩家得分或游戲結束時，都會GameEventManager的得分/游戲結束方法

   using System.Collections;
   using System.Collections.Generic;
   using UnityEngine;
   using Com.Patrols;

   public class GameEventManager : MonoBehaviour {
       public delegate void GameScoreAction();
       public static event GameScoreAction myGameScoreAction;

       public delegate void GameOverAction();
       public static event GameOverAction myGameOverAction;

       private SceneController scene;

       void Start () {
           scene = SceneController.getInstance();
           scene.setGameEventManager(this);
       }

   	void Update () {

   	}

       // hero逃離巡邏兵追捕，得分+1
       public void heroEscapeAndScore() {
           if (myGameScoreAction != null) {
               myGameScoreAction();
           }
       }

       // hero被巡邏兵捕獲，游戲結束
       public void patrolHitHeroAndGameover() {
           if (myGameOverAction != null) {
               myGameOverAction();
           }
       }
   }



5. GameStatusText.cs

   傳遞訊息的輔助函式

   using System.Collections;
   using System.Collections.Generic;
   using UnityEngine;
   using UnityEngine.UI;

   public class GameStatusText : MonoBehaviour {
       private int score = 0;
       // 0為score，1為gameover
       private int textType;

   	void Start () {
           distinguishText();
   	}

   	void Update () {

   	}

       void distinguishText() {
           if (gameObject.name.Contains("Score"))
               textType = 0;
           else
               textType = 1;
       }

       void OnEnable() {
           GameEventManager.myGameScoreAction += gameScore;
           GameEventManager.myGameOverAction += gameOver;
       }

       void OnDisable() {
           GameEventManager.myGameScoreAction -= gameScore;
           GameEventManager.myGameOverAction -= gameOver;
       }

       void gameScore() {
           if (textType == 0) {
               score++;
               this.gameObject.GetComponent<Text>().text = "Score: " + score;
           }
       }

       void gameOver() {
           if (textType == 1)
               this.gameObject.GetComponent<Text>().text = "Game Over!";
       }
   }



參考文章

往屆師兄博客
