均值、中值、高斯、維納、小波、NL-means的影像去噪的matlab程式

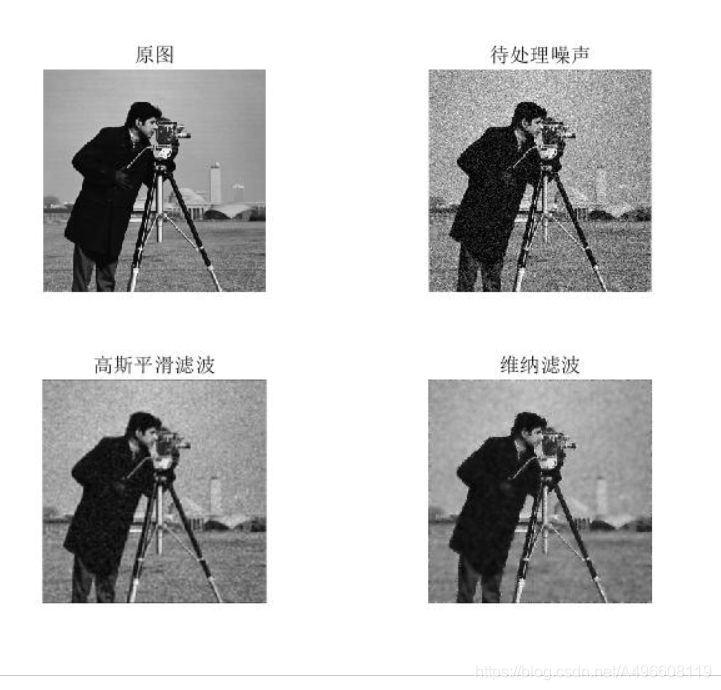

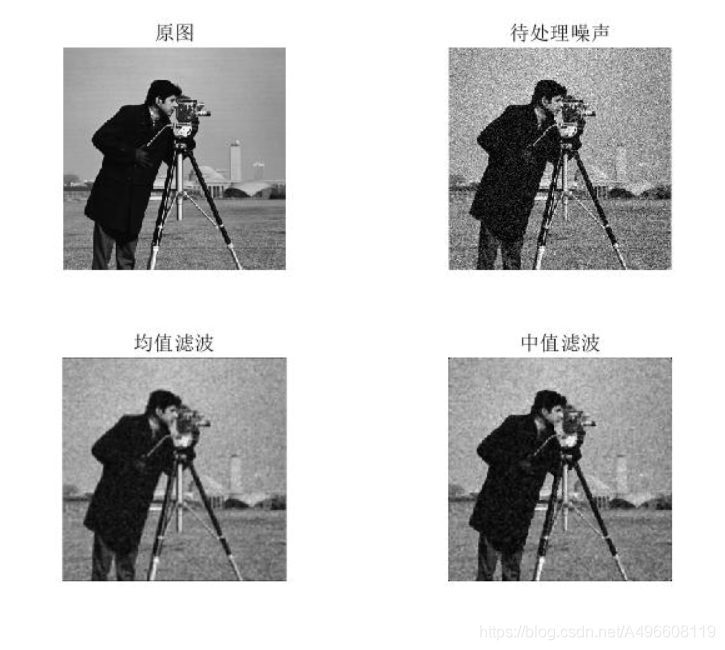

1.均值、中值、高斯、維納影像去噪

clc
clear
g = rgb2gray(imread('chuzao.jpg'));
zyy = imread('y.jpg');
g1 = imfilter(g, fspecial('average'));%均值濾波
g2 = medfilt2(g, [3 3]); %3*3中值濾波
h_gaosi1 = fspecial('gaussian',3,1);
g3 = imfilter(g, h_gaosi1); %高斯平滑濾波
g4 = wiener2(g,[5 5]);  %5*5維納濾波
subplot(3, 2, 1), imshow(zyy), title('原圖');
subplot(3, 2, 2), imshow(g), title('待處理噪聲');
subplot(3, 2, 3), imshow(g1), title('均值濾波');
subplot(3, 2, 4), imshow(g2), title('中值濾波');
subplot(3, 2, 5), imshow(g3), title('高斯平滑濾波');
subplot(3, 2, 6), imshow(g4), title('維納濾波');
%下面是計算PSNR和SSIM的程式口令
psnr(zyy,g)
psnr(zyy,g1)
psnr(zyy,g2)
psnr(zyy,g3)
psnr(zyy,g4)
ssim(zyy,g1)
ssim(zyy,g2)
ssim(zyy,g3)
ssim(zyy,g4)

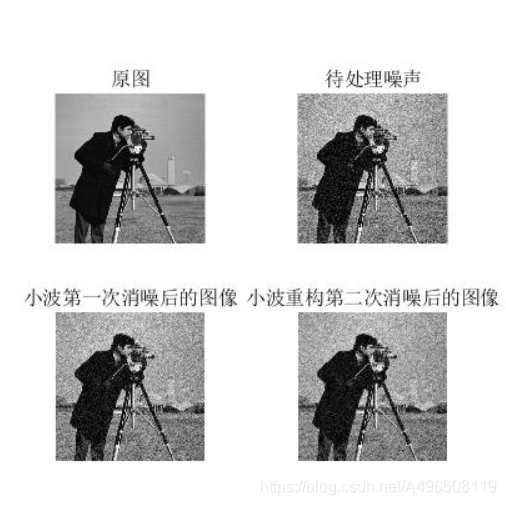

2.小波重構除噪

clc
clear;
zyy = imread('y.jpg'); %讀取原影像
subplot(221);
imshow(zyy);
title('原圖');
X=imread('chuzao.jpg');
X=rgb2gray(X);
subplot(222);
imshow(X);
title('待處理噪聲');
X=double(X);
%用小波函式coif2對影像X進行2層
% 分解
[c,l]=wavedec2(X,2,'coif2');
% 設定尺度向量
n=[1,2];
% 設定閾值向量 , 對高頻小波系數進行閾值處理
p=[10.28,24.08];
nc=wthcoef2('h',c,l,n,p,'s');
% 影像的二維小波重構
X1=waverec2(nc,l,'coif2');
subplot(223);
imshow(uint8(X1));
%colormap(map);
title(' 小波第一次消噪后的影像 ');
%再次對高頻小波系數進行閾值處理
mc=wthcoef2('v',nc,l,n,p,'s');
% 影像的二維小波重構
X2=waverec2(mc,l,'coif2');
subplot(224);
imshow(uint8(X2));
title(' 小波重構第二次消噪后的影像 ');

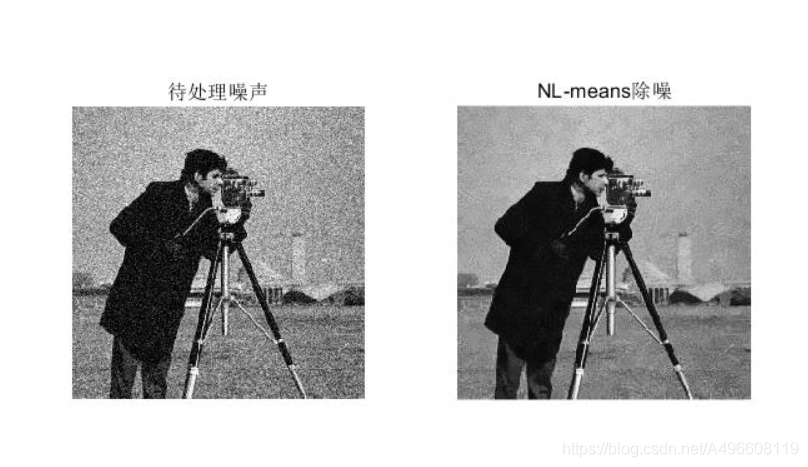

3.NL-means除噪

clc
clear
g = rgb2gray(imread('chuzao.jpg')); %讀取待去噪圖
zyy = imread('y.jpg');%讀取原圖
g1 = double(g);
%進行NL-means除噪
[m,n]=size(g1);
ds=2;% block size for calculate weight
Ds=5;% search block
h=10;% decay factor
offset=ds+Ds;
PaddedImg = padarray(g1,[ds+Ds,ds+Ds],'symmetric','both');% 擴展影像，便于處理
%距離加權核

%非均值核
[x,y]=meshgrid(-ds:ds,-ds:ds);
kernel=1./(x.*x+y.*y+1);
%均值核
% kernel=ones(2*ds+1,2*ds+1);
kernel=kernel./((2*ds+1)*(2*ds+1));
dst=zeros(m,n);% output
%---------------------------%
%  Non-Local Means Denoising
%---------------------------%
for i=1:m
    for j=1:n

        %當前點坐標和鄰域視窗
        i1=i+offset;
        j1=j+offset;
        W1=PaddedImg(i1-ds:i1+ds,j1-ds:j1+ds);

        %加權因子矩陣和影像
        weight=zeros(2*Ds+1,2*Ds+1);
        image=PaddedImg(i1-Ds:i1+Ds,j1-Ds:j1+Ds);

        for r=-Ds:Ds
            for s=-Ds:Ds

                %跳過當前點
                if(r==0&&s==0)
                    continue;
                end

                %待加權點坐標和鄰域視窗
                i2=i1+r;
                j2=j1+s;
                W2=PaddedImg(i2-ds:i2+ds,j2-ds:j2+ds);

                %核加權的距離和加權因子
                distance=sum(sum(kernel.*(W1-W2).*(W1-W2)));
                weight(r+Ds+1,s+Ds+1)=exp(-distance/(h*h));
            end
        end

        %最大權重賦給當前點，歸一化權重
        weight(Ds+1,Ds+1)=max(max(weight));
        weight=weight/(sum(weight(:)));

        dst(i,j)=sum(sum(image.*weight));
    end
end
%---------------------------%
%       output
%---------------------------%
subplot(121),imshow(g1,[]),title('待處理');
subplot(122),imshow(dst,[]),title('NL-means除噪');
psnr(zyy,uint8(g1))
psnr(zyy,uint8(dst))
ssim(zyy,uint8(g1))
ssim(zyy,uint8(dst))

4.均值、中值、高斯、維納、小波、NL-means的PSNR、SSIM對比
