本專案手把手帶你實作了在樹莓派端基于視頻流的水果分類，
目錄
- 1. VOC資料集的準備
- 2. 水果分類模型的訓練
- 3. 樹莓派上攝像頭的除錯和配置
- 4. 跑通Paddle-Lite-Demo
- 5. 部署水果分類的模型
- 5.1 在AI studio上準備模型檔案
- 5.1.1 匯出模型檔案
- 5.1.2 輸出一個可執行模型
- 5.2 部署模型到樹莓派
- 5.2.1 模型的匯入
- 5.2.2 修改`object_detection_demo.cc`檔案
- 5.2.3 修改`run.sh`檔案
- 5.3 運行模型
- 6. Paddle-Lite手冊地址
- 7. 問題求助
1. VOC資料集的準備
PaddleDetection——VOC資料集的準備
2. 水果分類模型的訓練
PaddleDetection——水果分類專案實戰
3. 樹莓派上攝像頭的除錯和配置
樹莓派——CSI攝像頭和USB攝像頭的配置與除錯
4. 跑通Paddle-Lite-Demo
Paddle Lite——樹莓派端部署實作實時視頻流目標檢測demo
5. 部署水果分類的模型
5.1 在AI studio上準備模型檔案
5.1.1 匯出模型檔案
訓練后匯出paddle原生模型檔案：
!python -u tools/export_model.py -c configs/yolov3_mobilenet_v1_fruit.yml
5.1.2 輸出一個可執行模型
在模型訓練并匯出完成后，使用opt模型轉換工具實作模型的轉換：
#下載opt檔案
#這一步需要注意下載與自己Paddle-Lite版本對應的opt檔案，在https://github.com/PaddlePaddle/Paddle-Lite/releases找到與自己版本對應的opt鏈接
!wget https://github.com/PaddlePaddle/Paddle-Lite/releases/download/v2.7/opt_linux
#復制opt檔案到相應目錄下
!cp opt_linux /home/aistudio/PaddleDetection/output/yolov3_mobilenet_v1_fruit
#進入預測模型檔案夾
%cd /home/aistudio/PaddleDetection/output/yolov3_mobilenet_v1_fruit
#給opt加上可執行權限
!chmod +x opt_linux
#使用opt進行模型轉化,將__model__和__params__轉化為model.nb
!./opt_linux --model_file=__model__ --param_file=__params__ --valid_targets=arm --optimize_out_type=naive_buffer --optimize_out=./model

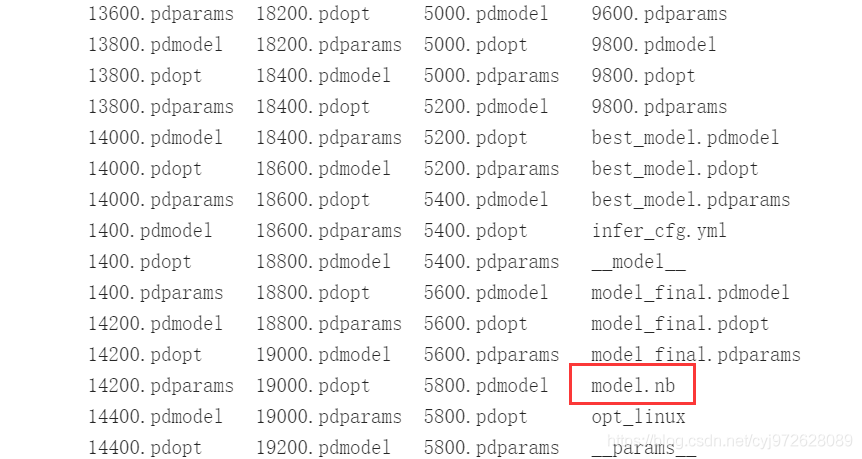

#查看檔案夾內容，檢查模型是否轉換成功
!ls
最后將模型檔案下載到本地即可，
5.2 部署模型到樹莓派
5.2.1 模型的匯入

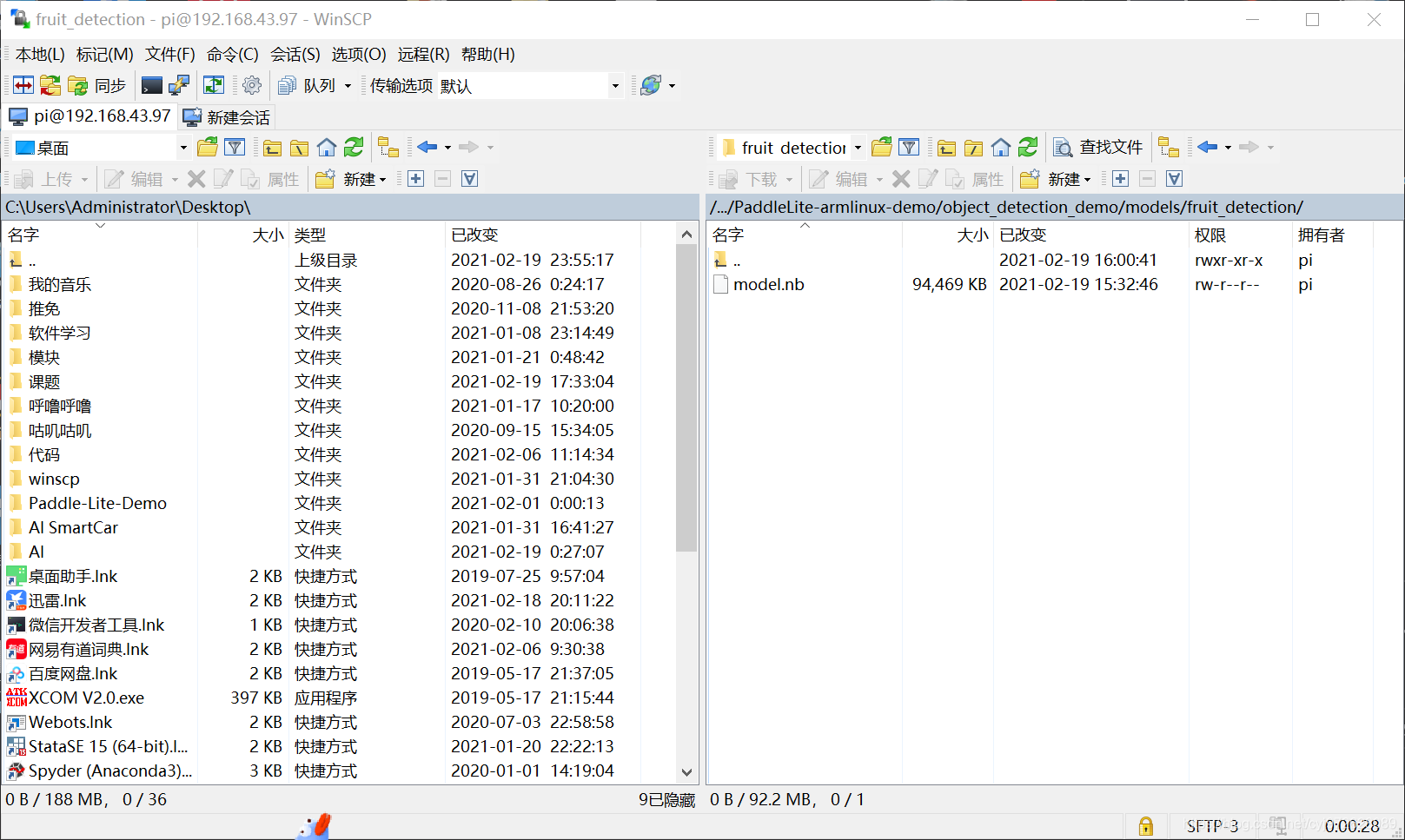

使用winscp將 .nb 模型檔案放在home/pi/Paddle-Lite-Demo/PaddleLite-armlinux-demo/object_detection_demo/models/fruit_detection檔案夾下；
5.2.2 修改object_detection_demo.cc檔案
這個檔案是模型的c++部署代碼，是整個專案作業的邏輯和核心，
由于demo的模型是ssd而水果分類用的是Yolov3，所以demo給的.cc檔案并不適用，因此我們要對檔案進行修改，
我在Paddle-Lite的Github上找到Yolov3的.cc的demo檔案：
https://github.com/PaddlePaddle/Paddle-Lite/blob/develop/lite/demo/cxx/yolov3_detection/yolov3_detection.cc，該demo是基于圖片檢測的，而我要實作的是基于視頻流下的檢測，稍作修改后得到內容如下：
#include <iostream>
#include <vector>
#include "opencv2/core.hpp"
#include "opencv2/imgcodecs.hpp"
#include <opencv2/opencv.hpp>
#include "opencv2/imgproc.hpp"
#include "paddle_api.h" // NOLINT
/
// If this demo is linked to static library:libpaddle_api_light_bundled.a
// , you should include `paddle_use_ops.h` and `paddle_use_kernels.h` to
// avoid linking errors such as `unsupport ops or kernels`.
/
// #include "paddle_use_kernels.h" // NOLINT
// #include "paddle_use_ops.h" // NOLINT
using namespace paddle::lite_api; // NOLINT
struct Object {
cv::Rect rec;
int class_id;
float prob;
};
int64_t ShapeProduction(const shape_t& shape) {
int64_t res = 1;
for (auto i : shape) res *= i;
return res;
}
const char* class_names[] = {"apple", "banana", "orange",
};
// fill tensor with mean and scale and trans layout: nhwc -> nchw, neon speed up
void neon_mean_scale(const float* din,
float* dout,
int size,
const std::vector<float> mean,
const std::vector<float> scale) {
if (mean.size() != 3 || scale.size() != 3) {
std::cerr << "[ERROR] mean or scale size must equal to 3\n";
exit(1);
}
float32x4_t vmean0 = vdupq_n_f32(mean[0]);
float32x4_t vmean1 = vdupq_n_f32(mean[1]);
float32x4_t vmean2 = vdupq_n_f32(mean[2]);
float32x4_t vscale0 = vdupq_n_f32(1.f / scale[0]);
float32x4_t vscale1 = vdupq_n_f32(1.f / scale[1]);
float32x4_t vscale2 = vdupq_n_f32(1.f / scale[2]);
float* dout_c0 = dout;
float* dout_c1 = dout + size;
float* dout_c2 = dout + size * 2;
int i = 0;
for (; i < size - 3; i += 4) {
float32x4x3_t vin3 = vld3q_f32(din);
float32x4_t vsub0 = vsubq_f32(vin3.val[0], vmean0);
float32x4_t vsub1 = vsubq_f32(vin3.val[1], vmean1);
float32x4_t vsub2 = vsubq_f32(vin3.val[2], vmean2);
float32x4_t vs0 = vmulq_f32(vsub0, vscale0);
float32x4_t vs1 = vmulq_f32(vsub1, vscale1);
float32x4_t vs2 = vmulq_f32(vsub2, vscale2);
vst1q_f32(dout_c0, vs0);
vst1q_f32(dout_c1, vs1);
vst1q_f32(dout_c2, vs2);
din += 12;
dout_c0 += 4;
dout_c1 += 4;
dout_c2 += 4;
}
for (; i < size; i++) {
*(dout_c0++) = (*(din++) - mean[0]) * scale[0];
*(dout_c0++) = (*(din++) - mean[1]) * scale[1];
*(dout_c0++) = (*(din++) - mean[2]) * scale[2];
}
}
void pre_process(const cv::Mat& img, int width, int height, float* data) {
cv::Mat rgb_img;
cv::cvtColor(img, rgb_img, cv::COLOR_BGR2RGB);
cv::resize(
rgb_img, rgb_img, cv::Size(width, height), 0.f, 0.f, cv::INTER_CUBIC);
cv::Mat imgf;
rgb_img.convertTo(imgf, CV_32FC3, 1 / 255.f);
std::vector<float> mean = {0.485f, 0.456f, 0.406f};
std::vector<float> scale = {0.229f, 0.224f, 0.225f};
const float* dimg = reinterpret_cast<const float*>(imgf.data);
neon_mean_scale(dimg, data, width * height, mean, scale);
}
std::vector<Object> detect_object(const float* data,
int count,
float thresh,
cv::Mat& image) { // NOLINT
if (data == nullptr) {
std::cerr << "[ERROR] data can not be nullptr\n";
exit(1);
}
std::vector<Object> rect_out;
for (int iw = 0; iw < count; iw++) {
int oriw = image.cols;
int orih = image.rows;
if (data[1] > thresh) {
Object obj;
int x = static_cast<int>(data[2]);
int y = static_cast<int>(data[3]);
int w = static_cast<int>(data[4] - data[2] + 1);
int h = static_cast<int>(data[5] - data[3] + 1);
cv::Rect rec_clip =
cv::Rect(x, y, w, h) & cv::Rect(0, 0, image.cols, image.rows);
obj.class_id = static_cast<int>(data[0]);
obj.prob = data[1];
obj.rec = rec_clip;
if (w > 0 && h > 0 && obj.prob <= 1) {
rect_out.push_back(obj);
cv::rectangle(image, rec_clip, cv::Scalar(0, 0, 255), 1, cv::LINE_AA);
std::string str_prob = std::to_string(obj.prob);
std::string text = std::string(class_names[obj.class_id]) + ": " +
str_prob.substr(0, str_prob.find(".") + 4);
int font_face = cv::FONT_HERSHEY_COMPLEX_SMALL;
double font_scale = 1.f;
int thickness = 1;
cv::Size text_size =
cv::getTextSize(text, font_face, font_scale, thickness, nullptr);
float new_font_scale = w * 0.5 * font_scale / text_size.width;
text_size = cv::getTextSize(
text, font_face, new_font_scale, thickness, nullptr);
cv::Point origin;
origin.x = x + 3;
origin.y = y + text_size.height + 3;
cv::putText(image,
text,
origin,
font_face,
new_font_scale,
cv::Scalar(0, 255, 255),
thickness,
cv::LINE_AA);
std::cout << "detection, image size: " << image.cols << ", "
<< image.rows
<< ", detect object: " << class_names[obj.class_id]
<< ", score: " << obj.prob << ", location: x=" << x
<< ", y=" << y << ", width=" << w << ", height=" << h
<< std::endl;
}
}
data += 6;
}
return rect_out;
}
void RunModel(std::string model_file, const cv::Mat& img) {
// 1. Set MobileConfig
MobileConfig config;
config.set_model_from_file(model_file);
// 2. Create PaddlePredictor by MobileConfig
std::shared_ptr<PaddlePredictor> predictor =
CreatePaddlePredictor<MobileConfig>(config);
const int in_width = 320;
const int in_height = 320;
// 3. Prepare input data from image
// input 0
std::unique_ptr<Tensor> input_tensor0(std::move(predictor->GetInput(0)));
input_tensor0->Resize({1, 3, in_height, in_width});
auto* data0 = input_tensor0->mutable_data<float>();
pre_process(img, in_width, in_height, data0);
// input1
std::unique_ptr<Tensor> input_tensor1(std::move(predictor->GetInput(1)));
input_tensor1->Resize({1, 2});
auto* data1 = input_tensor1->mutable_data<int>();
data1[0] = img.rows;
data1[1] = img.cols;
// 4. Run predictor
predictor->Run();
// 5. Get output and post process
std::unique_ptr<const Tensor> output_tensor(
std::move(predictor->GetOutput(0)));
auto* outptr = output_tensor->data<float>();
auto shape_out = output_tensor->shape();
int64_t cnt = 1;
for (auto& i : shape_out) {
cnt *= i;
}
cv::Mat output_image = img.clone();
auto rec_out = detect_object(outptr, static_cast<int>(cnt / 6), 0.5f, output_image);
cv::imshow("Object Detection Demo", output_image);
}
int main(int argc, char** argv) {
std::string model_file = argv[1];
cv::VideoCapture cap(-1);
cap.set(CV_CAP_PROP_FRAME_WIDTH, 640);
cap.set(CV_CAP_PROP_FRAME_HEIGHT, 480);
if (!cap.isOpened()) {
return -1;
}
while (1) {
cv::Mat input_image;
cap >> input_image;
RunModel(model_file, input_image);
if (cv::waitKey(1) == char('q')) {
break;
}
}
cap.release();
cv::destroyAllWindows();
return 0;
}
關于此段代碼的解讀請參考：https://github.com/PaddleCV-FAQ/PaddleDetection-FAQ/blob/main/Lite%E9%83%A8%E7%BD%B2/yolov3_for_raspi.md
這一步是整個部署程序的難點，
5.2.3 修改run.sh檔案
根據.cc檔案中需要用到的輸入引數修改(用文本編輯器打開并修改即可)，
在本專案中，我的.cc檔案只需要用到model，因此只有一個model地址的引數，
#!/bin/bash
# configure
#TARGET_ARCH_ABI=armv8 # for RK3399, set to default arch abi
TARGET_ARCH_ABI=armv7hf # for Raspberry Pi 3B
PADDLE_LITE_DIR=../Paddle-Lite
if [ "x$1" != "x" ]; then
TARGET_ARCH_ABI=$1
fi
# build
rm -rf build
mkdir build
cd build
cmake -DPADDLE_LITE_DIR=${PADDLE_LITE_DIR} -DTARGET_ARCH_ABI=${TARGET_ARCH_ABI} ..
make
#run
#這里修改.cc檔案需要的輸入引數，如模型地址、圖片地址等
LD_LIBRARY_PATH=$LD_LIBRARY_PATH:${PADDLE_LITE_DIR}/libs/${TARGET_ARCH_ABI} ./object_detection_demo ../models/fruit_detection/model.nb

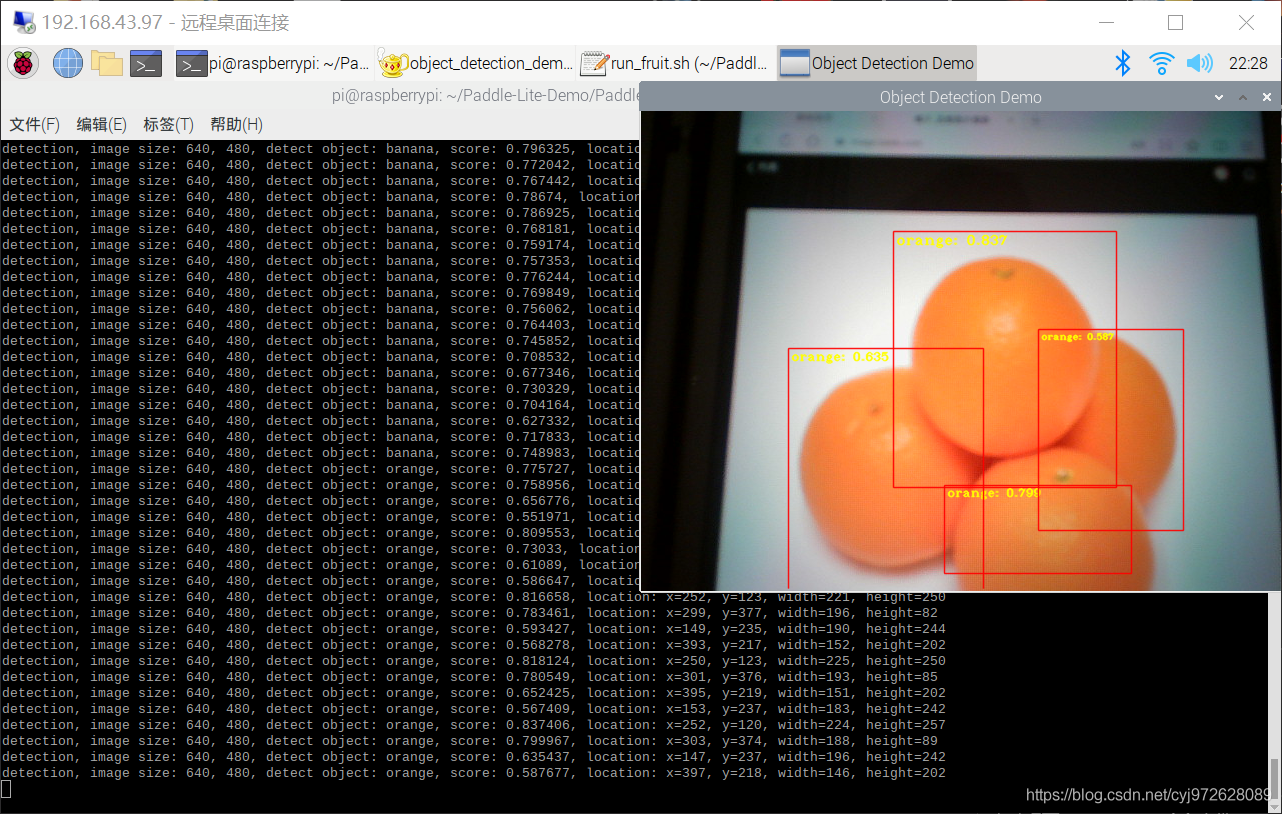

5.3 運行模型
cd Paddle-Lite-Demo/PaddleLite-armlinux-demo/object_detection_demo
./run.sh
6. Paddle-Lite手冊地址
https://paddle-lite.readthedocs.io/zh/latest/index.html
7. 問題求助
目標檢測的結果和準確度基本正常，但是攝像頭延遲非常高，大概有40s左右，并且還會出現掉幀的現象，希望能得到大佬的幫助！
