I/O多路復用之select、poll、epoll實體

2021-02-23 19:32:41 其他

目錄

1、select

1.1、fd_set結構體宣告

1.2、結構體timeval的宣告

1.3、select函式宣告

1.4、select實體

2、poll

2.1、poll的宣告

2.2、event引數

2.3、poll實體

3、epoll

3.1、epoll定義

3.2、 epoll實體


1、select

1.1、fd_set結構體宣告

/* /usr/include/x86_64-linux-gnu/bits/typesizes.h */
#define __FD_SETSIZE             1024

/* /usr/include/x86_64-linux-gnu/sys/select.h */
#define __NFDBITS    (8 * (int) sizeof (__fd_mask))

/* /usr/include/x86_64-linux-gnu/sys/select.h */
/* The fd_set member is required to be an array of longs.  */
typedef long int __fd_mask;

/* fd_set for select and pselect.  */
typedef struct
  {
    /* XPG4.2 requires this member name.  Otherwise avoid the name
       from the global namespace.  */
#ifdef __USE_XOPEN
    __fd_mask fds_bits[__FD_SETSIZE / __NFDBITS];
# define __FDS_BITS(set) ((set)->fds_bits)
#else
    __fd_mask __fds_bits[__FD_SETSIZE / __NFDBITS];
# define __FDS_BITS(set) ((set)->__fds_bits)
#endif
  } fd_set;

1.2、結構體timeval的宣告

/* /usr/include/x86_64-linux-gnu/asm/posix_types_x32.h */
typedef long long __kernel_long_t;

/* /usr/include/asm-generic/posix_types.h */
typedef __kernel_long_t  __kernel_time_t;
typedef __kernel_long_t  __kernel_suseconds_t;

/* /usr/include/linux/time.h */
struct timeval {
        __kernel_time_t         tv_sec;         /* seconds */
        __kernel_suseconds_t    tv_usec;        /* microseconds */
};

1.3、select函式宣告

/* Check the first NFDS descriptors each in READFDS (if not NULL) for read
   readiness, in WRITEFDS (if not NULL) for write readiness, and in EXCEPTFDS
   (if not NULL) for exceptional conditions.  If TIMEOUT is not NULL, time out
   after waiting the interval specified therein.  Returns the number of ready
   descriptors, or -1 for errors.

   This function is a cancellation point and therefore not marked with
   __THROW.  */
/*
    __nfds:        監控的檔案描述符集里最大檔案描述符加1,因為此引數會告訴內核檢測前多少個檔案描述符的狀態
    __readfds:    被監控的讀資料到達的檔案描述符集合,傳入傳出引數
    __writefds:   被監控的有寫資料到達的檔案描述符集合,傳入傳出引數
    __exceptfds:  被監控的有例外資料到達的檔案描述符集合,傳入傳出引數
    __restrict __timeout:
               定時阻塞監控時間,3種情況
                1.NULL,永遠等下去
                2.設定timeval,等待固定時間
                3.設定timeval里時間均為0,檢查描述字后立即回傳,輪詢
*/
extern int select (int __nfds, fd_set *__restrict __readfds,
                   fd_set *__restrict __writefds,
                   fd_set *__restrict __exceptfds,
                   struct timeval *__restrict __timeout);

/* /usr/include/x86_64-linux-gnu/bits/select.h */
#define __FD_SET(d, set) \
  ((void) (__FDS_BITS (set)[__FD_ELT (d)] |= __FD_MASK (d)))
#define __FD_CLR(d, set) \
  ((void) (__FDS_BITS (set)[__FD_ELT (d)] &= ~__FD_MASK (d)))
#define __FD_ISSET(d, set) \
  ((__FDS_BITS (set)[__FD_ELT (d)] & __FD_MASK (d)) != 0)
# define __FD_ZERO(fdsp) \
  do {                                                                        \
    int __d0, __d1;                                                           \
    __asm__ __volatile__ ("cld; rep; " __FD_ZERO_STOS                         \
                          : "=c" (__d0), "=D" (__d1)                          \
                          : "a" (0), "0" (sizeof (fd_set)                     \
                                          / sizeof (__fd_mask)),              \
                            "1" (&__FDS_BITS (fdsp)[0])                       \
                          : "memory");                                        \
  } while (0)



/* /usr/include/x86_64-linux-gnu/sys/select.h */
#define      FD_SET(fd, fdsetp)      __FD_SET (fd, fdsetp)   //把檔案描述符集合fdsetp里fd位置1
#define      FD_CLR(fd, fdsetp)      __FD_CLR (fd, fdsetp)   //把檔案描述符集合fdsetp里fd位置為0
#define      FD_ISSET(fd, fdsetp)    __FD_ISSET (fd, fdsetp)  //fd是否在fdset中
#define      FD_ZERO(fdsetp)         __FD_ZERO (fdsetp)  //把檔案描述符集合里所有位清0

1.4、select實體

/*================================================================
 *   Copyright (C) 2021 baichao All rights reserved.
 *
 *   檔案名稱:select_server.cpp
 *   創 建 者:baichao
 *   創建日期:2021年02月02日
 *   描    述:
 *
 ================================================================*/

#include <iostream>
#include <netinet/in.h>
#include <cstring>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <unistd.h>

class SelectServer
{
    public:
        SelectServer(std::string ip,int port)
        {
            memset(&serv_addr, 0, sizeof(serv_addr));  //每個位元組都用0填充
            serv_addr.sin_family = AF_INET;  //使用IPv4地址
            serv_addr.sin_addr.s_addr = inet_addr(ip.c_str());  //具體的IP地址
            serv_addr.sin_port = htons(port);  //埠
            serv_addr_len = sizeof(serv_addr);

            listen_fd = socket(AF_INET,SOCK_STREAM,IPPROTO_TCP);
            if(listen_fd < 3)
            {
                std::cout<<"Socket error"<<std::endl;
                return;
            }
            int opt = 1;
            setsockopt(listen_fd,SOL_SOCKET,SO_REUSEADDR,&opt,0);
        }

        ~SelectServer()
        {
            for (int fd = 0; fd <= max_fd; ++fd)
            {
                if (FD_ISSET(fd, &master_set))
                {
                    close(fd);
                }
            }
        }


        int Bind()
        {
            if( bind(listen_fd,(struct sockaddr*) &serv_addr,serv_addr_len) == -1)
            {
                std::cout<<"Server bind failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server bind success"<<std::endl;
        }

        int Listen()
        {
            if( listen(listen_fd,20) == -1)
            {
                std::cout<<"Server listen failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server listen success"<<std::endl;
            return 0;
        }

        int Accept()
        {
            struct sockaddr_in client_addr;
            socklen_t client_addr_len =sizeof(client_addr);
            int client_fd = accept(listen_fd,(struct sockaddr*) &client_addr,&client_addr_len);
            if(client_fd < 0)
            {
                std::cout<<"Server accept failed"<<std::endl;
                return -1;
            }
            FD_SET(client_fd,&master_set);
            if(client_fd > max_fd)
                max_fd = client_fd;
            return client_fd;
        }

        int Run()
        {
            max_fd = listen_fd;
            FD_ZERO(&master_set);
            FD_SET(listen_fd,&master_set);

            while(1)
            {
                FD_ZERO(&working_set);
                memcpy(&working_set,&master_set,sizeof(master_set));

                timeout.tv_sec = 20;
                timeout.tv_usec = 0;

                int num = select(max_fd + 1,&working_set,NULL,NULL,&timeout);

                if(num < 0)
                    return -1;

                int fd_isset_flag = FD_ISSET(listen_fd,&working_set);
                std::cout<<"fd_isset_flag:"<<fd_isset_flag<<std::endl;

                if(fd_isset_flag)
                    Accept();     //檢測到監聽的fd有訊息到達,所以創建一個新的客戶端fd
                else
                    Recv(num);
            }
        }
        int Recv(int num)
        {
            for(int fd = 0; fd <= max_fd; ++fd)
            {
                if(FD_ISSET(fd,&working_set))
                {
                    bool isCloseConn = false;

                    int head_length;
                    recv(fd,&head_length,sizeof(head_length),0);
                    char *buffer = new char[head_length];
                    bzero(buffer,head_length);

                    int total = 0;
                    while(total < head_length)
                    {
                        int len = recv(fd,buffer+total,head_length - total,0);
                        if(len < 0)
                        {
                            std::cout<<"Recv error"<<std::endl;
                            isCloseConn = true;
                            break;
                        }
                        total = total + len;
                    }

                    std::cout<<"Message:"<<buffer<<std::endl;

                    delete buffer;

                    if (isCloseConn) // 當前這個連接有問題,關閉它
                    {
                        close(fd);
                        FD_CLR(fd, &master_set);
                        if (fd == max_fd) // 需要更新max_fd;
                        {
                            while (FD_ISSET(max_fd, &master_set) == false)
                                --max_fd;
                        }
                    }


                }
            }
            return 0;
        }

    private:
        struct sockaddr_in serv_addr;
        socklen_t serv_addr_len;
        int listen_fd;
        int max_fd;
        fd_set master_set;
        fd_set working_set;
        struct timeval timeout;
    private:
        int message_length;
};

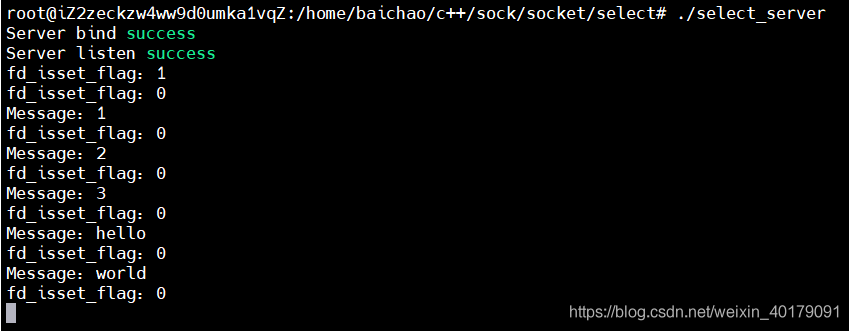

int main()
{
    SelectServer *selectServer = new SelectServer("127.0.0.1",11230);
    selectServer->Bind();
    selectServer->Listen();
    selectServer->Run();
    return 0;
}

/*================================================================
 *   Copyright (C) 2021 baichao All rights reserved.
 *
 *   檔案名稱:select_client.cpp
 *   創 建 者:baichao
 *   創建日期:2021年02月01日
 *   描    述:
 *
 ================================================================*/

#include<netinet/in.h>   // sockaddr_in
#include<sys/types.h>    // socket
#include<sys/socket.h>   // socket
#include<arpa/inet.h>
#include<sys/ioctl.h>
#include<unistd.h>
#include<iostream>
#include<string>
#include<cstdlib>
#include<cstdio>
#include<cstring>

#define BUFFER_SIZE 1024

class SelectClient
{
    private:
        struct sockaddr_in server_addr;
        socklen_t server_addr_len;
        int fd;
    public:
        SelectClient(std::string ip,int port);
        ~SelectClient();
        void Connect();
        void Send(std::string str);
        std::string Recv();
};

SelectClient::SelectClient(std::string ip, int port)
{
    bzero(&server_addr, sizeof(server_addr));
    server_addr.sin_family = AF_INET;
    if(inet_pton(AF_INET, ip.c_str(), &server_addr.sin_addr) == 0)
    {
        std::cout << "Server ip address error!";
        exit(1);
    }
    server_addr.sin_port = htons(port);
    server_addr_len = sizeof(server_addr);
    // create socket
    fd = socket(AF_INET, SOCK_STREAM, 0);
    if(fd < 0)
    {
        std::cout << "Create socket failed!";
        exit(1);
    }
}

SelectClient::~SelectClient()
{
    close(fd);
}

void SelectClient::Connect()
{
    std::cout << "Connecting......" << std::endl;
    if(connect(fd, (struct sockaddr*)&server_addr, server_addr_len) < 0)
    {
        std::cout << "Can not connect to cerver IP!";
        exit(1);
    }
    std::cout << "Connect to server success." << std::endl;
}

void SelectClient::Send(std::string str)
{
    int head_length = str.size()+1;   // 注意這里需要+1
    int ret1 = send(fd, &head_length, sizeof(head_length), 0);
    int ret2 = send(fd, str.c_str(), head_length, 0);
    if(ret1 < 0 || ret2 < 0)
    {
        std::cout << "Send message failed!";
        exit(1);
    }
}

int main()
{
    SelectClient client("127.0.0.1",11230);
    client.Connect();
    while(1)
    {
        std::string msg;
        getline(std::cin, msg);
        if(msg == "exit")
            break;
        client.Send(msg);
    }
    return 0;
}

2、poll

2.1、poll的宣告

/* /usr/include/x86_64-linux-gnu/sys/poll.h */

/* Type used for the number of file descriptors.  */
typedef unsigned long int nfds_t;

/* Data structure describing a polling request.  */
struct pollfd
  {
    int fd;                     /* File descriptor to poll.  */
    short int events;           /* Types of events poller cares about.  */
    short int revents;          /* Types of events that actually occurred.  */
  };

/* Poll the file descriptors described by the NFDS structures starting at
   FDS.  If TIMEOUT is nonzero and not -1, allow TIMEOUT milliseconds for
   an event to occur; if TIMEOUT is -1, block until an event occurs.
   Returns the number of file descriptors with events, zero if timed out,
   or -1 for errors.

   This function is a cancellation point and therefore not marked with
   __THROW.  */
/*
該poll()函式回傳__fds集合中就緒的讀、寫,或出錯的描述符數量,回傳0表示超時,回傳-1表示出錯
__fds:一個struct pollfd型別的陣列,用于存放需要檢測的socket描述符,并且呼叫poll函式后__fds陣列不會被清空
__nfds:__fds中描述符的總數量
timeout:呼叫poll函式阻塞的超時時間,單位毫秒
*/
extern int poll (struct pollfd *__fds, nfds_t __nfds, int __timeout);

2.2、event引數

events域中請求的任何事件都可能在revents域中回傳,合法的事件如下:

/* Event types that can be polled for.  These bits may be set in `events'
   to indicate the interesting event types; they will appear in `revents'
   to indicate the status of the file descriptor.  */
#define POLLIN          0x001           /* There is data to read.  */
#define POLLPRI         0x002           /* There is urgent data to read.  */
#define POLLOUT         0x004           /* Writing now will not block.  */

#if defined __USE_XOPEN || defined __USE_XOPEN2K8
/* These values are defined in XPG4.2.  */
# define POLLRDNORM     0x040           /* Normal data may be read.  */
# define POLLRDBAND     0x080           /* Priority data may be read.  */
# define POLLWRNORM     0x100           /* Writing now will not block.  */
# define POLLWRBAND     0x200           /* Priority data may be written.  */
#endif

#ifdef __USE_GNU
/* These are extensions for Linux.  */
# define POLLMSG        0x400
# define POLLREMOVE     0x1000
# define POLLRDHUP      0x2000
#endif

/* Event types always implicitly polled for.  These bits need not be set in
   `events', but they will appear in `revents' to indicate the status of
   the file descriptor.  */
#define POLLERR         0x008           /* Error condition.  */
#define POLLHUP         0x010           /* Hung up.  */
#define POLLNVAL        0x020           /* Invalid polling request.  */
常量說明
POLLIN普通或優先級帶資料可讀
POLLRDNORM普通資料可讀
POLLRDBAND優先級帶資料可讀
POLLPRI高優先級資料可讀
POLLOUT普通資料可寫
POLLWRNORM普通資料可寫
POLLWRBAND優先級帶資料可寫
POLLERR發生錯誤
POLLHUP發生掛起
POLLNVAL描述字不是一個打開的檔案

當需要監聽多個事件時,使用POLLIN | POLLRDNORM設定 events 域;當poll呼叫之后檢測某事件是否就緒時,fds[i].revents & POLLIN進行判斷,

2.3、poll實體

/*================================================================
 *   Copyright (C) 2021 baichao All rights reserved.
 *
 *   檔案名稱:poll_server.cpp
 *   創 建 者:baichao
 *   創建日期:2021年02月20日
 *   描    述:
 *
 ================================================================*/

#include <iostream>
#include <netinet/in.h>
#include <cstring>
#include <sys/socket.h>
#include <sys/poll.h>
#include <arpa/inet.h>
#include <unistd.h>

#define MAXFD 1024

class PollServer
{
    public:
        PollServer(std::string ip,int port)
        {
            memset(&serv_addr, 0, sizeof(serv_addr));  //每個位元組都用0填充
            serv_addr.sin_family = AF_INET;  //使用IPv4地址
            serv_addr.sin_addr.s_addr = inet_addr(ip.c_str());  //具體的IP地址
            serv_addr.sin_port = htons(port);  //埠
            serv_addr_len = sizeof(serv_addr);

            listen_fd = socket(AF_INET,SOCK_STREAM,IPPROTO_TCP);
            if(listen_fd < 3)
            {
                std::cout<<"Socket error"<<std::endl;
                return;
            }
            int opt = 1;
            setsockopt(listen_fd,SOL_SOCKET,SO_REUSEADDR,&opt,0);
        }

        ~PollServer()
        {
            for (int i = 0; i < MAXFD; ++i)
            {
                if (fds[i].fd >= 0)
                {
                    close(fds[i].fd);
                }
            }
        }


        int Bind()
        {
            if( bind(listen_fd,(struct sockaddr*) &serv_addr,serv_addr_len) == -1)
            {
                std::cout<<"Server bind failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server bind success"<<std::endl;
        }

        int Listen()
        {
            if( listen(listen_fd,20) == -1)
            {
                std::cout<<"Server listen failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server listen success"<<std::endl;
            return 0;
        }

        int Accept()
        {
            struct sockaddr_in client_addr;
            socklen_t client_addr_len =sizeof(client_addr);
            int client_fd = accept(listen_fd,(struct sockaddr*) &client_addr,&client_addr_len);
            if(client_fd < 0)
            {
                std::cout<<"Server accept failed"<<std::endl;
                return -1;
            }
            int i ;
            for( i = 1; i < MAXFD; ++i)
            {
                if(fds[i].fd < 0)
                {
                    fds[i].fd = client_fd;
                    break;
                }
            }

            if( i == MAXFD)
            {
                std::cout<<"client number exceeds maximum limit"<<std::endl;
                return -1;
            }

            fds[i].events = POLLIN;  //設定新描述符的讀事件
            nfds = i > nfds ? i : nfds;

            return client_fd;
        }

        int Run()
        {
            fds[0].fd = listen_fd;
            fds[0].events = POLLIN;
            nfds = 0;

            for(int i = 1; i < MAXFD; ++i)
                fds[i].fd = -1;

            while(1)
            {

                int num  = poll(fds,nfds+1,-1);

                if(num < 0)
                    return -1;

                if(fds[0].revents & POLLIN)
                    Accept();     //檢測到監聽的fd有訊息到達,所以創建一個新的客戶端fd
                else
                    Recv(num);
            }
        }
        int Recv(int num)
        {
            for(int i = 0; i <= MAXFD; ++i)
            {
                if(fds[i].revents & POLLIN)
                {
                    bool isCloseConn = false;

                    int head_length;
                    recv(fds[i].fd,&head_length,sizeof(head_length),0);
                    char *buffer = new char[head_length];
                    bzero(buffer,head_length);

                    int total = 0;
                    while(total < head_length)
                    {
                        int len = recv(fds[i].fd,buffer+total,head_length - total,0);
                        if(len < 0)
                        {
                            std::cout<<"Recv error"<<std::endl;
                            isCloseConn = true;
                            break;
                        }
                        total = total + len;
                    }

                    std::cout<<"Message:"<<buffer<<std::endl;

                    delete buffer;

                    if (isCloseConn) // 當前這個連接有問題,關閉它
                    {
                        close(fds[i].fd);
                        fds[i].fd = -1;
                    }


                }
            }
            return 0;
        }

    private:
        struct sockaddr_in serv_addr;
        socklen_t serv_addr_len;
        int listen_fd;
        struct pollfd fds[MAXFD];
        int nfds;
    private:
        int message_length;
};

int main()
{
    PollServer *pollServer = new PollServer("127.0.0.1",11230);
    pollServer->Bind();
    pollServer->Listen();
    pollServer->Run();
    return 0;
}

3、epoll

3.1、epoll定義

/* Valid opcodes ( "op" parameter ) to issue to epoll_ctl().  */
#define EPOLL_CTL_ADD 1 /* Add a file descriptor to the interface.  */
#define EPOLL_CTL_DEL 2 /* Remove a file descriptor from the interface.  */
#define EPOLL_CTL_MOD 3 /* Change file descriptor epoll_event structure.  */


typedef union epoll_data
{
  void *ptr;
  int fd;
  uint32_t u32;
  uint64_t u64;
} epoll_data_t;

struct epoll_event
{
  uint32_t events;      /* Epoll events */
  epoll_data_t data;    /* User data variable */
} __EPOLL_PACKED;


/* Creates an epoll instance.  Returns an fd for the new instance.
   The "size" parameter is a hint specifying the number of file
   descriptors to be associated with the new instance.  The fd
   returned by epoll_create() should be closed with close().  */
extern int epoll_create (int __size) __THROW;

/* Manipulate an epoll instance "epfd". Returns 0 in case of success,
   -1 in case of error ( the "errno" variable will contain the
   specific error code ) The "op" parameter is one of the EPOLL_CTL_*
   constants defined above. The "fd" parameter is the target of the
   operation. The "event" parameter describes which events the caller
   is interested in and any associated user data.  */
extern int epoll_ctl (int __epfd, int __op, int __fd,
                      struct epoll_event *__event) __THROW;

/* Wait for events on an epoll instance "epfd". Returns the number of
   triggered events returned in "events" buffer. Or -1 in case of
   error with the "errno" variable set to the specific error code. The
   "events" parameter is a buffer that will contain triggered
   events. The "maxevents" is the maximum number of events to be
   returned ( usually size of "events" ). The "timeout" parameter
   specifies the maximum wait time in milliseconds (-1 == infinite).

   This function is a cancellation point and therefore not marked with
   __THROW.  */
extern int epoll_wait (int __epfd, struct epoll_event *__events,
                       int __maxevents, int __timeout);

struct epoll_event中的events值可以為下面列舉中定義的值

enum EPOLL_EVENTS
  {
    EPOLLIN = 0x001,    //表示對應的檔案描述符可以讀(包括對端SOCKET正常關閉);
#define EPOLLIN EPOLLIN
    EPOLLPRI = 0x002,   //表示對應的檔案描述符有緊急的資料可讀
#define EPOLLPRI EPOLLPRI
    EPOLLOUT = 0x004,   //表示對應的檔案描述符可以寫;
#define EPOLLOUT EPOLLOUT
    EPOLLRDNORM = 0x040, //和 EPOLLIN 相等
#define EPOLLRDNORM EPOLLRDNORM
    EPOLLRDBAND = 0x080, //優先讀取的資料帶(data band)
#define EPOLLRDBAND EPOLLRDBAND
    EPOLLWRNORM = 0x100, //和 EPOLLOUT 相等
#define EPOLLWRNORM EPOLLWRNORM
    EPOLLWRBAND = 0x200, //優先寫的資料帶(data band)
#define EPOLLWRBAND EPOLLWRBAND
    EPOLLMSG = 0x400,    //忽視
#define EPOLLMSG EPOLLMSG
    EPOLLERR = 0x008,    //assoc.fd有錯誤情況發生
#define EPOLLERR EPOLLERR
    EPOLLHUP = 0x010,    //assoc.fd發生掛起
#define EPOLLHUP EPOLLHUP
    EPOLLRDHUP = 0x2000, //
#define EPOLLRDHUP EPOLLRDHUP
    EPOLLWAKEUP = 1u << 29,
#define EPOLLWAKEUP EPOLLWAKEUP
    EPOLLONESHOT = 1u << 30,  //設定為 one-short 行為,一個事件(event)被拉出后,對應的fd在內部被禁用
#define EPOLLONESHOT EPOLLONESHOT
    EPOLLET = 1u << 31
#define EPOLLET EPOLLET
  };

3.2、 epoll實體

服務端代碼如下,客戶端代碼與select代碼一樣

/*================================================================
 *   Copyright (C) 2021 baichao All rights reserved.
 *
 *   檔案名稱:epoll_server.cpp
 *   創 建 者:baichao
 *   創建日期:2021年02月22日
 *   描    述:
 *
 ================================================================*/

#include <iostream>
#include <netinet/in.h>
#include <cstring>
#include <sys/socket.h>
#include <sys/epoll.h>
#include <arpa/inet.h>
#include <unistd.h>

#define BUFFER_SIZE 1024
#define EPOLLSIZE 100

class EPollServer
{
    public:
        EPollServer(std::string ip,int port)
        {
            memset(&serv_addr, 0, sizeof(serv_addr));  //每個位元組都用0填充
            serv_addr.sin_family = AF_INET;  //使用IPv4地址
            serv_addr.sin_addr.s_addr = inet_addr(ip.c_str());  //具體的IP地址
            serv_addr.sin_port = htons(port);  //埠
            serv_addr_len = sizeof(serv_addr);

            listen_fd = socket(AF_INET,SOCK_STREAM,IPPROTO_TCP);
            if(listen_fd < 3)
            {
                std::cout<<"Socket error"<<std::endl;
                return;
            }
            int opt = 1;
            setsockopt(listen_fd,SOL_SOCKET,SO_REUSEADDR,&opt,0);
        }

        ~EPollServer()
        {
            close(epfd);
        }


        int Bind()
        {
            if( bind(listen_fd,(struct sockaddr*) &serv_addr,serv_addr_len) == -1)
            {
                std::cout<<"Server bind failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server bind success"<<std::endl;
        }

        int Listen()
        {
            if( listen(listen_fd,20) == -1)
            {
                std::cout<<"Server listen failed"<<std::endl;
                return -1;
            };
            std::cout<<"Server listen success"<<std::endl;
            return 0;
        }

        int Accept()
        {
            struct sockaddr_in client_addr;
            socklen_t client_addr_len =sizeof(client_addr);
            int client_fd = accept(listen_fd,(struct sockaddr*) &client_addr,&client_addr_len);
            if(client_fd < 0)
            {
                std::cout<<"Server accept failed"<<std::endl;
                return -1;
            }

            struct epoll_event event;
            event.data.fd = client_fd;
            event.events = EPOLLIN;

            epoll_ctl(epfd,EPOLL_CTL_ADD,client_fd,&event);

            return client_fd;
        }

        int Run()
        {
            epfd = epoll_create(1);

            struct epoll_event event;
            event.data.fd = listen_fd;
            event.events = EPOLLIN;

            epoll_ctl(epfd,EPOLL_CTL_ADD,listen_fd,&event);

            while(1)
            {
                int num  = epoll_wait(epfd,events,EPOLLSIZE,-1);

                if(num < 0)
                    return -1;

                for(int i = 0; i < num; ++i)
                {
                    int fd = events[i].data.fd;
                    if((fd == listen_fd) && (events[i].events & EPOLLIN))
                        Accept();     //檢測到監聽的fd有訊息到達,所以創建一個新的客戶端fd
                    else if(events[i].events & EPOLLIN)
                        Recv(fd);
                }

            }
        }
        int Recv(int fd)
        {
            bool isCloseConn = false;

            int head_length;
            recv(fd,&head_length,sizeof(head_length),0);
            char *buffer = new char[head_length];
            bzero(buffer,head_length);

            int total = 0;
            while(total < head_length)
            {
                int len = recv(fd,buffer+total,head_length - total,0);
                if(len < 0)
                {
                    std::cout<<"Recv error"<<std::endl;
                    isCloseConn = true;
                    break;
                }
                total = total + len;
            }

            std::cout<<"Message:"<<buffer<<std::endl;

            delete buffer;

            if (isCloseConn) // 當前這個連接有問題,關閉它
            {
                close(fd);
                struct epoll_event event;
                event.data.fd = fd;
                event.events = EPOLLIN;
                epoll_ctl(epfd,EPOLL_CTL_DEL,fd,&event);  //洗掉出錯的fd
            }
            return 0;
        }

    private:
        struct sockaddr_in serv_addr;
        socklen_t serv_addr_len;
        int listen_fd;
        int epfd;
        struct epoll_event events[EPOLLSIZE];  //epoll_wait回傳的就緒事件
    private:
        int message_length;
};

int main()
{
    EPollServer *ePollServer = new EPollServer("127.0.0.1",11230);
    ePollServer->Bind();
    ePollServer->Listen();
    ePollServer->Run();
    return 0;
}

轉載請註明出處,本文鏈接:https://www.uj5u.com/qita/262625.html

標籤:其他

上一篇:Ansoft Mxwell 2019 R3 實用技巧(簡單磁路搭建)

下一篇:ZZULIOJ1185:添加記錄(結構體專題)

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C#(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種:三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看,三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看,三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統,“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及:虛擬機CentOs下執行 yum -y install lrzsz命令,出現錯誤:鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示:其實很簡單,往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號, sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求,SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生, 2020-08-28 16:18:25 分類專欄: kail 網路安全 linux 文章標簽: linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么? 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼: #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘(北斗授時服務器)讓網路資料更精準

    北斗電力時鐘(北斗授時服務器)讓網路資料更精準 北斗電力時鐘(北斗授時服務器)讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年,資訊技術的得了快速發展,互聯網在逐漸普及,其在人們生活和生產中都得到了廣泛應用,并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用,一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub:https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺,后來才有了CTFHub。 感覺不論是網頁UI設計,還是題目質量,賽事跟蹤,工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解(net user / type /md /rd/ dir /cd /net use copy、批處理 等) 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝,密碼啊破解03Linux常用命令04LAMP 01LINUX windows: win03 8 12 16 19 配置不繁瑣 Linux:redhat,centos(紅帽社區版),Ubuntu server,suse unix:金融機構,證券,銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 (POST注入/XSS漏洞上傳)3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題,描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章,不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》,我也是第一時間得知了這個訊息,然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本: 個人認為這件事也沒什么,還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹:metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包,它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一,它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip:192.168.20.121 靶機ip:192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k,軟體測驗工程師的漲薪史,給我看哭了

    清明節一過,盲猜大家已經無心上班,在數著日子準備過五一,但一想到銀行卡里的余額……瞬間心情就不美麗了。最近,2023年高校畢業生就業調查顯示,本科畢業月平均起薪為5825元。調查一出,便有很多同學表示自己又被平均了。看著這一資料,不免讓人想到前不久中國青年報的一項調查:近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文,所以對學習母語的我們非常不友好 使用網址:https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜,前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜,自動化測驗的需求也越來越高。如今,自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分,它們可以幫助開發人員更快地發現和修復錯誤,提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐:4個DVPP記憶體問題的典型案例解讀

    摘要:由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求(例如,記憶體首地址128位元組對齊),因此需呼叫專用的記憶體申請介面,那么本期就分享幾個關于DVPP記憶體問題的典型案例,并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》,作者:昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊,輔助滲透(埠掃描、登錄密碼爆破、漏洞驗證等) 2、encoders 編碼器模塊,主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手:與相機連接,設定相機引數,采集影像 2) 標定助手:九點標定或是其它的標定,生成標定檔案及內參外參,可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客,先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp),這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接: https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more
