改造家里的開關成為智能開關，保留原有開關控制，零火版

亮點

成本不超20塊，這可能是目前能找到的最便宜方案了吧，
體積較小，可以塞入86開關面板內，
手機app+智能音箱+物理開關控制，狀態能同步，
接入點燈科技平臺，支持wifi配網，包括blinker 設備密鑰，
入手門檻大大降低，有電工基礎，會接入線就行，

程序1，下載韌體和配網

程序2，接線

程序3，改造程序

程序4，最后效果

點動式物理開關演示

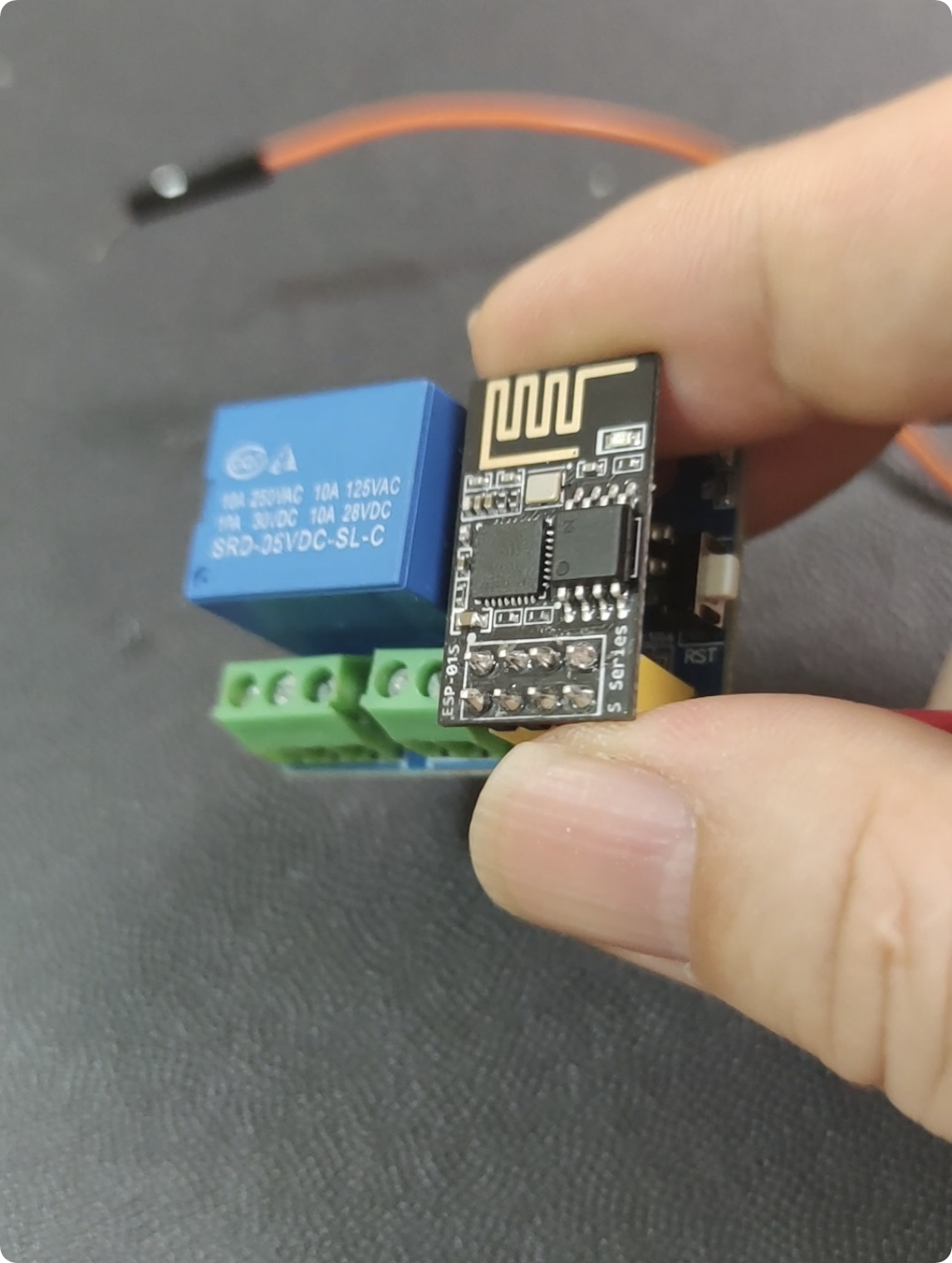

器材

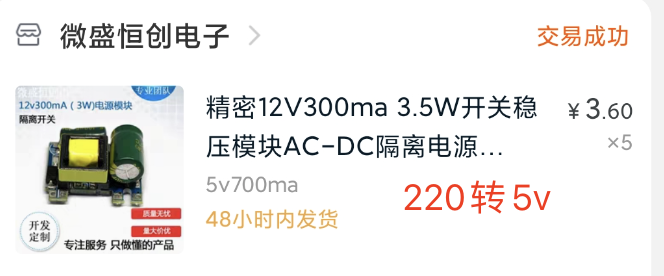

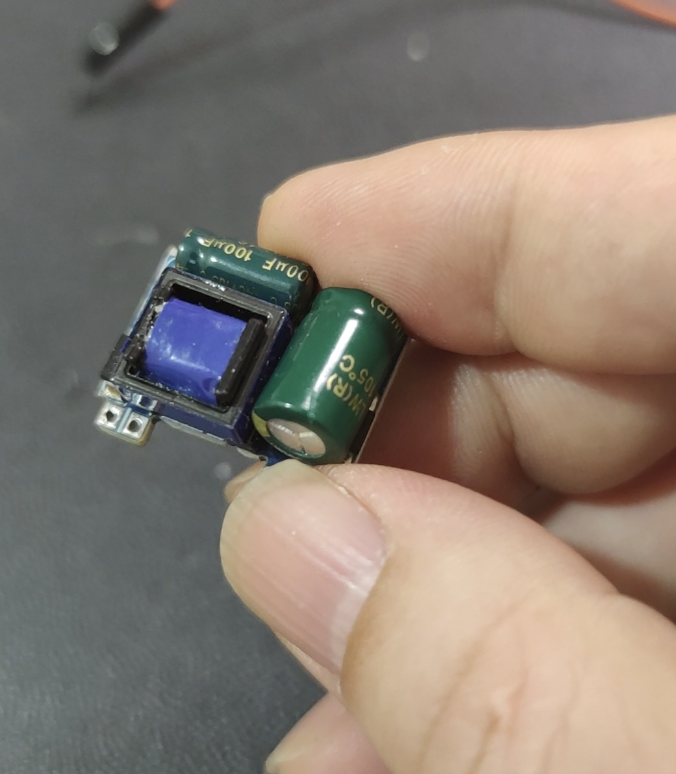

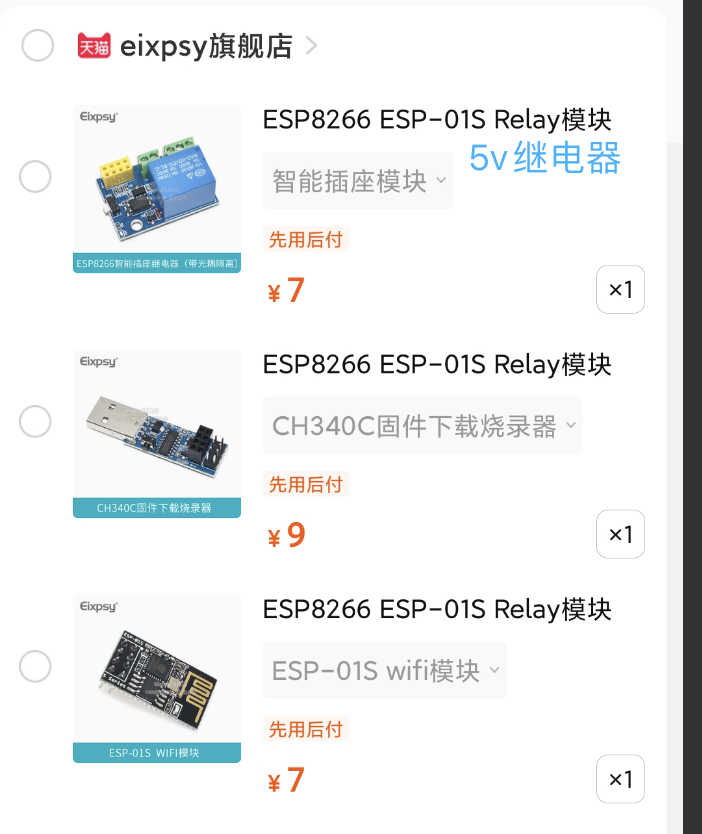

需要的器件如下，

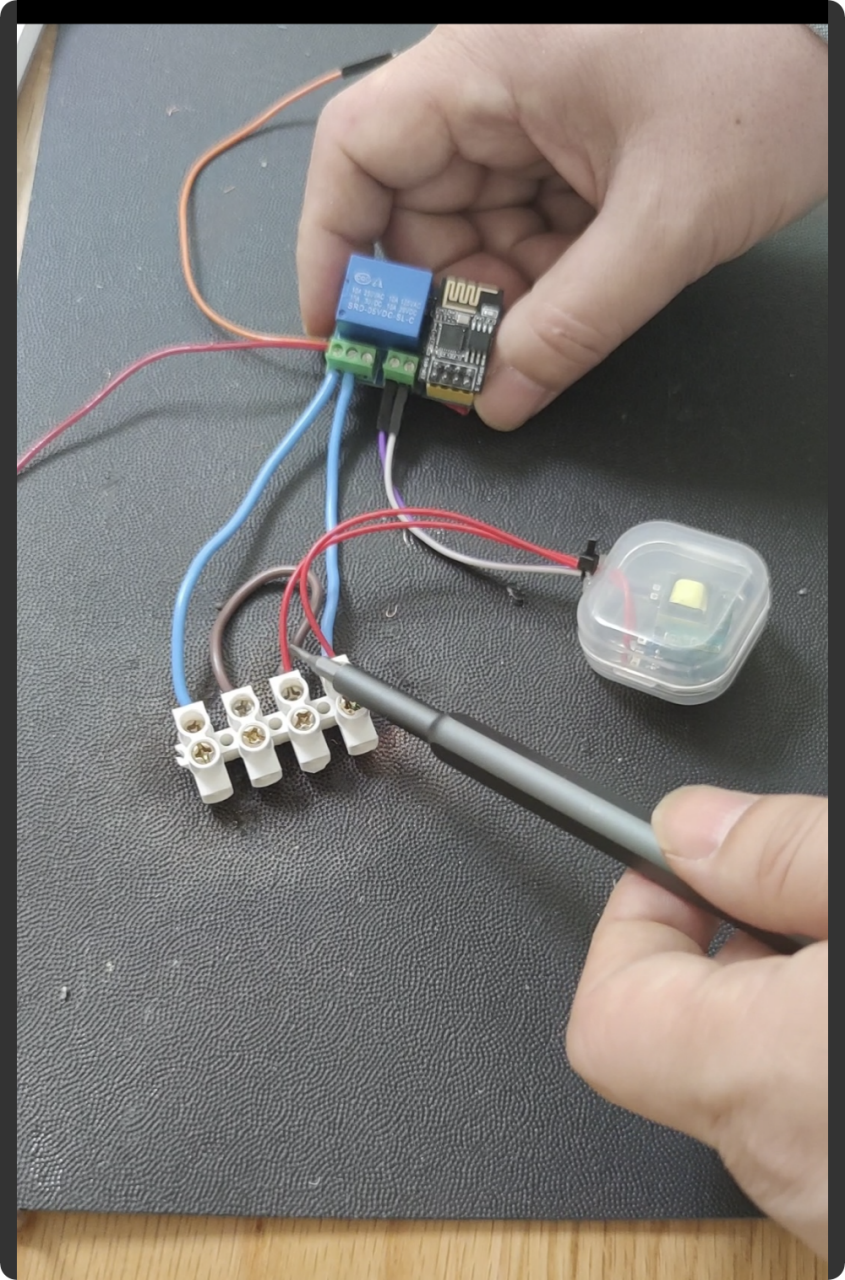

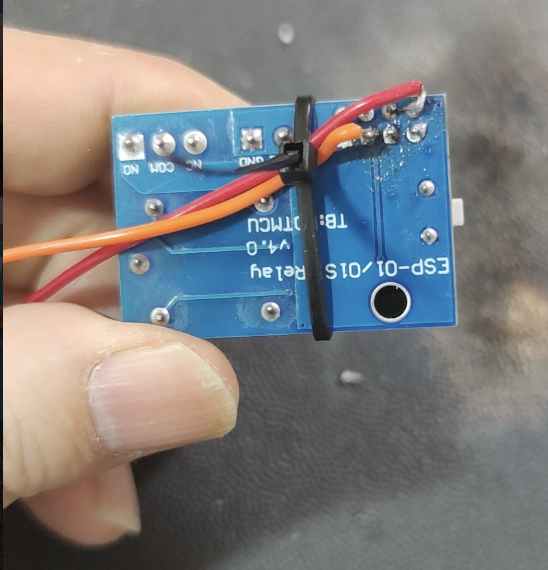

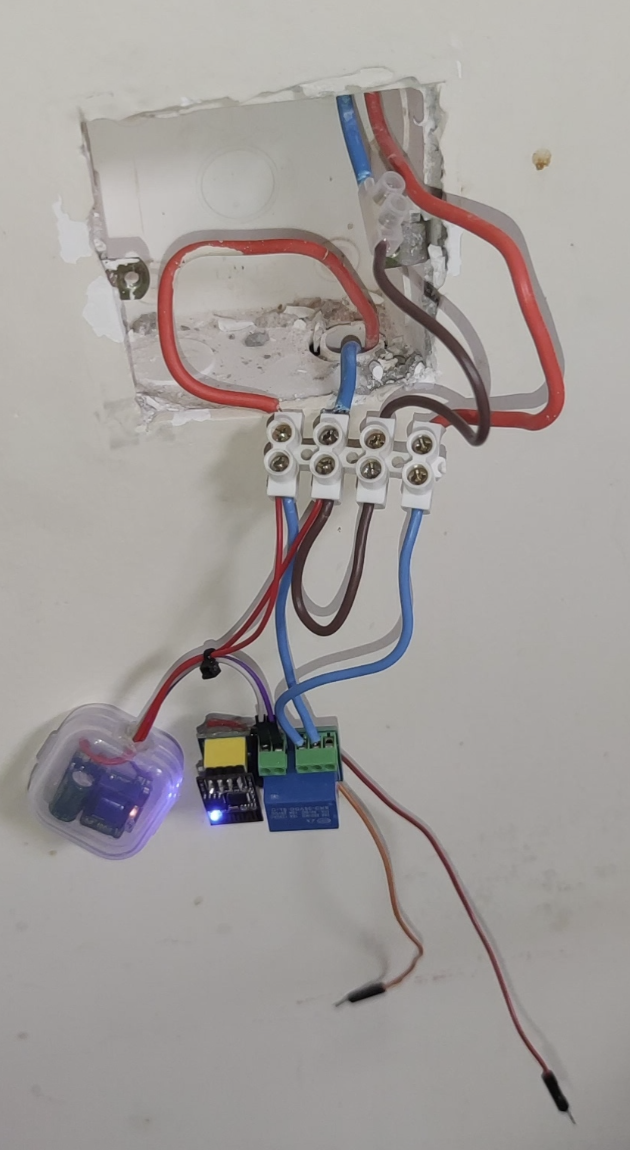

接線

手機app端，Blinker設定

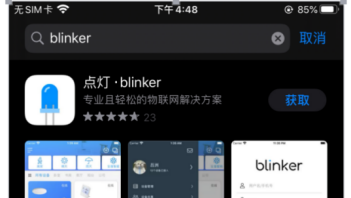

1，下載客戶端

https://diandeng.tech/doc/app-download, 下載其app, 按注冊blinker賬號，獲取密鑰authkey，iOS 在app store 搜索blinker 安裝

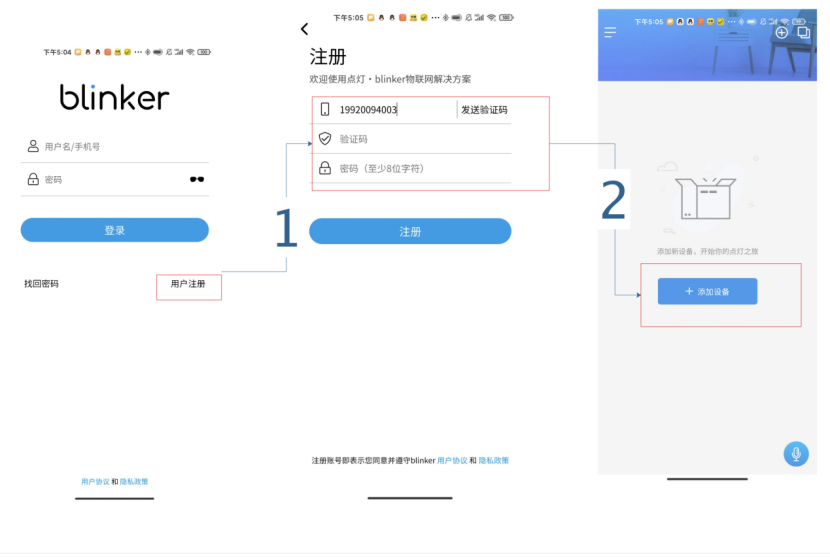

2，注冊賬號

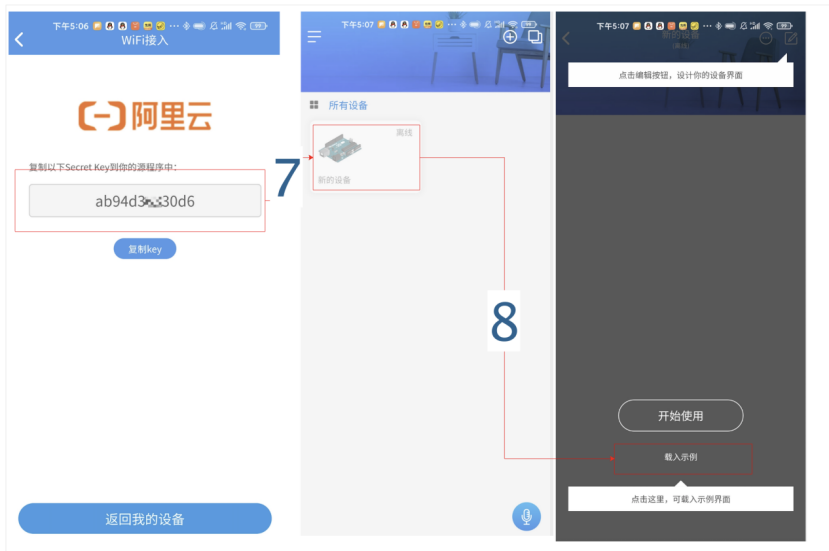

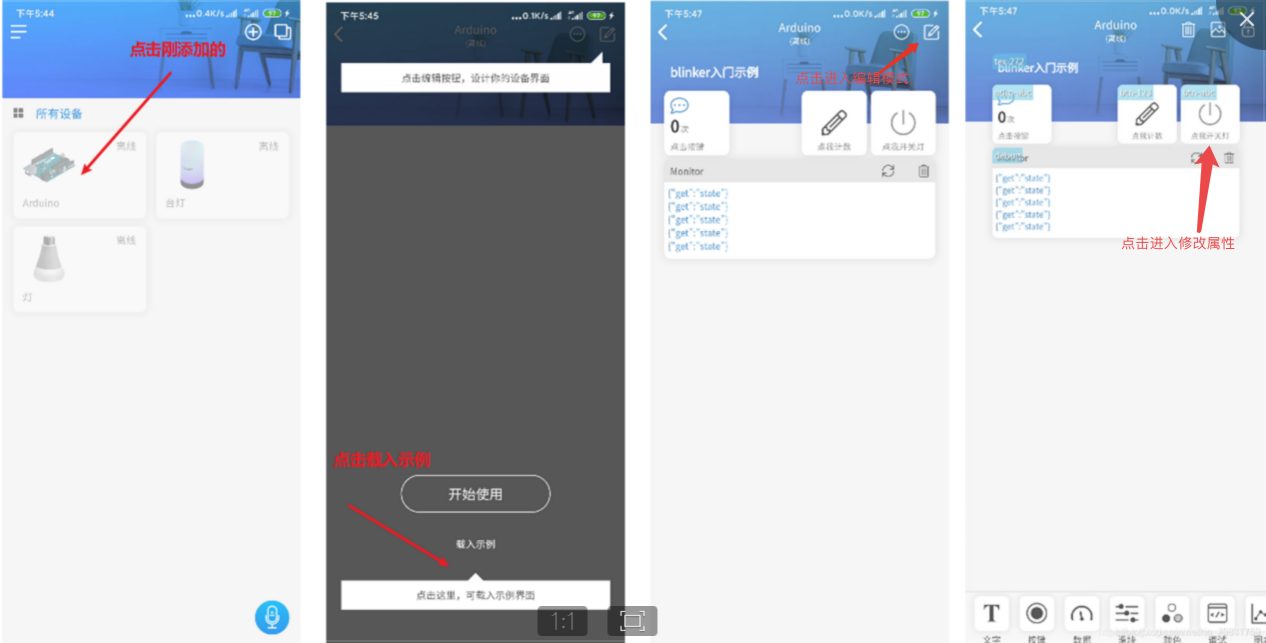

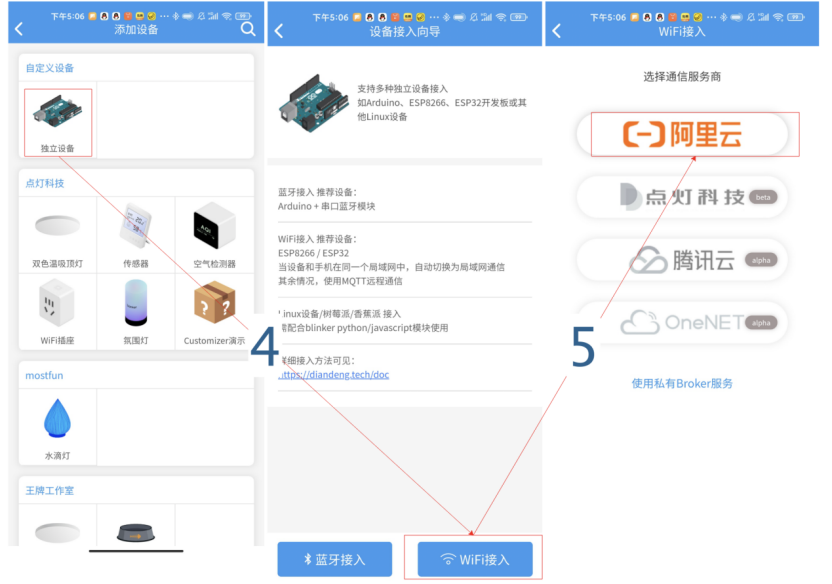

3，創建設備

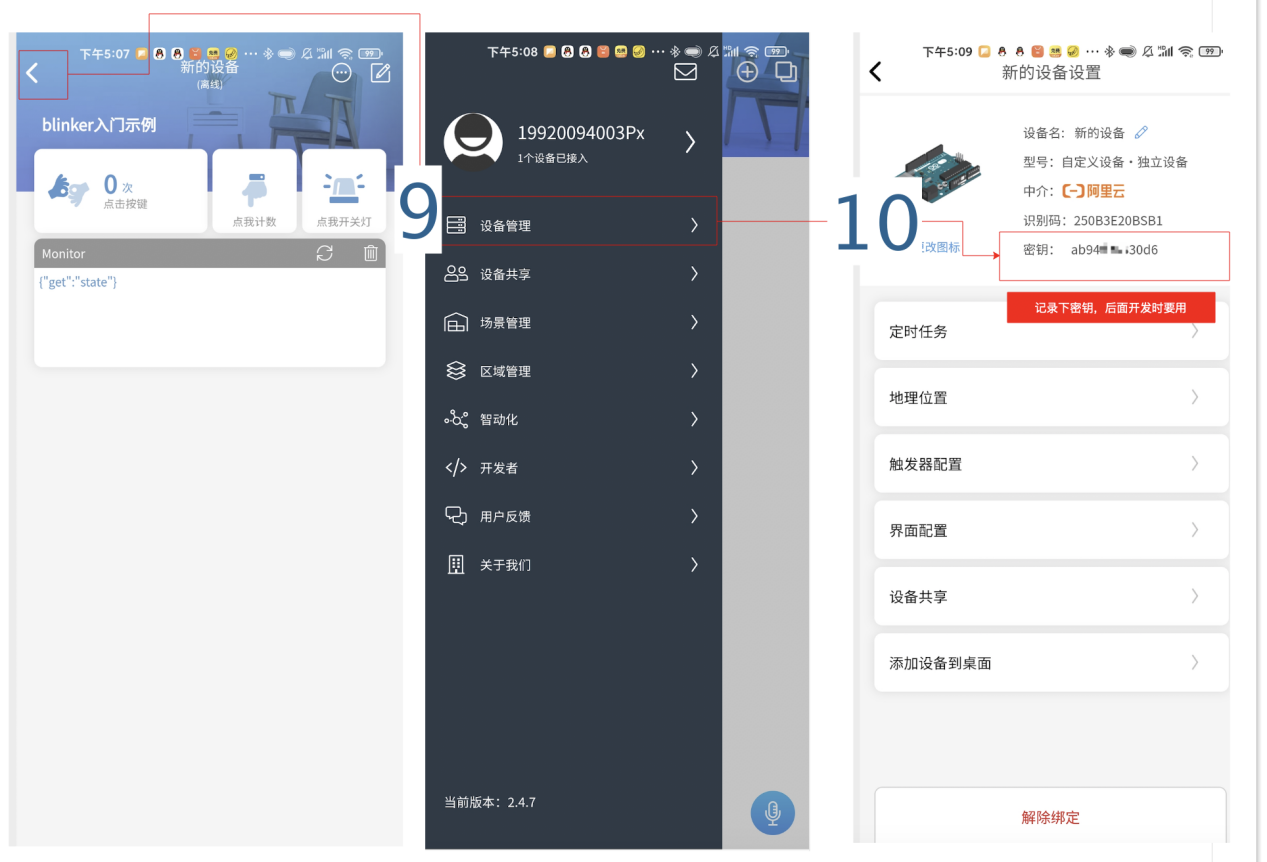

到這一步，我們拿到設備的密鑰，請記錄下來，后面要用！！！！

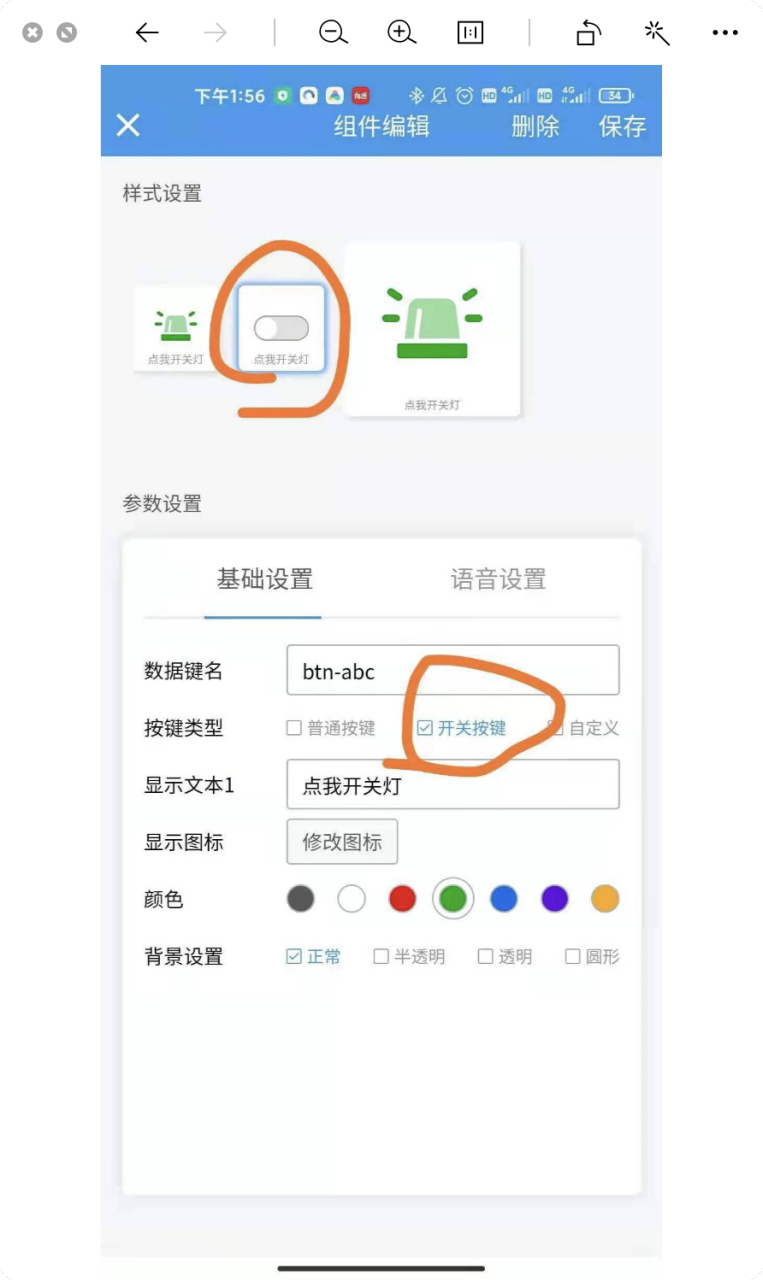

為設備增加一個按鈕, 按鍵設定如下圖

韌體下載

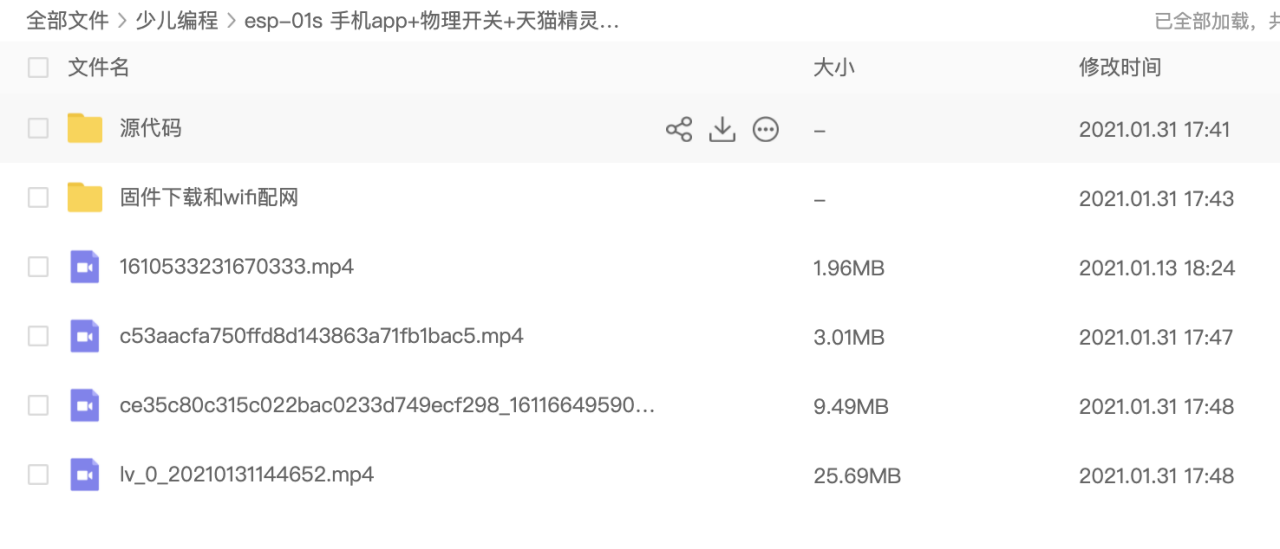

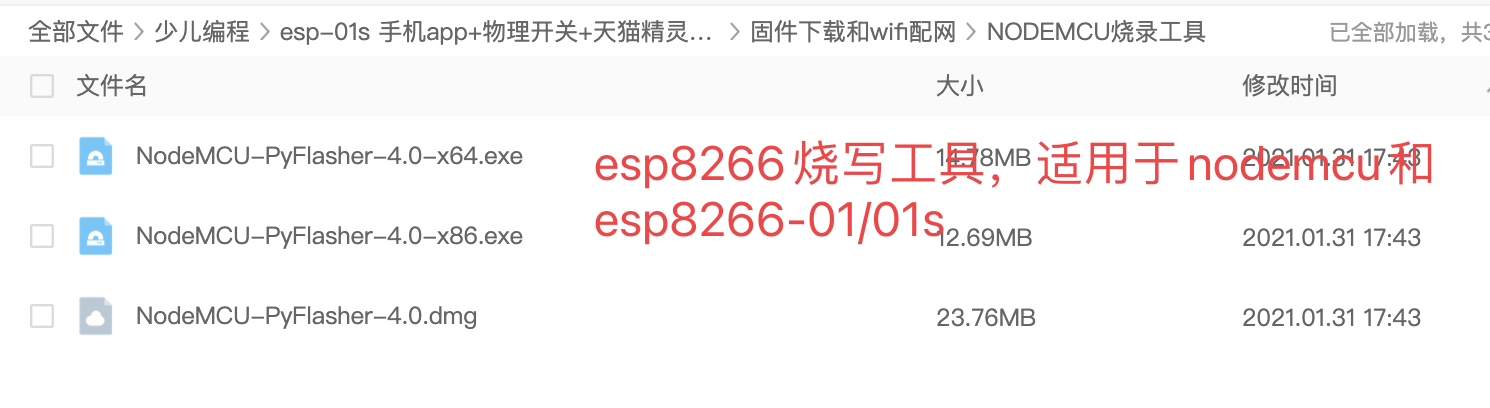

1,下載網盤工具包

鏈接:https://pan.baidu.com/s/1LU4XkcYnH83GNsA61ywFqw 提取碼:681i 復制這段內容后打開百度網盤手機App，操作更方便哦

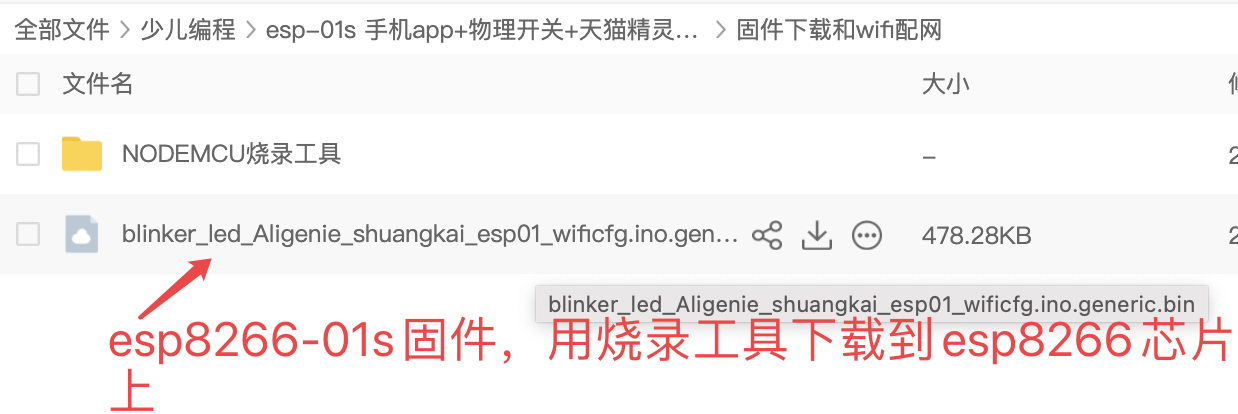

2,燒寫韌體

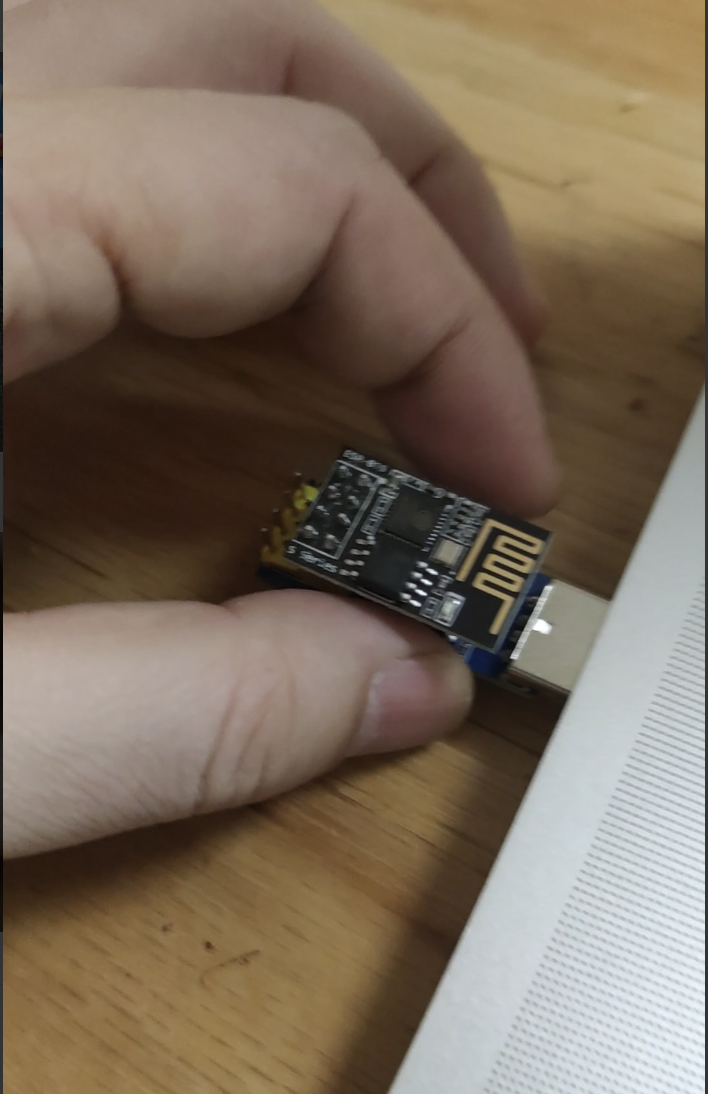

把esp8266插在燒寫器上，然后插入電腦的usb口，如下

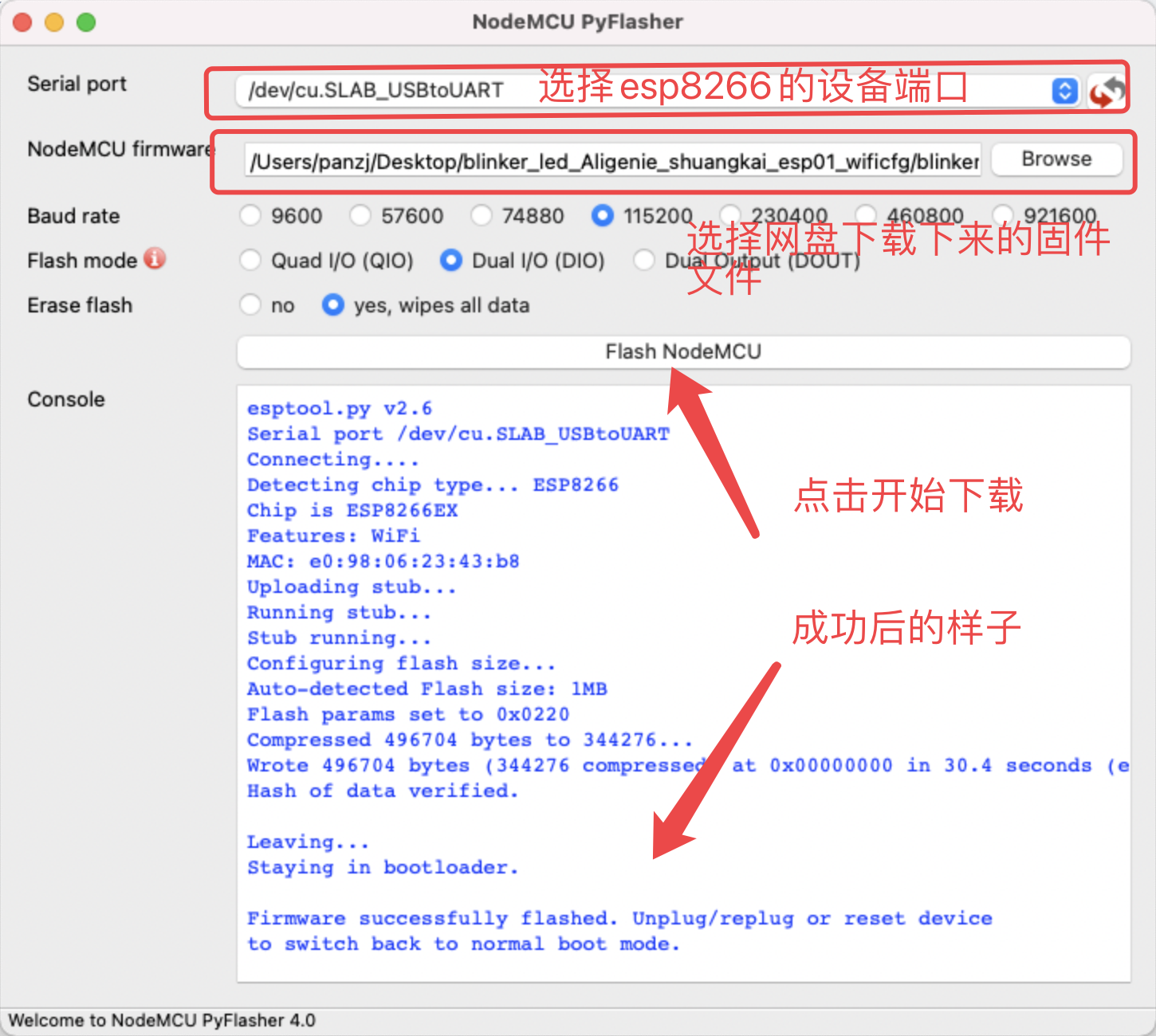

運行NdoeMcu-pyFlasher-4.0-xx.exe開始下載韌體到esp8266

配置wifi上網

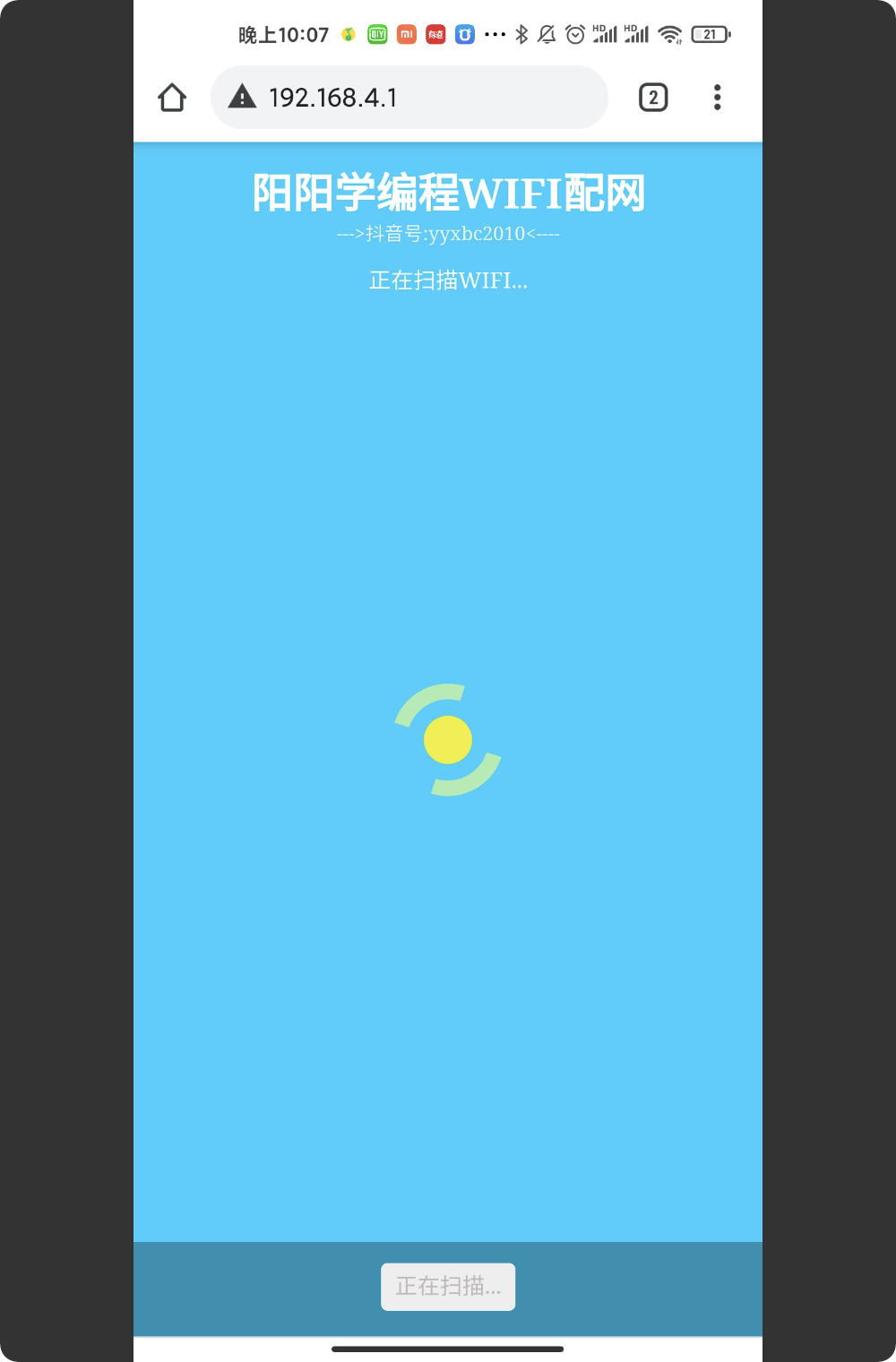

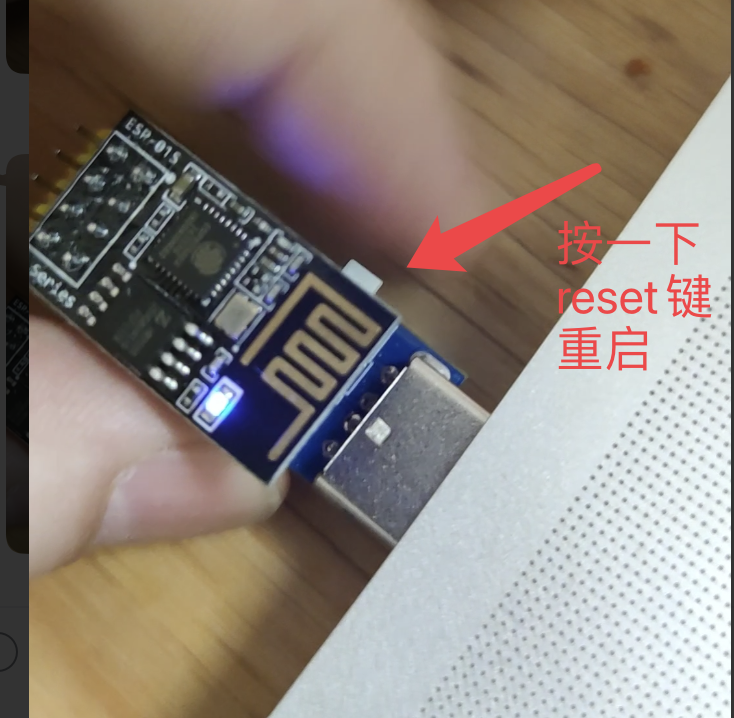

1, 重啟esp-01

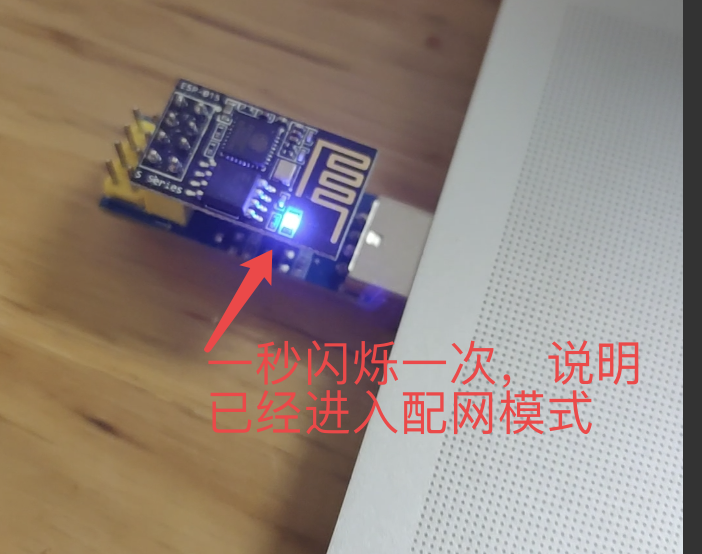

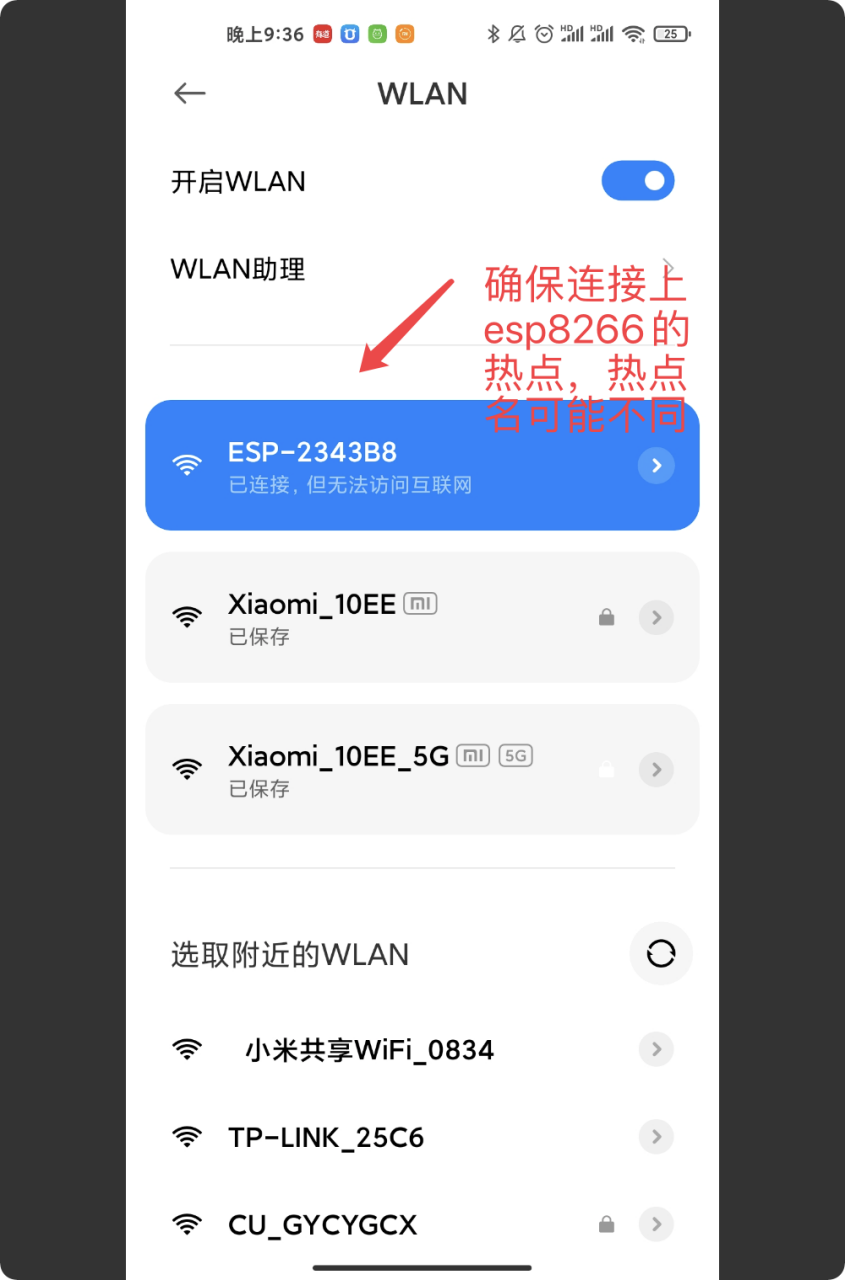

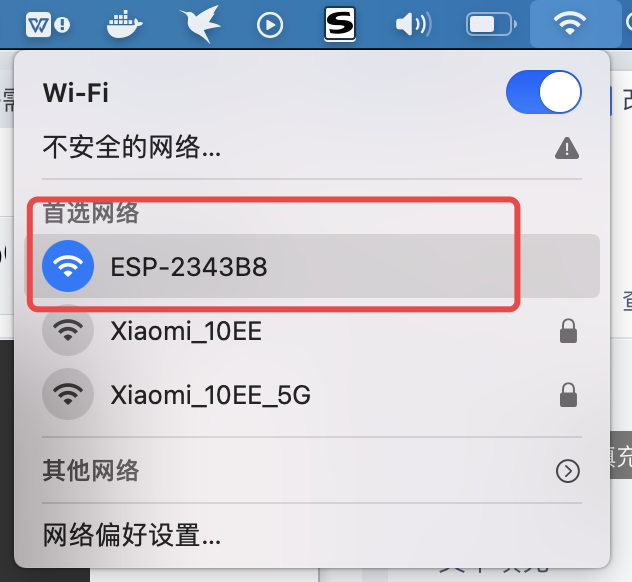

用手機連接到esp8266的wifi熱點，熱點名不是根據型號會不一樣，多半以esp-xxx開頭

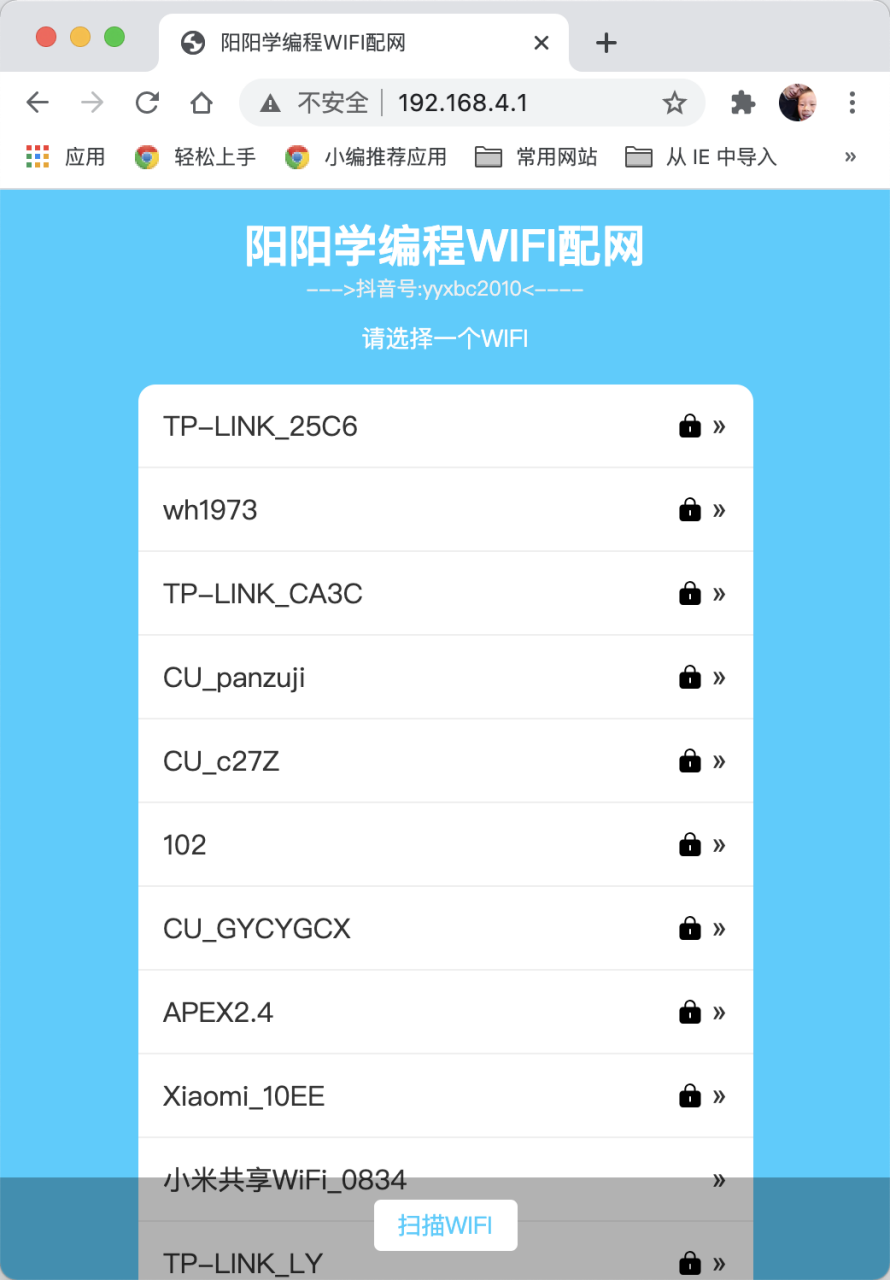

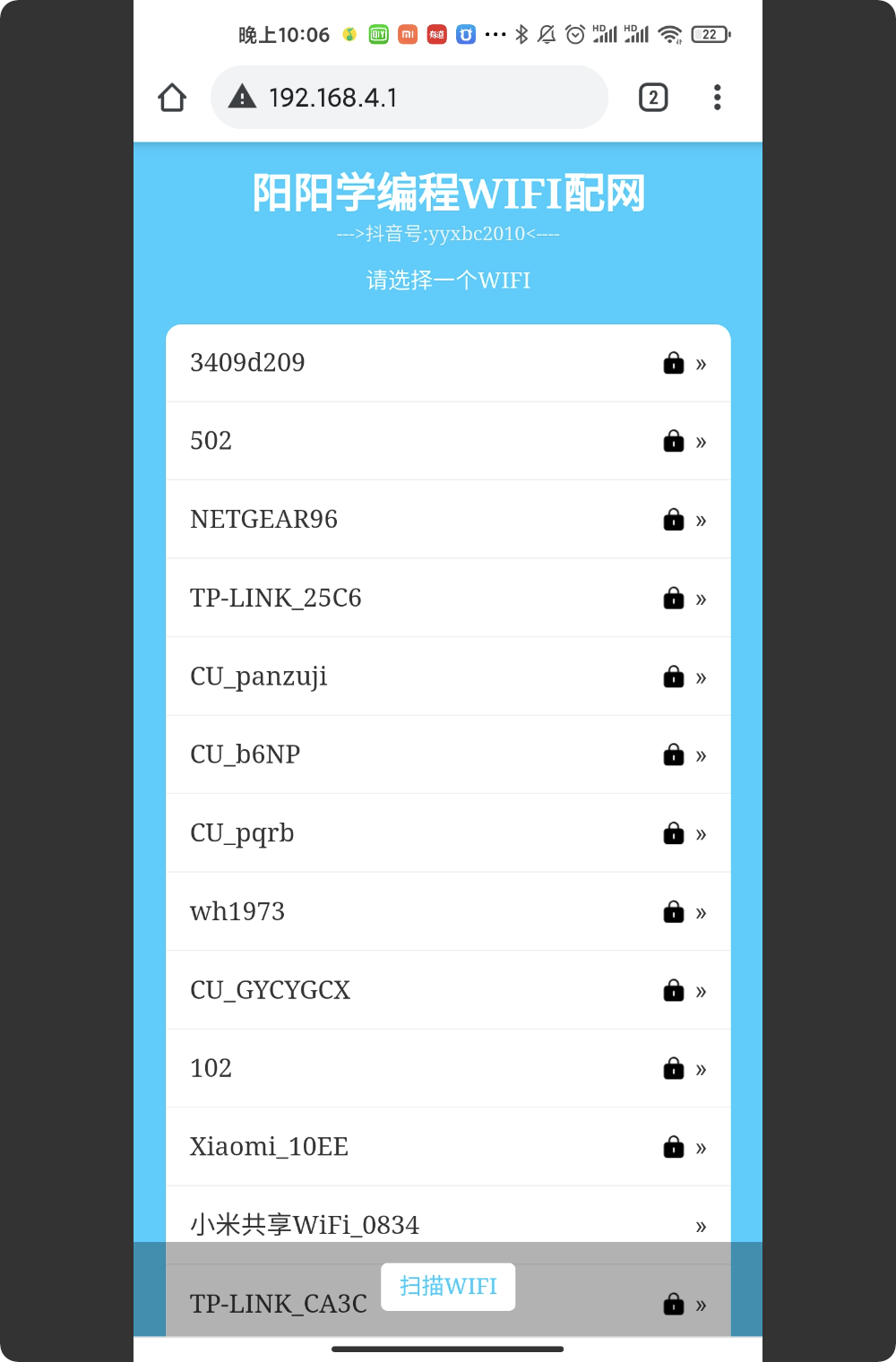

在電腦的瀏覽器打開http://192.168.4.1

選擇要配置的wifi，點擊

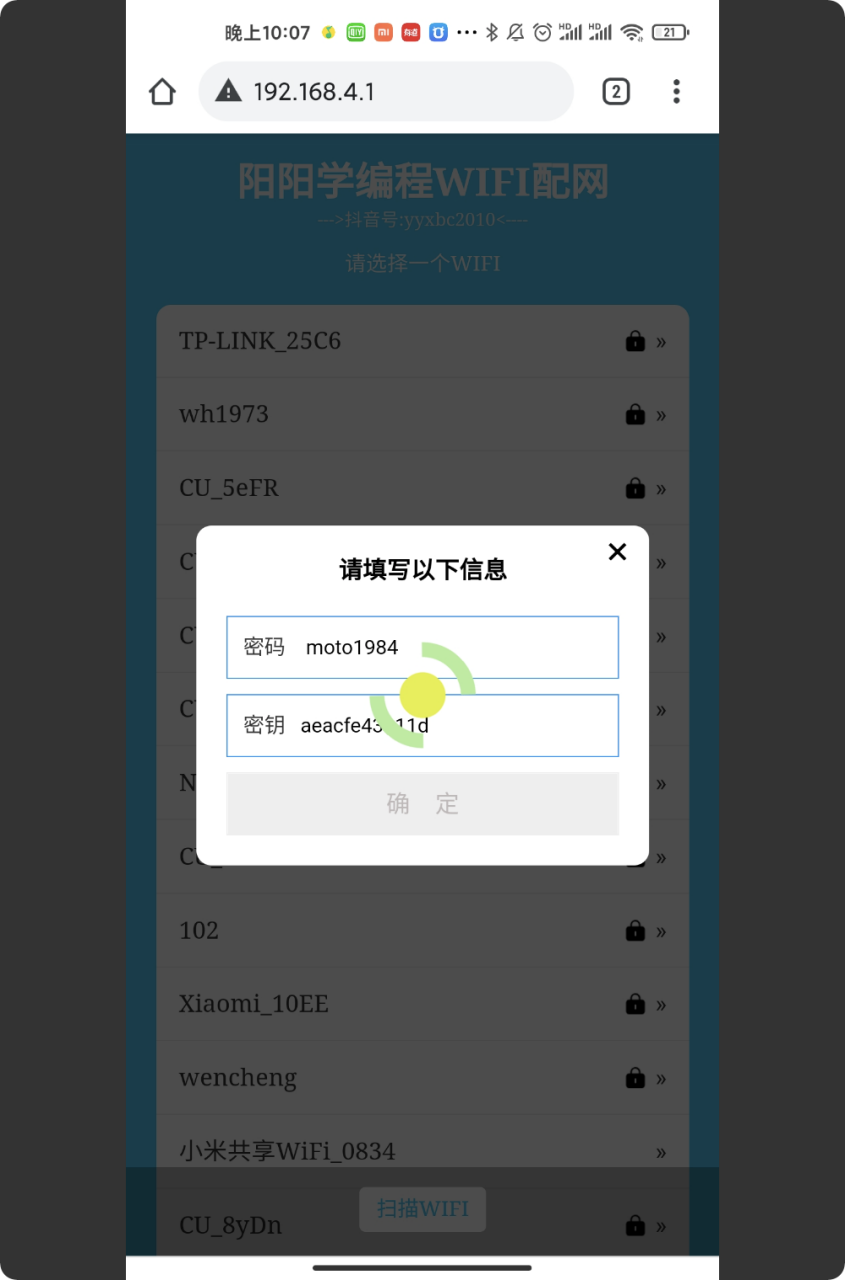

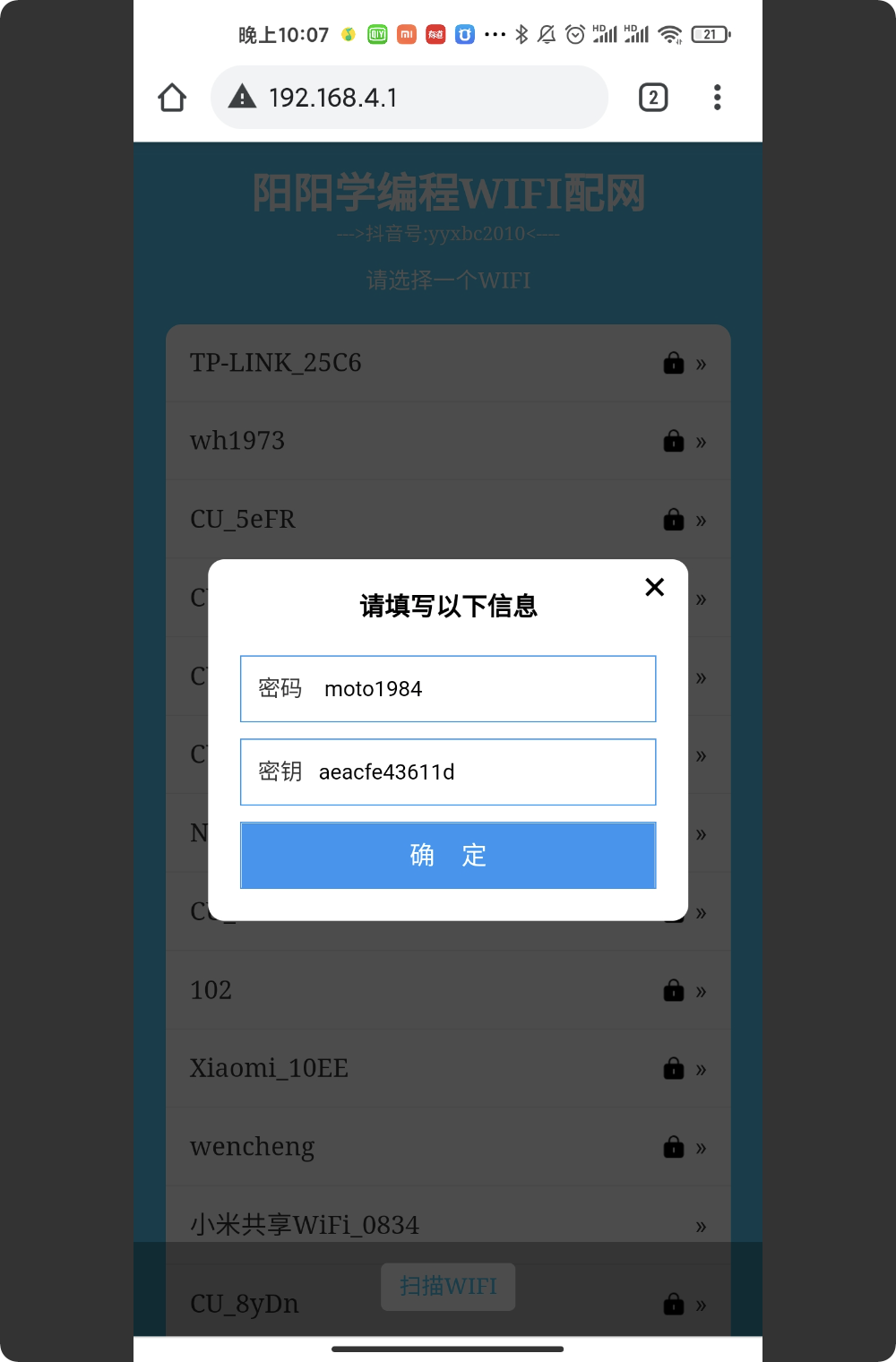

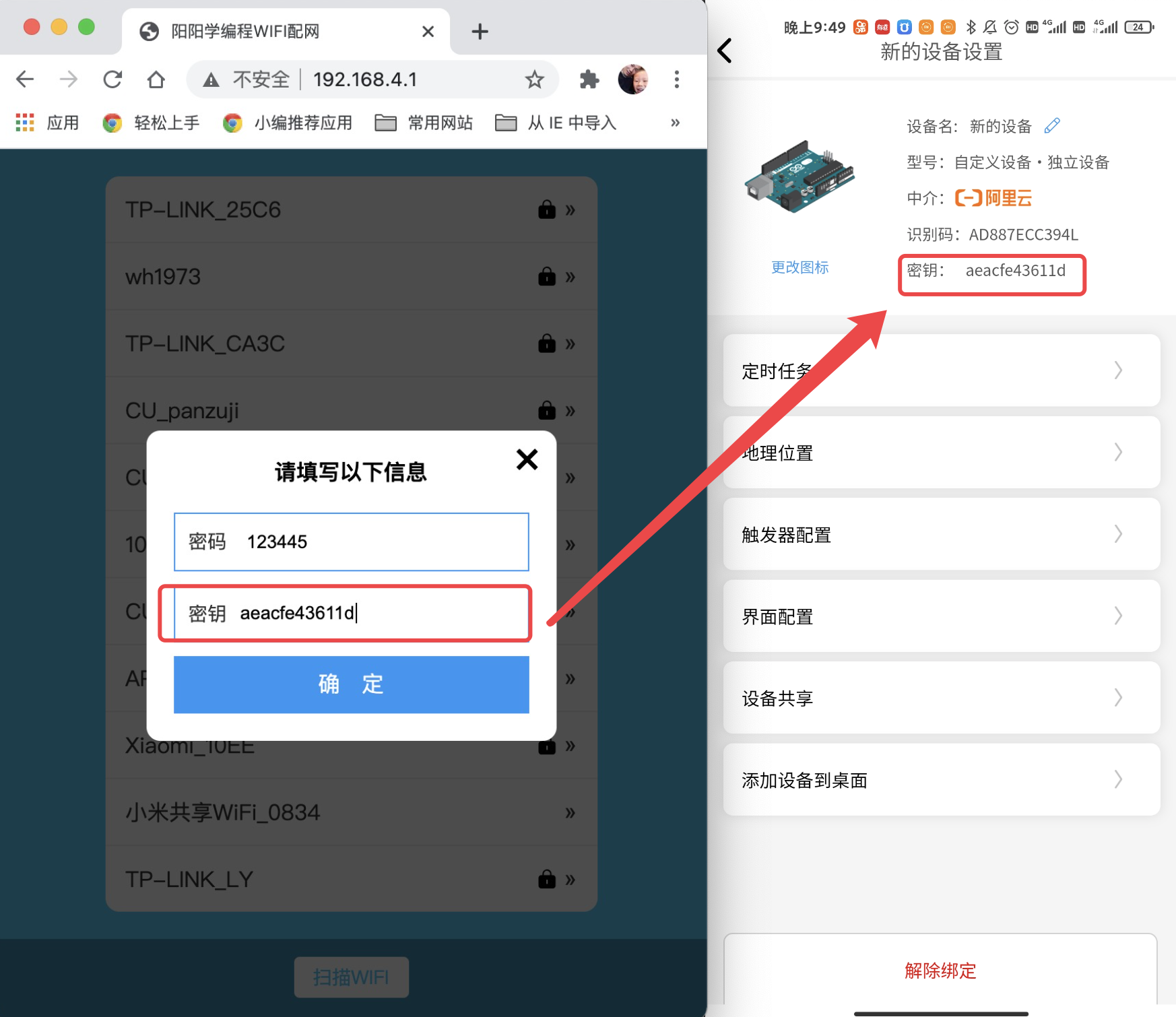

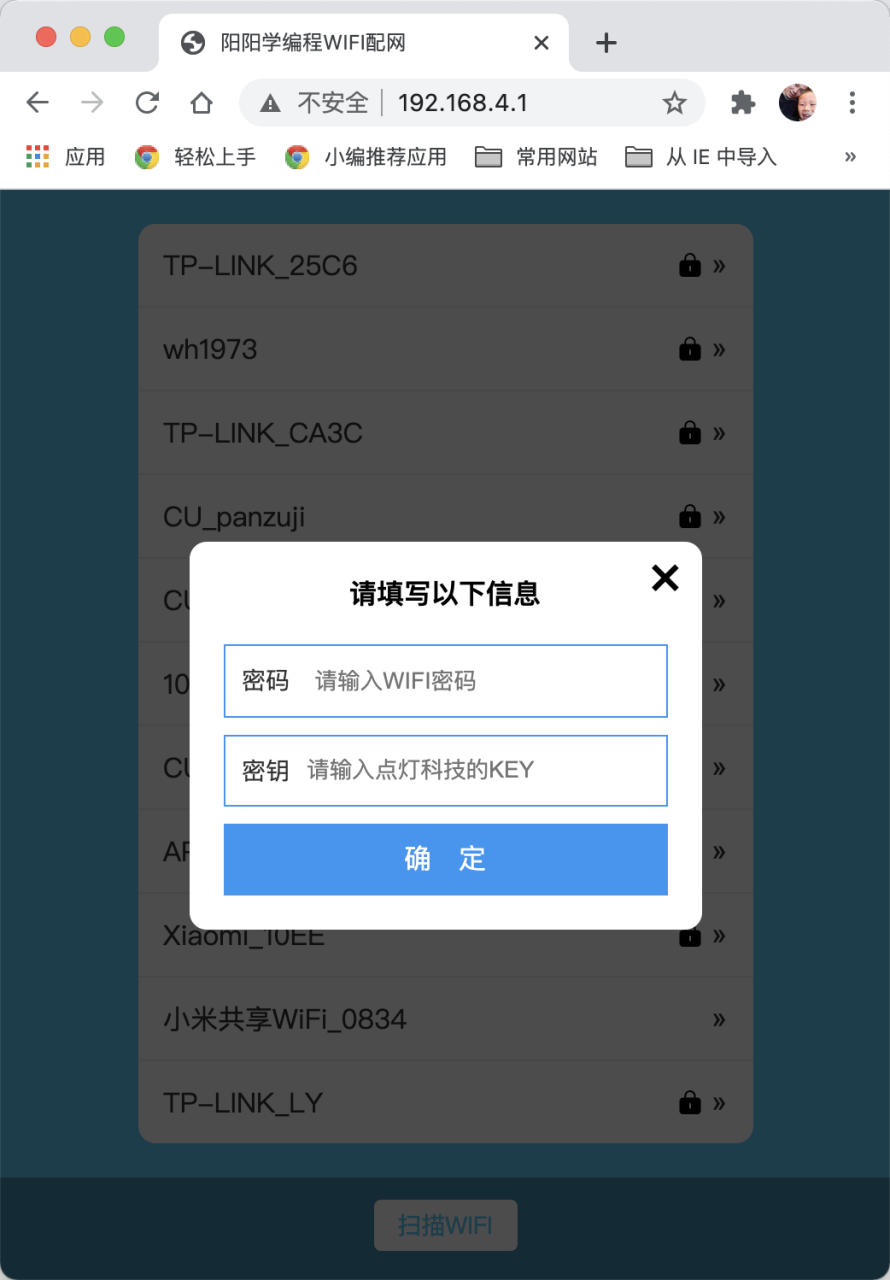

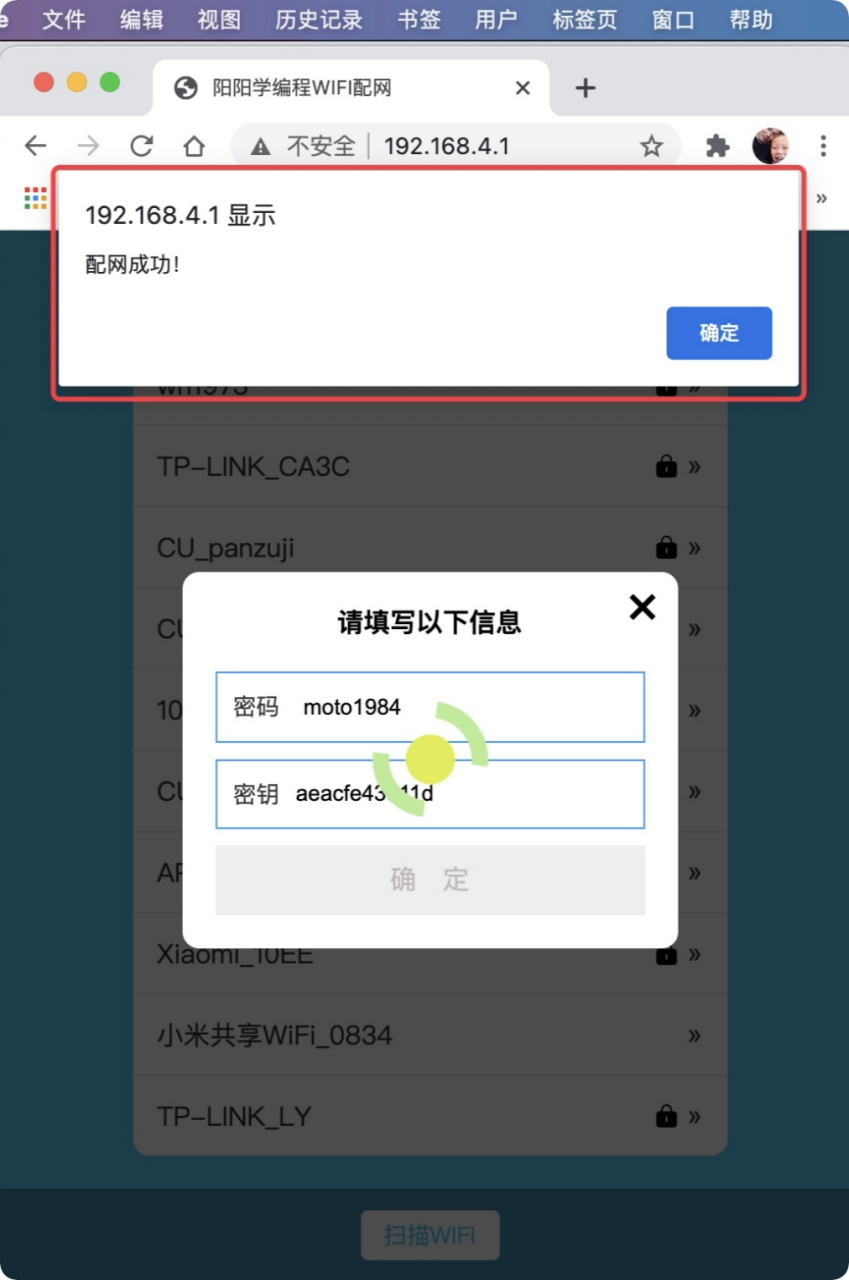

2，輸入密碼和點燈科技創建的設備ID

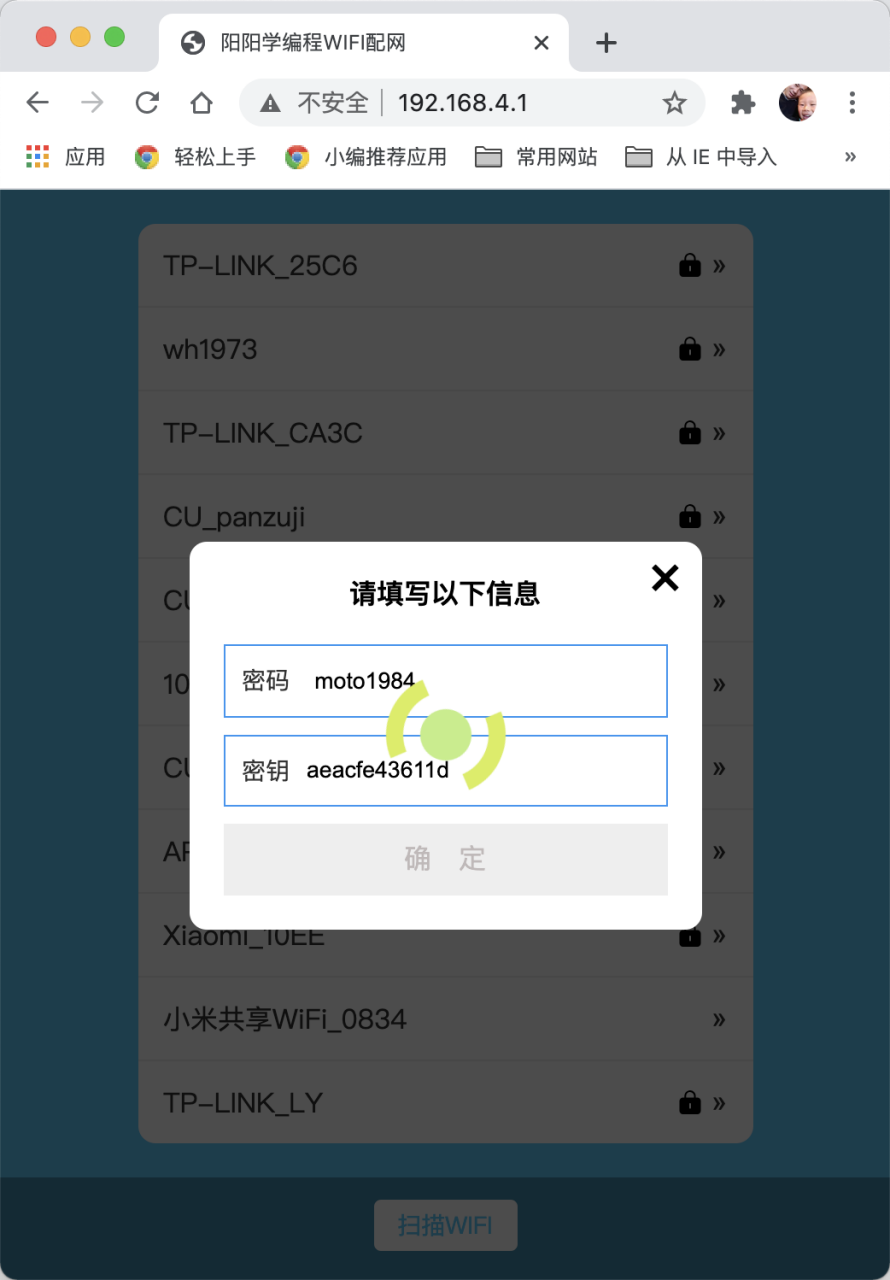

3，點確定開始配網

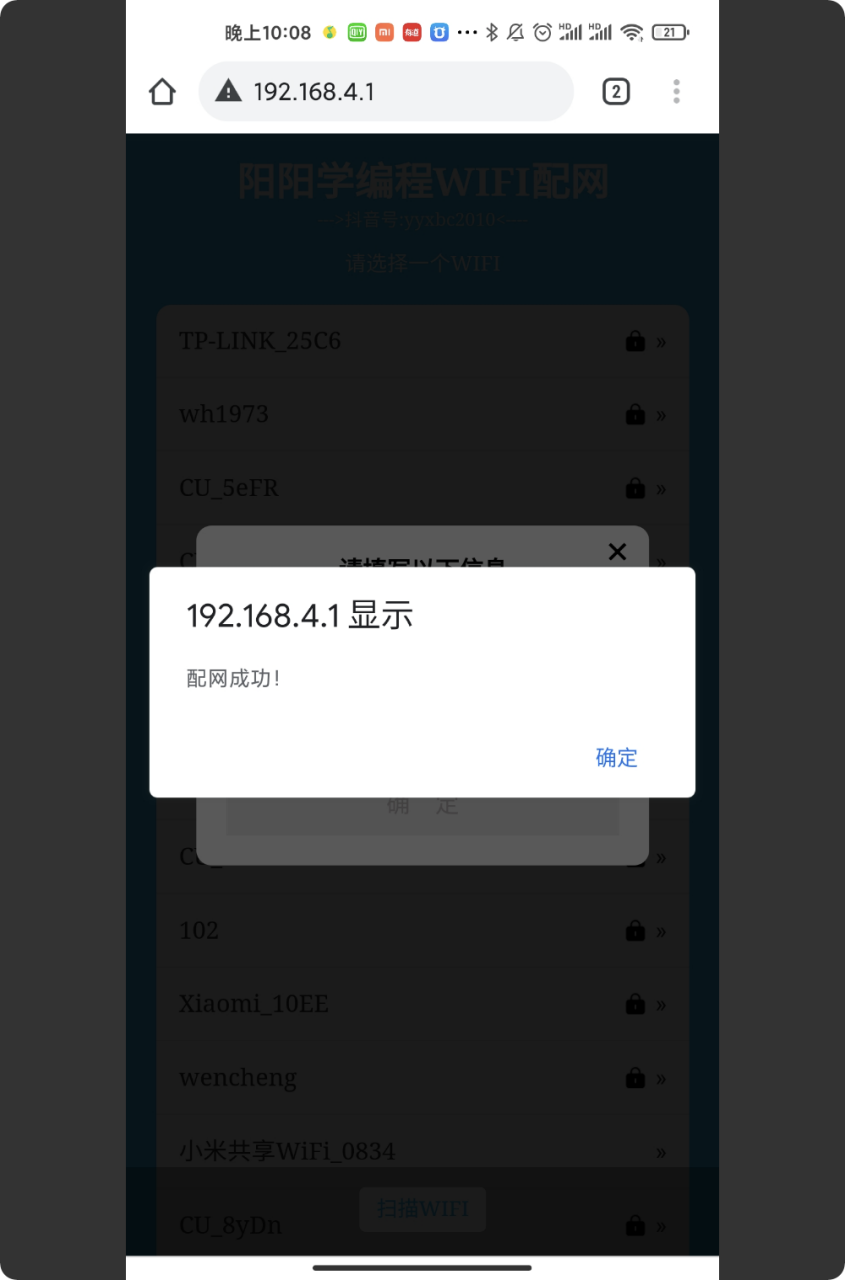

成功后

手機端

接入小愛同學配置

1、在手機上安裝米家，小米音箱app.

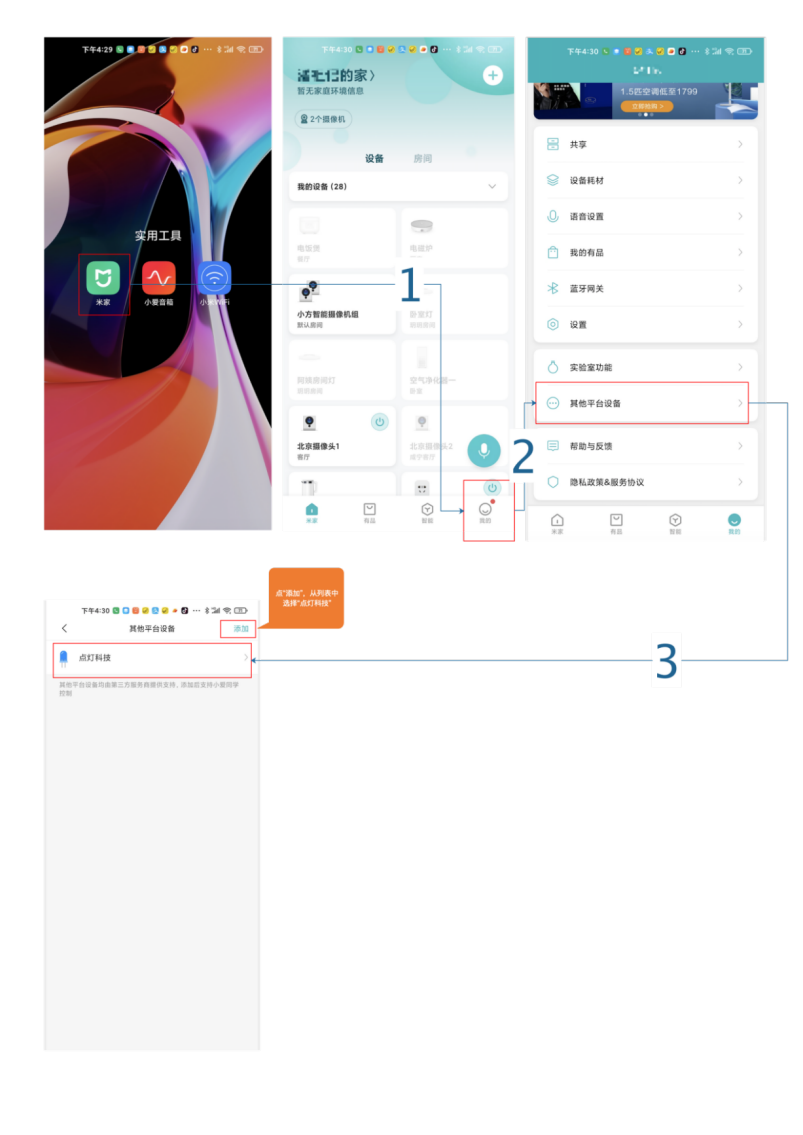

2、在米家APP上添加點燈科技的擴展，

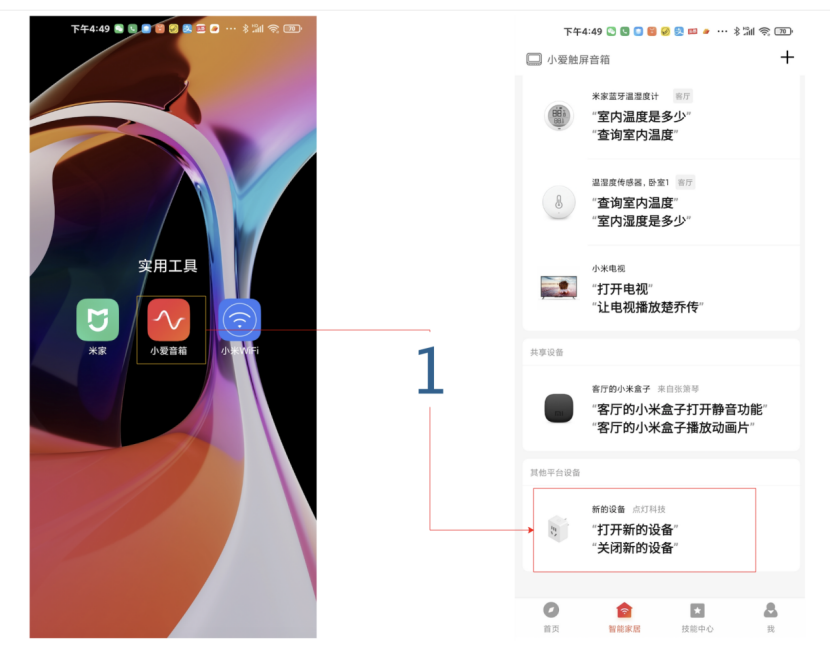

3，從小愛音箱APP上查看有沒有找到設備

1、如果發現在設備，就說明配置成功了，我這里設備名叫“新的設備”，現在可以對小愛說 “打開新的設備”

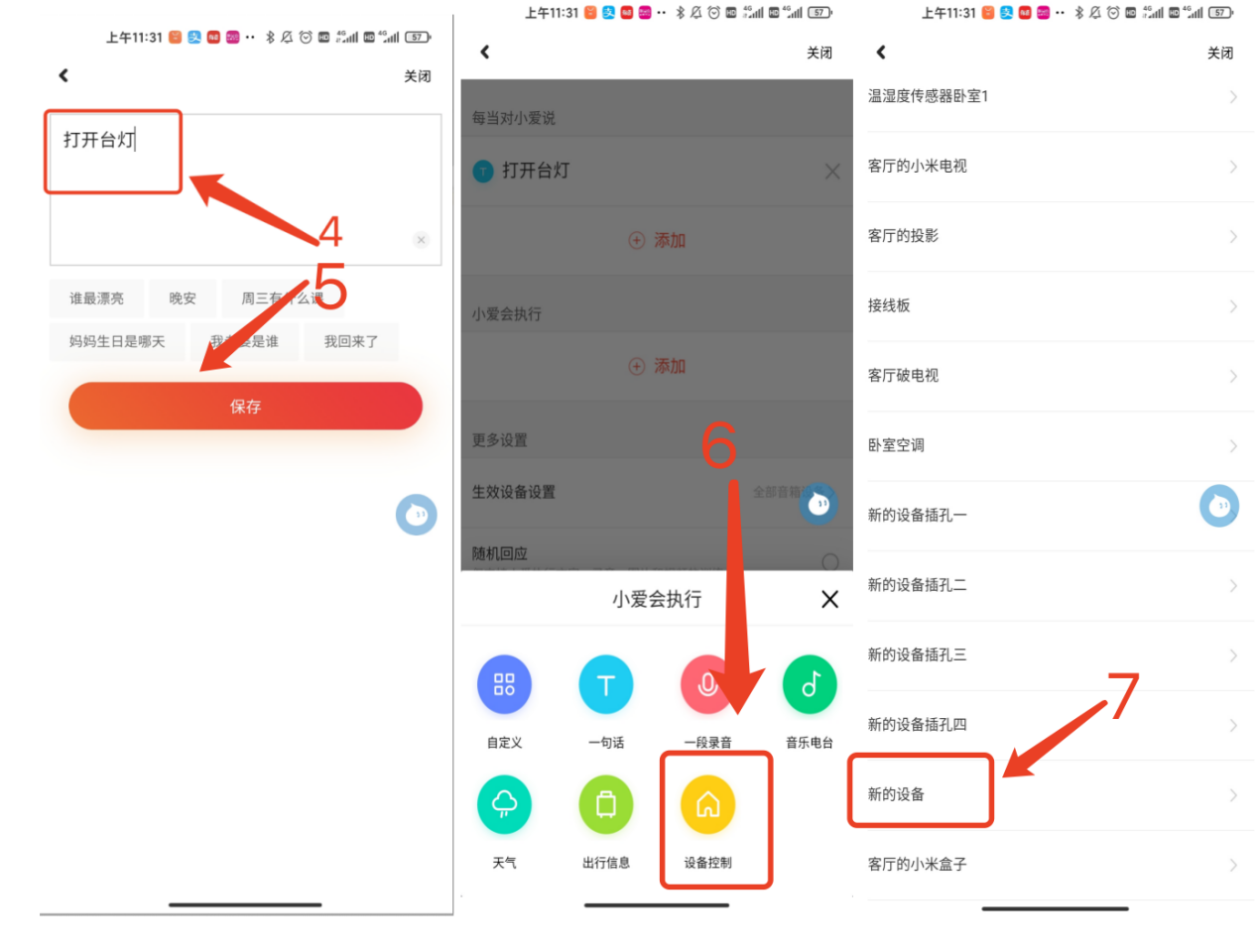

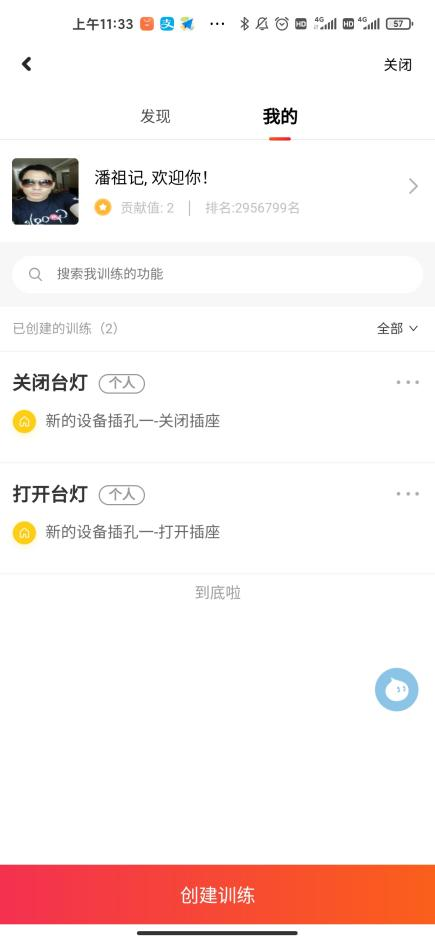

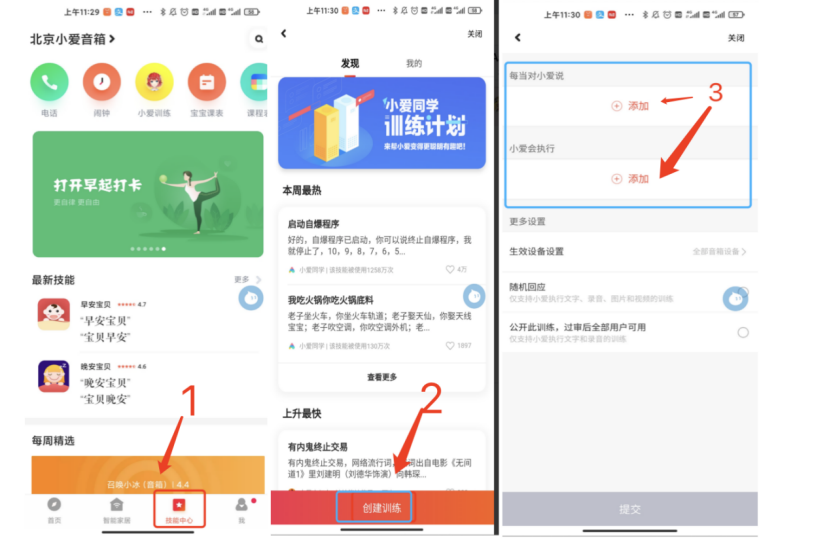

2、你還可以添加小愛學習

接入小度配置

代碼已經支持，作者還沒來得及測驗，參考小愛同學配置一下

接入天貓精靈配置

代碼已經支持，作者還沒來得及測驗，參考小愛同學配置一下

接入siri配置

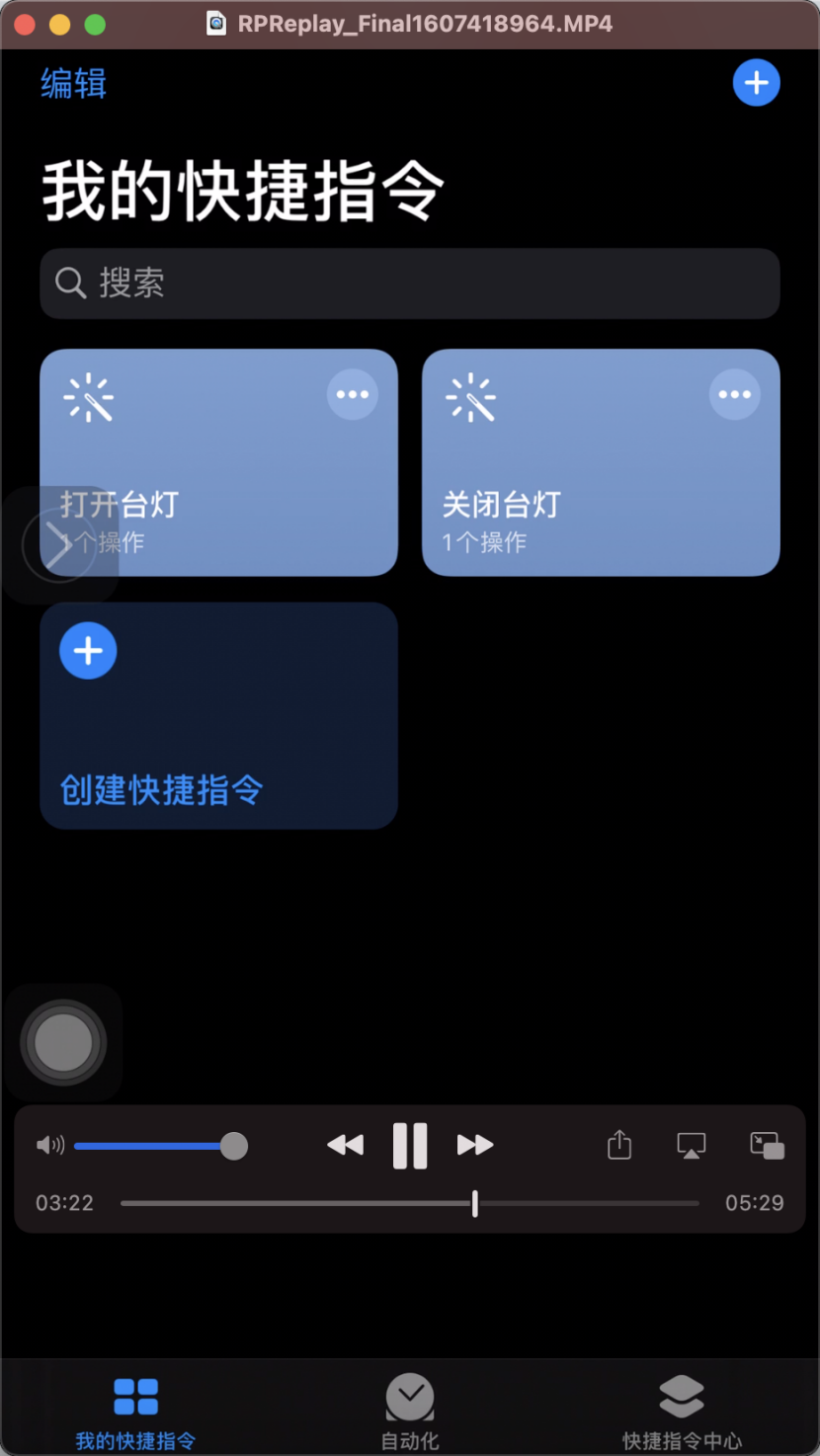

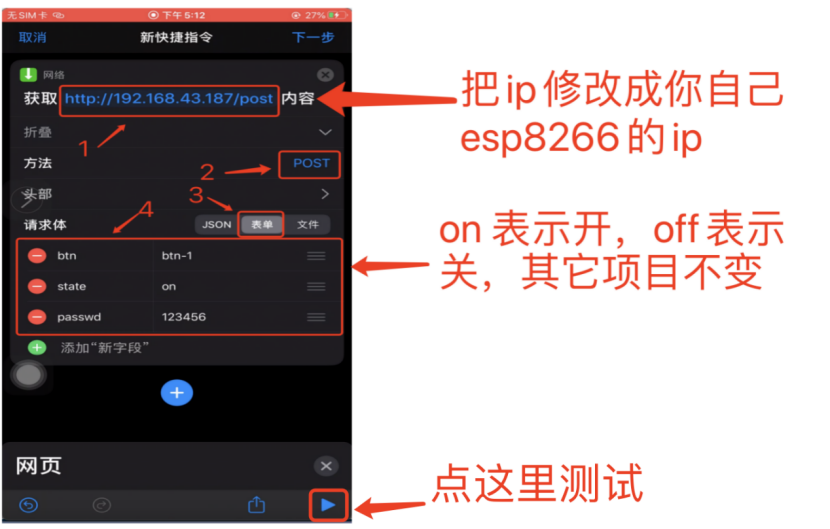

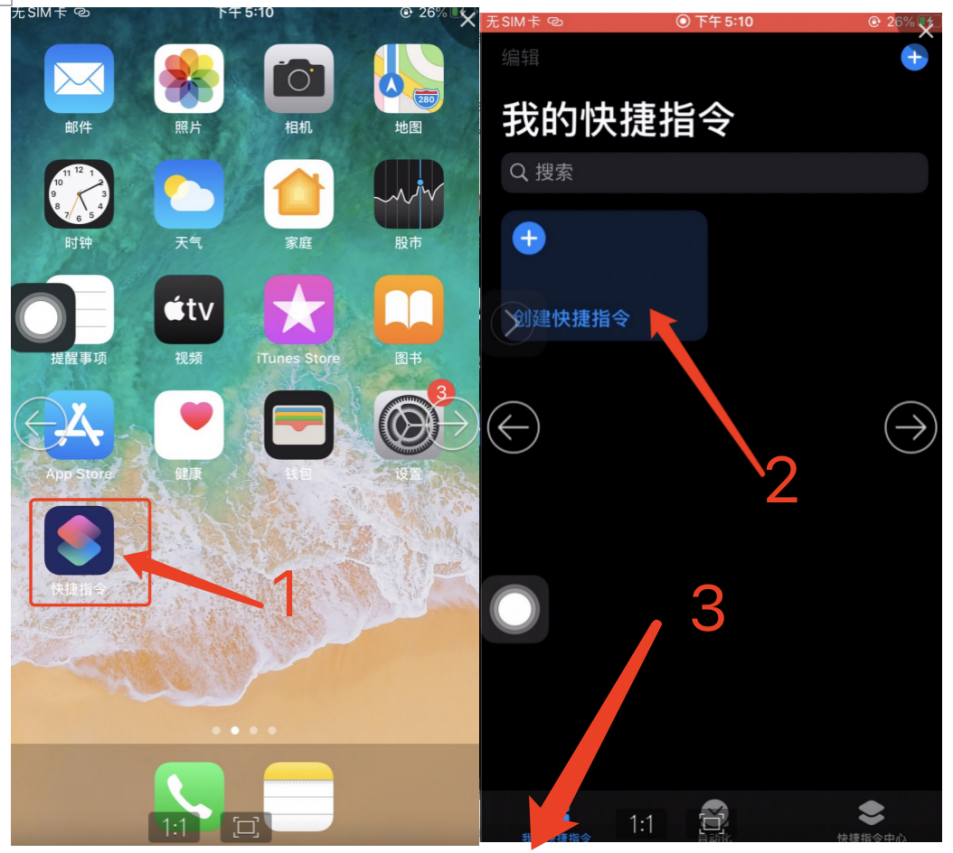

1，安裝“快捷指令”app,點擊打開

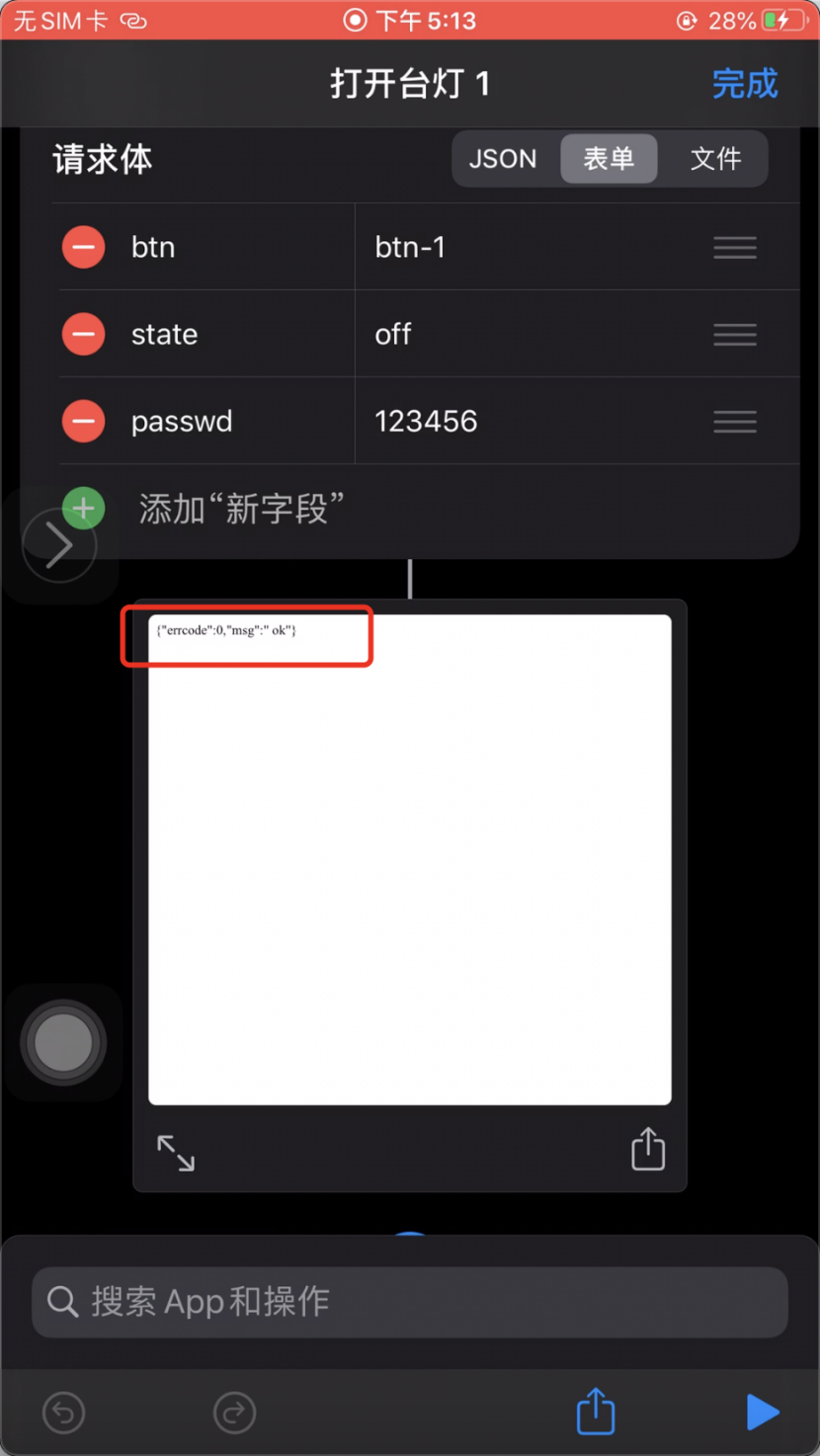

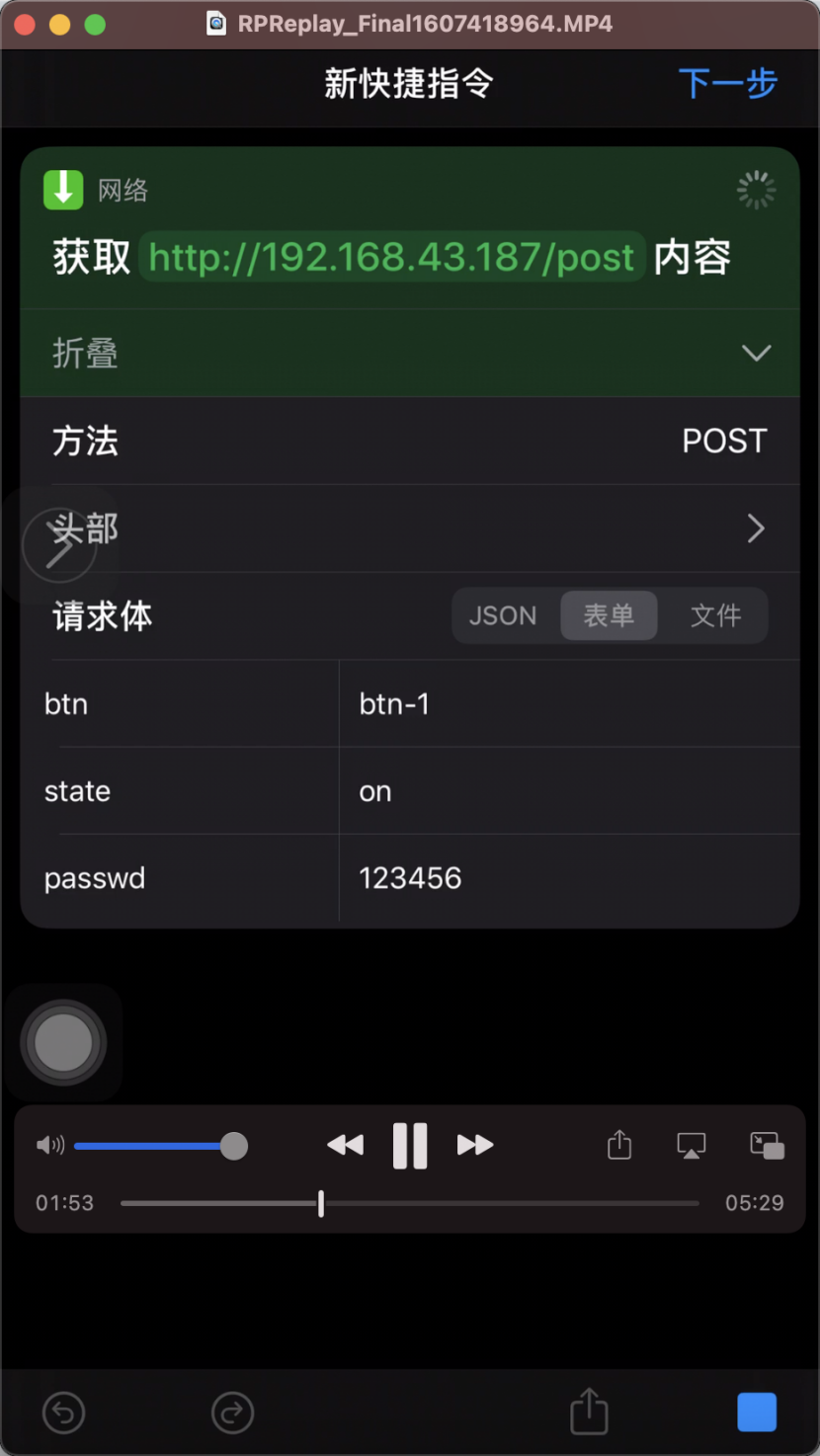

點運行按鈕測驗一下開關，passwd是123456

出現下圖結果，說明介面呼叫成功了，

現在對著siri說，“打開臺燈”“關閉臺燈”

代碼

/*
NodeMcu或esp-01/01s控制1路繼電器，集成blinker平臺，
用手機app控制1路繼電器開關，添加一路物理開關控制，繼電器用常開（NO）模式

v1.0
Created 2021
by 陽陽學編程
www.sooncore.com
抖音號：yyxbc2010
微信號：yyxbc2010

韌體有網頁配網功能，韌體燒寫工具：
鏈接:https://pan.baidu.com/s/1WsE_2gERyjaUZFbwgJnsOw 提取碼:56r8

說明：

1，繼電器高電平觸發時，YYXBC_HIGH = 1，YYXBC_LOW  = 0
繼電器低電平觸發時，YYXBC_HIGH = 0，YYXBC_LOW  = 1
const int YYXBC_HIGH = 0 ;
const int YYXBC_LOW  = 1 ;

2，用esp-01時，物理開關接在vcc 和gpio2上，繼電器接在gpio0上
用nodeMcu時，物理開關接在vcc 和D4上，繼電器接在D3上，下面的宏
定義只能同時有一個生效

//NodeMCU 繼電器接D3,物理開關接D4
#define LED_BUILTIN_LIGHT 0
#define LED_BUILTIN_K2 2

//Esp-01/01s，繼電器接GPIO0,物理開關接GPIO2
//#define LED_BUILTIN_LIGHT D3
//#define LED_BUILTIN_K2 D4

3，YYXBC_BUTTON_TYPE = 1時表示物理開關為點動模式，0時表示自鎖模式
const int YYXBC_BUTTON_TYPE = 1;

獲得具體連接電路圖和更多資源，請參閱陽陽學編程網站 www.sooncore.com，

This example code is in the public domain.
*/

#define BLINKER_PRINT Serial
#define BLINKER_WIFI
#define BLINKER_MIOT_OUTLET              // 設定小愛燈類別庫
#define BLINKER_DUEROS_OUTLET            // 設定小度燈類別庫
#define BLINKER_ALIGENIE_OUTLET          // 設定天貓燈類別庫

#define BLINKER_WITHOUT_SSL              //使用這個宏，表示不用SSL加密，可以得到更多記憶體

//
如果要使用apconfig配網模式，打開注釋掉，加讓這行代碼生效
//#define BLINKER_APCONFIG

如果要使用smartconfig配網模式，打開注釋掉，加讓這行代碼生效
//#define BLINKER_ESP_SMARTCONFIG

#include <Blinker.h>
#include <ESP8266WebServer.h>

char auth[] = "a7a437131912";
char ssid[] = "panzujiMi10";
char pswd[] = "moto1984";

String version  = "1.0.3";

//NodeMCU 繼電器接D3,物理開關接D4
#define LED_BUILTIN_LIGHT 0
#define LED_BUILTIN_K2 2

//Esp-01/01s，繼電器接GPIO0,物理開關接GPIO2
//#define LED_BUILTIN_LIGHT D3
//#define LED_BUILTIN_K2 D4

/***
 * 繼電器高電平觸發時，YYXBC_HIGH = 1，YYXBC_LOW  = 0
 * 繼電器低電平觸發時，YYXBC_HIGH = 0，YYXBC_LOW  = 1
 */
const int YYXBC_HIGH = 0 ;
const int YYXBC_LOW  = 1 ;

/***
 * 物理開關點動模式1，自鎖模式0
 */
const int YYXBC_BUTTON_TYPE = 0;

//http介面請求密碼
String httppswd = "123456";

bool oDuerState = YYXBC_LOW;
bool oMioState = YYXBC_LOW;
bool oAligenieState = YYXBC_LOW;

// 新建組件物件
BlinkerButton Button1("btn-abc");

//webserver for siri
static ESP8266WebServer esp8266_server(80);

//心跳回呼
void heartbeat()
{
   BLINKER_LOG("heartbeat,state: ", digitalRead(LED_BUILTIN));

    //較正app的按鈕狀態
    if(YYXBC_HIGH == digitalRead(LED_BUILTIN_LIGHT) ){
        Button1.print("on");
    }else{
       Button1.print("off");
    }
}
//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
//*******如果是手機app 有對設備進行操作就執行下面

void button1_callback(const String & state)
{
    BLINKER_LOG("button1_callback get button state: ", state);

    if (state == BLINKER_CMD_ON) {
        BLINKER_LOG("Toggle on!");
        Button1.print("on");
        digitalWrite(LED_BUILTIN_LIGHT, YYXBC_HIGH);
        oDuerState = YYXBC_HIGH;
        oMioState =YYXBC_HIGH;
        oAligenieState = YYXBC_HIGH;
    }
    else if (state == BLINKER_CMD_OFF) {
        BLINKER_LOG("Toggle off!");
        Button1.print("off");
        digitalWrite(LED_BUILTIN_LIGHT, YYXBC_LOW);
        oDuerState = YYXBC_LOW;
        oMioState = YYXBC_LOW;
        oAligenieState = YYXBC_LOW;
    }
    BlinkerDuerOS.powerState(oDuerState == YYXBC_HIGH ? "on" : "off");
    BlinkerDuerOS.report();
    BlinkerMIOT.powerState(oMioState == YYXBC_HIGH ? "on" : "off");
    BlinkerMIOT.print();
    BlinkerAliGenie.powerState(oAligenieState == YYXBC_HIGH ? "on" : "off");
    BlinkerAliGenie.print();
}

//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
//*******如果小度 有對設備進行操作就執行下面
void duerPowerState(const String & state)
{
    BLINKER_LOG("duerPowerState need set power state: ", state);

    if (state == BLINKER_CMD_ON) {
       button1_callback(BLINKER_CMD_ON);
    }
    else if (state == BLINKER_CMD_OFF) {
      button1_callback(BLINKER_CMD_OFF);
    }
}

void duerQuery(int32_t queryCode)
{
    BLINKER_LOG("DuerOS Query codes: ", queryCode);

    switch (queryCode)
    {
        case BLINKER_CMD_QUERY_POWERSTATE_NUMBER :
            BLINKER_LOG("DuerOS Query power state");
            BlinkerDuerOS.powerState(oDuerState == YYXBC_HIGH? "on" : "off");
            BlinkerDuerOS.print();
            break;
        case BLINKER_CMD_QUERY_TIME_NUMBER :
            BLINKER_LOG("DuerOS Query time");
            BlinkerDuerOS.time(millis());
            BlinkerDuerOS.print();
            break;
        default :
            BlinkerDuerOS.powerState(oDuerState == YYXBC_HIGH? "on" : "off");
            BlinkerDuerOS.print();
            break;
    }
}

//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
//*******如果小愛有對設備進行操作就執行下面
void miotPowerState(const String & state)
{
    BLINKER_LOG("miotPowerState need set power state: ", state);

    if (state == BLINKER_CMD_ON) {
       button1_callback(BLINKER_CMD_ON);
    }
    else if (state == BLINKER_CMD_OFF) {
      button1_callback(BLINKER_CMD_OFF);
    }
}

void miotQuery(int32_t queryCode)
{
    BLINKER_LOG("MIOT Query codes: ", queryCode);

    switch (queryCode)
    {
      case BLINKER_CMD_QUERY_ALL_NUMBER :
          BLINKER_LOG("MIOT Query All");
          BlinkerMIOT.powerState(oMioState == YYXBC_HIGH? "on" : "off");
          BlinkerMIOT.print();
          break;
      case BLINKER_CMD_QUERY_POWERSTATE_NUMBER :
          BLINKER_LOG("MIOT Query Power State");
          BlinkerMIOT.powerState(oMioState ==YYXBC_HIGH ? "on" : "off");
          BlinkerMIOT.print();
          break;
      default :
          BlinkerMIOT.powerState(oMioState ==YYXBC_HIGH ? "on" : "off");
          BlinkerMIOT.print();
          break;
    }
}
//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
//*******如果天貓精靈有對設備進行操作就執行下面
void aligeniePowerState(const String & state)
{
    BLINKER_LOG("aligeniePowerState need set power state: ", state);

    if (state == BLINKER_CMD_ON) {
       button1_callback(BLINKER_CMD_ON);
    }
    else if (state == BLINKER_CMD_OFF) {
      button1_callback(BLINKER_CMD_OFF);
    }
}

void aligenieQuery(int32_t queryCode)
{
    BLINKER_LOG("AliGenie Query codes: ", queryCode);

    switch (queryCode)
    {
      case BLINKER_CMD_QUERY_ALL_NUMBER :
          BLINKER_LOG("AliGenie Query All");
          BlinkerAliGenie.powerState(oAligenieState == YYXBC_HIGH? "on" : "off");
          BlinkerAliGenie.print();
          break;
      case BLINKER_CMD_QUERY_POWERSTATE_NUMBER :
          BLINKER_LOG("AliGenie Query Power State");
          BlinkerAliGenie.powerState(oAligenieState == YYXBC_HIGH? "on" : "off");
          BlinkerAliGenie.print();
          break;
      default :
          BlinkerAliGenie.powerState(oAligenieState == YYXBC_HIGH ? "on" : "off");
          BlinkerAliGenie.print();
          break;
    }
}

void dataRead(const String & data){
  BLINKER_LOG("Blinker readString: ", data);

  Blinker.vibrate();

  uint32_t BlinkerTime = millis();

  Blinker.print("millis", BlinkerTime);

}

void setup() {
    // 初始化串口
    Serial.begin(115200);

    #if defined(BLINKER_PRINT)
        BLINKER_DEBUG.stream(BLINKER_PRINT);
    #endif

//        //debug 命令
//    BLINKER_DEBUG.stream(BLINKER_PRINT);
//    BLINKER_DEBUG.debugAll();

    // 初始化有LED的IO
    pinMode(LED_BUILTIN_LIGHT, OUTPUT);
    digitalWrite(LED_BUILTIN_LIGHT, YYXBC_LOW);

    pinMode(LED_BUILTIN_K2, OUTPUT);
//    digitalWrite(LED_BUILTIN_K2, LOW);

 #if (defined(BLINKER_APCONFIG)) || (defined(BLINKER_ESP_SMARTCONFIG))
     //啟動配網模式用這行代碼
    Blinker.begin(auth);
 #else
    Blinker.begin(auth, ssid, pswd);
 #endif

    Blinker.attachData(dataRead);

    BlinkerDuerOS.attachPowerState(duerPowerState); //小度語音操作注冊函式
    BlinkerDuerOS.attachQuery(duerQuery);

    BlinkerMIOT.attachPowerState(miotPowerState);//小愛語音操作注冊函式
    BlinkerMIOT.attachQuery(miotQuery);

    BlinkerAliGenie.attachPowerState(aligeniePowerState);//天貓語音操作注冊函式
    BlinkerAliGenie.attachQuery(aligenieQuery);

    Button1.attach(button1_callback);
    //注冊回呼函式
    Blinker.attachHeartbeat(heartbeat);

    //啟動webserver ,提供介面給siri用
    esp8266_server.on("/", handleRoot);
    esp8266_server.on("/post", handleSetConfig);
    esp8266_server.onNotFound(handleNotFound);
    esp8266_server.begin();

    Serial.println("HTTP esp8266_server started");
}

void loop() {

    static int lastms = 0;
    if (millis()-lastms > 10000) {
      lastms = millis();
      Serial.printf(PSTR("Running (%s),state(%s),version %s for %d Free mem=%d\n"),
          WiFi.localIP().toString().c_str(),
          oAligenieState == YYXBC_HIGH  ? "YYXBC_HIGH" : "CLOES",
          version.c_str(), lastms/1000, ESP.getFreeHeap());
    }

    Blinker.run();//運行Blinker
    esp8266_server.handleClient();// 處理http服務器訪問

    //檢查物理開關狀態
    if(YYXBC_BUTTON_TYPE == 1){
       btnHandler1();
    }else{
       btnHandler2();
    }

}


//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
//*******如果iOS的siri有對設備進行操作就執行下面

void handleRoot() {   //處理網站根目錄“/”的訪問請求
   String data = "<html>";
      data += "<head><title>設定</title></head>";
      data += "<body>";
      data +=" <p>ESP8266 智能開關，技術支持 微信:yyxbc2010</p><hr>";
      data +=" <p>SSID:"+ WiFi.SSID() + "</p><hr>";
      data +=" <p>PSW:"+ WiFi.psk() + "</p><hr>";
      data += "</body>";
      data += "</html>";

    esp8266_server.send(200, "text/html; charset=utf-8", data);
}


void handleSetConfig() {   //處理來自siri的訪問請求
  if (esp8266_server.method() != HTTP_POST) {
    esp8266_server.send(405, "text/plain", "Method Not Allowed");
  } else {
//    String message = "POST form was:\n";
    String btnName,btnState,btnPswd;
    for (uint8_t i = 0; i < esp8266_server.args(); i++) {
       String name = esp8266_server.argName(i);
       if(name == "btn") {
           btnName = esp8266_server.arg(i);
       }
       else if (name == "state"){
           btnState = esp8266_server.arg(i);
       }
       else if (name == "passwd"){
           btnPswd = esp8266_server.arg(i);
       }
    }
    if(btnPswd != httppswd){
      String message = "{\"errcode\":0,\"msg\":\"password error\"}";
      esp8266_server.send(200, "text/html; charset=utf-8", message);
      return;
    }
    if(btnName.length() >0 && btnState.length() >0) {
        //開關btn-abc
        if(btnName == "btn-1"){
          if(btnState == "on"){
             button1_callback( BLINKER_CMD_ON);
          }else if (btnState == "off"){
             button1_callback( BLINKER_CMD_OFF);
          }
        }

    }
    String message = "{\"errcode\":0,\"msg\":\" ok\"}";
    esp8266_server.send(200, "text/html; charset=utf-8", message);
  }
}

// 設定處理404情況的函式'handleNotFound'
void handleNotFound(){
//  digitalWrite(led, 1);
  String message = "File Not Found\n\n";
  message += "URI: ";
  message += esp8266_server.uri();
  message += "\nMethod: ";
  message += (esp8266_server.method() == HTTP_GET) ? "GET" : "POST";
  message += "\nArguments: ";
  message += esp8266_server.args();
  message += "\n";
  for (uint8_t i = 0; i < esp8266_server.args(); i++) {
    message += " " + esp8266_server.argName(i) + ": " + esp8266_server.arg(i) + "\n";
  }
  esp8266_server.send(404, "text/plain", message);

}

//點動模式按鈕，監聽按鈕狀態，執行相應處理
void btnHandler1()
{
  static bool oButtonState = false;
  int state1 =  digitalRead(LED_BUILTIN_K2); //按鈕狀態
  int state2 =  digitalRead(LED_BUILTIN_LIGHT); //燈的狀態
  if(state1 == HIGH )
  {
    if(oButtonState ){
      if(state2 == YYXBC_HIGH )
      {
        button1_callback(BLINKER_CMD_OFF);
        Serial.println("按鈕對燈已執行關閉");
      }else{
        button1_callback(BLINKER_CMD_ON);
        Serial.println("按鈕對燈已執行打開");
      }
      oButtonState = false;
    }
  }else{
    oButtonState = true;
  }
}



//自鎖模式按鈕，監聽按鈕狀態，執行相應處理
void btnHandler2()
{
 static bool is_btn = false;//按鈕的標志位，用來邏輯處理對比，判斷按鈕有沒有改變狀態
  bool is = digitalRead(LED_BUILTIN_K2);   //按鈕狀態
  if ( is != is_btn)
  {
    bool is_led = digitalRead(LED_BUILTIN_LIGHT);
    digitalWrite(LED_BUILTIN_LIGHT, !is_led);
    if (is_led == YYXBC_HIGH)
    {
      button1_callback(BLINKER_CMD_OFF);
      Serial.println("按鈕對燈已執行關閉");
    }
    else
    {
      button1_callback(BLINKER_CMD_ON);
      Serial.println("按鈕對燈已執行打開");
    }
    is_btn = digitalRead(LED_BUILTIN_K2);  //更新按鈕狀態
  }
}

資源下載

本文章相關資源鏈接:https://pan.baidu.com/s/1LU4XkcYnH83GNsA61ywFqw 提取碼:681i 復制這段內容后打開百度網盤手機App，操作更方便哦

關注陽陽學編程抖音號

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/262991.html

標籤：其他

上一篇：HaaS EDU場景式應用整體介紹

下一篇：域格模塊移動網路信號指標介紹
