BroadcastState

BroadcastState介紹

在開發程序中，如果遇到需要下發/廣播配置、規則等低吞吐事件流到下游所有 task 時，就可以使用 Broadcast State，Broadcast State 是 Flink 1.5 引入的新特性，

下游的 task 接收這些配置、規則并保存為 BroadcastState, 將這些配置應用到另一個資料流的計算中，

場景舉例

動態更新計算規則: 如事件流需要根據最新的規則進行計算，則可將規則作為廣播狀態廣播到下游Task中，
實時增加額外欄位: 如事件流需要實時增加用戶的基礎資訊，則可將用戶的基礎資訊作為廣播狀態廣播到下游Task中，

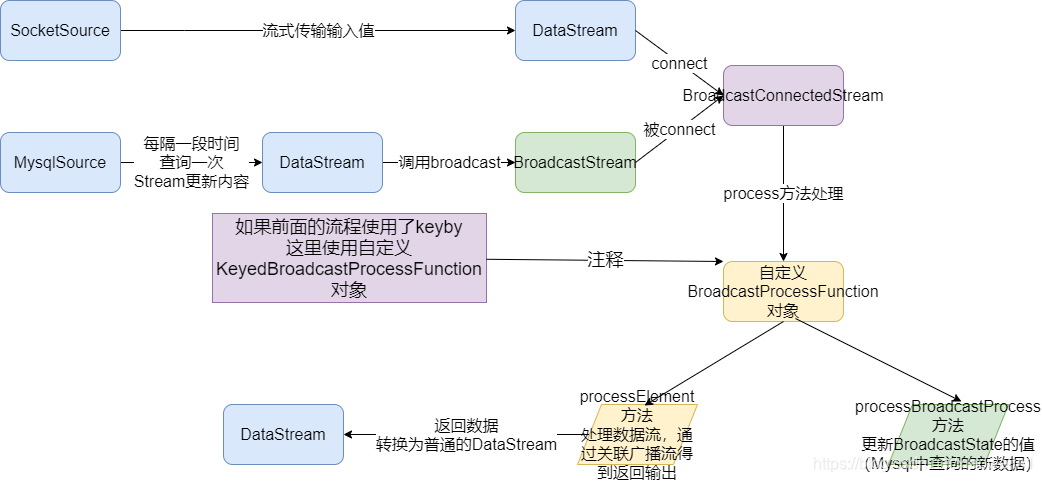

API介紹

首先創建一個Keyed 或Non-Keyed 的DataStream，

然后再創建一個BroadcastedStream，

最后通過DataStream來連接(呼叫connect 方法)到Broadcasted Stream 上，

這樣實作將BroadcastState廣播到Data Stream 下游的每個Task中，

1.如果DataStream是Keyed Stream ，則連接到Broadcasted Stream 后，添加處理ProcessFunction 時需要使用KeyedBroadcastProcessFunction 來實作，下面是KeyedBroadcastProcessFunction 的API，代碼如下所示：


public abstract class KeyedBroadcastProcessFunction<KS, IN1, IN2, OUT> extends BaseBroadcastProcessFunction {

    public abstract void processElement(final IN1 value, final ReadOnlyContext ctx, final Collector<OUT> out) throws Exception;

    public abstract void processBroadcastElement(final IN2 value, final Context ctx, final Collector<OUT> out) throws Exception;

}

l KS：表示Flink 程式從最上游的Source Operator 開始構建Stream，當呼叫keyBy 時所依賴的Key 的型別；上面泛型中的各個引數的含義，說明如下：

l IN1：表示非Broadcast 的Data Stream 中的資料記錄的型別；

l IN2：表示Broadcast Stream 中的資料記錄的型別；

l OUT：表示經過KeyedBroadcastProcessFunction 的processElement()和processBroadcastElement()方法處理后輸出結果資料記錄的型別，

2.如果Data Stream 是Non-Keyed Stream，則連接到Broadcasted Stream 后，添加處理ProcessFunction 時需要使用BroadcastProcessFunction 來實作，下面是BroadcastProcessFunction 的API，代碼如下所示：


public abstract class BroadcastProcessFunction<IN1, IN2, OUT> extends BaseBroadcastProcessFunction {

public abstract void processElement(final IN1 value, final ReadOnlyContext ctx, final Collector<OUT> out) throws Exception;

public abstract void processBroadcastElement(final IN2 value, final Context ctx, final Collector<OUT> out) throws Exception;

}

具體如何使用上面的BroadcastProcessFunction，接下來我們會在通過實際編程，來以使用KeyedBroadcastProcessFunction 為例進行詳細說明，上面泛型中的各個引數的含義，與前面KeyedBroadcastProcessFunction 的泛型型別中的后3 個含義相同，只是沒有呼叫keyBy 操作對原始Stream 進行磁區操作，就不需要KS 泛型引數，

注意事項

1) Broadcast State 是Map 型別，即K-V 型別，

2) Broadcast State 只有在廣播的一側, 即在BroadcastProcessFunction 或KeyedBroadcastProcessFunction 的processBroadcastElement 方法中可以修改，在非廣播的一側，即在BroadcastProcessFunction 或KeyedBroadcastProcessFunction 的processElement 方法中只讀，

3) Broadcast State 中元素的順序，在各Task 中可能不同，基于順序的處理，需要注意，

4) Broadcast State 在Checkpoint 時，每個Task 都會Checkpoint 廣播狀態，

5) Broadcast State 在運行時保存在記憶體中，目前還不能保存在RocksDB State Backend 中，

需求-實作配置動態更新

實時過濾出配置中的用戶，并在事件流中補全這批用戶的基礎資訊，

事件流：表示用戶在某個時刻瀏覽或點擊了某個商品，格式如下，

{"userID": "user_3", "eventTime": "2019-08-17 12:19:47", "eventType": "browse", "productID": 1}

{"userID": "user_2", "eventTime": "2019-08-17 12:19:48", "eventType": "click", "productID": 1}

配置資料: 表示用戶的詳細資訊，在Mysql中，如下，


DROP TABLE IF EXISTS `user_info`;

CREATE TABLE `user_info`  (

  `userID` varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,

  `userName` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,

  `userAge` int(11) NULL DEFAULT NULL,

  PRIMARY KEY (`userID`) USING BTREE

) ENGINE = MyISAM CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------

-- Records of user_info

-- ----------------------------

INSERT INTO `user_info` VALUES ('user_1', '張三', 10);

INSERT INTO `user_info` VALUES ('user_2', '李四', 20);

INSERT INTO `user_info` VALUES ('user_3', '王五', 30);

INSERT INTO `user_info` VALUES ('user_4', '趙六', 40);

SET FOREIGN_KEY_CHECKS = 1;

輸出結果:

(user_3,2019-08-17 12:19:47,browse,1,王五,33)

(user_2,2019-08-17 12:19:48,click,1,李四,20)

編碼步驟

1.env

2.source

-1.構建實時資料事件流-自定義隨機

<userID, eventTime, eventType, productID>

-2.構建配置流-從MySQL

<用戶id,<姓名,年齡>>

3.transformation

-1.定義狀態描述器

MapStateDescriptor<Void, Map<String, Tuple2<String, Integer>>> descriptor =

new MapStateDescriptor<>("config",Types.VOID, Types.MAP(Types.STRING, Types.TUPLE(Types.STRING, Types.INT)));

-2.廣播配置流

BroadcastStream<Map<String, Tuple2<String, Integer>>> broadcastDS = configDS.broadcast(descriptor);

-3.將事件流和廣播流進行連接

BroadcastConnectedStream<Tuple4<String, String, String, Integer>, Map<String, Tuple2<String, Integer>>> connectDS =eventDS.connect(broadcastDS);

-4.處理連接后的流-根據配置流補全事件流中的用戶的資訊

4.sink

5.execute

代碼實作

package cn.itcast.action;

import org.apache.flink.api.common.state.BroadcastState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.common.state.ReadOnlyBroadcastState;
import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.tuple.Tuple4;
import org.apache.flink.api.java.tuple.Tuple6;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.BroadcastConnectedStream;
import org.apache.flink.streaming.api.datastream.BroadcastStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.BroadcastProcessFunction;
import org.apache.flink.streaming.api.functions.source.RichSourceFunction;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import org.apache.flink.util.Collector;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;

/**
 * Author itcast
 * Desc
 * 需求:
 * 使用Flink的BroadcastState來完成
 * 事件流和配置流(需要廣播為State)的關聯,并實作配置的動態更新!
 */
public class BroadcastStateConfigUpdate {
    public static void main(String[] args) throws Exception{
        //1.env
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //2.source
        //-1.構建實時的自定義隨機資料事件流-資料源源不斷產生,量會很大
        //<userID, eventTime, eventType, productID>
        DataStreamSource<Tuple4<String, String, String, Integer>> eventDS = env.addSource(new MySource());

        //-2.構建配置流-從MySQL定期查詢最新的,資料量較小
        //<用戶id,<姓名,年齡>>
        DataStreamSource<Map<String, Tuple2<String, Integer>>> configDS = env.addSource(new MySQLSource());

        //3.transformation
        //-1.定義狀態描述器-準備將配置流作為狀態廣播
        MapStateDescriptor<Void, Map<String, Tuple2<String, Integer>>> descriptor =
                new MapStateDescriptor<>("config", Types.VOID, Types.MAP(Types.STRING, Types.TUPLE(Types.STRING, Types.INT)));
        //-2.將配置流根據狀態描述器廣播出去,變成廣播狀態流
        BroadcastStream<Map<String, Tuple2<String, Integer>>> broadcastDS = configDS.broadcast(descriptor);

        //-3.將事件流和廣播流進行連接
        BroadcastConnectedStream<Tuple4<String, String, String, Integer>, Map<String, Tuple2<String, Integer>>> connectDS =eventDS.connect(broadcastDS);
        //-4.處理連接后的流-根據配置流補全事件流中的用戶的資訊
        SingleOutputStreamOperator<Tuple6<String, String, String, Integer, String, Integer>> result = connectDS
                //BroadcastProcessFunction<IN1, IN2, OUT>
                .process(new BroadcastProcessFunction<
                //<userID, eventTime, eventType, productID> //事件流
                Tuple4<String, String, String, Integer>,
                //<用戶id,<姓名,年齡>> //廣播流
                Map<String, Tuple2<String, Integer>>,
                //<用戶id，eventTime，eventType，productID，姓名，年齡> //需要收集的資料
                Tuple6<String, String, String, Integer, String, Integer>>() {

            //處理事件流中的元素
            @Override
            public void processElement(Tuple4<String, String, String, Integer> value, ReadOnlyContext ctx, Collector<Tuple6<String, String, String, Integer, String, Integer>> out) throws Exception {
                //取出事件流中的userId
                String userId = value.f0;
                //根據狀態描述器獲取廣播狀態
                ReadOnlyBroadcastState<Void, Map<String, Tuple2<String, Integer>>> broadcastState = ctx.getBroadcastState(descriptor);
                if (broadcastState != null) {
                    //取出廣播狀態中的map<用戶id,<姓名,年齡>>
                    Map<String, Tuple2<String, Integer>> map = broadcastState.get(null);
                    if (map != null) {
                        //通過userId取map中的<姓名,年齡>
                        Tuple2<String, Integer> tuple2 = map.get(userId);
                        //取出tuple2中的姓名和年齡
                        String userName = tuple2.f0;
                        Integer userAge = tuple2.f1;
                        out.collect(Tuple6.of(userId, value.f1, value.f2, value.f3, userName, userAge));
                    }
                }
            }

            //處理廣播流中的元素
            @Override
            public void processBroadcastElement(Map<String, Tuple2<String, Integer>> value, Context ctx, Collector<Tuple6<String, String, String, Integer, String, Integer>> out) throws Exception {
                //value就是MySQLSource中每隔一段時間獲取到的最新的map資料
                //先根據狀態描述器獲取歷史的廣播狀態
                BroadcastState<Void, Map<String, Tuple2<String, Integer>>> broadcastState = ctx.getBroadcastState(descriptor);
                //再清空歷史狀態資料
                broadcastState.clear();
                //最后將最新的廣播流資料放到state中（更新狀態資料）
                broadcastState.put(null, value);
            }
        });
        //4.sink
        result.print();
        //5.execute
        env.execute();
    }

    /**
     * <userID, eventTime, eventType, productID>
     */
    public static class MySource implements SourceFunction<Tuple4<String, String, String, Integer>>{
        private boolean isRunning = true;
        @Override
        public void run(SourceContext<Tuple4<String, String, String, Integer>> ctx) throws Exception {
            Random random = new Random();
            SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
            while (isRunning){
                int id = random.nextInt(4) + 1;
                String user_id = "user_" + id;
                String eventTime = df.format(new Date());
                String eventType = "type_" + random.nextInt(3);
                int productId = random.nextInt(4);
                ctx.collect(Tuple4.of(user_id,eventTime,eventType,productId));
                Thread.sleep(500);
            }
        }

        @Override
        public void cancel() {
            isRunning = false;
        }
    }
    /**
     * <用戶id,<姓名,年齡>>
     */
    public static class MySQLSource extends RichSourceFunction<Map<String, Tuple2<String, Integer>>> {
        private boolean flag = true;
        private Connection conn = null;
        private PreparedStatement ps = null;
        private ResultSet rs = null;

        @Override
        public void open(Configuration parameters) throws Exception {
            conn = DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata", "root", "root");
            String sql = "select `userID`, `userName`, `userAge` from `user_info`";
            ps = conn.prepareStatement(sql);
        }
        @Override
        public void run(SourceContext<Map<String, Tuple2<String, Integer>>> ctx) throws Exception {
            while (flag){
                Map<String, Tuple2<String, Integer>> map = new HashMap<>();
                ResultSet rs = ps.executeQuery();
                while (rs.next()){
                    String userID = rs.getString("userID");
                    String userName = rs.getString("userName");
                    int userAge = rs.getInt("userAge");
                    //Map<String, Tuple2<String, Integer>>
                    map.put(userID,Tuple2.of(userName,userAge));
                }
                ctx.collect(map);
                Thread.sleep(5000);//每隔5s更新一下用戶的配置資訊!
            }
        }
        @Override
        public void cancel() {
            flag = false;
        }
        @Override
        public void close() throws Exception {
            if (conn != null) conn.close();
            if (ps != null) ps.close();
            if (rs != null) rs.close();
        }
    }
}
