MATLAB 制作抖音同款突出效果海報

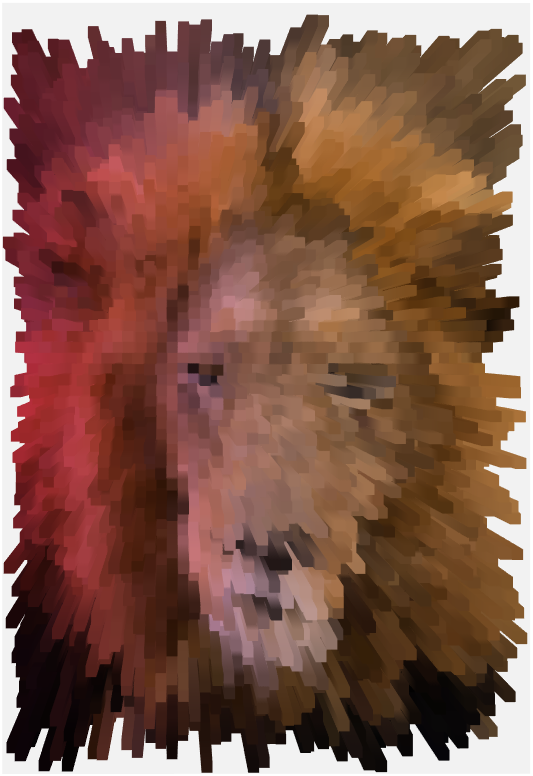

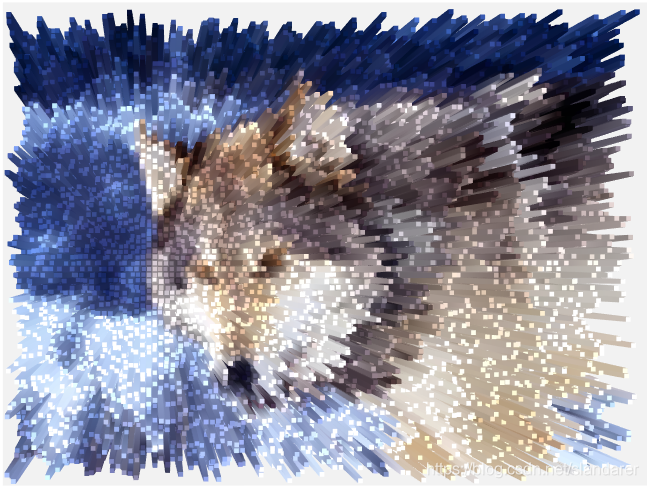

效果如下：

步驟

1.匯入圖片，獲取每個區域的平均顏色，構造亂數矩陣

匯入圖片后我們首先將圖片劃分成很多個15x15(可自行調整大小)的小格子，并求取每個格子的顏色平均值，作為柱狀圖每個小柱子的顏色，構造亂數矩陣作為每個小柱子的高度

oriPic=imread('test.jpg');
pixLen=15;
[H,W,~]=size(oriPic);


XList=1:pixLen:W-pixLen;
YList=1:pixLen:H-pixLen;
samplePic=zeros(length(YList),length(XList),3);
for x=XList
    for y=YList
        sampleSquareR=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,1));
        sampleSquareG=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,2));
        sampleSquareB=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,3));
        samplePic(y==YList,x==XList,1)=mean(sampleSquareR(:));
        samplePic(y==YList,x==XList,2)=mean(sampleSquareG(:));
        samplePic(y==YList,x==XList,3)=mean(sampleSquareB(:));
    end
end
randiMat=randi([0,250],[length(YList),length(XList)]);

原始圖片：

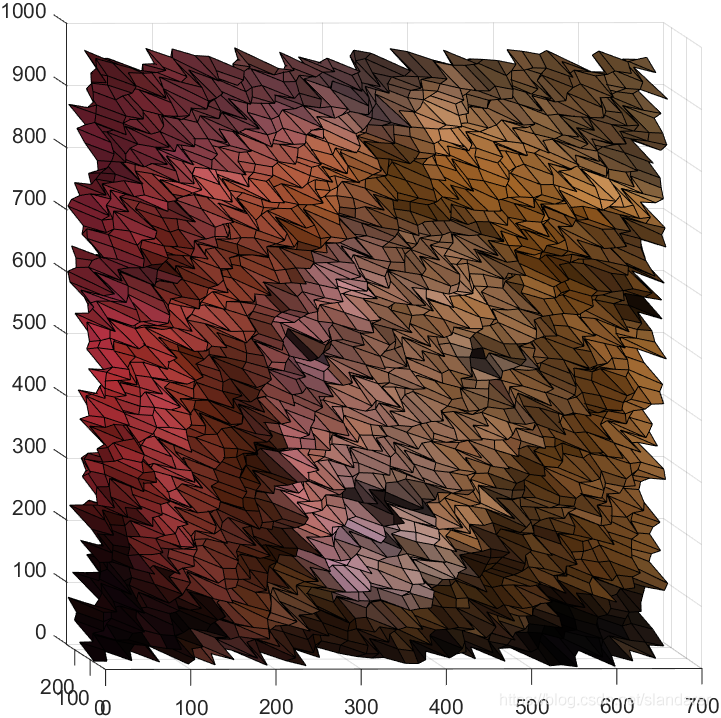

如果用方塊顏色矩陣和方塊高度矩陣直接去畫圖的話，會因為每個顏色只有一個點，而出現如下的效果，

為了畫出一個一個小平臺的效果，我們要將每個點擴充成15X15個顏色相同，高度相同的點集

2.點集擴充，曲面繪制

expCMat=zeros(length(YList)*pixLen,length(XList)*pixLen,3);
expZMat=zeros(length(YList)*pixLen,length(XList)*pixLen);
for x=XList
    for y=YList
        expCMat(y:y-1+pixLen,x:x-1+pixLen,1)=samplePic(y==YList,x==XList,1);
        expCMat(y:y-1+pixLen,x:x-1+pixLen,2)=samplePic(y==YList,x==XList,2);
        expCMat(y:y-1+pixLen,x:x-1+pixLen,3)=samplePic(y==YList,x==XList,3);
        expZMat(y:y-1+pixLen,x:x-1+pixLen)=randiMat(y==YList,x==XList);
    end
end
[XMesh,YMesh]=meshgrid(1:length(XList)*pixLen,1:length(YList)*pixLen);
surf(XMesh,expZMat,YMesh(end:-1:1,:),'CData',expCMat./255,...
    'FaceColor','interp','edgeColor','none',...
    'SpecularStrength',0,'AmbientStrength',1,'DiffuseStrength',1)

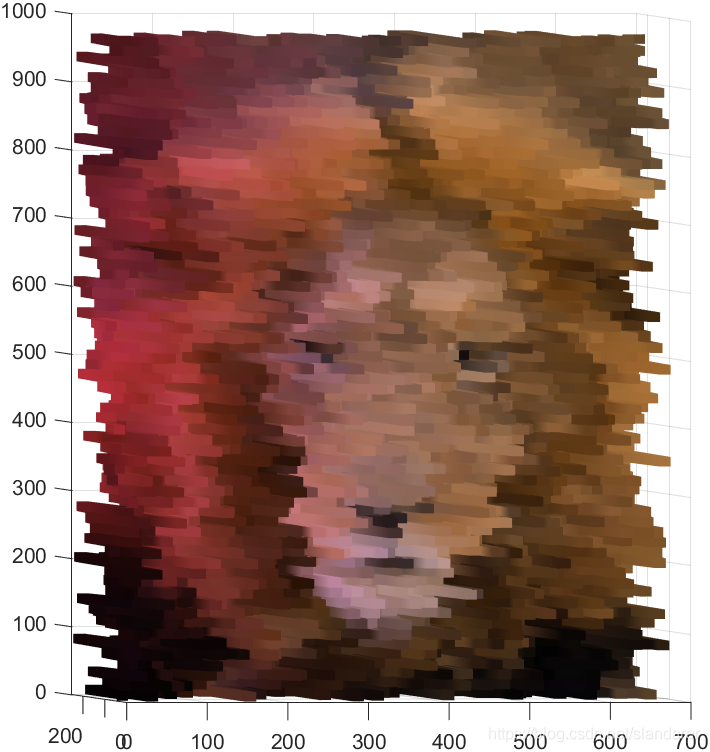

效果：
我們會發現此時每個小方塊界限并不明顯，而且當正面看時，曲面幾乎看不出任何突出效果，這兩點可以通過設定前縮透視法，和增添光照來解決

3.坐標區屬性設定及前縮透視法

以下大部分代碼為了調整視角和顏色，ax.Projection=‘perspective’; 用來設定前縮透視

ax=gca;
hold(ax,'on')
ax.Projection='perspective';
ax.Color=[0.95 0.95 0.95];
ax.DataAspectRatioMode='manual';
ax.DataAspectRatio=[1,0.1,1];
ax.XLim=[0,W];
ax.ZLim=[0,H];
ax.View=[-0.4830   -0.0717];
ax.XTick=[];
ax.YTick=[];
ax.ZTick=[];
ax.XColor='none';
ax.YColor='none';
ax.ZColor='none';

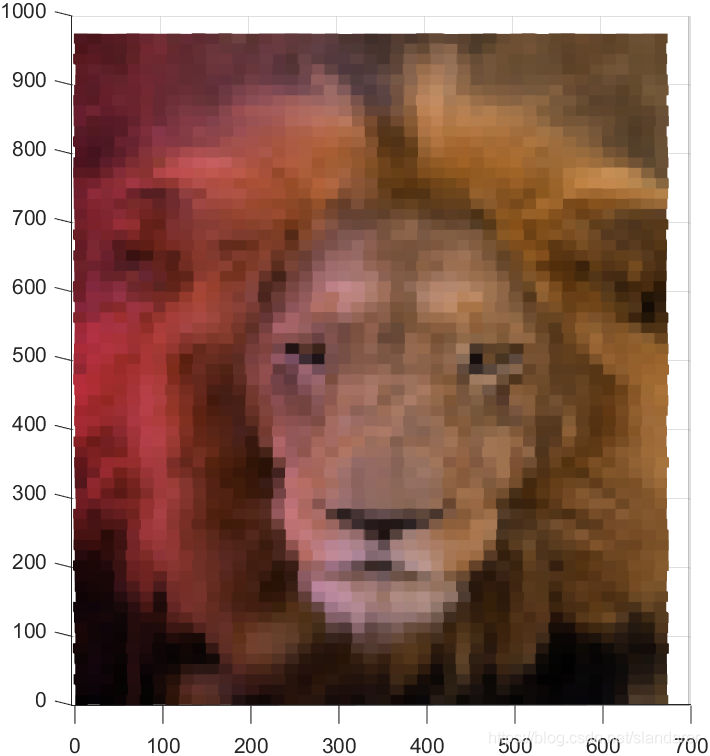

效果：

4.光照設定

可以根據自己的喜好微調哦

h = light;
h.Style='local';
h.Color=[1,1,1].*0.5;
h.Position=[W/2,-1000,0];

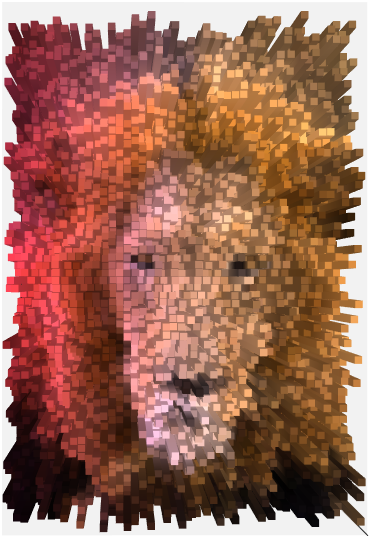

效果：

5.完整代碼

function pieceWisePic

oriPic=imread('test4.jpg');
pixLen=15;
[H,W,~]=size(oriPic);


XList=1:pixLen:W-pixLen;
YList=1:pixLen:H-pixLen;
samplePic=zeros(length(YList),length(XList),3);
for x=XList
    for y=YList
        sampleSquareR=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,1));
        sampleSquareG=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,2));
        sampleSquareB=double(oriPic(y:y-1+pixLen,x:x-1+pixLen,3));
        samplePic(y==YList,x==XList,1)=mean(sampleSquareR(:));
        samplePic(y==YList,x==XList,2)=mean(sampleSquareG(:));
        samplePic(y==YList,x==XList,3)=mean(sampleSquareB(:));
    end
end
randiMat=randi([0,250],[length(YList),length(XList)]);

expCMat=zeros(length(YList)*pixLen,length(XList)*pixLen,3);
expZMat=zeros(length(YList)*pixLen,length(XList)*pixLen);
for x=XList
    for y=YList
        expCMat(y:y-1+pixLen,x:x-1+pixLen,1)=samplePic(y==YList,x==XList,1);
        expCMat(y:y-1+pixLen,x:x-1+pixLen,2)=samplePic(y==YList,x==XList,2);
        expCMat(y:y-1+pixLen,x:x-1+pixLen,3)=samplePic(y==YList,x==XList,3);
        expZMat(y:y-1+pixLen,x:x-1+pixLen)=randiMat(y==YList,x==XList);
    end
end
[XMesh,YMesh]=meshgrid(1:length(XList)*pixLen,1:length(YList)*pixLen);
surf(XMesh,expZMat,YMesh(end:-1:1,:),'CData',expCMat./255,...
    'FaceColor','interp','edgeColor','none',...
    'SpecularStrength',0,'AmbientStrength',1,'DiffuseStrength',1)


ax=gca;
hold(ax,'on')
ax.Projection='perspective';
ax.Color=[0.95 0.95 0.95];
ax.DataAspectRatioMode='manual';
ax.DataAspectRatio=[1,0.1,1];
ax.XLim=[0,W];
ax.ZLim=[0,H];
ax.View=[-0.4830   -0.0717];
ax.XTick=[];
ax.YTick=[];
ax.ZTick=[];
ax.XColor='none';
ax.YColor='none';
ax.ZColor='none';

h = light;
h.Style='local';
h.Color=[1,1,1].*0.5;
h.Position=[W/2,-1000,0];

end

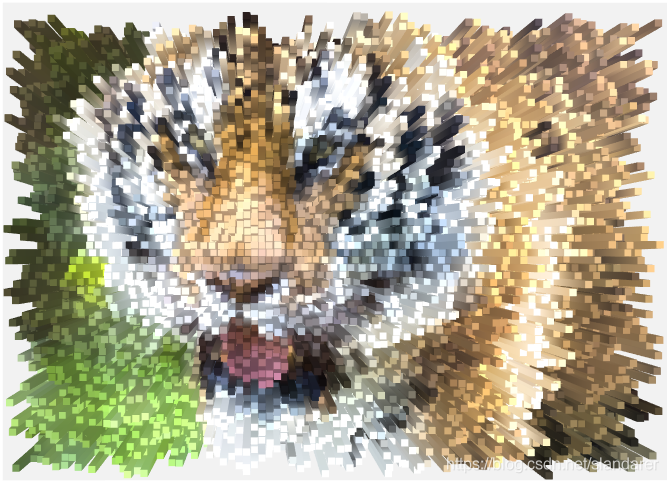

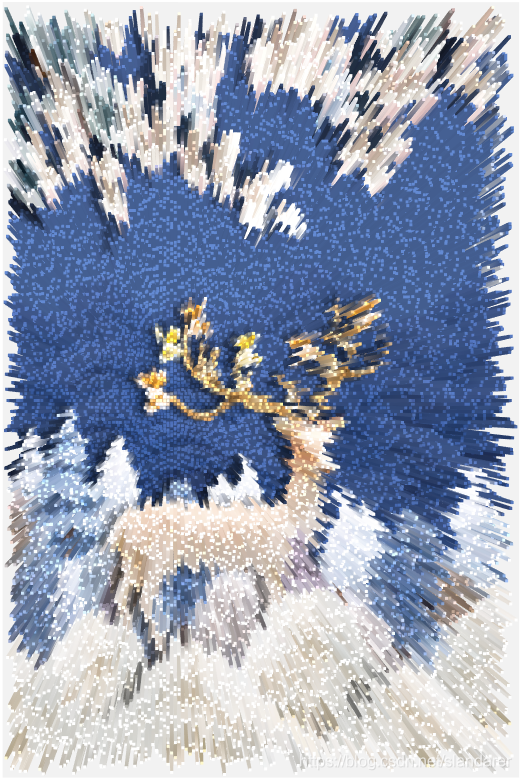

嘗試的其他幾個圖

當方塊取的較小時(5x5)

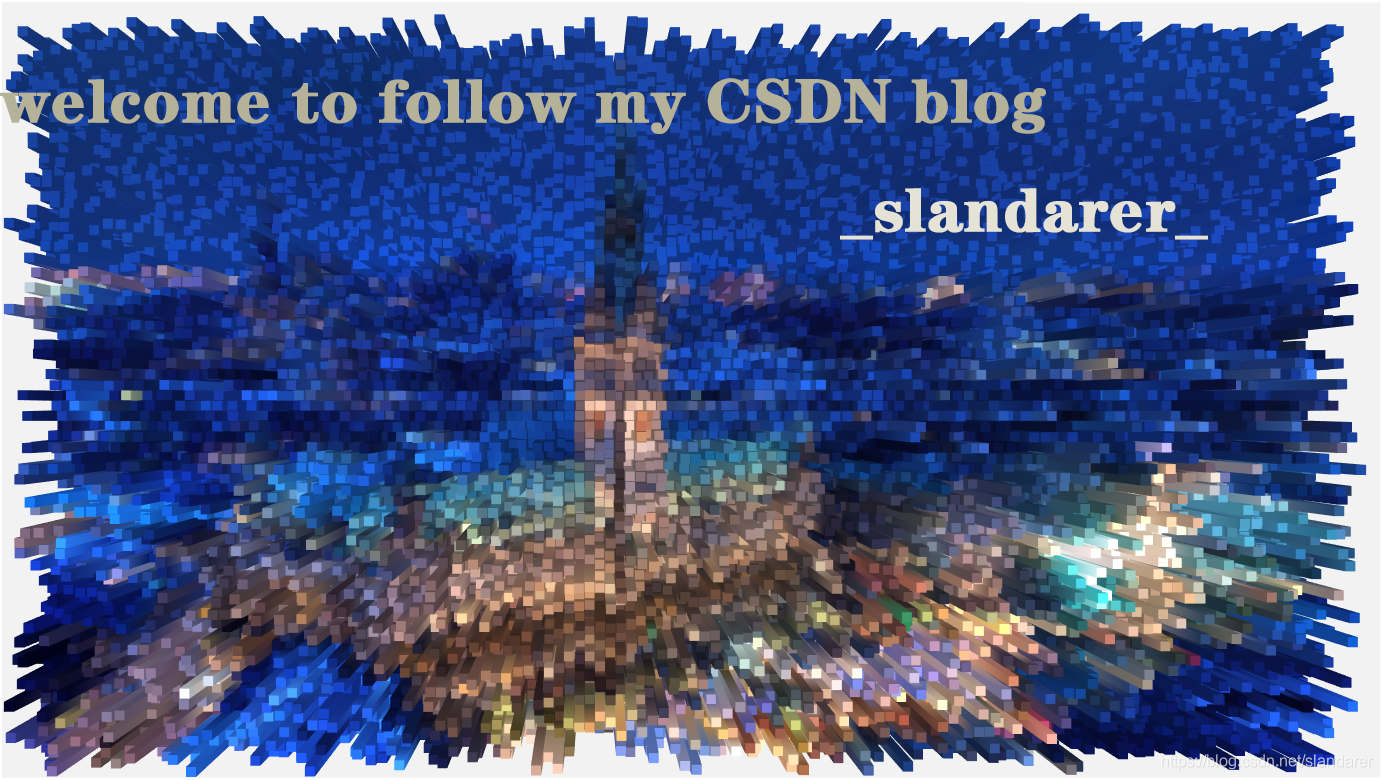

另：
