Spark SQL 的 Catalyst ，這部分真的很有意思，值得去仔細研究一番，今天先來說說Spark的一些擴展機制吧，上一次寫Spark，對其SQL的決議進行了一定的魔改，今天我們按套路來，使用磚廠為我們提供的機制，來擴展Spark...

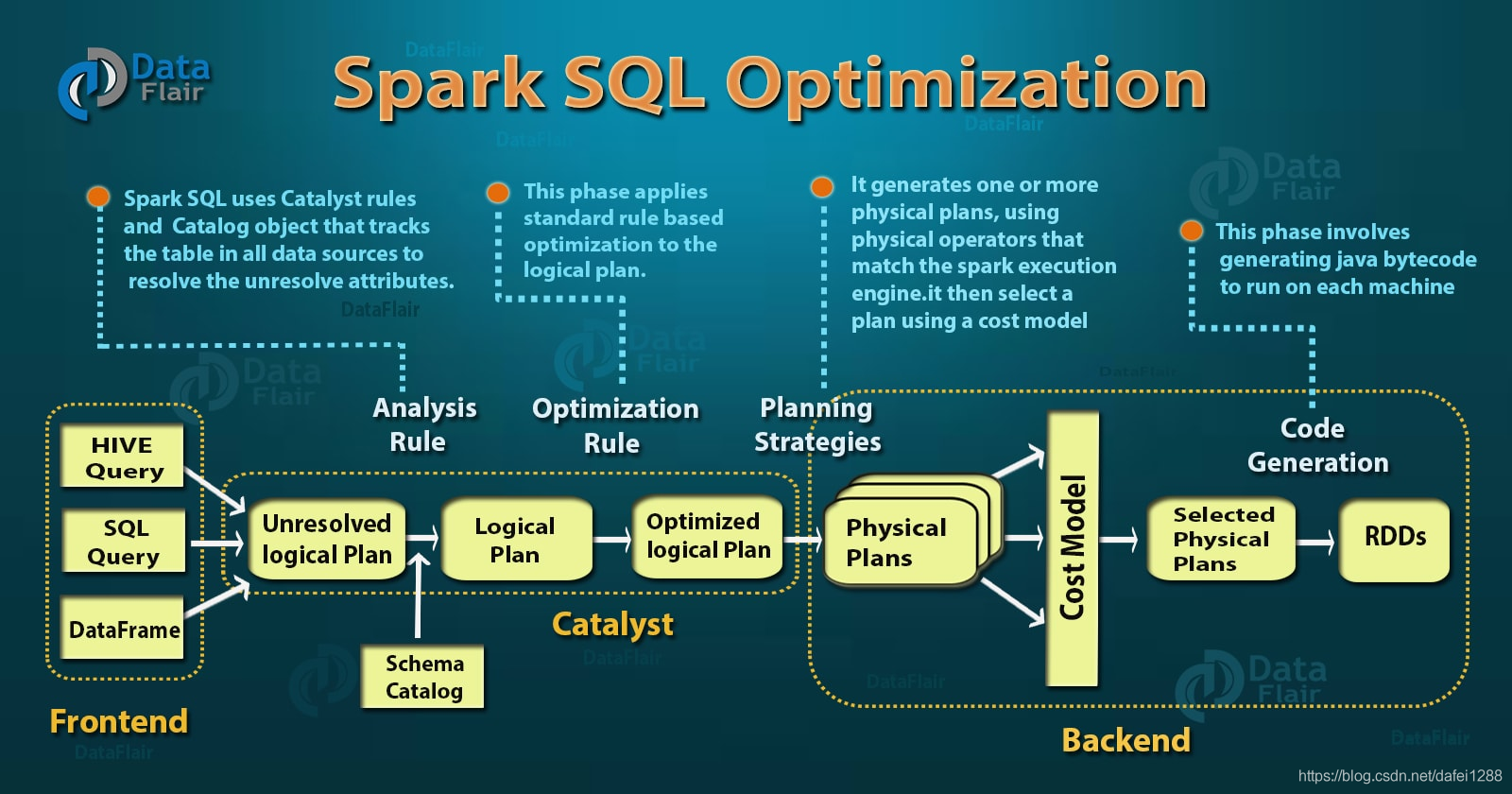

首先我們先來了解一下 Spark SQL 的整體執行流程，輸入的查詢先被決議成未關聯元資料的邏輯計劃，然后根據元資料和決議規則，生成邏輯計劃，再經過優化規則，形成優化過的邏輯計劃（RBO），將邏輯計劃轉換成物理計劃在經過代價模型（CBO），輸出真正的物理執行計劃，

我們今天舉三個擴展的例子，來進行說明，

擴展決議器

這個例子，我們擴展決議引擎，我們對輸入的SQL，禁止泛查詢即不許使用select *來做查詢，以下是決議的代，

package wang.datahub.parser
?
import org.apache.spark.sql.catalyst.analysis.UnresolvedStar
import org.apache.spark.sql.catalyst.expressions.Expression
import org.apache.spark.sql.catalyst.parser.ParserInterface
import org.apache.spark.sql.catalyst.plans.logical.{LogicalPlan, Project}
import org.apache.spark.sql.catalyst.{FunctionIdentifier, TableIdentifier}
import org.apache.spark.sql.types.{DataType, StructType}
?
class MyParser(parser: ParserInterface) extends ParserInterface {
  /**
   * Parse a string to a [[LogicalPlan]].
   */
  override def parsePlan(sqlText: String): LogicalPlan = {
    val logicalPlan = parser.parsePlan(sqlText)
    logicalPlan transform {
      case project @ Project(projectList, _) =>
        projectList.foreach {
          name =>
            if (name.isInstanceOf[UnresolvedStar]) {
              throw new RuntimeException("You must specify your project column set," +
                " * is not allowed.")
            }
        }
        project
    }
    logicalPlan
  }
?
  /**
   * Parse a string to an [[Expression]].
   */
  override def parseExpression(sqlText: String): Expression = parser.parseExpression(sqlText)
?
  /**
   * Parse a string to a [[TableIdentifier]].
   */
  override def parseTableIdentifier(sqlText: String): TableIdentifier =
    parser.parseTableIdentifier(sqlText)
?
  /**
   * Parse a string to a [[FunctionIdentifier]].
   */
  override def parseFunctionIdentifier(sqlText: String): FunctionIdentifier =
    parser.parseFunctionIdentifier(sqlText)
?
  /**
   * Parse a string to a [[StructType]]. The passed SQL string should be a comma separated
   * list of field definitions which will preserve the correct Hive metadata.
   */
  override def parseTableSchema(sqlText: String): StructType =
    parser.parseTableSchema(sqlText)
?
  /**
   * Parse a string to a [[DataType]].
   */
  override def parseDataType(sqlText: String): DataType = parser.parseDataType(sqlText)
}

接下來，我們測驗一下

package wang.datahub.parser
?
import org.apache.spark.sql.{SparkSession, SparkSessionExtensions}
import org.apache.spark.sql.catalyst.parser.ParserInterface
?
object MyParserApp {
  def main(args: Array[String]): Unit = {
    System.setProperty("hadoop.home.dir","E:\\devlop\\envs\\hadoop-common-2.2.0-bin-master");
    type ParserBuilder = (SparkSession, ParserInterface) => ParserInterface
    type ExtensionsBuilder = SparkSessionExtensions => Unit
    val parserBuilder: ParserBuilder = (_, parser) => new MyParser(parser)
    val extBuilder: ExtensionsBuilder = { e => e.injectParser(parserBuilder)}
    val spark =  SparkSession
      .builder()
      .appName("Spark SQL basic example")
      .config("spark.master", "local[*]")
      .withExtensions(extBuilder)
      .getOrCreate()
?
    spark.sparkContext.setLogLevel("ERROR")
?
    import spark.implicits._
?
    val df = Seq(
      ( "First Value",1, java.sql.Date.valueOf("2010-01-01")),
      ( "First Value",4, java.sql.Date.valueOf("2010-01-01")),
      ("Second Value",2,  java.sql.Date.valueOf("2010-02-01")),
      ("Second Value",9,  java.sql.Date.valueOf("2010-02-01"))
    ).toDF("name", "score", "date_column")
    df.createTempView("p")
?
    //    val df = spark.read.json("examples/src/main/resources/people.json")
    //    df.toDF().write.saveAsTable("person")
    //,javg(score)
?
    // custom parser
    //    spark.sql("select * from p ").show
?
    spark.sql("select * from p").show()
  }
}
?

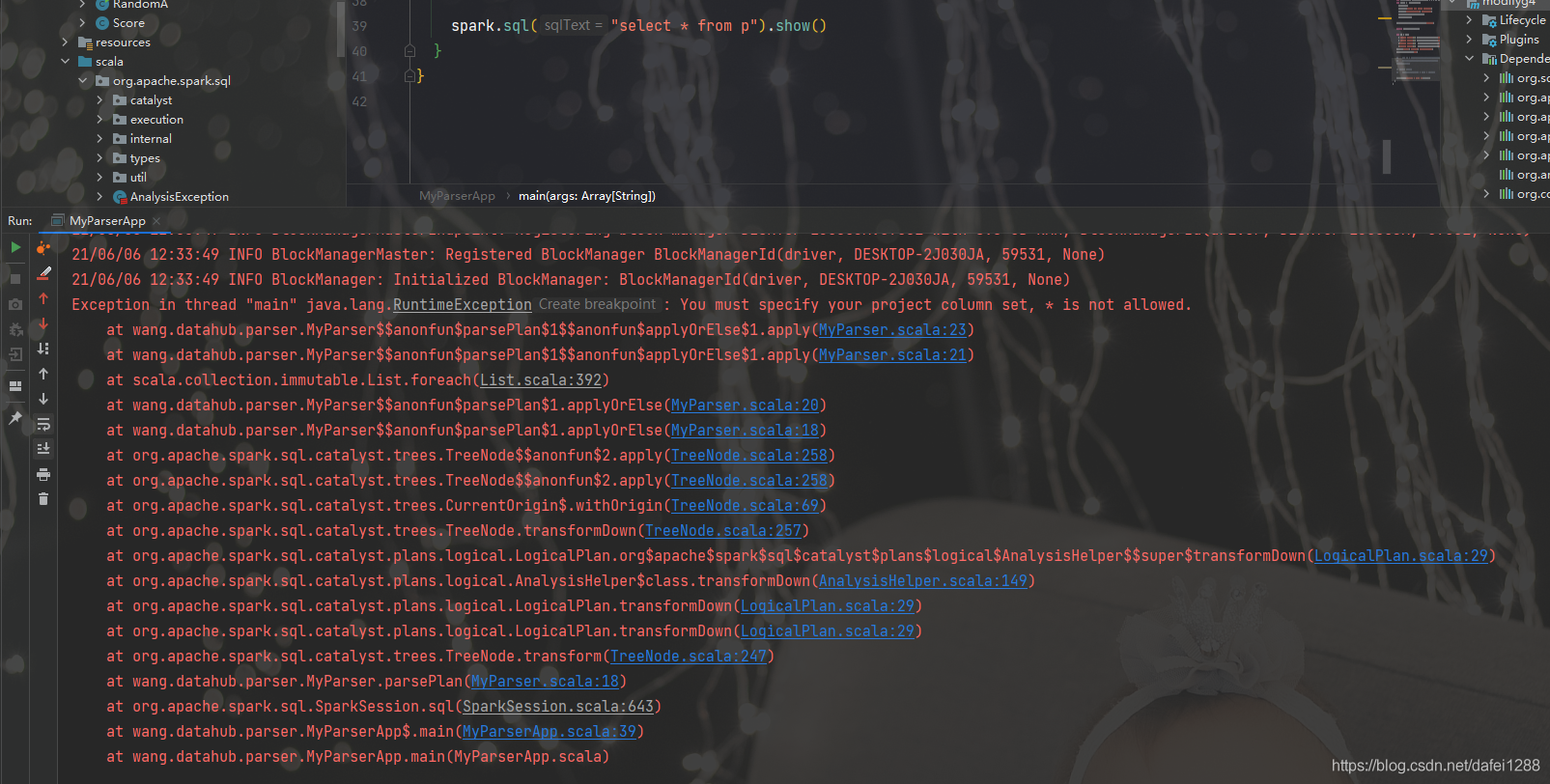

下面是執行結果，符合我們的預期，

擴展優化器

接下來，我們來擴展優化器，磚廠提供了很多默認的RBO，這里可以方便的構建我們自己的優化規則，本例中我們構建一套比較奇怪的規則，而且是完全不等價的，這里只是為了說明，

針對欄位+0的操作，規則如下：

如果0出現在+左邊，則直接將欄位變成右運算式，即 0+nr 等效為 nr
如果0出現在+右邊，則將0變成3，即 nr+0 變成 nr+3
如果沒出現0，則運算式不變

下面是代碼：

package wang.datahub.optimizer
?
import org.apache.spark.sql.SparkSession
import org.apache.spark.sql.catalyst.expressions.{Add, Expression, Literal}
import org.apache.spark.sql.catalyst.plans.logical.LogicalPlan
import org.apache.spark.sql.catalyst.rules.Rule
?
object MyOptimizer extends Rule[LogicalPlan] {
?
  def apply(logicalPlan: LogicalPlan): LogicalPlan = {
    logicalPlan.transformAllExpressions {
      case Add(left, right) => {
        println("this this my add optimizer")
        if (isStaticAdd(left)) {
          right
        } else if (isStaticAdd(right)) {
          Add(left, Literal(3L))
        } else {
          Add(left, right)
        }
      }
    }
  }
?
  private def isStaticAdd(expression: Expression): Boolean = {
    expression.isInstanceOf[Literal] && expression.asInstanceOf[Literal].toString == "0"
  }
?
  def main(args: Array[String]): Unit = {
    System.setProperty("hadoop.home.dir","E:\\devlop\\envs\\hadoop-common-2.2.0-bin-master");
    val testSparkSession: SparkSession = SparkSession.builder().appName("Extra optimization rules")
      .master("local[*]")
      .withExtensions(extensions => {
        extensions.injectOptimizerRule(session => MyOptimizer)
      })
      .getOrCreate()
?
    testSparkSession.sparkContext.setLogLevel("ERROR")
?
    import testSparkSession.implicits._
    testSparkSession.experimental.extraOptimizations = Seq()
    Seq(-1, -2, -3).toDF("nr").write.mode("overwrite").json("./test_nrs")
//    val optimizedResult = testSparkSession.read.json("./test_nrs").selectExpr("nr + 0")
    testSparkSession.read.json("./test_nrs").createTempView("p")
?
    var sql = "select nr+0 from p";
    var t = testSparkSession.sql(sql)
    println(t.queryExecution.optimizedPlan)
    println(sql)
    t.show()
?
    sql = "select 0+nr from p";
    var  u = testSparkSession.sql(sql)
    println(u.queryExecution.optimizedPlan)
    println(sql)
    u.show()
?
    sql = "select nr+8 from p";
    var  v = testSparkSession.sql(sql)
    println(v.queryExecution.optimizedPlan)
    println(sql)
    v.show()
//    println(optimizedResult.queryExecution.optimizedPlan.toString() )
//    optimizedResult.collect().map(row => row.getAs[Long]("(nr + 0)"))
    Thread.sleep(1000000)
  }
?
}

執行如下

this this my add optimizer
this this my add optimizer
this this my add optimizer
Project [(nr#12L + 3) AS (nr + CAST(0 AS BIGINT))#14L]
+- Relation[nr#12L] json
?
select nr+0 from p
this this my add optimizer
this this my add optimizer
this this my add optimizer
+------------------------+
|(nr + CAST(0 AS BIGINT))|
+------------------------+
|                       2|
|                       1|
|                       0|
+------------------------+
?
this this my add optimizer
Project [nr#12L AS (CAST(0 AS BIGINT) + nr)#21L]
+- Relation[nr#12L] json
?
select 0+nr from p
this this my add optimizer
+------------------------+
|(CAST(0 AS BIGINT) + nr)|
+------------------------+
|                      -1|
|                      -2|
|                      -3|
+------------------------+
?
this this my add optimizer
this this my add optimizer
this this my add optimizer
Project [(nr#12L + 8) AS (nr + CAST(8 AS BIGINT))#28L]
+- Relation[nr#12L] json
?
select nr+8 from p
this this my add optimizer
this this my add optimizer
this this my add optimizer
+------------------------+
|(nr + CAST(8 AS BIGINT))|
+------------------------+
|                       7|
|                       6|
|                       5|
+------------------------+
?
?

擴展策略

SparkStrategies包含了一系列特定的Strategies，這些Strategies是繼承自QueryPlanner中定義的Strategy，它定義接受一個Logical Plan，生成一系列的Physical Plan

通過Strategies把邏輯計劃轉換成可以具體執行的物理計劃，代碼如下

package wang.datahub.strategy
?
import org.apache.spark.sql.{SparkSession, Strategy}
import org.apache.spark.sql.catalyst.plans.logical.LogicalPlan
import org.apache.spark.sql.execution.SparkPlan
?
object MyStrategy extends Strategy {
  def apply(plan: LogicalPlan): Seq[SparkPlan] = {
    println("Hello world!")
    Nil
  }
?
  def main(args: Array[String]): Unit = {
    System.setProperty("hadoop.home.dir","E:\\devlop\\envs\\hadoop-common-2.2.0-bin-master");
    val spark = SparkSession.builder().master("local").getOrCreate()
?
    spark.experimental.extraStrategies = Seq(MyStrategy)
    val q = spark.catalog.listTables.filter(t => t.name == "six")
    q.explain(true)
    spark.stop()
  }
}

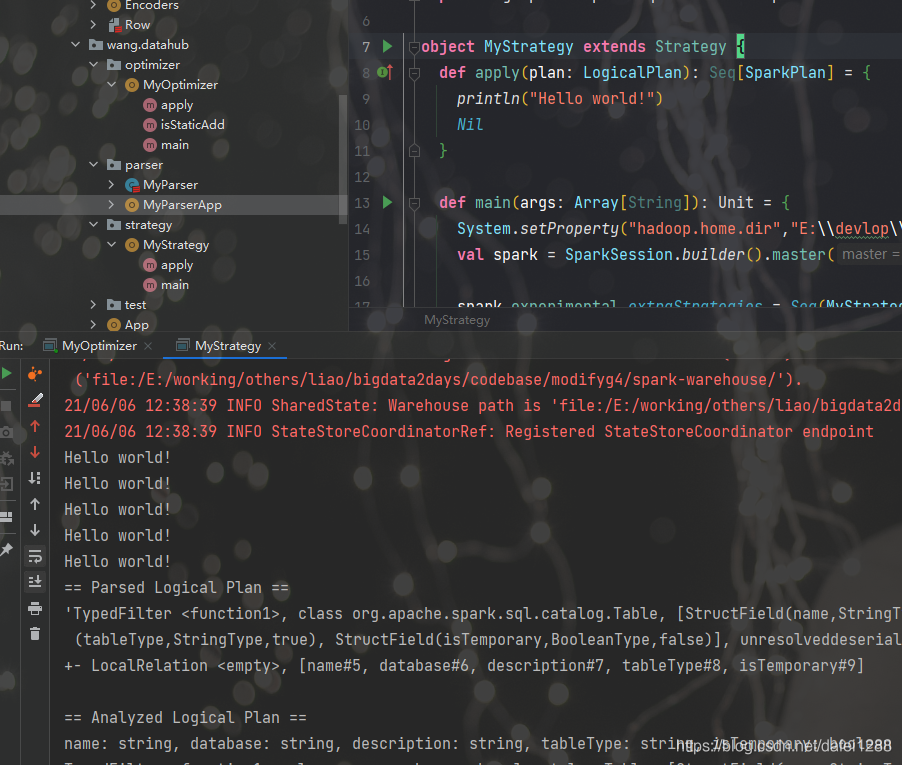

執行效果

好了，擴展部分就先介紹到這，接下來我計劃可能會簡單說說RBO和CBO，結合之前做過的一個小功能，一條SQL的查詢時間預估，

如果本文對您有一點點幫助，那么希望您能一鍵三連，謝了，
