專案場景：
基于yolov5封裝在UI上的功能實作，此次專案目標是實作監測手機為label的功能實作UI
配置：
windows 7 64位
Jetson NX （不做處理的話默認達到10幀，勉強能跑）
gtx 1080Ti
yolov5 4.0 + pytorch1.6 + opencv4.5.x +cuda 10.2
Anaconda -------pyqt5
海康網路監控攝像頭——rtsp
Jetson Xavier NX ——英偉達家的開發板

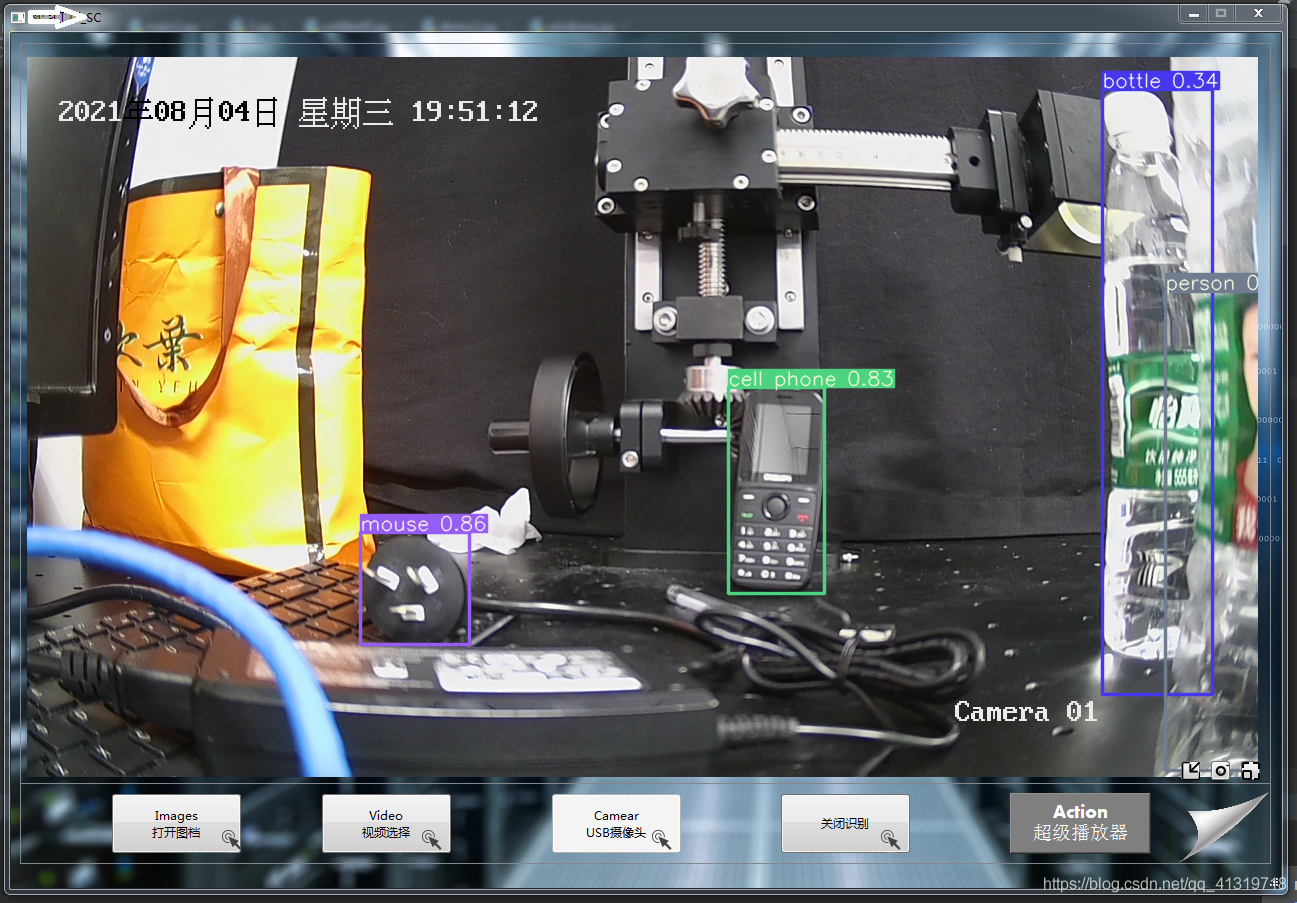

實作效果：
1.圖檔偵測
2.視頻偵測
3.USB物體偵測
4.rtsp物體偵測
5.截圖、存圖、LOG檔
6.最大化、最小化、固定窗
7.實時滾動圖——偵測Label 顯示最近
后續補充優化：
1、GPIO輸出語音提示模塊
2、工業PLC 網路模塊交握
3、偵測計數統計圖 total
import os, threading
import sys
import cv2
import argparse
import random
import torch
import numpy as np
import torch.backends.cudnn as cudnn
import time
from PyQt5 import QtCore, QtGui, QtWidgets
from utils.torch_utils import select_device
from models.experimental import attempt_load
from utils.general import check_img_size, non_max_suppression, scale_coords
from utils.datasets import letterbox
from utils.plots import plot_one_box
from PyQt5.QtWidgets import *
flag = False
flag2= False
class Ui_MainWindow(QtWidgets.QMainWindow):
def __init__(self, parent=None):
super(Ui_MainWindow, self).__init__(parent)
self.timer_video = QtCore.QTimer()
self.timer_video_1 = QtCore.QTimer()
self.setupUi(self)
self.init_slots()
self.cap = cv2.VideoCapture()
####---模型初始化---
parser = argparse.ArgumentParser()
parser.add_argument('--weights', nargs='+', type=str, default='weights/yolov5s.pt', help='model.pt path(s)')
parser.add_argument('--source', type=str, default='data/images', help='source') # file/folder, 0 for webcam
parser.add_argument('--img-size', type=int, default=640, help='inference size (pixels)')
parser.add_argument('--conf-thres', type=float, default=0.25, help='object confidence threshold')
parser.add_argument('--iou-thres', type=float, default=0.45, help='IOU threshold for NMS')
parser.add_argument('--device', default='', help='cuda device, i.e. 0 or 0,1,2,3 or cpu')
parser.add_argument('--view-img', action='store_true', help='display results')
parser.add_argument('--save-txt', action='store_true', help='save results to *.txt')
parser.add_argument('--save-conf', action='store_true', help='save confidences in --save-txt labels')
parser.add_argument('--nosave', action='store_true', help='do not save images/videos')
parser.add_argument('--classes', nargs='+', type=int, help='filter by class: --class 0, or --class 0 2 3')
parser.add_argument('--agnostic-nms', action='store_true', help='class-agnostic NMS')
parser.add_argument('--augment', action='store_true', help='augmented inference')
parser.add_argument('--update', action='store_true', help='update all models')
parser.add_argument('--project', default='runs/detect', help='save results to project/name')
parser.add_argument('--name', default='exp', help='save results to project/name')
parser.add_argument('--exist-ok', action='store_true', help='existing project/name ok, do not increment')
self.opt = parser.parse_args()
print(self.opt)
source, weights, view_img, save_txt, imgsz = self.opt.source, self.opt.weights, self.opt.view_img, self.opt.save_txt, self.opt.img_size
self.device = select_device(self.opt.device)
self.half = self.device.type != 'cpu' # half precision only supported on CUDA
cudnn.benchmark = True
# Load model
self.model = attempt_load(weights, map_location=self.device) # load FP32 model
stride = int(self.model.stride.max()) # model stride
self.imgsz = check_img_size(imgsz, s=stride) # check img_size
if self.half:
self.model.half() # to FP16
# Get names and colors
self.names = self.model.module.names if hasattr(self.model, 'module') else self.model.names
self.colors = [[random.randint(0, 255) for _ in range(3)] for _ in self.names]
# 基于Anaconda 底下 designer.exe 配置pyqt5 封裝UI
#######---UI界面---
def setupUi(self, MainWindow):
MainWindow.setObjectName("MainWindow")
MainWindow.resize(1270, 855)
MainWindow.setBaseSize(QtCore.QSize(5, 0))
MainWindow.setFixedSize(self.width(), self.height())
MainWindow.setStyleSheet("\n" "#MainWindow {background-image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/pyqt5 backup.png);}")
self.centralwidget = QtWidgets.QWidget(MainWindow)
self.centralwidget.setObjectName("centralwidget")
self.frame = QtWidgets.QFrame(self.centralwidget)
self.frame.setGeometry(QtCore.QRect(9, 10, 1251, 741))
self.frame.setFrameShape(QtWidgets.QFrame.StyledPanel)
self.frame.setFrameShadow(QtWidgets.QFrame.Sunken)
self.frame.setObjectName("frame")
self.label = QtWidgets.QLabel(self.frame)
self.label.setGeometry(QtCore.QRect(7, 14, 1231, 721))
# self.label.setStyleSheet("background-color: rgb(15, 15, 15);")
self.label.setTextFormat(QtCore.Qt.AutoText)
self.label.setObjectName("label")
self.pushButton = QtWidgets.QPushButton(self.frame)
self.pushButton.setGeometry(QtCore.QRect(1220, 717, 21, 21))
self.pushButton.setStyleSheet("")
self.pushButton.setText("")
icon = QtGui.QIcon()
icon.addPixmap(QtGui.QPixmap("C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/mm.png"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
self.pushButton.setIcon(icon)
self.pushButton.setIconSize(QtCore.QSize(18, 18))
self.pushButton.setObjectName("pushButton")
self.train = QtWidgets.QPushButton(self.frame)
self.train.setGeometry(QtCore.QRect(1190, 717, 21, 21))
self.train.setStyleSheet("")
self.train.setText("")
icon1 = QtGui.QIcon()
icon1.addPixmap(QtGui.QPixmap("C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/ppn.png"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
self.train.setIcon(icon1)
self.train.setIconSize(QtCore.QSize(20, 20))
self.train.setObjectName("train")
self.pushButton_3 = QtWidgets.QPushButton(self.frame)
self.pushButton_3.setGeometry(QtCore.QRect(1160, 717, 21, 21))
self.pushButton_3.setStyleSheet("")
self.pushButton_3.setText("")
icon2 = QtGui.QIcon()
icon2.addPixmap(QtGui.QPixmap("C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/min.png"), QtGui.QIcon.Normal, QtGui.QIcon.Off)
self.pushButton_3.setIcon(icon2)
self.pushButton_3.setIconSize(QtCore.QSize(18, 18))
self.pushButton_3.setObjectName("pushButton_3")
self.label_2 = QtWidgets.QLabel(self.frame)
self.label_2.setGeometry(QtCore.QRect(430, 720, 511, 411))
self.label_2.setObjectName("label_2")
self.btn_opencam_img = QtWidgets.QPushButton(self.centralwidget)
self.btn_opencam_img.setGeometry(QtCore.QRect(100, 760, 131, 61))
self.btn_opencam_img.setStyleSheet("color: rgb(255, 255, 255);\n"
"\n"
"font: 75 9pt \"Aharoni\";\n"
"color: rgb(0, 0, 0);\n"
"font: 75 9pt \"微軟雅黑\";")
self.btn_opencam_img.setObjectName("btn_opencam_img")
self.btn_opencam_video = QtWidgets.QPushButton(self.centralwidget)
self.btn_opencam_video.setGeometry(QtCore.QRect(310, 760, 131, 61))
self.btn_opencam_video.setStyleSheet("color: rgb(255, 255, 255);\n"
"font: 75 9pt \"微軟雅黑\";\n"
"color: rgb(2, 2, 2);")
self.btn_opencam_video.setObjectName("btn_opencam_video")
self.btn_opencam = QtWidgets.QPushButton(self.centralwidget)
self.btn_opencam.setGeometry(QtCore.QRect(540, 760, 131, 61))
self.btn_opencam.setStyleSheet("color: rgb(255, 255, 255);\n"
"font: 75 9pt \"微軟雅黑\";\n"
"color: rgb(0, 0, 0);")
self.btn_opencam.setObjectName("btn_opencam")
self.frame_2 = QtWidgets.QFrame(self.centralwidget)
self.frame_2.setGeometry(QtCore.QRect(9, 750, 1251, 81))
self.frame_2.setFrameShape(QtWidgets.QFrame.StyledPanel)
self.frame_2.setFrameShadow(QtWidgets.QFrame.Sunken)
self.frame_2.setObjectName("frame_2")
self.btn_opencam_2 = QtWidgets.QPushButton(self.frame_2)
self.btn_opencam_2.setGeometry(QtCore.QRect(760, 10, 131, 61))
self.btn_opencam_2.setStyleSheet("color: rgb(255, 255, 255);\n"
"font: 75 9pt \"微軟雅黑\";\n"
"color: rgb(0, 0, 0);")
self.btn_opencam_2.setObjectName("btn_opencam_2")
self.iccon4 = QtWidgets.QLabel(self.frame_2)
self.iccon4.setGeometry(QtCore.QRect(850, 40, 41, 31))
self.iccon4.setStyleSheet("\n"
"image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/0.png);")
self.iccon4.setText("")
self.iccon4.setObjectName("iccon4")
self.btn_opencam_3 = QtWidgets.QPushButton(self.frame_2)
self.btn_opencam_3.setGeometry(QtCore.QRect(990, 10, 141, 61))
self.btn_opencam_3.setStyleSheet("color: rgb(255, 255, 255);\n"
"background-color: rgb(127, 127, 127);\n"
"font: 75 14pt \"Aharoni\";\n"
"color: rgb(255, 255, 255);")
self.btn_opencam_3.setObjectName("btn_opencam_3")
self.iccon5 = QtWidgets.QLabel(self.frame_2)
self.iccon5.setGeometry(QtCore.QRect(1090, 40, 41, 31))
# self.iccon5.setStyleSheet("\n"
#"image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/0.png);")
self.iccon5.setText("")
self.iccon5.setObjectName("iccon5")
self.down = QtWidgets.QLabel(self.frame_2)
self.down.setGeometry(QtCore.QRect(1150, -10, 101, 101))
self.down.setStyleSheet("font: 75 18pt \"Aharoni\";\n"
"border-image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/down.png);")
self.down.setText("")
self.down.setObjectName("down")
self.iccon = QtWidgets.QLabel(self.centralwidget)
self.iccon.setGeometry(QtCore.QRect(200, 790, 41, 31))
self.iccon.setStyleSheet("\n"
"image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/0.png);")
self.iccon.setText("")
self.iccon.setObjectName("iccon")
self.iccon2 = QtWidgets.QLabel(self.centralwidget)
self.iccon2.setGeometry(QtCore.QRect(400, 790, 41, 31))
self.iccon2.setStyleSheet("\n"
"image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/0.png);")
self.iccon2.setText("")
self.iccon2.setObjectName("iccon2")
self.iccon3 = QtWidgets.QLabel(self.centralwidget)
self.iccon3.setGeometry(QtCore.QRect(630, 790, 41, 31))
self.iccon3.setStyleSheet("\n"
"image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/0.png);")
self.iccon3.setText("")
self.iccon3.setObjectName("iccon3")
self.frame_2.raise_()
self.frame.raise_()
self.btn_opencam_img.raise_()
self.btn_opencam_video.raise_()
self.btn_opencam.raise_()
self.iccon.raise_()
self.iccon2.raise_()
self.iccon3.raise_()
MainWindow.setCentralWidget(self.centralwidget)
self.menubar = QtWidgets.QMenuBar(MainWindow)
self.menubar.setGeometry(QtCore.QRect(0, 0, 1270, 23))
self.menubar.setObjectName("menubar")
MainWindow.setMenuBar(self.menubar)
self.statusbar = QtWidgets.QStatusBar(MainWindow)
self.statusbar.setObjectName("statusbar")
MainWindow.setStatusBar(self.statusbar)
self.retranslateUi(MainWindow)
QtCore.QMetaObject.connectSlotsByName(MainWindow)
def retranslateUi(self, MainWindow):
_translate = QtCore.QCoreApplication.translate
MainWindow.setWindowTitle(_translate("MainWindow", "實習工廠_SC"))
self.label.setText(_translate("MainWindow", "顯示區"))
self.label_2.setText(_translate("MainWindow", "顯示區"))
self.btn_opencam_img.setText(_translate("MainWindow", "Images\n"
"打開圖檔"))
self.btn_opencam_video.setText(_translate("MainWindow", "Video\n"
"視頻選擇"))
self.btn_opencam.setText(_translate("MainWindow", "Camear\n"
"USB攝像頭"))
self.btn_opencam_2.setText(_translate("MainWindow", "Rtsp\n"
"網路攝像頭"))
self.btn_opencam_3.setText(_translate("MainWindow", "Action\n"
"超級播放器"))
# 功能實作
def init_slots(self):
self.btn_opencam_img.clicked.connect(self.button_image_open)
self.btn_opencam_video.clicked.connect(self.button_video_open)
self.timer_video.timeout.connect(self.show_video_frame)
self.btn_opencam.clicked.connect(self.button_opencameras_click_0)
self.btn_opencam_2.clicked.connect(self.button_opencameras_click)
self.timer_video_1.timeout.connect(self.show_video_frame_1)
self.train.clicked.connect(self.Openvideo_click)
#########---演算法描框---
def show_video_frame(self):
name_list = []
flag, img = self.cap.read()
if img is not None:
showimg = img
with torch.no_grad():
img = letterbox(img, new_shape=self.opt.img_size)[0]
# Convert
img = img[:, :, ::-1].transpose(2, 0, 1) # BGR to RGB, to 3x416x416
img = np.ascontiguousarray(img)
img = torch.from_numpy(img).to(self.device)
img = img.half() if self.half else img.float() # uint8 to fp16/32
img /= 255.0 # 0 - 255 to 0.0 - 1.0
if img.ndimension() == 3:
img = img.unsqueeze(0)
# Inference
pred = self.model(img, augment=self.opt.augment)[0]
# Apply NMS
pred = non_max_suppression(pred, self.opt.conf_thres, self.opt.iou_thres, classes=self.opt.classes,
agnostic=self.opt.agnostic_nms)
# Process detections
for i, det in enumerate(pred): # detections per image
if det is not None and len(det):
# Rescale boxes from img_size to im0 size
det[:, :4] = scale_coords(img.shape[2:], det[:, :4], showimg.shape).round()
# Write results
for *xyxy, conf, cls in reversed(det):
label = '%s %.2f' % (self.names[int(cls)], conf)
name_list.append(self.names[int(cls)])
print(label)
plot_one_box(xyxy, showimg, label=label, color=self.colors[int(cls)], line_thickness=2)
show = cv2.resize(showimg, (1280, 720))
self.result = cv2.cvtColor(show, cv2.COLOR_BGR2RGB)
showImage = QtGui.QImage(self.result.data, self.result.shape[1], self.result.shape[0],
QtGui.QImage.Format_RGB888)
self.label.setPixmap(QtGui.QPixmap.fromImage(showImage))
else:
self.timer_video.stop()
self.cap.release()
self.label.clear()
# self.pushButton_video.setDisabled(False)
# self.pushButton_img.setDisabled(False)
self.init_logo()
def show_video_frame_1(self):
name_list = []
flag, img = self.cap.read()
if img is not None:
showimg = img
with torch.no_grad():
img = letterbox(img, new_shape=self.opt.img_size)[0]
# Convert
img = img[:, :, ::-1].transpose(2, 0, 1) # BGR to RGB, to 3x416x416
img = np.ascontiguousarray(img)
img = torch.from_numpy(img).to(self.device)
img = img.half() if self.half else img.float() # uint8 to fp16/32
img /= 255.0 # 0 - 255 to 0.0 - 1.0
if img.ndimension() == 3:
img = img.unsqueeze(0)
# Inference
pred = self.model(img, augment=self.opt.augment)[0]
# Apply NMS
pred = non_max_suppression(pred, self.opt.conf_thres, self.opt.iou_thres, classes=self.opt.classes,
agnostic=self.opt.agnostic_nms)
# Process detections
for i, det in enumerate(pred): # detections per image
if det is not None and len(det):
# Rescale boxes from img_size to im0 size
det[:, :4] = scale_coords(img.shape[2:], det[:, :4], showimg.shape).round()
# Write results
for *xyxy, conf, cls in reversed(det):
label = '%s %.2f' % (self.names[int(cls)], conf)
name_list.append(self.names[int(cls)])
print(label)
self.reclabel = name_list
plot_one_box(xyxy, showimg, label=label, color=self.colors[int(cls)], line_thickness=2)
show = cv2.resize(showimg, (1280, 720))
self.result = cv2.cvtColor(show, cv2.COLOR_BGR2RGB)
showImage = QtGui.QImage(self.result.data, self.result.shape[1], self.result.shape[0],
QtGui.QImage.Format_RGB888)
self.label.setPixmap(QtGui.QPixmap.fromImage(showImage))
else:
self.timer_video_1.stop()
self.cap.release()
self.label.clear()
# self.pushButton_video.setDisabled(False)
# self.pushButton_img.setDisabled(False)
self.init_logo()
#######---圖檔事件---
def button_image_open(self):
print('button_image_open')
name_list = []
img_name, _ = QtWidgets.QFileDialog.getOpenFileName(self, "打開圖片", "", "*.jpg;;*.png;;All Files(*)")
flag = self.cap.open(img_name)
if flag == False:
QtWidgets.QMessageBox.warning(self, u"Warning", u"打開圖片失敗", buttons=QtWidgets.QMessageBox.Ok,
defaultButton=QtWidgets.QMessageBox.Ok)
else:
img = cv2.imread(img_name)
print(img_name)
showimg = img
with torch.no_grad():
img = letterbox(img, new_shape=self.opt.img_size)[0]
# Convert
img = img[:, :, ::-1].transpose(2, 0, 1) # BGR to RGB, to 3x416x416
img = np.ascontiguousarray(img)
img = torch.from_numpy(img).to(self.device)
img = img.half() if self.half else img.float() # uint8 to fp16/32
img /= 255.0 # 0 - 255 to 0.0 - 1.0
if img.ndimension() == 3:
img = img.unsqueeze(0)
# Inference
pred = self.model(img, augment=self.opt.augment)[0]
# Apply NMS
pred = non_max_suppression(pred, self.opt.conf_thres, self.opt.iou_thres, classes=self.opt.classes,
agnostic=self.opt.agnostic_nms)
print(pred)
# Process detections
for i, det in enumerate(pred):
if det is not None and len(det):
# Rescale boxes from img_size to im0 size
det[:, :4] = scale_coords(img.shape[2:], det[:, :4], showimg.shape).round()
for *xyxy, conf, cls in reversed(det):
label = '%s %.2f' % (self.names[int(cls)], conf)
name_list.append(self.names[int(cls)])
plot_one_box(xyxy, showimg, label=label, color=self.colors[int(cls)], line_thickness=2)
self.result = cv2.cvtColor(showimg, cv2.COLOR_BGR2BGRA)
self.result = cv2.resize(self.result, (1280, 720), interpolation=cv2.INTER_AREA)
self.QtImg = QtGui.QImage(self.result.data, self.result.shape[1], self.result.shape[0], QtGui.QImage.Format_RGB32)
self.label.setPixmap(QtGui.QPixmap.fromImage(self.QtImg))
###---視頻事件---
def button_video_open(self):
global flag
if flag == False:
flag = True
video_name, _ = QtWidgets.QFileDialog.getOpenFileName(self, "打開視頻", "", "*.mp4;;*.avi;;All Files(*)")
flag = self.cap.open(video_name)
if flag == False:
QtWidgets.QMessageBox.warning(self, u"Warning", u"打開視頻失敗", buttons=QtWidgets.QMessageBox.Ok,
defaultButton=QtWidgets.QMessageBox.Ok)
else:
self.timer_video.start(30)
# 空間按鈕 Enable
self.btn_opencam_video.setText(u'關閉識別')
else:
flag = False
self.timer_video.stop()
self.cap.release()
self.label.clear()
self.btn_opencam_video.setText(u'打開視頻')
# self.pushButton_2.setDisabled(False)
# self.pushButton.setDisabled(False)
###---Webcam---
def button_opencameras_click(self):
global flag2
self.timer_video_1.stop()
self.cap.release()
if flag2 == False:
flag2=True
# 默認是打開usb本地攝像頭，如果想打開rtsp碼流攝像頭修改self.CAM_NUM為你的rtsp地址，例如："rtsp://admin:test123456@192.168.10.65:554/MPEG-4/ch1/main/av_stream";
# flag = self.cap.open("rtsp://192.168.1.56:554")
flag = self.cap.open("rtsp://admin:yian1234@192.168.1.56:554/h264/1/main")
if flag == False:
msg = QtWidgets.QMessageBox.warning(self, u"Warning", u"請檢測相機與電腦是否連接正確",
buttons=QtWidgets.QMessageBox.Ok,
defaultButton=QtWidgets.QMessageBox.Ok)
self.btn_opencam.setDisabled(True)
self.btn_opencam_2.setText(u'重新啟動')
else:
self.timer_video_1.start(0)
self.btn_opencam_2.setText(u'關閉識別')
self.btn_opencam.setDisabled(True)
else:
flag2=False
self.timer_video_1.stop()
self.cap.release()
self.label.clear()
self.btn_opencam_2.setText(u'Open Webcam')
self.btn_opencam.setDisabled(False)
###---USB Camear
def button_opencameras_click_0(self):
global flag2
self.timer_video_1.stop()
self.cap.release()
if flag2 == False:
flag2=True
# 默認是打開usb本地攝像頭，如果想打開rtsp碼流攝像頭修改self.CAM_NUM為你的rtsp地址，例如："rtsp://admin:test123456@192.168.10.65:554/MPEG-4/ch1/main/av_stream";
# flag = self.cap.open("rtsp://192.168.1.56:554")
flag = self.cap.open(0)
if flag == False:
msg = QtWidgets.QMessageBox.warning(self, u"Warning", u"請檢測相機與電腦是否連接正確",
buttons=QtWidgets.QMessageBox.Ok,
defaultButton=QtWidgets.QMessageBox.Ok)
self.btn_opencam_2.setDisabled(True)
self.btn_opencam.setText(u'重新啟動')
else:
self.timer_video_1.start(0)
self.btn_opencam.setText(u'關閉識別')
self.btn_opencam_2.setDisabled(True)
else:
flag2=False
self.timer_video_1.stop()
self.cap.release()
self.label.clear()
self.btn_opencam.setText(u'Open Camera')
self.btn_opencam_2.setDisabled(False)
###---定格
def Openvideo_click(self):
prev_time = time.time()
result = cv2.cvtColor(self.result, cv2.COLOR_BGR2RGB)
cv2.imwrite('save/' + str(prev_time) + '.jpg', result)
print(self.reclabel)
fw = open('save/' + str(prev_time) + '.txt', 'a')
for i in range(len(self.reclabel)):
fw.write(self.reclabel[i] + '\n')
fw.close()
###---大屏顯示
class B(QtWidgets.QMainWindow):
def __init__(self, parent=None):
super(B, self).__init__(parent)
self.setupUi(self)
self.timer_video = QtCore.QTimer()
self.init_slots()
self.cap = cv2.VideoCapture()
####---模型初始化---
parser = argparse.ArgumentParser()
parser.add_argument('--weights', nargs='+', type=str, default='weights/yolov5s.pt', help='model.pt path(s)')
parser.add_argument('--source', type=str, default='data/images', help='source') # file/folder, 0 for webcam
parser.add_argument('--img-size', type=int, default=640, help='inference size (pixels)')
parser.add_argument('--conf-thres', type=float, default=0.25, help='object confidence threshold')
parser.add_argument('--iou-thres', type=float, default=0.45, help='IOU threshold for NMS')
parser.add_argument('--device', default='', help='cuda device, i.e. 0 or 0,1,2,3 or cpu')
parser.add_argument('--view-img', action='store_true', help='display results')
parser.add_argument('--save-txt', action='store_true', help='save results to *.txt')
parser.add_argument('--save-conf', action='store_true', help='save confidences in --save-txt labels')
parser.add_argument('--nosave', action='store_true', help='do not save images/videos')
parser.add_argument('--classes', nargs='+', type=int, help='filter by class: --class 0, or --class 0 2 3')
parser.add_argument('--agnostic-nms', action='store_true', help='class-agnostic NMS')
parser.add_argument('--augment', action='store_true', help='augmented inference')
parser.add_argument('--update', action='store_true', help='update all models')
parser.add_argument('--project', default='runs/detect', help='save results to project/name')
parser.add_argument('--name', default='exp', help='save results to project/name')
parser.add_argument('--exist-ok', action='store_true', help='existing project/name ok, do not increment')
self.opt = parser.parse_args()
print(self.opt)
source, weights, view_img, save_txt, imgsz = self.opt.source, self.opt.weights, self.opt.view_img, self.opt.save_txt, self.opt.img_size
self.device = select_device(self.opt.device)
self.half = self.device.type != 'cpu' # half precision only supported on CUDA
cudnn.benchmark = True
# Load model
self.model = attempt_load(weights, map_location=self.device) # load FP32 model
stride = int(self.model.stride.max()) # model stride
self.imgsz = check_img_size(imgsz, s=stride) # check img_size
if self.half:
self.model.half() # to FP16
# Get names and colors
self.names = self.model.module.names if hasattr(self.model, 'module') else self.model.names
self.colors = [[random.randint(0, 255) for _ in range(3)] for _ in self.names]
def setupUi(self, MainWindow):
MainWindow.setObjectName("MainWindow")
MainWindow.resize(1920, 1080)
self.centralwidget = QtWidgets.QWidget(MainWindow)
self.centralwidget.setObjectName("centralwidget")
self.label = QtWidgets.QLabel(self.centralwidget)
self.label.setGeometry(QtCore.QRect(9, 9, 1920, 1080))
self.label.setObjectName("label")
self.pushButton = QtWidgets.QPushButton(self.centralwidget)
self.pushButton.setGeometry(QtCore.QRect(1800, 910, 100, 50))
self.pushButton.setObjectName("pushButton")
MainWindow.setCentralWidget(self.centralwidget)
self.menubar = QtWidgets.QMenuBar(MainWindow)
self.menubar.setGeometry(QtCore.QRect(0, 0, 1491, 23))
self.menubar.setObjectName("menubar")
MainWindow.setMenuBar(self.menubar)
self.statusbar = QtWidgets.QStatusBar(MainWindow)
self.statusbar.setObjectName("statusbar")
MainWindow.setStatusBar(self.statusbar)
self.retranslateUi(MainWindow)
QtCore.QMetaObject.connectSlotsByName(MainWindow)
def retranslateUi(self, MainWindow):
_translate = QtCore.QCoreApplication.translate
MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
self.label.setText(_translate("MainWindow", "TextLabel"))
self.pushButton.setText(_translate("MainWindow", "點擊3秒觸發"))
def init_slots(self):
self.timer_video.timeout.connect(self.show_video_frame)
self.pushButton.clicked.connect(self.button_opencameras_click)
def show_video_frame(self):
name_list = []
flag, img = self.cap.read()
if img is not None:
showimg = img
with torch.no_grad():
img = letterbox(img, new_shape=self.opt.img_size)[0]
# Convert
img = img[:, :, ::-1].transpose(2, 0, 1) # BGR to RGB, to 3x416x416
img = np.ascontiguousarray(img)
img = torch.from_numpy(img).to(self.device)
img = img.half() if self.half else img.float() # uint8 to fp16/32
img /= 255.0 # 0 - 255 to 0.0 - 1.0
if img.ndimension() == 3:
img = img.unsqueeze(0)
# Inference
pred = self.model(img, augment=self.opt.augment)[0]
# Apply NMS
pred = non_max_suppression(pred, self.opt.conf_thres, self.opt.iou_thres, classes=self.opt.classes,
agnostic=self.opt.agnostic_nms)
# Process detections
for i, det in enumerate(pred): # detections per image
if det is not None and len(det):
# Rescale boxes from img_size to im0 size
det[:, :4] = scale_coords(img.shape[2:], det[:, :4], showimg.shape).round()
# Write results
for *xyxy, conf, cls in reversed(det):
label = '%s %.2f' % (self.names[int(cls)], conf)
name_list.append(self.names[int(cls)])
print(label)
plot_one_box(xyxy, showimg, label=label, color=self.colors[int(cls)], line_thickness=2)
show = cv2.resize(showimg, (1920, 1080))
self.result = cv2.cvtColor(show, cv2.COLOR_BGR2RGB)
showImage = QtGui.QImage(self.result.data, self.result.shape[1], self.result.shape[0],
QtGui.QImage.Format_RGB888)
self.label.setPixmap(QtGui.QPixmap.fromImage(showImage))
else:
self.timer_video.stop()
self.cap.release()
self.label.clear()
# self.pushButton_video.setDisabled(False)
# self.pushButton_img.setDisabled(False)
self.init_logo()
def button_opencameras_click(self):
global flag2
self.timer_video.stop()
self.cap.release()
if flag2 == False:
flag2 = True
# 默認是打開usb本地攝像頭，如果想打開rtsp碼流攝像頭修改self.CAM_NUM為你的rtsp地址，例如："rtsp://admin:test123456@192.168.10.65:554/MPEG-4/ch1/main/av_stream";
# flag = self.cap.open("rtsp://192.168.1.56:554")
flag = self.cap.open("rtsp://admin:yian1234@192.168.1.56:554/h264/1/main")
if flag == False:
msg = QtWidgets.QMessageBox.warning(self, u"Warning", u"請檢測相機與電腦是否連接正確",
buttons=QtWidgets.QMessageBox.Ok,
defaultButton=QtWidgets.QMessageBox.Ok)
self.pushButton.setText(u'重新啟動')
else:
self.timer_video.start(0)
self.pushButton.setText(u'暫停')
else:
flag2 = False
self.timer_video.stop()
self.cap.release()
#self.label.clear()
self.pushButton.setText(u'Open Webcam')
#滾動窗入口
class ChildWindow(QMainWindow):
def __init__(self):
super().__init__()
# 一張大圖
self.label0 = QLabel(self)
# 五張小圖
self.label1 = QLabel(self)
self.label2 = QLabel(self)
self.label3 = QLabel(self)
self.label4 = QLabel(self)
self.label5 = QLabel(self)
self.initUI(self)
def initUI(self,MainWindow):
MainWindow.resize(1269, 888)
MainWindow.setStyleSheet("background-image: url(C:/Users/Administrator/Anaconda3/envs/pytorch1.6/yolov5/img/pyqt5 backup.png);")
# self.setGeometry(1500, 100, 1060, 900)
self.setWindowTitle('AUO-滾動圖系列')
th = threading.Thread(target=self.show_images)
th.start()
# 顯示圖片
def show_images(self):
while True:
path = './images'
filenames = os.listdir(path)
filenames = [os.path.join(path, filename) for filename in filenames]
filenames.sort(key=lambda fp: os.path.getctime(fp), reverse=True)
filenames_5 = filenames[:5]
src0 = cv2.imread(filenames_5[0])
src0 = cv2.resize(src0, (960, 600))
src0 = cv2.cvtColor(src0, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src0.data, src0.shape[1], src0.shape[0], QtGui.QImage.Format_RGB888)
self.label0.setGeometry(QtCore.QRect(50, 50, 960, 600))
self.label0.setPixmap(QtGui.QPixmap(img))
src1 = cv2.imread(filenames_5[0])
src1 = cv2.resize(src1, (160, 120))
src1 = cv2.cvtColor(src1, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src1.data, src1.shape[1], src1.shape[0], QtGui.QImage.Format_RGB888)
self.label1.setGeometry(QtCore.QRect(50, 720, 160, 120))
self.label1.setPixmap(QtGui.QPixmap(img))
src2 = cv2.imread(filenames_5[1])
src2 = cv2.resize(src2, (160, 120))
src2 = cv2.cvtColor(src2, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src2.data, src2.shape[1], src2.shape[0], QtGui.QImage.Format_RGB888)
self.label2.setGeometry(QtCore.QRect(250, 720, 160, 120))
self.label2.setPixmap(QtGui.QPixmap(img))
src3 = cv2.imread(filenames_5[2])
src3 = cv2.resize(src3, (200, 120))
src3 = cv2.cvtColor(src3, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src3.data, src3.shape[1], src3.shape[0], QtGui.QImage.Format_RGB888)
self.label3.setGeometry(QtCore.QRect(450, 720, 160, 120))
self.label3.setPixmap(QtGui.QPixmap(img))
src4 = cv2.imread(filenames_5[3])
src4 = cv2.resize(src4, (200, 120))
src4 = cv2.cvtColor(src4, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src4.data, src4.shape[1], src4.shape[0], QtGui.QImage.Format_RGB888)
self.label4.setGeometry(QtCore.QRect(650, 720, 160, 120))
self.label4.setPixmap(QtGui.QPixmap(img))
src5 = cv2.imread(filenames_5[4])
src5 = cv2.resize(src5, (200, 120))
src5 = cv2.cvtColor(src5, cv2.COLOR_BGR2RGB)
img = QtGui.QImage(src5.data, src5.shape[1], src5.shape[0], QtGui.QImage.Format_RGB888)
self.label5.setGeometry(QtCore.QRect(850, 720, 160, 120))
self.label5.setPixmap(QtGui.QPixmap(img))
time.sleep(1)
if __name__ == '__main__':
app = QtWidgets.QApplication(sys.argv)
ui = Ui_MainWindow()
b = B()
c = ChildWindow()
ui.show()
ui.pushButton.clicked.connect(b.show)
ui.btn_opencam_3.clicked.connect(c.show)
sys.exit(app.exec_())
# 總結
剛入門，很不錯的學習例子，做個記錄，第一個UI完成 噢耶~~~~
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/292144.html
標籤：其他
