4.定義網路（DenseNet）
之前的ResNet通過前層與后層的“短路連接”（Shortcuts），加強了前后層之間的資訊流通，在一定程度上緩解了梯度消失現象，從而可以將神經網路搭建得很深，更進一步，DenseNet最大化了這種前后層資訊交流，通過建立前面所有層與后面層的密集連接，實作了特征在通道維度上的復用，使其可以在引數與計算量更少的情況下實作比ResNet更優的性能，如果想詳細了解并查看論文，可以看我的另一篇博客【論文泛讀】 DenseNet：稠密連接的卷積網路
DenseNet 和 ResNet 不同在于 ResNet 是跨層求和，而 DenseNet 是跨層將特征在通道維度進行拼接，下面可以看看他們兩者的圖示

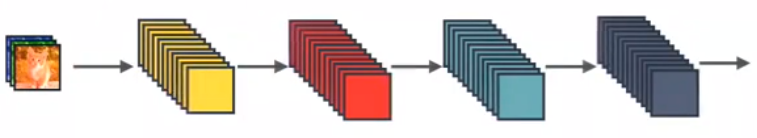

這個是最標準的卷積神經網路

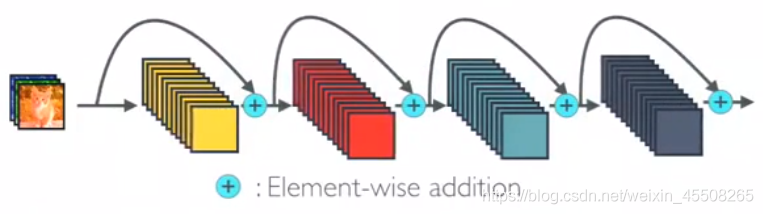

這是ResNet，是跨層求和

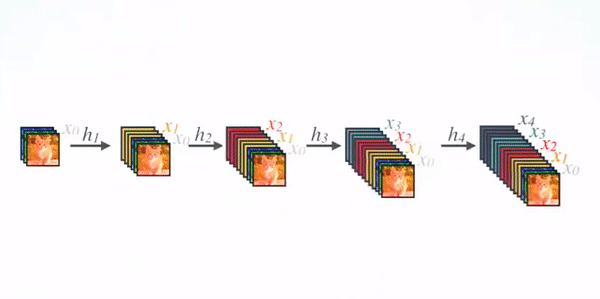

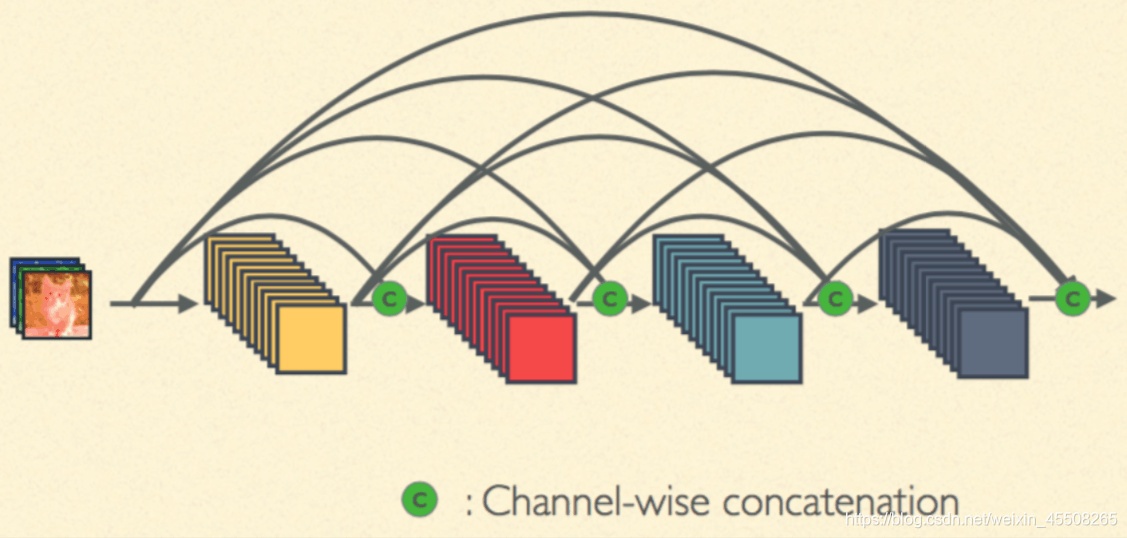

這個就是DenseNet，是跨層將特征在通道維度進行拼接

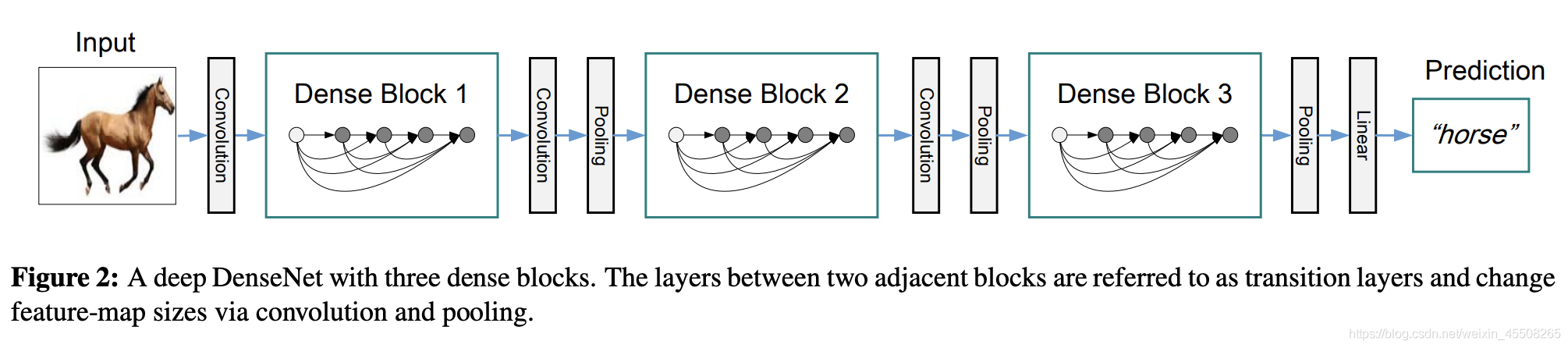

DenseNet的網路架構如下圖所示，了便于下采樣的實作，我們將網路劃分為多個稠密連接的dense block，網路由多個Dense Block與中間的卷積池化組成，核心就在Dense Block中，Dense Block中的黑點代表一個卷積層，其中的多條黑線代表資料的流動，每一層的輸入由前面的所有卷積層的輸出組成，注意這里使用了通道拼接（Concatnate）操作，而非ResNet的逐元素相加操作，
我們將每個block之間的層稱為過渡層
完成卷積和池化的操作，在我們的實驗中，過渡層由BN層、1x1卷積層和2x2平均池化層組成，

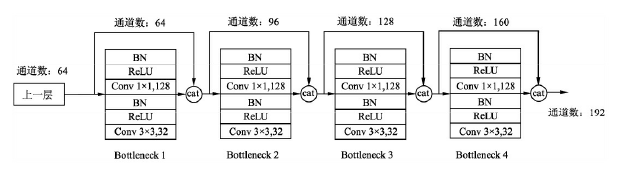

具體的Block實作細節如下圖所示，每一個Block由若干個Bottleneck的卷積層組成，對應上面圖中的黑點，Bottleneck由BN、ReLU、1×1卷積、BN、ReLU、3×3卷積的順序構成，也被稱為DenseNet-B結構，其中1x1 Conv得到 4k 個特征圖它起到的作用是降低特征數量，從而提升計算效率，
關于Block，有以下4個細節需要注意：
- 每一個Bottleneck輸出的特征通道數是相同的，例如這里的32，同時可以看到，經過Concatnate操作后的通道數是按32的增長量增加的，因此這個32也被稱為GrowthRate，
- 這里1×1卷積的作用是固定輸出通道數，達到降維的作用，當幾十個Bottleneck相連接時，Concatnate后的通道數會增加到上千，如果不增加1×1的卷積來降維，后續3×3卷積所需的引數量會急劇增加，1×1卷積的通道數通常是GrowthRate的4倍，
- 上圖中的特征傳遞方式是直接將前面所有層的特征Concatnate后傳到下一層，這種方式與具體代碼實作的方式是一致的，
- Block采用了激活函式在前、卷積層在后的順序，這與一般的網路上是不同的，
DenseNet 的網路結構

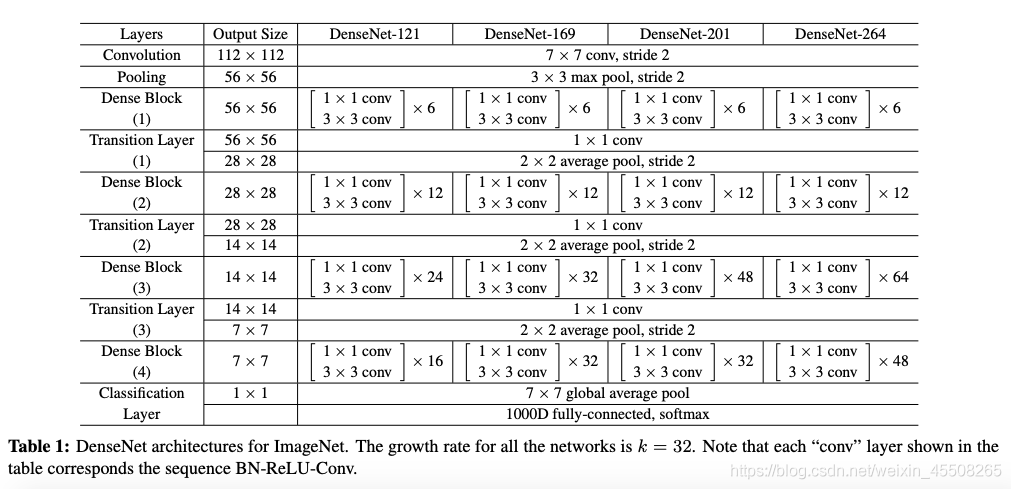

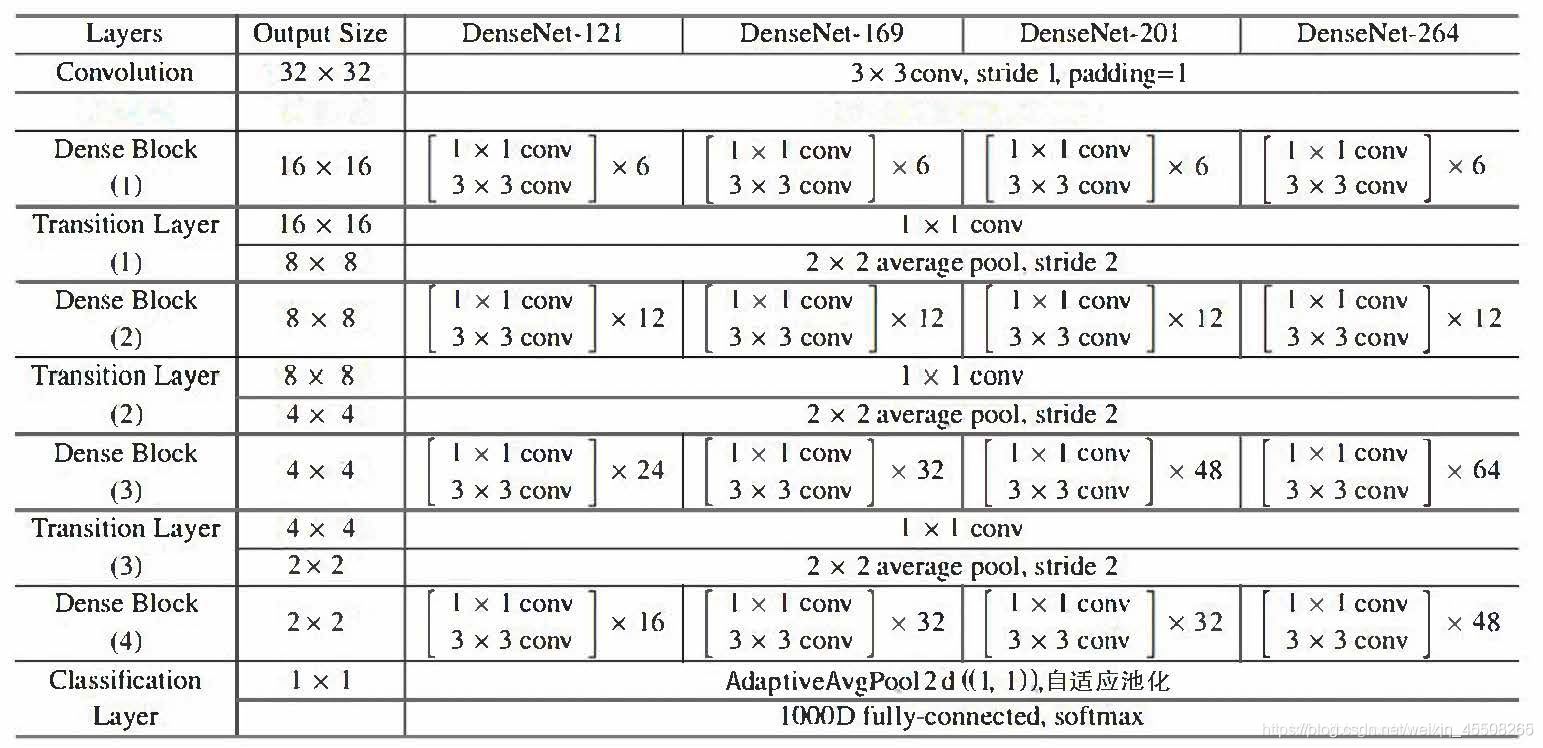

在ImageNet資料集上的網路如下圖所示
由于我是對CIFAR進行實驗，而論文中給出的是ImageNet的網路模型，所以由于資料集的不同，模型稍微有些不同
首先我們還是得判斷是否可以利用GPU，因為GPU的速度可能會比我們用CPU的速度快20-50倍左右，特別是對卷積神經網路來說，更是提升特別明顯，
device = 'cuda' if torch.cuda.is_available() else 'cpu'
Bottleneck
class Bottleneck(nn.Module):
"""
Dense Block
這里的growth_rate=out_channels, 就是每個Block自己輸出的通道數，
先通過1x1卷積層，將通道數縮小為4 * growth_rate，然后再通過3x3卷積層降低到growth_rate，
"""
# 通常1×1卷積的通道數為GrowthRate的4倍
expansion = 4
def __init__(self, in_channels, growth_rate):
super(Bottleneck, self).__init__()
zip_channels = self.expansion * growth_rate
self.features = nn.Sequential(
nn.BatchNorm2d(in_channels),
nn.ReLU(True),
nn.Conv2d(in_channels, zip_channels, kernel_size=1, bias=False),
nn.BatchNorm2d(zip_channels),
nn.ReLU(True),
nn.Conv2d(zip_channels, growth_rate, kernel_size=3, padding=1, bias=False)
)
def forward(self, x):
out = self.features(x)
out = torch.cat([out, x], 1)
return out
我們驗證一下輸出的 channel 是否正確
test_net = Bottleneck(3, 5)
test_x = torch.zeros(1, 3, 32, 32)
print('input shape: {} x {} x {}'.format(test_x.shape[1], test_x.shape[2], test_x.shape[3]))
test_y = test_net(test_x)
print('output shape: {} x {} x {}'.format(test_y.shape[1], test_y.shape[2], test_y.shape[3]))
input shape: 3 x 32 x 32 output shape: 8 x 32 x 32
Transition
class Transition(nn.Module):
"""
改變維數的Transition層 具體包括BN、ReLU、1×1卷積（Conv）、2×2平均池化操作
先通過1x1的卷積層減少channels，再通過2x2的平均池化層縮小feature-map
"""
# 1×1卷積的作用是降維，起到壓縮模型的作用，而平均池化則是降低特征圖的尺寸，
def __init__(self, in_channels, out_channels):
super(Transition, self).__init__()
self.features = nn.Sequential(
nn.BatchNorm2d(in_channels),
nn.ReLU(True),
nn.Conv2d(in_channels, out_channels, kernel_size=1, bias=False),
nn.AvgPool2d(2)
)
def forward(self, x):
out = self.features(x)
return out
驗證一下過渡層是否正確
test_net = Transition(3, 12)
test_x = torch.zeros(1, 3, 96, 96)
print('input shape: {} x {} x {}'.format(test_x.shape[1], test_x.shape[2], test_x.shape[3]))
test_y = test_net(test_x)
print('output shape: {} x {} x {}'.format(test_y.shape[1], test_y.shape[2], test_y.shape[3]))
input shape: 3 x 96 x 96 output shape: 12 x 48 x 48
DenseNet-BC
# DesneNet-BC
# B 代表 bottleneck layer(BN-RELU-CONV(1x1)-BN-RELU-CONV(3x3))
# C 代表壓縮系數(0<=theta<=1)
import math
class DenseNet(nn.Module):
"""
Dense Net
paper中growth_rate取12，維度壓縮的引數θ，即reduction取0.5
且初始化方法為kaiming_normal()
num_blocks為每段網路中的DenseBlock數量
DenseNet和ResNet一樣也是六段式網路（一段卷積+四段Dense+平均池化層），最后FC層，
第一段將維數從3變到2 * growth_rate
(3, 32, 32) -> [Conv2d] -> (24, 32, 32) -> [layer1] -> (48, 16, 16) -> [layer2]
->(96, 8, 8) -> [layer3] -> (192, 4, 4) -> [layer4] -> (384, 4, 4) -> [AvgPool]
->(384, 1, 1) -> [Linear] -> (10)
"""
def __init__(self, num_blocks, growth_rate=12, reduction=0.5, num_classes=10):
super(DenseNet, self).__init__()
self.growth_rate = growth_rate
self.reduction = reduction
num_channels = 2 * growth_rate
self.features = nn.Conv2d(3, num_channels, kernel_size=3, padding=1, bias=False)
self.layer1, num_channels = self._make_dense_layer(num_channels, num_blocks[0])
self.layer2, num_channels = self._make_dense_layer(num_channels, num_blocks[1])
self.layer3, num_channels = self._make_dense_layer(num_channels, num_blocks[2])
self.layer4, num_channels = self._make_dense_layer(num_channels, num_blocks[3], transition=False)
self.avg_pool = nn.Sequential(
nn.BatchNorm2d(num_channels),
nn.ReLU(True),
nn.AvgPool2d(4),
)
self.classifier = nn.Linear(num_channels, num_classes)
self._initialize_weight()
def _make_dense_layer(self, in_channels, nblock, transition=True):
layers = []
for i in range(nblock):
layers += [Bottleneck(in_channels, self.growth_rate)]
in_channels += self.growth_rate
out_channels = in_channels
if transition:
out_channels = int(math.floor(in_channels * self.reduction))
layers += [Transition(in_channels, out_channels)]
return nn.Sequential(*layers), out_channels
def _initialize_weight(self):
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight.data)
if m.bias is not None:
m.bias.data.zero_()
def forward(self, x):
out = self.features(x)
out = self.layer1(out)
out = self.layer2(out)
out = self.layer3(out)
out = self.layer4(out)
out = self.avg_pool(out)
out = out.view(out.size(0), -1)
out = self.classifier(out)
return out
def DenseNet121():
return DenseNet([6,12,24,16], growth_rate=32)
def DenseNet169():
return DenseNet([6,12,32,32], growth_rate=32)
def DenseNet201():
return DenseNet([6,12,48,32], growth_rate=32)
def DenseNet161():
return DenseNet([6,12,36,24], growth_rate=48)
def densenet_cifar():
return DenseNet([6,12,24,16], growth_rate=12)
net = DenseNet121().to(device)
summary(net,(3,32,32))
---------------------------------------------------------------- Layer (type) Output Shape Param # ================================================================ Conv2d-1 [-1, 64, 32, 32] 1,728 BatchNorm2d-2 [-1, 64, 32, 32] 128 ReLU-3 [-1, 64, 32, 32] 0 Conv2d-4 [-1, 128, 32, 32] 8,192 BatchNorm2d-5 [-1, 128, 32, 32] 256 ReLU-6 [-1, 128, 32, 32] 0 Conv2d-7 [-1, 32, 32, 32] 36,864 Bottleneck-8 [-1, 96, 32, 32] 0 BatchNorm2d-9 [-1, 96, 32, 32] 192 ReLU-10 [-1, 96, 32, 32] 0 Conv2d-11 [-1, 128, 32, 32] 12,288 BatchNorm2d-12 [-1, 128, 32, 32] 256 ReLU-13 [-1, 128, 32, 32] 0 Conv2d-14 [-1, 32, 32, 32] 36,864 Bottleneck-15 [-1, 128, 32, 32] 0 BatchNorm2d-16 [-1, 128, 32, 32] 256 ReLU-17 [-1, 128, 32, 32] 0 Conv2d-18 [-1, 128, 32, 32] 16,384 BatchNorm2d-19 [-1, 128, 32, 32] 256 ReLU-20 [-1, 128, 32, 32] 0 Conv2d-21 [-1, 32, 32, 32] 36,864 Bottleneck-22 [-1, 160, 32, 32] 0 BatchNorm2d-23 [-1, 160, 32, 32] 320 ReLU-24 [-1, 160, 32, 32] 0 Conv2d-25 [-1, 128, 32, 32] 20,480 BatchNorm2d-26 [-1, 128, 32, 32] 256 ReLU-27 [-1, 128, 32, 32] 0 Conv2d-28 [-1, 32, 32, 32] 36,864 Bottleneck-29 [-1, 192, 32, 32] 0 BatchNorm2d-30 [-1, 192, 32, 32] 384 ReLU-31 [-1, 192, 32, 32] 0 Conv2d-32 [-1, 128, 32, 32] 24,576 BatchNorm2d-33 [-1, 128, 32, 32] 256 ReLU-34 [-1, 128, 32, 32] 0 Conv2d-35 [-1, 32, 32, 32] 36,864 Bottleneck-36 [-1, 224, 32, 32] 0 BatchNorm2d-37 [-1, 224, 32, 32] 448 ReLU-38 [-1, 224, 32, 32] 0 Conv2d-39 [-1, 128, 32, 32] 28,672 BatchNorm2d-40 [-1, 128, 32, 32] 256 ReLU-41 [-1, 128, 32, 32] 0 Conv2d-42 [-1, 32, 32, 32] 36,864 Bottleneck-43 [-1, 256, 32, 32] 0 BatchNorm2d-44 [-1, 256, 32, 32] 512 ReLU-45 [-1, 256, 32, 32] 0 Conv2d-46 [-1, 128, 32, 32] 32,768 AvgPool2d-47 [-1, 128, 16, 16] 0 Transition-48 [-1, 128, 16, 16] 0 BatchNorm2d-49 [-1, 128, 16, 16] 256 ReLU-50 [-1, 128, 16, 16] 0 Conv2d-51 [-1, 128, 16, 16] 16,384 BatchNorm2d-52 [-1, 128, 16, 16] 256 ReLU-53 [-1, 128, 16, 16] 0 Conv2d-54 [-1, 32, 16, 16] 36,864 Bottleneck-55 [-1, 160, 16, 16] 0 BatchNorm2d-56 [-1, 160, 16, 16] 320 ReLU-57 [-1, 160, 16, 16] 0 Conv2d-58 [-1, 128, 16, 16] 20,480 BatchNorm2d-59 [-1, 128, 16, 16] 256 ReLU-60 [-1, 128, 16, 16] 0 Conv2d-61 [-1, 32, 16, 16] 36,864 Bottleneck-62 [-1, 192, 16, 16] 0 BatchNorm2d-63 [-1, 192, 16, 16] 384 ReLU-64 [-1, 192, 16, 16] 0 Conv2d-65 [-1, 128, 16, 16] 24,576 BatchNorm2d-66 [-1, 128, 16, 16] 256 ReLU-67 [-1, 128, 16, 16] 0 Conv2d-68 [-1, 32, 16, 16] 36,864 Bottleneck-69 [-1, 224, 16, 16] 0 BatchNorm2d-70 [-1, 224, 16, 16] 448 ReLU-71 [-1, 224, 16, 16] 0 Conv2d-72 [-1, 128, 16, 16] 28,672 BatchNorm2d-73 [-1, 128, 16, 16] 256 ReLU-74 [-1, 128, 16, 16] 0 Conv2d-75 [-1, 32, 16, 16] 36,864 Bottleneck-76 [-1, 256, 16, 16] 0 BatchNorm2d-77 [-1, 256, 16, 16] 512 ReLU-78 [-1, 256, 16, 16] 0 Conv2d-79 [-1, 128, 16, 16] 32,768 BatchNorm2d-80 [-1, 128, 16, 16] 256 ReLU-81 [-1, 128, 16, 16] 0 Conv2d-82 [-1, 32, 16, 16] 36,864 Bottleneck-83 [-1, 288, 16, 16] 0 BatchNorm2d-84 [-1, 288, 16, 16] 576 ReLU-85 [-1, 288, 16, 16] 0 Conv2d-86 [-1, 128, 16, 16] 36,864 BatchNorm2d-87 [-1, 128, 16, 16] 256 ReLU-88 [-1, 128, 16, 16] 0 Conv2d-89 [-1, 32, 16, 16] 36,864 Bottleneck-90 [-1, 320, 16, 16] 0 BatchNorm2d-91 [-1, 320, 16, 16] 640 ReLU-92 [-1, 320, 16, 16] 0 Conv2d-93 [-1, 128, 16, 16] 40,960 BatchNorm2d-94 [-1, 128, 16, 16] 256 ReLU-95 [-1, 128, 16, 16] 0 Conv2d-96 [-1, 32, 16, 16] 36,864 Bottleneck-97 [-1, 352, 16, 16] 0 BatchNorm2d-98 [-1, 352, 16, 16] 704 ReLU-99 [-1, 352, 16, 16] 0 Conv2d-100 [-1, 128, 16, 16] 45,056 BatchNorm2d-101 [-1, 128, 16, 16] 256 ReLU-102 [-1, 128, 16, 16] 0 Conv2d-103 [-1, 32, 16, 16] 36,864 Bottleneck-104 [-1, 384, 16, 16] 0 BatchNorm2d-105 [-1, 384, 16, 16] 768 ReLU-106 [-1, 384, 16, 16] 0 Conv2d-107 [-1, 128, 16, 16] 49,152 BatchNorm2d-108 [-1, 128, 16, 16] 256 ReLU-109 [-1, 128, 16, 16] 0 Conv2d-110 [-1, 32, 16, 16] 36,864 Bottleneck-111 [-1, 416, 16, 16] 0 BatchNorm2d-112 [-1, 416, 16, 16] 832 ReLU-113 [-1, 416, 16, 16] 0 Conv2d-114 [-1, 128, 16, 16] 53,248 BatchNorm2d-115 [-1, 128, 16, 16] 256 ReLU-116 [-1, 128, 16, 16] 0 Conv2d-117 [-1, 32, 16, 16] 36,864 Bottleneck-118 [-1, 448, 16, 16] 0 BatchNorm2d-119 [-1, 448, 16, 16] 896 ReLU-120 [-1, 448, 16, 16] 0 Conv2d-121 [-1, 128, 16, 16] 57,344 BatchNorm2d-122 [-1, 128, 16, 16] 256 ReLU-123 [-1, 128, 16, 16] 0 Conv2d-124 [-1, 32, 16, 16] 36,864 Bottleneck-125 [-1, 480, 16, 16] 0 BatchNorm2d-126 [-1, 480, 16, 16] 960 ReLU-127 [-1, 480, 16, 16] 0 Conv2d-128 [-1, 128, 16, 16] 61,440 BatchNorm2d-129 [-1, 128, 16, 16] 256 ReLU-130 [-1, 128, 16, 16] 0 Conv2d-131 [-1, 32, 16, 16] 36,864 Bottleneck-132 [-1, 512, 16, 16] 0 BatchNorm2d-133 [-1, 512, 16, 16] 1,024 ReLU-134 [-1, 512, 16, 16] 0 Conv2d-135 [-1, 256, 16, 16] 131,072 AvgPool2d-136 [-1, 256, 8, 8] 0 Transition-137 [-1, 256, 8, 8] 0 BatchNorm2d-138 [-1, 256, 8, 8] 512 ReLU-139 [-1, 256, 8, 8] 0 Conv2d-140 [-1, 128, 8, 8] 32,768 BatchNorm2d-141 [-1, 128, 8, 8] 256 ReLU-142 [-1, 128, 8, 8] 0 Conv2d-143 [-1, 32, 8, 8] 36,864 Bottleneck-144 [-1, 288, 8, 8] 0 BatchNorm2d-145 [-1, 288, 8, 8] 576 ReLU-146 [-1, 288, 8, 8] 0 Conv2d-147 [-1, 128, 8, 8] 36,864 BatchNorm2d-148 [-1, 128, 8, 8] 256 ReLU-149 [-1, 128, 8, 8] 0 Conv2d-150 [-1, 32, 8, 8] 36,864 Bottleneck-151 [-1, 320, 8, 8] 0 BatchNorm2d-152 [-1, 320, 8, 8] 640 ReLU-153 [-1, 320, 8, 8] 0 Conv2d-154 [-1, 128, 8, 8] 40,960 BatchNorm2d-155 [-1, 128, 8, 8] 256 ReLU-156 [-1, 128, 8, 8] 0 Conv2d-157 [-1, 32, 8, 8] 36,864 Bottleneck-158 [-1, 352, 8, 8] 0 BatchNorm2d-159 [-1, 352, 8, 8] 704 ReLU-160 [-1, 352, 8, 8] 0 Conv2d-161 [-1, 128, 8, 8] 45,056 BatchNorm2d-162 [-1, 128, 8, 8] 256 ReLU-163 [-1, 128, 8, 8] 0 Conv2d-164 [-1, 32, 8, 8] 36,864 Bottleneck-165 [-1, 384, 8, 8] 0 BatchNorm2d-166 [-1, 384, 8, 8] 768 ReLU-167 [-1, 384, 8, 8] 0 Conv2d-168 [-1, 128, 8, 8] 49,152 BatchNorm2d-169 [-1, 128, 8, 8] 256 ReLU-170 [-1, 128, 8, 8] 0 Conv2d-171 [-1, 32, 8, 8] 36,864 Bottleneck-172 [-1, 416, 8, 8] 0 BatchNorm2d-173 [-1, 416, 8, 8] 832 ReLU-174 [-1, 416, 8, 8] 0 Conv2d-175 [-1, 128, 8, 8] 53,248 BatchNorm2d-176 [-1, 128, 8, 8] 256 ReLU-177 [-1, 128, 8, 8] 0 Conv2d-178 [-1, 32, 8, 8] 36,864 Bottleneck-179 [-1, 448, 8, 8] 0 BatchNorm2d-180 [-1, 448, 8, 8] 896 ReLU-181 [-1, 448, 8, 8] 0 Conv2d-182 [-1, 128, 8, 8] 57,344 BatchNorm2d-183 [-1, 128, 8, 8] 256 ReLU-184 [-1, 128, 8, 8] 0 Conv2d-185 [-1, 32, 8, 8] 36,864 Bottleneck-186 [-1, 480, 8, 8] 0 BatchNorm2d-187 [-1, 480, 8, 8] 960 ReLU-188 [-1, 480, 8, 8] 0 Conv2d-189 [-1, 128, 8, 8] 61,440 BatchNorm2d-190 [-1, 128, 8, 8] 256 ReLU-191 [-1, 128, 8, 8] 0 Conv2d-192 [-1, 32, 8, 8] 36,864 Bottleneck-193 [-1, 512, 8, 8] 0 BatchNorm2d-194 [-1, 512, 8, 8] 1,024 ReLU-195 [-1, 512, 8, 8] 0 Conv2d-196 [-1, 128, 8, 8] 65,536 BatchNorm2d-197 [-1, 128, 8, 8] 256 ReLU-198 [-1, 128, 8, 8] 0 Conv2d-199 [-1, 32, 8, 8] 36,864 Bottleneck-200 [-1, 544, 8, 8] 0 BatchNorm2d-201 [-1, 544, 8, 8] 1,088 ReLU-202 [-1, 544, 8, 8] 0 Conv2d-203 [-1, 128, 8, 8] 69,632 BatchNorm2d-204 [-1, 128, 8, 8] 256 ReLU-205 [-1, 128, 8, 8] 0 Conv2d-206 [-1, 32, 8, 8] 36,864 Bottleneck-207 [-1, 576, 8, 8] 0 BatchNorm2d-208 [-1, 576, 8, 8] 1,152 ReLU-209 [-1, 576, 8, 8] 0 Conv2d-210 [-1, 128, 8, 8] 73,728 BatchNorm2d-211 [-1, 128, 8, 8] 256 ReLU-212 [-1, 128, 8, 8] 0 Conv2d-213 [-1, 32, 8, 8] 36,864 Bottleneck-214 [-1, 608, 8, 8] 0 BatchNorm2d-215 [-1, 608, 8, 8] 1,216 ReLU-216 [-1, 608, 8, 8] 0 Conv2d-217 [-1, 128, 8, 8] 77,824 BatchNorm2d-218 [-1, 128, 8, 8] 256 ReLU-219 [-1, 128, 8, 8] 0 Conv2d-220 [-1, 32, 8, 8] 36,864 Bottleneck-221 [-1, 640, 8, 8] 0 BatchNorm2d-222 [-1, 640, 8, 8] 1,280 ReLU-223 [-1, 640, 8, 8] 0 Conv2d-224 [-1, 128, 8, 8] 81,920 BatchNorm2d-225 [-1, 128, 8, 8] 256 ReLU-226 [-1, 128, 8, 8] 0 Conv2d-227 [-1, 32, 8, 8] 36,864 Bottleneck-228 [-1, 672, 8, 8] 0 BatchNorm2d-229 [-1, 672, 8, 8] 1,344 ReLU-230 [-1, 672, 8, 8] 0 Conv2d-231 [-1, 128, 8, 8] 86,016 BatchNorm2d-232 [-1, 128, 8, 8] 256 ReLU-233 [-1, 128, 8, 8] 0 Conv2d-234 [-1, 32, 8, 8] 36,864 Bottleneck-235 [-1, 704, 8, 8] 0 BatchNorm2d-236 [-1, 704, 8, 8] 1,408 ReLU-237 [-1, 704, 8, 8] 0 Conv2d-238 [-1, 128, 8, 8] 90,112 BatchNorm2d-239 [-1, 128, 8, 8] 256 ReLU-240 [-1, 128, 8, 8] 0 Conv2d-241 [-1, 32, 8, 8] 36,864 Bottleneck-242 [-1, 736, 8, 8] 0 BatchNorm2d-243 [-1, 736, 8, 8] 1,472 ReLU-244 [-1, 736, 8, 8] 0 Conv2d-245 [-1, 128, 8, 8] 94,208 BatchNorm2d-246 [-1, 128, 8, 8] 256 ReLU-247 [-1, 128, 8, 8] 0 Conv2d-248 [-1, 32, 8, 8] 36,864 Bottleneck-249 [-1, 768, 8, 8] 0 BatchNorm2d-250 [-1, 768, 8, 8] 1,536 ReLU-251 [-1, 768, 8, 8] 0 Conv2d-252 [-1, 128, 8, 8] 98,304 BatchNorm2d-253 [-1, 128, 8, 8] 256 ReLU-254 [-1, 128, 8, 8] 0 Conv2d-255 [-1, 32, 8, 8] 36,864 Bottleneck-256 [-1, 800, 8, 8] 0 BatchNorm2d-257 [-1, 800, 8, 8] 1,600 ReLU-258 [-1, 800, 8, 8] 0 Conv2d-259 [-1, 128, 8, 8] 102,400 BatchNorm2d-260 [-1, 128, 8, 8] 256 ReLU-261 [-1, 128, 8, 8] 0 Conv2d-262 [-1, 32, 8, 8] 36,864 Bottleneck-263 [-1, 832, 8, 8] 0 BatchNorm2d-264 [-1, 832, 8, 8] 1,664 ReLU-265 [-1, 832, 8, 8] 0 Conv2d-266 [-1, 128, 8, 8] 106,496 BatchNorm2d-267 [-1, 128, 8, 8] 256 ReLU-268 [-1, 128, 8, 8] 0 Conv2d-269 [-1, 32, 8, 8] 36,864 Bottleneck-270 [-1, 864, 8, 8] 0 BatchNorm2d-271 [-1, 864, 8, 8] 1,728 ReLU-272 [-1, 864, 8, 8] 0 Conv2d-273 [-1, 128, 8, 8] 110,592 BatchNorm2d-274 [-1, 128, 8, 8] 256 ReLU-275 [-1, 128, 8, 8] 0 Conv2d-276 [-1, 32, 8, 8] 36,864 Bottleneck-277 [-1, 896, 8, 8] 0 BatchNorm2d-278 [-1, 896, 8, 8] 1,792 ReLU-279 [-1, 896, 8, 8] 0 Conv2d-280 [-1, 128, 8, 8] 114,688 BatchNorm2d-281 [-1, 128, 8, 8] 256 ReLU-282 [-1, 128, 8, 8] 0 Conv2d-283 [-1, 32, 8, 8] 36,864 Bottleneck-284 [-1, 928, 8, 8] 0 BatchNorm2d-285 [-1, 928, 8, 8] 1,856 ReLU-286 [-1, 928, 8, 8] 0 Conv2d-287 [-1, 128, 8, 8] 118,784 BatchNorm2d-288 [-1, 128, 8, 8] 256 ReLU-289 [-1, 128, 8, 8] 0 Conv2d-290 [-1, 32, 8, 8] 36,864 Bottleneck-291 [-1, 960, 8, 8] 0 BatchNorm2d-292 [-1, 960, 8, 8] 1,920 ReLU-293 [-1, 960, 8, 8] 0 Conv2d-294 [-1, 128, 8, 8] 122,880 BatchNorm2d-295 [-1, 128, 8, 8] 256 ReLU-296 [-1, 128, 8, 8] 0 Conv2d-297 [-1, 32, 8, 8] 36,864 Bottleneck-298 [-1, 992, 8, 8] 0 BatchNorm2d-299 [-1, 992, 8, 8] 1,984 ReLU-300 [-1, 992, 8, 8] 0 Conv2d-301 [-1, 128, 8, 8] 126,976 BatchNorm2d-302 [-1, 128, 8, 8] 256 ReLU-303 [-1, 128, 8, 8] 0 Conv2d-304 [-1, 32, 8, 8] 36,864 Bottleneck-305 [-1, 1024, 8, 8] 0 BatchNorm2d-306 [-1, 1024, 8, 8] 2,048 ReLU-307 [-1, 1024, 8, 8] 0 Conv2d-308 [-1, 512, 8, 8] 524,288 AvgPool2d-309 [-1, 512, 4, 4] 0 Transition-310 [-1, 512, 4, 4] 0 BatchNorm2d-311 [-1, 512, 4, 4] 1,024 ReLU-312 [-1, 512, 4, 4] 0 Conv2d-313 [-1, 128, 4, 4] 65,536 BatchNorm2d-314 [-1, 128, 4, 4] 256 ReLU-315 [-1, 128, 4, 4] 0 Conv2d-316 [-1, 32, 4, 4] 36,864 Bottleneck-317 [-1, 544, 4, 4] 0 BatchNorm2d-318 [-1, 544, 4, 4] 1,088 ReLU-319 [-1, 544, 4, 4] 0 Conv2d-320 [-1, 128, 4, 4] 69,632 BatchNorm2d-321 [-1, 128, 4, 4] 256 ReLU-322 [-1, 128, 4, 4] 0 Conv2d-323 [-1, 32, 4, 4] 36,864 Bottleneck-324 [-1, 576, 4, 4] 0 BatchNorm2d-325 [-1, 576, 4, 4] 1,152 ReLU-326 [-1, 576, 4, 4] 0 Conv2d-327 [-1, 128, 4, 4] 73,728 BatchNorm2d-328 [-1, 128, 4, 4] 256 ReLU-329 [-1, 128, 4, 4] 0 Conv2d-330 [-1, 32, 4, 4] 36,864 Bottleneck-331 [-1, 608, 4, 4] 0 BatchNorm2d-332 [-1, 608, 4, 4] 1,216 ReLU-333 [-1, 608, 4, 4] 0 Conv2d-334 [-1, 128, 4, 4] 77,824 BatchNorm2d-335 [-1, 128, 4, 4] 256 ReLU-336 [-1, 128, 4, 4] 0 Conv2d-337 [-1, 32, 4, 4] 36,864 Bottleneck-338 [-1, 640, 4, 4] 0 BatchNorm2d-339 [-1, 640, 4, 4] 1,280 ReLU-340 [-1, 640, 4, 4] 0 Conv2d-341 [-1, 128, 4, 4] 81,920 BatchNorm2d-342 [-1, 128, 4, 4] 256 ReLU-343 [-1, 128, 4, 4] 0 Conv2d-344 [-1, 32, 4, 4] 36,864 Bottleneck-345 [-1, 672, 4, 4] 0 BatchNorm2d-346 [-1, 672, 4, 4] 1,344 ReLU-347 [-1, 672, 4, 4] 0 Conv2d-348 [-1, 128, 4, 4] 86,016 BatchNorm2d-349 [-1, 128, 4, 4] 256 ReLU-350 [-1, 128, 4, 4] 0 Conv2d-351 [-1, 32, 4, 4] 36,864 Bottleneck-352 [-1, 704, 4, 4] 0 BatchNorm2d-353 [-1, 704, 4, 4] 1,408 ReLU-354 [-1, 704, 4, 4] 0 Conv2d-355 [-1, 128, 4, 4] 90,112 BatchNorm2d-356 [-1, 128, 4, 4] 256 ReLU-357 [-1, 128, 4, 4] 0 Conv2d-358 [-1, 32, 4, 4] 36,864 Bottleneck-359 [-1, 736, 4, 4] 0 BatchNorm2d-360 [-1, 736, 4, 4] 1,472 ReLU-361 [-1, 736, 4, 4] 0 Conv2d-362 [-1, 128, 4, 4] 94,208 BatchNorm2d-363 [-1, 128, 4, 4] 256 ReLU-364 [-1, 128, 4, 4] 0 Conv2d-365 [-1, 32, 4, 4] 36,864 Bottleneck-366 [-1, 768, 4, 4] 0 BatchNorm2d-367 [-1, 768, 4, 4] 1,536 ReLU-368 [-1, 768, 4, 4] 0 Conv2d-369 [-1, 128, 4, 4] 98,304 BatchNorm2d-370 [-1, 128, 4, 4] 256 ReLU-371 [-1, 128, 4, 4] 0 Conv2d-372 [-1, 32, 4, 4] 36,864 Bottleneck-373 [-1, 800, 4, 4] 0 BatchNorm2d-374 [-1, 800, 4, 4] 1,600 ReLU-375 [-1, 800, 4, 4] 0 Conv2d-376 [-1, 128, 4, 4] 102,400 BatchNorm2d-377 [-1, 128, 4, 4] 256 ReLU-378 [-1, 128, 4, 4] 0 Conv2d-379 [-1, 32, 4, 4] 36,864 Bottleneck-380 [-1, 832, 4, 4] 0 BatchNorm2d-381 [-1, 832, 4, 4] 1,664 ReLU-382 [-1, 832, 4, 4] 0 Conv2d-383 [-1, 128, 4, 4] 106,496 BatchNorm2d-384 [-1, 128, 4, 4] 256 ReLU-385 [-1, 128, 4, 4] 0 Conv2d-386 [-1, 32, 4, 4] 36,864 Bottleneck-387 [-1, 864, 4, 4] 0 BatchNorm2d-388 [-1, 864, 4, 4] 1,728 ReLU-389 [-1, 864, 4, 4] 0 Conv2d-390 [-1, 128, 4, 4] 110,592 BatchNorm2d-391 [-1, 128, 4, 4] 256 ReLU-392 [-1, 128, 4, 4] 0 Conv2d-393 [-1, 32, 4, 4] 36,864 Bottleneck-394 [-1, 896, 4, 4] 0 BatchNorm2d-395 [-1, 896, 4, 4] 1,792 ReLU-396 [-1, 896, 4, 4] 0 Conv2d-397 [-1, 128, 4, 4] 114,688 BatchNorm2d-398 [-1, 128, 4, 4] 256 ReLU-399 [-1, 128, 4, 4] 0 Conv2d-400 [-1, 32, 4, 4] 36,864 Bottleneck-401 [-1, 928, 4, 4] 0 BatchNorm2d-402 [-1, 928, 4, 4] 1,856 ReLU-403 [-1, 928, 4, 4] 0 Conv2d-404 [-1, 128, 4, 4] 118,784 BatchNorm2d-405 [-1, 128, 4, 4] 256 ReLU-406 [-1, 128, 4, 4] 0 Conv2d-407 [-1, 32, 4, 4] 36,864 Bottleneck-408 [-1, 960, 4, 4] 0 BatchNorm2d-409 [-1, 960, 4, 4] 1,920 ReLU-410 [-1, 960, 4, 4] 0 Conv2d-411 [-1, 128, 4, 4] 122,880 BatchNorm2d-412 [-1, 128, 4, 4] 256 ReLU-413 [-1, 128, 4, 4] 0 Conv2d-414 [-1, 32, 4, 4] 36,864 Bottleneck-415 [-1, 992, 4, 4] 0 BatchNorm2d-416 [-1, 992, 4, 4] 1,984 ReLU-417 [-1, 992, 4, 4] 0 Conv2d-418 [-1, 128, 4, 4] 126,976 BatchNorm2d-419 [-1, 128, 4, 4] 256 ReLU-420 [-1, 128, 4, 4] 0 Conv2d-421 [-1, 32, 4, 4] 36,864 Bottleneck-422 [-1, 1024, 4, 4] 0 BatchNorm2d-423 [-1, 1024, 4, 4] 2,048 ReLU-424 [-1, 1024, 4, 4] 0 AvgPool2d-425 [-1, 1024, 1, 1] 0 Linear-426 [-1, 10] 10,250 ================================================================ Total params: 6,956,298 Trainable params: 6,956,298 Non-trainable params: 0 ---------------------------------------------------------------- Input size (MB): 0.01 Forward/backward pass size (MB): 115.98 Params size (MB): 26.54 Estimated Total Size (MB): 142.52 ----------------------------------------------------------------
首先從我們summary可以看到，我們定義的模型的引數大概是6 millions，我們輸入的是（batch，3，32，32）的張量，并且這里也能看到每一層后我們的影像輸出大小的變化，最后輸出10個引數，再通過softmax函式就可以得到我們每個類別的概率了，
我們也可以列印出我們的模型觀察一下
DenseNet(
(features): Conv2d(3, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(layer1): Sequential(
(0): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(64, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(1): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(96, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(2): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(3): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(4): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(5): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(6): Transition(
(features): Sequential(
(0): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): AvgPool2d(kernel_size=2, stride=2, padding=0)
)
)
)
(layer2): Sequential(
(0): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(128, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(1): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(160, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(160, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(2): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(192, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(3): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(224, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(224, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(4): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(5): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(6): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(7): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(8): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(9): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(10): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(11): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(12): Transition(
(features): Sequential(
(0): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): AvgPool2d(kernel_size=2, stride=2, padding=0)
)
)
)
(layer3): Sequential(
(0): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(1): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(288, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(288, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(2): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(320, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(3): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(352, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(352, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(4): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(384, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(5): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(416, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(416, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(6): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(448, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(448, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(7): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(480, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(480, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(8): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(9): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(10): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(11): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(12): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(13): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(14): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(15): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(16): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(17): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(18): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(19): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(20): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(21): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(22): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(23): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(24): Transition(
(features): Sequential(
(0): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): AvgPool2d(kernel_size=2, stride=2, padding=0)
)
)
)
(layer4): Sequential(
(0): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(1): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(544, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(544, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(2): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(576, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(576, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(3): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(608, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(608, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(4): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(640, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(640, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(5): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(672, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(672, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(6): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(704, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(704, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(7): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(736, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(736, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(8): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(768, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(9): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(800, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(800, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(10): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(832, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(832, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(11): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(864, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(864, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(12): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(896, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(896, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(13): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(928, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(928, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(14): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(960, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
(15): Bottleneck(
(features): Sequential(
(0): BatchNorm2d(992, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): Conv2d(992, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(4): ReLU(inplace=True)
(5): Conv2d(128, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
)
)
)
(avg_pool): Sequential(
(0): BatchNorm2d(1024, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(1): ReLU(inplace=True)
(2): AvgPool2d(kernel_size=4, stride=4, padding=0)
)
(classifier): Linear(in_features=1024, out_features=10, bias=True)
)
# 測驗
x = torch.randn(2, 3, 32, 32).to(device)
y = net(x)
print(y.shape)
torch.Size([2, 10])
如果你的電腦有多個GPU，這段代碼可以利用GPU進行并行計算，加快運算速度
net = densenet_cifar().to(device)
if device == 'cuda':
net = nn.DataParallel(net)
# 當計算圖不會改變的時候（每次輸入形狀相同，模型不改變）的情況下可以提高性能，反之則降低性能
torch.backends.cudnn.benchmark = True
5. 定義損失函式和優化器
pytorch將深度學習中常用的優化方法全部封裝在torch.optim之中，所有的優化方法都是繼承基類optim.Optimizier
損失函式是封裝在神經網路工具箱nn中的,包含很多損失函式
這里我使用的是SGD + momentum演算法，并且我們損失函式定義為交叉熵函式，除此之外學習策略定義為動態更新學習率，如果5次迭代后，訓練的損失并沒有下降，那么我們便會更改學習率，會變為原來的0.5倍，最小降低到0.00001
如果想更加了解優化器和學習率策略的話，可以參考以下資料
- Pytorch Note15 優化演算法1 梯度下降（Gradient descent varients）
- Pytorch Note16 優化演算法2 動量法(Momentum)
- Pytorch Note34 學習率衰減
這里決定迭代20次
import torch.optim as optim
optimizer = optim.SGD(net.parameters(), lr=1e-1, momentum=0.9, weight_decay=1e-4)
criterion = nn.CrossEntropyLoss()
# scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, 'min', factor=0.5,verbose=True,patience = 5,min_lr = 0.000001) # 動態更新學習率
scheduler = optim.lr_scheduler.MultiStepLR(optimizer, milestones=[10, 15], gamma=0.1)
import time
epoch = 20
6. 訓練
首先定義模型保存的位置
import os
if not os.path.exists('./model'):
os.makedirs('./model')
else:
print('檔案已存在')
save_path = './model/Denset.pth'
我定義了一個train函式，在train函式中進行一個訓練，并保存我們訓練后的模型
from utils import train2
from utils import plot_history
Acc, Loss, Lr = train2(net, trainloader, testloader, epoch, optimizer, criterion, scheduler, save_path, verbose = True)
Epoch [ 1/ 20] Train Loss:1.457685 Train Acc:46.79% Test Loss:1.159939 Test Acc:58.61% Learning Rate:0.100000 Time 03:26 Epoch [ 2/ 20] Train Loss:0.918042 Train Acc:67.23% Test Loss:0.978080 Test Acc:66.76% Learning Rate:0.100000 Time 03:26 Epoch [ 3/ 20] Train Loss:0.713618 Train Acc:75.13% Test Loss:0.702649 Test Acc:75.79% Learning Rate:0.100000 Time 03:14 Epoch [ 4/ 20] Train Loss:0.586451 Train Acc:79.65% Test Loss:0.621467 Test Acc:78.59% Learning Rate:0.100000 Time 03:21 Epoch [ 5/ 20] Train Loss:0.516065 Train Acc:82.01% Test Loss:0.571210 Test Acc:80.01% Learning Rate:0.100000 Time 03:21 Epoch [ 6/ 20] Train Loss:0.470830 Train Acc:83.65% Test Loss:0.538970 Test Acc:81.71% Learning Rate:0.100000 Time 03:26 Epoch [ 7/ 20] Train Loss:0.424286 Train Acc:85.22% Test Loss:0.497426 Test Acc:82.99% Learning Rate:0.100000 Time 03:10 Epoch [ 8/ 20] Train Loss:0.398347 Train Acc:86.05% Test Loss:0.481514 Test Acc:83.75% Learning Rate:0.100000 Time 03:33 Epoch [ 9/ 20] Train Loss:0.375151 Train Acc:86.94% Test Loss:0.484835 Test Acc:83.61% Learning Rate:0.100000 Time 03:40 Epoch [ 10/ 20] Train Loss:0.355356 Train Acc:87.74% Test Loss:0.495134 Test Acc:83.57% Learning Rate:0.100000 Time 03:33 Epoch [ 11/ 20] Train Loss:0.241889 Train Acc:91.73% Test Loss:0.331097 Test Acc:88.66% Learning Rate:0.010000 Time 03:37 Epoch [ 12/ 20] Train Loss:0.211223 Train Acc:92.83% Test Loss:0.320972 Test Acc:89.12% Learning Rate:0.010000 Time 03:22 Epoch [ 13/ 20] Train Loss:0.195006 Train Acc:93.34% Test Loss:0.306602 Test Acc:89.39% Learning Rate:0.010000 Time 03:09 Epoch [ 14/ 20] Train Loss:0.183884 Train Acc:93.63% Test Loss:0.306510 Test Acc:89.98% Learning Rate:0.010000 Time 03:12 Epoch [ 15/ 20] Train Loss:0.174167 Train Acc:93.99% Test Loss:0.297684 Test Acc:90.17% Learning Rate:0.010000 Time 03:22 Epoch [ 16/ 20] Train Loss:0.159896 Train Acc:94.58% Test Loss:0.299201 Test Acc:89.86% Learning Rate:0.001000 Time 04:30 Epoch [ 17/ 20] Train Loss:0.158322 Train Acc:94.60% Test Loss:0.308903 Test Acc:90.05% Learning Rate:0.001000 Time 06:31 Epoch [ 18/ 20] Train Loss:0.152777 Train Acc:94.76% Test Loss:0.301876 Test Acc:89.98% Learning Rate:0.001000 Time 03:08 Epoch [ 19/ 20] Train Loss:0.152887 Train Acc:94.78% Test Loss:0.308110 Test Acc:89.77% Learning Rate:0.001000 Time 03:11 Epoch [ 20/ 20] Train Loss:0.150318 Train Acc:94.95% Test Loss:0.301545 Test Acc:90.06% Learning Rate:0.001000 Time 03:06
接著可以分別列印，損失函式曲線，準確率曲線和學習率曲線
plot_history(epoch ,Acc, Loss, Lr)
損失函式曲線

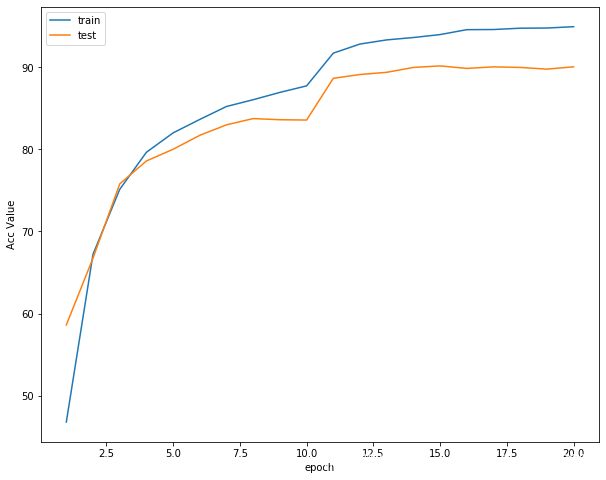

準確率曲線
學習率曲線
7.測驗
查看準確率
correct = 0 # 定義預測正確的圖片數，初始化為0
total = 0 # 總共參與測驗的圖片數，也初始化為0
# testloader = torch.utils.data.DataLoader(testset, batch_size=32,shuffle=True, num_workers=2)
for data in testloader: # 回圈每一個batch
images, labels = data
images = images.to(device)
labels = labels.to(device)
net.eval() # 把模型轉為test模式
if hasattr(torch.cuda, 'empty_cache'):
torch.cuda.empty_cache()
outputs = net(images) # 輸入網路進行測驗
# outputs.data是一個4x10張量，將每一行的最大的那一列的值和序號各自組成一個一維張量回傳，第一個是值的張量，第二個是序號的張量，
_, predicted = torch.max(outputs.data, 1)
total += labels.size(0) # 更新測驗圖片的數量
correct += (predicted == labels).sum() # 更新正確分類的圖片的數量
print('Accuracy of the network on the 10000 test images: %.2f %%' % (100 * correct / total))
Accuracy of the network on the 10000 test images: 89.94 %
可以看到自定義網路的模型在測驗集中準確率達到89.94%
程式中的 torch.max(outputs.data, 1) ，回傳一個tuple (元組)
而這里很明顯，這個回傳的元組的第一個元素是image data，即是最大的 值，第二個元素是label， 即是最大的值 的 索引！我們只需要label（最大值的索引），所以就會有_,predicted這樣的賦值陳述句，表示忽略第一個回傳值，把它賦值給_， 就是舍棄它的意思；
查看每一類的準確率
# 定義2個存盤每類中測驗正確的個數的 串列，初始化為0
class_correct = list(0. for i in range(10))
class_total = list(0. for i in range(10))
# testloader = torch.utils.data.DataLoader(testset, batch_size=64,shuffle=True, num_workers=2)
net.eval()
with torch.no_grad():
for data in testloader:
images, labels = data
images = images.to(device)
labels = labels.to(device)
if hasattr(torch.cuda, 'empty_cache'):
torch.cuda.empty_cache()
outputs = net(images)
_, predicted = torch.max(outputs.data, 1)
#4組(batch_size)資料中，輸出于label相同的，標記為1，否則為0
c = (predicted == labels).squeeze()
for i in range(len(images)): # 因為每個batch都有4張圖片，所以還需要一個4的小回圈
label = labels[i] # 對各個類的進行各自累加
class_correct[label] += c[i]
class_total[label] += 1
for i in range(10):
print('Accuracy of %5s : %.2f %%' % (classes[i], 100 * class_correct[i] / class_total[i]))
Accuracy of airplane : 92.30 % Accuracy of automobile : 96.40 % Accuracy of bird : 84.90 % Accuracy of cat : 78.80 % Accuracy of deer : 91.20 % Accuracy of dog : 83.20 % Accuracy of frog : 93.30 % Accuracy of horse : 92.30 % Accuracy of ship : 94.60 % Accuracy of truck : 92.70 %

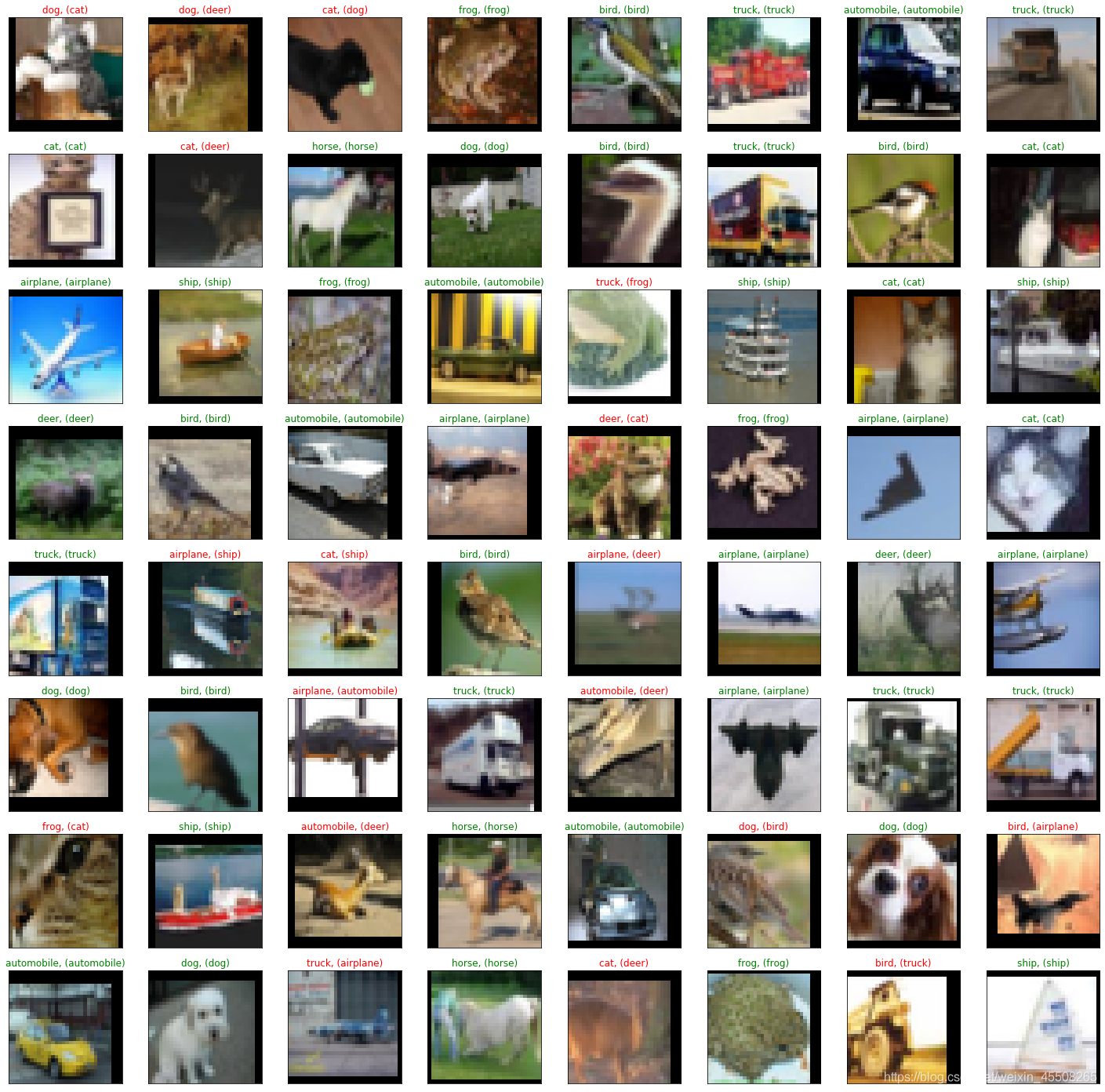

抽樣測驗并可視化一部分結果
dataiter = iter(testloader)
images, labels = dataiter.next()
images_ = images
#images_ = images_.view(images.shape[0], -1)
images_ = images_.to(device)
labels = labels.to(device)
val_output = net(images_)
_, val_preds = torch.max(val_output, 1)
fig = plt.figure(figsize=(25,4))
correct = torch.sum(val_preds == labels.data).item()
val_preds = val_preds.cpu()
labels = labels.cpu()
print("Accuracy Rate = {}%".format(correct/len(images) * 100))
fig = plt.figure(figsize=(25,25))
for idx in np.arange(64):
ax = fig.add_subplot(8, 8, idx+1, xticks=[], yticks=[])
#fig.tight_layout()
# plt.imshow(im_convert(images[idx]))
imshow(images[idx])
ax.set_title("{}, ({})".format(classes[val_preds[idx].item()], classes[labels[idx].item()]),
color = ("green" if val_preds[idx].item()==labels[idx].item() else "red"))
Accuracy Rate = 87.5% <Figure size 1800x288 with 0 Axes>
8. 保存模型
torch.save(net,save_path[:-4]+'_'+str(epoch)+'.pth')
# torch.save(net, './model/MyNet.pth')
9. 預測
讀取本地圖片進行預測
import torch
from PIL import Image
from torch.autograd import Variable
import torch.nn.functional as F
from torchvision import datasets, transforms
import numpy as np
classes = ('plane', 'car', 'bird', 'cat',
'deer', 'dog', 'frog', 'horse', 'ship', 'truck')
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = densenet_cifar()
model = torch.load(save_path) # 加載模型
# model = model.to('cuda')
model.eval() # 把模型轉為test模式
# 讀取要預測的圖片
img = Image.open("./airplane.jpg").convert('RGB') # 讀取影像
接著我們就進行預測圖片，不過這里有一個點，我們需要對我們的圖片也進行transforms，因為我們的訓練的時候，對每個影像也是進行了transforms的，所以我們需要保持一致
trans = transforms.Compose([transforms.Scale((32,32)),
transforms.ToTensor(),
transforms.Normalize(mean=(0.5, 0.5, 0.5),
std=(0.5, 0.5, 0.5)),
])
img = trans(img)
img = img.to(device)
# 圖片擴展多一維,因為輸入到保存的模型中是4維的[batch_size,通道,長，寬]，而普通圖片只有三維，[通道,長，寬]
img = img.unsqueeze(0)
# 擴展后，為[1，3，32，32]
output = model(img)
prob = F.softmax(output,dim=1) #prob是10個分類的概率
print("概率",prob)
value, predicted = torch.max(output.data, 1)
print("類別",predicted.item())
print(value)
pred_class = classes[predicted.item()]
print("分類",pred_class)
概率 tensor([[1.0000e+00, 1.3627e-09, 3.7352e-06, 1.2643e-09, 3.4940e-07, 2.3562e-10, 6.5075e-11, 2.9102e-10, 1.2497e-07, 1.4897e-09]], device='cuda:0', grad_fn=<SoftmaxBackward>) 類別 0 tensor([17.2041], device='cuda:0') 分類 plane
這里就可以看到，我們最后的結果，分類為plane，我們的置信率大概接近于100%了，對這個圖片的預測還是很準的
讀取圖片地址進行預測
我們也可以通過讀取圖片的url地址進行預測，這里我找了多個不同的圖片進行預測
import requests
from PIL import Image
url = 'https://dss2.bdstatic.com/70cFvnSh_Q1YnxGkpoWK1HF6hhy/it/u=947072664,3925280208&fm=26&gp=0.jpg'
url = 'https://ss0.bdstatic.com/70cFuHSh_Q1YnxGkpoWK1HF6hhy/it/u=2952045457,215279295&fm=26&gp=0.jpg'
url = 'https://ss0.bdstatic.com/70cFvHSh_Q1YnxGkpoWK1HF6hhy/it/u=2838383012,1815030248&fm=26&gp=0.jpg'
url = 'https://gimg2.baidu.com/image_search/src=http%3A%2F%2Fwww.goupuzi.com%2Fnewatt%2FMon_1809%2F1_179223_7463b117c8a2c76.jpg&refer=http%3A%2F%2Fwww.goupuzi.com&app=2002&size=f9999,10000&q=a80&n=0&g=0n&fmt=jpeg?sec=1624346733&t=36ba18326a1e010737f530976201326d'
url = 'https://ss3.bdstatic.com/70cFv8Sh_Q1YnxGkpoWK1HF6hhy/it/u=2799543344,3604342295&fm=224&gp=0.jpg'
# url = 'https://ss1.bdstatic.com/70cFuXSh_Q1YnxGkpoWK1HF6hhy/it/u=2032505694,2851387785&fm=26&gp=0.jpg'
response = requests.get(url, stream=True)
print (response)
img = Image.open(response.raw)
這里和前面是一樣的
trans = transforms.Compose([transforms.Scale((32,32)),
transforms.ToTensor(),
transforms.Normalize(mean=(0.5, 0.5, 0.5),
std=(0.5, 0.5, 0.5)),
])
img = trans(img)
img = img.to(device)
# 圖片擴展多一維,因為輸入到保存的模型中是4維的[batch_size,通道,長，寬]，而普通圖片只有三維，[通道,長，寬]
img = img.unsqueeze(0)
# 擴展后，為[1，3，32，32]
output = model(img)
prob = F.softmax(output,dim=1) #prob是10個分類的概率
print("概率",prob)
value, predicted = torch.max(output.data, 1)
print("類別",predicted.item())
print(value)
pred_class = classes[predicted.item()]
print("分類",pred_class)
概率 tensor([[7.5937e-02, 5.5344e-06, 4.2487e-03, 9.0580e-01, 6.9736e-04, 1.2475e-02, 9.0640e-05, 6.7607e-04, 7.5732e-06, 5.8428e-05]], device='cuda:0', grad_fn=<SoftmaxBackward>) 類別 3 tensor([6.8681], device='cuda:0') 分類 cat
我們的分類選擇了cat，置信率大約是90.5%，也是比較高的，還是很不錯的，
10.總結
DenseNet的結構有如下三個特性：
- 神經網路一般需要使用池化等操作縮小特征圖尺寸來提取語意特征，而Dense Block需要保持每一個Block內的特征圖尺寸一致來直接進行Concatnate操作，因此DenseNet被分成了多個Block，Block的數量一般為4，
- 兩個相鄰的Dense Block之間的部分被稱為Transition層，對于Transition層，它主要是連接兩個相鄰的DenseBlock，并且降低特征圖大小，具體包括BN、ReLU、1×1卷積（Conv）、2×2平均池化操作，1×1卷積的作用是降維，起到壓縮模型的作用，而平均池化則是降低特征圖的尺寸，
- Transition層可以起到壓縮模型的作用，假定Transition的上接DenseBlock得到的特征圖channels數為m ，Transition層可以產生 θ m θm θm個特征（通過卷積層），其中 0 < θ ≤ 1 0 <θ ≤1 0<θ≤1是壓縮系數（compression rate），當 θ = 1 θ=1 θ=1時，特征個數經過Transition層沒有變化，即無壓縮，而當壓縮系數小于1時，這種結構稱為DenseNet-C，原論文中使用 θ ≤ 0.5 θ≤0.5 θ≤0.5 ，對于使用bottleneck層的DenseBlock結構和壓縮系數小于1的Transition組合結構稱為DenseNet-BC，
總的來說，這個DenseNet展現除了非常不錯的影像分類的性能，并且在能超過ResNet，是計算機視覺的又一突破，但是我們影像分類中還是常會使用ResNet
順帶提一句，我們的資料和代碼都在我的匯總篇里有說明，如果需要，可以自取
這里再貼一下匯總篇：匯總篇
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/293509.html
標籤：AI
上一篇：Pytorch基礎(機器學習)
