大資料第二次作業操作

大家好，我是【豆干花生】，這次我帶來了大資料的第二次實踐作業~
主要內容為hadoop編程，使用GraphLite進行同步圖計算
可以說十分具體了，包含了具體操作、代碼指令、各個步驟截圖，

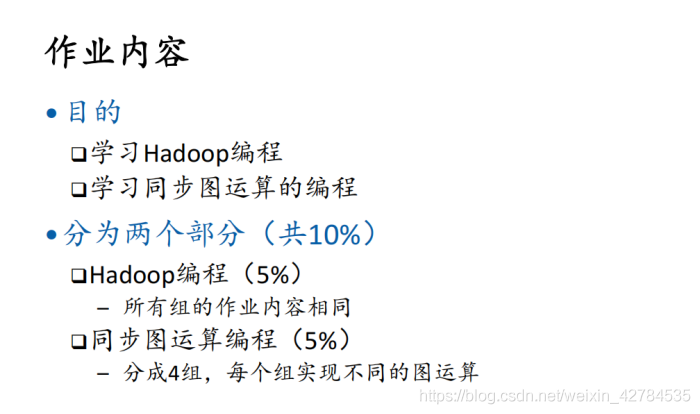

一.作業內容

兩個作業：hadoop編程實作wordcount功能，以及同步圖實作pagerank運算

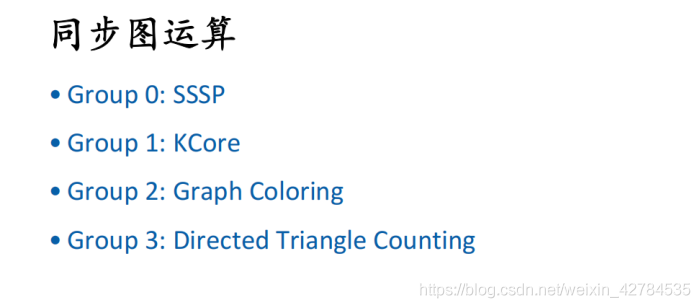

同步圖我選擇的是group0：sssp這個作業

二.第一個作業–hadoop編程

1.具體代碼如下：

/**
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

// Modified by Shimin Chen to demonstrate functionality for Homework 2
// April-May 2015

import java.io.IOException;
import java.util.StringTokenizer;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.FloatWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.mapred.TextInputFormat;
import org.apache.hadoop.mapred.TextOutputFormat;
import org.apache.hadoop.util.GenericOptionsParser;

public class Hw2Part1 {

  // This is the Mapper class
  // reference: http://hadoop.apache.org/docs/r2.6.0/api/org/apache/hadoop/mapreduce/Mapper.html
  //
  public static class TokenizerMapper
       extends Mapper<Object, Text, Text, FloatWritable>{

    private Text word = new Text();
    private FloatWritable  duration = new FloatWritable();


    public void map(Object key, Text value, Context context
                    ) throws IOException, InterruptedException
    {
        String[] vals = value.toString().split("\\s+");
        if (vals.length != 3)
            return;
        try
        {
            duration.set(Float.parseFloat(vals[2]));
        }
        catch(NumberFormatException e)
        {
            return;
        }
        word.set(vals[0] + " " + vals[1]);
        context.write(word, duration);

    }
  }

  // This is the Reducer class
  // reference http://hadoop.apache.org/docs/r2.6.0/api/org/apache/hadoop/mapreduce/Reducer.html
  //
  // We want to control the output format to look at the following:
  //
  // count of word = count
  //
  public static class CountAvgReducer
       extends Reducer<Text,FloatWritable,Text,Text> {

    private Text result_key= new Text();
    private Text result_value= new Text();

    public void reduce(Text key, Iterable<FloatWritable> values,
                       Context context
                       ) throws IOException, InterruptedException {
      float sum = 0;
      int count = 0;
      float avg = 0;
      String spaceStr = " ";
      for (FloatWritable val : values) {
        sum += val.get();
        count ++;
      }
      avg = sum/count;
      String avgStr = String.format("%.3f", avg);
      // generate result key

      result_key.set(key);
      // generate result value
      result_value.set(Integer.toString(count));
      result_value.append(spaceStr.getBytes(), 0, spaceStr.length());
      result_value.append(avgStr.getBytes(), 0, avgStr.length());
      context.write(result_key, result_value);
    }
  }

  public static void main(String[] args) throws Exception {
    Configuration conf = new Configuration();
    String[] otherArgs = new GenericOptionsParser(conf, args).getRemainingArgs();
    if (otherArgs.length != 2) {
      System.err.println("Usage:  <input-file>  <output-dir>");
      System.exit(2);
    }
    // key and value seperate by space, not tab.
    conf.set("mapreduce.output.textoutputformat.separator", " ");
    System.out.println(otherArgs[0]);
    System.out.println(otherArgs[1]);
    Job job = Job.getInstance(conf, "Hw2Part1");

    job.setJarByClass(Hw2Part1.class);

    job.setMapperClass(TokenizerMapper.class);
    //job.setCombinerClass(IntSumCombiner.class);
    job.setReducerClass(CountAvgReducer.class);

    job.setMapOutputKeyClass(Text.class);
    job.setMapOutputValueClass(FloatWritable.class);

    job.setOutputKeyClass(Text.class);
    job.setOutputValueClass(Text.class);

    // add the input paths as given by command line

    FileInputFormat.addInputPath(job, new Path(otherArgs[0]));


    // add the output path as given by the command line
    FileOutputFormat.setOutputPath(job,
      new Path(otherArgs[1]));
    System.out.println(otherArgs[0]);
    System.out.println(otherArgs[1]);
    System.exit(job.waitForCompletion(true) ? 0 : 1);
  }
}

2.準備作業:

之前已經配置好對應的軟體啦

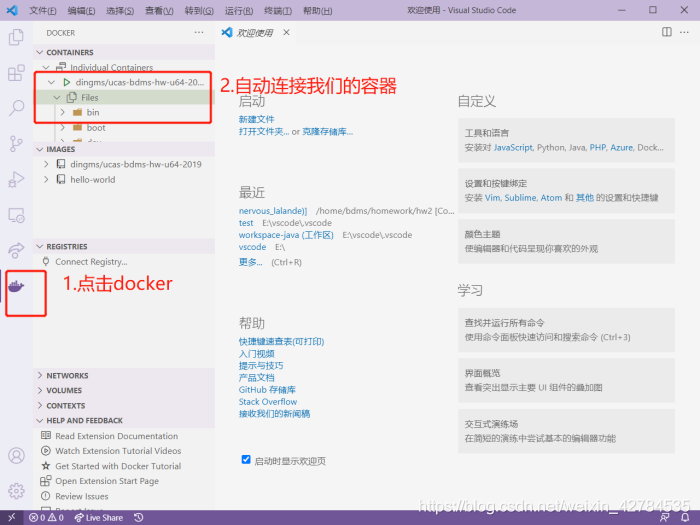

先打開docker desktop及內部對應的容器：

再在vscode里進入到對應的檔案夾：

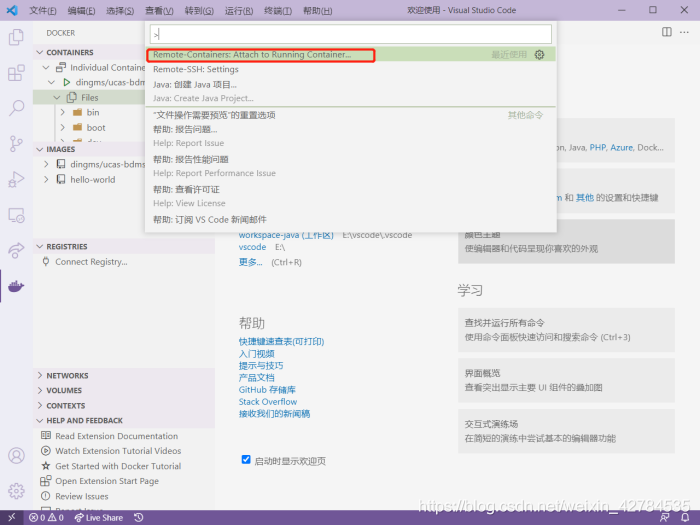

打開docker之后，在vscode中ctrl+shift+p,出現命令列，之后attach to running container，

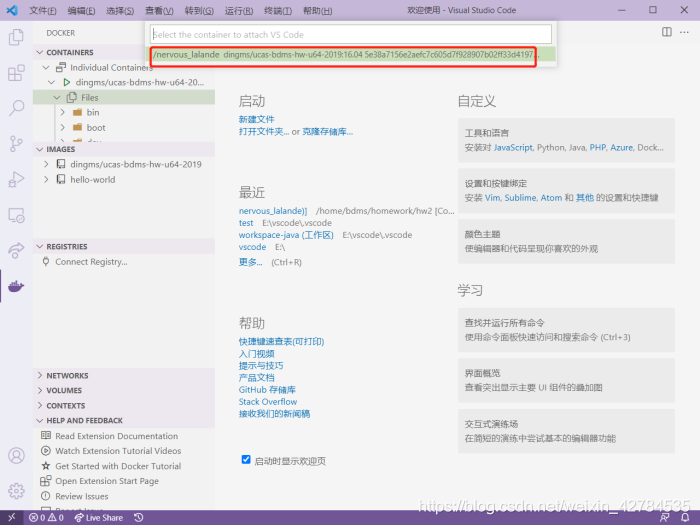

選擇我們需要的容器：

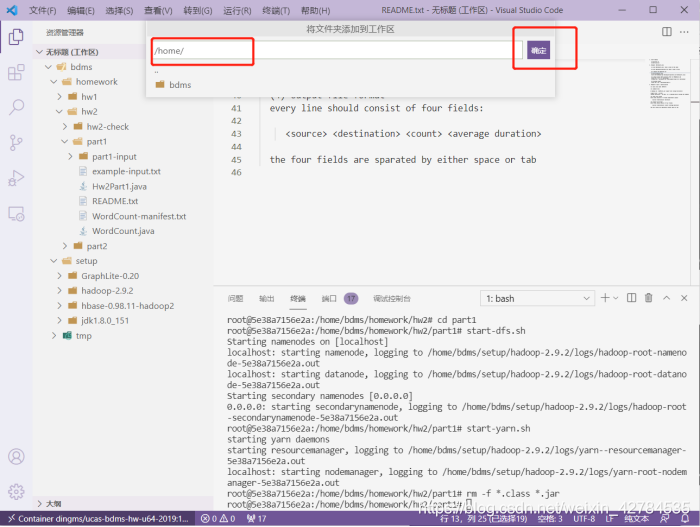

進入新的頁面后，我們可以添加我們需要的檔案夾到作業區（我之前已經添加）：

選擇左上角的檔案，點擊“將檔案夾添加到作業區”，然后輸入對應的檔案夾就好了：

3.具體操作

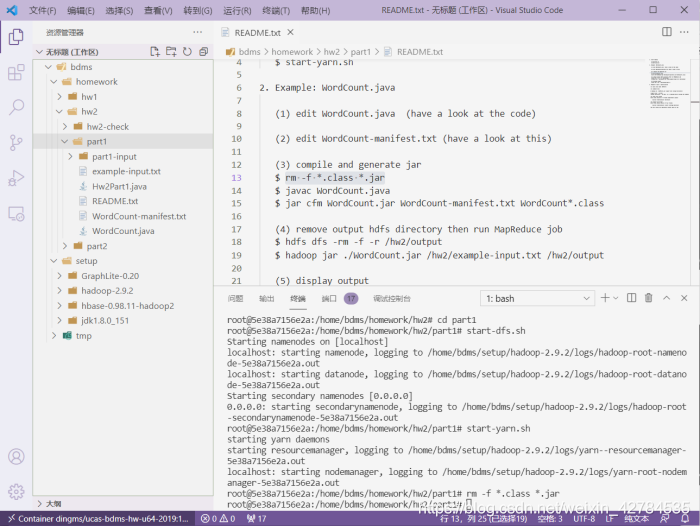

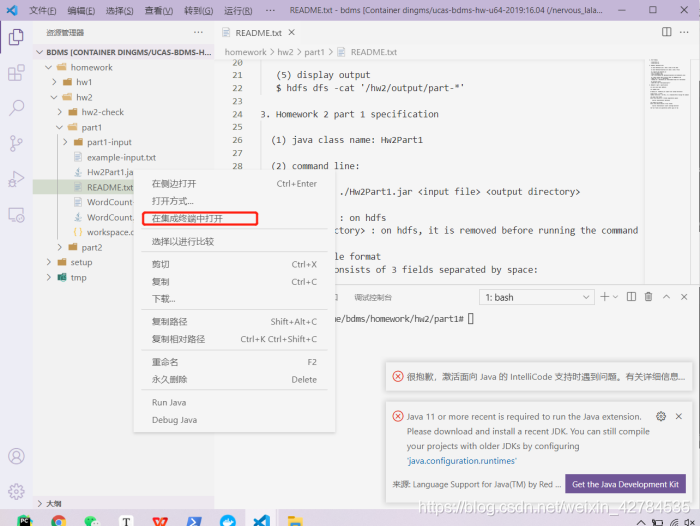

打開終端：

在vscode下方的終端內操作，如果沒有進入hw2的part1，要先通過cd進入，

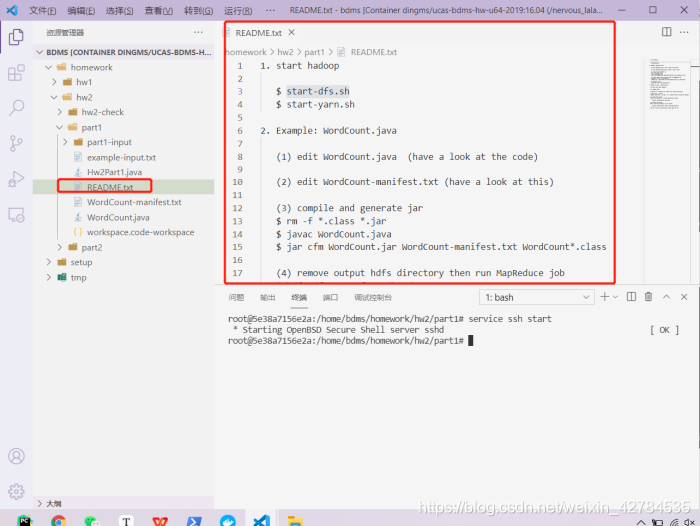

打開readme.txt來查看怎末操作：

0. start ssh
   $ service ssh start

1. start hadoop

   $ start-dfs.sh
   $ start-yarn.sh

2. Example: WordCount.java

   (1) edit WordCount.java  (have a look at the code)

   (2) edit WordCount-manifest.txt (have a look at this)

   (3) compile and generate jar
   $ rm -f *.class *.jar
   $ javac WordCount.java
   $ jar cfm WordCount.jar WordCount-manifest.txt WordCount*.class

   (4) remove output hdfs directory then run MapReduce job
   $ hdfs dfs -rm -f -r /hw2/output
   $ hadoop jar ./WordCount.jar /hw2/example-input.txt /hw2/output

   (5) display output
   $ hdfs dfs -cat '/hw2/output/part-*'

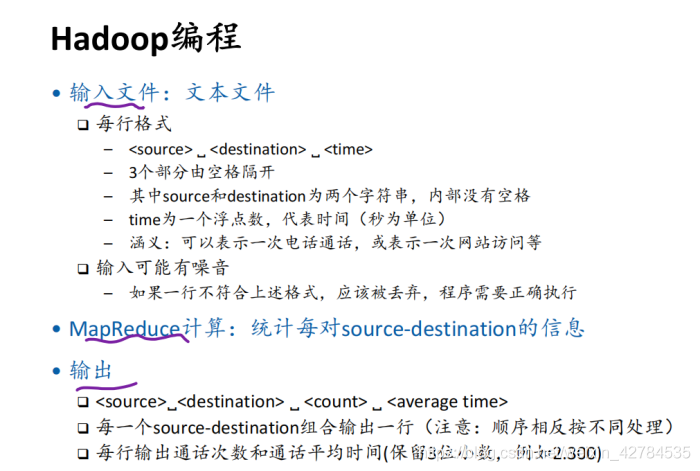

3. Homework 2 part 1 specification

  (1) java class name: Hw2Part1

  (2) command line:

  $ hadoop jar ./Hw2Part1.jar <input file> <output directory>

  <input file> : on hdfs
  <output directory> : on hdfs, it is removed before running the command

  (3) input file format
  every line consists of 3 fields separated by space:

     <source> <destination> <duration>

  (4) output file format
  every line should consist of four fields:

     <source> <destination> <count> <average duration>

  the four fields are sparated by either space or tab

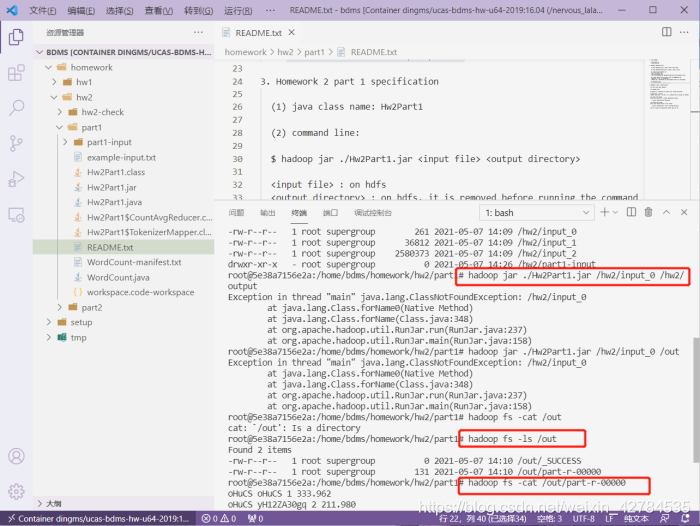

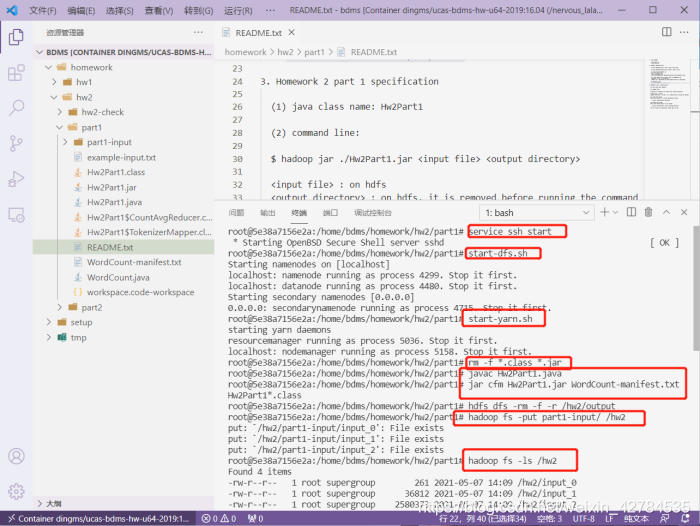

終端操作如下：

root@5e38a7156e2a:/home/bdms/homework/hw2/part1# service ssh start
 * Starting OpenBSD Secure Shell server sshd                                          [ OK ]
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# start-dfs.sh
Starting namenodes on [localhost]
localhost: namenode running as process 4299. Stop it first.
localhost: datanode running as process 4480. Stop it first.
Starting secondary namenodes [0.0.0.0]
0.0.0.0: secondarynamenode running as process 4715. Stop it first.
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# start-yarn.sh
starting yarn daemons
resourcemanager running as process 5036. Stop it first.
localhost: nodemanager running as process 5158. Stop it first.
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# rm -f *.class *.jar
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# javac Hw2Part1.java
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# jar cfm Hw2Part1.jar WordCount-manifest.txt Hw2Part1*.class
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hdfs dfs -rm -f -r /hw2/output
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop fs -put part1-input/ /hw2put: `/hw2/part1-input/input_0': File exists
put: `/hw2/part1-input/input_1': File exists
put: `/hw2/part1-input/input_2': File exists
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop fs -ls /hw2Found 4 items
-rw-r--r--   1 root supergroup        261 2021-05-07 14:09 /hw2/input_0
-rw-r--r--   1 root supergroup      36812 2021-05-07 14:09 /hw2/input_1
-rw-r--r--   1 root supergroup    2580373 2021-05-07 14:09 /hw2/input_2
drwxr-xr-x   - root supergroup          0 2021-05-07 14:26 /hw2/part1-input
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop jar ./Hw2Part1.jar /hw2/input_0 /hw2/output
Exception in thread "main" java.lang.ClassNotFoundException: /hw2/input_0
        at java.lang.Class.forName0(Native Method)
        at java.lang.Class.forName(Class.java:348)
        at org.apache.hadoop.util.RunJar.run(RunJar.java:237)
        at org.apache.hadoop.util.RunJar.main(RunJar.java:158)
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop jar ./Hw2Part1.jar /hw2/input_0 /outException in thread "main" java.lang.ClassNotFoundException: /hw2/input_0
        at java.lang.Class.forName0(Native Method)
        at java.lang.Class.forName(Class.java:348)
        at org.apache.hadoop.util.RunJar.run(RunJar.java:237)
        at org.apache.hadoop.util.RunJar.main(RunJar.java:158)
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop fs -cat /outcat: `/out': Is a directory
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop fs -ls /outFound 2 items
-rw-r--r--   1 root supergroup          0 2021-05-07 14:10 /out/_SUCCESS
-rw-r--r--   1 root supergroup        131 2021-05-07 14:10 /out/part-r-00000

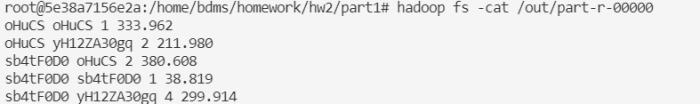

root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hadoop fs -cat /out/part-r-00000oHuCS oHuCS 1 333.962
oHuCS yH12ZA30gq 2 211.980
sb4tF0D0 oHuCS 2 380.608
sb4tF0D0 sb4tF0D0 1 38.819
sb4tF0D0 yH12ZA30gq 4 299.914
root@5e38a7156e2a:/home/bdms/homework/hw2/part1# hdfs dfs -cat /out/part-r-00000
oHuCS oHuCS 1 333.962
oHuCS yH12ZA30gq 2 211.980
sb4tF0D0 oHuCS 2 380.608
sb4tF0D0 sb4tF0D0 1 38.819
sb4tF0D0 yH12ZA30gq 4 299.914
root@5e38a7156e2a:/home/bdms/homework/hw2/part1#

打開ssh和hadoop，洗掉之前的中間檔案，生成.class和jar包，將input檔案存入hdfs

生成對應結果，并展示對應結果

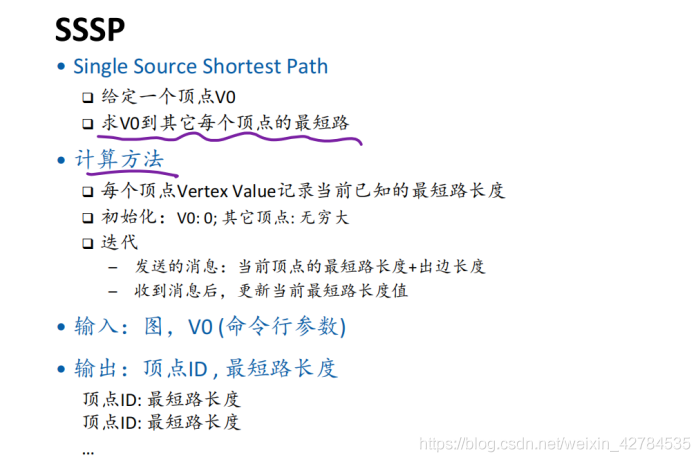

三.第二個作業–同步圖計算，SSSP

1.具體代碼

/**
 * @file PageRankVertex.cc
 * @author  Songjie Niu, Shimin Chen
 * @version 0.1
 *
 * @section LICENSE
 *
 * Copyright 2016 Shimin Chen (chensm@ict.ac.cn) and
 * Songjie Niu (niusongjie@ict.ac.cn)
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 * @section DESCRIPTION
 *
 * This file implements the PageRank algorithm using graphlite API.
 *
 */

#include <stdio.h>
#include <string.h>
#include <math.h>

#include "GraphLite.h"

#define VERTEX_CLASS_NAME(name) SSSP##name

#define EPS 1e-6
unsigned long long startVertex = 0;
class VERTEX_CLASS_NAME(InputFormatter): public InputFormatter {
public:
    int64_t getVertexNum() {
        unsigned long long n;
        sscanf(m_ptotal_vertex_line, "%lld", &n);
        m_total_vertex= n;
        return m_total_vertex;
    }
    int64_t getEdgeNum() {
        unsigned long long n;
        sscanf(m_ptotal_edge_line, "%lld", &n);
        m_total_edge= n;
        return m_total_edge;
    }
    int getVertexValueSize() {
        m_n_value_size = sizeof(double);
        return m_n_value_size;
    }
    int getEdgeValueSize() {
        m_e_value_size = sizeof(double);
        return m_e_value_size;
    }
    int getMessageValueSize() {
        m_m_value_size = sizeof(double);
        return m_m_value_size;
    }
    void loadGraph() {
        unsigned long long last_vertex;
        unsigned long long from;
        unsigned long long to;
        double weight = 0;

        double value = 0;
        int outdegree = 0;

        const char *line= getEdgeLine();

        // Note: modify this if an edge weight is to be read
        //       modify the 'weight' variable

        sscanf(line, "%lld %lld %lf", &from, &to, &weight);
        addEdge(from, to, &weight);
        last_vertex = from;
        ++outdegree;
        for (int64_t i = 1; i < m_total_edge; ++i) {
            line= getEdgeLine();

            // Note: modify this if an edge weight is to be read
            //       modify the 'weight' variable

            sscanf(line, "%lld %lld %lf", &from, &to, &weight);
            if (last_vertex != from) {
                addVertex(last_vertex, &value, outdegree);
                last_vertex = from;
                outdegree = 1;
            }
            else
            {
                ++outdegree;
            }
            addEdge(from, to, &weight);
        }
        addVertex(last_vertex, &value, outdegree);
    }
};

class VERTEX_CLASS_NAME(OutputFormatter): public OutputFormatter {
public:
    void writeResult() {
        int64_t vid;
        double value;
        char s[1024];

        for (ResultIterator r_iter; ! r_iter.done(); r_iter.next() ) {
            r_iter.getIdValue(vid, &value);
            int n = sprintf(s, "%lld: %0.lf\n", (unsigned long long)vid, value);
            writeNextResLine(s, n);
        }
    }
};

// An aggregator that records a double value tom compute sum
class VERTEX_CLASS_NAME(Aggregator): public Aggregator<double> {
public:
    void init() {
        m_global = 0;
        m_local = 0;
    }
    void* getGlobal() {
        return &m_global;
    }
    void setGlobal(const void* p) {
        m_global = * (double *)p;
    }
    void* getLocal() {
        return &m_local;
    }
    void merge(const void* p) {
        m_global += * (double *)p;
    }
    void accumulate(const void* p) {
        m_local += * (double *)p;
    }
};

class VERTEX_CLASS_NAME(): public Vertex <double, double, double> {
public:
    void compute(MessageIterator* pmsgs) {

        if(getSuperstep() == 0)
        {
            //if is startVertex, send length to neighbours.
            if(m_pme->m_v_id == startVertex)
            {
                Vertex<double, double, double>::OutEdgeIterator it = getOutEdgeIterator();
                for( ; !it.done(); it.next())
                {
                    sendMessageTo(it.target(), getValue() + it.getValue());
                }
            }
            //if not startVertex, set value max.
            else
            {
                *mutableValue() = __DBL_MAX__;
                sendMessageToAllNeighbors(__DBL_MAX__);
            }
        }
        else
        {
            if(getSuperstep() >= 2)
            {
                //if all vertexs no change happened, return;
               double global_val = * (double *)getAggrGlobal(0);
                if (global_val == 0 ) {
                    voteToHalt(); return;
                }
            }
            double val = getValue();
            for( ; !pmsgs->done(); pmsgs->next())
            {
                double msgVal = pmsgs->getValue();
                if (msgVal < getValue())
                    *mutableValue() = msgVal;
            }
            //if this vertex value changed, add 1 as mark. Don't care how change how much.
            if(val != getValue())
            {
                double acc = 1;
                accumulateAggr(0, &acc);
            }
            Vertex<double, double, double>::OutEdgeIterator it = getOutEdgeIterator();

            if(getValue() != __DBL_MAX__)
            {
                for( ;!it.done(); it.next())
                {
                        sendMessageTo(it.target(), getValue() + it.getValue());
                }
            }
            else
                sendMessageToAllNeighbors(__DBL_MAX__);
        }
    }
};

class VERTEX_CLASS_NAME(Graph): public Graph {
public:
    VERTEX_CLASS_NAME(Aggregator)* aggregator;

public:
    // argv[0]: PageRankVertex.so
    // argv[1]: <input path>
    // argv[2]: <output path>
    void init(int argc, char* argv[]) {

        setNumHosts(5);
        setHost(0, "localhost", 1411);
        setHost(1, "localhost", 1421);
        setHost(2, "localhost", 1431);
        setHost(3, "localhost", 1441);
        setHost(4, "localhost", 1451);

        if (argc < 4) {
           printf ("Usage: %s <input path> <output path> <v0>\n", argv[0]);
           exit(1);
        }

        m_pin_path = argv[1];
        m_pout_path = argv[2];
        // get start vertex
        char* end;
        startVertex  = strtoull(argv[3], &end, 10);
        aggregator = new VERTEX_CLASS_NAME(Aggregator)[1];
        regNumAggr(1);
        regAggr(0, &aggregator[0]);
    }

    void term() {
        delete[] aggregator;
    }
};

/* STOP: do not change the code below. */
extern "C" Graph* create_graph() {
    Graph* pgraph = new VERTEX_CLASS_NAME(Graph);

    pgraph->m_pin_formatter = new VERTEX_CLASS_NAME(InputFormatter);
    pgraph->m_pout_formatter = new VERTEX_CLASS_NAME(OutputFormatter);
    pgraph->m_pver_base = new VERTEX_CLASS_NAME();

    return pgraph;
}

extern "C" void destroy_graph(Graph* pobject) {
    delete ( VERTEX_CLASS_NAME()* )(pobject->m_pver_base);
    delete ( VERTEX_CLASS_NAME(OutputFormatter)* )(pobject->m_pout_formatter);
    delete ( VERTEX_CLASS_NAME(InputFormatter)* )(pobject->m_pin_formatter);
    delete ( VERTEX_CLASS_NAME(Graph)* )pobject;
}

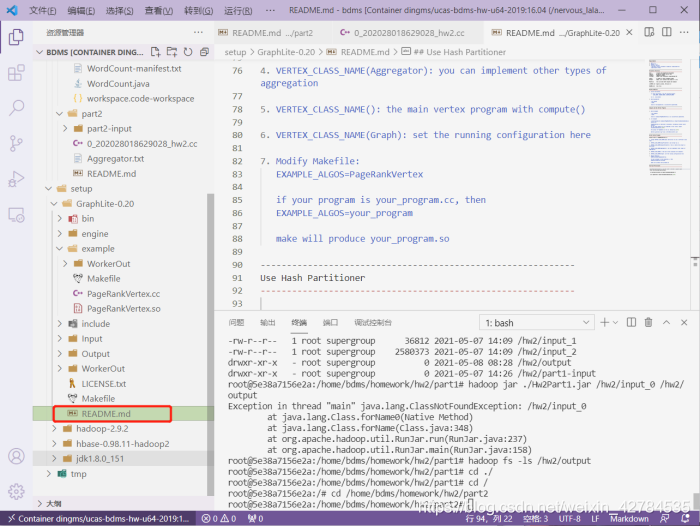

2.準備作業

閱讀/hw2/part2里的readme.txt：

# GraphLite Usage

  @see /home/bdms/setup/GraphLite-0.20/README.md


# Homework 2 Part 2 Requirements

Note: Please use only English in comments.
First line: /* group, studentId, nameInEnglish */

0. Group 0

   #define VERTEX_CLASS_NAME(name) SSSP##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <v0 id>

   input file:  fields are separated by a single space
                note: modify InputFormatter slightly to read the distance

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id distance
     src_vertex_id dest_vertex_id distance
     ... ...

   output file: fields are separated by a single space

     vertexid: length
     vertexid: length
     ...

1. Group 1

   #define VERTEX_CLASS_NAME(name) KCore##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <K>

   input file: fields are separated by a single space

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     vertexid
     vertexid
     ...

2. Group 2

   #define VERTEX_CLASS_NAME(name) GraphColor##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <v0 id> <num color>

   input file: fields are separated by a single space

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     vertexid: colorid
     vertexid: colorid
     ...

3. Group 3

   #define VERTEX_CLASS_NAME(name) DirectedTriangleCount##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path>

   input file:

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     in: num_in
     out: num_out
     through: num_through
     cycle: num_cycle

------------------------------------------------------------
Homework 2 Part 2 Test Commands
------------------------------------------------------------

SSSP:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/SSSP-graph0_4w ${GRAPHLITE_HOME}/out 0
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/SSSP-graph1_4w ${GRAPHLITE_HOME}/out 0

KCore:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/KCore-graph0_4w ${GRAPHLITE_HOME}/out 7
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/KCore-graph1_4w ${GRAPHLITE_HOME}/out 8

Graph Coloring:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Color-graph0_4w ${GRAPHLITE_HOME}/out 0 5
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Color-graph1_4w ${GRAPHLITE_HOME}/out 0 5

Triangle Counting:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Triangle-graph0_4w ${GRAPHLITE_HOME}/out
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Triangle-graph1_4w ${GRAPHLITE_HOME}/out

------------------------------------------------------------
Undirected graph vs. directed graph
------------------------------------------------------------

The following is an example directed graph

  0 --> 1 --> 2 --> 3
        |          /|\
        |           |
        + --------- +

The input will look like the following:

  4
  4
  0 1
  1 2
  1 3
  2 3

Consider the following undirected graph, where each edge in
the above graph is now an undirected edge.

  0 --- 1 --- 2 --- 3
        |           |
        |           |
        + --------- +

The input will look like the following:

  4
  8
  0 1
  1 0
  1 2
  1 3
  2 1
  2 3
  3 2
  3 1

Note that every undirected edge is shown as TWO directed edge.
So the vertex compute() method can receive messages from all
the neighbors in the original undirected graph, and can send
messages to all the neighbors in the original undirected graph.

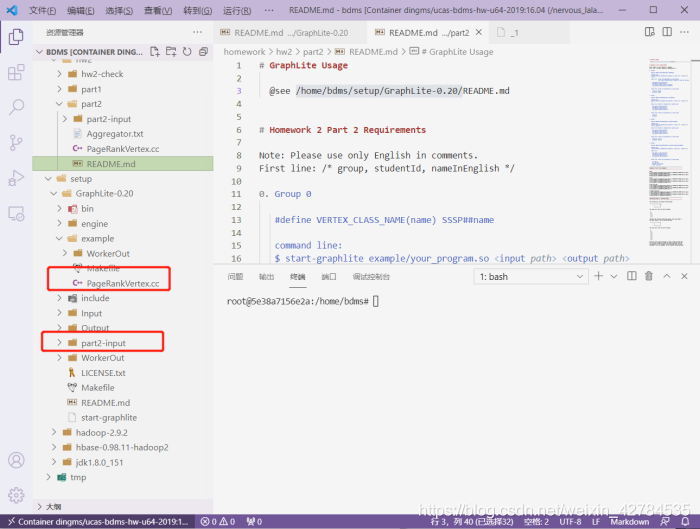

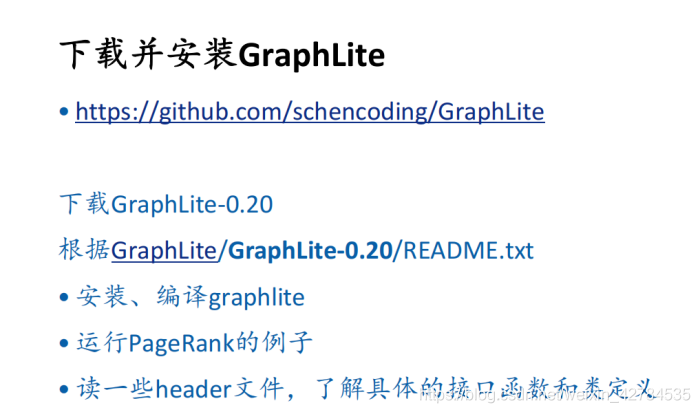

這里需要使用GraphLite-0.20，但是docker里已經安裝了，所以可以直接到對應檔案夾去查看：

# GraphLite Usage

  @see /home/bdms/setup/GraphLite-0.20/README.md

------------------------------------------------------------
Requirements
------------------------------------------------------------
1. JDK 1.7.x
2. Hadoop 2.6.x
3. protocol buffers
   $ apt-get install protobuf-c-compiler libprotobuf-c0 libprotobuf-c0-dev

------------------------------------------------------------
Directory Structure
------------------------------------------------------------
bin/         scripts and graphlite executable
engine/      graphlite engine source code
example/     PageRank example
include/     header that represents programming API

Input/       a number of small example graphs
Output/      empty, will contain the output of a run

Makefile     this can make both engine and example

LICENSE.txt  Apache License, Version 2.0

README.txt   this file

------------------------------------------------------------
Build graphlite
------------------------------------------------------------
1. source bin/setenv

   (1) edit bin/setenv, set the following paths:
       JAVA_HOME, HADOOP_HOME, GRAPHLITE_HOME

   (2) $ . bin/setenv

2. build graphlite

   $ cd engine
   $ make

   check if bin/graphlite is successfully generated.

------------------------------------------------------------
Compile and Run Vertex Program
------------------------------------------------------------

1. build example

   $ cd example
   $ make

   check if example/PageRankVertex.so is successfully generated.

2. run example

   $ start-graphlite example/PageRankVertex.so Input/facebookcombined_4w Output/out

   PageRankVertex.cc declares 5 processes, including 1 master and 4 workers.
   So the input graph file is prepared as four files: Input/facebookcombined_4w_[1-4]

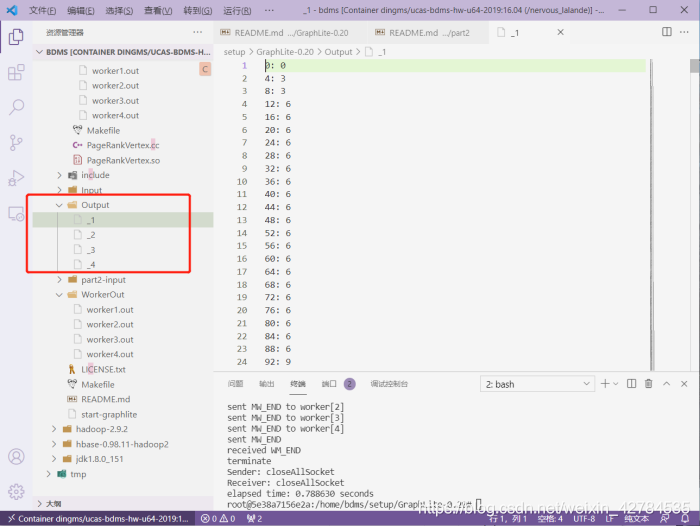

   The output of PageRank will be in: Output/out_[1-4]

   Workers generate log files in WorkOut/worker*.out

------------------------------------------------------------
Write Vertex Program
------------------------------------------------------------
Please refer to PageRankVertex.cc

1. change VERTEX_CLASS_NAME(name) definition to use a different class name

2. VERTEX_CLASS_NAME(InputFormatter) can be kept as is

3. VERTEX_CLASS_NAME(OutputFormatter): this is where the output is generated

4. VERTEX_CLASS_NAME(Aggregator): you can implement other types of aggregation

5. VERTEX_CLASS_NAME(): the main vertex program with compute()

6. VERTEX_CLASS_NAME(Graph): set the running configuration here

7. Modify Makefile:
   EXAMPLE_ALGOS=PageRankVertex

   if your program is your_program.cc, then
   EXAMPLE_ALGOS=your_program

   make will produce your_program.so

------------------------------------------------------------
Use Hash Partitioner
------------------------------------------------------------

 bin/hash-partitioner.pl can be used to divide a graph input
 file into multiple partitions.

  $ hash-partitioner.pl Input/facebookcombined 4

  will generate: Input/facebookcombined_4w_[1-4]

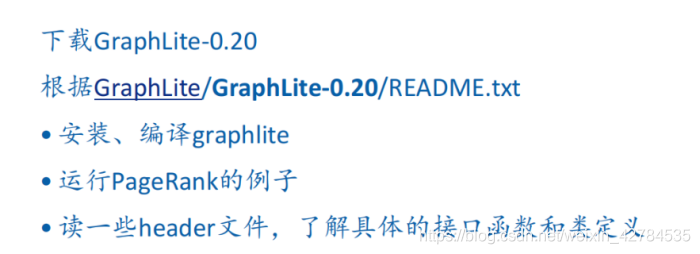

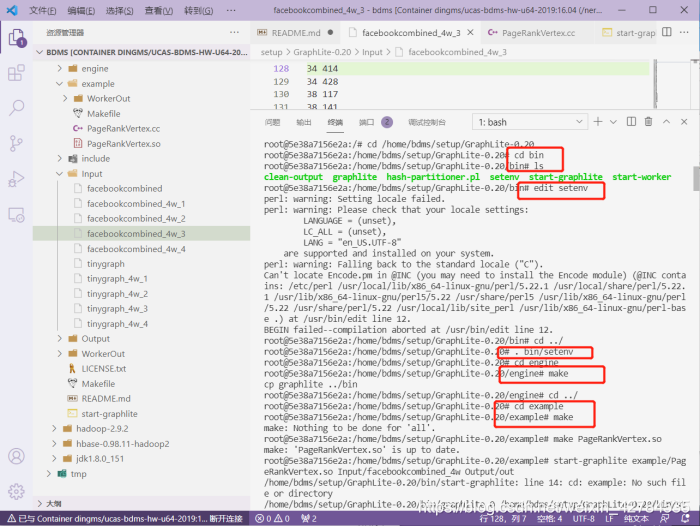

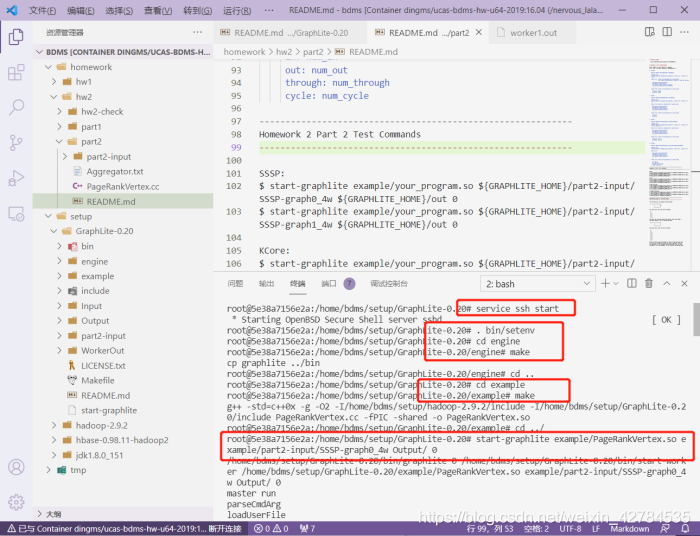

根據上面的reedme.txt,我們先來學習一下graphlite的基本操作

由于docker內部已經部署過對應的環境了，所以我們直接使用

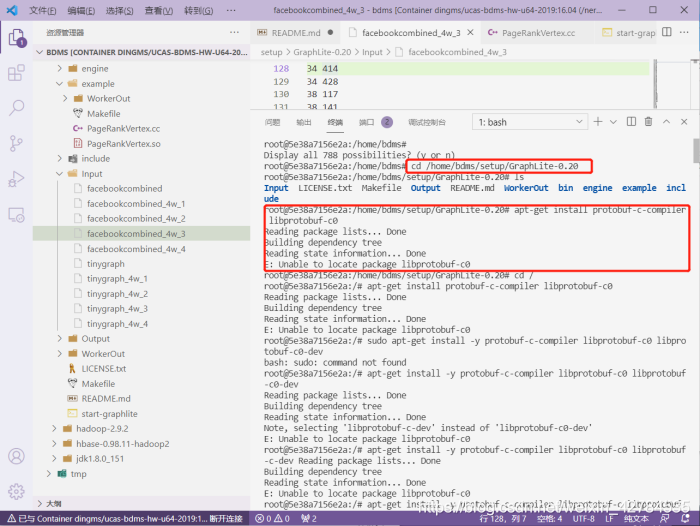

apt-get操作直接跳過，因為之前已經部署，下面這幾個操作也可以直接跳過：

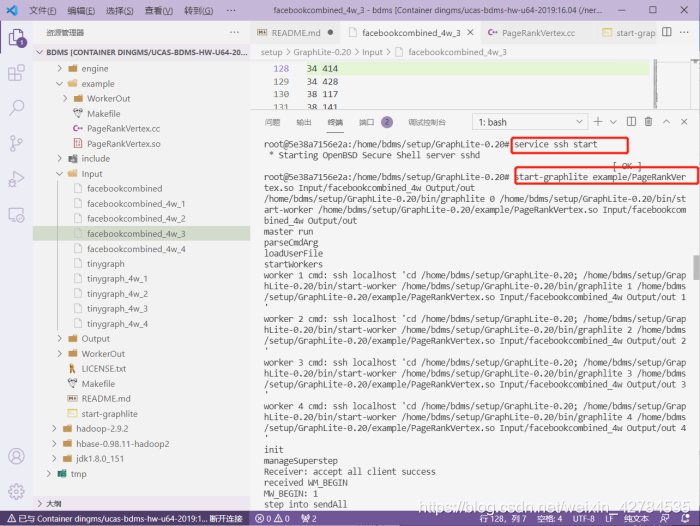

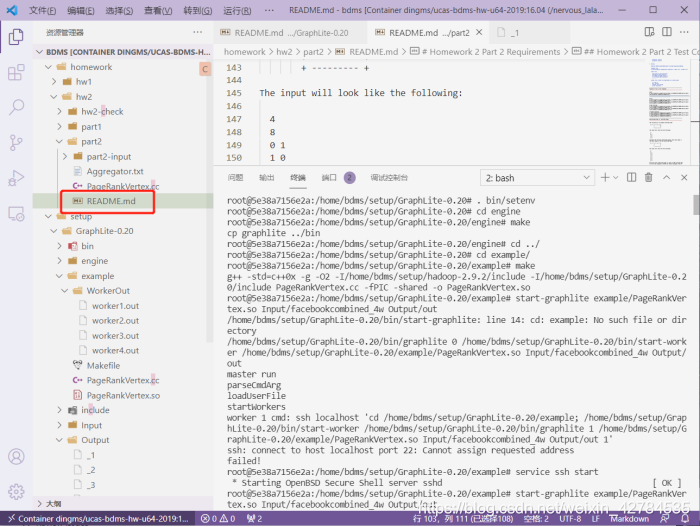

連接ssh，來開啟grphlite

這里我們有更改相關的組態檔和程式，直接使用提供的，

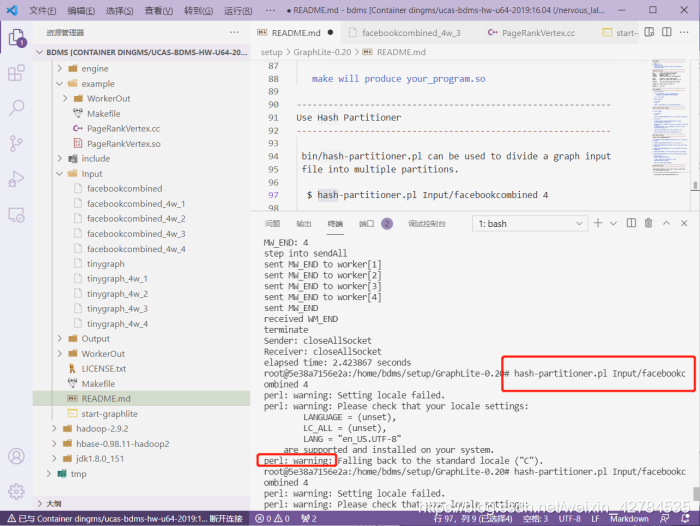

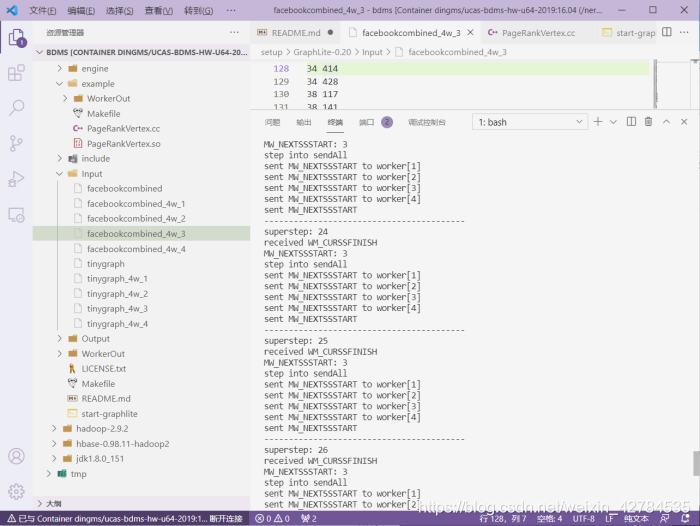

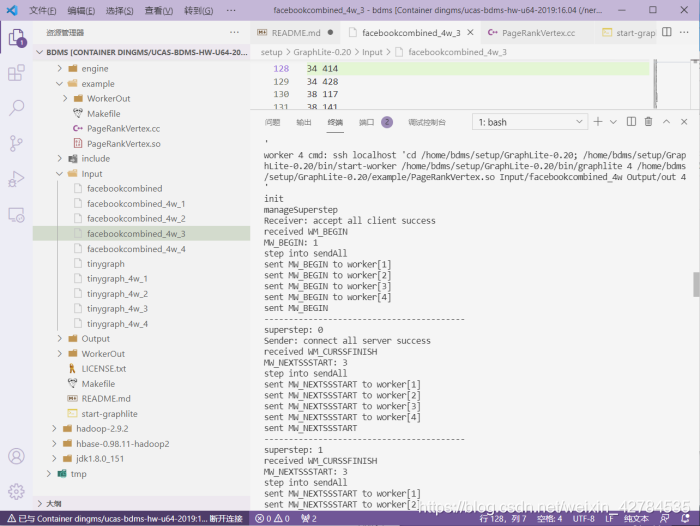

之后運行hash操作，忽略warning：

3.具體操作

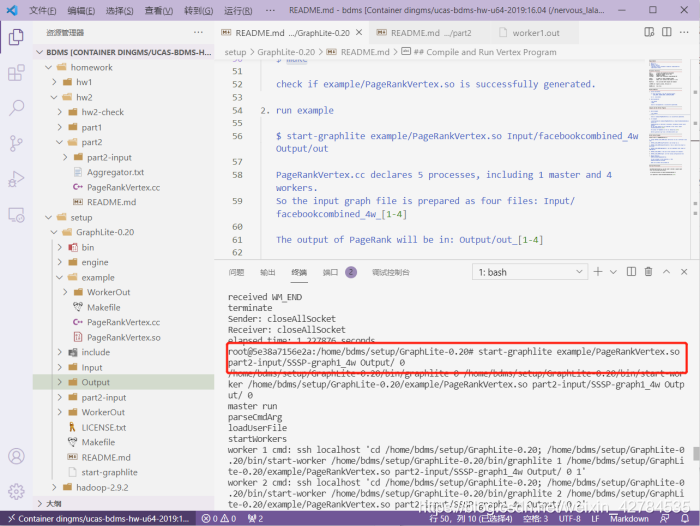

根據之前的readme.txt，

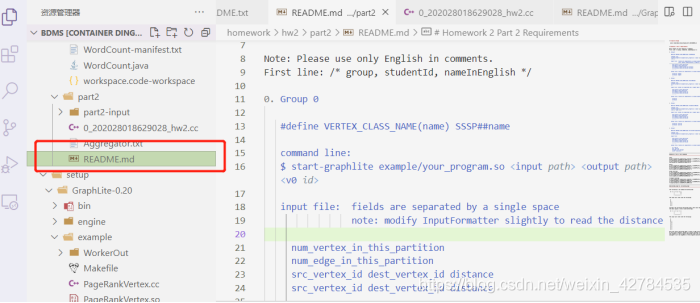

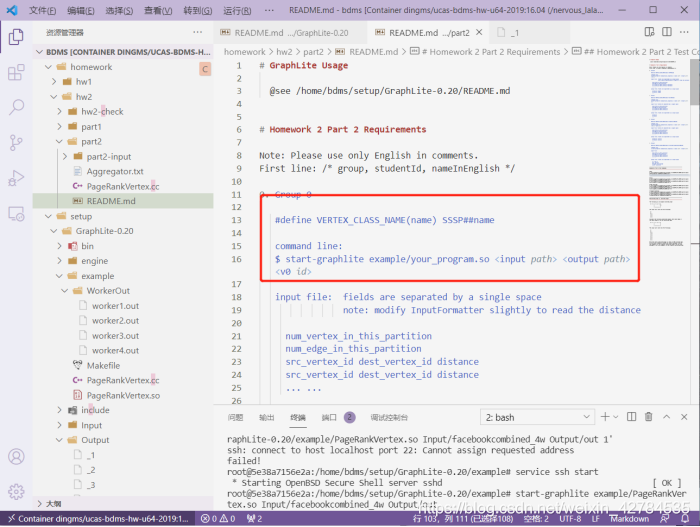

我們再看看part2里的readme.txt：

# GraphLite Usage

  @see /home/bdms/setup/GraphLite-0.20/README.md


# Homework 2 Part 2 Requirements

Note: Please use only English in comments.
First line: /* group, studentId, nameInEnglish */

0. Group 0

   #define VERTEX_CLASS_NAME(name) SSSP##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <v0 id>

   input file:  fields are separated by a single space
                note: modify InputFormatter slightly to read the distance

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id distance
     src_vertex_id dest_vertex_id distance
     ... ...

   output file: fields are separated by a single space

     vertexid: length
     vertexid: length
     ...

1. Group 1

   #define VERTEX_CLASS_NAME(name) KCore##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <K>

   input file: fields are separated by a single space

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     vertexid
     vertexid
     ...

2. Group 2

   #define VERTEX_CLASS_NAME(name) GraphColor##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path> <v0 id> <num color>

   input file: fields are separated by a single space

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     vertexid: colorid
     vertexid: colorid
     ...

3. Group 3

   #define VERTEX_CLASS_NAME(name) DirectedTriangleCount##name

   command line:
   $ start-graphlite example/your_program.so <input path> <output path>

   input file:

     num_vertex_in_this_partition
     num_edge_in_this_partition
     src_vertex_id dest_vertex_id
     src_vertex_id dest_vertex_id
     ... ...

   output file: fields are separated by a single space

     in: num_in
     out: num_out
     through: num_through
     cycle: num_cycle

------------------------------------------------------------

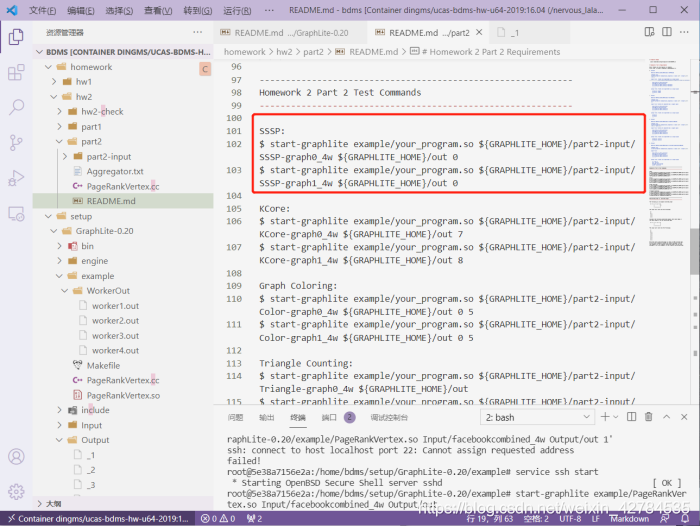

Homework 2 Part 2 Test Commands
------------------------------------------------------------

SSSP:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/SSSP-graph0_4w ${GRAPHLITE_HOME}/out 0
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/SSSP-graph1_4w ${GRAPHLITE_HOME}/out 0

KCore:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/KCore-graph0_4w ${GRAPHLITE_HOME}/out 7
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/KCore-graph1_4w ${GRAPHLITE_HOME}/out 8

Graph Coloring:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Color-graph0_4w ${GRAPHLITE_HOME}/out 0 5
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Color-graph1_4w ${GRAPHLITE_HOME}/out 0 5

Triangle Counting:
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Triangle-graph0_4w ${GRAPHLITE_HOME}/out
$ start-graphlite example/your_program.so ${GRAPHLITE_HOME}/part2-input/Triangle-graph1_4w ${GRAPHLITE_HOME}/out

------------------------------------------------------------
Undirected graph vs. directed graph
------------------------------------------------------------

The following is an example directed graph

  0 --> 1 --> 2 --> 3
        |          /|\
        |           |
        + --------- +

The input will look like the following:

  4
  4
  0 1
  1 2
  1 3
  2 3

Consider the following undirected graph, where each edge in
the above graph is now an undirected edge.

  0 --- 1 --- 2 --- 3
        |           |
        |           |
        + --------- +

The input will look like the following:

  4
  8
  0 1
  1 0
  1 2
  1 3
  2 1
  2 3
  3 2
  3 1

Note that every undirected edge is shown as TWO directed edge.
So the vertex compute() method can receive messages from all
the neighbors in the original undirected graph, and can send
messages to all the neighbors in the original undirected graph.

顯然有兩個地方需要注意，

在.cc檔案里修改一個名字為SSSP，執行graplite的時候要注意一下，

我把/home/bdms/setup/GraphLite-0.20/example里的.cc檔案換成我需要的檔案了

把資料也復制到了/example檔案夾下：

依次輸入：

注意一個問題：運行一次graphlite，之后在運行要洗掉對應的行程

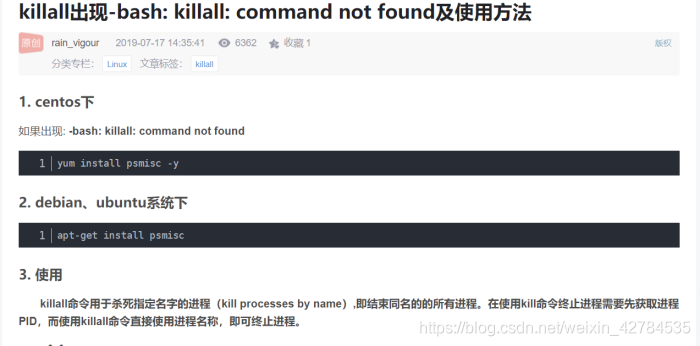

apt-get install psmisckillall graphlite

完成！

太舒服了，結束

碼字不易，都看到這里了不如點個贊哦~
我是【豆干花生】，你的點贊+收藏+關注，就是我堅持下去的最大動力~

親愛的朋友，這里是我新成立的公眾號，歡迎關注！
公眾號內容包括但不限于人工智能、影像處理、信號處理等等~

之后還將推出更多優秀博文，敬請期待！ 關注起來，讓我們一起成長！
