前言

在實際開發專案程序當中，難免會使用到Elasticsearch做搜索，文章描述從Mysql通過Logstash實時同步到Elasticsearch，下面就開始來進行實作吧！具體的Elasticsearch+Logstash+kibana搭建，請移步到 ELK搭建步驟，

實作方案

本人總結了兩種實作方案來實作mysql到es的同步，

使用Elastic官方提供的 Logstash 來實作Mysql的全量和增量同步（根據時間戳或者自增id），
使用Elastic 官方提供的 Logstash 來實作全量同步，后續的資料庫表更新、洗掉、修改等通過阿里開源的框架canal實作（增量同步）， canal偽裝成mysql的從節點，通過binlog日志檔案進行同步，通過Java程式進行監聽，同步到Elasticsearch當中，

本次介紹通過 Elastic 官方提供的 Logstash 來實作Mysql的全量和增量同步，

全量和增量同步

先看Mysql表的關系
一個是主表：news 資訊文章表，表內容如下：
在這里插入圖片描述
一個是從表：custom_infomation 定制資訊表，與news 成一對多的關系，一條文章對應多條定制資訊，表內容如下：

描述：custom_information表中的item_id和news表中的id有關聯關系，

用JSON資料結構來描述一對多的關系，如下：

{
    "id":"15c7ee7a5dc411ea9bc2fa163e0c8256",
    "title":"“宅經濟”進入數字化時代",
    "source":"人民日報",
    "customList":[
        {
            "secondLevel":"32552",
            "isRelEnterprise":"0",
            "secondLevelName":"濟南",
            "moduleType":"1",
            "customName":"地區1",
            "firstLevel":"37200",
            "firstLevelName":"山東",
            "customId":"1",
            "detId":"1"
        },
        {
            "secondLevel":"222",
            "isRelEnterprise":"0",
            "secondLevelName":"林業1",
            "moduleType":"1",
            "customName":"行業1",
            "firstLevel":"11",
            "firstLevelName":"林業",
            "customId":"2",
            "detId":"3"
        }
    ]
}

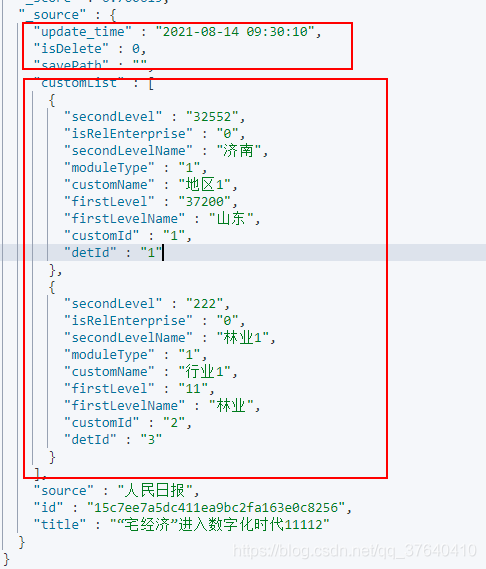

這里需要和Elasticsearch做映射關系，在Elasticsearch中也是一對多的關系，大致是這樣的結構，這里采用的是Elasticsearch中的nested型別來實作，
在這里插入圖片描述

創建所需索引（采用靜態mapping映射）

PUT app-article-link
{
  "mappings" : {
      "properties" : {
        "address" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            }
          }
        },
        "customList" : {
          "type" : "nested",
          "properties" : {
            "customId" : {
              "type" : "text",
              "fields" : {
                "keyword" : {
                  "type" : "keyword",
                  "ignore_above" : 256
                }
              }
            },
            "customName" : {
              "type" : "text",
              "fields" : {
                "keyword" : {
                  "type" : "keyword",
                  "ignore_above" : 256
                }
              }
            },
            "detId" : {
              "type" : "keyword"
            },
            "firstLevel" : {
              "type" : "keyword"
            },
            "firstLevelName" : {
              "type" : "text",
              "fields" : {
                "keyword" : {
                  "type" : "keyword",
                  "ignore_above" : 256
                }
              }
            },
            "isRelEnterprise" : {
              "type" : "keyword"
            },
            "moduleType" : {
              "type" : "keyword"
            },
            "secondLevel" : {
              "type" : "keyword"
            },
            "secondLevelName" : {
              "type" : "text",
              "fields" : {
                "keyword" : {
                  "type" : "keyword",
                  "ignore_above" : 256
                }
              }
            }
          }
        },
        "custom_list" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            }
          }
        },
        "detail" : {
          "type" : "text",
          "analyzer" : "ik_max_word",
          "search_analyzer" : "ik_smart"
        },
        "endTime" : {
          "type" : "keyword"
        },
        "id" : {
          "type" : "keyword"
        },
        "industryName" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            }
          }
        },
        "isDelete" : {
          "type" : "keyword"
        },
        "price" : {
          "type" : "keyword"
        },
        "publishDate" : {
          "type" : "keyword"
        },
        "relevanceType" : {
          "type" : "keyword"
        },
        "savePath" : {
          "type" : "keyword"
        },
        "source" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            },
            "suggest" : {
              "type" : "completion",
              "analyzer" : "simple",
              "preserve_separators" : true,
              "preserve_position_increments" : true,
              "max_input_length" : 50
            }
          },
          "analyzer" : "ik_max_word",
          "search_analyzer" : "ik_smart"
        },
        "startTime" : {
          "type" : "keyword"
        },
        "summary" : {
          "type" : "text",
          "analyzer" : "ik_max_word",
          "search_analyzer" : "ik_smart"
        },
        "techFieldName" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            }
          }
        },
        "title" : {
          "type" : "text",
          "fields" : {
            "keyword" : {
              "type" : "keyword",
              "ignore_above" : 256
            },
            "suggest" : {
              "type" : "completion",
              "analyzer" : "simple",
              "preserve_separators" : true,
              "preserve_position_increments" : true,
              "max_input_length" : 50
            }
          },
          "analyzer" : "ik_max_word",
          "search_analyzer" : "ik_smart"
        },
        "update_time" : {
          "type" : "keyword"
        },
        "videoStatus" : {
          "type" : "keyword"
        }
      }
    }
}

以下是Logstash 相關配置操作：
由于上面描述的資料庫表是一對多的關系，這里選擇先建立一個視圖，原因是會通過資料庫表的最新時間欄位來作為臨界點進行資料同步（關鍵點是找出主表和從表的最新時間點），視圖創建sql如下：

SELECT
        t.id,
        t.title,
        t.source,
        '8' AS relevanceType ,
        date_format( greatest( `t`.`update_time`, ifnull( `i`.`update_time`, '1970' )), '%Y-%m-%d %H:%i:%s' ) AS `update_time`

FROM
        `news` t
        LEFT JOIN custom_information i
        ON t.id=i.item_id
        AND i.is_delete='0'
        AND i.module_type='8'
WHERE
        t.state = '0'
        AND t.publish_status='3'
        AND t.relevance_type='2'

上面的update_time為兩表中的最新時間，

在logstash congf目錄下創建news.conf，內容如下：

input {
  jdbc {
    jdbc_driver_library => "/opt/apps/logstash/lib/mysql-connector-java-8.0.13.jar"
    jdbc_driver_class => "com.mysql.cj.jdbc.Driver"
    jdbc_connection_string => "jdbc:mysql://192.168.0.178:3306/test?characterEncoding=utf8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true"
    jdbc_user => "root"
    jdbc_password => "123456"
    connection_retry_attempts => "3"
    jdbc_validation_timeout => "3600"
    jdbc_paging_enabled => "true"
    jdbc_page_size => "500"
    statement_filepath => "/opt/apps/logstash/sql/news.sql"
    use_column_value => true
    lowercase_column_names => false
    tracking_column => "update_time"
    tracking_column_type => "timestamp"
    record_last_run => true
    last_run_metadata_path => "/opt/apps/logstash/station/news.txt"
    clean_run => false
    schedule => "*/5 * * * * *"
    type => "news"
  }
}

filter {

	aggregate {
		task_id => "%{id}"
		code => "
			map['id'] = event.get('id')
			map['title'] = event.get('title')
            map['source'] = event.get('source')
			map['custom_list'] ||=[]
			map['customList'] ||=[]
			if (event.get('detId') != nil)
				if !(map['custom_list'].include? event.get('detId'))
					map['custom_list'] << event.get('detId')
					map['customList'] << {
						'detId' => event.get('detId'),
						'moduleType' => event.get('moduleType'),
						'customId' => event.get('customId'),
                        'customName' => event.get('customName'),
                        'firstLevel' => event.get('firstLevel'),
                        'firstLevelName' => event.get('firstLevelName'),
                        'secondLevel' => event.get('secondLevel'),
                        'secondLevelName' => event.get('secondLevelName'),
                        'isRelEnterprise' => event.get('isRelEnterprise')
					}
				end
			end
			event.cancel()
		"

		push_previous_map_as_event => true
		timeout => 5
	}

  mutate {
  }
  mutate {
    remove_field => ["@timestamp","@version"]
  }
}

output {
  elasticsearch {
    document_id => "%{id}"
    document_type => "_doc"
    index => "app-article-link"
    hosts => ["http://192.168.0.178:9200"]
  }
  stdout{
    codec => rubydebug
  }
}

input{} 中
statement_filepath 為sql陳述句位置，
last_run_metadata_path 記錄最新時間位置，下次從這個時間點開始更新，
tracking_column 為更新的時間欄位，
schedule 執行的時間上述中每個五秒鐘執行一次，

執行的sql：

SELECT
	n.id,
	n.title,
	n.source
FROM
	news_view n
	order by n.update_time

編輯conf/pipelines.yml

[root@localhost config]# vi pipelines.yml

# List of pipelines to be loaded by Logstash
#
# This document must be a list of dictionaries/hashes, where the keys/values are pipeline settings.
# Default values for omitted settings are read from the `logstash.yml` file.
# When declaring multiple pipelines, each MUST have its own `pipeline.id`.
#
# Example of two pipelines:
#
# - pipeline.id: test
#   pipeline.workers: 1
#   pipeline.batch.size: 1
#   config.string: "input { generator {} } filter { sleep { time => 1 } } output { stdout { codec => dots } }"
# - pipeline.id: another_test
#   queue.type: persisted
#   path.config: "/tmp/logstash/*.config"
#
#- pipeline.id: news_table
#  path.config: /opt/apps/logstash/config/addmysql.conf
#- pipeline.id: news_table3
#  path.config: /opt/apps/logstash/config/addmysql3.conf
- pipeline.id: news
  path.config: /opt/apps/logstash/config/news.conf

執行./bin/logstash
[root@localhost logstash]# ./bin/logstash

kibana常用查詢
精確查詢

GET /app-article-link/_search
{
 "_source": ["id","title","source","customList","update_time","savePath","isDelete"],
  "query": {
    "bool": {
      "must": [
      { "match": { "id": "15c7ee7a5dc411ea9bc2fa163e0c8256" }}
      ]
}}}

nested查詢，mapping映射型別必須為nested

GET app-article-link/_search
{
  "query": {
    "bool": {
      "must": [
        {
          "nested": {
            "path": "customList",
            "query": {
              "bool": {
                "must": [
                  { "match": { "customList.customId": "1" }},
                   { "match": { "customList.secondLevel": "5552" }}
                ]
        }}}}
      ]
}}}

自動補全查詢，欄位型別必須為completion

GET app-article-link/_search
{
  "_source": ["source","title","detail"],
  "suggest": {
    "title_suggest": {
      "prefix": "國家知識產",
      "completion": {
        "field": "title.suggest",
        "size": 10,
        "skip_duplicates": true
      }
    }
  }
}

高亮查詢

GET app-article-link/_search
{

  "query": {
    "multi_match": {
      "query": "安徽",
      "fields": ["title"]
    }
  },
  "highlight": {
    "pre_tags": "<span class='highLight'>",
    "post_tags": "</span>",
    "fields": {
      "title": {}
    }
  }
}

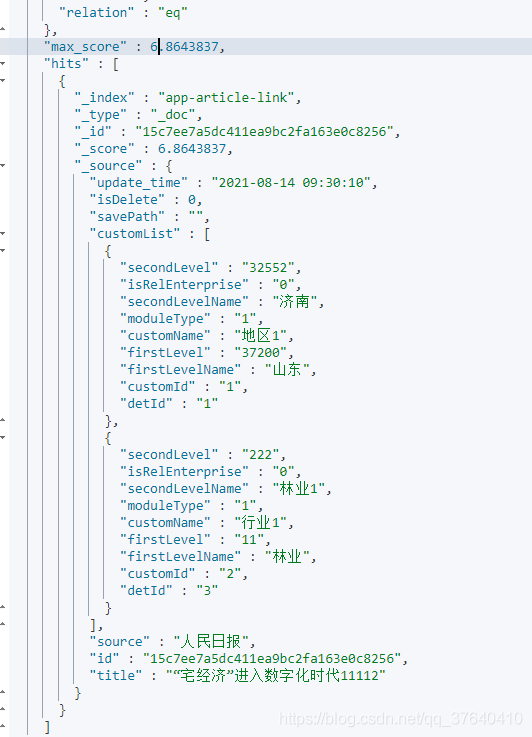

最終通過Logstash匯入的資料格式:
在這里插入圖片描述

SpringBoot集成Elasticearch

搭建的Elasticsearch為7.8.1版本，
引入依賴

<!-- es搜索 -->
<dependency>
    <groupId>org.elasticsearch.client</groupId>
    <artifactId>elasticsearch-rest-high-level-client</artifactId>
    <version>7.8.1</version>
</dependency>
<dependency>
    <groupId>org.elasticsearch</groupId>
    <artifactId>elasticsearch</artifactId>
    <version>7.8.1</version>
</dependency>
<dependency>
    <groupId>org.elasticsearch.client</groupId>
    <artifactId>elasticsearch-rest-client</artifactId>
    <version>7.8.1</version>
</dependency>

創建配置

@Configuration
public class ESConfig {

    private static String hosts = "192.168.0.178"; // 集群地址，多個用,隔開
    private static int port = 9200; // 使用的埠號
    private static String schema = "http"; // 使用的協議
    private static ArrayList<HttpHost> hostList = null;

    private static int connectTimeOut = 1000; // 連接超時時間
    private static int socketTimeOut = 30000; // 連接超時時間
    private static int connectionRequestTimeOut = 500; // 獲取連接的超時時間

    private static int maxConnectNum = 100; // 最大連接數
    private static int maxConnectPerRoute = 100; // 最大路由連接數
    static {
        hostList = new ArrayList<>();
        String[] hostStrs = hosts.split(",");
        for (String host : hostStrs) {
            hostList.add(new HttpHost(host, port, schema));
        }
    }
    @Bean
    public RestHighLevelClient restHighLevelClient(){
        RestClientBuilder builder = RestClient.builder(hostList.toArray(new HttpHost[0]));
        // 異步httpclient連接延時配置
        builder.setRequestConfigCallback(new RequestConfigCallback() {
            @Override
            public Builder customizeRequestConfig(Builder requestConfigBuilder) {
                requestConfigBuilder.setConnectTimeout(connectTimeOut);
                requestConfigBuilder.setSocketTimeout(socketTimeOut);
                requestConfigBuilder.setConnectionRequestTimeout(connectionRequestTimeOut);
                return requestConfigBuilder;
            }
        });
        // 異步httpclient連接數配置
        builder.setHttpClientConfigCallback(new HttpClientConfigCallback() {
            @Override
            public HttpAsyncClientBuilder customizeHttpClient(HttpAsyncClientBuilder httpClientBuilder) {
                httpClientBuilder.setMaxConnTotal(maxConnectNum);
                httpClientBuilder.setMaxConnPerRoute(maxConnectPerRoute);
                return httpClientBuilder;
            }
        });
        RestHighLevelClient client = new RestHighLevelClient(builder);
        return client;
    }
}

撰寫測驗
注入template

 @Autowired
    private RestHighLevelClient restHighLevelClient ;

高亮搜索

public ResultBody highlighted(@RequestParam(value = "key") String key,
                                  @RequestParam(value = "pageSize",defaultValue = "10") Integer pageSize,
                                  @RequestParam(value = "from",defaultValue = "1") Integer from) throws IOException {


        // 偏移量
        int offset = (from -1) * pageSize ;


        //定義索引庫
        SearchRequest searchRequest = new SearchRequest("app-article-link");

        SearchSourceBuilder searchSourceBuilder = new SearchSourceBuilder();

        // 創建查詢陳述句 ES中must和should不能同時使用 同時使用should失效 嵌套多個must 將should條件拼接在一個must中即可

        BoolQueryBuilder shouldQuery = QueryBuilders.boolQuery();

		// 行業
        /**if(industryList.size()>0) {
            for (Map<String,String> itemMap : industryList) {
                String customId = itemMap.get("customId");
                String firstLevel = itemMap.get("firstLevel");
                String secondLevel = itemMap.get("secondLevel");

                NestedQueryBuilder nestedQueryBuilder = QueryBuilders.nestedQuery("customList",
                        QueryBuilders.boolQuery().must(QueryBuilders.matchQuery("customList.customId.keyword", customId))
                                .must(QueryBuilders.matchQuery("customList.firstLevel",firstLevel))
                                .must(QueryBuilders.matchQuery("customList.secondLevel",secondLevel)),
                        ScoreMode.None);

                shouldQuery.should(nestedQueryBuilder);
            }
        }**/

        // 地區定位
        /**if(StringUtils.isNotBlank(areaCode)) {
            // nested 嵌套物件查詢
            NestedQueryBuilder nestedQueryBuilder = QueryBuilders.nestedQuery("customList",
                    QueryBuilders.boolQuery().must(QueryBuilders.matchQuery("customList.customId.keyword", "1"))
                            .must(QueryBuilders.matchQuery("customList.firstLevel",areaCode)),
                    ScoreMode.None);

            shouldQuery.should(nestedQueryBuilder);
        }**/

        BoolQueryBuilder boolQueryBuilder = QueryBuilders.boolQuery()
                .must(shouldQuery)
                .must(QueryBuilders.matchQuery("isDelete","0"));


        //boolQueryBuilder.mustNot(QueryBuilders.termsQuery("id",articleItemId));


		//List<String> customIdList = new ArrayList();
		//if(customIdList!=null && customIdList.size()>0) {
		//	boolQueryBuilder.mustNot(QueryBuilders.termsQuery("id",customIdList));
		//}

        // 如果有關鍵詞，添加關鍵詞
        if(StringUtils.isNotBlank(key)) {
            boolQueryBuilder.must(QueryBuilders.multiMatchQuery(key,"title","summary","detail" ));
        }

        //定義高亮查詢
        HighlightBuilder highlightBuilder = new HighlightBuilder();
        //設定需要高亮的欄位
        highlightBuilder.field("title")
                // 設定前綴、后綴
                .preTags("<font color='#ee1a1a'>")
                .postTags("</font>");
        searchSourceBuilder.query(boolQueryBuilder);
        searchSourceBuilder.highlighter(highlightBuilder);
        // 分頁
        searchSourceBuilder.from(offset);
        searchSourceBuilder.size(pageSize);
        // 按發布時間降序排序
        searchSourceBuilder.sort("publishDate", SortOrder.DESC);

        searchRequest.source(searchSourceBuilder);

        SearchResponse searchResponse = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);
        long total = searchResponse.getHits().getTotalHits().value;
        List<Map<String, Object>> list = Lists.newArrayList();


        //遍歷高亮結果
        for (SearchHit hit : searchResponse.getHits().getHits()) {
            Map<String, HighlightField> highlightFields = hit.getHighlightFields();
            HighlightField nameHighlight = highlightFields.get("title");
            Map<String, Object> sourceAsMap = hit.getSourceAsMap();
            // 拼接，覆寫原有值
            if (nameHighlight != null) {
                Text[] fragments = nameHighlight.getFragments();
                String title = "";
                for (Text text : fragments) {
                    title += text;
                }
                sourceAsMap.put("title", title);
            }
            // 初始值
            sourceAsMap.put("isRead","0");
            list.add(sourceAsMap);
        }

        // 構造回傳資料
        Map<String,Object> retMap = new HashMap<>();
        retMap.put("total",total);
        retMap.put("dataList",list);

        return ResultBody.ok().data(retMap);
    }

自動補全

public ResultBody getSearchSuggest(@RequestParam(value = "key") String key) throws IOException {

        if(StringUtils.isBlank(key)) {
            return ResultBody.ok();
        }

        CompletionSuggestionBuilder suggestion = SuggestBuilders
                .completionSuggestion("title.suggest").prefix(key).size(20).skipDuplicates(true);
        SuggestBuilder suggestBuilder = new SuggestBuilder();
        suggestBuilder.addSuggestion("suggest", suggestion);

        // source builder
        SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();
        sourceBuilder.suggest(suggestBuilder);

        SearchRequest searchRequest = new SearchRequest("app-article-link"); //索引
        searchRequest.source(sourceBuilder);

        SearchResponse response = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);
        Suggest suggest = response.getSuggest();

        Set<String> keywords = null;
        if (suggest != null) {
            keywords = new HashSet<>();
            List<? extends Suggest.Suggestion.Entry<? extends Suggest.Suggestion.Entry.Option>> entries = suggest.getSuggestion("suggest").getEntries();

            for (Suggest.Suggestion.Entry<? extends Suggest.Suggestion.Entry.Option> entry: entries) {
                for (Suggest.Suggestion.Entry.Option option: entry.getOptions()) {
                    // 最多回傳10個推薦，每個長度最大為50
                    String keyword = option.getText().string();
                    if (!StringUtils.isEmpty(keyword) && keyword.length() <= 50) {
                        // 去除輸入欄位
                        if (keyword.equals(key)) continue;
                        keywords.add(keyword);
                        if (keywords.size() >= 10) {
                            break;
                        }
                    }
                }
            }
        }
        return ResultBody.ok().data(keywords);
    }

歡迎交流！！！

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/293902.html

標籤：其他

上一篇：Zookeeper 持久化、序列化簡介

下一篇：運維實操——日志分析系統ELK（上）之elasticsearch
