Unity編輯器擴展——通用組件替換工具

在我們的專案程序中經常會遇到某個組件迭代的程序，那么在廢棄舊組件，替換新組件的時候，就可以使用一個通用組件替換工具完成一鍵替換的功能，

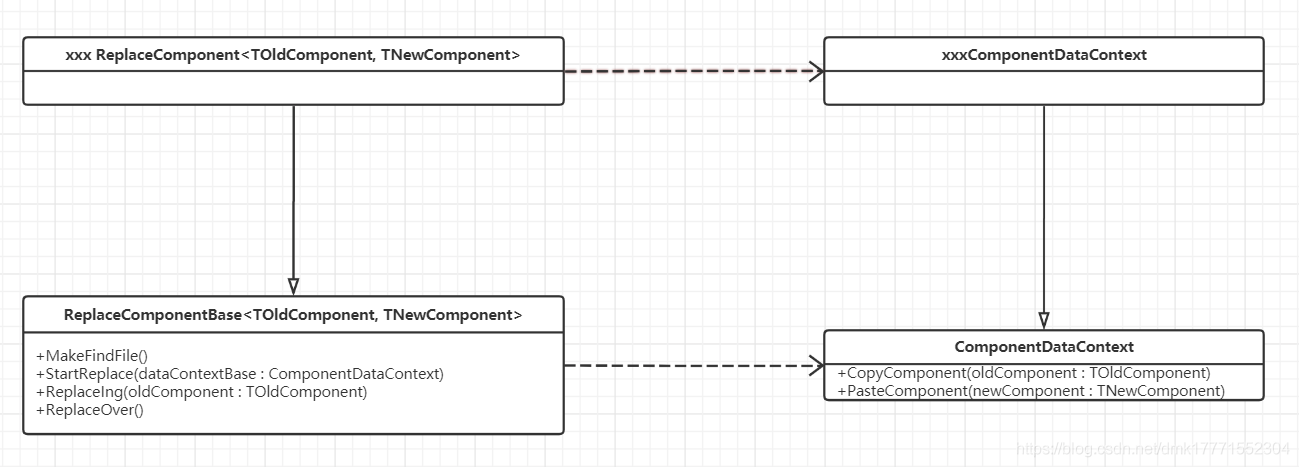

設計圖如下：

基類ReplaceComponentBase泛型類，將舊組件和新組件傳遞進去，

   public abstract class ReplaceComponentBase<TOldComponent, TNewComponent>
        where TOldComponent : Component
        where TNewComponent : Component

MakeFindFile方法是一個虛方法供派生類可重寫自己的查找方式，默認從預制體中進行查找，

        protected string[] _findFiles;

        protected virtual void MakeFindFile()
        {
            //收集所有預制資訊
            var extensions = new List<string>() {".prefab"};
            var files = Directory.GetFiles(Application.dataPath, "*.*", SearchOption.AllDirectories)
                .Where(s => extensions.Contains(Path.GetExtension(s)?.ToLower())).ToArray();

            _findFiles = Directory.GetFiles(Application.dataPath, "*.*", SearchOption.AllDirectories)
                .Where(s => extensions.Contains(Path.GetExtension(s)?.ToLower())).ToArray();
        }

StartReplace方法傳入資料背景關系，并打開進度條進行查找，

        protected virtual void StartReplace(ComponentDataContextBase dataContextBase)
        {
            _findComponentDict = new Dictionary<string, List<TOldComponent>>();
            _dataContextBase = dataContextBase;

            MakeFindFile();

            EditorUtilityHelp.ShowUpdate("正在查找", _findFiles.Length, (index) => { FindInPrefab(_findFiles[index]); },
                FindPrefabOver);
        }

ReplaceIng方法在替換程序中將舊的組件全部替換成新的組件，具體的資料操作交由ComponentDataContext子類實作，

        protected virtual void ReplaceIng(TOldComponent oldComponent)
        {
            var gameObject = oldComponent.gameObject;

            _dataContextBase.CopyComponent(oldComponent);

            Object.DestroyImmediate(oldComponent, true);

            var newComponent = gameObject.AddComponent<TNewComponent>();
            _dataContextBase.PasteComponent(newComponent);
        }

ReplaceOver在替換完成時呼叫，通常列印相關的替換資訊，

        protected virtual void ReplaceOver()
        {
            foreach (var item in _findComponentDict)
            {
                GameObject prefab = LoadGameObjectByGuid(item.Key, out var prefabPath);
                Debug.Log($"Replace Prefab {prefab.name}  {prefabPath}  ComponentsLength {item.Value.Count}", prefab);
            }
        }

ComponentDataContextBase這個類提供兩個抽象方法供子類重寫，主要完成對資料的賦值和粘貼操作，

    public abstract class ComponentDataContextBase
    {
        public abstract void CopyComponent<TOldComponent>(TOldComponent oldComponent) where TOldComponent : Component;
        public abstract void PasteComponent<TNewComponent>(TNewComponent newComponent) where TNewComponent : Component;
    }

對于實際的應用類，例如我們需要將Test1換成Test2組件的話，testData和nameData為這兩個腳本中公用的資料，那么對應的兩個類分別為：

    public class TestScriptComponentDataContext : ComponentDataContextBase
    {
        public object testData;

        public object nameData;

        private static BindingFlags _flags = BindingFlags.Public | BindingFlags.NonPublic | BindingFlags.Instance;

        public override void CopyComponent<TOldComponent>(TOldComponent oldComponent)
        {
            var test1Script = oldComponent as Test1;
            testData = typeof(Test1).GetField("TestData1", _flags)?.GetValue(test1Script);
            nameData = typeof(Test1).GetField("Name", _flags)?.GetValue(test1Script);
        }

        public override void PasteComponent<TNewComponent>(TNewComponent newComponent)
        {
            var test2Script = newComponent as Test2;

            typeof(Test2).GetField("TestData1", _flags)?.SetValue(test2Script,testData);
            typeof(Test2).GetField("Name", _flags)?.SetValue(test2Script,nameData);
        }
    }

    public class TestScriptReplaceComponent : ReplaceComponentBase<Test1,Test2>
    {
        public void StartReplaceTestScript()
        {
            StartReplace(new TestScriptComponentDataContext());
        }
    }
