案例：視頻物體檢測測驗
- 1. 案例結構目錄
- 2. 案例效果演示
- 3. 步驟分析
- 4. 代碼實作
- 5. 呼叫視頻預測
- 6. 完整代碼

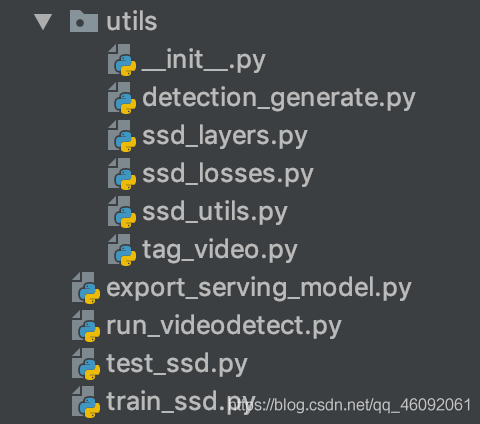

1. 案例結構目錄

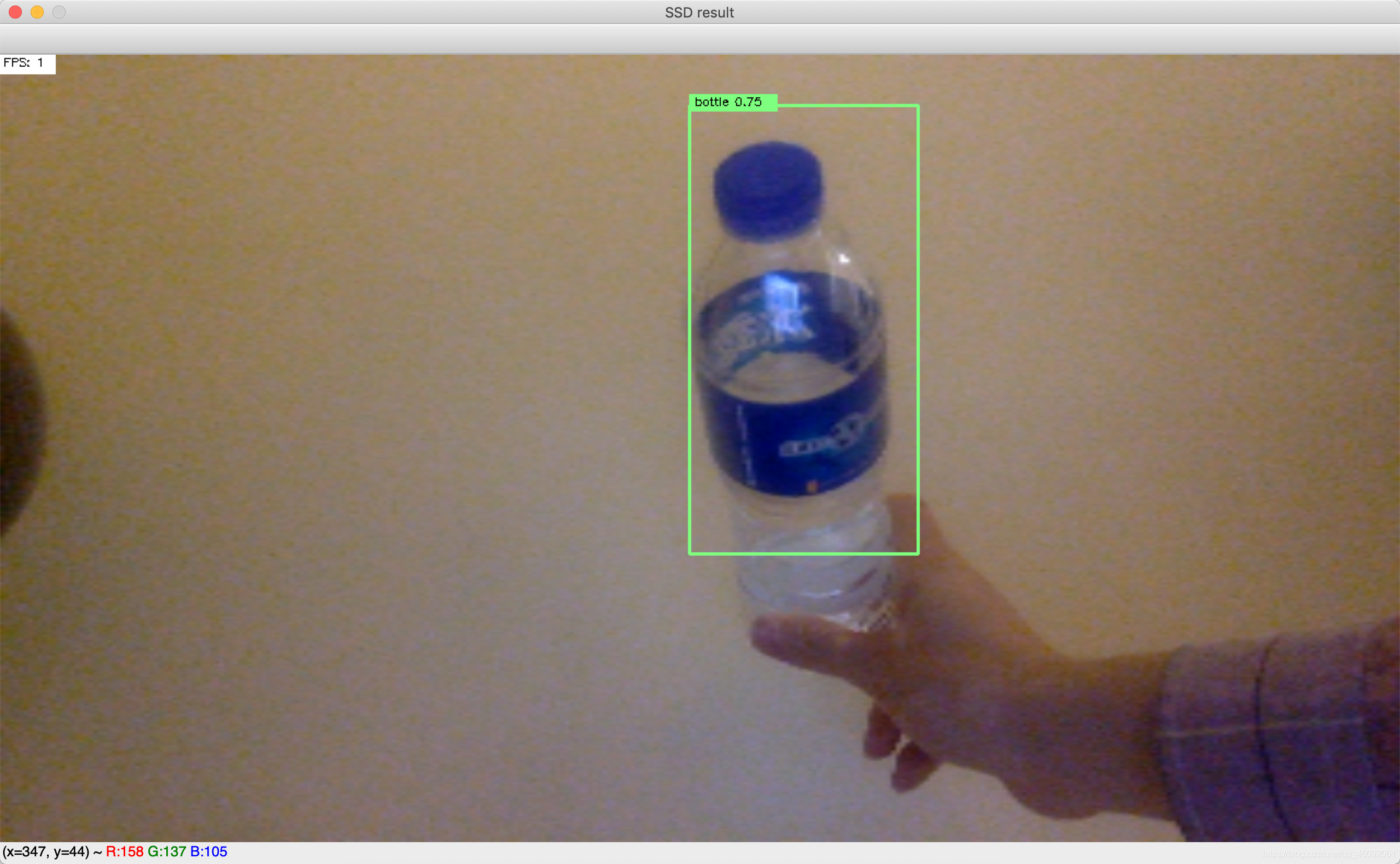

2. 案例效果演示
3. 步驟分析
- 配置獲取相關預測資料類別，網路引數
- 獲取攝像頭視頻
- 獲取攝像每幀資料，進行格式形狀處理
- 模型預測、結果NMS過濾
- 畫圖：顯示物體位置，FPS值（每秒幀數）
4. 代碼實作
匯入相關包
import cv2
import keras
from keras.applications.imagenet_utils import preprocess_input
from keras.backend.tensorflow_backend import set_session
from keras.models import Model
from keras.preprocessing import image
import pickle
import numpy as np
from random import shuffle
from scipy.misc import imread, imresize
from timeit import default_timer as timer
from utils.ssd_utils import BBoxUtility
- 1、配置獲取相關預測資料類別，網路引數
class VideoTag(object):
"""
"""
def __init__(self, class_names, model, input_shape):
# 獲取
self.class_names = class_names
self.num_classes = len(class_names)
self.model = model
self.input_shape = input_shape
self.bbox_util = BBoxUtility(self.num_classes)
- 2、獲取攝像頭視頻
def run(self, video_path=0, conf_thresh=0.6):
"""運行測驗
"""
vid = cv2.VideoCapture(video_path)
if not vid.isOpened():
raise IOError(("找不到對應的視頻或者攝像頭"))
- 3、獲取攝像每幀資料，進行格式形狀處理
# 獲取視頻或者攝像頭內容
while True:
retval, orig_image = cap.read()
if not retval:
print("視頻檢測結束!")
return
source_image = np.copy(orig_image)
# 進行輸入每幀資料形狀修改以及圖片的格式修改BGR--->RGB
im_size = (self.input_shape[0], self.input_shape[1])
resized = cv2.resize(orig_image, im_size)
rgb = cv2.cvtColor(resized, cv2.COLOR_BGR2RGB)
# 將資料轉換成原始需要畫出的圖片
to_draw = cv2.resize(resized, (int(source_image.shape[1]), int(source_image.shape[0])))
- 4、模型預測、結果NMS過濾
# 使用模型進行每幀資料預測
inputs = [image.img_to_array(rgb)]
tmp_inp = np.array(inputs)
x = preprocess_input(tmp_inp)
y = self.model.predict(x)
# 對預測結果進行NMS過濾
results = self.bbox_util.detection_out(y)
- 5、畫圖顯示
- 畫出物體位置，給定固定閾值
# 畫圖顯示
if len(results) > 0 and len(results[0]) > 0:
# 獲取每個框的位置以及類別概率
det_label = results[0][:, 0]
det_conf = results[0][:, 1]
det_xmin = results[0][:, 2]
det_ymin = results[0][:, 3]
det_xmax = results[0][:, 4]
det_ymax = results[0][:, 5]
# 過濾概率小的
top_indices = [i for i, conf in enumerate(det_conf) if conf >= conf_thresh]
top_conf = det_conf[top_indices]
top_label_indices = det_label[top_indices].tolist()
top_xmin = det_xmin[top_indices]
top_ymin = det_ymin[top_indices]
top_xmax = det_xmax[top_indices]
top_ymax = det_ymax[top_indices]
for i in range(top_conf.shape[0]):
xmin = int(round(top_xmin[i] * to_draw.shape[1]))
ymin = int(round(top_ymin[i] * to_draw.shape[0]))
xmax = int(round(top_xmax[i] * to_draw.shape[1]))
ymax = int(round(top_ymax[i] * to_draw.shape[0]))
# 對于四個坐標物體框進行畫圖顯示
class_num = int(top_label_indices[i])
cv2.rectangle(to_draw, (xmin, ymin), (xmax, ymax),
self.class_colors[class_num], 2)
text = self.class_names[class_num] + " " + ('%.2f' % top_conf[i])
# 文本框進行設定顯示
text_top = (xmin, ymin - 10)
text_bot = (xmin + 80, ymin + 5)
text_pos = (xmin + 5, ymin)
cv2.rectangle(to_draw, text_top, text_bot, self.class_colors[class_num], -1)
cv2.putText(to_draw, text, text_pos, cv2.FONT_HERSHEY_SIMPLEX, 0.35, (0, 0, 0), 1)
- 顯示FPS引數
# 計算 FPS顯示
fps = "FPS: " + str(cap.get(cv2.CAP_PROP_FPS))
# 畫出FPS
cv2.rectangle(to_draw, (0, 0), (50, 17), (255, 255, 255), -1)
cv2.putText(to_draw, fps, (3, 10), cv2.FONT_HERSHEY_SIMPLEX, 0.35, (0, 0, 0), 1)
- 顯示圖片
# 顯示圖片
cv2.imshow("SSD result", to_draw)
cv2.waitKey(1)
# 釋放capture資源
cap.release()
cv2.destroyAllWindows()
5. 呼叫視頻預測
import sys
import keras
from utils.tag_video import VideoTag
from nets.ssd_net import SSD300
def main():
input_shape = (300, 300, 3)
# 資料集的配置
class_names = ["background", "aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow",
"diningtable", "dog", "horse", "motorbike", "person", "pottedplant", "sheep", "sofa", "train",
"tvmonitor"]
NUM_CLASSES = len(class_names)
model = SSD300(input_shape, num_classes=NUM_CLASSES)
# 加載模型
model.load_weights('./ckpt/pre_trained/weights_SSD300.hdf5')
vid_test = VideoTag(class_names, model, input_shape)
vid_test.run(0)
if __name__ == '__main__':
main()

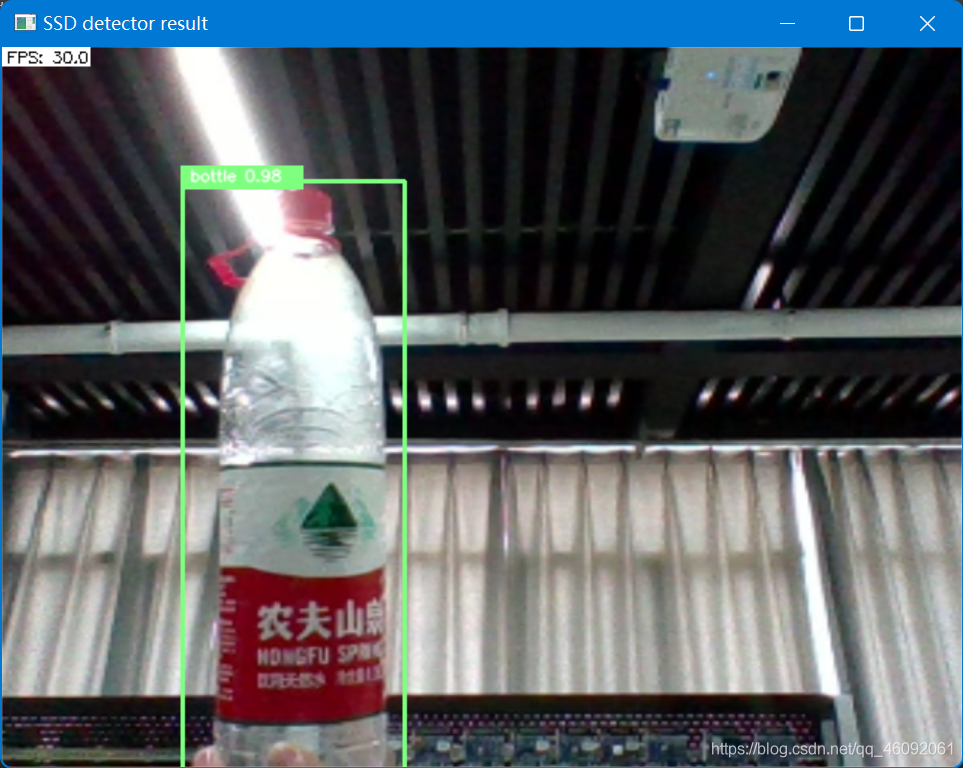

6. 完整代碼
"""
配置獲取相關預測資料類別，網路引數
獲取攝像頭視頻
獲取攝像每幀資料，進行格式形狀處理
模型預測、結果NMS過濾
畫圖：顯示物體位置，FPS值（每秒幀數）
"""
from tensorflow.python.keras.preprocessing.image import img_to_array
from tensorflow.python.keras.applications.imagenet_utils import preprocess_input
from computerVision.utils.ssd_utils import BBoxUtility
import cv2
import numpy as np
class VideoTag(object):
def __init__(self, model, input_shape, num_classes):
self.model = model
self.input_shape = input_shape
self.num_classes = num_classes
self.bbox_util = BBoxUtility(num_classes=self.num_classes)
self.class_names = ["background", "aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow",
"diningtable", "dog", "horse", "motorbike", "person", "pottedplant", "sheep", "sofa", "train",
"tvmonitor"]
# 創建不同類別20種顯示的顏色型別
self.class_colors = []
for i in range(0, self.num_classes):
hue = 255 * i / self.num_classes
col = np.zeros((1, 1, 3)).astype('uint8')
col[0][0][0] = hue
col[0][0][1] = 128
col[0][0][2] = 255
cvcol = cv2.cvtColor(col, cv2.COLOR_HSV2BGR)
col = (int(cvcol[0][0][0]), int(cvcol[0][0][1]), int(cvcol[0][0][2]))
self.class_colors.append(col)
def run(self, file_path, conf_thresh=0.6):
"""
運行捕捉攝像頭，每一幀圖片資料，進行預測，標記顯示
:return:
"""
# 獲取攝像頭視頻
cap = cv2.VideoCapture(file_path)
if not cap.isOpened():
raise IOError(('打開本地視頻或者攝像頭失敗！'))
# 獲取攝像每幀資料，進行格式形狀處理
while True:
ret, orig_image = cap.read()
if not ret:
print('視頻檢測結束!')
return
# 對每一幀視頻中的圖片或者攝像頭捕捉的圖片，進行大小改變（300，300）
# BGR-->RGB
source_image = np.copy(orig_image)
resized = cv2.resize(orig_image, (self.input_shape[0], self.input_shape[1]))
# 顏色改變
rgb = cv2.cvtColor(resized, cv2.COLOR_BGR2RGB)
# 保留原始圖片資料
# print(source_image.shape)
to_draw = cv2.resize(resized, (int(source_image.shape[1]), int(source_image.shape[0])))
# 模型預測、結果NMS過濾
# 3維-->4維：preprocess_input
inputs = [img_to_array(rgb)]
x = preprocess_input(np.array(inputs))
y = self.model.predict(x)
# 進行NMS過濾
results = self.bbox_util.detection_out(y)
print(results[0].shape)
# 畫圖：顯示物體位置，FPS值（每秒幀數）
if len(results) > 0 and len(results[0]) > 0:
# 獲取每個框的位置以及類別概率
det_label = results[0][:, 0]
det_conf = results[0][:, 1]
det_xmin = results[0][:, 2]
det_ymin = results[0][:, 3]
det_xmax = results[0][:, 4]
det_ymax = results[0][:, 5]
# 過濾概率小的下標
top_indices = [i for i, conf in enumerate(det_conf) if conf >= conf_thresh]
top_conf = det_conf[top_indices]
top_label_indices = det_label[top_indices].tolist() # 這些方框中有哪些類別（下標）
top_xmin = det_xmin[top_indices]
top_ymin = det_ymin[top_indices]
top_xmax = det_xmax[top_indices]
top_ymax = det_ymax[top_indices]
for i in range(top_conf.shape[0]): # 讀取圖片中物體數
xmin = int(round(top_xmin[i] * to_draw.shape[1]))
ymin = int(round(top_ymin[i] * to_draw.shape[0]))
xmax = int(round(top_xmax[i] * to_draw.shape[1]))
ymax = int(round(top_ymax[i] * to_draw.shape[1]))
class_num = int(top_label_indices[i])
print('該幀圖片檢測到{}物體，索引為{}'.format(i, class_num))
# 畫出這一幀中所有物體框的位置
cv2.rectangle(to_draw, (xmin, ymin), (xmax, ymax), self.class_colors[class_num], 2)
# 畫出文本框
text = self.class_names[class_num] + ' ' + ('%.2f' % (top_conf[i]))
# 矩形框
text_top = (xmin - 1, ymin - 10)
text_bot = (xmin + 80, ymin + 5)
text_pos = (xmin + 5, ymin)
cv2.rectangle(to_draw, text_top, text_bot, self.class_colors[class_num], -1) # 矩形填充
cv2.putText(to_draw, text, text_pos, cv2.FONT_HERSHEY_SIMPLEX, 0.35, (255, 255, 255), 1, cv2.LINE_AA)
# 計算 FPS顯示
fps = 'FPS: ' + str(cap.get(cv2.CAP_PROP_FPS))
# 畫出FPS
cv2.rectangle(to_draw, (0, 0), (58, 12), (255, 255, 255), -1)
cv2.putText(to_draw, fps, (3, 10), cv2.FONT_HERSHEY_SIMPLEX, 0.35, (0, 0, 0), 1)
# 顯示當前圖片
cv2.imshow('SSD detector result', to_draw)
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 釋放資源關閉視窗
cap.release()
cv2.destroyAllWindows()
return None
if __name__ == '__main__':
input_shape = (300, 300, 3)
# 資料集的配置
class_names = ["background", "aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow",
"diningtable", "dog", "horse", "motorbike", "person", "pottedplant", "sheep", "sofa", "train",
"tvmonitor"]
model = SSD300(input_shape, num_classes=len(class_names))
# 加載已訓練好的模型
model.load_weights("./ckpt/pre_trained/weights_SSD300.hdf5", by_name=True)
vt = VideoTag(model, input_shape, len(class_names)) # len(class_names)：傳入類比數
vt.run(0)
