涂鴉智能 ① tuya-wifi-mcu-sdk-arduino-library 簡單剖析

1、簡介

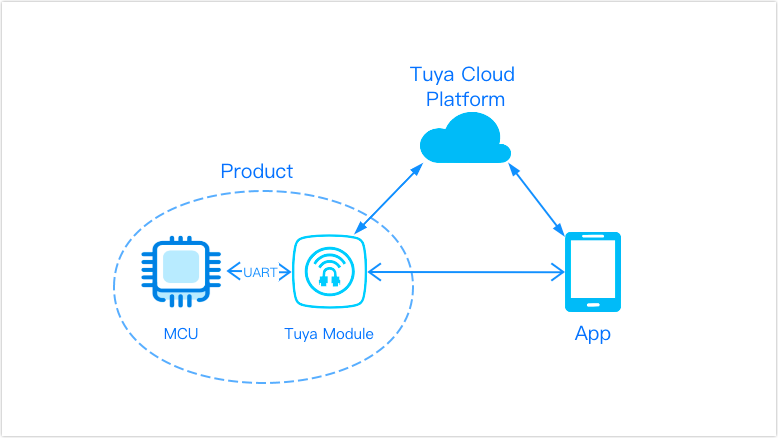

Tuya MCU SDK Arduino Library 基于涂鴉Wi-Fi 通用對接方案進行開發的，設備 MCU 通過串口與 Wi-Fi 模組連接實作設備聯網，涂鴉模組中的韌體應為通用韌體，通用韌體支持9600，115200兩種波特率自適應，

注意點：

• Arduino板子 + 涂鴉模塊的開發方式，據說后期可以單獨模塊開發，
• 串口通信

2、配置Arduino環境

2.1 下載Arduino sdk

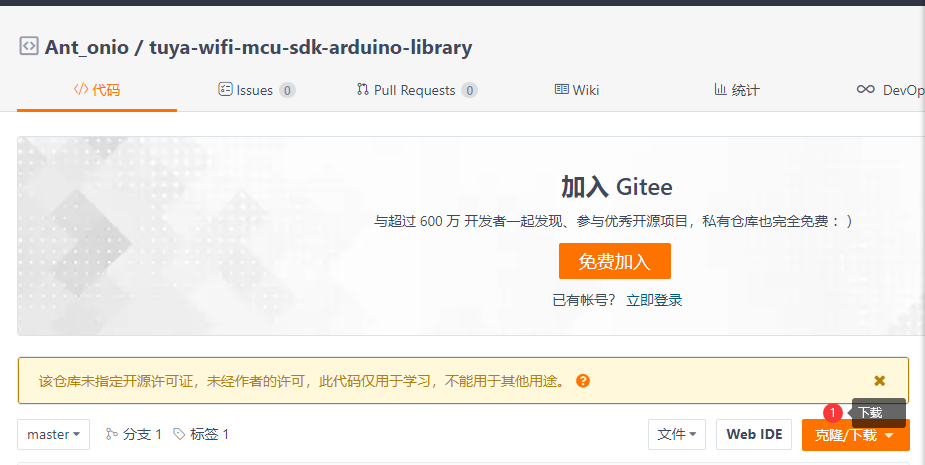

• 方式一：

https://gitee.com/ant_onio/tuya-wifi-mcu-sdk-arduino-library 點擊下載

解壓到自己的電腦路徑（此電腦->檔案->Arduino->libraries）

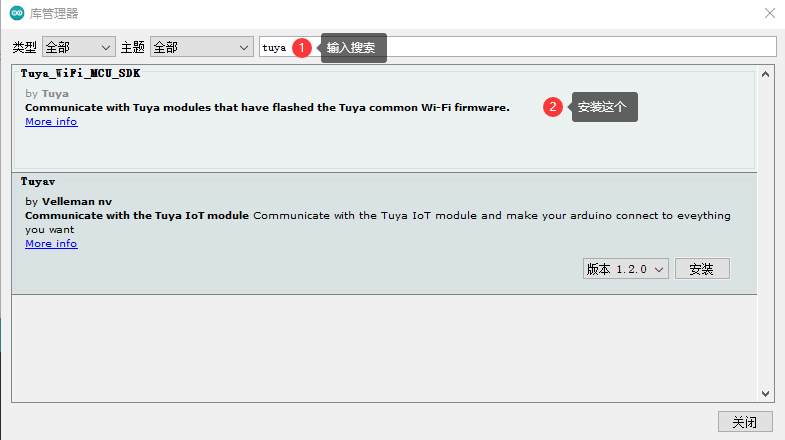

• 方式二（推薦）：

Arduino IDE -> 工具 -> 管理庫 -> 搜索 tuya-> 安裝最新版本

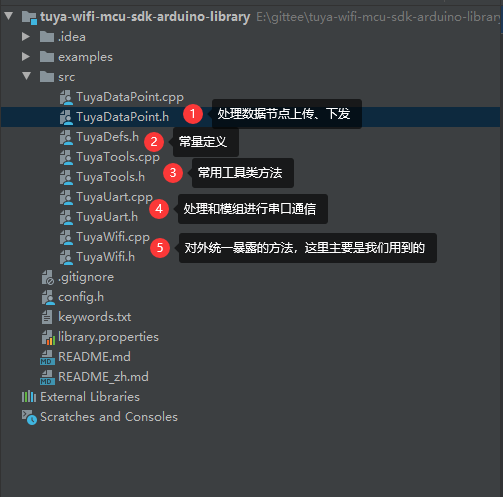

3、剖析SDK

記住一點，這種方式是mcu + module 串口通信開發方式

簡單來說，肯定資料是不斷處理串口通信，那么從另外一個點來說就是模組已經內置了串口協議資料處理邏輯，

博哥大概代碼看了一下：

3.1 TuyaUart —— 處理和模組進行串口通信（了解即可）

class TuyaUart
{
public:
    // 主要是定義串口通信buffer快取大小
    volatile unsigned char wifi_uart_rx_buf[PROTOCOL_HEAD + WIFI_UART_RECV_BUF_LMT];     //Serial data processing buffer
    volatile unsigned char wifi_uart_tx_buf[PROTOCOL_HEAD + WIFIR_UART_SEND_BUF_LMT];    //Serial receive buffer
    volatile unsigned char wifi_data_process_buf[PROTOCOL_HEAD + WIFI_DATA_PROCESS_LMT]; //Serial port send buffer

    TuyaUart(void);
    ~TuyaUart(void);
    void wifi_protocol_init(void);

    //  接收資料
    unsigned char uart_receive_input(unsigned char data);
    void uart_receive_buff_input(unsigned char value[], unsigned short data_len);
    unsigned char take_byte_rxbuff(void);
    unsigned char with_data_rxbuff(void);

    // 傳輸發送資料
    void uart_transmit_output(unsigned char value);
    void wifi_uart_write_data(unsigned char *in, unsigned short len);
    void wifi_uart_write_frame(unsigned char fr_type, unsigned char fr_ver, unsigned short len);
    unsigned short set_wifi_uart_byte(unsigned short dest, unsigned char byte);
    unsigned short set_wifi_uart_buffer(unsigned short dest, const unsigned char *src, unsigned short len);

    /* serial set */
    bool _isHWSerial;

    //  串口設定
    void set_serial(HardwareSerial *serial);
    void set_serial(SoftwareSerial *serial);
    void begin(long baud_rate);
    char read(void);
    size_t write(char value);
    int available(void);

private:
    volatile unsigned char *rx_buf_in;
    volatile unsigned char *rx_buf_out;
    Stream *_port;
};

3.2 TuyaTools —— 工具類方法（了解即可）

class TuyaTools
{
public:
    TuyaTools(void);
    ~TuyaTools(void);

    unsigned char hex_to_bcd(unsigned char Value_H, unsigned char Value_L);
    // 計算字串長度
    unsigned long my_strlen(unsigned char *str);
    // 設定字串
    void *my_memset(void *src, unsigned char ch, unsigned short count);
    // 記憶體拷貝
    void *my_memcpy(void *dest, const void *src, unsigned short count);
    // 字串拷貝
    char *my_strcpy(char *dest, const char *src);
    // 字串對比
    int my_strcmp(char *s1, char *s2);
    // int 轉位元組陣列
    void int_to_byte(unsigned long number, unsigned char value[4]);
    // 位元組陣列 轉int
    unsigned long byte_to_int(const unsigned char value[4]);
    unsigned char get_check_sum(unsigned char *pack, unsigned short pack_len);

private:
};

3.3 TuyaDataPoint —— 處理資料節點（上傳、下發）

class TuyaDataPoint
{
public:
    // TuyaDataPoint(void);
    // ~TuyaDataPoint(void);
    // 下發節點資料
    unsigned char mcu_get_dp_download_bool(const unsigned char value[], unsigned short len);
    unsigned char mcu_get_dp_download_enum(const unsigned char value[], unsigned short len);
    unsigned long mcu_get_dp_download_value(const unsigned char value[], unsigned short len);

    // 上報節點資料
    unsigned char mcu_dp_raw_update(unsigned char dpid, const unsigned char value[], unsigned short len);
    unsigned char mcu_dp_bool_update(unsigned char dpid, unsigned char value);
    unsigned char mcu_dp_value_update(unsigned char dpid, unsigned long value);
    unsigned char mcu_dp_string_update(unsigned char dpid, const unsigned char value[], unsigned short len);
    unsigned char mcu_dp_enum_update(unsigned char dpid, unsigned char value);
    unsigned char mcu_dp_fault_update(unsigned char dpid, unsigned long value);

private:
};

注意區分一下資料型別，
DP為 Data Point 的縮寫，即資料點，偶爾被稱為 DP 點，表示智能設備所具備的功能點，

• 涂鴉智能將每個功能點抽象成資料點，資料點定義成不同的型別，例如布爾、列舉、數值等，
• 資料點具備讀寫屬性，例如，一個兩路的開關，可以抽象成兩個資料點，每個資料點型別為布爾型，可取值為 True 或 False，
• 資料點可讀寫，讀表示獲取開關目前的值，寫表示改變開關目前的值，

DPID:指定通信協議下 DP 事件的 ID，

節點型別：

#define DP_TYPE_RAW     0x00    //RAW type
#define DP_TYPE_BOOL    0x01    //bool type
#define DP_TYPE_VALUE   0x02    //value type
#define DP_TYPE_STRING  0x03    //string type
#define DP_TYPE_ENUM    0x04    //enum type
#define DP_TYPE_BITMAP  0x05    //fault type

3.4 TuyaWifi —— 處理wifi網路相關操作，重點內容

在Arduino中使用該庫進行編程開發時，必須在你的Arduino工程檔案中包含 TuyaWifi.h 頭檔案，

一般很多sdk的開發方式都是：

• 1、創建物件 構造方法
• 2、初始化 init
• 3、回呼配置、資訊注冊 register、callbackHandler
• 4、不斷輪詢處理回應

3.4.1 unsigned char TuyaWifi::init(unsigned char *pid, unsigned char *mcu_ver) —— 初始化

PID通過在 Tuya IoT平臺 上創建產品獲取，wifi類的長度一般為16，mcu_ver 這個引數是軟體的版本號，

3.4.2 void set_dp_cmd_total(unsigned char download_cmd_array[][2], unsigned char download_cmd_num) —— 配置節點

在Tuya IoT平臺創建產品，獲取產品DP點資訊，

DP為 Data Point 的縮寫，即資料點，偶爾被稱為 DP 點，表示智能設備所具備的功能點，

• 涂鴉智能將每個功能點抽象成資料點，資料點定義成不同的型別，例如布爾、列舉、數值等，
• 資料點具備讀寫屬性，例如，一個兩路的開關，可以抽象成兩個資料點，每個資料點型別為布爾型，可取值為 True 或 False，
• 資料點可讀寫，讀表示獲取開關目前的值，寫表示改變開關目前的值，

DPID:指定通信協議下 DP 事件的 ID，

MCU SDK需要知道你創建了哪些DP點，他們是什么型別的，

3.4.3 void mcu_set_wifi_mode(unsigned char mode) —— 配網模式

/**
 * @description: MCU set wifi working mode
 * @param {unsigned char} mode : enter mode
 *                               0(SMART_CONFIG):enter smartconfig mode
 *                               1(AP_CONFIG):enter AP mode
 * @return {*}
 */
void TuyaWifi::mcu_set_wifi_mode(unsigned char mode);

3.4.4 void dp_process_func_register(tuya_callback_dp_download _func) —— 下發回呼注冊

當APP控制設備的時候，會從云端下發對應的DP命令到設備，設備對資料進行決議后，對下發的命令執行相對于的動作，

對下發命令的處理，通過回呼函式來呼叫，所以我們需要把你的處理函式注冊一下，

偽代碼：

//register DP download processing callback function
  my_device.dp_process_func_register(dp_process);

/**
 * @description: DP download callback function.
 * @param {unsigned char} dpid
 * @param {const unsigned char} value
 * @param {unsigned short} length
 * @return {unsigned char}
 */
unsigned char dp_process(unsigned char dpid, const unsigned char value[], unsigned short length)
{
    switch (dpid) {
        case DPID_BOOL:
            DebugSerial.println("Bool type:");
            dp_bool_value = my_device.mcu_get_dp_download_data(dpid, value, length);
            DebugSerial.println(dp_bool_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_BOOL, dp_bool_value, 1);
        break;

        case DPID_VALUE:
            DebugSerial.println("Value type:");
            dp_value_value = my_device.mcu_get_dp_download_data(DPID_VALUE, value, length);
            DebugSerial.println(dp_value_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_VALUE, dp_value_value, 1);
        break;

        case DPID_ENUM:
            DebugSerial.println("Enum type:");
            dp_enum_value = my_device.mcu_get_dp_download_data(dpid, value, length);
            DebugSerial.println(dp_enum_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_ENUM, dp_enum_value, 1);
        break;

        case DPID_STRING:
            DebugSerial.println("String type:");
            /*  */
            for (unsigned int i=0; i<length; i++) {
                dp_string_value[i] = value[i];
                DebugSerial.write(dp_string_value[i]);
            }
            DebugSerial.println("");
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_STRING, dp_string_value, length);
        break;

        case DPID_RAW:
            DebugSerial.println("Raw type:");
            /*  */
            for (unsigned int i=0; i<length; i++) {
                dp_raw_value[i] = value[i];
                DebugSerial.write(dp_raw_value[i]);
            }
            DebugSerial.println("");
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_RAW, dp_raw_value, length);
        break;

        default:
            break;
    }

    return SUCCESS;
}

這里得注意一個方法：

mcu_get_dp_download_data  （`下發DP資料處理`）

對位元組陣列進行資料決議，

3.4.5 mcu_dp_update —— 真正上報設備狀態

    /* char * */
    unsigned char mcu_dp_update(unsigned char dpid, const unsigned char value[], unsigned short len); /* char raw */
    /* unsigned long / long */
    unsigned char mcu_dp_update(unsigned char dpid, unsigned long value, unsigned short len);
    unsigned char mcu_dp_update(unsigned char dpid, long value, unsigned short len);
    /* unsigned char / char */
    unsigned char mcu_dp_update(unsigned char dpid, unsigned char value, unsigned short len);
    unsigned char mcu_dp_update(unsigned char dpid, char value, unsigned short len);
    /* unsigned int / int */
    unsigned char mcu_dp_update(unsigned char dpid, unsigned int value, unsigned short len);
    unsigned char mcu_dp_update(unsigned char dpid, int value, unsigned short len);

基本上大同小異，注意一下dpid和資料型別即可，

3.4.6 dp_update_all_func_register —— 上報設備狀態函式注冊

#include <TuyaWifi.h>

TuyaWifi my_device;

#define DPID_SWITCH 20
//Record the current status of the led
unsigned char switch_value = 0;
...
void setup()
{
    ...
  //register DP download processing callback function
  my_device.dp_update_all_func_register(dp_update_all);
    ...
}

/**
 * @description: Upload all DP status of the current device.
 * @param {*}
 * @return {*}
 */
void dp_update_all(void)
{
  my_device.mcu_dp_update(DPID_SWITCH, switch_v

3.4.7 mcu_get_wifi_work_state —— 獲取wifi連接狀態

3.4.8 void TuyaWifi::uart_service(void) —— 輪詢串口資料

/**
 * @description: Wifi serial port processing service
 * @param {*}
 * @return {*}
 */
void TuyaWifi::uart_service(void)

在arduino loop中呼叫，不斷檢測串口資料，

4、官方案例

/*
 * @FileName: DataPointType.ino
 * @Author: Tuya
 * @Email:
 * @LastEditors: Tuya
 * @Date: 2021-04-19 14:31:52
 * @LastEditTime: 2021-04-28 19:47:36
 * @Copyright: HANGZHOU TUYA INFORMATION TECHNOLOGY CO.,LTD
 * @Company: http://www.tuya.com
 * @Description:
 * @Github:https://github.com/tuya/tuya-wifi-mcu-sdk-arduino-library
 */

#include <TuyaWifi.h>
#include <SoftwareSerial.h>

TuyaWifi my_device;
SoftwareSerial DebugSerial(8,9);

/* Current LED status */
unsigned char led_state = 0;
/* Connect network button pin */
int wifi_key_pin = 7;

/* Data point define */
#define DPID_BOOL   101
#define DPID_VALUE  102
#define DPID_ENUM   103
#define DPID_STRING 104
#define DPID_RAW    105
#define DPID_FAULT  106

/* Current device DP values */
unsigned char dp_bool_value = 0;
long dp_value_value = 0;
unsigned char dp_enum_value = 0;
unsigned char dp_string_value[8] = {"Hi,Tuya"};
unsigned char dp_raw_value[8] = {0x01, 0x23, 0x45, 0x67, 0x89, 0xab, 0xcd, 0xef};
int dp_fault_value = 0x01;

/* Stores all DPs and their types. PS: array[][0]:dpid, array[][1]:dp type.
 *                                     dp type(TuyaDefs.h) : DP_TYPE_RAW, DP_TYPE_BOOL, DP_TYPE_VALUE, DP_TYPE_STRING, DP_TYPE_ENUM, DP_TYPE_BITMAP
*/
unsigned char dp_array[][2] = {
    {DPID_BOOL, DP_TYPE_BOOL},
    {DPID_VALUE, DP_TYPE_VALUE},
    {DPID_ENUM, DP_TYPE_ENUM},
    {DPID_STRING, DP_TYPE_STRING},
    {DPID_RAW, DP_TYPE_RAW},
    {DPID_FAULT, DP_TYPE_BITMAP},
};

unsigned char pid[] = {"xxxxxxxxxxx"}; //  填上自己的產品ID
unsigned char mcu_ver[] = {"1.0.0"};

/* last time */
unsigned long last_time = 0;

void setup()
{
    Serial.begin(9600);
    DebugSerial.begin(9600);

    //Initialize led port, turn off led.
    pinMode(LED_BUILTIN, OUTPUT);
    digitalWrite(LED_BUILTIN, LOW);

    //Initialize networking keys.
    pinMode(wifi_key_pin, INPUT_PULLUP);

    // 三部曲 —— 初始化、配置、注冊回呼
    //Enter the PID and MCU software version
    my_device.init(pid, mcu_ver);
    //incoming all DPs and their types array, DP numbers
    my_device.set_dp_cmd_total(dp_array, 6);
    //register DP download processing callback function
    my_device.dp_process_func_register(dp_process);
    //register upload all DP callback function
    my_device.dp_update_all_func_register(dp_update_all);

    last_time = millis();
}

void loop()
{
    // 不斷輪詢
    my_device.uart_service();

    //Enter the connection network mode when Pin7 is pressed.
    if (digitalRead(wifi_key_pin) == LOW) {
        delay(80);
        if (digitalRead(wifi_key_pin) == LOW) {
            my_device.mcu_set_wifi_mode(SMART_CONFIG);
        }
    }

    /* LED blinks when network is being connected */
    if ((my_device.mcu_get_wifi_work_state() != WIFI_LOW_POWER) && (my_device.mcu_get_wifi_work_state() != WIFI_CONN_CLOUD) && (my_device.mcu_get_wifi_work_state() != WIFI_SATE_UNKNOW)) {
        if (millis() - last_time >= 500) {
            last_time = millis();
            /* Toggle current LED status */
            if (led_state == LOW) {
                led_state = HIGH;
            } else {
                led_state = LOW;
            }

            digitalWrite(LED_BUILTIN, led_state);
        }
    }

    delay(10);
}

/**
 * @description: DP download callback function.
 * @param {unsigned char} dpid
 * @param {const unsigned char} value
 * @param {unsigned short} length
 * @return {unsigned char}
 */
unsigned char dp_process(unsigned char dpid, const unsigned char value[], unsigned short length)
{
    switch (dpid) {
        case DPID_BOOL:
            DebugSerial.println("Bool type:");
            dp_bool_value = my_device.mcu_get_dp_download_data(dpid, value, length);
            DebugSerial.println(dp_bool_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_BOOL, dp_bool_value, 1);
        break;

        case DPID_VALUE:
            DebugSerial.println("Value type:");
            dp_value_value = my_device.mcu_get_dp_download_data(DPID_VALUE, value, length);
            DebugSerial.println(dp_value_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_VALUE, dp_value_value, 1);
        break;

        case DPID_ENUM:
            DebugSerial.println("Enum type:");
            dp_enum_value = my_device.mcu_get_dp_download_data(dpid, value, length);
            DebugSerial.println(dp_enum_value);
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_ENUM, dp_enum_value, 1);
        break;

        case DPID_STRING:
            DebugSerial.println("String type:");
            /*  */
            for (unsigned int i=0; i<length; i++) {
                dp_string_value[i] = value[i];
                DebugSerial.write(dp_string_value[i]);
            }
            DebugSerial.println("");
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_STRING, dp_string_value, length);
        break;

        case DPID_RAW:
            DebugSerial.println("Raw type:");
            /*  */
            for (unsigned int i=0; i<length; i++) {
                dp_raw_value[i] = value[i];
                DebugSerial.write(dp_raw_value[i]);
            }
            DebugSerial.println("");
            /* After processing the download DP command, the current status should be reported. */
            my_device.mcu_dp_update(DPID_RAW, dp_raw_value, length);
        break;

        default:
            break;
    }

    return SUCCESS;
}

/**
 * @description: Upload all DP status of the current device.
 * @param {*}
 * @return {*}
 */
void dp_update_all(void)
{
    my_device.mcu_dp_update(DPID_BOOL, dp_bool_value, 1);
    my_device.mcu_dp_update(DPID_VALUE, dp_value_value, 1);
    my_device.mcu_dp_update(DPID_ENUM, dp_enum_value, 1);
    my_device.mcu_dp_update(DPID_STRING, dp_string_value, (sizeof(dp_string_value) / sizeof(dp_string_value[0])));
    my_device.mcu_dp_update(DPID_RAW, dp_raw_value, (sizeof(dp_raw_value) / sizeof(dp_raw_value[0])));
    my_device.mcu_dp_update(DPID_FAULT, dp_fault_value, 1); /* Fault type Only report */
}
