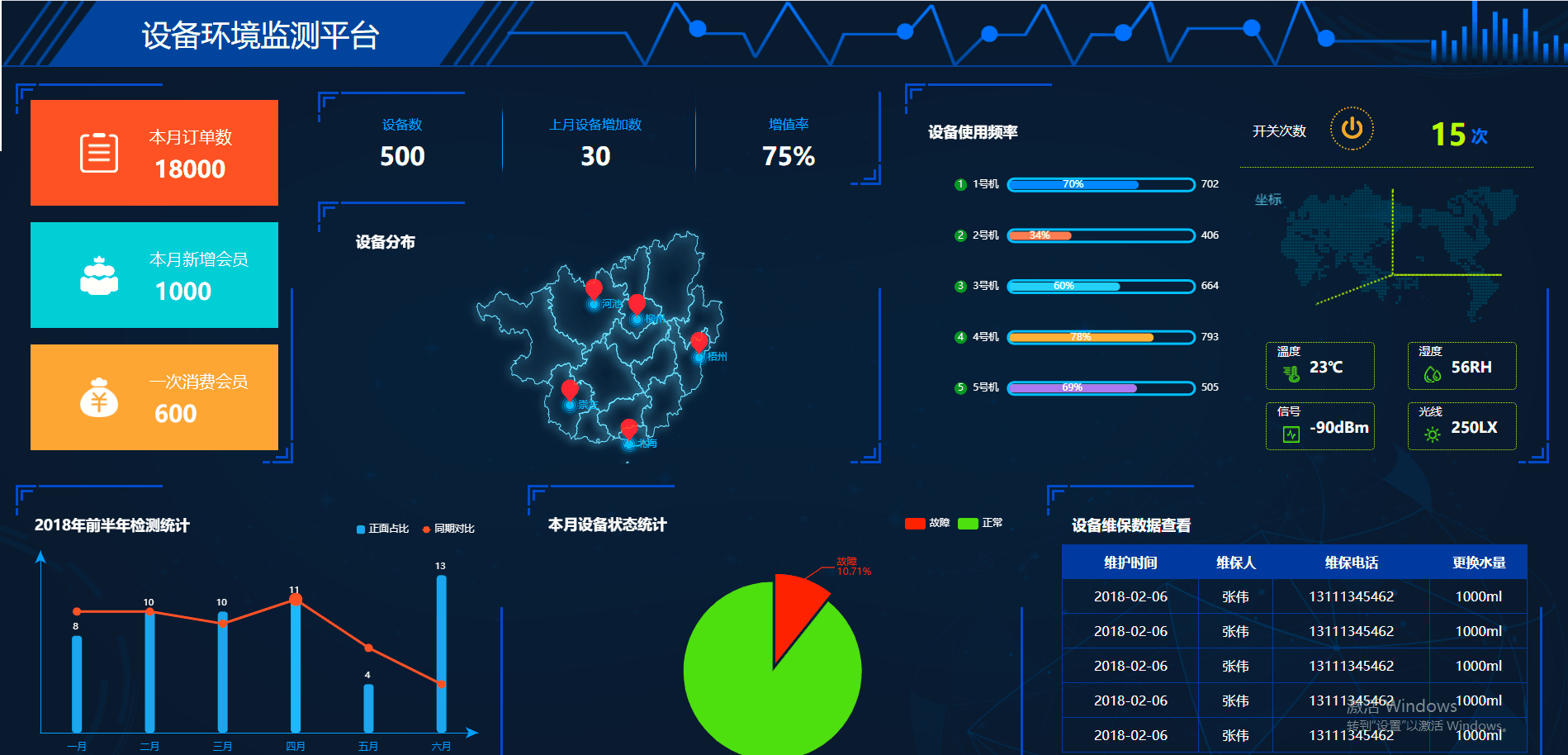

動圖演示： 文末獲取原始碼

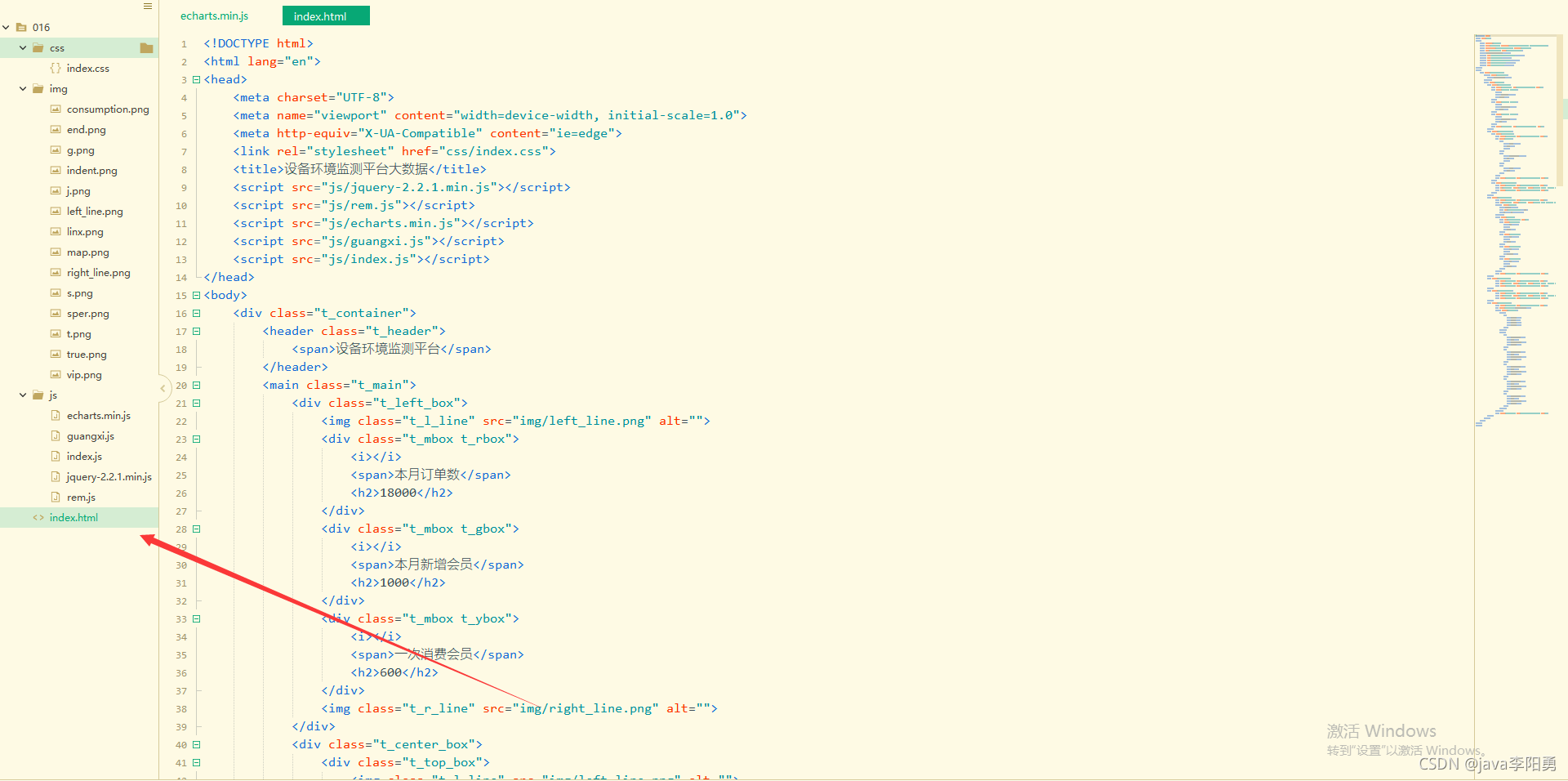

代碼目錄：
主要代碼實作：
主頁HTML布局：
<div class="t_container">
<header class="t_header">
<span>設備環境監測平臺</span>
</header>
<main class="t_main">
<div class="t_left_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<div class="t_mbox t_rbox">
<i></i>
<span>本月訂單數</span>
<h2>18000</h2>
</div>
<div class="t_mbox t_gbox">
<i></i>
<span>本月新增會員</span>
<h2>1000</h2>
</div>
<div class="t_mbox t_ybox">
<i></i>
<span>一次消費會員</span>
<h2>600</h2>
</div>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
<div class="t_center_box">
<div class="t_top_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<ul class="t_nav">
<li>
<span>設備數</span>
<h1>500</h1>
<i></i>
</li>
<li>
<span>上月設備增加數</span>
<h1>30</h1>
<i></i>
</li>
<li>
<span>增值率</span>
<h1>75%</h1>
</li>
</ul>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
<div class="t_bottom_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<div id="chart_3" class="echart" style="width: 100%; height: 3.6rem;"></div>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
</div>
<div class="t_right_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<div id="chart_4" class="echart" style="width: 50%; height: 4.6rem; position: absolute;"></div>
<header class="t_b_h">
<span>開關次數</span>
<img src="img/end.png"></img>
<h3>15<span>次</span></h3>
</header>
<main class="t_b_m">
<img src="img/map.png" alt="">
<div class="t_b_box">
<span>溫度</span>
<i></i>
<h2>23℃</h2>
</div>
<div class="t_b_box1">
<span>濕度</span>
<i></i>
<h2>56RH</h2>
</div>
<div class="t_b_box2">
<span>信號</span>
<i></i>
<h2>-90dBm</h2>
</div>
<div class="t_b_box3">
<span>光線</span>
<i></i>
<h2>250LX</h2>
</div>
</main>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
<div class="b_left_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<div id="chart_2" class="echart" style="width: 100%; height: 3.6rem;"></div>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
<div class="b_center_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<div id="chart_1" class="echart" style="width: 100%; height: 3.6rem;"></div>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
<div class="b_right_box">
<img class="t_l_line" src="img/left_line.png" alt="">
<h1 class="t_title">設備維保資料查看</h1>
<table class="t_table">
<thead>
<tr>
<th>維護時間</th>
<th>維保人</th>
<th>維保電話</th>
<th>更換水量</th>
</tr>
</thead>
<tbody>
<tr>
<td>2018-02-06</td>
<td>張偉</td>
<td>13111345462</td>
<td>1000ml</td>
</tr>
<tr>
<td>2018-02-06</td>
<td>張偉</td>
<td>13111345462</td>
<td>1000ml</td>
</tr>
<tr>
<td>2018-02-06</td>
<td>張偉</td>
<td>13111345462</td>
<td>1000ml</td>
</tr>
<tr>
<td>2018-02-06</td>
<td>張偉</td>
<td>13111345462</td>
<td>1000ml</td>
</tr>
<tr>
<td>2018-02-06</td>
<td>張偉</td>
<td>13111345462</td>
<td>1000ml</td>
</tr>
</tbody>
</table>
<img class="t_r_line" src="img/right_line.png" alt="">
</div>
</main>CSS樣式檔案
html,body{
width: 100%;
height: 100%;
margin: 0;
padding: 0;
}
html{
font-size: 100px;
}
ul,h1,h2,h3,h4,h5,h6,p{
list-style: 0;
padding: 0;
margin: 0;
}
a{
text-decoration: none;
}
/*正文*/
.t_container{
width: 100%;
height: 100%;
min-width: 1360px;
background: url('../img/true.png') no-repeat;
background-size: 100% 100%;
position: relative;
min-height: 756px;
}
.t_header{
width: 100%;
height: 80px;
background: url('../img/linx.png') no-repeat;
background-size: 100% 100%;
position: relative;
}
.t_header span{
color: #fff;
font-size: 0.36rem;
position: absolute;
top: 50%;
margin-top: -0.24rem;
left: 9%;
}
.t_main{
width: 98%;
height: 8.74rem;
margin: 0 auto;
margin-top: 0.2rem;
margin-bottom: 0;
}
.t_left_box{
position: relative;
width: 3.36rem;
height: 4.6rem;
display: inline-block;
text-align: center;
}
.t_l_line{
position: absolute;
top: 0;
left: 0;
}
.t_r_line{
position: absolute;
bottom: 0;
right: 0;
}
.t_center_box{
width: 6.82rem;
display: inline-block;
min-width: 490px;
}
.t_top_box{
width: 100%;
height: 1.13rem;
overflow: hidden;
position: relative;
margin-bottom: 0.2rem;
}
.t_bottom_box{
width: 100%;
height: 3.17rem;
overflow: hidden;
position: relative;
}
.t_right_box{
display: inline-block;
width: 7.8rem;
height: 4.6rem;
position: relative;
min-width: 560px;
}
.b_left_box{
display: inline-block;
width: 5.9rem;
height: 3.6rem;
position: relative;
min-width: 425px;
}
.b_center_box{
display: inline-block;
width: 6rem;
height: 3.6rem;
position: relative;
min-width: 432px;
}
.b_right_box{
display: inline-block;
width: 6rem;
height: 3.6rem;
position: relative;
min-width: 432px;
}
.t_mbox{
width: 3rem;
height: 1.28rem;
position: relative;
margin: 0 auto;
margin-top: 0.2rem;
}
.t_rbox{
background: #D9523F;
}
.t_gbox{
background: #13D0B2;
}
.t_ybox{
background: #F6A645;
}
.t_mbox i{
display: inline-block;
width: 0.46rem;
height: 0.48rem;
position: absolute;
top: 0;
bottom: 0;
left: 20%;
margin: auto;
}
.t_mbox h2{
font-size: 0.28rem;
color: #fff;
position: absolute;
top: 50%;
left: 50%;
}
.t_mbox span{
font-size: 0.2rem;
color: #fff;
position: absolute;
top: 24%;
left: 48%;
}
.t_rbox i{
background: url(../img/indent.png) no-repeat;
background-size: 100% 100%;
}
.t_gbox i{
background: url(../img/vip.png) no-repeat;
background-size: 100% 100%;
}
.t_ybox i{
background: url(../img/consumption.png) no-repeat;
background-size: 100% 100%;
}
.t_nav{
width: 100%;
height: 100%;
}
.t_nav li{
display: inline-block;
width: 30%;
height: 100%;
text-align: center;
position: relative;
}
.t_nav li span{
font-size: 0.16rem;
color: #1AA1FD;
position: absolute;
left: 0;
right: 0;
margin: auto;
top: 25%;
}
.t_nav li h1{
font-size: 0.30rem;
color: #fff;
position: absolute;
left: 0;
right: 0;
margin: auto;
top: 50%;
}
.t_nav li i{
width: 1px;
height: 100%;
position: absolute;
right: -0.2rem;
background: url('../img/sper.png') no-repeat;
background-size: 100% 100%;
}
.t_table{
font-size: 0.16rem;
color: #fff;
width: 94%;
margin: 0 auto;
border-spacing: 0;
text-align: center;
box-sizing: border-box;
margin-top: 12%;
}
.t_table tr{
margin: 0;
padding: 0;
height: 0.42rem;
}
.t_table thead tr{
background: #053A98;
}
.t_table tbody tr td:first-child{
border-left: 1px solid #053A98;
}
.t_table td{
border-bottom: 1px solid #053A98;
border-right: 1px solid #053A98;
}
.t_title{
position: absolute;
font-size: 0.18rem;
color: #fff;
left: 5%;
top: 10%;
}
.t_b_h,t_b_m{
position: absolute;
font-size: 0.16rem;
left: 54%;
width: 50%;
height: 4.6rem;
}
.t_b_h span{
position: absolute;
color: #fff;
top: 10%;
}
.t_b_h img{
position: absolute;
width: 0.53rem;
height: 0.53rem;
top: 6%;
left: 24%
}
.t_b_h h3{
font-size: 0.36rem;
color: #F0FF00;
position: absolute;
left: 55%;
top: 8%;
width: 1rem;
}
.t_b_h h3 span{
font-size: 0.2rem;
position: absolute;
left: 50%;
top: 28%;
color: #0072FF;
}
上面的圖片檔案以及js檔案等需要引入進來
