三級分類

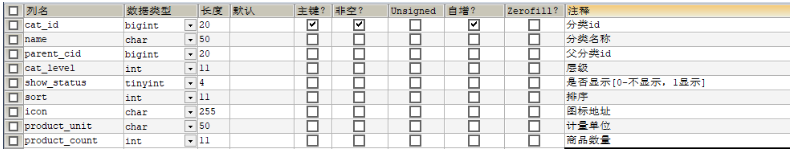

0、表結構

1、sql腳本

根據老師提供的sql

2、查找所有分類以及子分類

• 在achangmall-product的com.achang.achangmall.product.controller.CategoryController添加如下方法

/**
     * 查出所有分類以及子分類，以樹形結構組裝
     */
@RequestMapping("/list/tree")
public R list(){
    List<CategoryEntity> treeList = categoryService.listTree();
    return R.ok().put("list", treeList);
}

• com.achang.achangmall.product.service.impl.CategoryServiceImpl

//查出所有分類以及子分類，以樹形結構組裝
@Override
public List<CategoryEntity> listTree() {
    List<CategoryEntity> allList = baseMapper.selectList(null);

    List<CategoryEntity> parentList = allList.stream()
        .filter(item -> item.getParentCid() == 0)
        .map(item -> {
            item.setChildren(getChildren(item, allList));
            return item;
        }).sorted((item1, item2) -> {
        return item1.getSort() - item2.getSort();
    })
        .collect(Collectors.toList());
    return parentList ;
}

//遞回查找所有選單的子選單
private List<CategoryEntity> getChildren(CategoryEntity root, List<CategoryEntity> allList) {
    List<CategoryEntity> lastList = allList.stream()
        .filter(item -> {return root.getCatId().equals(item.getParentCid());})
        .map(item -> {
            item.setChildren(getChildren(item, allList));
            return item;
        })
        .sorted(
        (item1, item2) -> {
            return (item1.getSort()==null?0:item1.getSort()) - (item2.getSort()==null?0:item2.getSort());
        })
        .collect(Collectors.toList());

    return lastList;
}

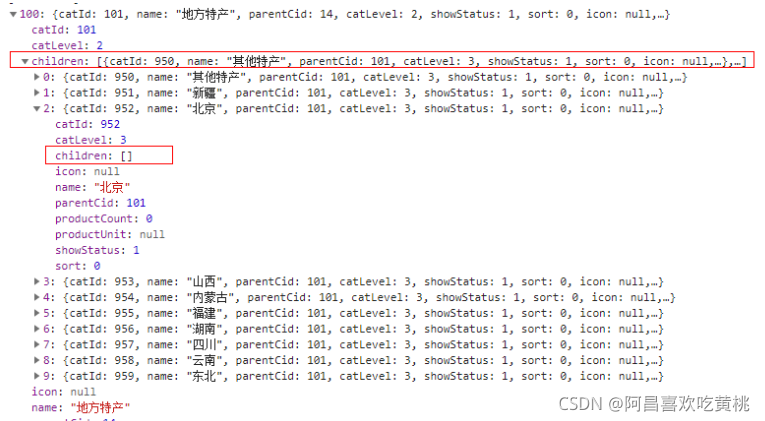

• 請求JSON結果

3、配置網關路由與路徑重寫

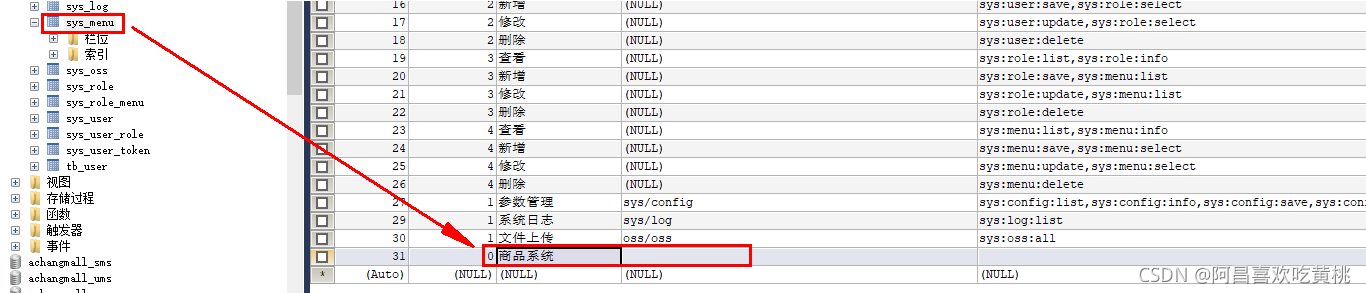

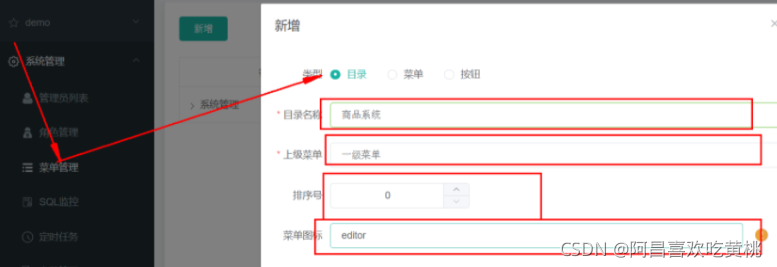

• 接著操作后臺 localhost:8001 ， 點擊系統管理，選單管理，新增 目錄 商品系統 一級選單

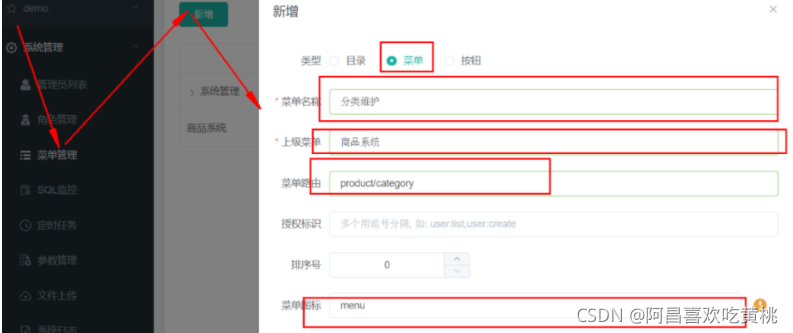

• 繼續新增： 選單 分類維護 商品系統 product/category

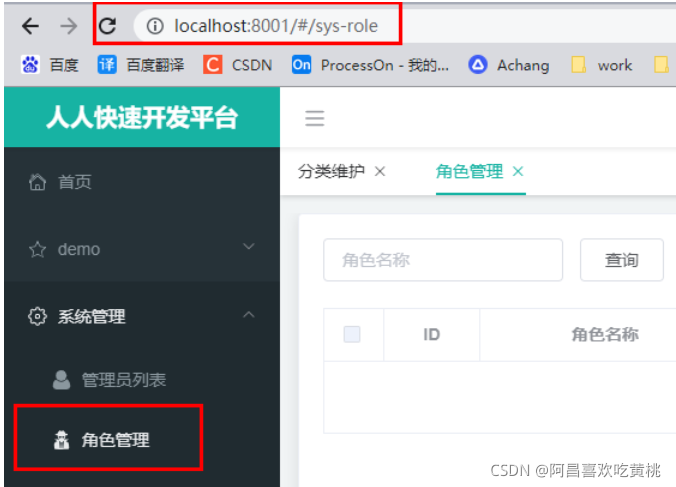

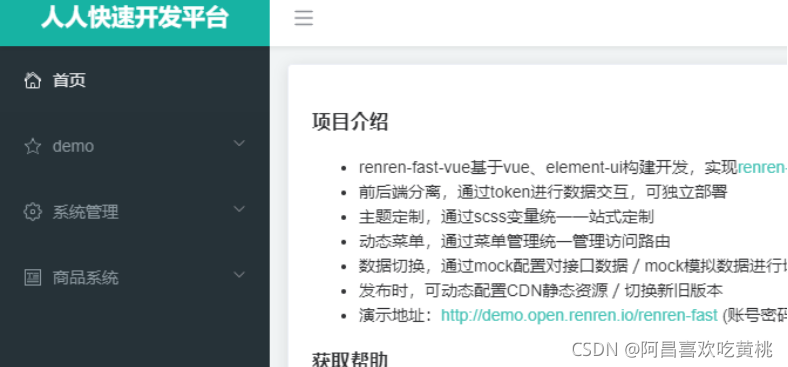

在左側點擊【分類維護】，希望在此展示3級分類 注意地址欄http://localhost:8001/#/product-category 可以注意到product-category我們的/被替換為了-

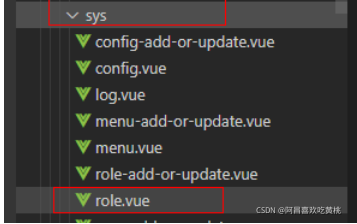

• 比如sys-role具體的視圖在renren-fast-vue/views/modules/sys/role.vue

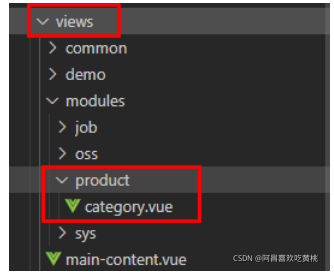

• 所以要自定義我們的product/category視圖的話，就是創建mudules/product/category.vue

• 此時我們使用elementui的樹形結構組件

• 他要給8080發請求讀取資料，但是資料是在10000埠上，如果找到了這個請求改埠那改起來很麻煩，方法1是改vue專案里的全域配置，方法2是搭建個網關，讓網關路由到10000

Ctrl+Shift+F全域搜索

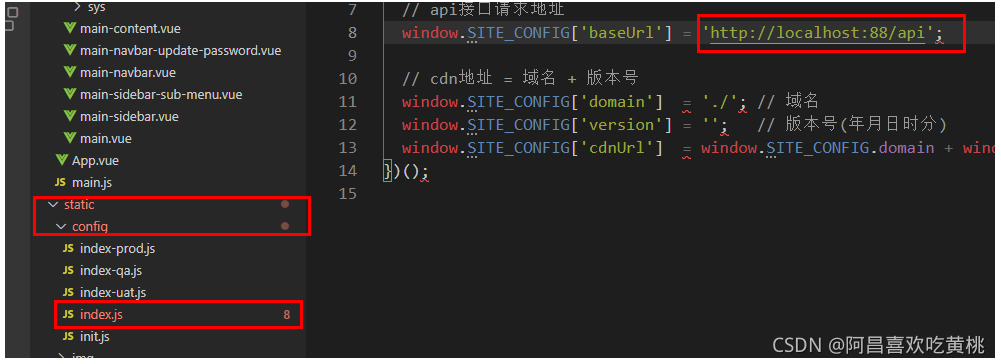

在static/config/index.js里 window.SITE_CONFIG[‘baseUrl’] = ‘http://localhost:88/api’;

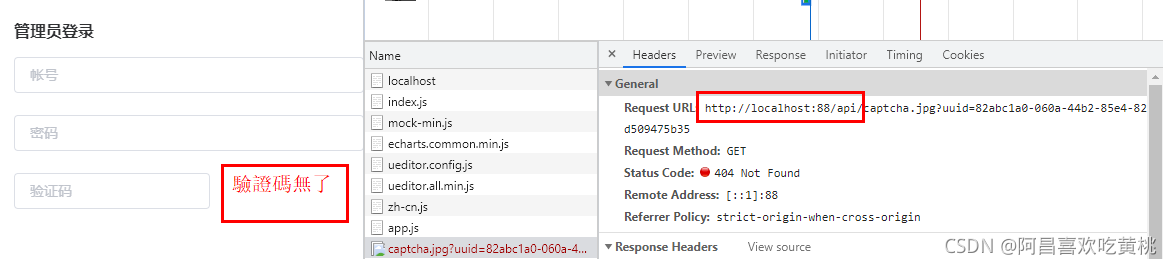

接著讓重新登錄http://localhost:8001/#/login，驗證碼是請求88的，所以不顯示，而驗證碼是來源于fast后臺的

• 現在的驗證碼請求路徑為，http://localhost:88/api/captcha.jpg?uuid=69c79f02-d15b-478a-8465-a07fd09001e6
• 原始的驗證碼請求路徑：http://localhost:8001/renren-fast/captcha.jpg?uuid=69c79f02-d15b-478a-8465-a07fd09001e6

• 88是gateway的埠

spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
spring.application.name=achangmall-gateway
server.port=88

• 他要去nacos中查找api服務，但是nacos里是fast服務，就通過把api改成fast服務 ；需要將它交給nacos注冊中心，所以給他加入achangmall-common的依賴

<dependency>
    <groupId>com.achang.achangmall</groupId>
    <artifactId>achangmall-common</artifactId>
    <version>0.0.1-SNAPSHOT</version>
</dependency>

• 在fast中添加如下配置，指定nacos地址和此服務名

spring:
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
  application:
    name: renren-fast

如果報錯gson依賴，就匯入google的gson依賴

• 這里阿昌出現了錯誤Could not find class [org.springframework.cloud.client.loadbalancer.reactive.OnNoRibbonDefaultCondit

發現是阿昌這里所使用的依賴版本是有誤的，服務模塊的專案使用的是2020.1.X的springcloud，所以需要修改：

• springcloud的版本：Hoxton.RELEASE
• springboot的版本：2.2.1.RELEASE
• springcloud alibaba的版本：2.2.1.RELEASE

• 在gateway中按格式加入

spring:
  cloud:
    gateway:
      routes:
        - id: renren_route
          uri: lb://renren-fast
          predicates:
            - Path=/api/**
          filters:
          		#將/api/的路徑重寫成/renren-fast/
            - RewritePath=/api/(?<segment>.*),/renren-fast/$\{segment}

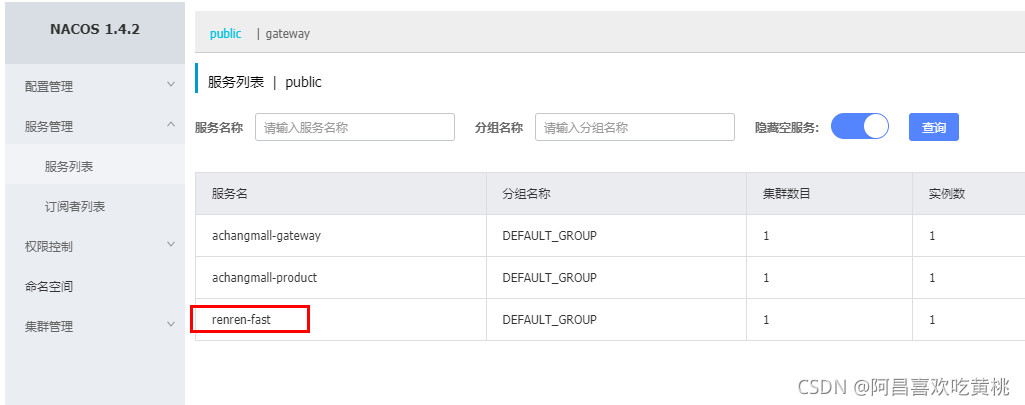

• 然后在nacos的服務串列里看到了renren-fast

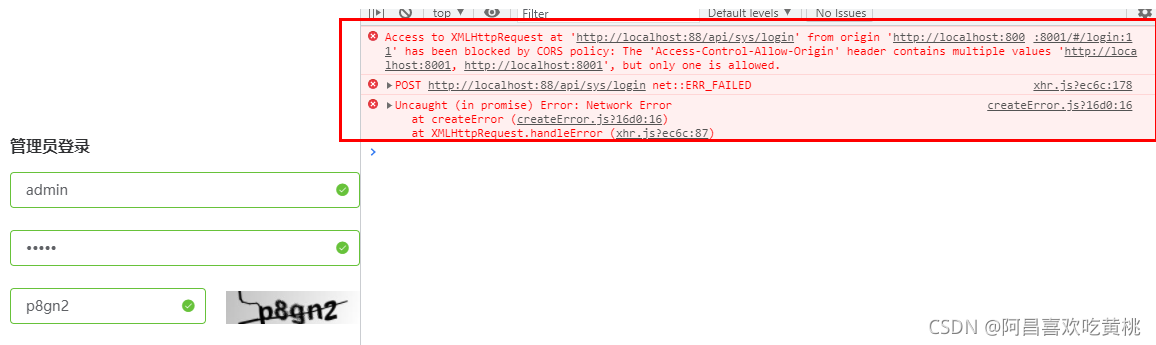

• 登錄，還是報錯!!!

• 這里可知為跨域問題

那我們就在Gateway網關里寫一個配置類去過來請求讓他不跨域

package com.achang.achangmall.gateway.conf;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.reactive.CorsWebFilter;
import org.springframework.web.cors.reactive.UrlBasedCorsConfigurationSource;

/******
 @author 阿昌
 @create 2021-09-22 22:41
 *******
 */
@Configuration
public class CorsConfig {

    @Bean
    public CorsWebFilter corsWebFilter(){
        // 基于url跨域，選擇reactive包下的
        UrlBasedCorsConfigurationSource source=new UrlBasedCorsConfigurationSource();
        // 跨域配置資訊
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        // 允許跨域的頭
        corsConfiguration.addAllowedHeader("*");
        // 允許跨域的請求方式
        corsConfiguration.addAllowedMethod("*");
        // 允許跨域的請求來源
        corsConfiguration.addAllowedOrigin("*");
        // 是否允許攜帶cookie跨域
        corsConfiguration.setAllowCredentials(true);

        // 任意url都要進行跨域配置
        source.registerCorsConfiguration("/**",corsConfiguration);
        return new CorsWebFilter(source);
    }
}

• 再次訪問：http://localhost:8001/#/login，發現還是跨域，

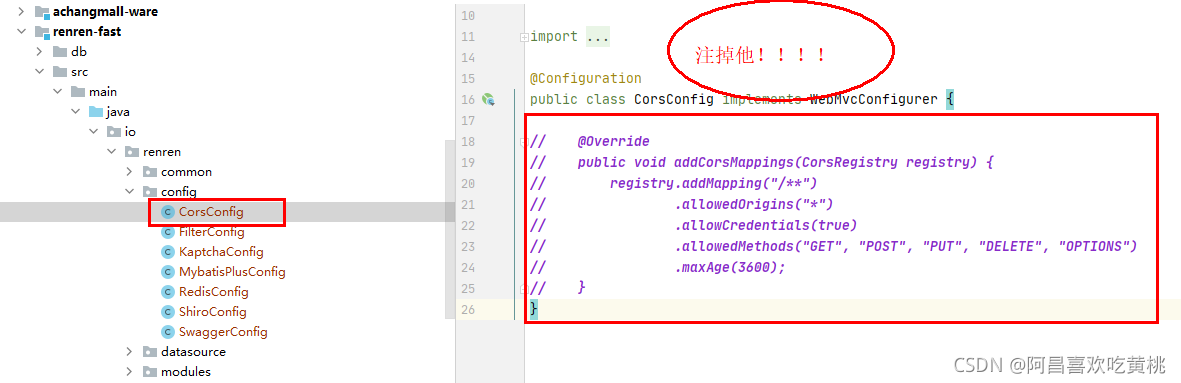

• 此時這里還跨域的問題是人人開源的服務里面他自己也配置了跨域，這里把他注釋掉

• 此時再次登錄，成功！！！

4、樹形展示三級分類資料

在顯示商品系統/分類資訊的時候，出現了404例外，請求的http://localhost:88/api/product/category/list/tree不存在
這是因為網關上所做的路徑映射不正確，映射后的路徑為http://localhost:8001/renren-fast/product/category/list/tree
但是只有通過http://localhost:10000/product/category/list/tree路徑才能夠正常訪問，所以會報404例外，

• 解決方法就是定義一個product路由規則，進行路徑重寫： 在網關增加三級分類的路由

        - id: product_route
          uri: lb://achangmall-product
          predicates:
            - Path=/api/product/**
          filters:
            - RewritePath=/api/(?<segment>.*),/$\{segment}

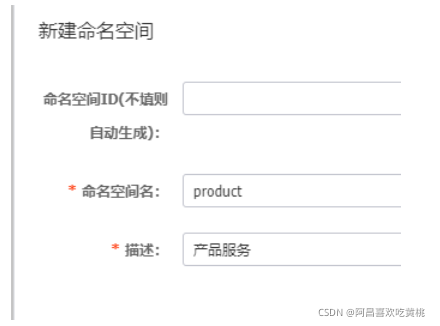

• 在nacos中新建命名空間，用命名空間隔離專案，(可以在其中新建achangmall-product.yml)

spring:
  datasource:
    password: root
    username: root
    url: jdbc:mysql://192.168.109.101:3306/achangmall-pms?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    driver-class-name: com.mysql.jdbc.Driver

  application:
    name: achangmall-product
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848

mybatis-plus:
  mapper-locations: classpath:/mapper/**/*.xml
  global-config:
    db-config:
      id-type: auto

server:
  port: 10000

• 在product專案中新建bootstrap.properties

spring.application.name=gulimall-product
spring.cloud.nacos.config.server-addr=127.0.0.1:8848
spring.cloud.nacos.config.namespace=07a0c61b-ea34-4c89-9d7e-17a050124943

• 主類上加上注解@EnableDiscoveryClient

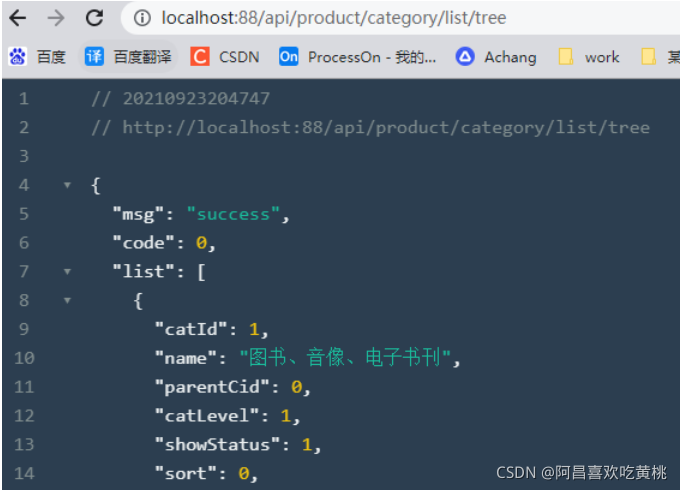

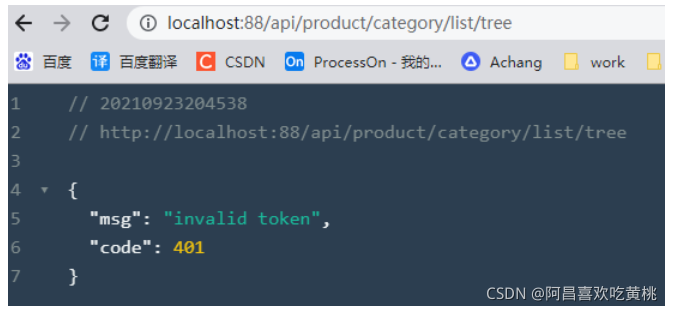

• 訪問 localhost:88/api/product/category/list/tree invalid token，非法令牌，后臺管理系統中沒有登錄，所以沒有帶令牌

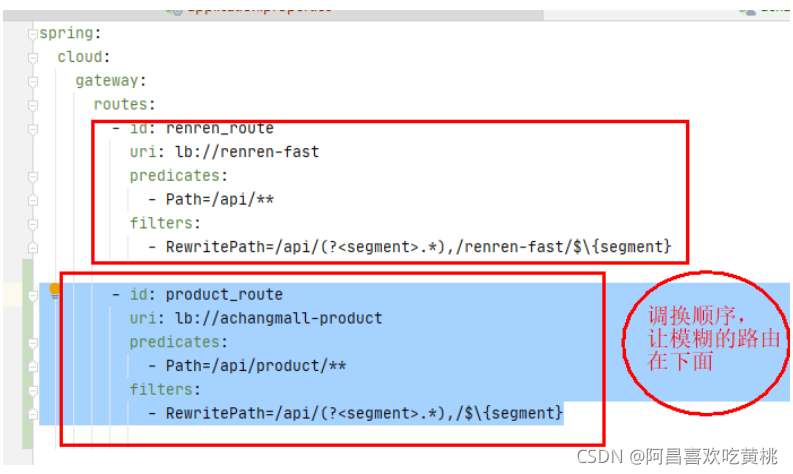

• 這里就需要調整網格Gateway里面的路由順序，讓越模糊的路由越在后面

再次訪問！！！成功！

• 接著修改前端部分，data解構，獲取到后端傳來的資料，并賦值給data

.<template>
    <el-tree
             :data="data"
             :props="defaultProps"
             @node-click="handleNodeClick"
             ></el-tree>
</template>

<script>
    export default {
        data() {
            return {
                data: [],//獲取到后端來的資料，并賦值
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

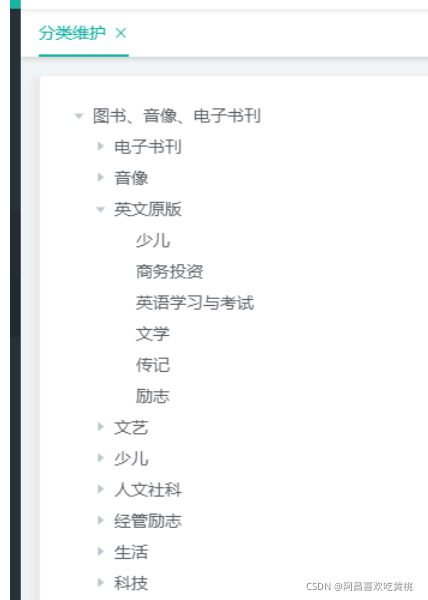

• 前端效果圖

5、洗掉資料

• scoped slot（插槽）：在el-tree標簽里把內容寫到span標簽欄里即可

• 修改category.vue的代碼

.<template>
<el-tree
         :data="data"
         :props="defaultProps"
         show-checkbox
         @node-click="handleNodeClick"
         :expand-on-click-node="false"
         node-key="catId"
         >
    <span class="custom-tree-node" slot-scope="{ node, data }">
        <span>{{ node.label }}</span>
        <span>
            <el-button
                       v-if="node.level != 3"
                       type="text"
                       size="mini"
                       @click="() => append(data)"
                       >
                Append
    </el-button>
            <el-button
                       v-if="node.childNodes <= 0"
                       type="text"
                       size="mini"
                       @click="() => remove(node, data)"
                       >
                Delete
    </el-button>
    </span>
    </span></el-tree
    >
</template>

<script>
    export default {
        data() {
            return {
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            //添加節點
            append(data) {},
            //洗掉節點
            remove(node, data) {
                console.log(node);
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

• 撰寫后臺的洗掉介面

/**
* 洗掉
*/
@RequestMapping("/delete")
public R delete(@RequestBody Long[] catIds){
    categoryService.removeCategory(catIds);
    return R.ok();
}

@Override
public void removeCategory(Long[] catIds) {
    baseMapper.deleteBatchIds(Arrays.asList(catIds));
}

• 撰寫后臺的洗掉介面，這里采用邏輯洗掉，那么首先我們就需要通過MybaitsPlus配置邏輯洗掉

在achangmall-product的application.yaml配置如下

mybatis-plus:
  mapper-locations: classpath:/mapper/**/*.xml
  global-config:
    db-config:
      id-type: auto
      logic-delete-value: 1 #邏輯洗掉的值為1
      logic-not-delete-value: 0 #無邏輯洗掉的值0

在CategoryEntity中指定欄位指定邏輯洗掉

public class CategoryEntity implements Serializable {

	/**
	 * 是否顯示[0-不顯示，1顯示]
	 */
	@TableLogic(value = "1",delval = "0")
	private Integer showStatus;

    //省略其他屬性.........
}

• 另外在“src/main/resources/application.yml”檔案中，設定日志級別，列印出SQL陳述句：

logging:
  level: debug

• 前端代碼

.<template>
<el-tree
         :data="data"
         :props="defaultProps"
         show-checkbox
         @node-click="handleNodeClick"
         :expand-on-click-node="false"
         node-key="catId"
         :default-expanded-keys="expandedKey"
         >
    <span class="custom-tree-node" slot-scope="{ node, data }">
        <span>{{ node.label }}</span>
        <span>
            <el-button
                       v-if="node.level != 3"
                       type="text"
                       size="mini"
                       @click="() => append(data)"
                       >
                Append
    </el-button>
            <el-button
                       v-if="node.childNodes <= 0"
                       type="text"
                       size="mini"
                       @click="() => remove(node, data)"
                       >
                Delete
    </el-button>
    </span>
    </span></el-tree
    >
</template>

<script>
    export default {
        data() {
            return {
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            //添加節點
            append(data) {},
            //洗掉節點
            remove(node, data) {
                var ids = [data.catId]; //洗掉節點的id
                this.$confirm(`是否洗掉【${data.name}】當前選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                        this.expandedKey = [node.parent.data.catId];
                    })
                        .catch(() => {});
                })
                    .catch(() => {
                    this.$message({
                        type: "info",
                        message: "已取消洗掉",
                    });
                });
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

6、新增分類

• 后端代碼，已經逆向生成

@RequestMapping("/save")
public R save(@RequestBody CategoryEntity category){
    categoryService.save(category);

    return R.ok();
}

• 前端代碼

.<template>
    <div>
        <el-tree
                 :data="data"
                 :props="defaultProps"
                 show-checkbox
                 @node-click="handleNodeClick"
                 :expand-on-click-node="false"
                 node-key="catId"
                 :default-expanded-keys="expandedKey"
                 >
            <span class="custom-tree-node" slot-scope="{ node, data }">
                <span>{{ node.label }}</span>
                <span>
                    <el-button
                               v-if="node.level != 3"
                               type="text"
                               size="mini"
                               @click="() => append(data)"
                               >
                        Append
                    </el-button>
                    <el-button
                               v-if="node.childNodes <= 0"
                               type="text"
                               size="mini"
                               @click="() => remove(node, data)"
                               >
                        Delete
                    </el-button>
                </span>
            </span></el-tree
            >

        <el-dialog title="提示" :visible.sync="dialogVisible" width="30%">
            <el-form :model="category">
                <el-form-item label="分類名稱">
                    <el-input v-model="category.name" autocomplete="off"></el-input>
                </el-form-item>
            </el-form>
            <span slot="footer" class="dialog-footer">
                <el-button @click="dialogVisible = false">取 消</el-button>
                <el-button type="primary" @click="addCategory">確 定</el-button>
            </span>
        </el-dialog>
    </div>
</template>

<script>
    export default {
        data() {
            return {
                dialogVisible: false,
                expandedKey: [],
                category: { name: "", parentCid: 0, catLevel: 0, showStatus: 1, sort: 0 },
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            //添加節點
            append(data) {
                this.category.parentCid = data.catId;
                this.category.catLevel = data.catLevel * 1 + 1;
                this.dialogVisible = true;
            },
            // 添加三級分類
            addCategory() {
                console.log("提交的三級分類資料", this.category);
                this.$http({
                    url: this.$http.adornUrl("/product/category/save"),
                    method: "post",
                    data: this.$http.adornData(this.category, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單保存成功!",
                    });
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            //洗掉節點
            remove(node, data) {
                var ids = [data.catId]; //洗掉節點的id
                this.$confirm(`是否洗掉【${data.name}】當前選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                        this.expandedKey = [node.parent.data.catId];
                    })
                        .catch(() => {});
                })
                    .catch(() => {
                    this.$message({
                        type: "info",
                        message: "已取消洗掉",
                    });
                });
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

<style>
</style>

7、修改分類

• 后端代碼

//資料回顯
@RequestMapping("/info/{catId}")
public R info(@PathVariable("catId") Long catId){
    CategoryEntity category = categoryService.getById(catId);
    return R.ok().put("category", category);
}

• 前端代碼

.<template>
    <div>
        <el-tree
                 :data="data"
                 :props="defaultProps"
                 show-checkbox
                 @node-click="handleNodeClick"
                 :expand-on-click-node="false"
                 node-key="catId"
                 :default-expanded-keys="expandedKey"
                 >
            <span class="custom-tree-node" slot-scope="{ node, data }">
                <span>{{ node.label }}</span>
                <span>
                    <el-button
                               v-if="node.level != 3"
                               type="text"
                               size="mini"
                               @click="() => append(data)"
                               >
                        Append
                    </el-button>
                    <el-button
                               v-if="node.childNodes <= 0"
                               type="text"
                               size="mini"
                               @click="() => remove(node, data)"
                               >
                        Delete
                    </el-button>
                    <el-button type="text" size="mini" @click="() => edit(data)">
                        Edit
                    </el-button>
                </span>
            </span></el-tree
            >

        <el-dialog title="提示" :visible.sync="dialogVisible" width="30%">
            <el-form :model="category">
                <el-form-item label="分類名稱">
                    <el-input v-model="category.name" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="圖示">
                    <el-input v-model="category.icon" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="計量單位">
                    <el-input
                              v-model="category.productUnit"
                              autocomplete="off"
                              ></el-input>
                </el-form-item>
            </el-form>
            <span slot="footer" class="dialog-footer">
                <el-button @click="dialogVisible = false">取 消</el-button>
                <el-button type="primary" @click="submitData">確 定</el-button>
            </span>
        </el-dialog>
    </div>
</template>

<script>
    export default {
        data() {
            return {
                dialogType: "", //edit,add
                title: "",
                dialogVisible: false,
                expandedKey: [],
                category: {
                    name: "",
                    parentCid: 0,
                    catLevel: 0,
                    showStatus: 1,
                    sort: 0,
                    icon: "",
                    productUnit: "",
                    catId: null,
                },
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            //添加節點
            append(data) {
                console.log("append----", data);
                this.dialogType = "add";
                this.title = "添加分類";
                this.category.parentCid = data.catId;
                this.category.catLevel = data.catLevel * 1 + 1;
                this.category.catId = null;
                this.category.name = null;
                this.category.icon = "";
                this.category.productUnit = "";
                this.category.sort = 0;
                this.category.showStatus = 1;
                this.dialogVisible = true;
            },
            // 修改三級分類資料
            editCategory() {
                var { catId, name, icon, productUnit } = this.category;
                this.$http({
                    url: this.$http.adornUrl("/product/category/update"),
                    method: "post",
                    data: this.$http.adornData({ catId, name, icon, productUnit }, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單修改成功!",
                    });
                    // 關閉對話框
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    // 設定需要默認展開的選單
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            edit(data) {
                console.log("要修改的資料", data);
                this.dialogType = "edit";
                this.title = "修改分類";
                // 發送請求獲取節點最新的資料，資料回顯
                this.$http({
                    url: this.$http.adornUrl(`/product/category/info/${data.catId}`),
                    method: "get",
                }).then((data) => {
                    // 請求成功
                    console.log("要回顯得資料", data);
                    console.log(data);
                    this.category = data.data.category;
                    // console.log(this.category);
                    this.dialogVisible = true;
                });
            },
            //上交
            submitData() {
                if (this.dialogType == "add") {
                    this.addCategory();
                }
                if (this.dialogType == "edit") {
                    this.editCategory();
                }
            },

            // 添加三級分類
            addCategory() {
                console.log("提交的三級分類資料", this.category);
                this.$http({
                    url: this.$http.adornUrl("/product/category/save"),
                    method: "post",
                    data: this.$http.adornData(this.category, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單保存成功!",
                    });
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            //洗掉節點
            remove(node, data) {
                var ids = [data.catId]; //洗掉節點的id
                this.$confirm(`是否洗掉【${data.name}】當前選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                        this.expandedKey = [node.parent.data.catId];
                    })
                        .catch(() => {});
                })
                    .catch(() => {
                    this.$message({
                        type: "info",
                        message: "已取消洗掉",
                    });
                });
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

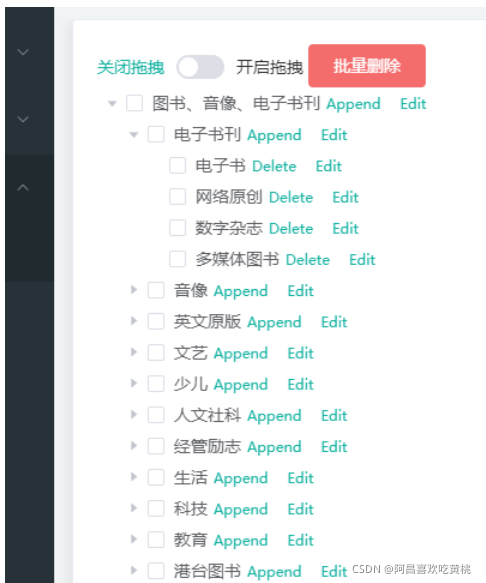

8、拖拽效果

為了防止誤操作，我們通過edit把拖拽功能開啟后才能進行操作，所以添加switch標簽，操作是否可以拖拽，我們也可以體會到el-switch這個標簽是一個開關

批量保存
但是現在存在的一個問題是每次拖拽的時候，都會發送請求，更新資料庫這樣頻繁的與資料庫互動

現在想要實作一個拖拽程序中不更新資料庫，拖拽完成后，統一提交拖拽后的資料，

<el-button v-if="draggable" @click="batchSave">批量保存</el-button>

• 前端代碼

.<template>
    <div>
        <el-switch
                   v-model="draggable"
                   active-text="開啟拖拽"
                   inactive-text="關閉拖拽"
                   >
        </el-switch>
        <el-button @click="batchSave" v-if="draggable">批量保存</el-button>
        <el-tree
                 :data="data"
                 :props="defaultProps"
                 show-checkbox
                 @node-click="handleNodeClick"
                 :expand-on-click-node="false"
                 node-key="catId"
                 :default-expanded-keys="expandedKey"
                 :draggable="draggable"
                 :allow-drop="allowDrop"
                 >
            <span class="custom-tree-node" slot-scope="{ node, data }">
                <span>{{ node.label }}</span>
                <span>
                    <el-button
                               v-if="node.level != 3"
                               type="text"
                               size="mini"
                               @click="() => append(data)"
                               >
                        Append
                    </el-button>
                    <el-button
                               v-if="node.childNodes <= 0"
                               type="text"
                               size="mini"
                               @click="() => remove(node, data)"
                               >
                        Delete
                    </el-button>
                    <el-button type="text" size="mini" @click="() => edit(data)">
                        Edit
                    </el-button>
                </span>
            </span></el-tree
            >

        <el-dialog title="提示" :visible.sync="dialogVisible" width="30%">
            <el-form :model="category">
                <el-form-item label="分類名稱">
                    <el-input v-model="category.name" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="圖示">
                    <el-input v-model="category.icon" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="計量單位">
                    <el-input
                              v-model="category.productUnit"
                              autocomplete="off"
                              ></el-input>
                </el-form-item>
            </el-form>
            <span slot="footer" class="dialog-footer">
                <el-button @click="dialogVisible = false">取 消</el-button>
                <el-button type="primary" @click="submitData">確 定</el-button>
            </span>
        </el-dialog>
    </div>
</template>

<script>
    export default {
        data() {
            return {
                pCid: [],
                draggable: false,
                updateNodes: [],
                maxLevel: 0,
                dialogType: "", //edit,add
                title: "",
                dialogVisible: false,
                expandedKey: [],
                category: {
                    name: "",
                    parentCid: 0,
                    catLevel: 0,
                    showStatus: 1,
                    sort: 0,
                    icon: "",
                    productUnit: "",
                    catId: null,
                },
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            batchSave() {
                this.$http({
                    url: this.$http.adornUrl("/product/category/update/sort"),
                    method: "post",
                    data: this.$http.adornData(this.updateNodes, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單順序修改成功!",
                    });
                    // 重繪出新的選單
                    this.getMenus();
                    // 設定需要默認展開的選單
                    this.expandedKey = this.pCid;
                    this.updateNodes = [];
                    this.maxLevel = 0;
                    // this.pCid = 0;
                })
                    .catch(() => {});
            },
            handleDrop(draggingNode, dropNode, dropType, ev) {
                console.log("handleDrop: ", draggingNode, dropNode, dropType);

                //1 當前節點最新的父節點
                let pCid = 0;
                let siblings = null;
                if (dropType == "before" || dropType == "after") {
                    pCid =
                        dropNode.parent.data.catId == undefined
                        ? 0
                    : dropNode.parent.data.catId;
                    siblings = dropNode.parent.childNodes;
                } else {
                    pCid = dropNode.data.catId;
                    siblings = dropNode.childNodes;
                }
                this.pCid.push(pCid);
                //2 當前拖拽節點的最新順序
                for (let i = 0; i < siblings.length; i++) {
                    if (siblings[i].data.catId == draggingNode.data.catId) {
                        // 如果遍歷的是當前正在拖拽的節點
                        let catLevel = draggingNode.level;
                        if (siblings[i].level != draggingNode.level) {
                            // 當前節點的層級發生變化
                            catLevel = siblings[i].level;
                            // 修改他子節點的層級
                            this.updateChildNodeLevlel(siblings[i]);
                        }
                        this.updateNodes.push({
                            catId: siblings[i].data.catId,
                            sort: i,
                            parentCid: pCid,
                            catLevel: catLevel,
                        });
                    } else {
                        this.updateNodes.push({ catId: siblings[i].data.catId, sort: i });
                    }
                }
                //3 當前拖拽節點的最新層級
                console.log("updateNodes", this.updateNodes);
            },
            updateChildNodeLevlel(node) {
                if (node.childNodes.length > 0) {
                    for (let i = 0; i < node.childNodes.length; i++) {
                        var cNode = node.childNodes[i].data;
                        this.updateNodes.push({
                            catId: cNode.catId,
                            catLevel: node.childNodes[i].level,
                        });
                        this.updateChildNodeLevlel(node.childNodes[i]);
                    }
                }
            },
            allowDrop(draggingNode, dropNode, type) {
                //1 被拖動的當前節點以及所在的父節點總層數不能大于3

                //1 被拖動的當前節點總層數
                console.log("allowDrop:", draggingNode, dropNode, type);

                var level = this.countNodeLevel(draggingNode);

                // 當前正在拖動的節點+父節點所在的深度不大于3即可
                let deep = Math.abs(this.maxLevel - draggingNode.level) + 1;
                console.log("深度:", deep);

                // this.maxLevel
                if (type == "innner") {
                    // console.log(
                    //   `this.maxLevel: ${this.maxLevel}; draggingNode.data.catLevel:${draggingNode.data.catLevel};dropNode.level: ${dropNode.level}`
                    // );
                    return deep + dropNode.level <= 3;
                } else {
                    return deep + dropNode.parent.level <= 3;
                }
            },
            countNodeLevel(node) {
                // 找到所有子節點，求出最大深度
                if (node.childNodes != null && node.childNodes.length > 0) {
                    for (let i = 0; i < node.childNodes.length; i++) {
                        if (node.childNodes[i].level > this.maxLevel) {
                            this.maxLevel = node.childNodes[i].level;
                        }
                        this.countNodeLevel(node.childNodes);
                    }
                }
            },
            //添加節點
            append(data) {
                console.log("append----", data);
                this.dialogType = "add";
                this.title = "添加分類";
                this.category.parentCid = data.catId;
                this.category.catLevel = data.catLevel * 1 + 1;
                this.category.catId = null;
                this.category.name = null;
                this.category.icon = "";
                this.category.productUnit = "";
                this.category.sort = 0;
                this.category.showStatus = 1;
                this.dialogVisible = true;
            },
            // 修改三級分類資料
            editCategory() {
                var { catId, name, icon, productUnit } = this.category;
                this.$http({
                    url: this.$http.adornUrl("/product/category/update"),
                    method: "post",
                    data: this.$http.adornData({ catId, name, icon, productUnit }, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單修改成功!",
                    });
                    // 關閉對話框
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    // 設定需要默認展開的選單
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            edit(data) {
                console.log("要修改的資料", data);
                this.dialogType = "edit";
                this.title = "修改分類";
                // 發送請求獲取節點最新的資料，資料回顯
                this.$http({
                    url: this.$http.adornUrl(`/product/category/info/${data.catId}`),
                    method: "get",
                }).then((data) => {
                    // 請求成功
                    console.log("要回顯得資料", data);
                    console.log(data);
                    this.category = data.data.category;
                    // console.log(this.category);
                    this.dialogVisible = true;
                });
            },
            //上交
            submitData() {
                if (this.dialogType == "add") {
                    this.addCategory();
                }
                if (this.dialogType == "edit") {
                    this.editCategory();
                }
            },

            // 添加三級分類
            addCategory() {
                console.log("提交的三級分類資料", this.category);
                this.$http({
                    url: this.$http.adornUrl("/product/category/save"),
                    method: "post",
                    data: this.$http.adornData(this.category, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單保存成功!",
                    });
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            //洗掉節點
            remove(node, data) {
                var ids = [data.catId]; //洗掉節點的id
                this.$confirm(`是否洗掉【${data.name}】當前選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                        this.expandedKey = [node.parent.data.catId];
                    })
                        .catch(() => {});
                })
                    .catch(() => {
                    this.$message({
                        type: "info",
                        message: "已取消洗掉",
                    });
                });
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

<style>
</style>

• 后端代碼

@RestController
@RequestMapping("product/category")
public class CategoryController {
    @Autowired
    private CategoryService categoryService;
    /**
     * 修改分類
     */
    @RequestMapping("/update/sort")
    // @RequiresPermissions("product:category:update")
    public R update(@RequestBody CategoryEntity[] category){

        categoryService.updateBatchById(Arrays.asList(category));
        return R.ok();
    }

}

9、批量洗掉

• 前端代碼

.<template>
    <div>
        <el-switch
                   v-model="draggable"
                   active-text="開啟拖拽"
                   inactive-text="關閉拖拽"
                   >
        </el-switch>
        <el-button @click="batchSave" v-if="draggable">批量保存</el-button>
        <el-button type="danger" @click="batchDelete">批量洗掉</el-button>
        <el-tree
                 :data="data"
                 :props="defaultProps"
                 show-checkbox
                 @node-click="handleNodeClick"
                 :expand-on-click-node="false"
                 node-key="catId"
                 :default-expanded-keys="expandedKey"
                 :draggable="draggable"
                 :allow-drop="allowDrop"
                 ref="menuTree"
                 >
            <span class="custom-tree-node" slot-scope="{ node, data }">
                <span>{{ node.label }}</span>
                <span>
                    <el-button
                               v-if="node.level != 3"
                               type="text"
                               size="mini"
                               @click="() => append(data)"
                               >
                        Append
                    </el-button>
                    <el-button
                               v-if="node.childNodes <= 0"
                               type="text"
                               size="mini"
                               @click="() => remove(node, data)"
                               >
                        Delete
                    </el-button>
                    <el-button type="text" size="mini" @click="() => edit(data)">
                        Edit
                    </el-button>
                </span>
            </span></el-tree
            >

        <el-dialog title="提示" :visible.sync="dialogVisible" width="30%">
            <el-form :model="category">
                <el-form-item label="分類名稱">
                    <el-input v-model="category.name" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="圖示">
                    <el-input v-model="category.icon" autocomplete="off"></el-input>
                </el-form-item>
                <el-form-item label="計量單位">
                    <el-input
                              v-model="category.productUnit"
                              autocomplete="off"
                              ></el-input>
                </el-form-item>
            </el-form>
            <span slot="footer" class="dialog-footer">
                <el-button @click="dialogVisible = false">取 消</el-button>
                <el-button type="primary" @click="submitData">確 定</el-button>
            </span>
        </el-dialog>
    </div>
</template>

<script>
    export default {
        data() {
            return {
                pCid: [],
                draggable: false,
                updateNodes: [],
                maxLevel: 0,
                dialogType: "", //edit,add
                title: "",
                dialogVisible: false,
                expandedKey: [],
                category: {
                    name: "",
                    parentCid: 0,
                    catLevel: 0,
                    showStatus: 1,
                    sort: 0,
                    icon: "",
                    productUnit: "",
                    catId: null,
                },
                data: [],
                defaultProps: {
                    children: "children",
                    label: "name",
                },
            };
        },
        methods: {
            // 批量洗掉
            batchDelete() {
                let catIds = [];
                let checkedNodes = this.$refs.menuTree.getCheckedNodes();
                console.log("被選中的元素", checkedNodes);
                for (let i = 0; i < checkedNodes.length; i++) {
                    catIds.push(checkedNodes[i].catId);
                }
                this.$confirm(`是否批量洗掉【${catIds}】選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(catIds, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單批量洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                    })
                        .catch(() => {});
                })
                    .catch(() => {});
            },
            batchSave() {
                this.$http({
                    url: this.$http.adornUrl("/product/category/update/sort"),
                    method: "post",
                    data: this.$http.adornData(this.updateNodes, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單順序修改成功!",
                    });
                    // 重繪出新的選單
                    this.getMenus();
                    // 設定需要默認展開的選單
                    this.expandedKey = this.pCid;
                    this.updateNodes = [];
                    this.maxLevel = 0;
                    // this.pCid = 0;
                })
                    .catch(() => {});
            },
            handleDrop(draggingNode, dropNode, dropType, ev) {
                console.log("handleDrop: ", draggingNode, dropNode, dropType);

                //1 當前節點最新的父節點
                let pCid = 0;
                let siblings = null;
                if (dropType == "before" || dropType == "after") {
                    pCid =
                        dropNode.parent.data.catId == undefined
                        ? 0
                    : dropNode.parent.data.catId;
                    siblings = dropNode.parent.childNodes;
                } else {
                    pCid = dropNode.data.catId;
                    siblings = dropNode.childNodes;
                }
                this.pCid.push(pCid);
                //2 當前拖拽節點的最新順序
                for (let i = 0; i < siblings.length; i++) {
                    if (siblings[i].data.catId == draggingNode.data.catId) {
                        // 如果遍歷的是當前正在拖拽的節點
                        let catLevel = draggingNode.level;
                        if (siblings[i].level != draggingNode.level) {
                            // 當前節點的層級發生變化
                            catLevel = siblings[i].level;
                            // 修改他子節點的層級
                            this.updateChildNodeLevlel(siblings[i]);
                        }
                        this.updateNodes.push({
                            catId: siblings[i].data.catId,
                            sort: i,
                            parentCid: pCid,
                            catLevel: catLevel,
                        });
                    } else {
                        this.updateNodes.push({ catId: siblings[i].data.catId, sort: i });
                    }
                }
                //3 當前拖拽節點的最新層級
                console.log("updateNodes", this.updateNodes);
            },
            updateChildNodeLevlel(node) {
                if (node.childNodes.length > 0) {
                    for (let i = 0; i < node.childNodes.length; i++) {
                        var cNode = node.childNodes[i].data;
                        this.updateNodes.push({
                            catId: cNode.catId,
                            catLevel: node.childNodes[i].level,
                        });
                        this.updateChildNodeLevlel(node.childNodes[i]);
                    }
                }
            },
            allowDrop(draggingNode, dropNode, type) {
                //1 被拖動的當前節點以及所在的父節點總層數不能大于3

                //1 被拖動的當前節點總層數
                console.log("allowDrop:", draggingNode, dropNode, type);

                var level = this.countNodeLevel(draggingNode);

                // 當前正在拖動的節點+父節點所在的深度不大于3即可
                let deep = Math.abs(this.maxLevel - draggingNode.level) + 1;
                console.log("深度:", deep);

                // this.maxLevel
                if (type == "innner") {
                    // console.log(
                    //   `this.maxLevel: ${this.maxLevel}; draggingNode.data.catLevel:${draggingNode.data.catLevel};dropNode.level: ${dropNode.level}`
                    // );
                    return deep + dropNode.level <= 3;
                } else {
                    return deep + dropNode.parent.level <= 3;
                }
            },
            countNodeLevel(node) {
                // 找到所有子節點，求出最大深度
                if (node.childNodes != null && node.childNodes.length > 0) {
                    for (let i = 0; i < node.childNodes.length; i++) {
                        if (node.childNodes[i].level > this.maxLevel) {
                            this.maxLevel = node.childNodes[i].level;
                        }
                        this.countNodeLevel(node.childNodes);
                    }
                }
            },
            //添加節點
            append(data) {
                console.log("append----", data);
                this.dialogType = "add";
                this.title = "添加分類";
                this.category.parentCid = data.catId;
                this.category.catLevel = data.catLevel * 1 + 1;
                this.category.catId = null;
                this.category.name = null;
                this.category.icon = "";
                this.category.productUnit = "";
                this.category.sort = 0;
                this.category.showStatus = 1;
                this.dialogVisible = true;
            },
            // 修改三級分類資料
            editCategory() {
                var { catId, name, icon, productUnit } = this.category;
                this.$http({
                    url: this.$http.adornUrl("/product/category/update"),
                    method: "post",
                    data: this.$http.adornData({ catId, name, icon, productUnit }, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單修改成功!",
                    });
                    // 關閉對話框
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    // 設定需要默認展開的選單
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            edit(data) {
                console.log("要修改的資料", data);
                this.dialogType = "edit";
                this.title = "修改分類";
                // 發送請求獲取節點最新的資料，資料回顯
                this.$http({
                    url: this.$http.adornUrl(`/product/category/info/${data.catId}`),
                    method: "get",
                }).then((data) => {
                    // 請求成功
                    console.log("要回顯得資料", data);
                    console.log(data);
                    this.category = data.data.category;
                    // console.log(this.category);
                    this.dialogVisible = true;
                });
            },
            //上交
            submitData() {
                if (this.dialogType == "add") {
                    this.addCategory();
                }
                if (this.dialogType == "edit") {
                    this.editCategory();
                }
            },

            // 添加三級分類
            addCategory() {
                console.log("提交的三級分類資料", this.category);
                this.$http({
                    url: this.$http.adornUrl("/product/category/save"),
                    method: "post",
                    data: this.$http.adornData(this.category, false),
                })
                    .then(({ data }) => {
                    this.$message({
                        type: "success",
                        message: "選單保存成功!",
                    });
                    this.dialogVisible = false;
                    // 重繪出新的選單
                    this.getMenus();
                    this.expandedKey = [this.category.parentCid];
                })
                    .catch(() => {});
            },
            //洗掉節點
            remove(node, data) {
                var ids = [data.catId]; //洗掉節點的id
                this.$confirm(`是否洗掉【${data.name}】當前選單?`, "提示", {
                    confirmButtonText: "確定",
                    cancelButtonText: "取消",
                    type: "warning",
                })
                    .then(() => {
                    this.$http({
                        url: this.$http.adornUrl("/product/category/delete"),
                        method: "post",
                        data: this.$http.adornData(ids, false),
                    })
                        .then(({ data }) => {
                        this.$message({
                            type: "success",
                            message: "選單洗掉成功!",
                        });
                        // 重繪出新的選單
                        this.getMenus();
                        this.expandedKey = [node.parent.data.catId];
                    })
                        .catch(() => {});
                })
                    .catch(() => {
                    this.$message({
                        type: "info",
                        message: "已取消洗掉",
                    });
                });
            },
            //獲取所有選單
            getMenus() {
                this.$http({
                    url: this.$http.adornUrl(`/product/category/list/tree`),
                    method: "get",
                }).then((resp) => {
                    this.data = resp.data.list;
                });
            },
            handleNodeClick(data) {
                console.log(data);
            },
        },
        created() {
            this.getMenus();
        },
    };
</script>

<style>
</style>

• 后端代碼

@RequestMapping("/delete")
public R delete(@RequestBody Long[] catIds){
    categoryService.removeCategory(catIds);
    return R.ok();
}

• 效果
