Bootloader

Bootloader 以其本身的含義來講就是下載和啟動系統，它類似于 PC 中的 BIOS，大部

分芯片廠商所提供的嵌入式系統都提供有這樣的程式，而且都比較成熟，大可不必自行撰寫，

為研究其作業原理，清掃上個章節裸機程式中的知識盲點，本章節將通過vivi單獨介紹Bootloader的技術細節，vivi由三星提供，韓國 mizi 公司原創，開放源代碼，必須使用 arm-linux-gcc 進行編譯，主要適用于三星 S3C24xx 系列 ARM 芯片，用以啟動 Linux 系統，支持串口下載和網路檔案系統啟動等常用簡易功能，

vivi編譯原始碼

vivi需要在linux環境下編譯，本文給出的viv原始碼交叉編譯器版本為arm-linux-gcc-2.95.3，從官網下載gcc，解壓到/usr/local/arm/2.95.3目錄，下載vivi-20090630.tar.gz，解壓到合適目錄，cd進入vivi目錄，輸入make命令進行編譯，編譯完成后生成vivi二進制檔案，使用jlink或者其他BootLoader將其燒錄到nand flash中，

vivi原始碼決議

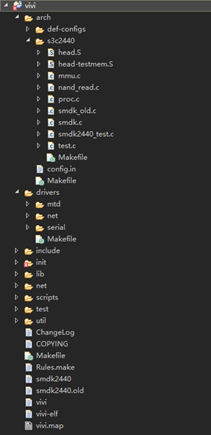

vivi原始碼目錄層次結構如下：

arch目錄包含了芯片啟動初始化相關代碼，drivers目錄為外設相關的驅動代碼，包括FLASH、以太網、串口，init目錄包含了main主程式和版本資訊相關代碼，其他目錄包含的工具相關的輔助代碼

首先決議‘vivi/arch/s3c2440/head.S’這個匯編檔案，該檔案是芯片上電后最開始執行的代碼，地址為0x00000000，從下一章節“Nand Flash驅動”章節可知，上電后，硬體會自動將nand flash中前4K代碼復制到RAM中運行，映射的RAM起始地址為0x00000000，此處的head.S即對應前4K代碼，

1 #include "config.h"

2 #include "linkage.h"

3 #include "machine.h"

4 #define CONFIG_DEBUG_LL

5 #define CONFIG_SERIAL_UART0 1

6 ENTRY(_start)

7 ENTRY(ResetEntryPoint)

8 @ 0x00: Reset

9 b Reset

10

11 UndefEntryPoint:

12 b HandleUndef

13

14 SWIEntryPoint:

15 b HandleSWI

16

17 PrefetchAbortEnteryPoint:

18 b HandlePrefetchAbort

19

20 DataAbortEntryPoint:

21 b HandleDataAbort

22

23 NotUsedEntryPoint:

24 b HandleNotUsed

25

26 IRQEntryPoint:

27 b HandleIRQ

28

29 FIQEntryPoint:

30 b HandleFIQ

31

32 @ 0x20: magic number so we can verify that we only put

33 .long 0

34 @ 0x24:

35 .long 0

36 @ 0x28: where this vivi was linked, so we can put it in memory in the right place

37 .long _start

38 @ 0x2C: this contains the platform, cpu and machine id

39 .long ARCHITECTURE_MAGIC

40 @ 0x30: vivi capabilities

41 .long 0

42 #ifdef CONFIG_PM

43 @ 0x34:

44 b SleepRamProc

45 #endif

46 #ifdef CONFIG_TEST

47 @ 0x38:

48 @ b hmi

49 #endif

50 Reset:

51 @ disable watch dog timer

52 mov r1, #0x53000000

53 mov r2, #0x0

54 str r2, [r1]

55 @ disable all interrupts

56 mov r1, #INT_CTL_BASE

57 mov r2, #0xffffffff

58 str r2, [r1, #oINTMSK]

59 ldr r2, =0x7ff

60 str r2, [r1, #oINTSUBMSK]

61 @ initialise system clocks

62 mov r1, #CLK_CTL_BASE

63 mvn r2, #0xff000000

64 str r2, [r1, #oLOCKTIME]

65

66 mov r1, #CLK_CTL_BASE

67 ldr r2, clkdivn_value

68 str r2, [r1, #oCLKDIVN]

69

70 mrc p15, 0, r1, c1, c0, 0 @ read ctrl register

71 orr r1, r1, #0xc0000000 @ Asynchronous

72 mcr p15, 0, r1, c1, c0, 0 @ write ctrl register

73

74 mov r1, #CLK_CTL_BASE

75 @ldr r2, mpll_value @ clock default

76 ldr r2, =0x5C011 @mpll_value_USER @ clock user set @0x7f021

77 str r2, [r1, #oMPLLCON]

78 mov r2, #0x05

79 str r2, [r1, #oCLKDIVN]

80 bl memsetup

81

82 #ifdef CONFIG_PM

83 @ Check if this is a wake-up from sleep

84 ldr r1, PMST_ADDR

85 ldr r0, [r1]

86 tst r0, #(PMST_SMR)

87 bne WakeupStart

88 #endif

89

90 @ All LED on

91 mov r1, #GPIO_CTL_BASE

92 add r1, r1, #oGPIO_B

93 ldr r2,=0x155555

94 str r2, [r1, #oGPIO_CON]

95 mov r2, #0xff

96 str r2, [r1, #oGPIO_UP]

97 mov r2, #0xAA

98 str r2, [r1, #oGPIO_DAT]

99

100 mov r0, #0x1

101 bl ShowLedVal

102 mov r0, #120

103 bl Delay_ms

104 mov r0, #0x2

105 bl ShowLedVal

106 mov r0, #120

107 bl Delay_ms

108 mov r0, #0x4

109 bl ShowLedVal

110 mov r0, #120

111 bl Delay_ms

112 mov r0, #0x8

113 bl ShowLedVal

114 mov r0, #120

115 bl Delay_ms

116 mov r0, #0x0

117 bl ShowLedVal

118

119 #ifdef CONFIG_S3C2440_SMDK

120 mov r1, #GPIO_CTL_BASE

121 add r1, r1, #oGPIO_H

122 ldr r2, =0x00faaa

123 str r2, [r1, #oGPIO_CON]

124 ldr r2, =0x7ff

125 str r2, [r1, #oGPIO_UP]

126 #endif

127 bl InitUART

128

129 mov r1, #UART0_CTL_BASE @old is SerBase

130 mov r0, #'\r'

131 bl PrintChar

132 mov r0, #'\n'

133 bl PrintChar

134 mov r0, #'1'

135 bl PrintChar

136 mov r0, #'@'

137 bl PrintChar

138 mov r0, pc

139 bl PrintHexWord

140

141 mov r0, #'B'

142 bl PrintChar

143 mov r0, #':'

144 bl PrintChar

145 ldr r0, =on_the_ram

146 bl PrintHexWord

147

148 mov r0, #'@'

149 bl PrintChar

150 bl copy_myself

151

152 mov r1, #GPIO_CTL_BASE

153 add r1, r1, #oGPIO_F

154 mov r2, #0x00

155 str r2, [r1, #oGPIO_DAT]

156

157 @ jump to ram

158 ldr r1, =on_the_ram

159 add pc, r1, #0

160 nop

161 nop

167 1: b 1b @ infinite loop

168

169 on_the_ram:

170 @ Print current Program Counter

171 mov r1, #UART0_CTL_BASE

172 mov r0, #'\r'

173 bl PrintChar

174 mov r0, #'\n'

175 bl PrintChar

176 mov r0, #'2'

177 bl PrintChar

178 mov r0, #'@'

179 bl PrintChar

180 mov r0, pc

181 bl PrintHexWord

182

183 mov r1, #UART0_CTL_BASE

184 ldr r0, STR_STACK

182 bl PrintWord

183 ldr r0, DW_STACK_START

184 bl PrintHexWord

185

186 ldr sp, DW_STACK_START @ setup stack pointer

187 mov fp, #0 @ no previous frame, so fp=0

188 mov a2, #0 @ set argv to NULL

189

190 bl main @ call main

191

192 mov pc, #FLASH_BASE @ otherwise, reboot

193

194 copy_myself:

195 mov r10, lr

196 @ get read to call C functions (for nand_read())

197 ldr sp, DW_STACK_START @ setup stack pointer

198 mov fp, #0 @ no previous frame, so fp=0

199

200 mov r1, #GPIO_CTL_BASE

201 add r1, r1, #oGPIO_F

202 mov r2, #0xe0

203 str r2, [r1, #oGPIO_DAT]

204

205 @ copy vivi to RAM

206 ldr r0, =VIVI_RAM_BASE

207 mov r1, #0x0

208 mov r2, #0x20000

209

210 bl nand_read_ll

211

212 ldr r1, =VIVI_RAM_BASE

213 ldr r0, [r1, #0x0]

214 bl PrintHexWord

215 ldr r0, [r1, #0x4]

216 bl PrintHexWord

217 ldr r0, [r1, #0x8]

218 bl PrintHexWord

219 ldr r0, [r1, #0xC]

220 bl PrintHexWord

221

222 mov r1, #GPIO_CTL_BASE

223 add r1, r1, #oGPIO_F

224 mov r2, #0xb0

225 str r2, [r1, #oGPIO_DAT]

226 bl PrintHexWord

227 tst r0, #0x0

228 beq ok_nand_read

229 bad_nand_read:

230 ldr r0, STR_FAIL

231 ldr r1, SerBase

232 bl PrintWord

233 1: b 1b @ infinite loop

234

235 ok_nand_read:

236 ldr r0, STR_OK

237 ldr r1, SerBase

238 bl PrintWord

239 mov r0, #'_'

240 bl PrintChar

241 mov r0, #'c'

242 bl PrintChar

243 mov r0, #'p'

244 bl PrintChar

245 mov r0, #'\r'

246 bl PrintChar

247 mov r0, #'\n'

248 bl PrintChar

249

250 @ verify

251 mov r0, #0

252 ldr r1, =0x33f00000

253 mov r2, #0x400 @ 4 bytes * 1024 = 4K-bytes

254 go_next:

255 ldr r3, [r0], #4

256 ldr r4, [r1], #4

257 teq r3, r4

258 bne notmatch

259 subs r2, r2, #4

260 beq done_nand_read

261 bne go_next

262 notmatch:

263 sub r0, r0, #4

264 ldr r1, SerBase

265 bl PrintHexWord

266 ldr r0, STR_FAIL

267 ldr r1, SerBase

268 bl PrintWord

269 mov r0, r3

270 bl PrintHexWord

271 mov r0, r4

272 bl PrintHexWord

273 ldr r1, =0x33f00004

274 ldr r4, [r1], #4

275 mov r0, r4

276 bl PrintHexWord

277

278 1: b 1b

279 done_nand_read:

280 ldr r0, STR_OK

281 ldr r1, SerBase

282 bl PrintWord

283

284 mov r1, #GPIO_CTL_BASE

285 add r1, r1, #oGPIO_F

286 mov r2, #0x70

287 str r2, [r1, #oGPIO_DAT]

288

289 mov pc, r10

Line9 b Reset即對應0x00000000，此處是一個跳轉指令，跳轉到Reset標識處，

Line52~54禁用看門狗，Line56~60禁用所有中斷，

Line62~79用于設定時鐘，

Line80 初始化記憶體，具體設定的值此處忽略，

Line82~88判斷是否從睡眠模式中喚醒

Line91~98點亮LED燈

Line100~117依次點亮每個LED燈，ShowLedVal和Delay_ms可在串口啟用前除錯代碼，將需要Debug的值，輸入到ShowLedVal中，配合Delay_ms觀測LED點燈情況，

Line120~127設定串口，后續可使用串口列印log方式除錯bootloader程式，

Line129~139通過串口列印出了PC暫存器的值，通過觀察可知，值為0x00000140，

Line145~146列印出了on_the_ram標識處的地址，即0x33F00188，該地址也可以通過map檔案找到，

Line150 跳轉到Line194

Line195保存回傳地址

Line197~198準備C語言呼叫的環境

Line200~203設定GPIOF埠

Line206~210向C語言函式nand_read_ll傳入3個引數0x33F00000(0x30000000+0x04000000-0x00100000)，0，0x20000，用于從flash讀取資料到RAM中，詳細流程，參看下一章“Nand Flash驅動”

Line212~220串口輸出copy進RAM前16個位元組的資料，即“EA00000B，EA000111，EA000116，EA00011B”

Line227~228用于檢測nand_read_ll的回傳值是否為0，是則串口輸出“OK”“_cp”字樣，

Line251~261比較RAM中0~4K-1和剛copy的資料是否一致，是則輸出“OK”字樣，

Line289代碼段copy_myself回傳，跳轉到Line152，

Line158~159 跳轉到on_the_ram，此處跳轉為直接地址跳轉，跳轉到地址0x33F00188，

Line171~181串口依次輸出’\r\n2@’以及PC暫存器地址，此處為0x33F001B4，從這里看到，程式已經跳轉到了我們copy的ram地址區域中了，

Line183~184(代碼處數字有誤，此處指第一個183到第二個184處)，串口輸出“STKP”字樣，以及堆疊指標，0x33DEFFFC

Line186~190初始化C語言堆疊指標、fp指標、main函式引數，最后跳轉到main函式，

至此程式已進入main主函式，

串口輸出資訊如下：

1@00000140

B:33F00188

@EA00000B

EA000111

EA000116

EA00011B

00000250

OK

_cp

OK

2@33F001B4

STKP

33DEFFFC

VIVI version 0.1.4 (root@summertree-desktop) (gcc version 2.95.3 20010315 (release)) #0.1.4 Thu Sep 23 21:18:06 CST 2021

MMU table base address = 0x33DFC000

Succeed memory mapping.

NAND device: Maf Id:236, dev Id:218

NAND device: Manufacture ID: 0xec, Chip ID: 0xda (Samsung K9F2G08U0B)

Found default vivi parameters

Press Return to start the LINUX now, any other key for vivi

type "help" for help.

FriendlyARM>

FriendlyARM> help

Usage:

flash [{cmds}] -- Manage Flash memory

cpu [{cmds}] -- Manage cpu clocks

bon [{cmds}] -- Manage the bon file system

reset -- Reset the system

param [eval|show|save [-n]|reset] -- set/get parameter

part [add|del|show|reset] -- Manage MTD partitions

mem [{cmds}] -- Manage Memory

load [{cmds}] -- Load a file to RAM/Flash

go <addr> <a0> <a1> <a2> <a3> -- jump to <addr>

dump <addr> <length> -- Display (hex dump) a range of memory.

call <addr> <a0> <a1> <a2> <a3> -- jump_with_return to <addr>

boot [{cmds}] -- Booting linux kernel

help [{cmds}] -- Help about help?

FriendlyARM>

FriendlyARM>
