一、背景

??我在之前的文章SpringBoot基于Zookeeper和Curator實作分布式鎖并分析其原理詳細介紹了它的使用及其原理，現在我們也根據這個思路，用zookeeper原生的方式來實作一個分布式鎖，加深對分布式鎖的理解，本文中Spring Boot的版本是2.5.2，zookeeper的版本是3.6.3，

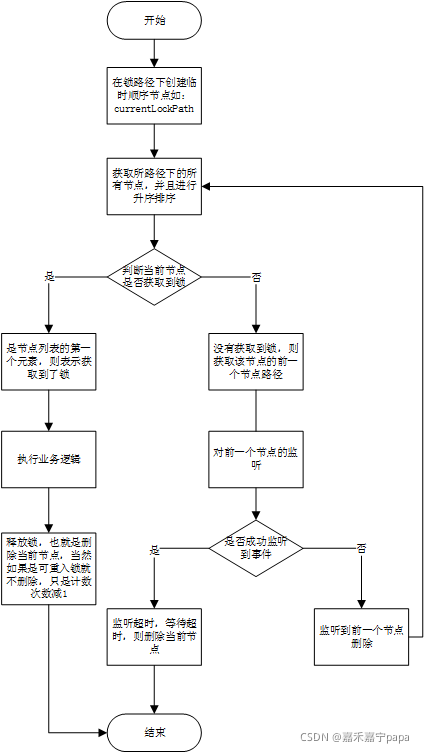

??我們大致的大致的流程圖如下圖，可作為我們查看代碼的一個思路，不然看的頭大，（當然本圖是沒有包含可重入鎖的流程判斷在里面的）
在這里插入圖片描述

二、maven依賴

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.6</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.alian</groupId>
    <artifactId>zklock</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>zklock</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.5.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.6.3</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>log4j</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.12.0</version>
        </dependency>

		<!--主要用于Maps.newConcurrentMap()-->
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>30.1-jre</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.14</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

三、配置

3.1、application.yml配置

application.yml

server:
  port: 8082
  servlet:
    context-path: /zklock

app:
  zookeeper:
    server: 10.130.3.16:2181
    session-timeout: 15000
    #這里配置的路徑沒有用"/"結尾
    root-lock-path: /root/alian

3.2、屬性配置類

??此配置類不懂的可以參考我另一篇文章：Spring Boot讀取組態檔常用方式

AppProperties.java

package com.alian.zklock.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@Component
@ConfigurationProperties(prefix = "app.zookeeper")
public class AppProperties {

    /**
     * zookeeper服務地址
     */
    private String server;

    /**
     * session超時時間
     */
    private int sessionTimeout;

    /**
     * 分布式鎖路徑
     */
    private String rootLockPath;

}

3.3、ZookeeperConfig配置件

ZookeeperConfig.java

package com.alian.zklock.config;

import lombok.extern.slf4j.Slf4j;
import org.apache.zookeeper.Watcher.Event.EventType;
import org.apache.zookeeper.Watcher.Event.KeeperState;
import org.apache.zookeeper.ZooKeeper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.concurrent.CountDownLatch;

@Slf4j
@Configuration
public class ZookeeperConfig {

    private static CountDownLatch countDownLatch = new CountDownLatch(1);

    @Autowired
    private AppProperties appProperties;

    @Bean
    public ZooKeeper zookeeper() throws Exception {
        ZooKeeper zookeeper = new ZooKeeper(appProperties.getServer(), appProperties.getSessionTimeout(), event -> {
            log.info("Receive watched event: {}", event.getState());
            //獲取事件的狀態
            KeeperState keeperState = event.getState();
            //獲取時間型別
            EventType eventType = event.getType();
            //如果是建立連接
            if (KeeperState.SyncConnected == keeperState) {
                if (EventType.None == eventType) {
                    //如果建立連接成功，則發送信號量，讓后續阻塞程式向下執行
                    countDownLatch.countDown();
                    log.info("zookeeper建立連接");
                }
            }
        });
        //進行阻塞，當執行countDownLatch.countDown();后續代碼才會進行
        countDownLatch.await();
        return zookeeper;
    }

}

??這里主要是對ZooKeeper 進行連接配置，關于CountDownLatch的使用，本文最后有相關的介紹，

四、實戰

??定義了兩個方法：加鎖和釋放鎖，

4.1、介面

ILockService.java

package com.alian.zklock.service;

import java.util.concurrent.TimeUnit;

public interface ILockService {

    /**
     * 加鎖
     *
     * @param lockPath
     * @param time
     * @param unit
     * @return
     */
    boolean lock(String lockPath, long time, TimeUnit unit);

    /**
     * 釋放鎖
     *
     * @return
     */
    void release();

}

4.2、介面核心實作

??這個實作類的注釋，我想已經很詳細了，可以細細閱讀，可以加深你對zookeeper分布式鎖實作原理的理解，

ZookeeperLockService.java

package com.alian.zklock.service.impl;

import com.alian.zklock.service.ILockService;
import com.google.common.collect.Maps;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.apache.commons.lang3.tuple.Pair;
import org.apache.zookeeper.*;
import org.apache.zookeeper.data.Stat;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.Collections;
import java.util.List;
import java.util.concurrent.ConcurrentMap;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;

@Slf4j
@Service
public class ZookeeperLockService implements ILockService {

	//依賴需要匯入：<groupId>com.google.guava</groupId><artifactId>guava</artifactId><version>30.1-jre</version>
    private final ConcurrentMap<Thread, LockData> threadData = Maps.newConcurrentMap();

    @Autowired
    private ZooKeeper zooKeeper;

    //好的思想直接拿來用
    private static class LockData {
        final Thread owningThread;
        final String lockPath;
        final AtomicInteger lockCount = new AtomicInteger(1);
		//構造方法
        private LockData(Thread owningThread, String lockPath) {
            this.owningThread = owningThread;
            this.lockPath = lockPath;
        }
    }

    /**
     * 加鎖
     *
     * @param lockPath
     * @return
     * @throws Exception
     */
    public boolean lock(String lockPath, long time, TimeUnit unit) {
        //可重入，確保同一執行緒，可以重復加鎖
        Thread currentThread = Thread.currentThread();
        //根據執行緒號獲取執行緒鎖資料
        LockData lockData = threadData.get(currentThread);
        if (lockData != null) {
            // 說明該執行緒已加鎖過，直接放行
            lockData.lockCount.incrementAndGet();
            return true;
        }
        String currentLockPath = attemptLock(lockPath, time, unit);
        //如果不為空則表示獲取到了鎖
        if (StringUtils.isNotBlank(currentLockPath)) {
            //把資料快取起來
            LockData newLockData = new LockData(currentThread, currentLockPath);
            threadData.put(currentThread, newLockData);
            return true;
        }
        return false;
    }

    /**
     * 嘗試獲取鎖，獲取成功回傳鎖路徑
     *
     * @param lockPath
     * @param time
     * @param unit
     * @return
     */
    public String attemptLock(String lockPath, long time, TimeUnit unit) {
        //創建臨時有序節點,傳入的lockPath沒有"/"
        try {
            String currentLockPath = zooKeeper.create(lockPath + "/", "0".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL_SEQUENTIAL);
            log.info("執行緒：【{}】->【{}】嘗試競爭鎖", Thread.currentThread().getName(), currentLockPath);
            //創建臨時節點失敗
            if (StringUtils.isBlank(currentLockPath)) {
                throw new Exception("生成臨時節點例外");
            }
            //檢查當前節點是否獲取到了鎖
            boolean hasLock = checkLocked(lockPath, currentLockPath, time, unit);
            //獲取到了鎖則回傳鎖節點路徑
            return hasLock ? currentLockPath : null;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    /**
     * 檢查是否獲取到鎖
     *
     * @param lockPath
     * @param currentLockPath
     * @param time
     * @param unit
     * @return
     * @throws Exception
     */
    public boolean checkLocked(String lockPath, String currentLockPath, long time, TimeUnit unit) {
        boolean hasLock = false;
        boolean toDelete = false;
        try {
            while (!hasLock) {
                //檢查是否獲取到了鎖,沒有獲取到則回傳前一個節點
                Pair<Boolean, String> pair = getsTheLock(lockPath, currentLockPath);
                //當前節點是否獲取到了鎖
                boolean currentLock = pair.getLeft();
                //獲取前一個節點
                String preSequencePath = pair.getRight();
                if (currentLock) {
                    //獲取到了鎖
                    hasLock = true;
                } else {
                    //等待
                    final CountDownLatch latch = new CountDownLatch(1);
                    //訂閱比自己次小順序節點的洗掉事件
                    Watcher watcher = watchedEvent -> {
                        log.info("監聽到的變化【】 watchedEvent = {}", watchedEvent);
                        latch.countDown();
                    };
                    Stat stat = zooKeeper.exists(preSequencePath, watcher);
                    if (stat != null) {
                        log.info("執行緒：【{}】等待鎖【{}】釋放", Thread.currentThread().getName(), preSequencePath);
                        boolean await = latch.await(time, unit);
                        if (!await) {
                            //說明超時了
                            log.info("獲取鎖超時");
                            toDelete = true;
                            break;
                        }
                    }
                    //檢查鎖
                    Pair<Boolean, String> checkPair = getsTheLock(lockPath, currentLockPath);
                    if (checkPair.getLeft()) {
                        hasLock = true;
                    }
                }
            }
        } catch (Exception e) {
            log.error("檢查是否獲取到鎖例外", e);
            if (e instanceof InterruptedException) {
                toDelete = true;
            }
        } finally {
            if (toDelete) {
                deleteCurrentPath(currentLockPath);
            }
        }
        return hasLock;
    }

    /**
     * 檢測是否已經獲取到了鎖,沒有獲取到則回傳前一個節點
     *
     * @param lockPath
     * @param currentLock
     * @return
     * @throws Exception
     */
    private Pair<Boolean, String> getsTheLock(String lockPath, String currentLock) throws Exception {
        //獲取根節點下所有子節點,不能用/結尾
        List<String> childrenList = zooKeeper.getChildren(lockPath, false);
        //節點按照編號，升序排列
        Collections.sort(childrenList);
        //如果是第一個，代表自己已經獲得了鎖
        String currentLockNode = currentLock.substring(currentLock.lastIndexOf("/") + 1);
        if (currentLockNode.equals(childrenList.get(0))) {
            log.info("節點【{}】成功的獲取分布式鎖", currentLock);
            return Pair.of(true, "");
        }
        //判斷自己排第幾個,回傳的是物件所在串列的序號
        int index = Collections.binarySearch(childrenList, currentLockNode);
        if (index < 0) { // 網路抖動，獲取到的子節點串列里可能已經沒有自己了
            throw new Exception("節點沒有找到: " + currentLockNode);
        }
        //如果沒有獲得鎖，則要監聽前一個節點
        String preSequencePath = lockPath + "/" + childrenList.get(index - 1);
        //回傳監聽的前一個節點
        return Pair.of(false, preSequencePath);
    }

    /**
     * 洗掉當前獲取鎖的節點
     *
     * @param currentLockPath
     */
    private void deleteCurrentPath(String currentLockPath) {
        try {
            //判斷路徑是否存在
            Stat stat = zooKeeper.exists(currentLockPath, false);
            if (stat != null) {
                //存在則洗掉
                zooKeeper.delete(currentLockPath, -1);
            }
        } catch (InterruptedException | KeeperException e) {
            log.error("洗掉節點例外");
        }
    }

    @Override
    public void release() {
        //獲取當前執行緒
        Thread currentThread = Thread.currentThread();
        //獲取當前執行緒的資料
        LockData lockData = threadData.get(currentThread);
        if (lockData == null) {
            throw new IllegalMonitorStateException("You do not own the lock: ");
        }
        //鎖計數器減1
        int newLockCount = lockData.lockCount.decrementAndGet();
        if (newLockCount > 0) {
            //可重入鎖，暫時不擅長節點
            return;
        }
        if (newLockCount < 0) {
            throw new IllegalMonitorStateException("Lock count has gone negative for lock: ");
        }
        try {
            //洗掉節點
            zooKeeper.delete(lockData.lockPath, -1);
            log.info("執行緒：【{}】釋放鎖【{}】", Thread.currentThread().getName(), lockData.lockPath);
        } catch (InterruptedException | KeeperException e) {
            e.printStackTrace();
        } finally {
            threadData.remove(currentThread);
        }
    }

}

4.3、測驗類

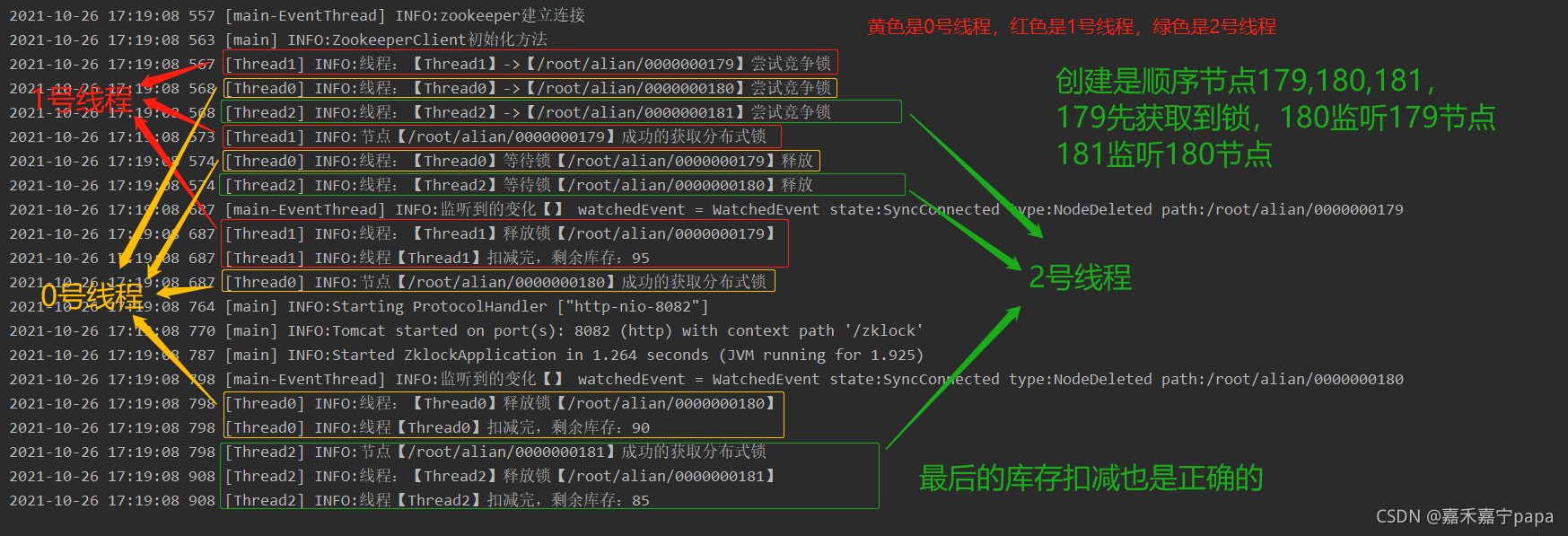

??我們為了方便檢驗我們的分布式鎖，初始化庫存為100，就使用3個執行緒進行并發，每個執行緒減55個庫存，我這里也不使用測驗工具jmeter了，就相當于單機測驗了，（如果是要進行分布式部署測驗，那么庫存值不能像我這樣直接在程式寫死，可以放redis或者資料庫，然后通過負載均衡、壓力測驗工具jmeter去完成，具體使用可以參考：windows下Nginx配置及負載均衡使用），我們主要目的是：為了驗證我們寫的分布式鎖，加深對分布式鎖的理解，

TestLockService.java

package com.alian.zklock.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import javax.annotation.PostConstruct;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;

@Slf4j
@Service
public class TestLockService {

    @Autowired
    private ILockService lockService;

    AtomicInteger stock = new AtomicInteger(100);

    @PostConstruct
    public void testLock() {
        final CountDownLatch countDownLatch = new CountDownLatch(3);
        for (int i = 0; i < 3; i++) {
            new Thread(() -> {
                try {
                    //使當前執行緒在鎖存器倒計數至零之前一直等待，除非執行緒被中斷或超出了指定的等待時間，如果當前計數為零，則此方法立刻回傳true值
                    countDownLatch.await();
                    //獲得鎖
                    boolean lock = lockService.lock("/root/alian", 10, TimeUnit.SECONDS);
                    if (lock) {
                        //業務處理
                        Thread.sleep(100);
                        //庫存減1
                        decrement();
                        //釋放鎖
                        lockService.release();
                        log.info("執行緒【{}】扣減完，剩余庫存：{}", Thread.currentThread().getName(), stock.get());
                    }
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } finally {

                }
            }, "Thread" + i).start();
            //遞減鎖存器的計數，如果計數到達零，則釋放所有等待的執行緒，如果當前計數大于零，則將計數減少.
            countDownLatch.countDown();
        }
    }

    private void decrement() {
        for (int i = 0; i < 5; i++) {
            stock.decrementAndGet();
        }
    }

}

4.4、結果

運行結果圖：
在這里插入圖片描述
從我們的結果圖可以看出來（為了方便，節點前面的變化文章里就省略了，實際是存在的）：

同時三個執行緒（Thread0、Thread1、Thread2）創建了節點（180、179,181）去搶占資源
Thread1創建的179號節點是最小的，獲取到了鎖，這時候，Thread0監聽179節點，Thread2監聽180節點
Thread1扣減庫存5次，然后釋放鎖，也就是洗掉了節點179，觸發監聽
因為Thread0監聽179節點，所以Thread0繼續執行搶占到了鎖，同樣扣減庫存后，洗掉180節點
然后Thread2監聽的是180節點，同樣的Thread2搶占到了鎖，扣減庫存，洗掉181節點
最后得到庫存85

超時的驗證則可以在業務執行的時候設定一個休眠時間，可重入鎖也是支持的，直接使用curator里面的，優秀的東西就直接拿來用了

4.5、關于CountDownLatch

也許有很多小伙伴，不知道CountDownLatch是怎么用的，我這里就簡單介紹下，主要有兩個方法：

public void countDown()

遞減鎖存器的計數，如果計數到達零，則釋放所有等待的執行緒，如果當前計數大于零，則將計數減少，

public boolean await(long timeout,TimeUnit unit) throws InterruptedException

??使當前執行緒在鎖存器倒計數至0之前一直等待，除非執行緒被中斷或超出了指定的等待時間，如果計數到達零，則回傳true；如果在計數到達零之前超過了等待時間，則回傳false，以下三種情況之一前，該執行緒將一直出于休眠狀態：

如果計數到達零，則該方法回傳true值
如果超出了指定的等待時間，則回傳值為false，如果該時間小于等于零，則該方法根本不會等待
如果當前執行緒，在進入此方法時已經設定了該執行緒的中斷狀態；或者在等待時被中斷，則拋出InterruptedException，并且清除當前執行緒的已中斷狀態

??類似本文中的測驗方法，就相當于并發，當三個執行緒都創建完，都走到countDownLatch.await()這里就不執行了，直到執行countDownLatch.countDown()后面才會走，

    public void race() {
        final CountDownLatch countDownLatch = new CountDownLatch(1);
        for (int i = 0; i < 3; i++) {
            new Thread(() -> {
                try {
                    countDownLatch.await();
                    Thread.sleep(100);
                    log.info(Thread.currentThread().getName()+"開始跑步");
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }, "Thread" + i).start();
        }
        countDownLatch.countDown();
        log.info("主執行緒執行完");
    }

結果：

2021-10-26 20:43:06 458 [main] INFO:主執行緒執行完
2021-10-26 20:43:06 561 [Thread2] INFO:Thread2開始跑步
2021-10-26 20:43:06 561 [Thread0] INFO:Thread0開始跑步
2021-10-26 20:43:06 561 [Thread1] INFO:Thread1開始跑步

??我們也可以反過來，使主執行緒阻塞，這個時候就是執行緒執行到countDownLatch.await()后，主執行緒后面的不執行，直到前面的子執行緒都執行完，主執行緒才往后執行，

    public void multitasking() throws InterruptedException {
        final CountDownLatch countDownLatch = new CountDownLatch(3);
        for (int i = 0; i < 3; i++) {
            new Thread(() -> {
                log.info(Thread.currentThread().getName()+"執行完");
                countDownLatch.countDown();
            }, "Thread" + i).start();
        }
        countDownLatch.await();
        log.info("主執行緒執行完");
    }

結果：

2021-10-26 20:45:21 053 [Thread0] INFO:Thread0執行完
2021-10-26 20:45:21 053 [Thread1] INFO:Thread1執行完
2021-10-26 20:45:21 053 [Thread2] INFO:Thread2執行完
2021-10-26 20:45:21 053 [main] INFO:主執行緒執行完

結語

??也許本文的寫的分布式還有些許的瑕疵，但我們主要目的是：為了加深對zookeeper分布式鎖實作原理的理解，實際使用中我們還是使用curator是比較方便和穩定，具體可以參考我另外一篇文章：SpringBoot基于Zookeeper和Curator實作分布式鎖并分析其原理，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/339073.html

標籤：其他

上一篇：linux中下載安裝rabbitmq

下一篇：MapReduce學習筆記，理解學習Hadoop的MapReduce計算系統

Spring Boot基于zookeeper原生方式實作分布式鎖

目錄
