帶有facet_grid的多行x軸標簽，其中每個方面都有唯一的標簽

我正在嘗試創建分組 x 軸標簽以放置在現有 x 軸標簽之上；最近在 StackOverflow 上的瀏覽??推薦 facet_grid 為此目的。但是，我無法為每個方面修改單獨的 x 軸標簽。代表如下：

library(tidyverse)

# make data
scale <- c("a", "b", "c", "d", "e", "f", "g", "h", "i", "j", "k", "l", "m", "n", "o")
score <- rep(10, 15)
input <- data.frame(scale, score)
input <- t(input)
names(input) <- input[, 1]
input <- data.frame(janitor::row_to_names(input, row_number = 1))

# put it in a dataframe
df <- data.frame(rbind(
  input$a, input$b, input$c, input$d,
  input$e, input$f, input$g, input$h, input$i,
  input$j, input$k, input$l,
  input$m, input$n, input$o)) %>%
  tibble::rownames_to_column(var = "scale") %>%
  rename(scale_score = 2) %>%
  mutate(scale_group = c("SCALE1", "SCALE1", "SCALE1", "SCALE1",
                         "SCALE2", "SCALE2", "SCALE2", "SCALE2", "SCALE2",
                         "SCALE3", "SCALE3", "SCALE3",
                         "SCALE4", "SCALE4", "SCALE4"))

df$scale_group = factor(df$scale_group, levels = c("SCALE1", "SCALE2", "SCALE3", "SCALE4"))

df$gp <- c(1,1,1,1,2,2,2,2,2,3,3,3,4,4,4)

# make ggplot labels
labels = c("A", "B", "C", "(D)",
                    "E", "F", "G", "(H)", "(I)",
                    "J", "K", "(L)",
                    "M", "N", "(O)")

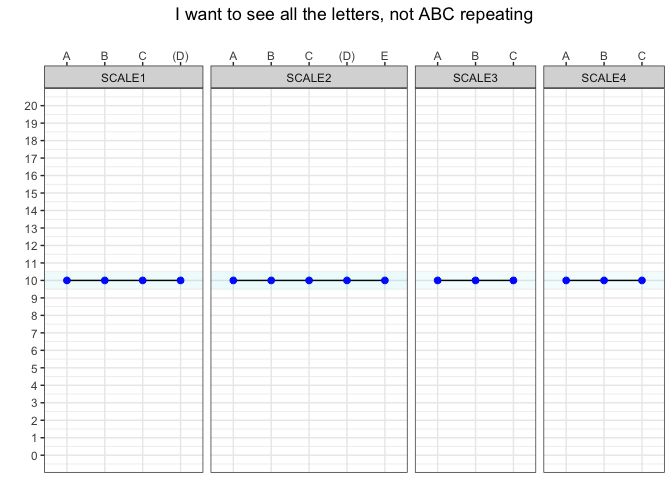

# make a ggplot with facet_grid and it looks weird - why do the sub-labels repeat themselves?
df %>%
  ggplot(aes(x=interaction(scale, factor(scale_group)), y=as.numeric(scale_score),
             label = (scale_group),
             group=interaction(scale_group, gp)))
  theme_bw()
  geom_line(stat="identity")
  geom_point(size=2, color="blue")
  geom_rect(aes(xmin = -Inf, xmax = Inf, ymin = 9.5, ymax = 10.5),
            alpha = 0.015, fill = "darkturquoise")
  scale_y_continuous(breaks = (seq(0, 20, by = 1)), limits = c(0,20))
  scale_x_discrete(position = "top", labels = unique(labels))
  xlab("")   ylab("")
  ggtitle("I want to see all the letters, not ABC repeating")   theme(plot.title = element_text(hjust = 0.5))
  facet_grid( ~ scale_group,
              scales = "free", space = "free")

我也想要 SCALE1/SCALE2/等。為上述A，B，C等，但是這可能是一個單獨的quesiton。我將不勝感激任何提示或見解。

uj5u.com熱心網友回復：

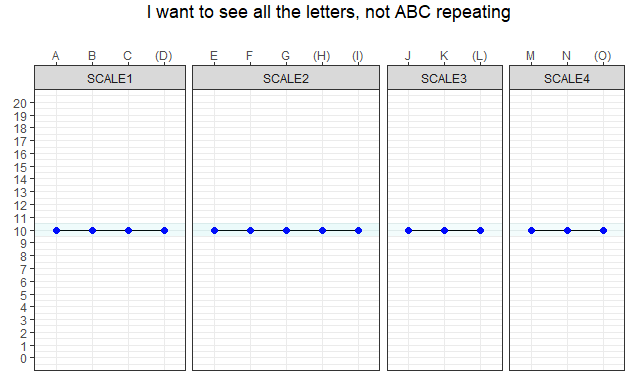

以下對我有用。首先，labels使用x-axis標簽中的名稱制作矢量。其次，unique從labels = unique(labels).

# make ggplot labels
labels <-  c("A", "B", "C", "(D)",
             "E", "F", "G", "(H)", "(I)",
             "J", "K", "(L)",
             "M", "N", "(O)")
names(labels) <- interaction(df$scale, factor(df$scale_group))

df %>%
  ggplot(aes(x=interaction(scale, factor(scale_group)), y=as.numeric(scale_score),
             label = (scale_group),
             group=interaction(scale_group, gp)))
  theme_bw()
  geom_line(stat="identity")
  geom_point(size=2, color="blue")
  geom_rect(aes(xmin = -Inf, xmax = Inf, ymin = 9.5, ymax = 10.5),
            alpha = 0.015, fill = "darkturquoise")
  scale_y_continuous(breaks = (seq(0, 20, by = 1)), limits = c(0,20))
  scale_x_discrete(position = "top", labels = labels)
  xlab("")   ylab("")
  ggtitle("I want to see all the letters, not ABC repeating")   theme(plot.title = element_text(hjust = 0.5))
  facet_grid( ~ scale_group,
              scales = "free", space = "free")
