自己實作基于組平均的AGNES演算法，語言不限，要能支持多維陣列，距離用歐式距離

• numpy實作
• 相似性度量方式：average-cluster

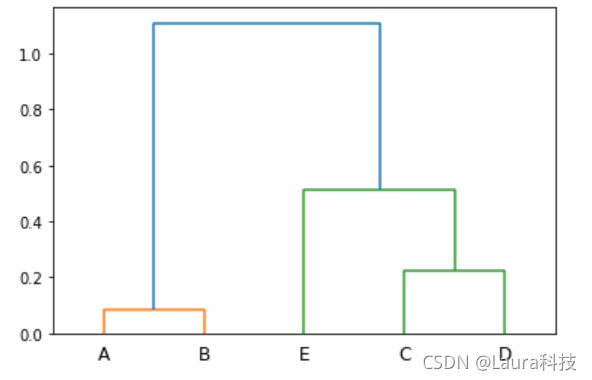

• 繪制層次樹圖

編程實作

"""
 * Created with PyCharm
 * 作者: Laura
 * 日期: 2021/11/6
 * 時間: 12:10
 * 描述: 基于組平均的AGNES演算法，支持多維陣列，距離用歐式距離
"""

import numpy as np
import pandas as pd

from scipy.cluster.hierarchy import dendrogram,linkage
from scipy.spatial.distance import squareform

import matplotlib.pyplot as plt

import random

class AGNES():
    def __init__(self, data, cluster = 2):
        self.cluster = cluster
        self.data = data
        self.distance_matrix = []
        self.dic = {}
        self.dic_ = {}
        self.index = ['A', 'B', 'C', 'D', 'E']
        self.columns = ['A', 'B', 'C', 'D', 'E']

    def init_data(self, data, dic):
        dic={i:[chr(ord('A')+i)] for i in range(len(data))}

        data = self.calculate_distance(data)
        self.distance_matrix = data.copy()

        row, col = np.diag_indices_from(data)
        temp = data.max() + 1
        data[row, col] = temp
        row_, col_ = np.triu_indices_from(data, k = 0)
        data[row_, col_] = temp

        return data, dic

    def train(self, cluster, method='train'):
        data = self.data.copy()
        dic = {}
        data, dic = self.init_data(data, dic)

        k = 0
        while k < len(data) - cluster:
            location = np.where(data == data.min()) # 找到此時矩陣距離最小值的坐標
            x, y = location[0][0], location[1][0]   # 分別獲取橫縱坐標
            x_ = self.index[x]
            y_ = self.columns[y]                    # 獲取對應樣本資訊

            x_key = '-'
            y_key = '-'

            for key, value in dic.items():
                if x_ in value:
                    x_key = key
                if y_ in value:
                    y_key = key


            dic[y_key].extend(dic[x_key])
            dic.pop(x_key)

            slic = dic[y_key]  # 更新簇的樣本
            num = len(dic[y_key]) # 簇內樣本的數目

            data_sum = np.zeros(5)
            for item in slic:
                data_sum += data[:, self.index.index(item)]

            data_sum /= num

            for item in slic:
            #   data[index.index(item)]=data_sum
                data[:, self.index.index(item)] = data_sum
                row, col = np.diag_indices_from(data)
                temp = data.max() + 999
                data[row, col] = temp
                row_,col_ = np.triu_indices_from(data, k=0)
                data[row_, col_] = temp

            k += 1

        if method == 'train':
            self.dic = dic
        else:
            self.dic_ = dic

    def draw(self):
        dists = squareform(self.distance_matrix)
        linkage_type = 'average'   # single,complete,average不同方式
        linkage_matrix = linkage(dists, linkage_type)
        dendrogram(linkage_matrix, labels = self.index)
        plt.show()

    def process(self):
        for cluster in range(1, self.distance_matrix.shape[0] + 1):
            self.train(cluster, 'other')
            print('簇數：', cluster, self.dic_)

    def calculate_distance(self, data):
        distance_matrix = np.zeros((data.shape[0],data.shape[1]))

        for i in range(data.shape[0]):
            for j in range(data.shape[1]):
                distance_matrix[i][j] = np.sum((data[i] - data[j])**2)

        return distance_matrix

data = np.random.rand(5, 5)
model = AGNES(data)
model.train(cluster = 2)
model.process()
model.draw()
