Flume基礎概念及其環境配置

Flume基礎概念及其環境配置

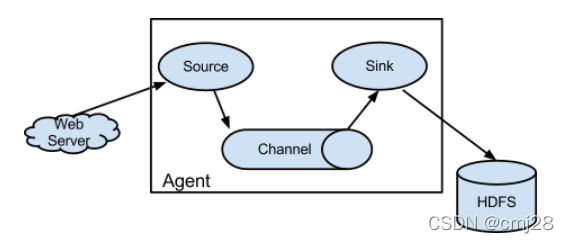

1、基本組件
1）source：收集（負責從xxx地方采集資料）
2）channel：聚集（資料存入記憶體/檔案/寫入到kafka中）
3）sink：輸出(負責讀取channel資料，寫入到目的地(一個或者多個)去（hdfs/hive中))
2、環境配置（前提是安裝了jdk8）

# 上傳檔案并且進行解壓到某檔案夾
tar zxvf /root/software/tran_zip/apache-flume-1.6.0-bin.tar.gz -C software
# 配置環境變數
vi  /etc/profile
# 進行加載
source /etc/profile

# 修改組態檔flume-env.sh
cd /root/software/flume-1.6.0/conf
cp flume-env.sh.template flume-env.sh
vi flume-env.sh

# 驗證是否安裝成功
# 在bin目錄下
flume-ng version

3、實戰：從指定網路埠采集資料到控制臺
使用Flume的關鍵是寫組態檔
1）配置Source
2）配置Channel
3）配置Sink
4）將上述三個組件進行連接起來

# example.conf：單節點 Flume 配置
a1:agent名稱
r1:sources的名稱
c1:channels的名稱
k1:sinks的名稱
# example.conf: A single-node Flume configuration

# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source

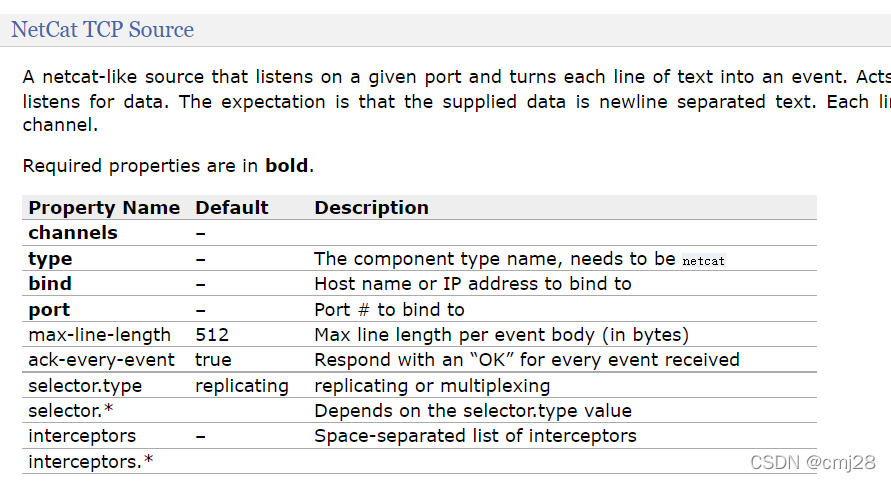

a1.sources.r1.type = netcat
a1.sources.r1.bind = localhost/master
a1.sources.r1.port = 44444

# Describe the sink 將日志輸出到控制臺
a1.sinks.k1.type = logger

# Use a channel which buffers events in memory
a1.channels.c1.type = memory

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
# 一個source輸出到多個channel,一個channel可以輸出到一個sink

啟動agent

flume-ng agent --conf $FLUME_HOME/conf --conf-file $FLUME_HOME/conf/example.conf --name a1 -Dflume.root.logger=INFO,console

進行測驗

# 需要使yum進行安裝telnet => 命令：yum -y intsall telnet
telnet master 44444

4、實戰二：監控一個檔案 實時采集 新增的資料 輸出到控制臺

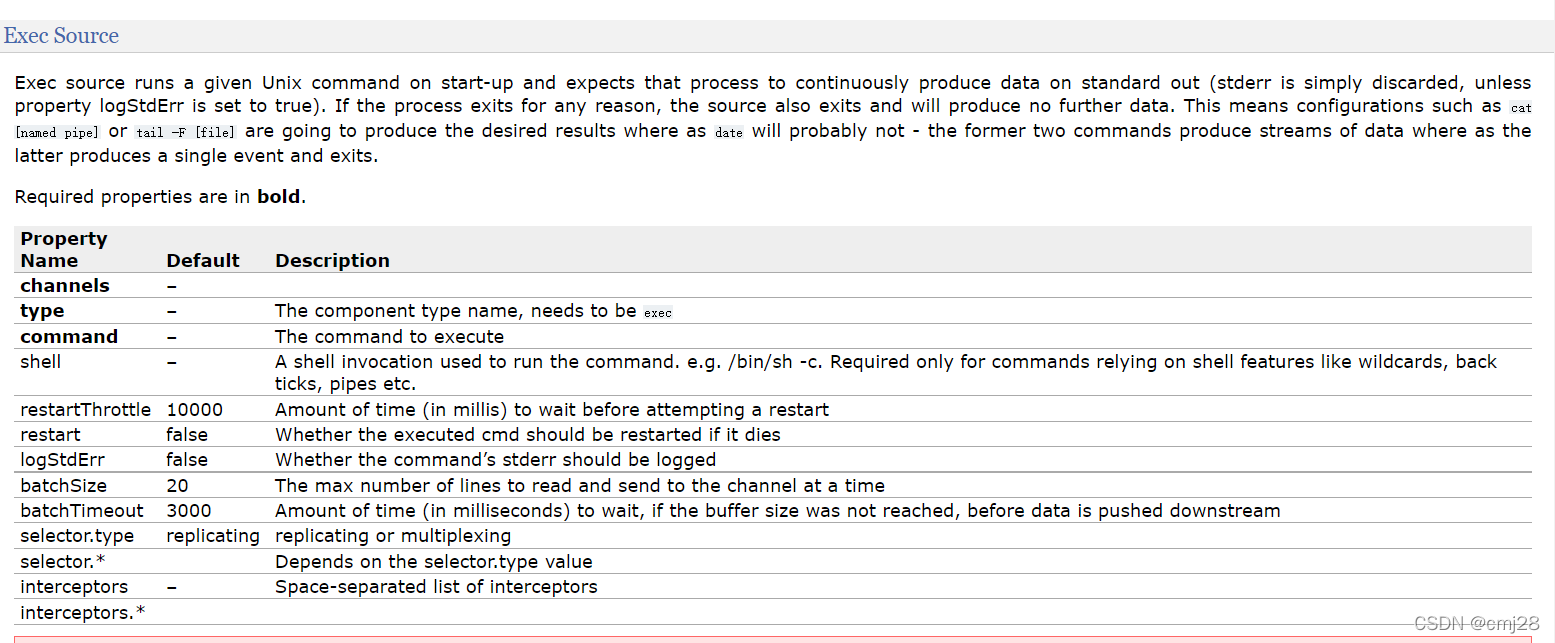

#Agent 選型: exec source
#name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source
a1.sources.r1.type = exec
a1.sources.r1.command = tail -F /root/data/flume_data.log

# Describe the sink
a1.sinks.k1.type = logger

# Use a channel which buffers events in memory
a1.channels.c1.type = memory

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
# 一個source輸出到多個channel,一個channel可以輸出到一個sink

執行代碼：

# 步驟:
# 1、創建了exec-memory-logger.conf檔案
# 2、改寫創建的檔案
# 3、進行執行代碼
flume-ng agent --conf $FLUME_HOME/conf --conf-file $FLUME_HOME/conf/exec-memory-logger.conf --name a1 -Dflume.root.logger=INFO,console

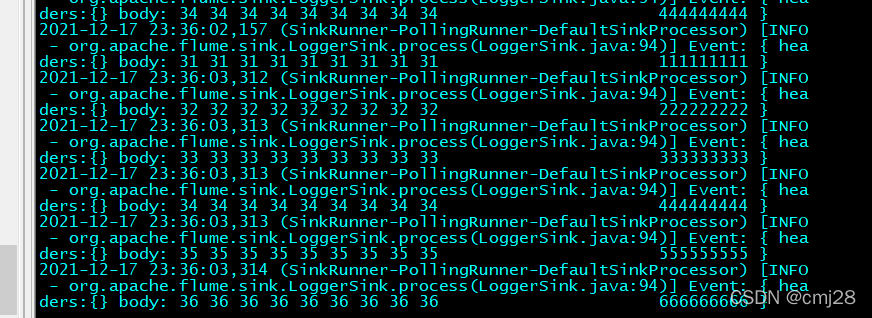

結果展示：

4、實戰三：將A服務器上（website）的日志實時采集到B服務器上(hdfs)
A服務器上：exec source + memory channel + 跨結點采用的avro Sink
B服務器上：avro source + memory channel + 輸出到控制臺 logger-sink

# A服務器上
aver-memory-avro.conf

# Name the components on this agent
exec-memory-avro.sources = exec-source
exec-memory-avro.sinks = avro-sink
exec-memory-avro.channels = memory-channel

# Describe/configure the source
exec-memory-avro.sources.exec-source.type = exec
exec-memory-avro.sources.exec-source.command = tail -F /root/data/log_data.log
exec-memory-avro.sources.exec-source.shell = /bin/sh -c

# Describe the sink 將日志輸出到控制臺
exec-memory-avro.sinks.avro-sink.type = avro
exec-memory-avro.sinks.avro-sink.hostname=master
exec-memory-avro.sinks.avro-sink.port=44444

# Use a channel which buffers events in memory
exec-memory-avro.channels.memory-channel.type = memory

# Bind the source and sink to the channel
exec-memory-avro.sources.exec-source.channels = memory-channel
exec-memory-avro.sinks.avro-sink.channel = memory-channel



# B服務器上
aver-memory-logger.conf

#name the components on this agent
avro-memory-logger.sources = avro-source
avro-memory-logger.sinks = logger-sink
avro-memory-logger.channels = memory-channel

# Describe/configure the source
avro-memory-logger.sources.avro-source.type = avro
avro-memory-logger.sources.avro-source.bind = master
avro-memory-logger.sources.avro-source.port = 44444

# Describe the sink 將日志輸出到控制臺
avro-memory-logger.sinks.logger-sink.type = logger

# Use a channel which buffers events in memory
avro-memory-logger.channels.memory-channel.type = memory

# Bind the source and sink to the channel
avro-memory-logger.source.avro-source.channels = memory-channel
avro-memory-logger.sinks.logger-sink.channel = memory-channel

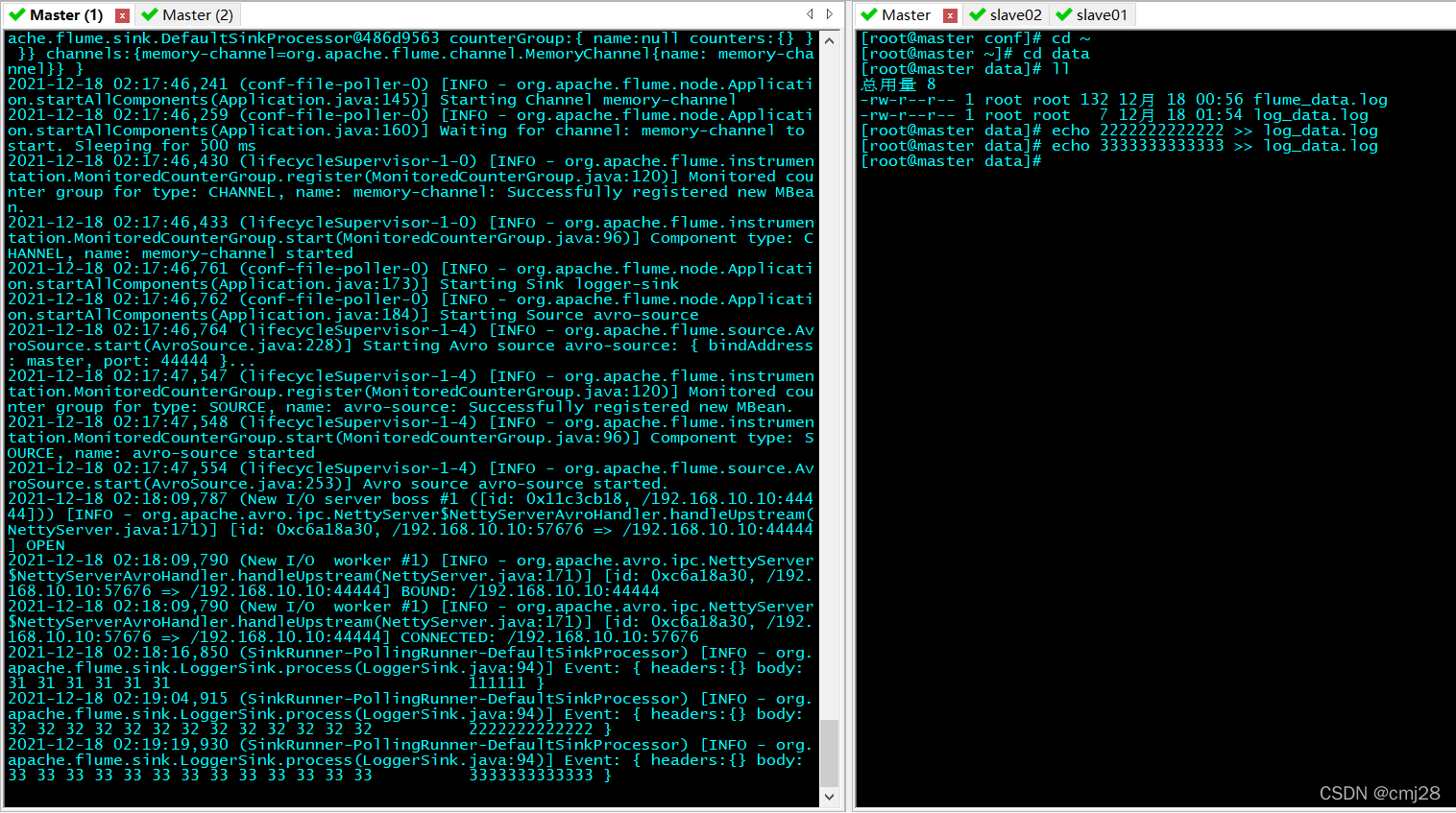

啟動

 # 1、先啟動logger
flume-ng agent --conf $FLUME_HOME/conf --conf-file $FLUME_HOME/conf/aver-memory-logger.conf --name avro-memory-logger -Dflume.root.logger=INFO,console
 # 2、啟動aver-memory-avro
flume-ng agent --conf $FLUME_HOME/conf --conf-file $FLUME_HOME/conf/aver-memory-avro.conf --name exec-memory-avro -Dflume.root.logger=INFO,console

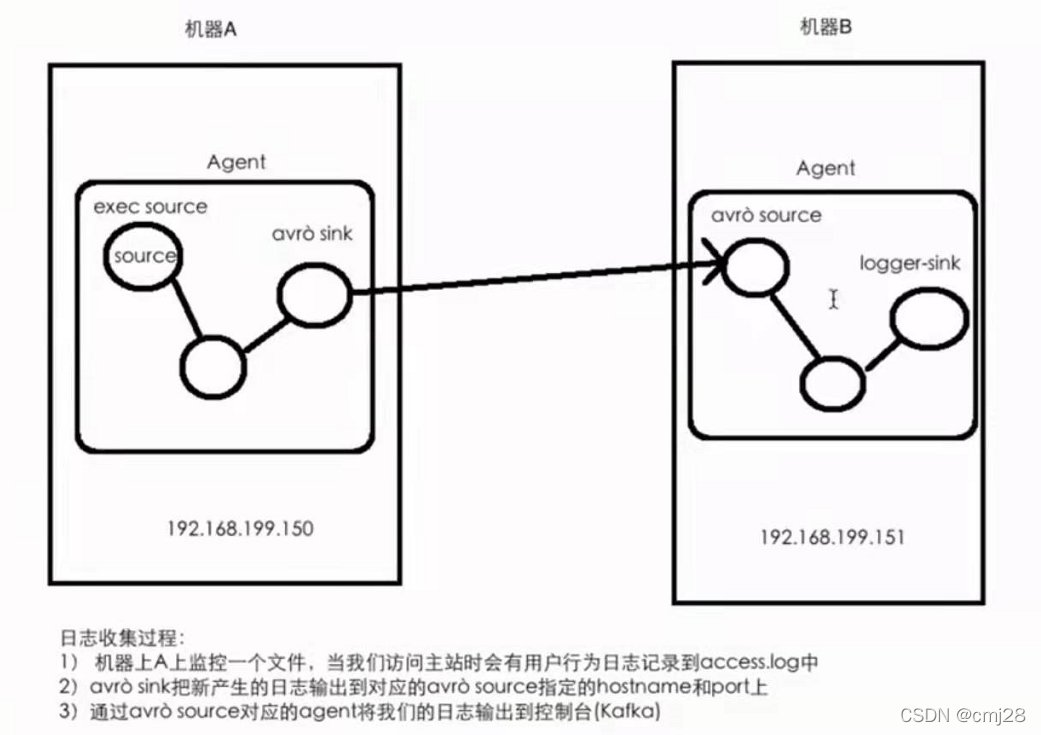

實戰三的基本流程：
