任務

識別用相機拍下來的答題卡，并判斷最終得分（假設正確答案是B, E, A, D, B）

主要步驟

1. 輪廓識別——答題卡邊緣識別
2. 透視變換——提取答題卡主體
3. 輪廓識別——識別出所有圓形選項，剔除無關輪廓
4. 檢測每一行選擇的是哪一項，并將結果儲存起來，記錄正確的個數
5. 計算最終得分并在圖中標注

分步實作

輪廓識別——答題卡邊緣識別

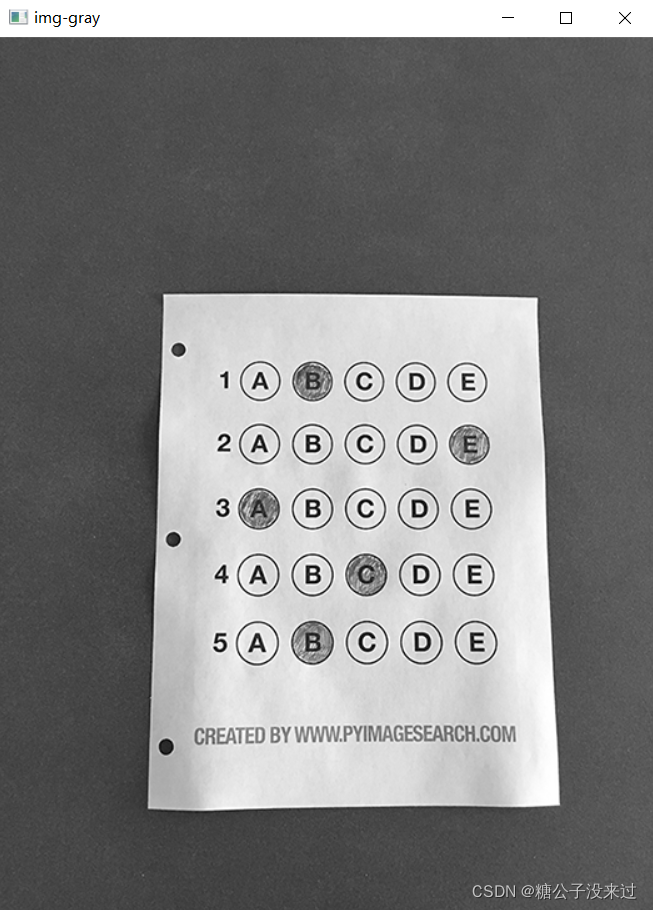

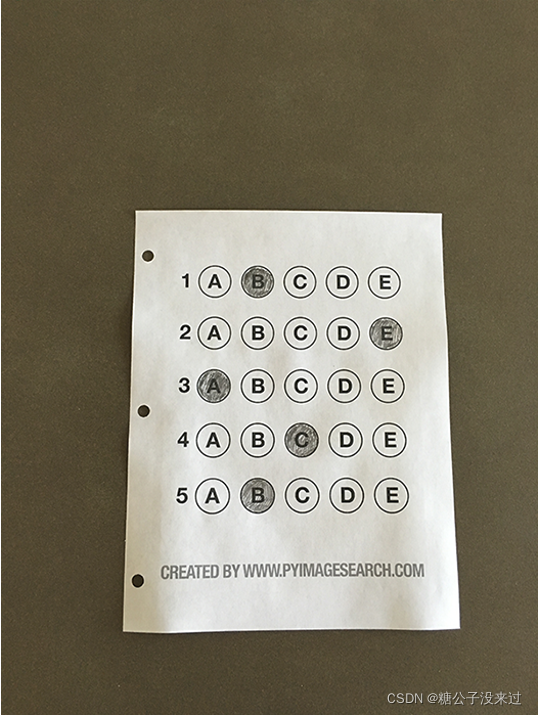

輸入影像

import cv2 as cv
import numpy as np

# 正確答案
right_key = {0: 1, 1: 4, 2: 0, 3: 3, 4: 1}

# 輸入影像
img = cv.imread('./images/test_01.png')
img_copy = img.copy()
img_gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cvshow('img-gray', img_gray)

影像預處理

# 影像預處理

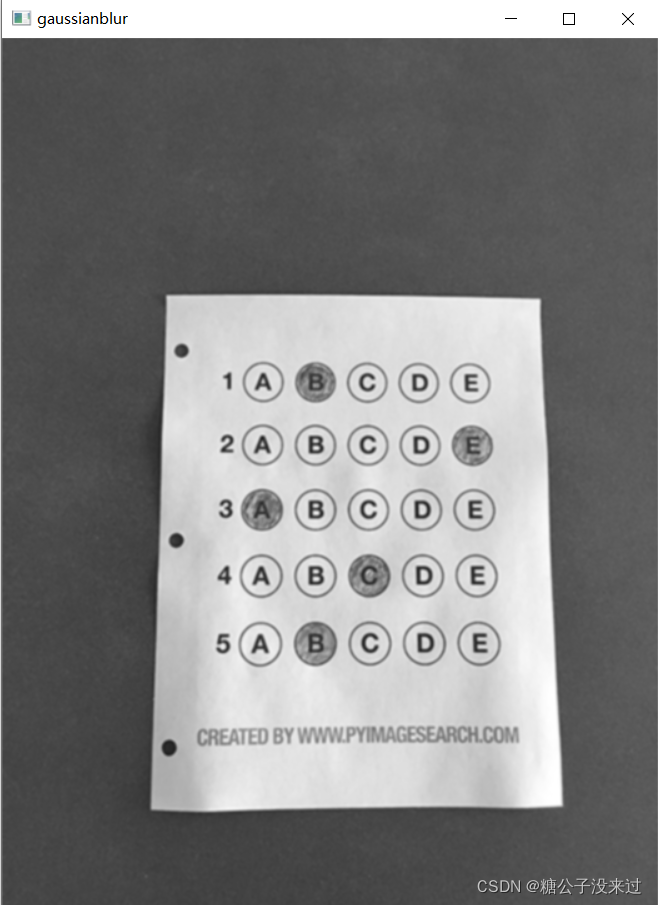

# 高斯降噪
img_gaussian = cv.GaussianBlur(img_gray, (5, 5), 1)
cvshow('gaussianblur', img_gaussian)
# canny邊緣檢測
img_canny = cv.Canny(img_gaussian, 80, 150)
cvshow('canny', img_canny)

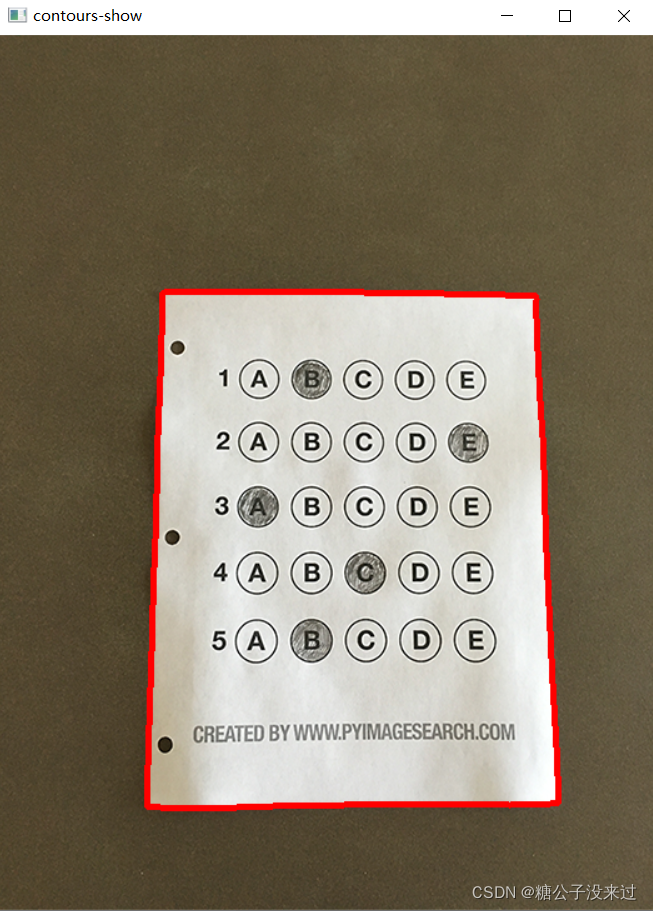

輪廓識別——答題卡邊緣識別

# 輪廓識別——答題卡邊緣識別
cnts, hierarchy = cv.findContours(img_canny, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)
cv.drawContours(img_copy, cnts, -1, (0, 0, 255), 3)
cvshow('contours-show', img_copy)

透視變換——提取答題卡主體

對每個輪廓進行擬合，將多邊形輪廓變為四邊形

docCnt = None

# 確保檢測到了
if len(cnts) > 0:
    # 根據輪廓大小進行排序
    cnts = sorted(cnts, key=cv.contourArea, reverse=True)

    # 遍歷每一個輪廓
    for c in cnts:
        # 近似
        peri = cv.arcLength(c, True)
        # arclength 計算一段曲線的長度或者閉合曲線的周長；
        # 第一個引數輸入一個二維向量，第二個引數表示計算曲線是否閉合

        approx = cv.approxPolyDP(c, 0.02 * peri, True)
        # 用一條頂點較少的曲線/多邊形來近似曲線/多邊形，以使它們之間的距離<=指定的精度；
        # c是需要近似的曲線，0.02*peri是精度的最大值，True表示曲線是閉合的

        # 準備做透視變換
        if len(approx) == 4:
            docCnt = approx
            break

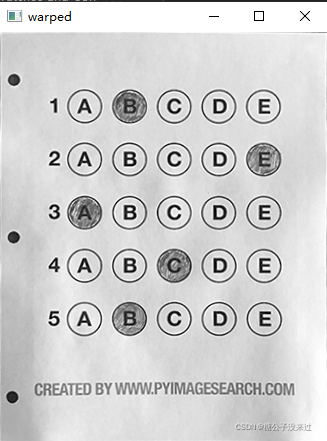

透視變換——提取答題卡主體

# 透視變換——提取答題卡主體
docCnt = docCnt.reshape(4, 2)
warped = four_point_transform(img_gray, docCnt)
cvshow('warped', warped)

def four_point_transform(img, four_points):
    rect = order_points(four_points)
    (tl, tr, br, bl) = rect

    # 計算輸入的w和h的值
    widthA = np.sqrt((tr[0] - tl[0]) ** 2 + (tr[1] - tl[1]) ** 2)
    widthB = np.sqrt((br[0] - bl[0]) ** 2 + (br[1] - bl[1]) ** 2)
    maxWidth = max(int(widthA), int(widthB))

    heightA = np.sqrt((tl[0] - bl[0]) ** 2 + (tl[1] - bl[1]) ** 2)
    heightB = np.sqrt((tr[0] - br[0]) ** 2 + (tr[1] - br[1]) ** 2)
    maxHeight = max(int(heightA), int(heightB))

    # 變換后對應的坐標位置
    dst = np.array([
        [0, 0],
        [maxWidth - 1, 0],
        [maxWidth - 1, maxHeight - 1],
        [0, maxHeight - 1]], dtype='float32')

    # 最主要的函式就是 cv2.getPerspectiveTransform(rect, dst) 和 cv2.warpPerspective(image, M, (maxWidth, maxHeight))
    M = cv.getPerspectiveTransform(rect, dst)
    warped = cv.warpPerspective(img, M, (maxWidth, maxHeight))
    return warped


def order_points(points):
    res = np.zeros((4, 2), dtype='float32')
    # 按照從前往后0，1，2，3分別表示左上、右上、右下、左下的順序將points中的數填入res中

    # 將四個坐標x與y相加，和最大的那個是右下角的坐標，最小的那個是左上角的坐標
    sum_hang = points.sum(axis=1)
    res[0] = points[np.argmin(sum_hang)]
    res[2] = points[np.argmax(sum_hang)]

    # 計算坐標x與y的離散插值np.diff()
    diff = np.diff(points, axis=1)
    res[1] = points[np.argmin(diff)]
    res[3] = points[np.argmax(diff)]

    # 回傳result
    return res

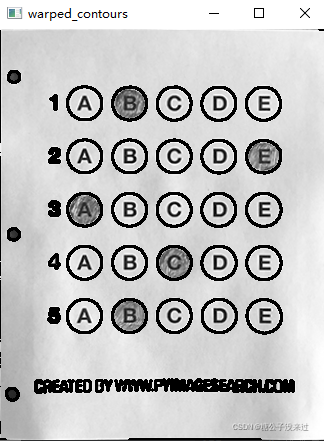

輪廓識別——識別出選項

# 輪廓識別——識別出選項
thresh = cv.threshold(warped, 0, 255, cv.THRESH_BINARY_INV | cv.THRESH_OTSU)[1]
cvshow('thresh', thresh)
thresh_cnts, _ = cv.findContours(thresh, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)
w_copy = warped.copy()
cv.drawContours(w_copy, thresh_cnts, -1, (0, 0, 255), 2)
cvshow('warped_contours', w_copy)

questionCnts = []
# 遍歷，挑出選項的cnts
for c in thresh_cnts:
    (x, y, w, h) = cv.boundingRect(c)
    ar = w / float(h)
    # 根據實際情況指定標準
    if w >= 20 and h >= 20 and ar >= 0.9 and ar <= 1.1:
        questionCnts.append(c)

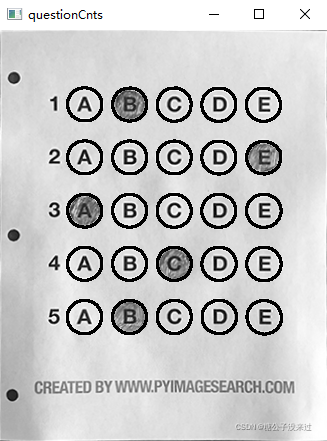

# 檢查是否挑出了選項
w_copy2 = warped.copy()
cv.drawContours(w_copy2, questionCnts, -1, (0, 0, 255), 2)
cvshow('questionCnts', w_copy2)

成功將無關輪廓剔除

檢測每一行選擇的是哪一項，并將結果儲存起來，記錄正確的個數

# 檢測每一行選擇的是哪一項，并將結果儲存在元組bubble中，記錄正確的個數correct
# 按照從上到下t2b對輪廓進行排序
questionCnts = sort_contours(questionCnts, method="t2b")[0]
correct = 0
# 每行有5個選項
for (i, q) in enumerate(np.arange(0, len(questionCnts), 5)):
    # 排序
    cnts = sort_contours(questionCnts[q:q+5])[0]

    bubble = None
    # 得到每一個選項的mask并填充，與正確答案進行按位與操作獲得重合點數
    for (j, c) in enumerate(cnts):
        mask = np.zeros(thresh.shape, dtype='uint8')
        cv.drawContours(mask, [c], -1, 255, -1)
        # cvshow('mask', mask)

        # 通過按位與操作得到thresh與mask重合部分的像素數量
        bitand = cv.bitwise_and(thresh, thresh, mask=mask)
        totalPixel = cv.countNonZero(bitand)

        if bubble is None or bubble[0] < totalPixel:
            bubble = (totalPixel, j)

    k = bubble[1]
    color = (0, 0, 255)
    if k == right_key[i]:
        correct += 1
        color = (0, 255, 0)

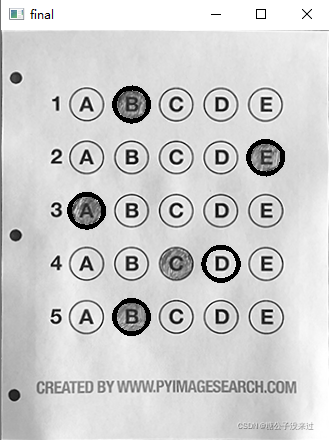

    # 繪圖
    cv.drawContours(warped, [cnts[right_key[i]]], -1, color, 3)
    cvshow('final', warped)

def sort_contours(contours, method="l2r"):
    # 用于給輪廓排序，l2r, r2l, t2b, b2t
    reverse = False
    i = 0
    if method == "r2l" or method == "b2t":
        reverse = True
    if method == "t2b" or method == "b2t":
        i = 1

    boundingBoxes = [cv.boundingRect(c) for c in contours]
    (contours, boundingBoxes) = zip(*sorted(zip(contours, boundingBoxes), key=lambda a: a[1][i], reverse=reverse))
    return contours, boundingBoxes

用透過mask的像素的個數來判斷考生選擇的是哪個選項

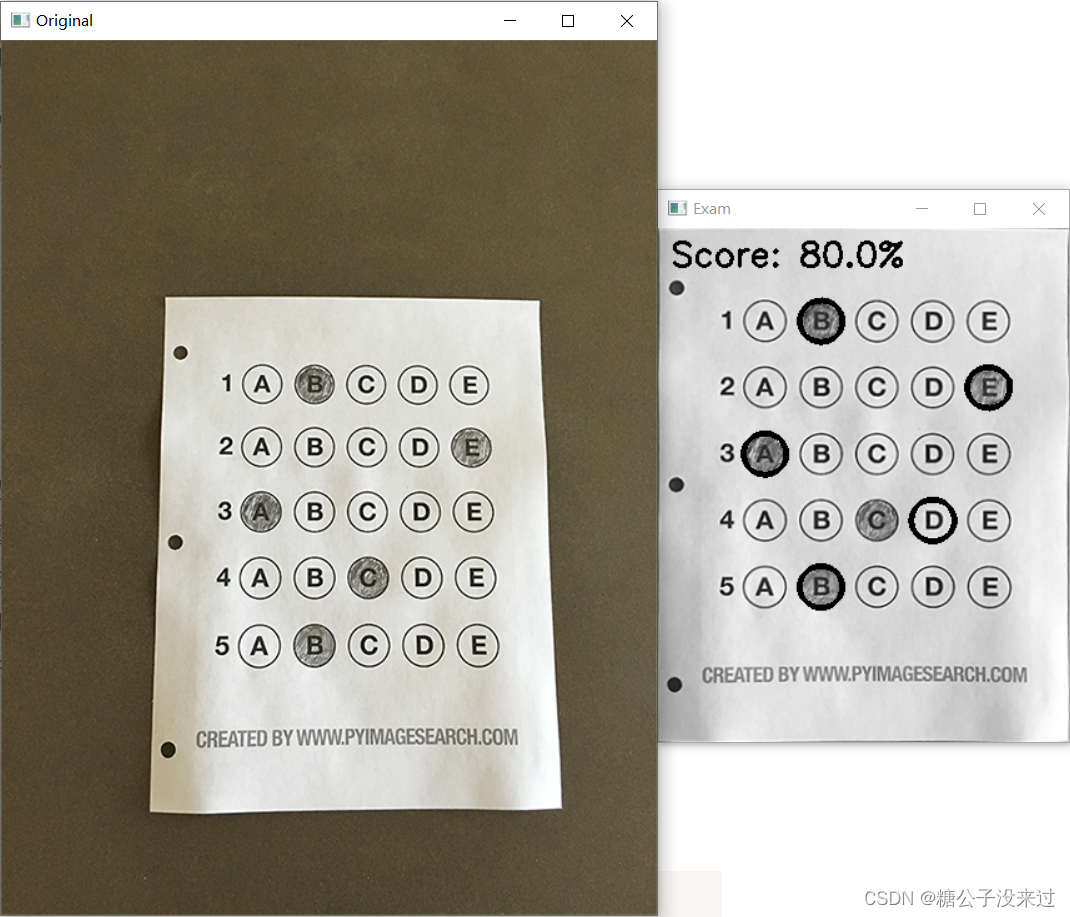

計算最終得分并在圖中標注

# 計算最終得分并在圖中標注
score = (correct / 5.0) * 100
print(f"Score: {score}%")
cv.putText(warped, f"Score: {score}%", (10, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 2)
cv.imshow("Original", img)
cv.imshow("Exam", warped)
cv.waitKey(0)

完整代碼

import cv2 as cv
import numpy as np


def cvshow(name, img):
    cv.imshow(name, img)
    cv.waitKey(0)
    cv.destroyAllWindows()

def four_point_transform(img, four_points):
    rect = order_points(four_points)
    (tl, tr, br, bl) = rect

    # 計算輸入的w和h的值
    widthA = np.sqrt((tr[0] - tl[0]) ** 2 + (tr[1] - tl[1]) ** 2)
    widthB = np.sqrt((br[0] - bl[0]) ** 2 + (br[1] - bl[1]) ** 2)
    maxWidth = max(int(widthA), int(widthB))

    heightA = np.sqrt((tl[0] - bl[0]) ** 2 + (tl[1] - bl[1]) ** 2)
    heightB = np.sqrt((tr[0] - br[0]) ** 2 + (tr[1] - br[1]) ** 2)
    maxHeight = max(int(heightA), int(heightB))

    # 變換后對應的坐標位置
    dst = np.array([
        [0, 0],
        [maxWidth - 1, 0],
        [maxWidth - 1, maxHeight - 1],
        [0, maxHeight - 1]], dtype='float32')

    # 最主要的函式就是 cv2.getPerspectiveTransform(rect, dst) 和 cv2.warpPerspective(image, M, (maxWidth, maxHeight))
    M = cv.getPerspectiveTransform(rect, dst)
    warped = cv.warpPerspective(img, M, (maxWidth, maxHeight))
    return warped


def order_points(points):
    res = np.zeros((4, 2), dtype='float32')
    # 按照從前往后0，1，2，3分別表示左上、右上、右下、左下的順序將points中的數填入res中

    # 將四個坐標x與y相加，和最大的那個是右下角的坐標，最小的那個是左上角的坐標
    sum_hang = points.sum(axis=1)
    res[0] = points[np.argmin(sum_hang)]
    res[2] = points[np.argmax(sum_hang)]

    # 計算坐標x與y的離散插值np.diff()
    diff = np.diff(points, axis=1)
    res[1] = points[np.argmin(diff)]
    res[3] = points[np.argmax(diff)]

    # 回傳result
    return res


def sort_contours(contours, method="l2r"):
    # 用于給輪廓排序，l2r, r2l, t2b, b2t
    reverse = False
    i = 0
    if method == "r2l" or method == "b2t":
        reverse = True
    if method == "t2b" or method == "b2t":
        i = 1

    boundingBoxes = [cv.boundingRect(c) for c in contours]
    (contours, boundingBoxes) = zip(*sorted(zip(contours, boundingBoxes), key=lambda a: a[1][i], reverse=reverse))
    return contours, boundingBoxes

# 正確答案
right_key = {0: 1, 1: 4, 2: 0, 3: 3, 4: 1}

# 輸入影像
img = cv.imread('./images/test_01.png')
img_copy = img.copy()
img_gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cvshow('img-gray', img_gray)

# 影像預處理
# 高斯降噪
img_gaussian = cv.GaussianBlur(img_gray, (5, 5), 1)
cvshow('gaussianblur', img_gaussian)
# canny邊緣檢測
img_canny = cv.Canny(img_gaussian, 80, 150)
cvshow('canny', img_canny)

# 輪廓識別——答題卡邊緣識別
cnts, hierarchy = cv.findContours(img_canny, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)
cv.drawContours(img_copy, cnts, -1, (0, 0, 255), 3)
cvshow('contours-show', img_copy)

docCnt = None

# 確保檢測到了
if len(cnts) > 0:
    # 根據輪廓大小進行排序
    cnts = sorted(cnts, key=cv.contourArea, reverse=True)

    # 遍歷每一個輪廓
    for c in cnts:
        # 近似
        peri = cv.arcLength(c, True)  # arclength 計算一段曲線的長度或者閉合曲線的周長；
        # 第一個引數輸入一個二維向量，第二個引數表示計算曲線是否閉合

        approx = cv.approxPolyDP(c, 0.02 * peri, True)
        # 用一條頂點較少的曲線/多邊形來近似曲線/多邊形，以使它們之間的距離<=指定的精度；
        # c是需要近似的曲線，0.02*peri是精度的最大值，True表示曲線是閉合的

        # 準備做透視變換
        if len(approx) == 4:
            docCnt = approx
            break


# 透視變換——提取答題卡主體
docCnt = docCnt.reshape(4, 2)
warped = four_point_transform(img_gray, docCnt)
cvshow('warped', warped)


# 輪廓識別——識別出選項
thresh = cv.threshold(warped, 0, 255, cv.THRESH_BINARY_INV | cv.THRESH_OTSU)[1]
cvshow('thresh', thresh)
thresh_cnts, _ = cv.findContours(thresh, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)
w_copy = warped.copy()
cv.drawContours(w_copy, thresh_cnts, -1, (0, 0, 255), 2)
cvshow('warped_contours', w_copy)

questionCnts = []
# 遍歷，挑出選項的cnts
for c in thresh_cnts:
    (x, y, w, h) = cv.boundingRect(c)
    ar = w / float(h)
    # 根據實際情況指定標準
    if w >= 20 and h >= 20 and ar >= 0.9 and ar <= 1.1:
        questionCnts.append(c)

# 檢查是否挑出了選項
w_copy2 = warped.copy()
cv.drawContours(w_copy2, questionCnts, -1, (0, 0, 255), 2)
cvshow('questionCnts', w_copy2)


# 檢測每一行選擇的是哪一項，并將結果儲存在元組bubble中，記錄正確的個數correct
# 按照從上到下t2b對輪廓進行排序
questionCnts = sort_contours(questionCnts, method="t2b")[0]
correct = 0
# 每行有5個選項
for (i, q) in enumerate(np.arange(0, len(questionCnts), 5)):
    # 排序
    cnts = sort_contours(questionCnts[q:q+5])[0]

    bubble = None
    # 得到每一個選項的mask并填充，與正確答案進行按位與操作獲得重合點數
    for (j, c) in enumerate(cnts):
        mask = np.zeros(thresh.shape, dtype='uint8')
        cv.drawContours(mask, [c], -1, 255, -1)
        cvshow('mask', mask)

        # 通過按位與操作得到thresh與mask重合部分的像素數量
        bitand = cv.bitwise_and(thresh, thresh, mask=mask)
        totalPixel = cv.countNonZero(bitand)

        if bubble is None or bubble[0] < totalPixel:
            bubble = (totalPixel, j)

    k = bubble[1]
    color = (0, 0, 255)
    if k == right_key[i]:
        correct += 1
        color = (0, 255, 0)

    # 繪圖
    cv.drawContours(warped, [cnts[right_key[i]]], -1, color, 3)
    cvshow('final', warped)


# 計算最終得分并在圖中標注
score = (correct / 5.0) * 100
print(f"Score: {score}%")
cv.putText(warped, f"Score: {score}%", (10, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 2)
cv.imshow("Original", img)
cv.imshow("Exam", warped)
cv.waitKey(0)
