Unity Scriptable Render Pipeline - SRP 可編程渲染管線

　　參考鏈接 :

　　GitHub

　　高清渲染管線HDRP入門指南

　　Unity輕量級渲染管線LWRP原始碼及案例決議（上）

　　Unity輕量級渲染管線LWRP原始碼及案例決議（下）

　　Unity新特性里面, 最牛逼的肯定就是它了SRP, 可編程渲染管線, Unity不能做3A游戲的原因不外乎就是它.

　　雖然前面看了CommandBuffer可以用來實作很多視覺效果, 可是只能說是擴展了原有的功能, 可編程渲染管線才是革命性的, 舉個栗子來說就像一個人在某個數學框架下做出了新發現, 和那個發明數學框架的大神.

　　剛開始SRP分為 輕量渲染管線(LWRP) 和 高清渲染管線(HDRP) , 現在LWRP改為叫 通用渲染管線URP(Universal), 不知道為啥, 可能LW叫法比較low吧...還是老樣子先把工程搭建起來再看看效果, 因為它已經跟普通工程分道揚鑣了, 從創建工程就能看的出來:

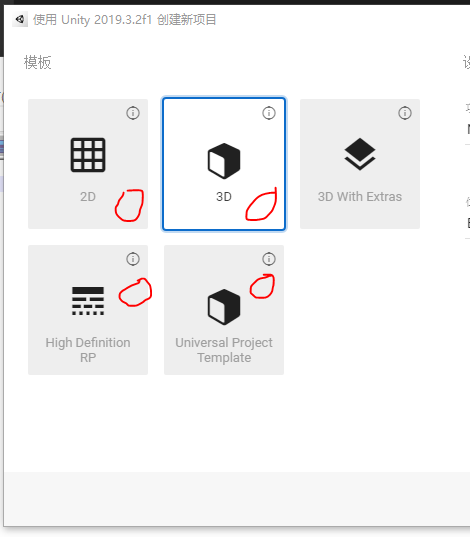

　　這些都獨立出來成了工程創建時的選項了, 前面的文章也有說到怎樣升級普通工程到高清工程, 需要把所有材質置換到高清管線的材質, 不可逆, 這里先創建個URP工程看看, 創建程序中報錯, 忽略...

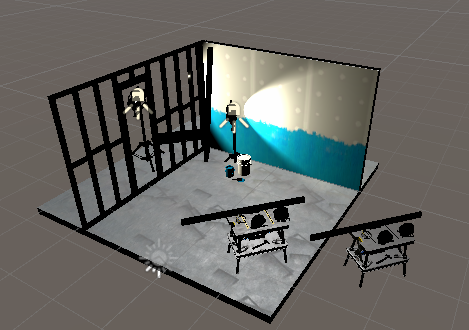

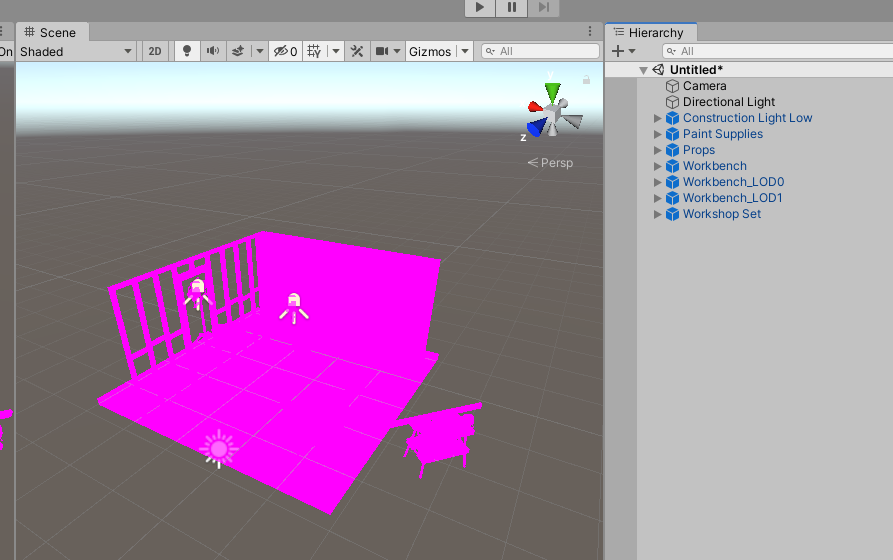

　　它工程中自帶了一些Prefab, 拖出來以后渲染失敗:

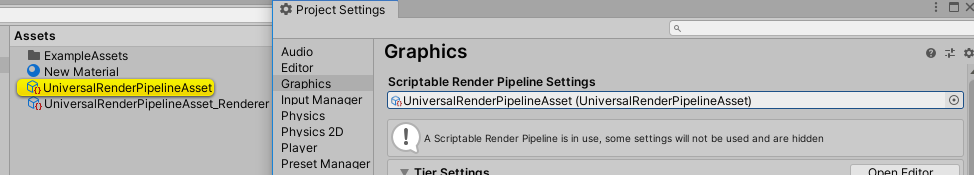

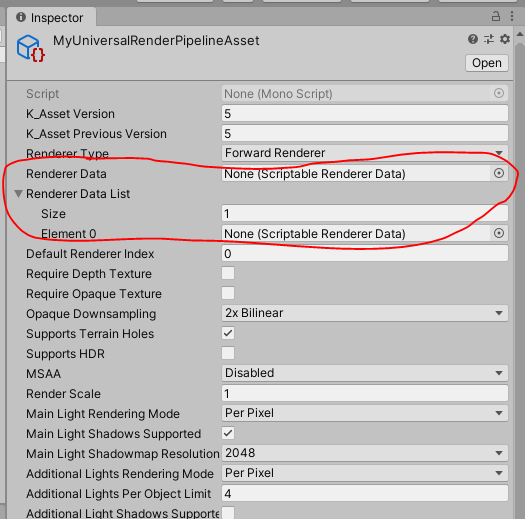

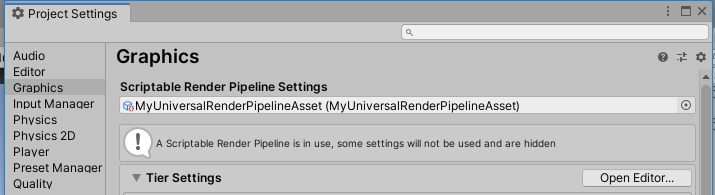

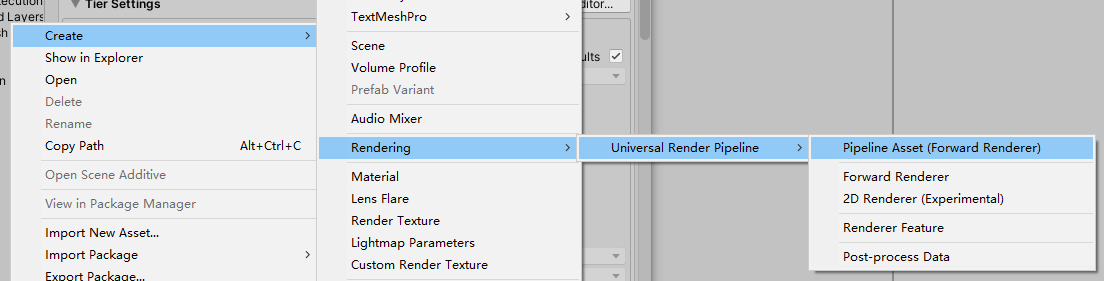

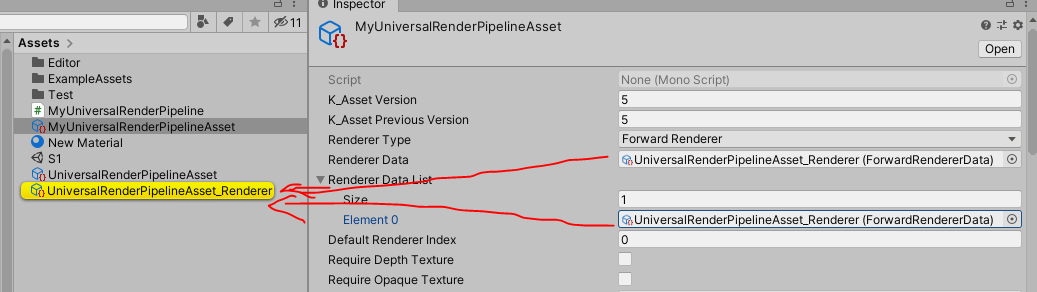

　　不管URP還是HDRP都要自己設定一個RenderPiplineAsset才行, 創建一個放進去 :

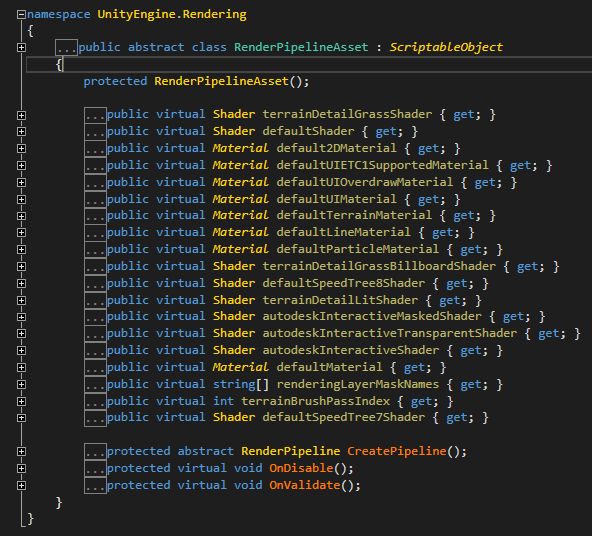

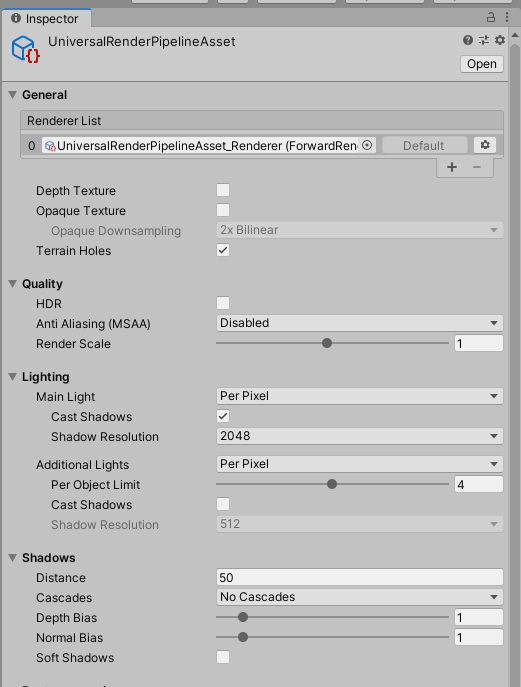

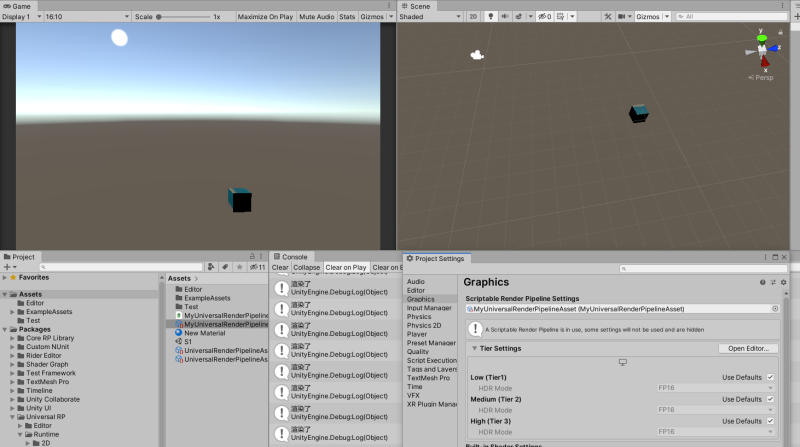

　　這樣才可以看到正確的渲染. 那么這個RenderPipelineAsset是個啥東西呢? 查看它就是一些設定, 是否渲染深度圖啊之類的, 沒有什么特別的.

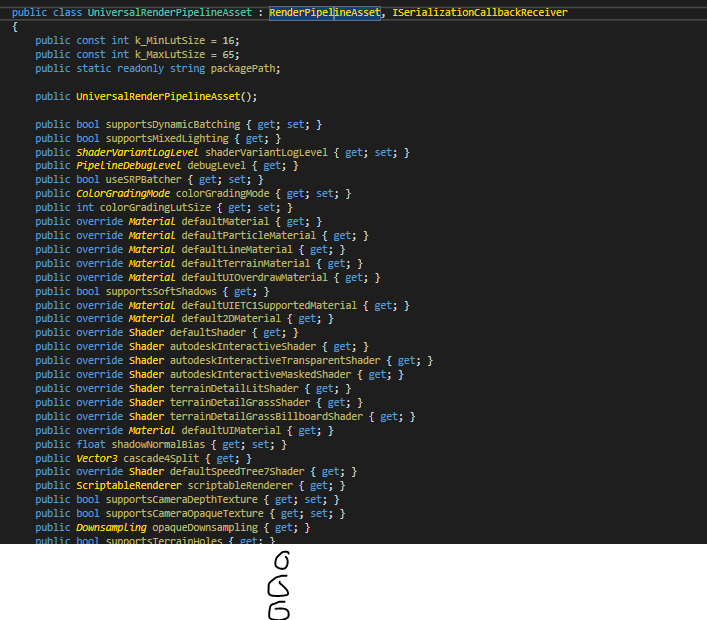

　　因為我找到的案例是早期版本的, 現在用2019.3測驗, API變了, 現在外網又很難打開, 連GitHub都難打開, 直接復制它的源代碼來看看它有哪些可編程內容吧, 例子又下不來, 往后慢慢看吧哎...　　

1. UniversalRenderPipelineCore.cs

using System;
using System.Collections.Generic;
using Unity.Collections;
using UnityEngine.Scripting.APIUpdating;

using UnityEngine.Experimental.GlobalIllumination;
using UnityEngine.Experimental.Rendering;
using Lightmapping = UnityEngine.Experimental.GlobalIllumination.Lightmapping;
using UnityEngine.Rendering.LWRP;
using UnityEngine.Rendering.Universal;
namespace UnityEngine.Rendering.Universal
{
    [MovedFrom("UnityEngine.Rendering.LWRP")]
    public enum MixedLightingSetup
    {
        None,
        ShadowMask,
        Subtractive,
    };

    [MovedFrom("UnityEngine.Rendering.LWRP")]
    public struct RenderingData
    {
        public CullingResults cullResults;
        public CameraData cameraData;
        public LightData lightData;
        public ShadowData shadowData;
        public PostProcessingData postProcessingData;
        public bool supportsDynamicBatching;
        public PerObjectData perObjectData;

        /// <summary>
        /// True if post-processing effect is enabled while rendering the camera stack.
        /// </summary>
        public bool postProcessingEnabled;
    }

    [MovedFrom("UnityEngine.Rendering.LWRP")]
    public struct LightData
    {
        public int mainLightIndex;
        public int additionalLightsCount;
        public int maxPerObjectAdditionalLightsCount;
        public NativeArray<VisibleLight> visibleLights;
        public bool shadeAdditionalLightsPerVertex;
        public bool supportsMixedLighting;
    }

    [MovedFrom("UnityEngine.Rendering.LWRP")]
    public struct CameraData
    {
        // Internal camera data as we are not yet sure how to expose View in stereo context.
        // We might change this API soon.
        Matrix4x4 m_ViewMatrix;
        Matrix4x4 m_ProjectionMatrix;

        internal void SetViewAndProjectionMatrix(Matrix4x4 viewMatrix, Matrix4x4 projectionMatrix)
        {
            m_ViewMatrix = viewMatrix;
            m_ProjectionMatrix = projectionMatrix;
        }

        /// <summary>
        /// Returns the camera view matrix.
        /// </summary>
        /// <returns></returns>
        public Matrix4x4 GetViewMatrix()
        {
            return m_ViewMatrix;
        }

        /// <summary>
        /// Returns the camera projection matrix.
        /// </summary>
        /// <returns></returns>
        public Matrix4x4 GetProjectionMatrix()
        {
            return m_ProjectionMatrix;
        }

        /// <summary>
        /// Returns the camera GPU projection matrix. This contains platform specific changes to handle y-flip and reverse z.
        /// Similar to <c>GL.GetGPUProjectionMatrix</c> but queries URP internal state to know if the pipeline is rendering to render texture.
        /// For more info on platform differences regarding camera projection check: https://docs.unity3d.com/Manual/SL-PlatformDifferences.html
        /// </summary>
        /// <seealso cref="GL.GetGPUProjectionMatrix(Matrix4x4, bool)"/>
        /// <returns></returns>
        public Matrix4x4 GetGPUProjectionMatrix()
        {
            return GL.GetGPUProjectionMatrix(m_ProjectionMatrix, IsCameraProjectionMatrixFlipped());
        }

        public Camera camera;
        public CameraRenderType renderType;
        public RenderTexture targetTexture;
        public RenderTextureDescriptor cameraTargetDescriptor;
        internal Rect pixelRect;
        internal int pixelWidth;
        internal int pixelHeight;
        internal float aspectRatio;
        public float renderScale;
        public bool clearDepth;
        public bool isSceneViewCamera;
        public bool isDefaultViewport;
        public bool isHdrEnabled;
        public bool requiresDepthTexture;
        public bool requiresOpaqueTexture;

        /// <summary>
        /// True if the camera device projection matrix is flipped. This happens when the pipeline is rendering
        /// to a render texture in non OpenGL platforms. If you are doing a custom Blit pass to copy camera textures
        /// (_CameraColorTexture, _CameraDepthAttachment) you need to check this flag to know if you should flip the
        /// matrix when rendering with for cmd.Draw* and reading from camera textures.
        /// </summary>
        public bool IsCameraProjectionMatrixFlipped()
        {
            // Users only have access to CameraData on URP rendering scope. The current renderer should never be null.
            var renderer = ScriptableRenderer.current;
            Debug.Assert(renderer != null, "IsCameraProjectionMatrixFlipped is being called outside camera rendering scope.");

            if(renderer != null)
            {
                bool renderingToTexture = renderer.cameraColorTarget != BuiltinRenderTextureType.CameraTarget || targetTexture != null;
                return SystemInfo.graphicsUVStartsAtTop && renderingToTexture;
            }

            return true;
        }

        public SortingCriteria defaultOpaqueSortFlags;

        public bool isStereoEnabled;
        internal int numberOfXRPasses;
        internal bool isXRMultipass;

        public float maxShadowDistance;
        public bool postProcessEnabled;

        public IEnumerator<Action<RenderTargetIdentifier, CommandBuffer>> captureActions;

        public LayerMask volumeLayerMask;
        public Transform volumeTrigger;

        public bool isStopNaNEnabled;
        public bool isDitheringEnabled;
        public AntialiasingMode antialiasing;
        public AntialiasingQuality antialiasingQuality;
        internal ScriptableRenderer renderer;

        /// <summary>
        /// True if this camera is resolving rendering to the final camera render target.
        /// When rendering a stack of cameras only the last camera in the stack will resolve to camera target.
        /// </summary>
        public bool resolveFinalTarget;
    }

    [MovedFrom("UnityEngine.Rendering.LWRP")]
    public struct ShadowData
    {
        public bool supportsMainLightShadows;
        public bool requiresScreenSpaceShadowResolve;
        public int mainLightShadowmapWidth;
        public int mainLightShadowmapHeight;
        public int mainLightShadowCascadesCount;
        public Vector3 mainLightShadowCascadesSplit;
        public bool supportsAdditionalLightShadows;
        public int additionalLightsShadowmapWidth;
        public int additionalLightsShadowmapHeight;
        public bool supportsSoftShadows;
        public int shadowmapDepthBufferBits;
        public List<Vector4> bias;
    }

    public static class ShaderPropertyId
    {
        public static readonly int scaledScreenParams = Shader.PropertyToID("_ScaledScreenParams");
        public static readonly int worldSpaceCameraPos = Shader.PropertyToID("_WorldSpaceCameraPos");
        public static readonly int screenParams = Shader.PropertyToID("_ScreenParams");
        public static readonly int projectionParams = Shader.PropertyToID("_ProjectionParams");
        public static readonly int zBufferParams = Shader.PropertyToID("_ZBufferParams");
        public static readonly int orthoParams = Shader.PropertyToID("unity_OrthoParams");

        public static readonly int viewMatrix = Shader.PropertyToID("unity_MatrixV");
        public static readonly int projectionMatrix = Shader.PropertyToID("glstate_matrix_projection");
        public static readonly int viewAndProjectionMatrix = Shader.PropertyToID("unity_MatrixVP");

        public static readonly int inverseViewMatrix = Shader.PropertyToID("unity_MatrixInvV");
        // Undefined:
        // public static readonly int inverseProjectionMatrix = Shader.PropertyToID("unity_MatrixInvP");
        public static readonly int inverseViewAndProjectionMatrix = Shader.PropertyToID("unity_MatrixInvVP");

        public static readonly int cameraProjectionMatrix = Shader.PropertyToID("unity_CameraProjection");
        public static readonly int inverseCameraProjectionMatrix = Shader.PropertyToID("unity_CameraInvProjection");
        public static readonly int worldToCameraMatrix = Shader.PropertyToID("unity_WorldToCamera");
        public static readonly int cameraToWorldMatrix = Shader.PropertyToID("unity_CameraToWorld");
    }

    public struct PostProcessingData
    {
        public ColorGradingMode gradingMode;
        public int lutSize;
    }

    class CameraDataComparer : IComparer<Camera>
    {
        public int Compare(Camera lhs, Camera rhs)
        {
            return (int)lhs.depth - (int)rhs.depth;
        }
    }

    public static class ShaderKeywordStrings
    {
        public static readonly string MainLightShadows = "_MAIN_LIGHT_SHADOWS";
        public static readonly string MainLightShadowCascades = "_MAIN_LIGHT_SHADOWS_CASCADE";
        public static readonly string AdditionalLightsVertex = "_ADDITIONAL_LIGHTS_VERTEX";
        public static readonly string AdditionalLightsPixel = "_ADDITIONAL_LIGHTS";
        public static readonly string AdditionalLightShadows = "_ADDITIONAL_LIGHT_SHADOWS";
        public static readonly string SoftShadows = "_SHADOWS_SOFT";
        public static readonly string MixedLightingSubtractive = "_MIXED_LIGHTING_SUBTRACTIVE";

        public static readonly string DepthNoMsaa = "_DEPTH_NO_MSAA";
        public static readonly string DepthMsaa2 = "_DEPTH_MSAA_2";
        public static readonly string DepthMsaa4 = "_DEPTH_MSAA_4";
        public static readonly string DepthMsaa8 = "_DEPTH_MSAA_8";

        public static readonly string LinearToSRGBConversion = "_LINEAR_TO_SRGB_CONVERSION";

        public static readonly string SmaaLow = "_SMAA_PRESET_LOW";
        public static readonly string SmaaMedium = "_SMAA_PRESET_MEDIUM";
        public static readonly string SmaaHigh = "_SMAA_PRESET_HIGH";
        public static readonly string PaniniGeneric = "_GENERIC";
        public static readonly string PaniniUnitDistance = "_UNIT_DISTANCE";
        public static readonly string BloomLQ = "_BLOOM_LQ";
        public static readonly string BloomHQ = "_BLOOM_HQ";
        public static readonly string BloomLQDirt = "_BLOOM_LQ_DIRT";
        public static readonly string BloomHQDirt = "_BLOOM_HQ_DIRT";
        public static readonly string UseRGBM = "_USE_RGBM";
        public static readonly string Distortion = "_DISTORTION";
        public static readonly string ChromaticAberration = "_CHROMATIC_ABERRATION";
        public static readonly string HDRGrading = "_HDR_GRADING";
        public static readonly string TonemapACES = "_TONEMAP_ACES";
        public static readonly string TonemapNeutral = "_TONEMAP_NEUTRAL";
        public static readonly string FilmGrain = "_FILM_GRAIN";
        public static readonly string Fxaa = "_FXAA";
        public static readonly string Dithering = "_DITHERING";

        public static readonly string HighQualitySampling = "_HIGH_QUALITY_SAMPLING";
    }

    public sealed partial class UniversalRenderPipeline
    {
        static List<Vector4> m_ShadowBiasData = https://www.cnblogs.com/tiancaiwrk/p/new List<Vector4>();

        /// <summary>
        /// Checks if a camera is a game camera.
        /// </summary>
        /// <param name="camera">Camera to check state from.</param>
        /// <returns>true if given camera is a game camera, false otherwise.</returns>
        public static bool IsGameCamera(Camera camera)
        {
            if(camera == null)
                throw new ArgumentNullException("camera");

            return camera.cameraType == CameraType.Game || camera.cameraType == CameraType.VR;
        }

        /// <summary>
        /// Checks if a camera is rendering in stereo mode.
        /// </summary>
        /// <param name="camera">Camera to check state from.</param>
        /// <returns>Returns true if the given camera is rendering in stereo mode, false otherwise.</returns>
        public static bool IsStereoEnabled(Camera camera)
        {
            if(camera == null)
                throw new ArgumentNullException("camera");

            bool isGameCamera = IsGameCamera(camera);
            bool isCompatWithXRDimension = true;
#if ENABLE_VR && ENABLE_VR_MODULE
            isCompatWithXRDimension &= (camera.targetTexture ? camera.targetTexture.dimension == UnityEngine.XR.XRSettings.deviceEyeTextureDimension : true);
#endif
            return XRGraphics.enabled && isGameCamera && (camera.stereoTargetEye == StereoTargetEyeMask.Both) && isCompatWithXRDimension;
        }

        /// <summary>
        /// Returns the current render pipeline asset for the current quality setting.
        /// If no render pipeline asset is assigned in QualitySettings, then returns the one assigned in GraphicsSettings.
        /// </summary>
        public static UniversalRenderPipelineAsset asset
        {
            get => GraphicsSettings.currentRenderPipeline as UniversalRenderPipelineAsset;
        }

        /// <summary>
        /// Checks if a camera is rendering in MultiPass stereo mode.
        /// </summary>
        /// <param name="camera">Camera to check state from.</param>
        /// <returns>Returns true if the given camera is rendering in multi pass stereo mode, false otherwise.</returns>
        static bool IsMultiPassStereoEnabled(Camera camera)
        {
            if(camera == null)
                throw new ArgumentNullException("camera");

#if ENABLE_VR && ENABLE_VR_MODULE
            return IsStereoEnabled(camera) && XR.XRSettings.stereoRenderingMode == XR.XRSettings.StereoRenderingMode.MultiPass;
#else
            return false;
#endif
        }

        void SortCameras(Camera[] cameras)
        {
            if(cameras.Length <= 1)
                return;
            Array.Sort(cameras, new CameraDataComparer());
        }

        static RenderTextureDescriptor CreateRenderTextureDescriptor(Camera camera, float renderScale,
            bool isStereoEnabled, bool isHdrEnabled, int msaaSamples, bool needsAlpha)
        {
            RenderTextureDescriptor desc;
            GraphicsFormat renderTextureFormatDefault = SystemInfo.GetGraphicsFormat(DefaultFormat.LDR);

            // NB: There's a weird case about XR and render texture
            // In test framework currently we render stereo tests to target texture
            // The descriptor in that case needs to be initialized from XR eyeTexture not render texture
            // Otherwise current tests will fail. Check: Do we need to update the test images instead?
            if(isStereoEnabled)
            {
                desc = XRGraphics.eyeTextureDesc;
                renderTextureFormatDefault = desc.graphicsFormat;
            }
            else if(camera.targetTexture == null)
            {
                desc = new RenderTextureDescriptor(camera.pixelWidth, camera.pixelHeight);
                desc.width = (int)((float)desc.width * renderScale);
                desc.height = (int)((float)desc.height * renderScale);
            }
            else
            {
                desc = camera.targetTexture.descriptor;
            }

            if(camera.targetTexture != null)
            {
                desc.colorFormat = camera.targetTexture.descriptor.colorFormat;
                desc.depthBufferBits = camera.targetTexture.descriptor.depthBufferBits;
                desc.msaaSamples = camera.targetTexture.descriptor.msaaSamples;
                desc.sRGB = camera.targetTexture.descriptor.sRGB;
            }
            else
            {
                bool use32BitHDR = !needsAlpha && RenderingUtils.SupportsGraphicsFormat(GraphicsFormat.B10G11R11_UFloatPack32, FormatUsage.Linear | FormatUsage.Render);
                GraphicsFormat hdrFormat = (use32BitHDR) ? GraphicsFormat.B10G11R11_UFloatPack32 : GraphicsFormat.R16G16B16A16_SFloat;

                desc.graphicsFormat = isHdrEnabled ? hdrFormat : renderTextureFormatDefault;
                desc.depthBufferBits = 32;
                desc.msaaSamples = msaaSamples;
                desc.sRGB = (QualitySettings.activeColorSpace == ColorSpace.Linear);
            }

            desc.enableRandomWrite = false;
            desc.bindMS = false;
            desc.useDynamicScale = camera.allowDynamicResolution;
            return desc;
        }

        static Lightmapping.RequestLightsDelegate lightsDelegate = (Light[] requests, NativeArray<LightDataGI> lightsOutput) =>
        {
            // Editor only.
#if UNITY_EDITOR
            LightDataGI lightData = new LightDataGI();

            for(int i = 0; i < requests.Length; i++)
            {
                Light light = requests[i];
                switch(light.type)
                {
                    case LightType.Directional:
                    DirectionalLight directionalLight = new DirectionalLight();
                    LightmapperUtils.Extract(light, ref directionalLight);
                    lightData.Init(ref directionalLight);
                    break;
                    case LightType.Point:
                    PointLight pointLight = new PointLight();
                    LightmapperUtils.Extract(light, ref pointLight);
                    lightData.Init(ref pointLight);
                    break;
                    case LightType.Spot:
                    SpotLight spotLight = new SpotLight();
                    LightmapperUtils.Extract(light, ref spotLight);
                    spotLight.innerConeAngle = light.innerSpotAngle * Mathf.Deg2Rad;
                    spotLight.angularFalloff = AngularFalloffType.AnalyticAndInnerAngle;
                    lightData.Init(ref spotLight);
                    break;
                    case LightType.Area:
                    RectangleLight rectangleLight = new RectangleLight();
                    LightmapperUtils.Extract(light, ref rectangleLight);
                    rectangleLight.mode = LightMode.Baked;
                    lightData.Init(ref rectangleLight);
                    break;
                    case LightType.Disc:
                    DiscLight discLight = new DiscLight();
                    LightmapperUtils.Extract(light, ref discLight);
                    discLight.mode = LightMode.Baked;
                    lightData.Init(ref discLight);
                    break;
                    default:
                    lightData.InitNoBake(light.GetInstanceID());
                    break;
                }

                lightData.falloff = FalloffType.InverseSquared;
                lightsOutput[i] = lightData;
            }
#else
            LightDataGI lightData = new LightDataGI();

            for (int i = 0; i < requests.Length; i++)
            {
                Light light = requests[i];
                lightData.InitNoBake(light.GetInstanceID());
                lightsOutput[i] = lightData;
            }
#endif
        };
    }

    internal enum URPProfileId
    {
        StopNaNs,
        SMAA,
        GaussianDepthOfField,
        BokehDepthOfField,
        MotionBlur,
        PaniniProjection,
        UberPostProcess,
        Bloom,
    }
}

2. UniversalRenderPipeline.cs

using System;
using Unity.Collections;
using System.Collections.Generic;
#if UNITY_EDITOR
using UnityEditor;
using UnityEditor.Rendering.Universal;
#endif
using UnityEngine.Scripting.APIUpdating;
using Lightmapping = UnityEngine.Experimental.GlobalIllumination.Lightmapping;

namespace UnityEngine.Rendering.LWRP
{
    [Obsolete("LWRP -> Universal (UnityUpgradable) -> UnityEngine.Rendering.Universal.UniversalRenderPipeline", true)]
    public class LightweightRenderPipeline
    {
        public LightweightRenderPipeline(LightweightRenderPipelineAsset asset)
        {
        }
    }
}

namespace UnityEngine.Rendering.Universal
{
    public sealed partial class UniversalRenderPipeline : RenderPipeline
    {
        internal static class PerFrameBuffer
        {
            public static int _GlossyEnvironmentColor;
            public static int _SubtractiveShadowColor;

            public static int _Time;
            public static int _SinTime;
            public static int _CosTime;
            public static int unity_DeltaTime;
            public static int _TimeParameters;
        }

        public const string k_ShaderTagName = "UniversalPipeline";

        const string k_RenderCameraTag = "Render Camera";
        static ProfilingSampler _CameraProfilingSampler = new ProfilingSampler(k_RenderCameraTag);

        public static float maxShadowBias
        {
            get => 10.0f;
        }

        public static float minRenderScale
        {
            get => 0.1f;
        }

        public static float maxRenderScale
        {
            get => 2.0f;
        }

        // Amount of Lights that can be shaded per object (in the for loop in the shader)
        public static int maxPerObjectLights
        {
            // No support to bitfield mask and int[] in gles2. Can't index fast more than 4 lights.
            // Check Lighting.hlsl for more details.
            get => (SystemInfo.graphicsDeviceType == GraphicsDeviceType.OpenGLES2) ? 4 : 8;
        }

        // These limits have to match same limits in Input.hlsl
        const int k_MaxVisibleAdditionalLightsMobile = 32;
        const int k_MaxVisibleAdditionalLightsNonMobile = 256;
        public static int maxVisibleAdditionalLights
        {
            get
            {
                return (Application.isMobilePlatform || SystemInfo.graphicsDeviceType == GraphicsDeviceType.OpenGLCore)
                        ? k_MaxVisibleAdditionalLightsMobile : k_MaxVisibleAdditionalLightsNonMobile;
            }
        }

        // Internal max count for how many ScriptableRendererData can be added to a single Universal RP asset
        internal static int maxScriptableRenderers
        {
            get => 8;
        }

        public UniversalRenderPipeline(UniversalRenderPipelineAsset asset)
        {
            SetSupportedRenderingFeatures();

            PerFrameBuffer._GlossyEnvironmentColor = Shader.PropertyToID("_GlossyEnvironmentColor");
            PerFrameBuffer._SubtractiveShadowColor = Shader.PropertyToID("_SubtractiveShadowColor");

            PerFrameBuffer._Time = Shader.PropertyToID("_Time");
            PerFrameBuffer._SinTime = Shader.PropertyToID("_SinTime");
            PerFrameBuffer._CosTime = Shader.PropertyToID("_CosTime");
            PerFrameBuffer.unity_DeltaTime = Shader.PropertyToID("unity_DeltaTime");
            PerFrameBuffer._TimeParameters = Shader.PropertyToID("_TimeParameters");

            // Let engine know we have MSAA on for cases where we support MSAA backbuffer
            if(QualitySettings.antiAliasing != asset.msaaSampleCount)
            {
                QualitySettings.antiAliasing = asset.msaaSampleCount;
#if ENABLE_VR && ENABLE_VR_MODULE
                XR.XRDevice.UpdateEyeTextureMSAASetting();
#endif
            }

#if ENABLE_VR && ENABLE_VR_MODULE
            XRGraphics.eyeTextureResolutionScale = asset.renderScale;
#endif
            // For compatibility reasons we also match old LightweightPipeline tag.
            Shader.globalRenderPipeline = "UniversalPipeline,LightweightPipeline";

            Lightmapping.SetDelegate(lightsDelegate);

            CameraCaptureBridge.enabled = true;

            RenderingUtils.ClearSystemInfoCache();
        }

        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);

            Shader.globalRenderPipeline = "";
            SupportedRenderingFeatures.active = new SupportedRenderingFeatures();
            ShaderData.instance.Dispose();

#if UNITY_EDITOR
            SceneViewDrawMode.ResetDrawMode();
#endif
            Lightmapping.ResetDelegate();
            CameraCaptureBridge.enabled = false;
        }

        protected override void Render(ScriptableRenderContext renderContext, Camera[] cameras)
        {
            BeginFrameRendering(renderContext, cameras);

            GraphicsSettings.lightsUseLinearIntensity = (QualitySettings.activeColorSpace == ColorSpace.Linear);
            GraphicsSettings.useScriptableRenderPipelineBatching = asset.useSRPBatcher;
            SetupPerFrameShaderConstants();

            SortCameras(cameras);
            for(int i = 0; i < cameras.Length; ++i)
            {
                var camera = cameras[i];
                if(IsGameCamera(camera))
                {
                    RenderCameraStack(renderContext, camera);
                }
                else
                {
                    BeginCameraRendering(renderContext, camera);
#if VISUAL_EFFECT_GRAPH_0_0_1_OR_NEWER
                    //It should be called before culling to prepare material. When there isn't any VisualEffect component, this method has no effect.
                    VFX.VFXManager.PrepareCamera(camera);
#endif
                    UpdateVolumeFramework(camera, null);

                    RenderSingleCamera(renderContext, camera);
                    EndCameraRendering(renderContext, camera);
                }
            }

            EndFrameRendering(renderContext, cameras);
        }

        /// <summary>
        /// Standalone camera rendering. Use this to render procedural cameras.
        /// This method doesn't call <c>BeginCameraRendering</c> and <c>EndCameraRendering</c> callbacks.
        /// </summary>
        /// <param name="context">Render context used to record commands during execution.</param>
        /// <param name="camera">Camera to render.</param>
        /// <seealso cref="ScriptableRenderContext"/>
        public static void RenderSingleCamera(ScriptableRenderContext context, Camera camera)
        {
            UniversalAdditionalCameraData additionalCameraData = null;
            if(IsGameCamera(camera))
                camera.gameObject.TryGetComponent(out additionalCameraData);

            if(additionalCameraData != null && additionalCameraData.renderType != CameraRenderType.Base)
            {
                Debug.LogWarning("Only Base cameras can be rendered with standalone RenderSingleCamera. Camera will be skipped.");
                return;
            }

            InitializeCameraData(camera, additionalCameraData, true, out var cameraData);
            RenderSingleCamera(context, cameraData, cameraData.postProcessEnabled);
        }

        /// <summary>
        /// Renders a single camera. This method will do culling, setup and execution of the renderer.
        /// </summary>
        /// <param name="context">Render context used to record commands during execution.</param>
        /// <param name="cameraData">Camera rendering data. This might contain data inherited from a base camera.</param>
        /// <param name="anyPostProcessingEnabled">True if at least one camera has post-processing enabled in the stack, false otherwise.</param>
        static void RenderSingleCamera(ScriptableRenderContext context, CameraData cameraData, bool anyPostProcessingEnabled)
        {
            Camera camera = cameraData.camera;
            var renderer = cameraData.renderer;
            if(renderer == null)
            {
                Debug.LogWarning(string.Format("Trying to render {0} with an invalid renderer. Camera rendering will be skipped.", camera.name));
                return;
            }

            if(!camera.TryGetCullingParameters(IsStereoEnabled(camera), out var cullingParameters))
                return;

            ScriptableRenderer.current = renderer;

            ProfilingSampler sampler = (asset.debugLevel >= PipelineDebugLevel.Profiling) ? new ProfilingSampler(camera.name) : _CameraProfilingSampler;
            CommandBuffer cmd = CommandBufferPool.Get(sampler.name);
            using(new ProfilingScope(cmd, sampler))
            {
                renderer.Clear(cameraData.renderType);
                renderer.SetupCullingParameters(ref cullingParameters, ref cameraData);

                context.ExecuteCommandBuffer(cmd);
                cmd.Clear();

#if UNITY_EDITOR
                // Emit scene view UI
                if(cameraData.isSceneViewCamera)
                {
                    ScriptableRenderContext.EmitWorldGeometryForSceneView(camera);
                }
#endif

                var cullResults = context.Cull(ref cullingParameters);
                InitializeRenderingData(asset, ref cameraData, ref cullResults, anyPostProcessingEnabled, out var renderingData);

                renderer.Setup(context, ref renderingData);
                renderer.Execute(context, ref renderingData);
            }

            context.ExecuteCommandBuffer(cmd);
            CommandBufferPool.Release(cmd);
            context.Submit();

            ScriptableRenderer.current = null;
        }

        /// <summary>
        // Renders a camera stack. This method calls RenderSingleCamera for each valid camera in the stack.
        // The last camera resolves the final target to screen.
        /// </summary>
        /// <param name="context">Render context used to record commands during execution.</param>
        /// <param name="camera">Camera to render.</param>
        static void RenderCameraStack(ScriptableRenderContext context, Camera baseCamera)
        {
            baseCamera.TryGetComponent<UniversalAdditionalCameraData>(out var baseCameraAdditionalData);

            // Overlay cameras will be rendered stacked while rendering base cameras
            if(baseCameraAdditionalData != null && baseCameraAdditionalData.renderType == CameraRenderType.Overlay)
                return;

            // renderer contains a stack if it has additional data and the renderer supports stacking
            var renderer = baseCameraAdditionalData?.scriptableRenderer;
            bool supportsCameraStacking = renderer != null && renderer.supportedRenderingFeatures.cameraStacking;
            List<Camera> cameraStack = (supportsCameraStacking) ? baseCameraAdditionalData?.cameraStack : null;

            bool anyPostProcessingEnabled = baseCameraAdditionalData != null && baseCameraAdditionalData.renderPostProcessing;

            // We need to know the last active camera in the stack to be able to resolve
            // rendering to screen when rendering it. The last camera in the stack is not
            // necessarily the last active one as it users might disable it.
            int lastActiveOverlayCameraIndex = -1;
            if(cameraStack != null)
            {
                // TODO: Add support to camera stack in VR multi pass mode
                if(!IsMultiPassStereoEnabled(baseCamera))
                {
                    var baseCameraRendererType = baseCameraAdditionalData?.scriptableRenderer.GetType();

                    for(int i = 0; i < cameraStack.Count; ++i)
                    {
                        Camera currCamera = cameraStack[i];

                        if(currCamera != null && currCamera.isActiveAndEnabled)
                        {
                            currCamera.TryGetComponent<UniversalAdditionalCameraData>(out var data);

                            if(data =https://www.cnblogs.com/tiancaiwrk/p/= null || data.renderType != CameraRenderType.Overlay)
                            {
                                Debug.LogWarning(string.Format("Stack can only contain Overlay cameras. {0} will skip rendering.", currCamera.name));
                            }
                            else if(data?.scriptableRenderer.GetType() != baseCameraRendererType)
                            {
                                Debug.LogWarning(string.Format("Only cameras with the same renderer type as the base camera can be stacked. {0} will skip rendering", currCamera.name));
                            }
                            else
                            {
                                anyPostProcessingEnabled |= data.renderPostProcessing;
                                lastActiveOverlayCameraIndex = i;
                            }
                        }
                    }
                }
                else
                {
                    Debug.LogWarning("Multi pass stereo mode doesn't support Camera Stacking. Overlay cameras will skip rendering.");
                }
            }


            bool isStackedRendering = lastActiveOverlayCameraIndex != -1;

            BeginCameraRendering(context, baseCamera);
#if VISUAL_EFFECT_GRAPH_0_0_1_OR_NEWER
            //It should be called before culling to prepare material. When there isn't any VisualEffect component, this method has no effect.
            VFX.VFXManager.PrepareCamera(baseCamera);
#endif
            UpdateVolumeFramework(baseCamera, baseCameraAdditionalData);
            InitializeCameraData(baseCamera, baseCameraAdditionalData, !isStackedRendering, out var baseCameraData);
            RenderSingleCamera(context, baseCameraData, anyPostProcessingEnabled);
            EndCameraRendering(context, baseCamera);

            if(!isStackedRendering)
                return;

            for(int i = 0; i < cameraStack.Count; ++i)
            {
                var currCamera = cameraStack[i];

                if(!currCamera.isActiveAndEnabled)
                    continue;

                currCamera.TryGetComponent<UniversalAdditionalCameraData>(out var currCameraData);
                // Camera is overlay and enabled
                if(currCameraData != null)
                {
                    // Copy base settings from base camera data and initialize initialize remaining specific settings for this camera type.
                    CameraData overlayCameraData =https://www.cnblogs.com/tiancaiwrk/p/ baseCameraData;
                    bool lastCamera = i == lastActiveOverlayCameraIndex;

                    BeginCameraRendering(context, currCamera);
#if VISUAL_EFFECT_GRAPH_0_0_1_OR_NEWER
                    //It should be called before culling to prepare material. When there isn't any VisualEffect component, this method has no effect.
                    VFX.VFXManager.PrepareCamera(currCamera);
#endif
                    UpdateVolumeFramework(currCamera, currCameraData);
                    InitializeAdditionalCameraData(currCamera, currCameraData, lastCamera, ref overlayCameraData);
                    RenderSingleCamera(context, overlayCameraData, anyPostProcessingEnabled);
                    EndCameraRendering(context, currCamera);
                }
            }
        }

        static void UpdateVolumeFramework(Camera camera, UniversalAdditionalCameraData additionalCameraData)
        {
            // Default values when there's no additional camera data available
            LayerMask layerMask = 1; // "Default"
            Transform trigger = camera.transform;

            if(additionalCameraData != null)
            {
                layerMask = additionalCameraData.volumeLayerMask;
                trigger = additionalCameraData.volumeTrigger != null
                    ? additionalCameraData.volumeTrigger
                    : trigger;
            }
            else if(camera.cameraType == CameraType.SceneView)
            {
                // Try to mirror the MainCamera volume layer mask for the scene view - do not mirror the target
                var mainCamera = Camera.main;
                UniversalAdditionalCameraData mainAdditionalCameraData = null;

                if(mainCamera != null && mainCamera.TryGetComponent(out mainAdditionalCameraData))
                    layerMask = mainAdditionalCameraData.volumeLayerMask;

                trigger = mainAdditionalCameraData != null && mainAdditionalCameraData.volumeTrigger != null ? mainAdditionalCameraData.volumeTrigger : trigger;
            }

            VolumeManager.instance.Update(trigger, layerMask);
        }

        static bool CheckPostProcessForDepth(in CameraData cameraData)
        {
            if(!cameraData.postProcessEnabled)
                return false;

            if(cameraData.antialiasing == AntialiasingMode.SubpixelMorphologicalAntiAliasing)
                return true;

            var stack = VolumeManager.instance.stack;

            if(stack.GetComponent<DepthOfField>().IsActive())
                return true;

            if(stack.GetComponent<MotionBlur>().IsActive())
                return true;

            return false;
        }

        static void SetSupportedRenderingFeatures()
        {
#if UNITY_EDITOR
            SupportedRenderingFeatures.active = new SupportedRenderingFeatures()
            {
                reflectionProbeModes = SupportedRenderingFeatures.ReflectionProbeModes.None,
                defaultMixedLightingModes = SupportedRenderingFeatures.LightmapMixedBakeModes.Subtractive,
                mixedLightingModes = SupportedRenderingFeatures.LightmapMixedBakeModes.Subtractive | SupportedRenderingFeatures.LightmapMixedBakeModes.IndirectOnly,
                lightmapBakeTypes = LightmapBakeType.Baked | LightmapBakeType.Mixed,
                lightmapsModes = LightmapsMode.CombinedDirectional | LightmapsMode.NonDirectional,
                lightProbeProxyVolumes = false,
                motionVectors = false,
                receiveShadows = false,
                reflectionProbes = true
            };
            SceneViewDrawMode.SetupDrawMode();
#endif
        }

        static void InitializeCameraData(Camera camera, UniversalAdditionalCameraData additionalCameraData, bool resolveFinalTarget, out CameraData cameraData)
        {
            cameraData = new CameraData();
            InitializeStackedCameraData(camera, additionalCameraData, ref cameraData);
            InitializeAdditionalCameraData(camera, additionalCameraData, resolveFinalTarget, ref cameraData);
        }

        /// <summary>
        /// Initialize camera data settings common for all cameras in the stack. Overlay cameras will inherit
        /// settings from base camera.
        /// </summary>
        /// <param name="baseCamera">Base camera to inherit settings from.</param>
        /// <param name="baseAdditionalCameraData">Component that contains additional base camera data.</param>
        /// <param name="cameraData">Camera data to initialize setttings.</param>
        static void InitializeStackedCameraData(Camera baseCamera, UniversalAdditionalCameraData baseAdditionalCameraData, ref CameraData cameraData)
        {
            var settings = asset;
            cameraData.targetTexture = baseCamera.targetTexture;
            cameraData.isStereoEnabled = IsStereoEnabled(baseCamera);
            cameraData.isSceneViewCamera = baseCamera.cameraType == CameraType.SceneView;

            cameraData.numberOfXRPasses = 1;
            cameraData.isXRMultipass = false;

#if ENABLE_VR && ENABLE_VR_MODULE
            if (cameraData.isStereoEnabled && !cameraData.isSceneViewCamera && XR.XRSettings.stereoRenderingMode == XR.XRSettings.StereoRenderingMode.MultiPass)
            {
                cameraData.numberOfXRPasses = 2;
                cameraData.isXRMultipass = true;
            }
#endif

            ///////////////////////////////////////////////////////////////////
            // Environment and Post-processing settings                       /
            ///////////////////////////////////////////////////////////////////
            if(cameraData.isSceneViewCamera)
            {
                cameraData.volumeLayerMask = 1; // "Default"
                cameraData.volumeTrigger = null;
                cameraData.isStopNaNEnabled = false;
                cameraData.isDitheringEnabled = false;
                cameraData.antialiasing = AntialiasingMode.None;
                cameraData.antialiasingQuality = AntialiasingQuality.High;
            }
            else if(baseAdditionalCameraData != null)
            {
                cameraData.volumeLayerMask = baseAdditionalCameraData.volumeLayerMask;
                cameraData.volumeTrigger = baseAdditionalCameraData.volumeTrigger == null ? baseCamera.transform : baseAdditionalCameraData.volumeTrigger;
                cameraData.isStopNaNEnabled = baseAdditionalCameraData.stopNaN && SystemInfo.graphicsShaderLevel >= 35;
                cameraData.isDitheringEnabled = baseAdditionalCameraData.dithering;
                cameraData.antialiasing = baseAdditionalCameraData.antialiasing;
                cameraData.antialiasingQuality = baseAdditionalCameraData.antialiasingQuality;
            }
            else
            {
                cameraData.volumeLayerMask = 1; // "Default"
                cameraData.volumeTrigger = null;
                cameraData.isStopNaNEnabled = false;
                cameraData.isDitheringEnabled = false;
                cameraData.antialiasing = AntialiasingMode.None;
                cameraData.antialiasingQuality = AntialiasingQuality.High;
            }

            ///////////////////////////////////////////////////////////////////
            // Settings that control output of the camera                     /
            ///////////////////////////////////////////////////////////////////
            int msaaSamples = 1;
            if(baseCamera.allowMSAA && settings.msaaSampleCount > 1)
                msaaSamples = (baseCamera.targetTexture != null) ? baseCamera.targetTexture.antiAliasing : settings.msaaSampleCount;
            cameraData.isHdrEnabled = baseCamera.allowHDR && settings.supportsHDR;

            Rect cameraRect = baseCamera.rect;
            cameraData.pixelRect = baseCamera.pixelRect;
            cameraData.pixelWidth = baseCamera.pixelWidth;
            cameraData.pixelHeight = baseCamera.pixelHeight;
            cameraData.aspectRatio = (float)cameraData.pixelWidth / (float)cameraData.pixelHeight;
            cameraData.isDefaultViewport = (!(Math.Abs(cameraRect.x) > 0.0f || Math.Abs(cameraRect.y) > 0.0f ||
                Math.Abs(cameraRect.width) < 1.0f || Math.Abs(cameraRect.height) < 1.0f));

            // If XR is enabled, use XR renderScale.
            // Discard variations lesser than kRenderScaleThreshold.
            // Scale is only enabled for gameview.
            const float kRenderScaleThreshold = 0.05f;
            float usedRenderScale = XRGraphics.enabled ? XRGraphics.eyeTextureResolutionScale : settings.renderScale;
            cameraData.renderScale = (Mathf.Abs(1.0f - usedRenderScale) < kRenderScaleThreshold) ? 1.0f : usedRenderScale;
            var commonOpaqueFlags = SortingCriteria.CommonOpaque;
            var noFrontToBackOpaqueFlags = SortingCriteria.SortingLayer | SortingCriteria.RenderQueue | SortingCriteria.OptimizeStateChanges | SortingCriteria.CanvasOrder;
            bool hasHSRGPU = SystemInfo.hasHiddenSurfaceRemovalOnGPU;
            bool canSkipFrontToBackSorting = (baseCamera.opaqueSortMode == OpaqueSortMode.Default && hasHSRGPU) || baseCamera.opaqueSortMode == OpaqueSortMode.NoDistanceSort;

            cameraData.defaultOpaqueSortFlags = canSkipFrontToBackSorting ? noFrontToBackOpaqueFlags : commonOpaqueFlags;
            cameraData.captureActions = CameraCaptureBridge.GetCaptureActions(baseCamera);

            bool needsAlphaChannel = Graphics.preserveFramebufferAlpha;
            cameraData.cameraTargetDescriptor = CreateRenderTextureDescriptor(baseCamera, cameraData.renderScale,
                cameraData.isStereoEnabled, cameraData.isHdrEnabled, msaaSamples, needsAlphaChannel);
        }

        /// <summary>
        /// Initialize settings that can be different for each camera in the stack.
        /// </summary>
        /// <param name="camera">Camera to initialize settings from.</param>
        /// <param name="additionalCameraData">Additional camera data component to initialize settings from.</param>
        /// <param name="resolveFinalTarget">True if this is the last camera in the stack and rendering should resolve to camera target.</param>
        /// <param name="cameraData">Settings to be initilized.</param>
        static void InitializeAdditionalCameraData(Camera camera, UniversalAdditionalCameraData additionalCameraData, bool resolveFinalTarget, ref CameraData cameraData)
        {
            var settings = asset;
            cameraData.camera = camera;

            bool anyShadowsEnabled = settings.supportsMainLightShadows || settings.supportsAdditionalLightShadows;
            cameraData.maxShadowDistance = Mathf.Min(settings.shadowDistance, camera.farClipPlane);
            cameraData.maxShadowDistance = (anyShadowsEnabled && cameraData.maxShadowDistance >= camera.nearClipPlane) ?
                cameraData.maxShadowDistance : 0.0f;

            if(cameraData.isSceneViewCamera)
            {
                cameraData.renderType = CameraRenderType.Base;
                cameraData.clearDepth = true;
                cameraData.postProcessEnabled = CoreUtils.ArePostProcessesEnabled(camera);
                cameraData.requiresDepthTexture = settings.supportsCameraDepthTexture;
                cameraData.requiresOpaqueTexture = settings.supportsCameraOpaqueTexture;
                cameraData.renderer = asset.scriptableRenderer;
            }
            else if(additionalCameraData != null)
            {
                cameraData.renderType = additionalCameraData.renderType;
                cameraData.clearDepth = (additionalCameraData.renderType != CameraRenderType.Base) ? additionalCameraData.clearDepth : true;
                cameraData.postProcessEnabled = additionalCameraData.renderPostProcessing;
                cameraData.maxShadowDistance = (additionalCameraData.renderShadows) ? cameraData.maxShadowDistance : 0.0f;
                cameraData.requiresDepthTexture = additionalCameraData.requiresDepthTexture;
                cameraData.requiresOpaqueTexture = additionalCameraData.requiresColorTexture;
                cameraData.renderer = additionalCameraData.scriptableRenderer;
            }
            else
            {
                cameraData.renderType = CameraRenderType.Base;
                cameraData.clearDepth = true;
                cameraData.postProcessEnabled = false;
                cameraData.requiresDepthTexture = settings.supportsCameraDepthTexture;
                cameraData.requiresOpaqueTexture = settings.supportsCameraOpaqueTexture;
                cameraData.renderer = asset.scriptableRenderer;
            }

            // Disable depth and color copy. We should add it in the renderer instead to avoid performance pitfalls
            // of camera stacking breaking render pass execution implicitly.
            bool isOverlayCamera = (cameraData.renderType == CameraRenderType.Overlay);
            if(isOverlayCamera)
            {
                cameraData.requiresDepthTexture = false;
                cameraData.requiresOpaqueTexture = false;
            }

            // Disables post if GLes2
            cameraData.postProcessEnabled &= SystemInfo.graphicsDeviceType != GraphicsDeviceType.OpenGLES2;

            cameraData.requiresDepthTexture |= cameraData.isSceneViewCamera || CheckPostProcessForDepth(cameraData);
            cameraData.resolveFinalTarget = resolveFinalTarget;

            Matrix4x4 projectionMatrix = camera.projectionMatrix;

            // Overlay cameras inherit viewport from base.
            // If the viewport is different between them we might need to patch the projection to adjust aspect ratio
            // matrix to prevent squishing when rendering objects in overlay cameras.
            if(isOverlayCamera && !camera.orthographic && !cameraData.isStereoEnabled && cameraData.pixelRect != camera.pixelRect)
            {
                // m00 = (cotangent / aspect), therefore m00 * aspect gives us cotangent.
                float cotangent = camera.projectionMatrix.m00 * camera.aspect;

                // Get new m00 by dividing by base camera aspectRatio.
                float newCotangent = cotangent / cameraData.aspectRatio;
                projectionMatrix.m00 = newCotangent;
            }

            cameraData.SetViewAndProjectionMatrix(camera.worldToCameraMatrix, projectionMatrix);
        }

        static void InitializeRenderingData(UniversalRenderPipelineAsset settings, ref CameraData cameraData, ref CullingResults cullResults,
            bool anyPostProcessingEnabled, out RenderingData renderingData)
        {
            var visibleLights = cullResults.visibleLights;

            int mainLightIndex = GetMainLightIndex(settings, visibleLights);
            bool mainLightCastShadows = false;
            bool additionalLightsCastShadows = false;

            if(cameraData.maxShadowDistance > 0.0f)
            {
                mainLightCastShadows = (mainLightIndex != -1 && visibleLights[mainLightIndex].light != null &&
                                        visibleLights[mainLightIndex].light.shadows != LightShadows.None);

                // If additional lights are shaded per-pixel they cannot cast shadows
                if(settings.additionalLightsRenderingMode == LightRenderingMode.PerPixel)
                {
                    for(int i = 0; i < visibleLights.Length; ++i)
                    {
                        if(i == mainLightIndex)
                            continue;

                        Light light = visibleLights[i].light;

                        // UniversalRP doesn't support additional directional lights or point light shadows yet
                        if(visibleLights[i].lightType == LightType.Spot && light != null && light.shadows != LightShadows.None)
                        {
                            additionalLightsCastShadows = true;
                            break;
                        }
                    }
                }
            }

            renderingData.cullResults = cullResults;
            renderingData.cameraData = cameraData;
            InitializeLightData(settings, visibleLights, mainLightIndex, out renderingData.lightData);
            InitializeShadowData(settings, visibleLights, mainLightCastShadows, additionalLightsCastShadows && !renderingData.lightData.shadeAdditionalLightsPerVertex, out renderingData.shadowData);
            InitializePostProcessingData(settings, out renderingData.postProcessingData);
            renderingData.supportsDynamicBatching = settings.supportsDynamicBatching;
            renderingData.perObjectData = GetPerObjectLightFlags(renderingData.lightData.additionalLightsCount);

            bool isOffscreenCamera = cameraData.targetTexture != null && !cameraData.isSceneViewCamera;
            renderingData.postProcessingEnabled = anyPostProcessingEnabled;
        }

        static void InitializeShadowData(UniversalRenderPipelineAsset settings, NativeArray<VisibleLight> visibleLights, bool mainLightCastShadows, bool additionalLightsCastShadows, out ShadowData shadowData)
        {
            m_ShadowBiasData.Clear();

            for(int i = 0; i < visibleLights.Length; ++i)
            {
                Light light = visibleLights[i].light;
                UniversalAdditionalLightData data = null;
                if(light != null)
                {
                    light.gameObject.TryGetComponent(out data);
                }

                if(data && !data.usePipelineSettings)
                    m_ShadowBiasData.Add(new Vector4(light.shadowBias, light.shadowNormalBias, 0.0f, 0.0f));
                else
                    m_ShadowBiasData.Add(new Vector4(settings.shadowDepthBias, settings.shadowNormalBias, 0.0f, 0.0f));
            }

            shadowData.bias = m_ShadowBiasData;
            shadowData.supportsMainLightShadows = SystemInfo.supportsShadows && settings.supportsMainLightShadows && mainLightCastShadows;

            // We no longer use screen space shadows in URP.
            // This change allows us to have particles & transparent objects receive shadows.
            shadowData.requiresScreenSpaceShadowResolve = false;// shadowData.supportsMainLightShadows && supportsScreenSpaceShadows && settings.shadowCascadeOption != ShadowCascadesOption.NoCascades;

            int shadowCascadesCount;
            switch(settings.shadowCascadeOption)
            {
                case ShadowCascadesOption.FourCascades:
                shadowCascadesCount = 4;
                break;

                case ShadowCascadesOption.TwoCascades:
                shadowCascadesCount = 2;
                break;

                default:
                shadowCascadesCount = 1;
                break;
            }

            shadowData.mainLightShadowCascadesCount = shadowCascadesCount;//(shadowData.requiresScreenSpaceShadowResolve) ? shadowCascadesCount : 1;
            shadowData.mainLightShadowmapWidth = settings.mainLightShadowmapResolution;
            shadowData.mainLightShadowmapHeight = settings.mainLightShadowmapResolution;

            switch(shadowData.mainLightShadowCascadesCount)
            {
                case 1:
                shadowData.mainLightShadowCascadesSplit = new Vector3(1.0f, 0.0f, 0.0f);
                break;

                case 2:
                shadowData.mainLightShadowCascadesSplit = new Vector3(settings.cascade2Split, 1.0f, 0.0f);
                break;

                default:
                shadowData.mainLightShadowCascadesSplit = settings.cascade4Split;
                break;
            }

            shadowData.supportsAdditionalLightShadows = SystemInfo.supportsShadows && settings.supportsAdditionalLightShadows && additionalLightsCastShadows;
            shadowData.additionalLightsShadowmapWidth = shadowData.additionalLightsShadowmapHeight = settings.additionalLightsShadowmapResolution;
            shadowData.supportsSoftShadows = settings.supportsSoftShadows && (shadowData.supportsMainLightShadows || shadowData.supportsAdditionalLightShadows);
            shadowData.shadowmapDepthBufferBits = 16;
        }

        static void InitializePostProcessingData(UniversalRenderPipelineAsset settings, out PostProcessingData postProcessingData)
        {
            postProcessingData.gradingMode = settings.supportsHDR
                ? settings.colorGradingMode
                : ColorGradingMode.LowDynamicRange;

            postProcessingData.lutSize = settings.colorGradingLutSize;
        }

        static void InitializeLightData(UniversalRenderPipelineAsset settings, NativeArray<VisibleLight> visibleLights, int mainLightIndex, out LightData lightData)
        {
            int maxPerObjectAdditionalLights = UniversalRenderPipeline.maxPerObjectLights;
            int maxVisibleAdditionalLights = UniversalRenderPipeline.maxVisibleAdditionalLights;

            lightData.mainLightIndex = mainLightIndex;

            if(settings.additionalLightsRenderingMode != LightRenderingMode.Disabled)
            {
                lightData.additionalLightsCount =
                    Math.Min((mainLightIndex != -1) ? visibleLights.Length - 1 : visibleLights.Length,
                        maxVisibleAdditionalLights);
                lightData.maxPerObjectAdditionalLightsCount = Math.Min(settings.maxAdditionalLightsCount, maxPerObjectAdditionalLights);
            }
            else
            {
                lightData.additionalLightsCount = 0;
                lightData.maxPerObjectAdditionalLightsCount = 0;
            }

            lightData.shadeAdditionalLightsPerVertex = settings.additionalLightsRenderingMode == LightRenderingMode.PerVertex;
            lightData.visibleLights = visibleLights;
            lightData.supportsMixedLighting = settings.supportsMixedLighting;
        }

        static PerObjectData GetPerObjectLightFlags(int additionalLightsCount)
        {
            var configuration = PerObjectData.ReflectionProbes | PerObjectData.Lightmaps | PerObjectData.LightProbe | PerObjectData.LightData | PerObjectData.OcclusionProbe;

            if(additionalLightsCount > 0)
            {
                configuration |= PerObjectData.LightData;

                // In this case we also need per-object indices (unity_LightIndices)
                if(!RenderingUtils.useStructuredBuffer)
                    configuration |= PerObjectData.LightIndices;
            }

            return configuration;
        }

        // Main Light is always a directional light
        static int GetMainLightIndex(UniversalRenderPipelineAsset settings, NativeArray<VisibleLight> visibleLights)
        {
            int totalVisibleLights = visibleLights.Length;

            if(totalVisibleLights == 0 || settings.mainLightRenderingMode != LightRenderingMode.PerPixel)
                return -1;

            Light sunLight = RenderSettings.sun;
            int brightestDirectionalLightIndex = -1;
            float brightestLightIntensity = 0.0f;
            for(int i = 0; i < totalVisibleLights; ++i)
            {
                VisibleLight currVisibleLight = visibleLights[i];
                Light currLight = currVisibleLight.light;

                // Particle system lights have the light property as null. We sort lights so all particles lights
                // come last. Therefore, if first light is particle light then all lights are particle lights.
                // In this case we either have no main light or already found it.
                if(currLight == null)
                    break;

                if(currLight == sunLight)
                    return i;

                // In case no shadow light is present we will return the brightest directional light
                if(currVisibleLight.lightType == LightType.Directional && currLight.intensity > brightestLightIntensity)
                {
                    brightestLightIntensity = currLight.intensity;
                    brightestDirectionalLightIndex = i;
                }
            }

            return brightestDirectionalLightIndex;
        }

        static void SetupPerFrameShaderConstants()
        {
            // When glossy reflections are OFF in the shader we set a constant color to use as indirect specular
            SphericalHarmonicsL2 ambientSH = RenderSettings.ambientProbe;
            Color linearGlossyEnvColor = new Color(ambientSH[0, 0], ambientSH[1, 0], ambientSH[2, 0]) * RenderSettings.reflectionIntensity;
            Color glossyEnvColor = CoreUtils.ConvertLinearToActiveColorSpace(linearGlossyEnvColor);
            Shader.SetGlobalVector(PerFrameBuffer._GlossyEnvironmentColor, glossyEnvColor);

            // Used when subtractive mode is selected
            Shader.SetGlobalVector(PerFrameBuffer._SubtractiveShadowColor, CoreUtils.ConvertSRGBToActiveColorSpace(RenderSettings.subtractiveShadowColor));
        }
    }
}

.....................................

　　我從GitHub上找到了URP的主要代碼, 有點長的樣子, 百度的例子大部分是2018的, Git上的是2020的, 我裝的是2019的, 跨三個版本發現API差別真是太大了...而且里面都是以前沒用過的東西(廢話, 以前是引擎內部呼叫的), 先整體來看看它的原理吧 :

　　首先是序列化資料 RenderPipelineAsset, 它是渲染相關的序列化資料, 在上面我們看到可以選擇HDR之類的, 基類是這樣的 :

　　它只是為了提供一些渲染設定的存盤, 主要的還是繼承的方法 CreatePipeline, 它才是運行時使用的渲染流程代碼. 看看URP自己添加的設定有哪些 :

　　省略...

　　我們可以看到基類的里面有一些系統自帶的組件需要的東西, 比如地形著色器, 甚至編輯器下的 OverDraw 顯示材質,  而UniversalRenderPipelineAsset把這些實作了一遍, 還添加了不少自身要用的序列化物件進去, 比如supportsDynamicBatching這些可設定, 可以想見如果全部自己寫的話, 也是要兼顧編輯器和運行時的, 畢竟開發測驗占了大頭, 還真不好搞.

　　知道原理了我就來搞一個自定義渲染管線吧, 從最簡單的著手, 用繼承的方式做URP :

using UnityEngine;
using UnityEngine.Rendering;
using System.Reflection;

// 序列化資源, 也是渲染的入口, 繼承于UniversalRenderPipelineAsset
[ExecuteInEditMode]
public class MyUniversalRenderPipelineAsset : UnityEngine.Rendering.Universal.UniversalRenderPipelineAsset
{
    public static MyUniversalRenderPipelineAsset instance = null;
    protected override RenderPipeline CreatePipeline()
    {
        instance = this;
        return new MyUniversalRenderPipeline();
    }

#if UNITY_EDITOR
    [UnityEditor.MenuItem("Test/Create MyUniversalRenderPipelineAsset")]
    static void CreateBasicAssetPipeline()
    {
        var instance = ScriptableObject.CreateInstance<MyUniversalRenderPipelineAsset>();
        UnityEditor.AssetDatabase.CreateAsset(instance, "Assets/MyUniversalRenderPipelineAsset.asset");
        UnityEditor.AssetDatabase.SaveAssets();
        UnityEditor.AssetDatabase.Refresh();
    }
#endif
}

// 渲染邏輯, 因為UniversalRenderPipeline不可繼承, 需要創建新實體, 并且使用反射呼叫Render方法
[ExecuteInEditMode]
public class MyUniversalRenderPipeline : RenderPipeline
{
    UnityEngine.Rendering.Universal.UniversalRenderPipeline pipeline = null;
    System.Action<ScriptableRenderContext, Camera[]> render = null;

    protected override void Render(ScriptableRenderContext context, Camera[] cameras)
    {
        if(pipeline == null)
        {
            pipeline = new UnityEngine.Rendering.Universal.UniversalRenderPipeline(MyUniversalRenderPipelineAsset.instance);
            var method = pipeline.GetType().GetMethod("Render", BindingFlags.Instance | BindingFlags.NonPublic | BindingFlags.InvokeMethod);
            if(method != null)
            {
                render = (_context, _cameras) =>
                {
                    method.Invoke(pipeline, new object[] { _context, _cameras });
                };
            }
        }
        if(render != null)
        {
            render.Invoke(context, cameras);
            Debug.Log("渲染了");
        }
    }
}

　　資源繼承于 UniversalRenderPipelineAsset 我們在編輯器創建之后, 別忘了手動添加一些資源, 要不然會報錯 :

　　我們在創建默認 RenderPipelineAsset 的時候, 也自動創建了一個相關的RendererData, 把它拖進來 :

　　這樣就可以渲染了, 把MyUniversalRenderPipelineAsset拖到 SRP Settings里面去就行了 :

　　運行起來看看, 結果跟原有URP一模一樣, 只不過每次渲染都會打LOG, 在編輯器下也一樣 :

　　這就是一個可編程渲染管線的制作流程了, 至于怎樣寫一個自己需要的渲染管線, 后面還有很長的路吧, 需要長期摸索和實踐測驗, 國內基本都是手游, 只要摸索通用渲染管線就行了, 高清渲染管線只在PC和游戲主機上用, 我們接觸的機會渺茫了, 可能以后國內做影片電影的會接觸到吧.

標籤：其他

上一篇：CocosCreator教程（入門篇）【轉】

下一篇：我用C++復刻了這款上世紀最偉大的游戲
