六十三、Spark-讀取資料并寫入資料庫-有解無憂

支持的資料源-JDBC

需求說明：使用Spark流式計算將資料寫入MySQL，并讀取資料庫資訊進行列印

文章目錄

支持的資料源-JDBC

專案主體架構

pom.xml依賴

創建資料庫

業務邏輯

完整代碼

程式運行

專案總結

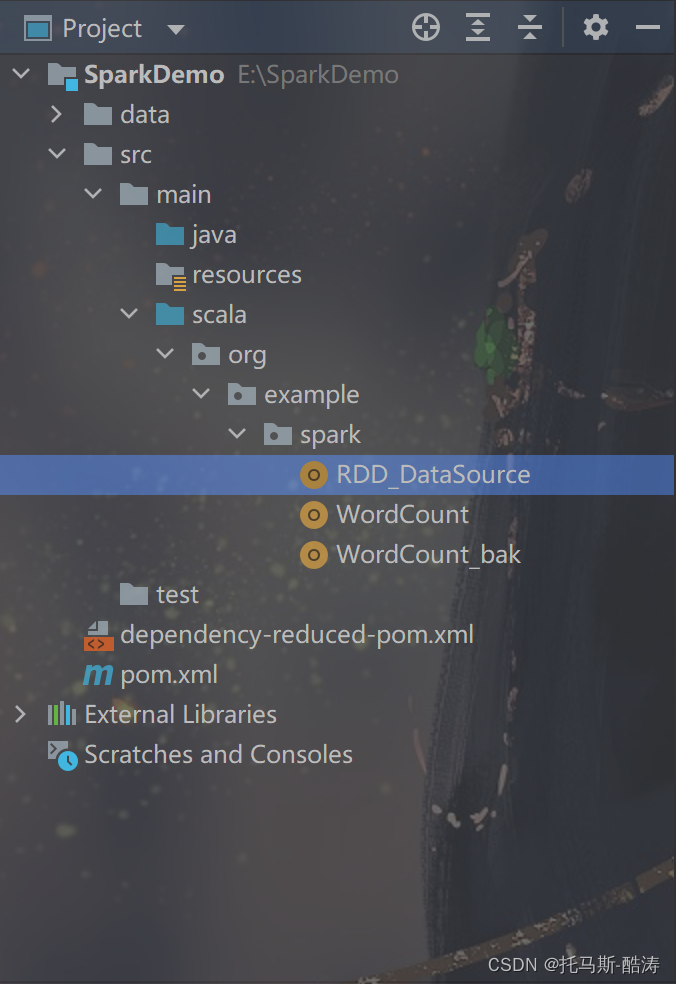

專案主體架構

pom.xml依賴

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.itcast</groupId>
    <artifactId>SparkDemo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <repositories>
        <repository>
            <id>aliyun</id>
            <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
        </repository>
        <repository>
            <id>apache</id>
            <url>https://repository.apache.org/content/repositories/snapshots/</url>
        </repository>
        <repository>
            <id>cloudera</id>
            <url>https://repository.cloudera.com/artifactory/cloudera-repos/</url>
        </repository>
    </repositories>
    <properties>
        <encoding>UTF-8</encoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <scala.version>2.12.11</scala.version>
        <spark.version>3.0.1</spark.version>
        <hadoop.version>2.7.5</hadoop.version>
    </properties>
    <dependencies>
        <!--依賴Scala語言-->
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>${scala.version}</version>
        </dependency>

        <!--SparkCore依賴-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!-- spark-streaming-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!--spark-streaming+Kafka依賴-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming-kafka-0-10_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!--SparkSQL依賴-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!--SparkSQL+ Hive依賴-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-hive_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-hive-thriftserver_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!--StructuredStreaming+Kafka依賴-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql-kafka-0-10_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!-- SparkMlLib機器學習模塊,里面有ALS推薦演算法-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-mllib_2.12</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.7.5</version>
        </dependency>

        <dependency>
            <groupId>com.hankcs</groupId>
            <artifactId>hanlp</artifactId>
            <version>portable-1.7.7</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.23</version>
        </dependency>

        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>2.9.0</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.2</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <build>
        <sourceDirectory>src/main/scala</sourceDirectory>
        <plugins>
            <!-- 指定編譯java的插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
            </plugin>
            <!-- 指定編譯scala的插件 -->
            <plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.2.2</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                        <configuration>
                            <args>
                                <arg>-dependencyfile</arg>
                                <arg>${project.build.directory}/.scala_dependencies</arg>
                            </args>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.18.1</version>
                <configuration>
                    <useFile>false</useFile>
                    <disableXmlReport>true</disableXmlReport>
                    <includes>
                        <include>**/*Test.*</include>
                        <include>**/*Suite.*</include>
                    </includes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <filters>
                                <filter>
                                    <artifact>*:*</artifact>
                                    <excludes>
                                        <exclude>META-INF/*.SF</exclude>
                                        <exclude>META-INF/*.DSA</exclude>
                                        <exclude>META-INF/*.RSA</exclude>
                                    </excludes>
                                </filter>
                            </filters>
                            <transformers>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass></mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

注：pom依賴在業務實施中是極其重要的一環，相當于組態檔，例如可能需要的 jar 包，可能需要的 Scala 語言版本都在此處進行配置等等

創建資料庫

CREATE TABLE `data` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) DEFAULT NULL,
  `age` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

業務邏輯

1、創建本地環境，并設定日志提示級別

val conf: SparkConf = new SparkConf().setAppName("spark").setMaster("local[*]")
val sc: SparkContext = new SparkContext(conf)
sc.setLogLevel("WARN")

2、加載資料，創建RDD

val dataRDD: RDD[(String, Int)] = sc.makeRDD(List(("tuomasi", 21), ("孫悟空", 19), ("豬八戒", 20)))

3、磁區迭代

dataRDD.foreachPartition(iter => {
})

4、加載驅動

val conn: Connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata?characterEncoding=UTF-8", "root", "123456")

5、封裝SQL陳述句

val sql: String = "INSERT INTO `data` (`id`, `name`, `age`) VALUES (NULL, ?, ?);"

val ps: PreparedStatement = conn.prepareStatement(sql)

6、資料處理

iter.foreach(t => { //t就表示每一條資料
val name: String = t._1
val age: Int = t._2
ps.setString(1, name)
ps.setInt(2, age)
ps.addBatch()
})
ps.executeBatch()

7、關閉連接

if (conn != null) conn.close()
if (ps != null) ps.close()

8、讀取資料庫

val getConnection = () => DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata?characterEncoding=UTF-8", "root", "123456")

9、SQL陳述句上下界設定以及磁區數設定

val studentTupleRDD: JdbcRDD[(Int, String, Int)] = new JdbcRDD[(Int, String, Int)](
      sc,
      getConnection,
      sql,
      1,      //id為1~20之間的記錄進行提取
      20,
      1,
      mapRow
    )

10、結果集處理函式

val mapRow: ResultSet => (Int, String, Int) = (r: ResultSet) => {
      val id: Int = r.getInt("id")
      val name: String = r.getString("name")
      val age: Int = r.getInt("age")
      (id, name, age)
    }

11、遍歷列印資料

studentTupleRDD.foreach(println)

完整代碼

package org.example.spark

import java.sql.{Connection, DriverManager, PreparedStatement, ResultSet}

import org.apache.spark.rdd.{JdbcRDD, RDD}
import org.apache.spark.{SparkConf, SparkContext}

object RDD_DataSource {
  def main(args: Array[String]): Unit = {
    //TODO 0.env/創建環境
    val conf: SparkConf = new SparkConf().setAppName("spark").setMaster("local[*]")
    val sc: SparkContext = new SparkContext(conf)
    sc.setLogLevel("WARN")

    //TODO 1.source/加載資料/創建RDD
    //RDD[(姓名, 年齡)]
    val dataRDD: RDD[(String, Int)] = sc.makeRDD(List(("tuomasi", 21), ("孫悟空", 19), ("豬八戒", 20)))

    //TODO 2.transformation
    //TODO 3.sink/輸出
    //需求:將資料寫入到MySQL,再從MySQL讀出來
    dataRDD.foreachPartition(iter => {
      //加載驅動
      val conn: Connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata?characterEncoding=UTF-8", "root", "123456")

      val sql: String = "INSERT INTO `data` (`id`, `name`, `age`) VALUES (NULL, ?, ?);"

      val ps: PreparedStatement = conn.prepareStatement(sql)

      iter.foreach(t => { //t就表示每一條資料
        val name: String = t._1
        val age: Int = t._2
        ps.setString(1, name)
        ps.setInt(2, age)
        ps.addBatch()
        //ps.executeUpdate()
      })
      ps.executeBatch()
      //關閉連接
      if (conn != null) conn.close()
      if (ps != null) ps.close()
    })

    //    //從MySQL讀取
    val getConnection = () => DriverManager.getConnection("jdbc:mysql://localhost:3306/bigdata?characterEncoding=UTF-8", "root", "123456")
    val sql: String = "select id,name,age from data where id >= ? and id <= ?"
    val mapRow: ResultSet => (Int, String, Int) = (r: ResultSet) => {
      val id: Int = r.getInt("id")
      val name: String = r.getString("name")
      val age: Int = r.getInt("age")
      (id, name, age)
    }
    val studentTupleRDD: JdbcRDD[(Int, String, Int)] = new JdbcRDD[(Int, String, Int)](
      sc,
      getConnection,
      sql,
      1,
      20,
      1,
      mapRow
    )
    studentTupleRDD.foreach(println)
  }
}

程式運行

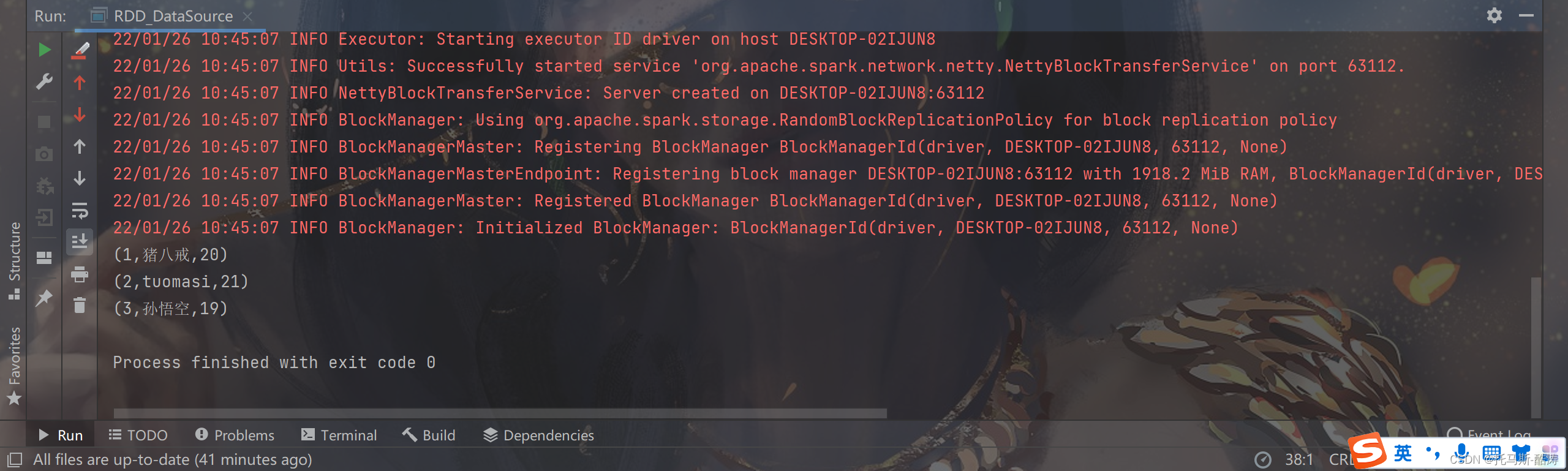

控制臺列印

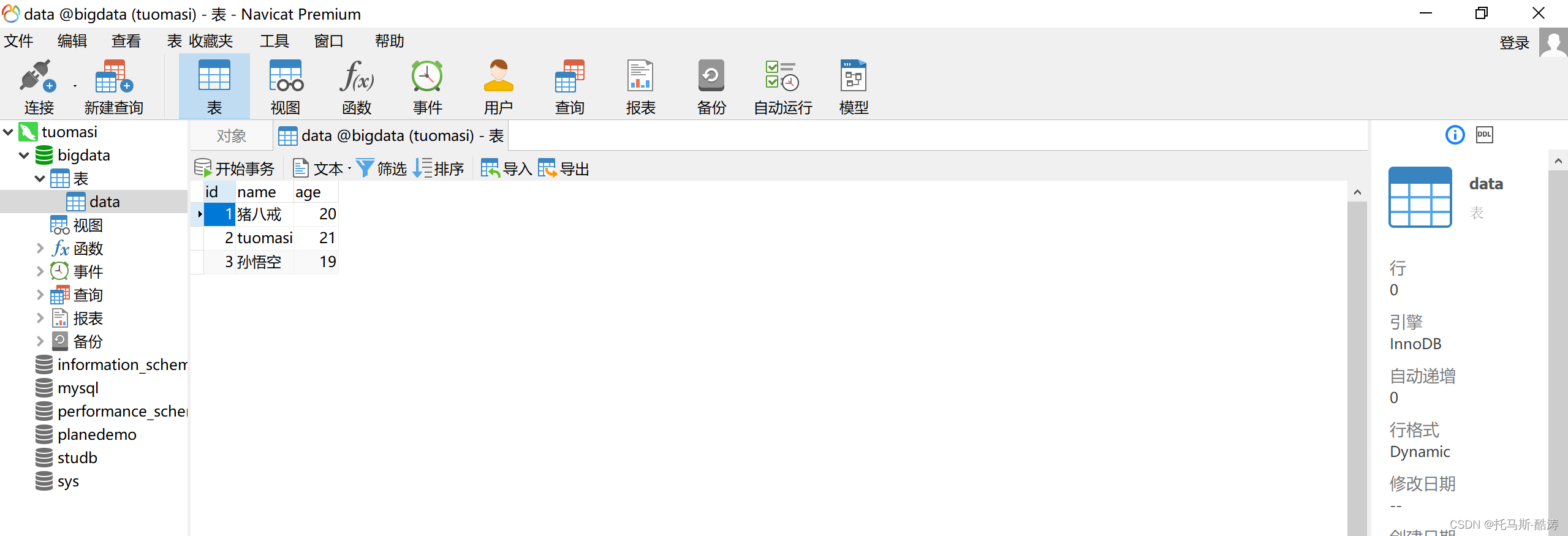

資料庫查看

注：此為實驗案例，在真實的場景中往往資料都是數以萬計級別或者更多，優秀的代碼往往體現在資料量極大的場景下，調優不失為一種升職加薪的必備技能

專案總結

總結：在代碼撰寫程序中，難免出現知識匱乏，在遇到問題時，養成多看原始碼的好習慣，在以后的開發書寫程序中會有事半功倍的效果，當然日志，及其 debug 的作用在開發中也不容小覷，
