Rocketmq原始碼決議-Broker部分之訊息接收

問題點

1.Producer發送訊息之后Broker是如何接收？
2.Broker接收訊息之后是如何處理的？

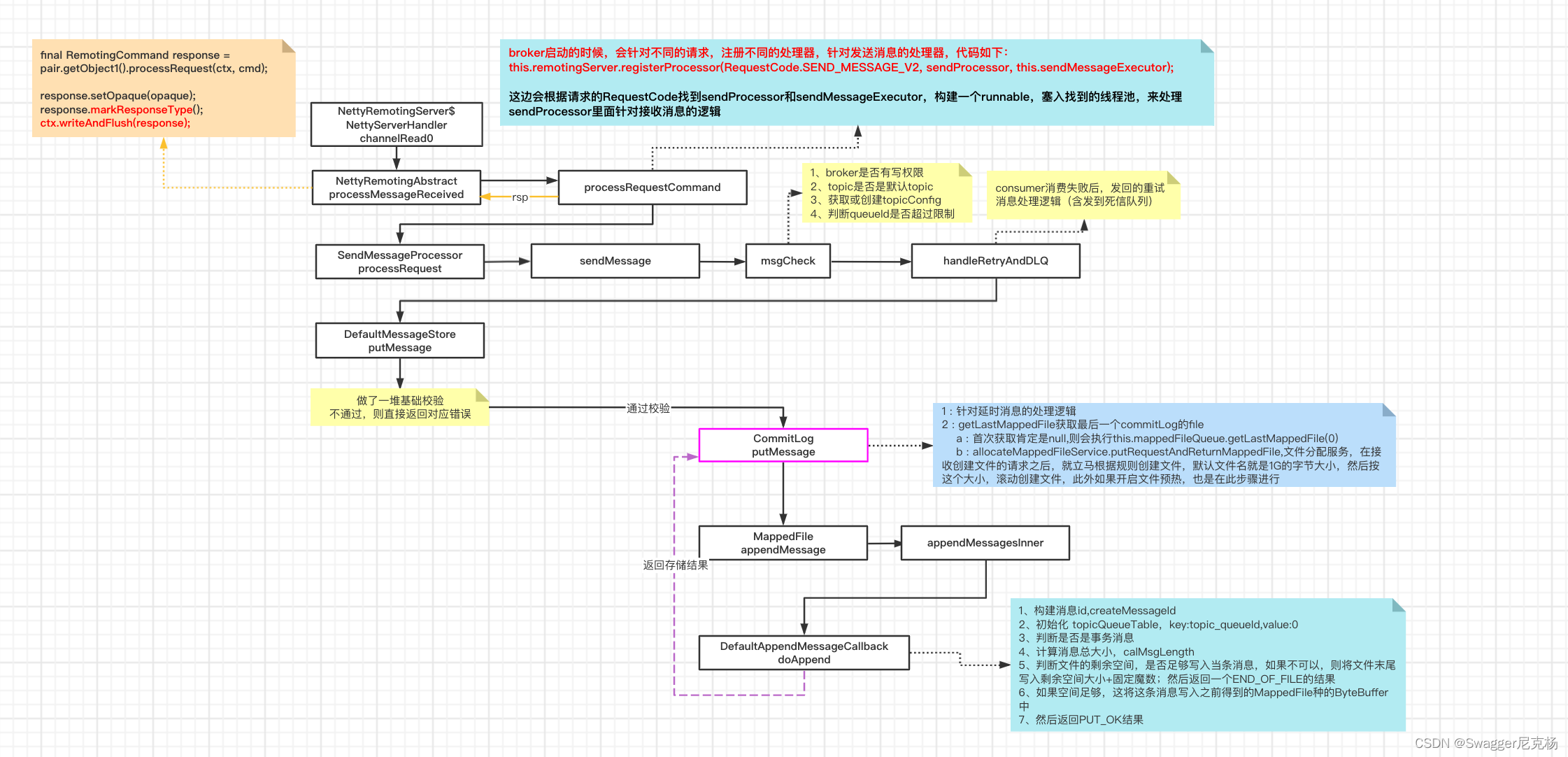

broker接收流程圖

訊息接收

我們在之前的RocketMQ原始碼決議-Broker部分之Broker啟動程序文章中分析過，broker的啟動會呼叫BrokerStartup.start(),另外rocketmq是采用netty進行底層通信，所以broker也是通過netty接收訊息，并進行訊息處理，

1.啟動入口NettyRemotingServer.start()

其實NettyRemotingServer.start的啟動是在BrokerStartup.start()進行呼叫的，

 public void start() throws Exception {
        if (this.messageStore != null) {
            this.messageStore.start();
        }

        if (this.remotingServer != null) {
        	//NettyRemotingServer.start()
            this.remotingServer.start();
        }
}

2.創建NettyServer通信通道

 @Override
    public void start() {
        this.defaultEventExecutorGroup = new DefaultEventExecutorGroup(
            nettyServerConfig.getServerWorkerThreads(),
            new ThreadFactory() {

                private AtomicInteger threadIndex = new AtomicInteger(0);

                @Override
                public Thread newThread(Runnable r) {
                    return new Thread(r, "NettyServerCodecThread_" + this.threadIndex.incrementAndGet());
                }
            });

        prepareSharableHandlers();

        ServerBootstrap childHandler =
            this.serverBootstrap.group(this.eventLoopGroupBoss, this.eventLoopGroupSelector)
                .channel(useEpoll() ? EpollServerSocketChannel.class : NioServerSocketChannel.class)
                .option(ChannelOption.SO_BACKLOG, 1024)
                .option(ChannelOption.SO_REUSEADDR, true)
                .option(ChannelOption.SO_KEEPALIVE, false)
                .childOption(ChannelOption.TCP_NODELAY, true)
                .childOption(ChannelOption.SO_SNDBUF, nettyServerConfig.getServerSocketSndBufSize())
                .childOption(ChannelOption.SO_RCVBUF, nettyServerConfig.getServerSocketRcvBufSize())
                .localAddress(new InetSocketAddress(this.nettyServerConfig.getListenPort()))
                .childHandler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    public void initChannel(SocketChannel ch) throws Exception {
                        ch.pipeline()
                            .addLast(defaultEventExecutorGroup, HANDSHAKE_HANDLER_NAME, handshakeHandler)
                            .addLast(defaultEventExecutorGroup,
                                encoder,
                                new NettyDecoder(),
                                new IdleStateHandler(0, 0, nettyServerConfig.getServerChannelMaxIdleTimeSeconds()),
                                connectionManageHandler,
                                serverHandler
                            );
                    }
                });

        if (nettyServerConfig.isServerPooledByteBufAllocatorEnable()) {
            childHandler.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);
        }

        try {
            ChannelFuture sync = this.serverBootstrap.bind().sync();
            InetSocketAddress addr = (InetSocketAddress) sync.channel().localAddress();
            this.port = addr.getPort();
        } catch (InterruptedException e1) {
            throw new RuntimeException("this.serverBootstrap.bind().sync() InterruptedException", e1);
        }

        if (this.channelEventListener != null) {
            this.nettyEventExecutor.start();
        }

        this.timer.scheduleAtFixedRate(new TimerTask() {

            @Override
            public void run() {
                try {
                    NettyRemotingServer.this.scanResponseTable();
                } catch (Throwable e) {
                    log.error("scanResponseTable exception", e);
                }
            }
        }, 1000 * 3, 1000);
    }

prepareSharableHandlers

    private void prepareSharableHandlers() {
        handshakeHandler = new HandshakeHandler(TlsSystemConfig.tlsMode);
        encoder = new NettyEncoder();
        connectionManageHandler = new NettyConnectManageHandler();
        serverHandler = new NettyServerHandler();
    }

3.Netty接收核心處理類NettyServerHandler

NettyServerHandler底層實作了Netty框架的ChannelHandler,針對producer端發送過來的訊息進行了攔截處理，想深入了解可以自學一下Netty框架，下面我們重點分析一下NettyServerHandler的處理流程，

    @ChannelHandler.Sharable
    class NettyServerHandler extends SimpleChannelInboundHandler<RemotingCommand> {

        @Override
        protected void channelRead0(ChannelHandlerContext ctx, RemotingCommand msg) throws Exception {
        	//處理訊息接收
            processMessageReceived(ctx, msg);
        }
    }
    public void processMessageReceived(ChannelHandlerContext ctx, RemotingCommand msg) throws Exception {
        final RemotingCommand cmd = msg;
        if (cmd != null) {
            switch (cmd.getType()) {
            	//處理請求的命令
                case REQUEST_COMMAND:
                    processRequestCommand(ctx, cmd);
                    break;
                case RESPONSE_COMMAND:
                    processResponseCommand(ctx, cmd);
                    break;
                default:
                    break;
            }
        }
    }

3.1 請求處理processRequestCommand

該方法主要是對brokerController.start()時通過registerProcessor注冊的事件管理映射物件processTable對應事件的事件處理邏輯

    public void processRequestCommand(final ChannelHandlerContext ctx, final RemotingCommand cmd) {
    	//根據請求code獲取事件處理器、執行緒執行器，這里主要獲取SendMessageProcessor
        final Pair<NettyRequestProcessor, ExecutorService> matched = this.processorTable.get(cmd.getCode());
        final Pair<NettyRequestProcessor, ExecutorService> pair = null == matched ? this.defaultRequestProcessor : matched;
        final int opaque = cmd.getOpaque();

        if (pair != null) {
            Runnable run = new Runnable() {
                @Override
                public void run() {
                    try {
                    	//獲取遠程地址
                        String remoteAddr = RemotingHelper.parseChannelRemoteAddr(ctx.channel());
                        //事前鉤子
                        doBeforeRpcHooks(remoteAddr, cmd);
                        final RemotingResponseCallback callback = response -> {
                            doAfterRpcHooks(remoteAddr, cmd, response);
                            if (!cmd.isOnewayRPC()) {
                                if (response != null) {
                                    response.setOpaque(opaque);
                                    response.markResponseType();
                                    try {
                                        ctx.writeAndFlush(response);
                                    } catch (Throwable e) {
                                        log.error("process request over, but response failed", e);
                                        log.error(cmd.toString());
                                        log.error(response.toString());
                                    }
                                } else {
                                }
                            }
                        };
                        if (pair.getObject1() instanceof AsyncNettyRequestProcessor) {
                            AsyncNettyRequestProcessor processor = (AsyncNettyRequestProcessor)pair.getObject1();
                            //異步處理請求
                            processor.asyncProcessRequest(ctx, cmd, callback);
                        } else {
                            NettyRequestProcessor processor = pair.getObject1();
                            //同步處理請求，SendMessageProcessor
                            RemotingCommand response = processor.processRequest(ctx, cmd);
                            callback.callback(response);
                        }
                    } catch (Throwable e) {
                    }
                }
    }

3.2 訊息請求處理器SendMessageProcessor

public class SendMessageProcessor extends AbstractSendMessageProcessor implements NettyRequestProcessor {

    @Override
    public RemotingCommand processRequest(ChannelHandlerContext ctx,
                                          RemotingCommand request) throws RemotingCommandException {
        RemotingCommand response = null;
        try {
            response = asyncProcessRequest(ctx, request).get();
        } catch (InterruptedException | ExecutionException e) {
            log.error("process SendMessage error, request : " + request.toString(), e);
        }
        return response;
    }

    public CompletableFuture<RemotingCommand> asyncProcessRequest(ChannelHandlerContext ctx,
                                                                  RemotingCommand request) throws RemotingCommandException {
        final SendMessageContext mqtraceContext;
        switch (request.getCode()) {
            // 消費者發送的重試訊息
            case RequestCode.CONSUMER_SEND_MSG_BACK:
                return this.asyncConsumerSendMsgBack(ctx, request);
            // 生產者發送的普通訊息
            default:
            	//根據請求組裝RequestHeader物件
                SendMessageRequestHeader requestHeader = parseRequestHeader(request);
                if (requestHeader == null) {
                    return CompletableFuture.completedFuture(null);
                }
                mqtraceContext = buildMsgContext(ctx, requestHeader);
                this.executeSendMessageHookBefore(ctx, request, mqtraceContext);
                if (requestHeader.isBatch()) {
               		// 處理批量訊息
                    return this.asyncSendBatchMessage(ctx, request, mqtraceContext, requestHeader);
                } else {
                	// 處理單個訊息請求
                    return this.asyncSendMessage(ctx, request, mqtraceContext, requestHeader);
                }
        }
    }


我們重點分析一下單條訊息的處理邏輯

       private CompletableFuture<RemotingCommand> asyncSendMessage(ChannelHandlerContext ctx, RemotingCommand request,
                                                                SendMessageContext mqtraceContext,
                                                                SendMessageRequestHeader requestHeader) {
		//初始化回應資料
        final RemotingCommand response = preSend(ctx, request, requestHeader);
        final SendMessageResponseHeader responseHeader = (SendMessageResponseHeader)response.readCustomHeader();

        if (response.getCode() != -1) {
            return CompletableFuture.completedFuture(response);
        }
        //獲取訊息內容body
        final byte[] body = request.getBody();
        //訊息發送的佇列id
        int queueIdInt = requestHeader.getQueueId();
        //訊息發送的topic資訊
        TopicConfig topicConfig = this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());
        //如果佇列id<0,隨機一個queueId
        if (queueIdInt < 0) {
            queueIdInt = randomQueueId(topicConfig.getWriteQueueNums());
        }
        //封裝資訊到MessageExtBrokerInner中
        MessageExtBrokerInner msgInner = new MessageExtBrokerInner();
        msgInner.setTopic(requestHeader.getTopic());
        msgInner.setQueueId(queueIdInt);
        //處理重試和死信佇列
        if (!handleRetryAndDLQ(requestHeader, response, request, msgInner, topicConfig)) {
            return CompletableFuture.completedFuture(response);
        }

        msgInner.setBody(body);
        msgInner.setFlag(requestHeader.getFlag());
        Map<String, String> origProps = MessageDecoder.string2messageProperties(requestHeader.getProperties());
        MessageAccessor.setProperties(msgInner, origProps);
        msgInner.setBornTimestamp(requestHeader.getBornTimestamp());
        msgInner.setBornHost(ctx.channel().remoteAddress());
        msgInner.setStoreHost(this.getStoreHost());
        msgInner.setReconsumeTimes(requestHeader.getReconsumeTimes() == null ? 0 : requestHeader.getReconsumeTimes());
        String clusterName = this.brokerController.getBrokerConfig().getBrokerClusterName();
        MessageAccessor.putProperty(msgInner, MessageConst.PROPERTY_CLUSTER, clusterName);
        if (origProps.containsKey(MessageConst.PROPERTY_WAIT_STORE_MSG_OK)) {
            // There is no need to store "WAIT=true", remove it from propertiesString to save 9 bytes for each message.
            // It works for most case. In some cases msgInner.setPropertiesString invoked later and replace it.
            String waitStoreMsgOKValue = origProps.remove(MessageConst.PROPERTY_WAIT_STORE_MSG_OK);
            msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgInner.getProperties()));
            // Reput to properties, since msgInner.isWaitStoreMsgOK() will be invoked later
            origProps.put(MessageConst.PROPERTY_WAIT_STORE_MSG_OK, waitStoreMsgOKValue);
        } else {
            msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgInner.getProperties()));
        }

        CompletableFuture<PutMessageResult> putMessageResult = null;
        String transFlag = origProps.get(MessageConst.PROPERTY_TRANSACTION_PREPARED);
        //如果是事務訊息走事務處理邏輯
        if (transFlag != null && Boolean.parseBoolean(transFlag)) {
        	//是否可以走事務流程
            if (this.brokerController.getBrokerConfig().isRejectTransactionMessage()) {
                response.setCode(ResponseCode.NO_PERMISSION);
                response.setRemark(
                        "the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
                                + "] sending transaction message is forbidden");
                return CompletableFuture.completedFuture(response);
            }
            putMessageResult = this.brokerController.getTransactionalMessageService().asyncPrepareMessage(msgInner);
        } else {
            //普通訊息則使用MessageStore將訊息進行存盤
            putMessageResult = this.brokerController.getMessageStore().asyncPutMessage(msgInner);
        }
        return handlePutMessageResultFuture(putMessageResult, response, request, msgInner, responseHeader, mqtraceContext, ctx, queueIdInt);
    }

3.3 訊息存盤DefaultMessageStore

這里我們簡單了解一下訊息最侄訓通過commitLog進行存在，后面將會對訊息存盤模塊進行學習和講解，

   @Override
    public CompletableFuture<PutMessageResult> asyncPutMessage(MessageExtBrokerInner msg) {
        CompletableFuture<PutMessageResult> putResultFuture = this.commitLog.asyncPutMessage(msg);
        return putResultFuture;
    }

大致總結一下：

1. 初始化回應資料;
2. 獲取要發送的佇列和topic配置，如果queueId<0，則隨機選擇一個;
3. 構建訊息類；
4. 處理重試和死信，對RETRY型別的訊息處理，如果超過最大消費次數，則topic修改成"%DLQ%" + 分組名，即加入死信佇列；
5. 如果是事務訊息，則需要校驗是否不允許發送事務訊息；
6. 使用MessageStore組件將訊息存盤在本地檔案，只存盤CommitLog檔案，ConsumerQueue檔案和IndexFile檔案會由后臺執行緒異步存盤；
7. 處理訊息存盤結果
