flink kakfa 資料讀寫到hudi

1. 運行環境

1.1 版本

1.2.flink lib 需要的jar 包

hudi-flink-bundle_2.12-0.10.0.jar
flink-sql-connector-kafka_2.12-1.13.5.jar
flink-shaded-hadoop-2-uber-2.8.3-10.0.jar
下面是所有的jar 包

-rw-r--r-- 1 root root   7802399 1月   1 08:27 doris-flink-1.0-SNAPSHOT.jar
-rw-r--r-- 1 root root    249571 12月 27 23:32 flink-connector-jdbc_2.12-1.13.5.jar
-rw-r--r-- 1 root root    359138 1月   1 10:17 flink-connector-kafka_2.12-1.13.5.jar
-rw-r--r-- 1 hive 1007     92315 12月 15 08:23 flink-csv-1.13.5.jar
-rw-r--r-- 1 hive 1007 106535830 12月 15 08:29 flink-dist_2.12-1.13.5.jar
-rw-r--r-- 1 hive 1007    148127 12月 15 08:23 flink-json-1.13.5.jar
-rw-r--r-- 1 root root  43317025 2月   6 20:51 flink-shaded-hadoop-2-uber-2.8.3-10.0.jar
-rw-r--r-- 1 hive 1007   7709740 12月 15 06:57 flink-shaded-zookeeper-3.4.14.jar
-rw-r--r-- 1 root root   3674116 2月  13 14:08 flink-sql-connector-kafka_2.12-1.13.5.jar
-rw-r--r-- 1 hive 1007  35051557 12月 15 08:28 flink-table_2.12-1.13.5.jar
-rw-r--r-- 1 hive 1007  38613344 12月 15 08:28 flink-table-blink_2.12-1.13.5.jar
-rw-r--r-- 1 root root  62447468 2月   6 20:44 hudi-flink-bundle_2.12-0.10.0.jar
-rw-r--r-- 1 root root  17276348 2月   6 20:51 hudi-hadoop-mr-bundle-0.10.0.jar
-rw-r--r-- 1 root root   1893564 1月   1 10:17 kafka-clients-2.0.0.jar
-rw-r--r-- 1 hive 1007    207909 12月 15 06:56 log4j-1.2-api-2.16.0.jar
-rw-r--r-- 1 hive 1007    301892 12月 15 06:56 log4j-api-2.16.0.jar
-rw-r--r-- 1 hive 1007   1789565 12月 15 06:56 log4j-core-2.16.0.jar
-rw-r--r-- 1 hive 1007     24258 12月 15 06:56 log4j-slf4j-impl-2.16.0.jar
-rw-r--r-- 1 root root    724213 12月 27 23:23 mysql-connector-java-5.1.9.jar

1.3 flink-conf.yaml 的 checkpoints 配置

引數說明

#引數
state.backend: rocksdb
state.backend.incremental: true
state.checkpoints.dir: hdfs://node01.com:8020/flink/flink-checkpoints
state.savepoints.dir: hdfs://node01.com:8020/flink-savepoints
classloader.check-leaked-classloader: false
classloader.resolve-order: parent-first
execution.checkpointing.interval: 3000

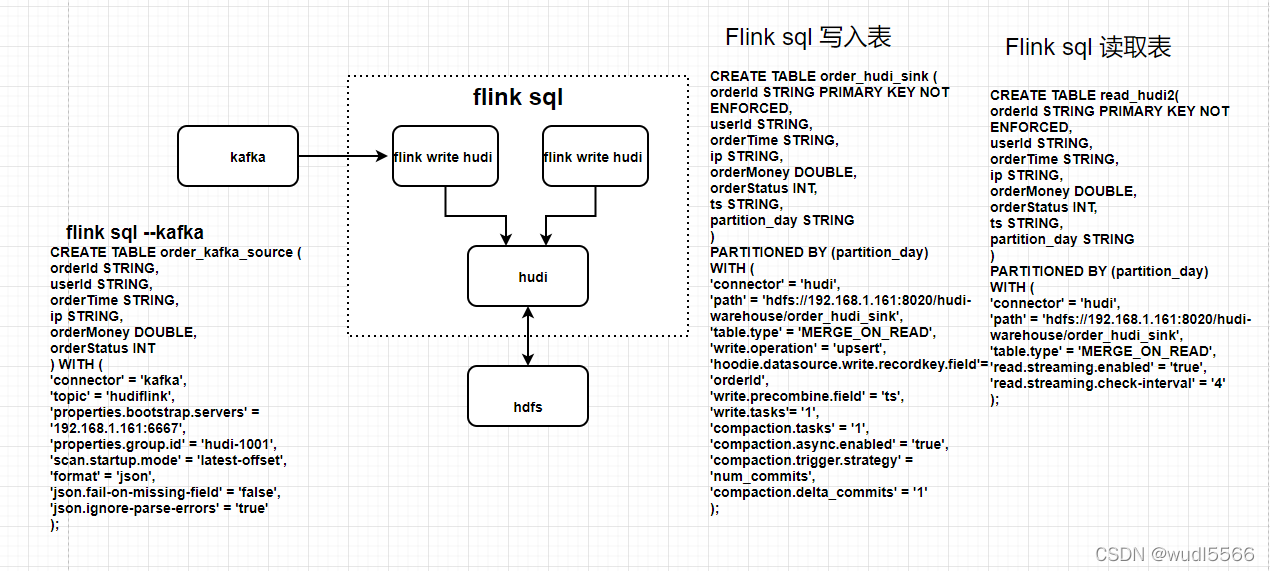

2.場景

kafka ----> flink sql ----> hudi —> flink sql read hudi

3. flink sql client 客戶端模式

3.1 進入客戶端

[root@node01 bin]# ./sql-client.sh  embedded -j /opt/module/flink/flink-1.13.5/lib/hudi-flink-bundle_2.12-0.10.0.jar
Setting HBASE_CONF_DIR=/etc/hbase/conf because no HBASE_CONF_DIR was set.

3.2創建kafka 表

Flink SQL> CREATE TABLE order_kafka_source (
>   orderId STRING,
>   userId STRING,
>   orderTime STRING,
>   ip STRING,
>   orderMoney DOUBLE,
>   orderStatus INT
> ) WITH (
>   'connector' = 'kafka',
>   'topic' = 'hudiflink',
>   'properties.bootstrap.servers' = '192.168.1.161:6667',
>   'properties.group.id' = 'hudi-1001',
>   'scan.startup.mode' = 'latest-offset',
>   'format' = 'json',
>   'json.fail-on-missing-field' = 'false',
>   'json.ignore-parse-errors' = 'true'
> );
[INFO] Execute statement succeed.

3.3 創建hudi 寫入表

Flink SQL> CREATE TABLE order_hudi_sink (
>   orderId STRING PRIMARY KEY NOT ENFORCED,
>   userId STRING,
>   orderTime STRING,
>   ip STRING,
>   orderMoney DOUBLE,
>   orderStatus INT,
>   ts STRING,
>   partition_day STRING
> )
> PARTITIONED BY (partition_day)
> WITH (
>   'connector' = 'hudi',
>   'path' = 'hdfs://192.168.1.161:8020/hudi-warehouse/order_hudi_sink',
>   'table.type' = 'MERGE_ON_READ',
>   'write.operation' = 'upsert',
>   'hoodie.datasource.write.recordkey.field'= 'orderId',
>   'write.precombine.field' = 'ts',
>   'write.tasks'= '1',
>   'compaction.tasks' = '1',
>   'compaction.async.enabled' = 'true',
>   'compaction.trigger.strategy' = 'num_commits',
>   'compaction.delta_commits' = '1'
> );
[INFO] Execute statement succeed.

3.4 flink 實時讀取表

Flink SQL> CREATE TABLE read_hudi2(
>   orderId STRING PRIMARY KEY NOT ENFORCED,
>   userId STRING,
>   orderTime STRING,
>   ip STRING,
>   orderMoney DOUBLE,
>   orderStatus INT,
>   ts STRING,
>   partition_day STRING
> )
> PARTITIONED BY (partition_day)
> WITH (
>     'connector' = 'hudi',
>     'path' = 'hdfs://192.168.1.161:8020/hudi-warehouse/order_hudi_sink',
>     'table.type' = 'MERGE_ON_READ',
>     'read.streaming.enabled' = 'true',
>     'read.streaming.check-interval' = '4'
> );
[INFO] Execute statement succeed.

3.5 實時流式 插入

Flink SQL> INSERT INTO order_hudi_sink
> SELECT
>   orderId, userId, orderTime, ip, orderMoney, orderStatus,
>   substring(orderId, 0, 17) AS ts, substring(orderTime, 0, 10) AS partition_day
> FROM order_kafka_source ;
[INFO] Submitting SQL update statement to the cluster...
[INFO] SQL update statement has been successfully submitted to the cluster:
Job ID: ea29591aeb04310b88999888226c04b2

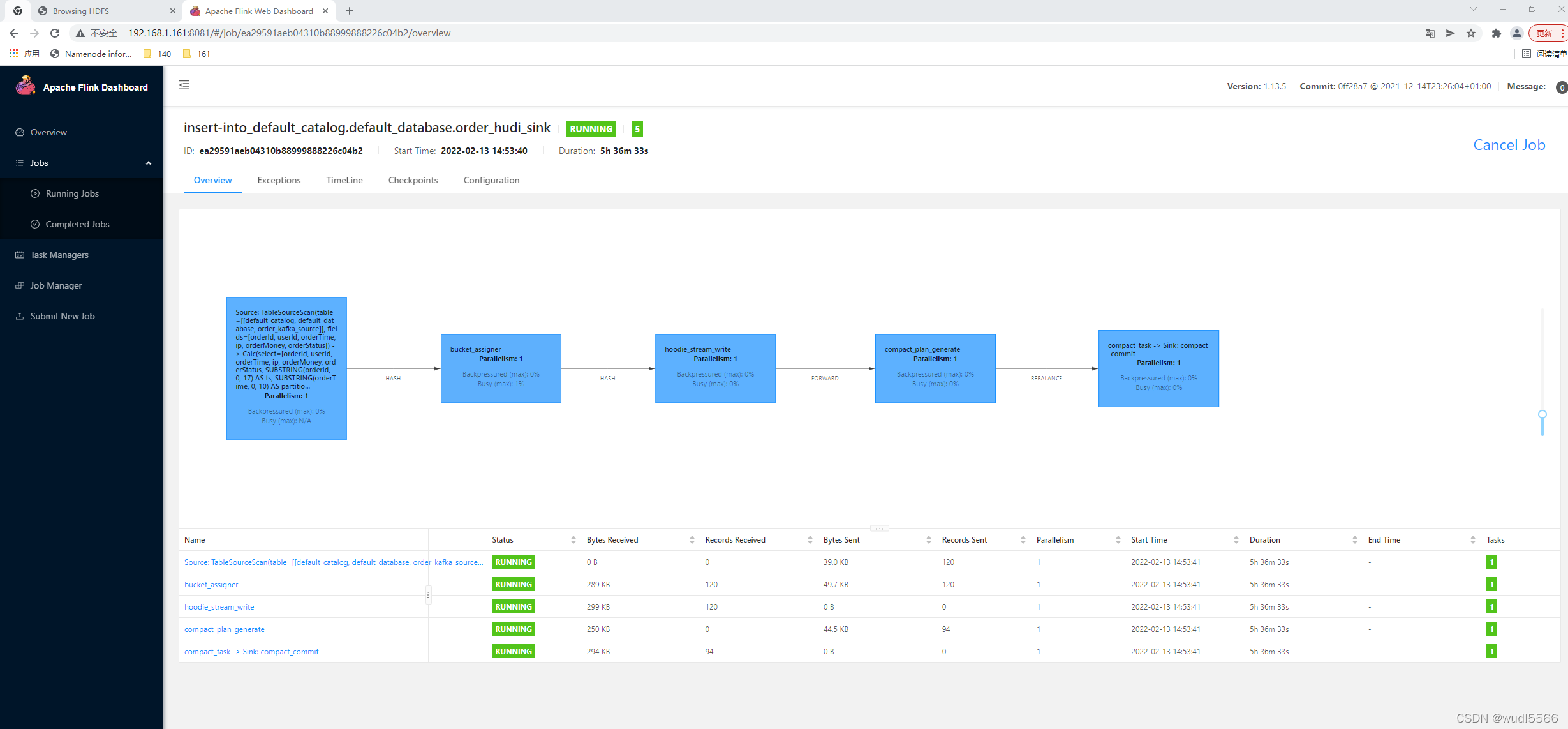

如：

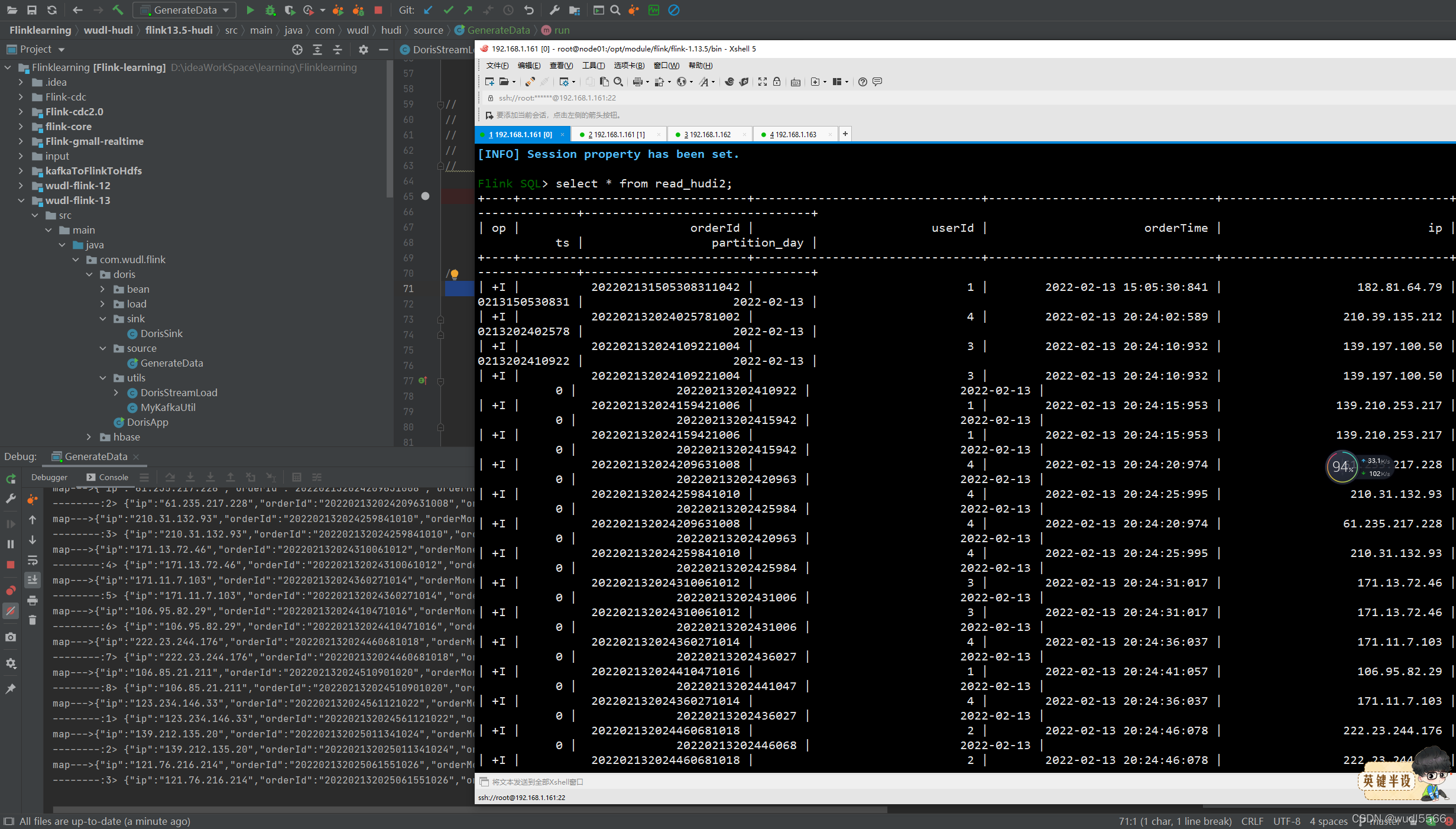

4.結果

5.代碼實作

package com.wudl.hudi.sink;

import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.runtime.state.filesystem.FsStateBackend;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

import static org.apache.flink.table.api.Expressions.$;

/**
 * @author ：wudl
 * @date ：Created in 2022-02-07 22:56
 * @description：
 * @modified By：
 * @version: 1.0
 */

public class FlinkKafkaWriteHudi {
    public static void main(String[] args) throws Exception {
        // 1-獲取表執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // TODO： 由于增量將資料寫入到Hudi表，所以需要啟動Flink Checkpoint檢查點
        env.setParallelism(1);
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .inStreamingMode() // 設定流式模式
                .build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);


        // 1.1 開啟CK
        env.enableCheckpointing(5000L);
        env.getCheckpointConfig().setCheckpointTimeout(10000L);
        env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
        //正常Cancel任務時,保留最后一次CK
        env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
        //重啟策略
        env.setRestartStrategy(RestartStrategies.fixedDelayRestart(3, 5000L));
        //狀態后端
        env.setStateBackend(new FsStateBackend("hdfs://192.168.1.161:8020/flink-hudi/ck"));
        //設定訪問HDFS的用戶名
        System.setProperty("HADOOP_USER_NAME", "root");

        // 2-創建輸入表，TODO：從Kafka消費資料
        tableEnv.executeSql(
                "CREATE TABLE order_kafka_source (\n" +
                        "  orderId STRING,\n" +
                        "  userId STRING,\n" +
                        "  orderTime STRING,\n" +
                        "  ip STRING,\n" +
                        "  orderMoney DOUBLE,\n" +
                        "  orderStatus INT\n" +
                        ") WITH (\n" +
                        "  'connector' = 'kafka',\n" +
                        "  'topic' = 'hudiflink',\n" +
                        "  'properties.bootstrap.servers' = '192.168.1.161:6667',\n" +
                        "  'properties.group.id' = 'gid-1002',\n" +
                        "  'scan.startup.mode' = 'latest-offset',\n" +
                        "  'format' = 'json',\n" +
                        "  'json.fail-on-missing-field' = 'false',\n" +
                        "  'json.ignore-parse-errors' = 'true'\n" +
                        ")"
        );

        // 3-轉換資料：可以使用SQL，也可以時Table API
        Table etlTable = tableEnv
                .from("order_kafka_source")
                // 添加欄位：Hudi表資料合并欄位，時間戳, "orderId": "20211122103434136000001" ->  20211122103434136
                .addColumns(
                        $("orderId").substring(0, 17).as("ts")
                )
                // 添加欄位：Hudi表磁區欄位， "orderTime": "2021-11-22 10:34:34.136" -> 021-11-22
                .addColumns(
                        $("orderTime").substring(0, 10).as("partition_day")
                );
        tableEnv.createTemporaryView("view_order", etlTable);

        // 4-創建輸出表，TODO: 關聯到Hudi表，指定Hudi表名稱，存盤路徑，欄位名稱等等資訊
        tableEnv.executeSql(
                "CREATE TABLE order_hudi_sink (\n" +
                        "  orderId STRING PRIMARY KEY NOT ENFORCED,\n" +
                        "  userId STRING,\n" +
                        "  orderTime STRING,\n" +
                        "  ip STRING,\n" +
                        "  orderMoney DOUBLE,\n" +
                        "  orderStatus INT,\n" +
                        "  ts STRING,\n" +
                        "  partition_day STRING\n" +
                        ")\n" +
                        "PARTITIONED BY (partition_day)\n" +
                        "WITH (\n" +
                        "    'connector' = 'hudi',\n" +
//                               "    'path' = 'file:///D:/flink_hudi_order',\n" +
                        "  'path' = 'hdfs://192.168.1.161:8020/hudi-warehouse/order_hudi_sink' ,\n" +
                        "    'table.type' = 'MERGE_ON_READ',\n" +
                        "    'write.operation' = 'upsert',\n" +
                        "    'hoodie.datasource.write.recordkey.field'= 'orderId',\n" +
                        "    'write.precombine.field' = 'ts',\n" +
                        "    'write.tasks'= '1'\n" +
                        ")"
        );

        tableEnv.executeSql("select *from order_hudi_sink").print();

        // 5-通過子查詢方式，將資料寫入輸出表
        tableEnv.executeSql(
                "INSERT INTO order_hudi_sink " +
                        "SELECT orderId, userId, orderTime, ip, orderMoney, orderStatus, ts, partition_day FROM view_order"
        );

    }
}
