RabbitMQ：實作訊息確認與訊息回傳-有解無憂

不了解RabbitMQ的訊息確認與訊息回傳可以參考下面兩篇博客：

RabbitMQ：訊息確認機制
RabbitMQ：Return訊息機制

pom.xml：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.2</version>
    </parent>

    <packaging>jar</packaging>

    <groupId>com.kaven</groupId>
    <artifactId>springboot</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <name>springboot</name>
    <description>springboot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

application.properties：

spring.rabbitmq.host=192.168.1.9
spring.rabbitmq.port=5672
spring.rabbitmq.username=admin
spring.rabbitmq.password=admin
spring.rabbitmq.virtualHost=/
spring.rabbitmq.exchange=""
spring.rabbitmq.routingKey=kaven
spring.rabbitmq.queue=kaven

RabbitMQProperties類（RabbitMQ的引數類）：

package com.kaven.springboot.rabbitmq;

import lombok.Getter;
import lombok.Setter;
import org.springframework.boot.context.properties.ConfigurationProperties;

@ConfigurationProperties(prefix = "spring.rabbitmq")
@Setter
@Getter
public class RabbitMQProperties {

    private String host;
    private int port;
    private String username;
    private String password;
    private String exchange;
    private String queue;
    private String routingKey;
    private String virtualHost;
}

RabbitMQConfirmCallbackAndReturnsCallback類（用于訊息確認與訊息回傳的回呼）：

package com.kaven.springboot.rabbitmq;

import org.springframework.amqp.core.ReturnedMessage;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Component;

@Component
public class RabbitMQConfirmCallbackAndReturnsCallback implements RabbitTemplate.ConfirmCallback,
        RabbitTemplate.ReturnsCallback {

    @Override
    public void confirm(CorrelationData correlationData, boolean ack, String cause) {
        if (ack) {
            System.out.printf("%s 訊息成功發送到RabbitMQ\n", correlationData.getId());
            ReturnedMessage returned = correlationData.getReturned();
            if(returned != null) {
                returnedMessage(returned);
            }

        } else {
            System.out.printf("%s 訊息發送到RabbitMQ失敗, %s\n", correlationData.getId(), cause);
        }
    }

    @Override
    public void returnedMessage(ReturnedMessage returned) {
        System.out.printf("%s %s %s %s %d\n",
                returned.getExchange(),
                returned.getRoutingKey(),
                returned.getMessage(),
                returned.getReplyText(),
                returned.getReplyCode()
        );
    }
}

RabbitMQConfig類（定義RabbitMQ組件的配置類）：

package com.kaven.springboot.rabbitmq;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.config.ConfigurableBeanFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

import javax.annotation.Resource;

@Configuration
public class RabbitMQConfig {

    @Resource
    private RabbitMQProperties properties;

    @Bean
    public ConnectionFactory connectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory(properties.getHost(), properties.getPort());
        connectionFactory.setUsername(properties.getUsername());
        connectionFactory.setPassword(properties.getPassword());
        connectionFactory.setVirtualHost(properties.getVirtualHost());
        // 連接工廠開啟訊息確認和訊息回傳機制
        connectionFactory.setPublisherConfirmType(CachingConnectionFactory.ConfirmType.CORRELATED);
        connectionFactory.setPublisherReturns(true);
        return connectionFactory;
    }

    @Bean
    @Scope(ConfigurableBeanFactory.SCOPE_PROTOTYPE)
    //必須是prototype型別
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory,
                                         RabbitMQConfirmCallbackAndReturnsCallback confirmCallbackAndReturnsCallback) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        // RabbitTemplate設定訊息確認和訊息回傳的回呼實體
        rabbitTemplate.setMandatory(true);
        rabbitTemplate.setConfirmCallback(confirmCallbackAndReturnsCallback);
        rabbitTemplate.setReturnsCallback(confirmCallbackAndReturnsCallback);
        return rabbitTemplate;
    }

    @Bean
    public DirectExchange exchange() {
        return new DirectExchange(properties.getExchange());
    }

    @Bean
    public Queue queue() {
        //佇列持久
        return new Queue(properties.getQueue(), true);
    }

    @Bean
    public Binding binding() {
        return BindingBuilder.bind(queue()).to(exchange()).with(properties.getRoutingKey());
    }
}

Producer類（用于發布訊息）：

package com.kaven.springboot.rabbitmq;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;
import java.util.UUID;

@Component
public class Producer {

    private final RabbitTemplate rabbitTemplate;

    @Resource
    private RabbitMQProperties properties;

    @Autowired
    public Producer(RabbitTemplate rabbitTemplate) {
        this.rabbitTemplate = rabbitTemplate;
    }

    public void sendMsg(String msg, boolean returned) {
        CorrelationData correlationId = new CorrelationData(UUID.randomUUID().toString());
        MessageProperties messageProperties = new MessageProperties();
        messageProperties.setExpiration("10000");
        Message message = new Message(msg.getBytes(StandardCharsets.UTF_8), messageProperties);
        // 如果returned為true
        // 發送的訊息不會路由到佇列
        // 因為路由鍵properties.getRoutingKey() + "-returned"沒有系結的佇列
        // 因此會觸發訊息回傳
        if(returned) {
            rabbitTemplate.send(properties.getExchange(),
                    properties.getRoutingKey() + "-returned",
                    message, correlationId);
        }
        else {
            rabbitTemplate.send(properties.getExchange(), properties.getRoutingKey(), message, correlationId);
        }
    }
}

Consumer類（用于消費訊息）：

package com.kaven.springboot.rabbitmq;

import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Component
public class Consumer {

    @RabbitListener(queues = {"${spring.rabbitmq.queue}"})
    public void process(String msg) {
        System.out.println("接收訊息： " + msg);
    }
}

ProducerController類（用于發布訊息的介面）：

package com.kaven.springboot.rabbitmq;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
public class ProducerController {

    @Resource
    private Producer producer;

    @GetMapping("/send")
    public String send(String msg, boolean returned) {
        producer.sendMsg(msg, returned);
        return "發送訊息成功";
    }
}

啟動類：

package com.kaven.springboot;

import com.kaven.springboot.rabbitmq.RabbitMQProperties;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.ConfigurationPropertiesScan;

@SpringBootApplication
@ConfigurationPropertiesScan(basePackageClasses = {RabbitMQProperties.class})
public class SpringbootApplication {
    public static void main(String[] args) {
        SpringApplication application = new SpringApplication(SpringbootApplication.class);
        application.run(args);
    }
}

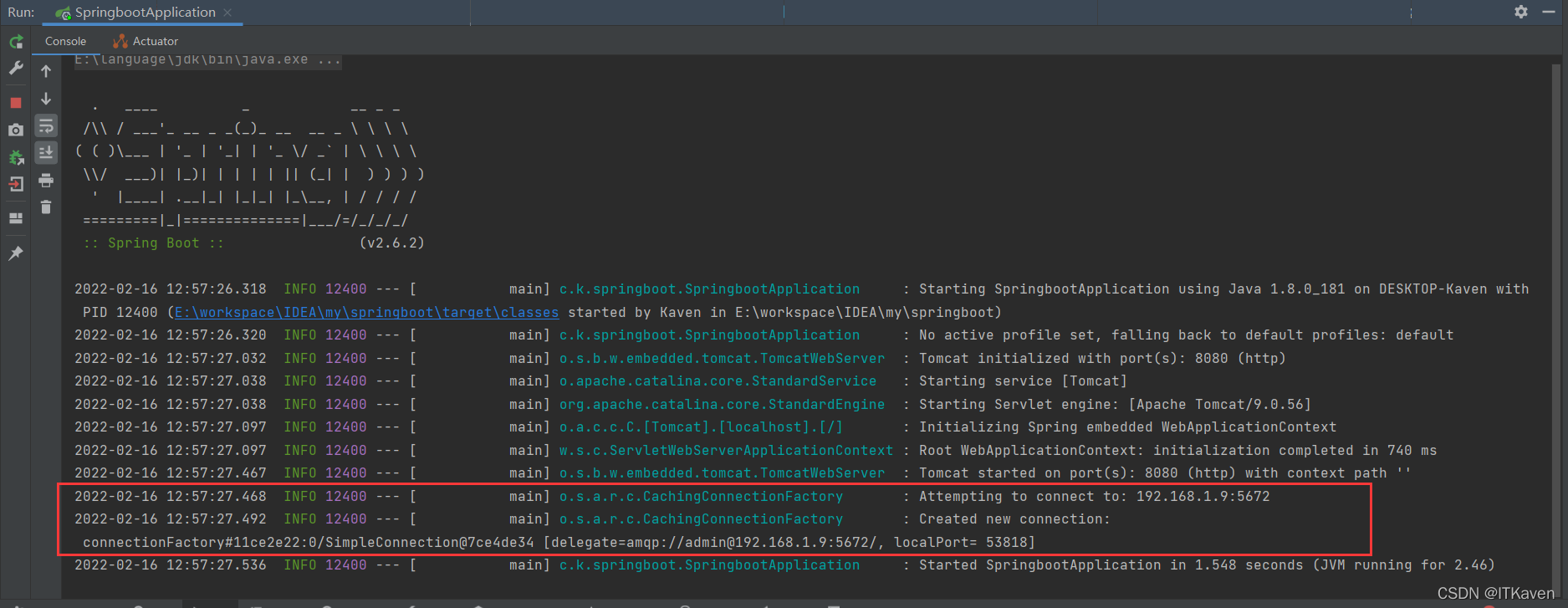

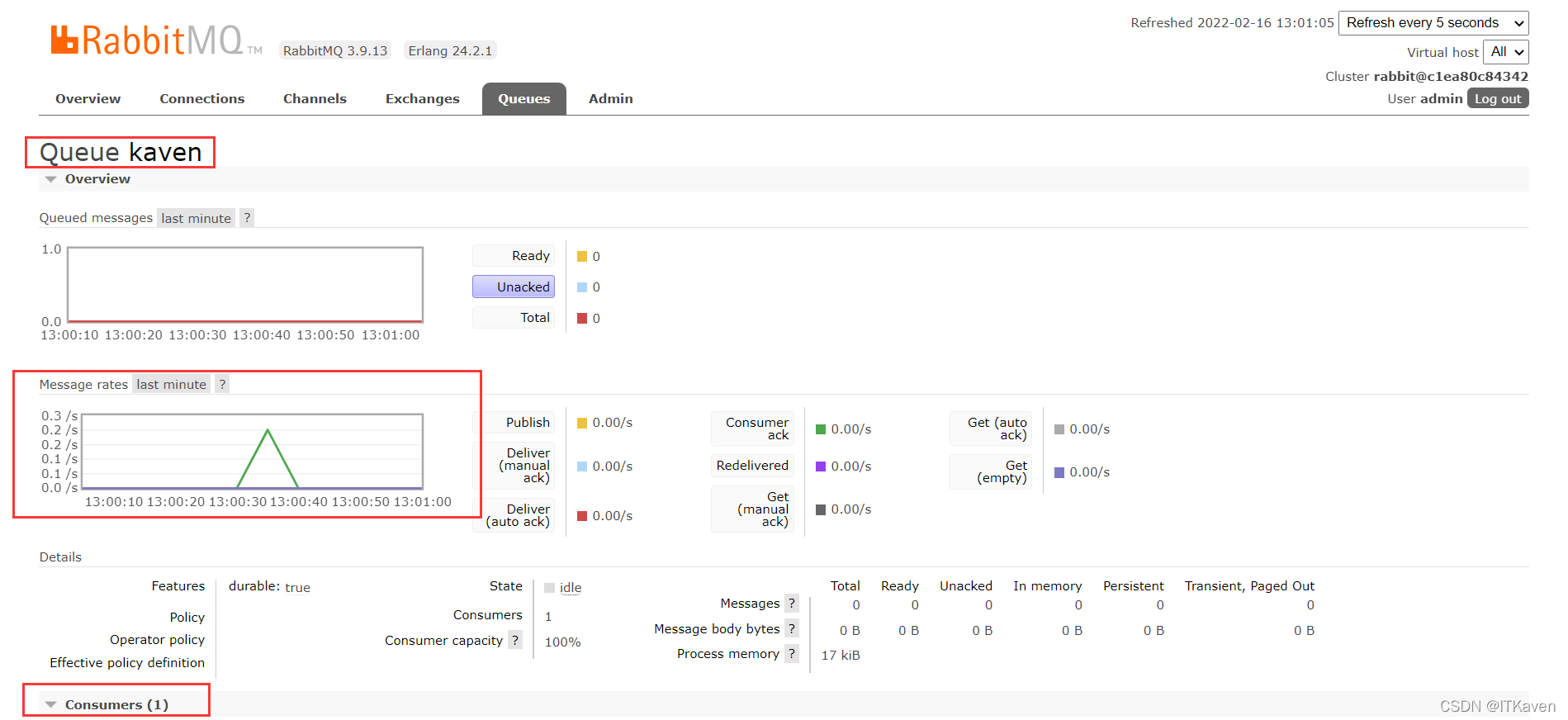

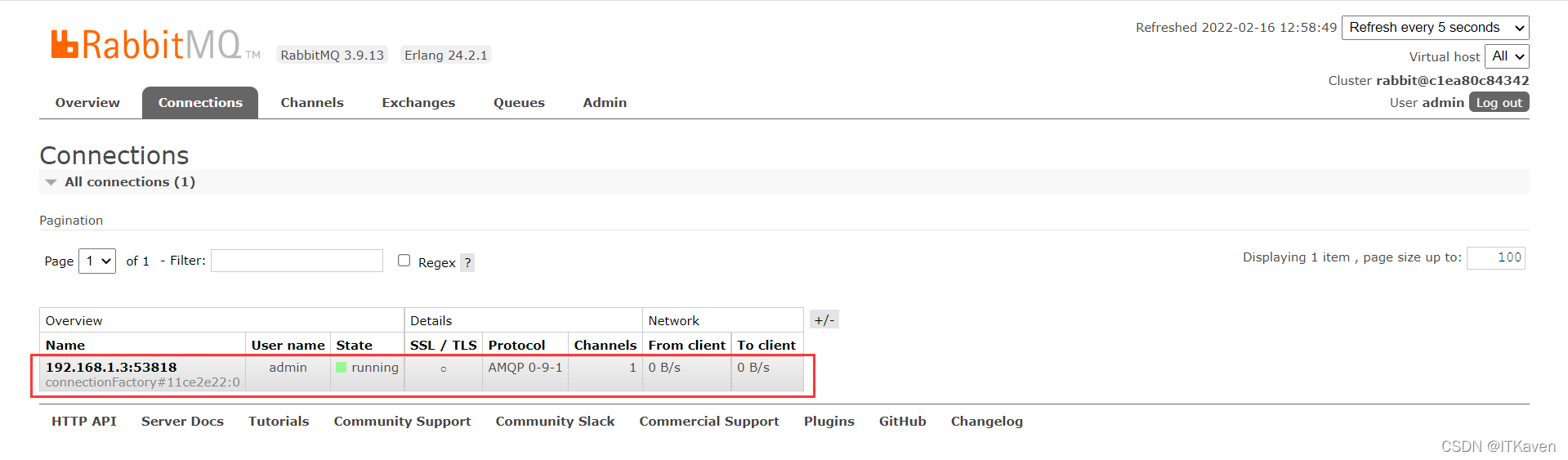

啟動應用，Spring Boot會與RabbitMQ建立連接，
在這里插入圖片描述

在這里插入圖片描述

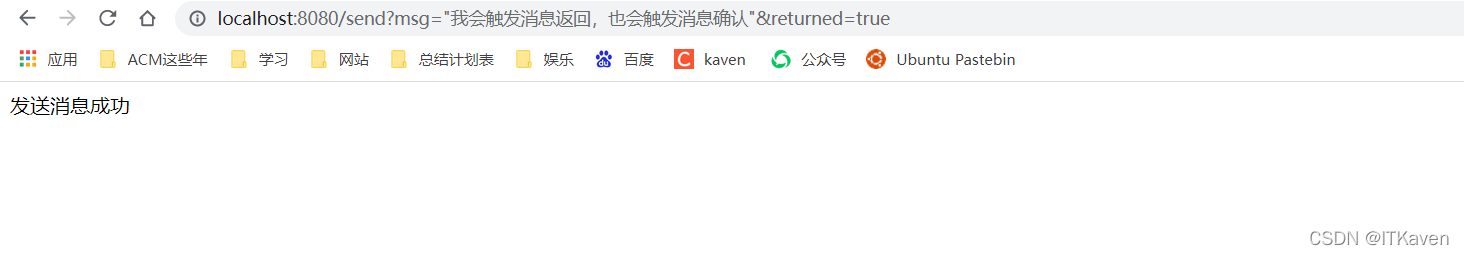

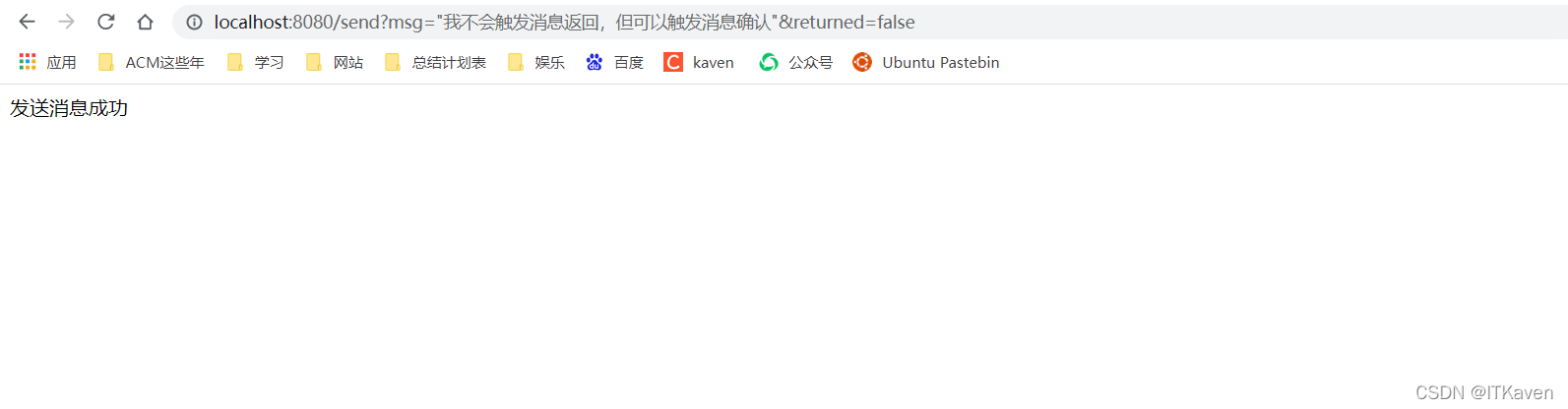

請求介面，
在這里插入圖片描述
控制臺輸出：

// 訊息確認
a9f3afef-72c5-406a-8e75-e9af46a89381 訊息成功發送到RabbitMQ
接收訊息： "我不會觸發訊息回傳，但可以觸發訊息確認"

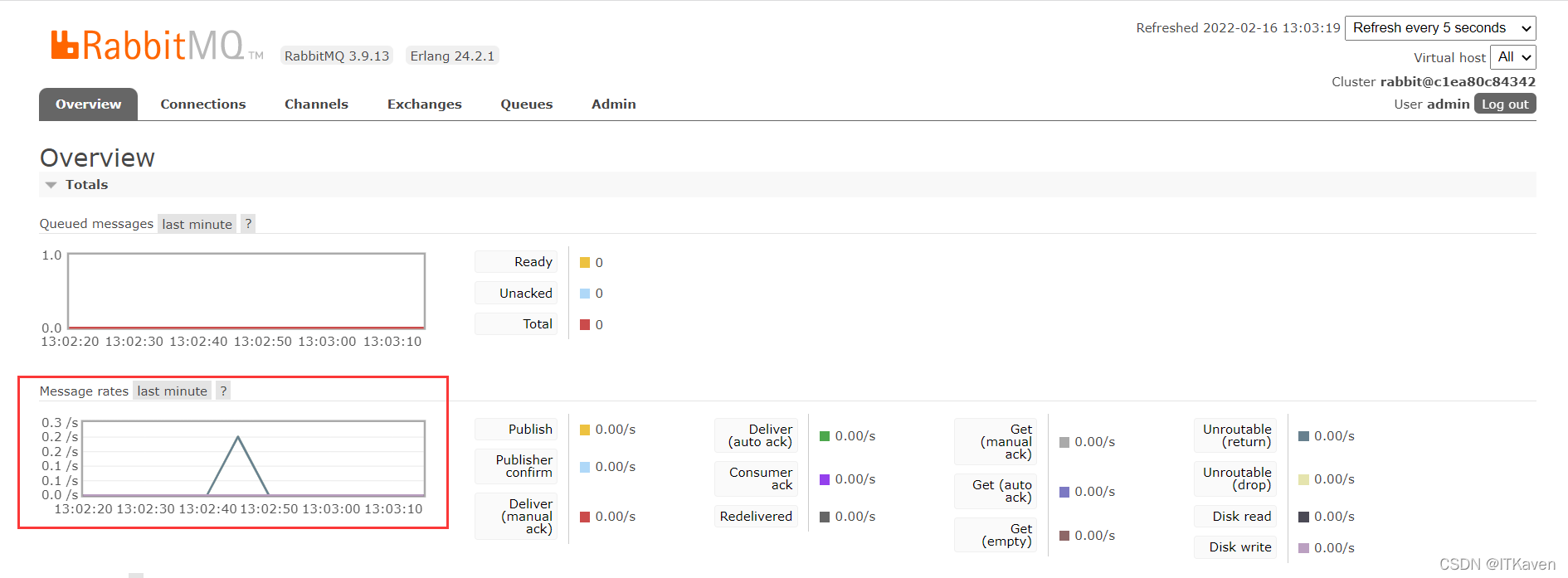

訊息成功發送到RabbitMQ觸發了訊息確認，并且可路由，因此不會觸發訊息回傳，
在這里插入圖片描述
再次請求介面，

控制臺輸出：

// 訊息回傳
"" kaven-returned (Body:'[B@6d598368(byte[53])' MessageProperties [headers={spring_returned_message_correlation=34c045fb-7706-4aca-b775-7befa6c9be01}, contentType=application/octet-stream, contentLength=0, receivedDeliveryMode=PERSISTENT, expiration=10000, priority=0, deliveryTag=0]) NO_ROUTE 312

// 訊息確認
34c045fb-7706-4aca-b775-7befa6c9be01 訊息成功發送到RabbitMQ
"" kaven-returned (Body:'[B@6d598368(byte[53])' MessageProperties [headers={spring_listener_return_correlation=2facdfdd-f4ec-4625-ae0b-6f913798eb29, spring_returned_message_correlation=34c045fb-7706-4aca-b775-7befa6c9be01}, contentType=application/octet-stream, contentLength=0, receivedDeliveryMode=PERSISTENT, expiration=10000, priority=0, redelivered=false, receivedExchange="", receivedRoutingKey=kaven-returned, deliveryTag=0]) NO_ROUTE 312

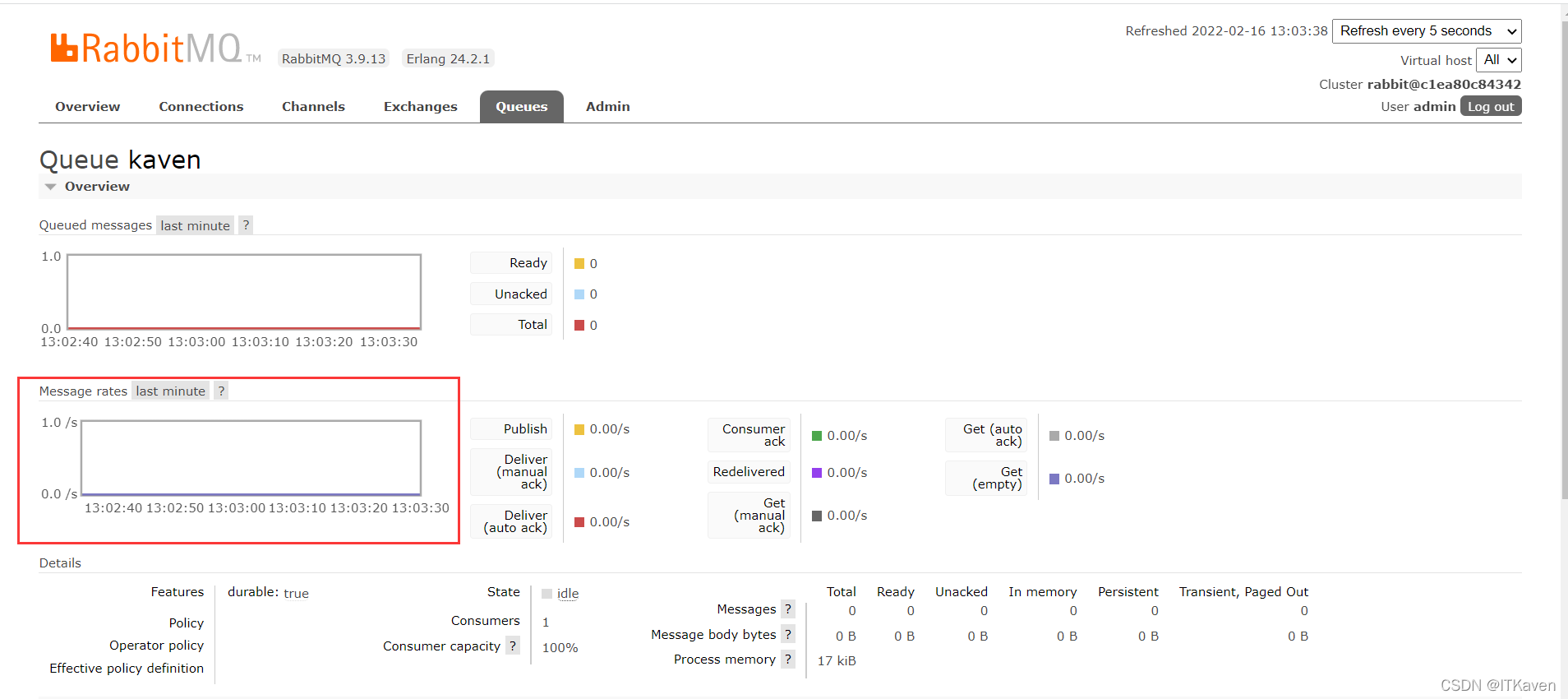

訊息成功發送到RabbitMQ觸發了訊息確認，
在這里插入圖片描述
但不可路由，因此也會觸發訊息回傳，

不觸發訊息確定的情況比較難測驗（關掉RabbitMQ服務，Spring Boot會不斷嘗試重連，請求介面會回應500），這里就不測驗了，應該沒問題，RabbitMQ整合Spring Boot實作訊息確認與訊息回傳就介紹到這里，如果博主有說錯的地方或者大家有不同的見解，歡迎大家評論補充，
