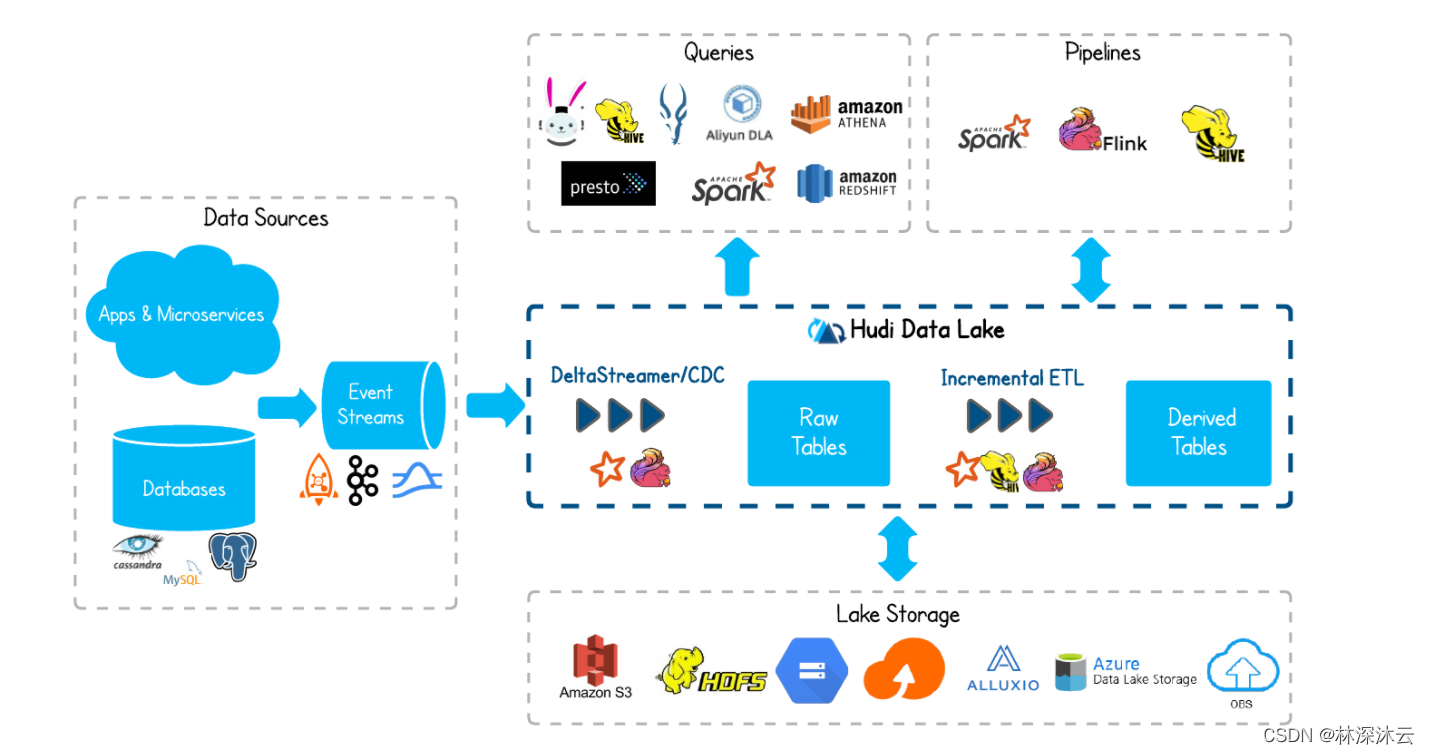

在這里插入圖片描述

前序：Hudi系列文章：

FlinkCDC-Hudi:Mysql資料實時入湖全攻略一：初試風云
FlinkCDC-Hudi:Mysql資料實時入湖全攻略二：Hudi與Spark整合時所遇例外與解決方案

一、背景

在生產環境中，mysql一般會配備主從庫，以實作資料備份、服務容災、讀寫分離等需要，使用FlinkCdc進行mysql資料入湖時，就不可避免地要和主從庫打交道，FlinkCDC對mysql主從庫的切換支撐到什么程度、資料庫需要怎么配置、同步程式要怎么配合操作和開發，是FlinkCDC投入生產應用前必驗專案，
本文記錄了使用FlinkCDC進行Mysql主從資料同步的主要驗證程序，以為后鑒，

二、驗證前環境準備

2.1 FlinkCDC+Hudi環境準備

FlinkCDC+Hudi環境準備具體程序參見 FlinkCDC-Hudi:Mysql資料實時入湖全攻略一：初試風云，本文不再贅述，

2.2 Mysql主從庫環境準備

準備Mysql主從庫各一臺，
主庫：192.168.2.100
從庫1：192.168.2.101
從庫2：192.168.2.102

*mysql簡易安裝命令如下：

#ubuntu安裝命令
sudo apt install mysql-server -y
#linux安裝命令
yum install mysql-server

更多的安裝應用可以參考：
Ubuntu18.04 安裝MySQL
Linux安裝Mysql*

2.2 主從庫配置

mysql安裝完成后，進行主從庫配置，mysql的默認組態檔在/etc/mysql/my.cnf，主從庫相應配置如下，
注意：這里僅提供了實作主從庫的最簡配置，僅供測驗使用，生產環境切勿直接應用些配置，

2.2.1 主庫配置

!includedir /etc/mysql/conf.d/
!includedir /etc/mysql/mysql.conf.d/

[client]
default-character-set = utf8mb4

[mysql]
default-character-set = utf8mb4

[mysqld]
collation-server = utf8mb4_unicode_ci
init-connect='SET NAMES utf8mb4'
character-set-server = utf8mb4

bind-address = 0.0.0.0
server_id = 1
log-bin = /var/lib/mysql/mysql-bin
#binlog-do-db = *
log-slave-updates
sync_binlog = 1
auto_increment_offset = 1
auto_increment_increment = 1
log_bin_trust_function_creators = 1

2.2.2 從庫安裝與配置

!includedir /etc/mysql/conf.d/
!includedir /etc/mysql/mysql.conf.d/
[client]
default-character-set = utf8mb4

[mysql]
default-character-set = utf8mb4

[mysqld]
collation-server = utf8mb4_unicode_ci
init-connect='SET NAMES utf8mb4'
character-set-server = utf8mb4

bind-address = 0.0.0.0
server_id = 2
log-bin = /var/lib/mysql/mysql-bin
log-slave-updates
sync_binlog = 0
##指定slave要復制哪個庫
replicate-do-db = flink_cdc
##MySQL主從復制的時候，當Master和Slave之間的網路中斷，但是Master和Slave無法察覺的情況下（比如防火墻或者路由問題），Slave會等待slave_net_timeout設定的秒數后，才能認為網路出現故障，然后才會重連并且追趕這段時間主庫的資料
slave-net-timeout = 60
log_bin_trust_function_creators = 1
read_only = 1

2.2.3 從庫資料初始化

新安裝的主從庫由于還沒有資料，不需要進行從庫資料初始化，
如果是已存在主庫，然后新增從庫，則需要進行資料初始化，
1、在主庫中給要同步的資料庫加鎖

mysql> use flink_cdc;
mysql> flush tables with read lock;

2、在主庫dump所有資料

mysqldump -uroot -proot_password flink_cdc> flink_cdc.sql

3、在第2步完成資料dump之后，釋放鎖

mysql> unlock tables;

4、在從庫匯入所有資料

mysql> source /path/flink_cdc.sql;

2.2.4 主庫授權

#創建slave賬號user_test，密碼user_test_password
mysql> grant select,replication slave,replication client on *.* to 'user_test'@'%' identified by 'user_test_password';
#更新資料庫權限
mysql> flush privileges;
#查看master binlog點位
### 如要進行從庫初始化，需要在unlock tables之前執行，
mysql> show master status\G;
*************************** 1. row ***************************
             File: mysql-bin.000037   //當前binlog檔案
         Position: 700                //當前binlog檔案位移
     Binlog_Do_DB:
 Binlog_Ignore_DB:
1 row in set (0.00 sec)

2.2.4 開啟從庫同步

#執行同步命令，設定主服務器ip，同步賬號密碼，同步位置
mysql> change master to master_host='192.168.2.100',master_user='user_test',master_password='user_test_password',master_log_file='mysql-bin.000037',master_log_pos=700;
#開啟同步功能
mysql> start slave;
#查看slave同步狀態
mysql> show slave status\G;
*************************** 1. row ***************************
               Slave_IO_State: Connecting to master
                  Master_Host: 192.168.2.100
                  Master_User: user_test
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000037
          Read_Master_Log_Pos: 700
               Relay_Log_File: node-142-relay-bin.000001
                Relay_Log_Pos: 4
        Relay_Master_Log_File: mysql-bin.000037
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB: flink_cdc
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 700
              Relay_Log_Space: 154
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: NULL
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 0
                  Master_UUID:
             Master_Info_File: /var/lib/mysql/master.info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State:
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61167
                Auto_Position: 0
         Replicate_Rewrite_DB:
                 Channel_Name:
           Master_TLS_Version:
1 row in set (0.00 sec)

show slave status中，Slave_IO_Running及Slave_SQL_Running行程必須是Yes狀態，才是正常開啟了同步，例外情況 Last_IO_Errno，Last_IO_Error， Last_SQL_Errno，Last_SQL_Error會有相應的提示，
設定完成后可以在主庫增刪資料，在從庫驗證同步狀態，這里便不再展開，

三、FlinkCDC從庫同步入湖驗證

3.1 FlinkCDC-Hudi運行環境

這里假定讀者已經搭建好FlinkCDC+Hudi環境，本文操作只記錄驗證FlinkCDC同步mysql主從資料的必要步驟，
FlinkCDC+Hudi環境準備具體程序參見 FlinkCDC-Hudi:Mysql資料實時入湖全攻略一：初試風云

3.1.1 mysql測驗表準備

在主庫中創建測驗表1

mysql> use flink_cdc;
mysql> CREATE TABLE `test_1` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `data` varchar(10) DEFAULT NULL,
  `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
## 重復執行，插入多條資料
mysql> insert into test_1(data) values('data');

3.1.2 使用FlinkSql啟動同步作業

3.1.2.1 啟動FlinkSql

FLINK_HOME/bin/yarn-session.sh -s 4 -jm 1024 -tm 2048 -nm flink-hudi-0.10 -d
FLINK_HOME/bin/sql-client.sh embedded -s yarn-session -j ./lib/hudi-flink-bundle_2.11-0.10.0.jar shell

3.1.2.2 在FlinkSql中啟動作業

Flink SQL> set execution.checkpointing.interval=30sec;

##創建flinksql mysqlcdc表
Flink SQL> create table mysql_test_1(
id bigint primary key not enforced,
data String,
create_time Timestamp(3)
) with (
'connector'='mysql-cdc',
'hostname'='192.168.2.101',    --從從庫1開始同步，切換為主庫或從庫2時修改為對應的ip
'port'='3306',
'server-id'='5600-5604',
'username'='user_test',
'password'='user_test_password',
'server-time-zone'='Asia/Shanghai',
'debezium.snapshot.mode'='initial',
'database-name'='flink_cdc',
'table-name'='test_1'
)

##創建flinksql hudi表
Flink SQL> create table hudi_test_1(
id bigint,
data String,
create_time Timestamp(3),
PRIMARY KEY (`id`) NOT ENFORCED
)
with(
'connector'='hudi',
'path'='hdfs:///tmp/flink/cdcata/hudi_test_1',
'hoodie.datasource.write.recordkey.field'='id',
'hoodie.parquet.max.file.size'='268435456',
'write.precombine.field'='create_time',
'write.tasks'='1',
'write.bucket_assign.tasks'='1',
'write.task.max.size'='1024',
'write.rate.limit'='30000',
'table.type'='MERGE_ON_READ',
'compaction.tasks'='1',
'compaction.async.enabled'='true',
'compaction.delta_commits'='1',
'compaction.max_memory'='500',
'changelog.enabled'='true',
'read.streaming.enabled'='true',
'read.streaming.check.interval'='3',
'hive_sync.enable'='true',
'hive_sync.mode'='hms',
'hive_sync.metastore.uris'='thrift://hiveserver2:9083',
'hive_sync.db'='test',
'hive_sync.table'='hudi_test_1',
'hive_sync.username'='flinkcdc',
'hive_sync.support_timestamp'='true'
);
##啟動flink作業
Flink SQL> set pipeline.name = flinkcdc_test_1;
Flink SQL> set execution.checkpointing.externalized-checkpoint-retention= RETAIN_ON_CANCELLATION;
Flink SQL> insert into hudi_test_1 select * from mysql_test_1;

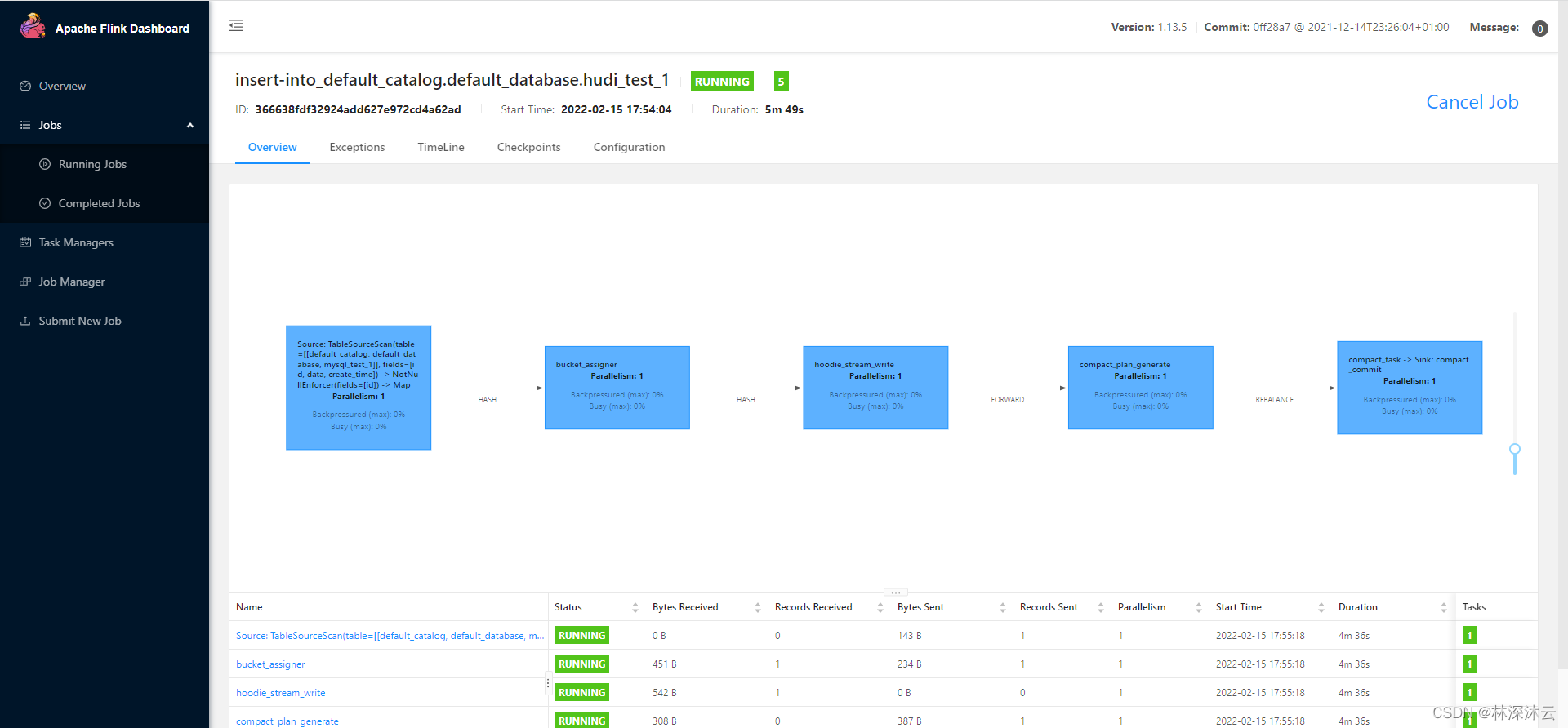

3.1.2.3 成功啟動作業

在這里插入圖片描述

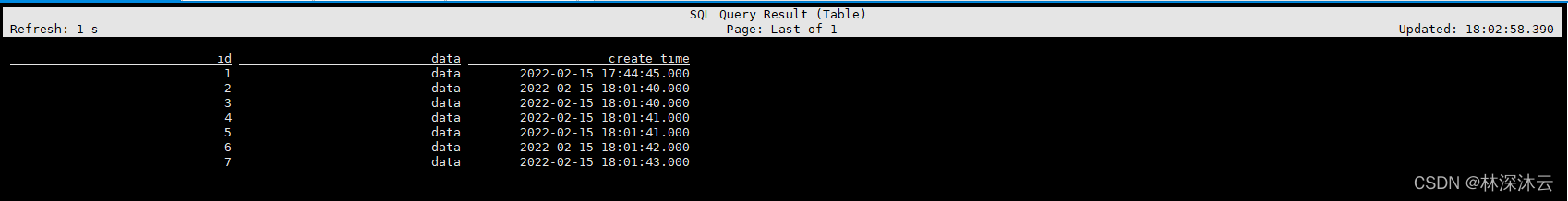

3.1.2.4 在FlinkSQL中驗證hudi落地的資料，

Flink SQL> select * from hudi_test_1;

在這里插入圖片描述

3.2 模擬從庫資料同步例外

目前我們搭建的環境是一主二從，這里驗證從一例外，切換到從二，當然也可以切到主，切換驗證的流程是一樣的，但一般生產環境不會直接從主庫同步資料，

3.2.1 模擬從庫例外

這里我們直接停掉從庫1，模擬從庫宕機，在從庫1中關掉mysql，

service mysql stop

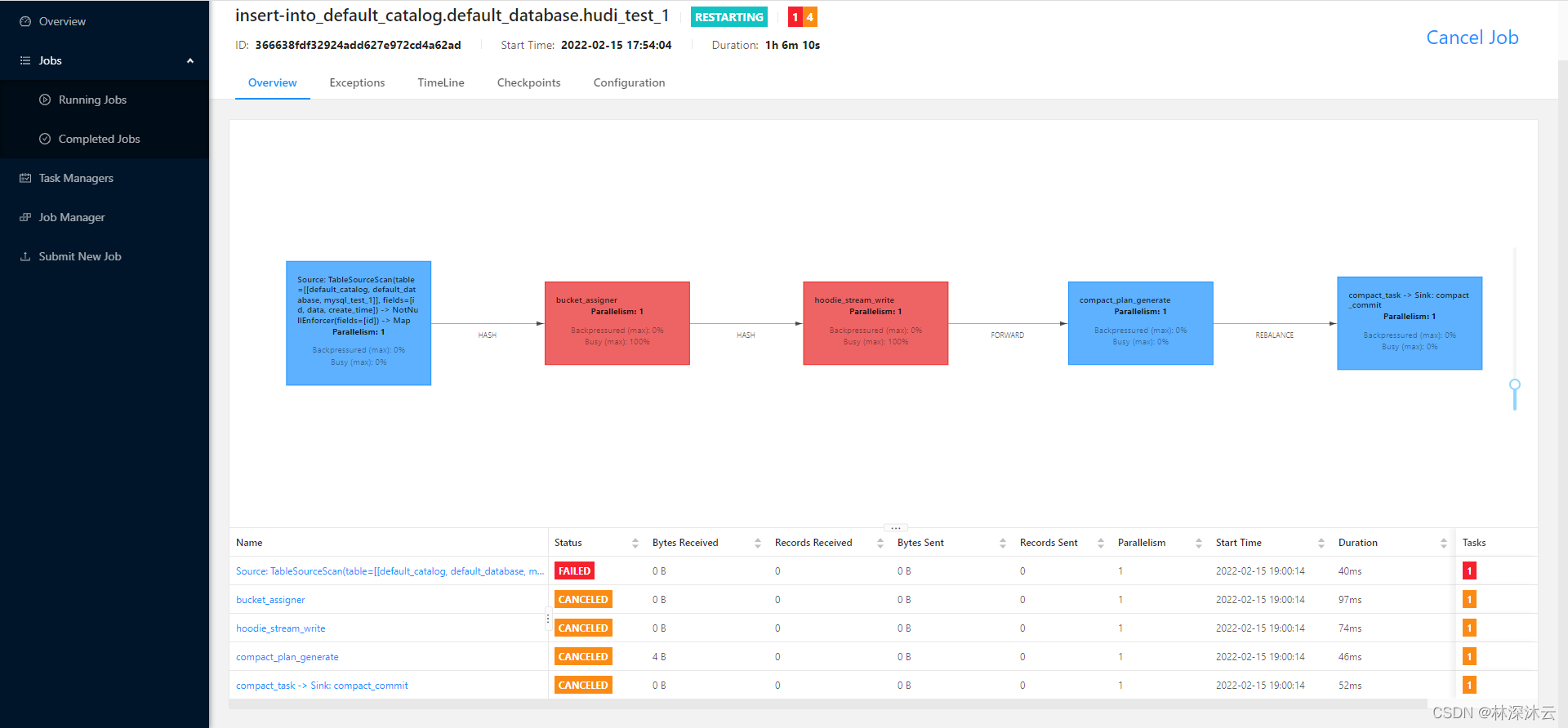

這時flink作業會掛掉，
在這里插入圖片描述
查看flink作業的例外記錄，可以觀察到兩種例外，
一種是服務連接超時，沒有收到mysql服務端的回應，

-- The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

另一種是Flink作業不斷重啟產生的One or more fetchers have encountered exception，由于flinkcdc通過模擬slave的行為來同步binlog，每個slave都會有一個serverid（在flinksql mysql表的定義中配置，‘server-id’=‘5600-5604’），作業重啟時會使用相同的serverid，當重啟flink作業的間隔小于flink與mysql連接的超時時長會，會報這個例外，

這兩個例外的詳細例外堆疊資訊如下：

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at com.mysql.cj.jdbc.exceptions.SQLError.createCommunicationsException(SQLError.java:174)
	at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:64)
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:836)
	at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:456)
	at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:246)
	at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:197)
	at io.debezium.jdbc.JdbcConnection.lambda$patternBasedFactory$1(JdbcConnection.java:231)
	at io.debezium.jdbc.JdbcConnection.connection(JdbcConnection.java:872)
	at io.debezium.connector.mysql.MySqlConnection.connection(MySqlConnection.java:79)
	at io.debezium.jdbc.JdbcConnection.connection(JdbcConnection.java:867)
	at io.debezium.jdbc.JdbcConnection.query(JdbcConnection.java:550)
	at io.debezium.jdbc.JdbcConnection.query(JdbcConnection.java:498)
	at io.debezium.connector.mysql.MySqlConnection.querySystemVariables(MySqlConnection.java:125)
	... 15 more
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
	at sun.reflect.GeneratedConstructorAccessor47.newInstance(Unknown Source)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:61)
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:105)
	at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:151)
	at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:167)
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:91)
	at com.mysql.cj.NativeSession.connect(NativeSession.java:144)
	at com.mysql.cj.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:956)
	at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:826)
	... 25 more
Caused by: java.net.ConnectException: Connection refused (Connection refused)
	at java.net.PlainSocketImpl.socketConnect(Native Method)
	at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
	at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
	at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
	at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
	at java.net.Socket.connect(Socket.java:589)
	at com.mysql.cj.protocol.StandardSocketFactory.connect(StandardSocketFactory.java:155)
	at com.mysql.cj.protocol.a.NativeSocketConnection.connect(NativeSocketConnection.java:65)
	... 28 more

2022-02-15 19:00:54
java.lang.RuntimeException: One or more fetchers have encountered exception
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcherManager.checkErrors(SplitFetcherManager.java:223)
	at org.apache.flink.connector.base.source.reader.SourceReaderBase.getNextFetch(SourceReaderBase.java:154)
	at org.apache.flink.connector.base.source.reader.SourceReaderBase.pollNext(SourceReaderBase.java:116)
	at org.apache.flink.streaming.api.operators.SourceOperator.emitNext(SourceOperator.java:294)
	at org.apache.flink.streaming.runtime.io.StreamTaskSourceInput.emitNext(StreamTaskSourceInput.java:69)
	at org.apache.flink.streaming.runtime.io.StreamOneInputProcessor.processInput(StreamOneInputProcessor.java:66)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.processInput(StreamTask.java:423)
	at org.apache.flink.streaming.runtime.tasks.mailbox.MailboxProcessor.runMailboxLoop(MailboxProcessor.java:204)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.runMailboxLoop(StreamTask.java:684)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.executeInvoke(StreamTask.java:639)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.runWithCleanUpOnFail(StreamTask.java:650)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.invoke(StreamTask.java:623)
	at org.apache.flink.runtime.taskmanager.Task.doRun(Task.java:779)
	at org.apache.flink.runtime.taskmanager.Task.run(Task.java:566)
	at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.RuntimeException: SplitFetcher thread 0 received unexpected exception while polling the records
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.runOnce(SplitFetcher.java:148)
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.run(SplitFetcher.java:103)
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	... 1 more
Caused by: io.debezium.DebeziumException: Error reading MySQL variables: Communications link failure

3.2.2 人為制造從庫狀態同步不一致

這時持續對主庫寫入多條資料，這樣兩個從庫的狀態就會出現不一致，
a. 通過show slave status\G查看從庫已從主庫同步的資料點位，

Master_Log_File: mysql-bin.000039
Read_Master_Log_Pos: 2759
Relay_Log_File: node-142-relay-bin.000006
Relay_Log_Pos: 2885
Relay_Master_Log_File: mysql-bin.000039

b. 這里只能查詢從庫二的狀態，因為從庫一掛了，但我們通過兩個從庫生成的binlog檔案來比較同步的狀態，可以簡單地查看binlog檔案的修改時間比較同步差異，
查詢mysql資料保存的目錄：

mysql> show variables like '%dir%';
+-----------------------------------------+----------------------------+
| Variable_name                           | Value                      |
+-----------------------------------------+----------------------------+
| datadir                                 | /var/lib/mysql/            |

ll 資料目錄看看binlog檔案生成的狀態，

ll /var/lib/mysql/

查看從庫1的binlog狀態：

-rw-r----- 1 mysql mysql      241 Feb 15 00:10 mysql-bin.000035
-rw-r----- 1 mysql mysql      723 Feb 15 17:08 mysql-bin.000036
-rw-r----- 1 mysql mysql     2786 Feb 15 18:57 mysql-bin.000037
-rw-r----- 1 mysql mysql      488 Feb 16 10:22 mysql-bin.000038
-rw-r----- 1 mysql mysql      759 Feb 16 10:37 mysql-bin.000039
-rw-r----- 1 mysql mysql      247 Feb 16 10:29 mysql-bin.index

查看從庫2的binlog狀態：

-rw-r----- 1 mysql mysql      177 Feb 15 15:12 mysql-bin.000001
-rw-r----- 1 mysql mysql     2770 Feb 16 00:10 mysql-bin.000002
-rw-r----- 1 mysql mysql     2593 Feb 16 10:50 mysql-bin.000003
-rw-r----- 1 mysql mysql       96 Feb 16 00:10 mysql-bin.index

從庫1的mysql-bin.000039在10：37已經停止更新，而從庫二的mysql-bin.000003持續在更新，
通過mysqlbinlog來讀取檔案比較差異，筆者這里從庫一遠早于從庫二的搭建，所以從庫一的binlog檔案序號更大，
從庫一：

mysqlbinlog --start-datetime='2022-02-16 10:00:00' /var/lib/mysql/mysql-bin.000039

# at 705
#220216 10:37:15 server id 1  end_log_pos 736 CRC32 0x8523929e 	Xid = 183
COMMIT/*!*/;
# at 736
#220216 10:37:48 server id 2  end_log_pos 759 CRC32 0x238de33d 	Stop

從庫二：

mysqlbinlog --start-datetime='2022-02-16 10:00:00'  --stop-datetime='2020-02-16 11:00:00'  --no-defaults /var/lib/mysql/mysql-bin.000003

#220216 10:50:42 server id 1  end_log_pos 2562 CRC32 0x5e8d4964 	Write_rows: table id 156 flags: STMT_END_F

BINLOG '
gmYMYhMBAAAAOwAAAM0JAAAAAJwAAAAAAAEACWZsaW5rX2NkYwAGdGVzdF8xAAMIDxEDKAAAAhD4
QQc=
gmYMYh4BAAAANQAAAAIKAAAAAJwAAAAAAAEAAgAD//gQAAAAAAAAAARkYXRhYgxmgmRJjV4=
'/*!*/;
# at 2562
#220216 10:50:42 server id 1  end_log_pos 2593 CRC32 0xbc78edd3 	Xid = 486
COMMIT/*!*/;
# at 2593
#220216 11:39:28 server id 3  end_log_pos 2616 CRC32 0x3fe31a47 	Stop

3.3 FlinkCDC mysql高可用第一次驗證

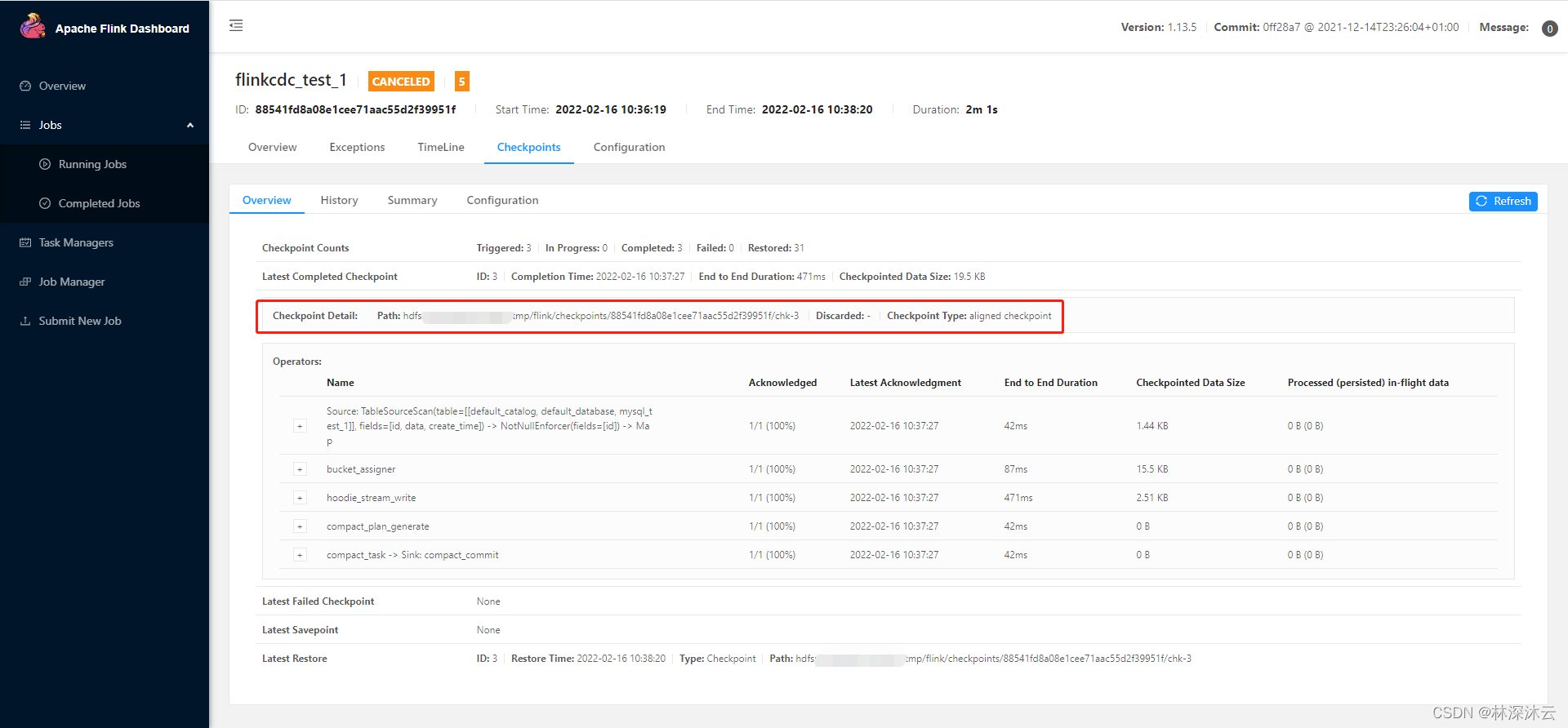

3.3.1 從作業checkpoint資訊中獲取最后一次的checkpoint資訊

在這里插入圖片描述

3.3.2 切換到重庫2

把mysql_test_1的hostname切為從庫2，

Flink SQL> drop table mysql_test_1;
Flink SQL> create table mysql_test_1(
> id bigint primary key not enforced,
> data String,
> create_time Timestamp(3)
> ) with (
> 'connector'='mysql-cdc',
> 'hostname'='192.168.2.102',
> 'port'='3306',
> 'server-id'='5600-5604',
> 'username'='user_flink',
> 'password'='flink@testdb',
> 'server-time-zone'='Asia/Shanghai',
> 'debezium.snapshot.mode'='initial',
> 'database-name'='flink_cdc',
> 'table-name'='test_1'
> );

3.1.3 通過checkpoint重啟

Flink SQL> set 'execution.savepoint.path'='hdfs:///tmp/flink/checkpoints/88541fd8a08e1cee71aac55d2f39951f/chk-3'
Flink SQL> insert into hudi_test_1 select * from mysql_test_1;

這時候在flink web ui上查看新啟動的作業，發現作業重啟是失敗的，查看例外堆疊，提示binlog的檔案已經不存在，無法正常啟動作業，

 The connector is trying to read binlog starting at Struct{version=1.5.4.Final,connector=mysql,name=mysql_binlog_source,ts_ms=1644982889087,db=,server_id=0,file=mysql-bin.000039,pos=530,row=0}, but this is no longer available on the server. Reconfigure the connector to use a snapshot when needed.

例外資訊里提示的“file=mysql-bin.000039,pos=530”實際上是從庫一生成的binlog檔案與flinkcdc已經同步到的點位，這是checkpoint時保存下來的同步狀態，
而我們在前面的Binlog檔案分析中知道，從庫二的最新Binlog是mysql-bin.000003，這樣我們就發現從庫一和從庫二的binlog檔案不一致，是無法直接從checkpoint中進行主從切換的，

例外堆疊詳細資訊如下：

2022-02-16 11:41:29
java.lang.RuntimeException: One or more fetchers have encountered exception
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcherManager.checkErrors(SplitFetcherManager.java:223)
	at org.apache.flink.connector.base.source.reader.SourceReaderBase.getNextFetch(SourceReaderBase.java:154)
	at org.apache.flink.connector.base.source.reader.SourceReaderBase.pollNext(SourceReaderBase.java:116)
	at org.apache.flink.streaming.api.operators.SourceOperator.emitNext(SourceOperator.java:294)
	at org.apache.flink.streaming.runtime.io.StreamTaskSourceInput.emitNext(StreamTaskSourceInput.java:69)
	at org.apache.flink.streaming.runtime.io.StreamOneInputProcessor.processInput(StreamOneInputProcessor.java:66)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.processInput(StreamTask.java:423)
	at org.apache.flink.streaming.runtime.tasks.mailbox.MailboxProcessor.runMailboxLoop(MailboxProcessor.java:204)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.runMailboxLoop(StreamTask.java:684)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.executeInvoke(StreamTask.java:639)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.runWithCleanUpOnFail(StreamTask.java:650)
	at org.apache.flink.streaming.runtime.tasks.StreamTask.invoke(StreamTask.java:623)
	at org.apache.flink.runtime.taskmanager.Task.doRun(Task.java:779)
	at org.apache.flink.runtime.taskmanager.Task.run(Task.java:566)
	at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.RuntimeException: SplitFetcher thread 0 received unexpected exception while polling the records
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.runOnce(SplitFetcher.java:148)
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.run(SplitFetcher.java:103)
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	... 1 more
Caused by: java.lang.IllegalStateException: The connector is trying to read binlog starting at Struct{version=1.5.4.Final,connector=mysql,name=mysql_binlog_source,ts_ms=1644982889087,db=,server_id=0,file=mysql-bin.000039,pos=530,row=0}, but this is no longer available on the server. Reconfigure the connector to use a snapshot when needed.
	at com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext.loadStartingOffsetState(StatefulTaskContext.java:179)
	at com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext.configure(StatefulTaskContext.java:113)
	at com.ververica.cdc.connectors.mysql.debezium.reader.BinlogSplitReader.submitSplit(BinlogSplitReader.java:93)
	at com.ververica.cdc.connectors.mysql.debezium.reader.BinlogSplitReader.submitSplit(BinlogSplitReader.java:65)
	at com.ververica.cdc.connectors.mysql.source.reader.MySqlSplitReader.checkSplitOrStartNext(MySqlSplitReader.java:147)
	at com.ververica.cdc.connectors.mysql.source.reader.MySqlSplitReader.fetch(MySqlSplitReader.java:69)
	at org.apache.flink.connector.base.source.reader.fetcher.FetchTask.run(FetchTask.java:56)
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.runOnce(SplitFetcher.java:140)
	... 6 more

3.4 FlinkCDC mysql高可用第二次驗證

根據最新的FlinkCDC mysql connector官方檔案，mysqlcdc是支持高可用的，為什么會驗證失敗呢？我們深挖官方檔案發現，要實作高可用，mysql要開啟gtid，

3.4.1 GTID簡介

3.4.1.1 GTID是什么

Gtid是mysql在5.7引入的新特征，用于解決使用binlog - potition機制進行主從同步時缺憾：就像我們前面驗證的一樣，無法應對高可用！

GTID (Global Transaction ID)是全域事務ID,由主庫上生成的與事務系結的唯一標識，這個標識不僅在主庫上是唯一的，在MySQL集群內也是唯一的，
GTID由 server_uuid:transaction_id組成，server_uuid是mysql實體的uuid，transaction_id代表該實體上執行的事務數量，隨事務執行的數量自增，

3.4.1.2 GTID示例

下面是一個gtid示例：

d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169

其中d667b1cd-778a-11ec-aa60-6c92bf64e18c是服務uuid，1-61169代碼該實體執行了執行為id從1到61169的61169個事務，

3.4.1.3 GTID的尋址方式

開啟gtid后，會在binlog檔案頭部加上前一個binlog檔案的gtid范圍，尋址時通過比較gtid的范圍，確認所要同步的gtid所在binlog的位置，示意如下：

mysql-binlog.00001 previous-gtids:empty
mysql-binlog.00002 previous-gtids:1-100
mysql-binlog.00003 previous-gtids:101-200

尋找gtid=50，會從最新的binlog檔案mysql-binlog.00003讀取previous-gtids:101-200，比較50與101-200，確認50比101小，則往前兩個檔案查找，即從mysql-binlog.00001查找，

補充：
更多的gtid知識可以參見：
MySQL5.7殺手級新特性：GTID原理與實戰

下面我們踏上gtid高可用驗證之路，

3.4.2 mysql開啟gtid

對應mysql的組態檔（/etc/msyql/my.cnf）里添加以下配置：
主庫配置：

gtid_mode = on
enforce_gtid_consistency = on

從庫配置：

gtid_mode = on
enforce_gtid_consistency = on
log-slave-updates = 1

修改完配置后，重啟mysql服務：

service mysql restart

通過mysql-cli連接從庫，show slave status\G查看從庫slave的同步狀態，
從庫一模擬例外時與主庫有同步延遲，開啟gtid和沒開啟gtid的binlog決議是不一樣的，這時從庫一會顯示Slave_IO_Running=No，Last_IO_Error提示決議失敗，

Slave_IO_Running: No
Slave_SQL_Running: Yes
Last_IO_Error: Got fatal error 1236 from master when reading data from binary log: 'Cannot replicate anonymous transaction when @@GLOBAL.GTID_MODE = ON, at file /var/lib/mysql/mysql-bin.000039, position 1049.; the first event 'mysql-bin.000039' at 1049, the last event read from '/var/lib/mysql/mysql-bin.000039' at 1114, the last byte read from '/var/lib/mysql/mysql-bin.000039' at 1114.'

這時可以回滾主從庫的配置，重啟從庫一，讓從庫一在關閉gtid_mode完成同步后，再更新配置，
如果在更新配置程序中，主從庫gtid_mode不是同樣的狀態，會報以下錯誤，
將狀態修改為同一樣狀態即可，

Slave_IO_Running: No
Slave_SQL_Running: Yes
Last_IO_Error: The replication receiver thread cannot start because the master has GTID_MODE = ON and this server has GTID_MODE = OFF.

順利開啟gtid mode之后，每次更新資料陳述句執行時都會生成一個gtid，我們可以通過show master/slave status查看gtid的同步狀態，
master狀態：

mysql> show master status\G;
*************************** 1. row ***************************
             File: mysql-bin.000042
         Position: 764
     Binlog_Do_DB:
 Binlog_Ignore_DB:
Executed_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169

從庫一狀態：

mysql> show slave status\G;
##只截取gtid相關的資訊
*************************** 1. row ***************************
                  Master_UUID: d667b1cd-778a-11ec-aa60-6c92bf64e18c
           Retrieved_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169
            Executed_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169
1 row in set (0.00 sec)

從庫二狀態：

mysql> show slave status\G;
*************************** 1. row ***************************
                  Master_UUID: d667b1cd-778a-11ec-aa60-6c92bf64e18c
           Retrieved_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:61168-61169
            Executed_Gtid_Set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169

可見主從庫資料同步都到了最新的gtid: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61169，

3.4.3 重啟作業生成含gtid的checkpoint

將mysql_test_1的Host設定為從庫一，讓作業從從庫一生成的checkpoint中恢復，作業成功運行后kill掉從庫一，這時作業會報錯，現象與前述程序一致，不再贅述，

注意：
線上環境中，如果故障沒有恢復時更多的是從新的從庫中同步，

3.4.4 從含gtid的checkpoint中恢復

我們從web ui中拿到含有gtid的checkpoint進行作業重啟，發現依然是報binlog檔案例外，

Caused by: java.lang.IllegalStateException: The connector is trying to read binlog starting at Struct{version=1.5.4.Final,connector=mysql,name=mysql_binlog_source,ts_ms=1645074443471,db=,server_id=0,file=mysql-bin.000044,pos=194,row=0}, but this is no longer available on the server. Reconfigure the connector to use a snapshot when needed.
	at com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext.loadStartingOffsetState(StatefulTaskContext.java:179)
	at com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext.configure(StatefulTaskContext.java:113)
	at com.ververica.cdc.connectors.mysql.debezium.reader.BinlogSplitReader.submitSplit(BinlogSplitReader.java:93)
	at com.ververica.cdc.connectors.mysql.debezium.reader.BinlogSplitReader.submitSplit(BinlogSplitReader.java:65)
	at com.ververica.cdc.connectors.mysql.source.reader.MySqlSplitReader.checkSplitOrStartNext(MySqlSplitReader.java:147)
	at com.ververica.cdc.connectors.mysql.source.reader.MySqlSplitReader.fetch(MySqlSplitReader.java:69)
	at org.apache.flink.connector.base.source.reader.fetcher.FetchTask.run(FetchTask.java:56)
	at org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher.runOnce(SplitFetcher.java:140)
	... 6 more

3.4.5 例外原始碼分析

是gtid沒有生效？查看taskmanager的日志，checkpoint中已經包含gtid資訊，也傳遞給了SourceReaderBase，

2022-02-17 13:00:54,205 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Adding split(s) to reader: [MySqlBinlogSplit{splitId='binlog-split', offset={ts_sec=0, file=mysql-bin.000044, pos=194, gtids=d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61239, row=0, event=0}, endOffset={ts_sec=0, file=, pos=-9223372036854775808, row=0, event=0}}]

再查例外堆疊里的代碼, StatefulTaskContext里loadStartingOffsetState判斷isBinlogAvailable，binlog不可用就拋例外，

    private MySqlOffsetContext loadStartingOffsetState(
            OffsetContext.Loader loader, MySqlSplit mySqlSplit) {
        BinlogOffset offset =
                mySqlSplit.isSnapshotSplit()
                        ? BinlogOffset.INITIAL_OFFSET
                        : mySqlSplit.asBinlogSplit().getStartingOffset();

        MySqlOffsetContext mySqlOffsetContext =
                (MySqlOffsetContext) loader.load(offset.getOffset());

        if (!isBinlogAvailable(mySqlOffsetContext)) {
            throw new IllegalStateException(
                    "The connector is trying to read binlog starting at "
                            + mySqlOffsetContext.getSourceInfo()
                            + ", but this is no longer "
                            + "available on the server. Reconfigure the connector to use a snapshot when needed.");
        }
        return mySqlOffsetContext;
    }

而isBinlogAvailable只判斷了是否找到檔案名，而沒有判斷gtidset，


    private boolean isBinlogAvailable(MySqlOffsetContext offset) {
        String binlogFilename = offset.getSourceInfo().getString(BINLOG_FILENAME_OFFSET_KEY);
        if (binlogFilename == null) {
            return true; // start at current position
        }
        if (binlogFilename.equals("")) {
            return true; // start at beginning
        }

        // Accumulate the available binlog filenames ...
        List<String> logNames = connection.availableBinlogFiles();

        // And compare with the one we're supposed to use ...
        boolean found = logNames.stream().anyMatch(binlogFilename::equals);
        if (!found) {
            LOG.info(
                    "Connector requires binlog file '{}', but MySQL only has {}",
                    binlogFilename,
                    String.join(", ", logNames));
        } else {
            LOG.info("MySQL has the binlog file '{}' required by the connector", binlogFilename);
        }
        return found;
    }

3.4.6 gtid bugfix

前面在3.4.1.3講述了Gtid的尋址方式，mysql高可以模式下，切換主庫時，slave會根據已同步到的gtid，對比master binlog檔案的previous gtidset，最終確認要從新master的哪個binlog檔案開始同步，而原始碼根本沒有這樣一個尋址步驟，

所以很確認的是，flinkcdc bug了，上github提bug去，gtid沒有生效

根據githup上的反饋，有位兄弟21年年底已經發現了這個bug，并在一月份提交了bugfix[mysql] update check gtid set #761，但目前的修改代碼還沒有合入master分支，

查看對方修改的代碼，在isBinlogAvailable增加了checkGtidSet

    private boolean isBinlogAvailable(MySqlOffsetContext offset) {
        String gtidStr = offset.gtidSet();
        if (gtidStr != null) {
            return checkGtidSet(offset);
        }
        return checkBinlogFilename(offset);
    }

checkGtidSet里做了以下幾件事：
1、查詢了master的gtidset–availableGtidStr ，
2、和checkpoint的gtidset對比，計算出需要同步的gtid范圍gtidSetToReplicate，
3、查詢是否清除過gtid–purgedGtidSet，和gtidSetToReplicate對比計算出沒有清除的范圍，確認沒有清除過，就從checkpoint中續點同步，否則重新開始全量同步，

    private boolean checkGtidSet(MySqlOffsetContext offset) {
        String gtidStr = offset.gtidSet();

        if (gtidStr.trim().isEmpty()) {
            return true; // start at beginning ...
        }

        String availableGtidStr = connection.knownGtidSet();
        if (availableGtidStr == null || availableGtidStr.trim().isEmpty()) {
            // Last offsets had GTIDs but the server does not use them ...
            LOG.warn(
                    "Connector used GTIDs previously, but MySQL does not know of any GTIDs or they are not enabled");
            return false;
        }
        // GTIDs are enabled
        GtidSet gtidSet = new GtidSet(gtidStr);
        // Get the GTID set that is available in the server ...
        GtidSet availableGtidSet = new GtidSet(availableGtidStr);
        if (gtidSet.isContainedWithin(availableGtidSet)) {
            LOG.info(
                    "MySQL current GTID set {} does contain the GTID set {} required by the connector.",
                    availableGtidSet,
                    gtidSet);
            // The replication is concept of mysql master-slave replication protocol ...
            final GtidSet gtidSetToReplicate =
                    connection.subtractGtidSet(availableGtidSet, gtidSet);
            final GtidSet purgedGtidSet = connection.purgedGtidSet();
            LOG.info("Server has already purged {} GTIDs", purgedGtidSet);
            final GtidSet nonPurgedGtidSetToReplicate =
                    connection.subtractGtidSet(gtidSetToReplicate, purgedGtidSet);
            LOG.info(
                    "GTID set {} known by the server but not processed yet, for replication are available only GTID set {}",
                    gtidSetToReplicate,
                    nonPurgedGtidSetToReplicate);
            if (!gtidSetToReplicate.equals(nonPurgedGtidSetToReplicate)) {
                LOG.warn("Some of the GTIDs needed to replicate have been already purged");
                return false;
            }
            return true;
        }
        LOG.info("Connector last known GTIDs are {}, but MySQL has {}", gtidSet, availableGtidSet);
        return false;
    }

3.4.7 合并bugfix代碼，驗證高可用

從gitbub中下載代碼（https://github.com/ververica/flink-cdc-connectors.git），將bugfix–gtid沒有生效的代碼修改入master，編譯打包，更新到flink環境中，從走上述驗證程序，觀察到：
1、切換主從時，沒有再報binlog檔案找不到例外，
2、作業從checkpoint中開始同步，而不是全量，
現象表明，mysqlcdc高可用切換成功，

我們查看運行日志，進一步驗證：
1、獲取初始gtids=d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282
2、確認MySQL 當前GTIDset d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61290 包含初始 GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282，
3、計算可同步的GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:61283-61290，
4、設定同步起點開始同步，

詳細日志如下：

2022-02-17 20:05:55,961 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Adding split(s) to reader: [MySqlBinlogSplit{splitId='binlog-split', offset={ts_sec=0, file=mysql-bin.000005, pos=31359, gtids=d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282, row=0, event=0}, endOffset={ts_sec=0, file=, pos=-9223372036854775808, row=0, event=0}, isSuspended=false}]
2022-02-17 20:05:55,966 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher [] - Starting split fetcher 0
2022-02-17 20:05:55,970 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Source: TableSourceScan(table=[[default_catalog, default_database, mysql_test_1]], fields=[id, data, create_time]) -> NotNullEnforcer(fields=[id]) -> Map (1/1)#0 (7fdfa75135e212f596f80bd2716e0837) switched from INITIALIZING to RUNNING.
com.ververica.cdc.connectors.mysql.source.reader.MySqlSplitReader [] - BinlogSplitReader is created.
2022-02-17 20:05:56,237 INFO  com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext [] - MySQL current GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61290 does contain the GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282 required by the connector.
2022-02-17 20:05:56,247 INFO  com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext [] - Server has already purged d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61103 GTIDs
2022-02-17 20:05:56,248 INFO  com.ververica.cdc.connectors.mysql.debezium.task.context.StatefulTaskContext [] - GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:61283-61290 known by the server but not processed yet, for replication are available only GTID set d667b1cd-778a-11ec-aa60-6c92bf64e18c:61283-61290
2022-02-17 20:05:56,248 INFO  io.debezium.relational.history.DatabaseHistoryMetrics        [] - Started database history recovery
2022-02-17 20:05:56,249 INFO  io.debezium.relational.history.DatabaseHistoryMetrics        [] - Finished database history recovery of 0 change(s) in 1 ms
2022-02-17 20:05:56,277 INFO  io.debezium.util.Threads                                     [] - Requested thread factory for connector MySqlConnector, id = mysql_binlog_source named = binlog-client
2022-02-17 20:05:56,287 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - GTID set purged on server: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61103
2022-02-17 20:05:56,287 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Attempting to generate a filtered GTID set
2022-02-17 20:05:56,287 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - GTID set from previous recorded offset: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282
2022-02-17 20:05:56,288 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - GTID set available on server: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61290
2022-02-17 20:05:56,288 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Using first available positions for new GTID channels
2022-02-17 20:05:56,288 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Relevant GTID set available on server: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61290
2022-02-17 20:05:56,289 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Final merged GTID set to use when connecting to MySQL: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282
2022-02-17 20:05:56,289 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Registering binlog reader with GTID set: d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282
2022-02-17 20:05:56,289 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Skip 0 events on streaming start
2022-02-17 20:05:56,289 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Skip 0 rows on streaming start
2022-02-17 20:05:56,290 INFO  io.debezium.util.Threads                                     [] - Creating thread debezium-mysqlconnector-mysql_binlog_source-binlog-client
2022-02-17 20:05:56,293 INFO  io.debezium.util.Threads                                     [] - Creating thread debezium-mysqlconnector-mysql_binlog_source-binlog-client
2022-02-17 20:05:56,302 INFO  io.debezium.connector.mysql.MySqlStreamingChangeEventSource  [] - Connected to MySQL binlog at 10.130.49.141:3306, starting at MySqlOffsetContext [sourceInfoSchema=Schema{io.debezium.connector.mysql.Source:STRUCT}, sourceInfo=SourceInfo [currentGtid=null, currentBinlogFilename=mysql-bin.000005, currentBinlogPosition=31359, currentRowNumber=0, serverId=0, sourceTime=null, threadId=-1, currentQuery=null, tableIds=[], databaseName=null], partition={server=mysql_binlog_source}, snapshotCompleted=false, transactionContext=TransactionContext [currentTransactionId=null, perTableEventCount={}, totalEventCount=0], restartGtidSet=d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282, currentGtidSet=d667b1cd-778a-11ec-aa60-6c92bf64e18c:1-61282, restartBinlogFilename=mysql-bin.000005, restartBinlogPosition=31359, restartRowsToSkip=0, restartEventsToSkip=0, currentEventLengthInBytes=0, inTransaction=false, transactionId=null]

四、總結

至此，能過三輪驗證，確認flinkcdc可以支持mysql高可用，需要條件是:
1、mysql服務開啟gtid_mode
2、目前官方發布的版本（2.2-SNAPSHOT）存在bug，不可以直接支持高可用，需要人工合并bugfix的代碼，自行編譯后才可以正常使用，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/426515.html

標籤：其他

上一篇：教你用Elastic Search：運行第一條Hello World搜索命令

下一篇：Dubbo系列之與ZooKeeper&SpringCloud集成

FlinkCDC-Hudi:Mysql資料實時入湖全攻略三：探索實作FlinkCDC mysql 主從庫同步高可用

前序：Hudi系列文章：

一、背景

二、驗證前環境準備

2.1 FlinkCDC+Hudi環境準備

2.2 Mysql主從庫環境準備

2.2 主從庫配置

2.2.1 主庫配置

2.2.2 從庫安裝與配置

2.2.3 從庫資料初始化

2.2.4 主庫授權

2.2.4 開啟從庫同步

三、FlinkCDC從庫同步入湖驗證

3.1 FlinkCDC-Hudi運行環境

3.1.1 mysql測驗表準備

3.1.2 使用FlinkSql啟動同步作業

3.1.2.1 啟動FlinkSql

3.1.2.2 在FlinkSql中啟動作業

3.1.2.3 成功啟動作業

3.1.2.4 在FlinkSQL中驗證hudi落地的資料，

3.2 模擬從庫資料同步例外

3.2.1 模擬從庫例外

3.2.2 人為制造從庫狀態同步不一致

3.3 FlinkCDC mysql高可用第一次驗證

3.3.1 從作業checkpoint資訊中獲取最后一次的checkpoint資訊

3.3.2 切換到重庫2

3.1.3 通過checkpoint重啟

3.4 FlinkCDC mysql高可用第二次驗證

3.4.1 GTID簡介

3.4.1.1 GTID是什么

3.4.1.2 GTID示例

3.4.1.3 GTID的尋址方式

3.4.2 mysql開啟gtid

3.4.3 重啟作業生成含gtid的checkpoint

3.4.4 從含gtid的checkpoint中恢復

3.4.5 例外原始碼分析

3.4.6 gtid bugfix

3.4.7 合并bugfix代碼，驗證高可用

四、總結
