搭建預備：

ZooKeeper安裝包：https://download.csdn.net/download/qq_38377525/81091193https://download.csdn.net/download/qq_38377525/81091193

dubbo-admin客戶端：https://download.csdn.net/download/qq_38377525/81091530https://download.csdn.net/download/qq_38377525/81091530

zk可視化工具：https://download.csdn.net/download/qq_38377525/81090760https://download.csdn.net/download/qq_38377525/81090760

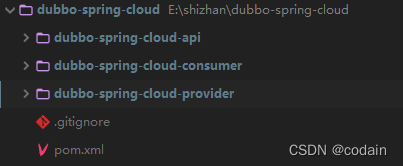

架構說明：

父工程：dubbo-spring-cloud

對外開放的普通maven工程：dubbo-spring-cloud-api

生產者/提供者：dubbo-spring-cloud-provider

消費者：dubbo-spring-cloud-consumer

第一步：創建一個父工程：dubbo-spring-cloud

1、pom檔案資訊如下：

<modules>
        <module>dubbo-spring-cloud-api</module>
        <module>dubbo-spring-cloud-consumer</module>
        <module>dubbo-spring-cloud-provider</module>
</modules>


<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>5.3.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
</dependencies>

<dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.1.11.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.1.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
</dependencyManagement>

第二步：創建一個maven工程：dubbo-spring-cloud-api

1、撰寫一個對外開放的介面類：IHelloService，代碼如下

public interface IHelloService {
    String sayHello(String name);
}

2、然后使用maven命令：mvn clean install -DskipTests在本地構建一下，方便下游服務呼叫

第三步：創建一個springboot提供者服務：dubbo-spring-cloud-provider

1、pom檔案資訊如下：

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.cb</groupId>
            <artifactId>dubbo-spring-cloud-api</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-client</artifactId>
            <version>2.13.0</version>
        </dependency>
</dependencies>

2、實作api介面，代碼如下：

@Service    //服務注冊
@org.springframework.stereotype.Service //spring注入
public class HelloServiceImpl implements IHelloService {
    public String sayHello(String name) {
        return name;
    }
}

3、組態檔如下：

#dubbo相關配置
dubbo.protocol.name=dubbo
dubbo.protocol.port=20880
dubbo.registry.address=zookeeper://192.168.1.107:2181
dubbo.scan.base-packages=com.cb.dubbospringcloudprovider.impl


#cloud相關配置
spring.cloud.zookeeper.connect-string=192.168.1.107:2181
spring.cloud.zookeeper.discovery.instance-host=192.168.1.107
spring.cloud.zookeeper.discovery.instance-port=8088
spring.cloud.zookeeper.discovery.register=true


#spring相關配置
server.port=8088
spring.application.name=dubbo-spring-cloud-provider

4、啟動類如下：

@SpringBootApplication
@EnableDubbo
public class DubboSpringCloudProviderApplication {

    public static void main(String[] args) {
        SpringApplication.run(DubboSpringCloudProviderApplication.class, args);
    }

}

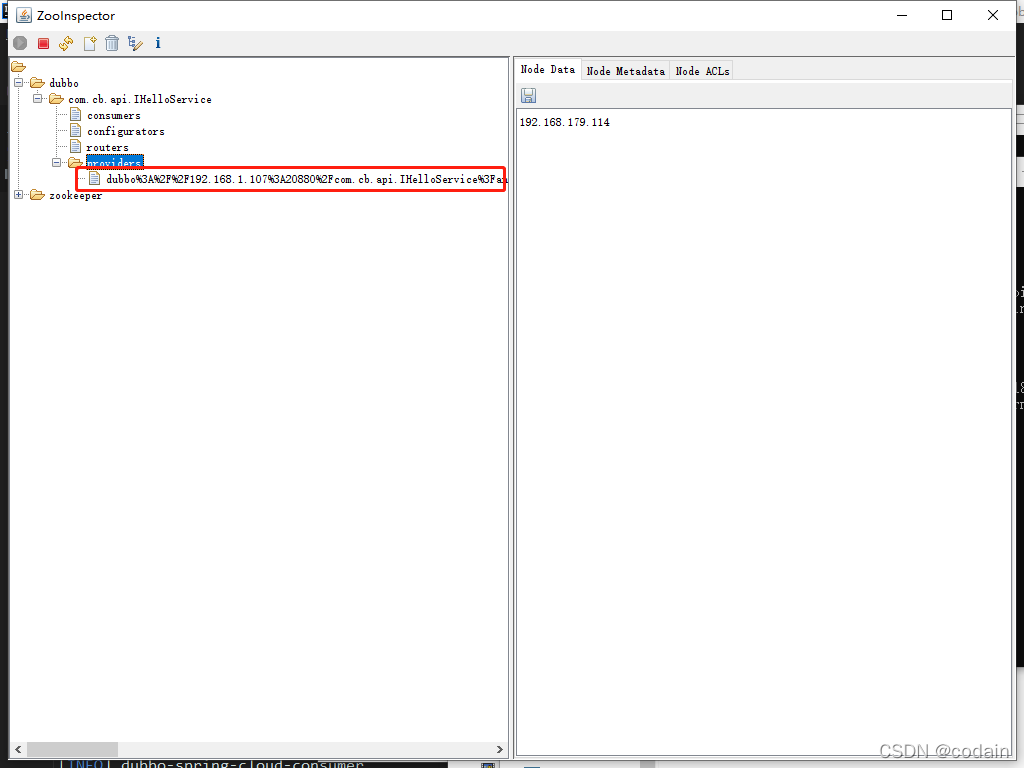

5、然后啟動該類，啟動成功之后，打開zk可視化工具，查看注冊資訊，截圖如下：

說明提供者已被注冊，結構也是正確的

第四步：創建一個springboot消費者服務：dubbo-spring-cloud-consumer

1、pom資訊與提供者的pom相同即可

2、創建一個controller，遠程呼叫提供者和api介面類，實作遠程呼叫

@RestController
public class HelloController {
    @Reference(retries = 0,check = false)
    private IHelloService iHelloService;

    @GetMapping("/say")
    public String sayHello(){
        return iHelloService.sayHello("hello world");
    }
}

3、啟動類如下

@SpringBootApplication
@EnableDiscoveryClient
public class DubboSpringCloudConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(DubboSpringCloudConsumerApplication.class, args);
    }

}

4、組態檔如下：

#指定要遠程呼叫的注冊服務名，不宣告的話默認是掃描全部服務
dubbo.cloud.subscribed-services=dubbo-spring-cloud-provider
#注冊服務名
spring.application.name=dubbo-spring-cloud-consumer
#是否注冊
spring.cloud.zookeeper.discovery.register=true
#注冊中心ip:port字串
spring.cloud.zookeeper.connect-string=192.168.1.107:2181
#掃描需要注冊的類包路徑
dubbo.scan.base-packages=com.cb.dubbospringcloudconsumer
server.port=8070
#注冊節點
dubbo.protocol.name=dubbo
#dubbo服務埠，默認是20880
dubbo.protocol.port=20881
#zk鏈接地址
dubbo.registry.address=zookeeper://192.168.179.114:2181

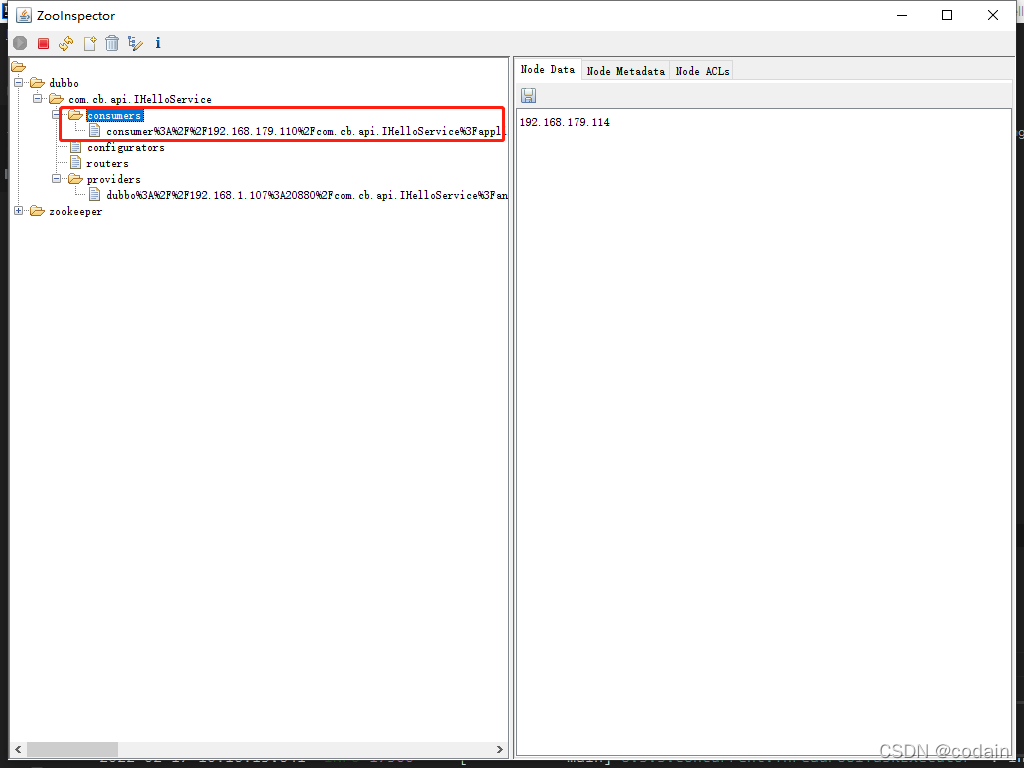

5、然后啟動該類，啟動成功之后，打開zk可視化工具，查看注冊資訊，截圖如下：

說明消費者注冊成功

第五步：遠程呼叫消費者的介面

1、訪問 http://localhost:8070/say

回傳：hello world

回傳正確，集成到這里就結束啦！

demo樣例鏈接：

https://gitee.com/IT_CB/dubbo-spring-cloudhttps://gitee.com/IT_CB/dubbo-spring-cloud
