本系列文章描述了離線環境下以 UPI (User Provisioned Infrastructure) 模式安裝 Openshift Container Platform (OCP) 4.4.5 的步驟，我的環境是 VMware ESXI 虛擬化，也適用于其他方式提供的虛擬機或物理主機，離線資源包括安裝鏡像、所有樣例 Image Stream 和 OperatorHub 中的所有 RedHat Operators，
本系列采用靜態 IP 的方式安裝 OCP 集群，如果你可以隨意分配網路，建議采用 DHCP 的方式，
1. 離線環境
單獨準備一臺節點用來執行安裝任務和離線資源準備，這臺節點最好具備魔法上網的能力，以便可以同時訪問內外網，我們稱這臺節點為基礎節點，
除此之外還需要部署一個私有鏡像倉庫，以供 OCP 安裝和運行時使用，要求支持 version 2 schema 2 (manifest list)，我這里選擇的是 Quay 3.3，鏡像倉庫需要部署在另外一臺節點，因為需要用到 443 埠，與后面的負載均衡埠沖突，
很多人誤以為必須聯系 Red Hat 銷售，簽單之后才能使用 OCP4，其實不然，注冊一個開發者賬號后就可以獲得
quay.io和registry.redhat.io的拉取密鑰了，
2. 準備離線安裝介質
獲取版本資訊
目前最新的 OCP 版本是 4.4.5，可以從這里下載客戶端：
- https://mirror.openshift.com/pub/openshift-v4/clients/ocp/latest-4.4/
解壓出來的二進制檔案放到基礎節點的 $PATH 下，看下版本資訊：
?? → oc adm release info quay.io/openshift-release-dev/ocp-release:4.4.5-x86_64
Name: 4.4.5
Digest: sha256:4a461dc23a9d323c8bd7a8631bed078a9e5eec690ce073f78b645c83fb4cdf74
Created: 2020-05-21T16:03:01Z
OS/Arch: linux/amd64
Manifests: 412
Pull From: quay.io/openshift-release-dev/ocp-release@sha256:4a461dc23a9d323c8bd7a8631bed078a9e5eec690ce073f78b645c83fb4cdf74
Release Metadata:
Version: 4.4.5
Upgrades: 4.3.18, 4.3.19, 4.3.21, 4.3.22, 4.4.2, 4.4.3, 4.4.4
Metadata:
description:
Metadata:
url: https://access.redhat.com/errata/RHBA-2020:2180
Component Versions:
kubernetes 1.17.1
machine-os 44.81.202005180831-0 Red Hat Enterprise Linux CoreOS
Images:
NAME DIGEST
aws-machine-controllers sha256:7817d9e707bb51bc1e5110ef66bb67947df42dcf3c9b782a8f12f60b8f229dca
azure-machine-controllers sha256:5e2320f92b7308a4f1ec4aca151c752f69265e8c5b705d78e2f2ee70d717711a
baremetal-installer sha256:4c8c6d2895e065711cfcbffe7e8679d9890480a4975cad683b643d8502375fe3
baremetal-machine-controllers sha256:5f1b312ac47b7f9e91950463e9a4ce5af7094a3a8b0bc064c9b4dcfc9c725ad5
baremetal-operator sha256:a77ff02f349d96567da8e06018ad0dfbfb5fef6600a9a216ade15fadc574f4b4
baremetal-runtimecfg sha256:715bc48eda04afc06827189883451958d8940ed8ab6dd491f602611fe98a6fba
cli sha256:43159f5486cc113d64d5ba04d781c16a084d18745a911a5ae7200bb895778a72
cli-artifacts sha256:ce7130db82f5a3bb2c806d7080f356e4c68c0405bf3956d3e290bc2078a8bf32
cloud-credential-operator sha256:244ab9d0fcf7315eb5c399bd3fa7c2e662cf23f87f625757b13f415d484621c3
cluster-authentication-operator sha256:3145e4fbd62dde385fd0e33d220c42ec3d00ac1dab72288e584cc502b4b8b6db
cluster-autoscaler sha256:66e47de69f685f2dd063fbce9f4e5a00264a5572140d255f2db4c367cb00bad9
cluster-autoscaler-operator sha256:6a32eafdbea3d12c0681a1a1660c7a424f7082a1c42e22d1b301ab0ab6da191b
cluster-bootstrap sha256:fbde2b1a3df7172ce5dbc5e8818bfe631718399eda8058b301a1ef059f549e95
cluster-config-operator sha256:5437794d2309ebe65ca08d1bdeb9fcd665732207b3287df8a7c56e5a2813eccb
cluster-csi-snapshot-controller-operator sha256:bc4d8ad97b473316518dbd8906dd900feba383425671eb7d4d73ed1d705c105e
cluster-dns-operator sha256:1a7469258e351d2d56a98a5ef4a3dfa0326b4677fdc1dd11279b6a193ccdbad1
cluster-etcd-operator sha256:9f7a02df3a5d91326d95e444e2e249f8205632ae986d6dccc7f007ec65c8af77
cluster-image-registry-operator sha256:0aaa817389487d266faf89cecbfd3197405d87172ee2dcda169dfa90e2e9ca18
cluster-ingress-operator sha256:4887544363e052e656aa1fd44d2844226ee2e4617e08b88ba0211a93bb3101fa
cluster-kube-apiserver-operator sha256:718ca346d5499cccb4de98c1f858c9a9a13bbf429624226f466c3ee2c14ebf40
cluster-kube-controller-manager-operator sha256:0aa16b4ff32fbb9bc7b32aa1bf6441a19a1deb775fb203f21bb8792ff1a26c2e
cluster-kube-scheduler-operator sha256:887eda5ce495f1a33c5adbba8772064d3a8b78192162e4c75bd84763c5a1fb01
cluster-kube-storage-version-migrator-operator sha256:0fd3e25304a6e23e9699172a84dc134b9b5b81dd89496322a9f46f4cd82ecf71
cluster-machine-approver sha256:c35b382d426ff03cfe07719f19e871ec3bd4189fa27452b3e2eb2fb4ab085afc
cluster-monitoring-operator sha256:d7d5f3b6094c88cb1aa9d5bf1b29c574f13db7142e0a9fba03c6681fe4b592a5
cluster-network-operator sha256:563018341e5b37e5cf370ee0a112aa85dd5e17a658b303714252cc59ddfadea5
cluster-node-tuned sha256:0d1a3f66cd7cfc889ddf17cbdb4cb2e4b9188c341b165de1c9c1df578fb53212
cluster-node-tuning-operator sha256:8e00331fd6b725b1d44687bafa2186920e2864fd4d04869ad4e9f5ba56d663ca
cluster-openshift-apiserver-operator sha256:087dd3801b15ca614be0998615a0d827383e9c9ab39e64107324074bddccfff8
cluster-openshift-controller-manager-operator sha256:a25afbcb148f3535372784e82c66a6cc2843fe9e7119b9198a39422edb95c2ae
cluster-policy-controller sha256:6294d4af2061d23f52a2a439d20272280aa6e5fcff7a5559b4797fb8e6536790
cluster-samples-operator sha256:7040633af70ceb19147687d948a389d392945cb57236165409e66e5101c0d0c0
cluster-storage-operator sha256:bcfeab624513563c9e26629be2914770436c49318c321bd99028a7d1ffab30cf
cluster-svcat-apiserver-operator sha256:21a562f26c967ad6d83e1f4219fad858154c3df9854f1462331b244906c6ca9c
cluster-svcat-controller-manager-operator sha256:b635529e5843996a51ace6a2aea4854e46256669ef1773c7371e4f0407dbf843
cluster-update-keys sha256:828e11d8132caf5533e18b8e5d292d56ccf52b08e4fe4c53d7825404b05b2844
cluster-version-operator sha256:7a2a210bc07fead80b3f4276cf14692c39a70640a124326ee919d415f0dc5b2c
configmap-reloader sha256:07d46699cb9810e3f629b5142a571db83106aa1190d5177a9944272080cd053d
console sha256:69f14151fe8681e5fa48912f8f4df753a0dcc3d616ad7991c463402517d1eab4
console-operator sha256:85c9a48c9b1896f36cf061bd4890e7f85e0dc383148f2a1dc498e668dee961df
container-networking-plugins sha256:1a2ecb28b80800c327ad79fb4c8fb6cc9f0b434fc42a4de5b663b907852ee9fb
coredns sha256:b25b8b2219e8c247c088af93e833c9ac390bc63459955e131d89b77c485d144d
csi-snapshot-controller sha256:33f89dbd081d119aac8d7c56abcb060906b23d31bc801091b789dea14190493f
deployer sha256:b24cd515360ae4eba89d4d92afe2689a84043106f7defe34df28acf252cd45b4
docker-builder sha256:d3cf4e3ad3c3ce4bef52d9543c87a1c555861b726ac9cae0cc57486be1095f8a
docker-registry sha256:8b6ab4a0c14118020fa56b70cab440883045003a8d9304c96691a0401ad7117c
etcd sha256:aba3c59eb6d088d61b268f83b034230b3396ce67da4f6f6d49201e55efebc6b2
gcp-machine-controllers sha256:1c67b5186bbbdc6f424d611eeff83f11e1985847f4a98f82642dcd0938757b0e
grafana sha256:aa5c9d3d828b04418d17a4bc3a37043413bdd7c036a75c41cd5f57d8db8aa25a
haproxy-router sha256:7064737dd9d0a43de7a87a094487ab4d7b9e666675c53cf4806d1c9279bd6c2e
hyperkube sha256:187b9d29fea1bde9f1785584b4a7bbf9a0b9f93e1323d92d138e61c861b6286c
insights-operator sha256:51dc869dc1a105165543d12eeee8229916fc15387210edc6702dbc944f7cedd7
installer sha256:a0f23a3292a23257a16189bdae75f7b5413364799e67a480dfad086737e248e0
installer-artifacts sha256:afe926af218d506a7f64ef3df0d949aa6653a311a320bc833398512d1f000645
ironic sha256:80087bd97c28c69fc08cd291f6115b0e12698abf2e87a3d2bbe0e64f600bae93
ironic-hardware-inventory-recorder sha256:2336af8eb4949ec283dc22865637e3fec80a4f6b1d3b78178d58ea05afbd49c2
ironic-inspector sha256:1f48cc344aab15c107e2fb381f9825613f586e116c218cdaf18d1e67b13e2252
ironic-ipa-downloader sha256:a417b910e06ad030b480988d6864367c604027d6476e02e0c3d5dcd6f6ab4ccb
ironic-machine-os-downloader sha256:10b751d8e4ba2975dabc256c7ac4dcf94f4de99be35242505bf8db922e968403
ironic-static-ip-manager sha256:0c122317e3a6407a56a16067d518c18ce08f883883745b2e11a5a39ff695d3d0
jenkins sha256:d4ab77a119479a95a33beac0d94980a7a0a87cf792f5850b30dff4f1f90a9c4d
jenkins-agent-maven sha256:10559ec206191a9931b1044260007fe8dcedacb8b171be737dfb1ccca9bbf0f5
jenkins-agent-nodejs sha256:ad9e83ea1ea3f338af4dbc9461f8b243bd817df722909293fde33b4f9cbab2bc
k8s-prometheus-adapter sha256:be548d31a65e56234e4b98d6541a14936bc0135875ec61e068578f7014aac31e
keepalived-ipfailover sha256:a882a11b55b2fc41b538b59bf5db8e4cfc47c537890e4906fe6bf22f9da75575
kube-client-agent sha256:8eb481214103d8e0b5fe982ffd682f838b969c8ff7d4f3ed4f83d4a444fb841b
kube-etcd-signer-server sha256:8468b1c575906ed41aa7c3ac3b0a440bf3bc254d2975ecc5e23f84aa54395c81
kube-proxy sha256:886ae5bd5777773c7ef2fc76f1100cc8f592653ce46f73b816de80a20a113769
kube-rbac-proxy sha256:f6351c3aa750fea93050673f66c5ddaaf9e1db241c7ebe31f555e011b20d8c30
kube-state-metrics sha256:ca47160369e67e1d502e93175f6360645ae02933cceddadedabe53cd874f0f89
kube-storage-version-migrator sha256:319e88c22ea618e7b013166eace41c52eb70c8ad950868205f52385f09e96023
kuryr-cni sha256:3eecf00fdfca50e90ba2d659bd765eb04b5c446579e121656badcfd41da87663
kuryr-controller sha256:7d70c92699a69a589a3c2e1045a16855ba02af39ce09d6a6df9b1dbabacff4f5
libvirt-machine-controllers sha256:cc3c7778de8d9e8e4ed543655392f942d871317f4b3b7ed31208312b4cc2e61f
local-storage-static-provisioner sha256:a7ff3ec289d426c7aaee35a459ef8c862b744d709099dedcd98a4579136f7d47
machine-api-operator sha256:4ca2f1b93ad00364c053592aea0992bbb3cb4b2ea2f7d1d1af286c26659c11d3
machine-config-operator sha256:31dfdca3584982ed5a82d3017322b7d65a491ab25080c427f3f07d9ce93c52e2
machine-os-content sha256:b397960b7cc14c2e2603111b7385c6e8e4b0f683f9873cd9252a789175e5c4e1
mdns-publisher sha256:dea1fcb456eae4aabdf5d2d5c537a968a2dafc3da52fe20e8d99a176fccaabce
multus-admission-controller sha256:377ed5566c062bd2a677ddc0c962924c81796f8d45346b2eefedf5350d7de6b3
multus-cni sha256:bc58468a736e75083e0771d88095229bdd6c1e58db8aa33ef60b326e0bfaf271
multus-route-override-cni sha256:e078599fde3b974832c06312973fae7ed93334ea30247b11b9f1861e2b0da7d6
multus-whereabouts-ipam-cni sha256:89c386f5c3940d88d9bc2520f422a2983514f928585a51ae376c43f19e5a6cad
must-gather sha256:a295d2568410a45f1ab403173ee84d7012bb3ec010c24aa0a17925d08d726e20
oauth-proxy sha256:619bdb128e410b52451dbf79c9efb089e138127812da19a1f69907117480827f
oauth-server sha256:58545567c899686cae51d2de4e53a5d49323183a7a3065c0b96ad674686acbe8
openshift-apiserver sha256:8fd79797e6e0e9337fc9689863c3817540a003685a6dfc2a55ecb77059967cef
openshift-controller-manager sha256:4485d6eb7625becf581473690858a01ab83244ecb03bb0319bf849068e98a86a
openshift-state-metrics sha256:6de02ce03089b715e9f767142de33f006809226f037fe21544e1f79755ade920
openstack-machine-controllers sha256:d61e611416196650c81174967e5f11cbdc051d696e38ba341de169375d985709
operator-lifecycle-manager sha256:6e1bca545c35fb7ae4d0f57006acce9a9fabce792c4026944da68d7ddfdec244
operator-marketplace sha256:f0750960873a7cc96f7106e20ea260dd41c09b8a30ce714092d3dcd8a7ec396d
operator-registry sha256:7914f42c9274d263c6ba8623db8e6af4940753dcb4160deb291a9cbc61487414
ovirt-machine-controllers sha256:44f9e65ccd39858bf3d7aa2929f5feac634407e36f912ca88585b445d161506c
ovn-kubernetes sha256:d80899ed1a6a9f99eb8c64856cd4e576f6534b7390777f3180afb8a634743d62
pod sha256:d7862a735f492a18cb127742b5c2252281aa8f3bd92189176dd46ae9620ee68a
prom-label-proxy sha256:1cf614e8acbe3bcca3978a07489cd47627f3a3bd132a5c2fe0072d9e3e797210
prometheus sha256:5eea86e59ffb32fca37cacff22ad00838ea6b947272138f8a56062f68ec40c28
prometheus-alertmanager sha256:bb710e91873ad50ac10c2821b2a28c29e5b89b5da7740a920235ecc33fb063f5
prometheus-config-reloader sha256:7cadb408d7c78440ddacf2770028ee0389b6840651c753f4b24032548f56b7aa
prometheus-node-exporter sha256:7d4e76fea0786f4025e37b5ad0fb30498db5586183fc560554626e91066f60f3
prometheus-operator sha256:6e599a9a8691cce0b40bf1ac5373ddb8009113a2115b5617b2d3a3996174c8f7
sdn sha256:08c256b7b07c57f195faa33ea4273694dd3504d4a85a10dbf7616b91eaa8e661
service-ca-operator sha256:8c9a3071040f956cce15d1e6da70f6f47dc55b609e4f19fe469ce581cd42bfe5
service-catalog sha256:d9a5fbf60e3bbf1c9811e1707ce9bd04e8263552ba3a6bea8f8c7b604808fdf9
telemeter sha256:19cfc3e37e12d9dd4e4dd9307781368bbeb07929b6ab788e99aa5543badee3c9
tests sha256:fc56c9805e2e4a8416c1c5433d7974148f0bad88be4a62feeedcd5d9db4b6ad6
thanos sha256:a4ea116aec2f972991f5a22f39aa1dbc567dddc3429ddca873601714d003a51c
創建內部鏡像倉庫
內部鏡像倉庫用于存放部署 OCP 集群所需的鏡像，倉庫本身使用 Quay 部署，Quay 包含了幾個核心組件：
- 資料庫 : 主要存放鏡像倉庫的元資料（非鏡像存盤)
- Redis : 存放構建日志和Quay的向導
- Quay : 作為鏡像倉庫
- Clair : 提供鏡像掃描功能
首先修改鏡像倉庫節點的主機名：
$ hostnamectl set-hostname registry.openshift4.example.com
所有節點主機名都要采用三級域名格式，如
master1.aa.bb.com，
接著安裝 podman：
$ yum install -y podman
先創建一個 Pod，用來共享 Network Namespace：
?? → podman pod create --name quay -p 443:8443
安裝 Mysql 資料庫：
$ mkdir -p /data/quay/lib/mysql
$ chmod 777 /data/quay/lib/mysql
$ export MYSQL_CONTAINER_NAME=quay-mysql
$ export MYSQL_DATABASE=enterpriseregistrydb
$ export MYSQL_PASSWORD=<PASSWD>
$ export MYSQL_USER=quayuser
$ export MYSQL_ROOT_PASSWORD=<PASSWD>
$ podman run \
--detach \
--restart=always \
--env MYSQL_ROOT_PASSWORD=${MYSQL_ROOT_PASSWORD} \
--env MYSQL_USER=${MYSQL_USER} \
--env MYSQL_PASSWORD=${MYSQL_PASSWORD} \
--env MYSQL_DATABASE=${MYSQL_DATABASE} \
--name ${MYSQL_CONTAINER_NAME} \
--privileged=true \
--pod quay \
-v /data/quay/lib/mysql:/var/lib/mysql/data:Z \
registry.access.redhat.com/rhscl/mysql-57-rhel7
安裝 Redis：
$ mkdir -p /data/quay/lib/redis
$ chmod 777 /data/quay/lib/redis
$ podman run -d --restart=always \
--pod quay \
--privileged=true \
--name quay-redis \
-v /data/quay/lib/redis:/var/lib/redis/data:Z \
registry.access.redhat.com/rhscl/redis-32-rhel7
獲取 Red Hat Quay v3 鏡像的訪問權：
$ podman login -u="redhat+quay" -p="O81WSHRSJR14UAZBK54GQHJS0P1V4CLWAJV1X2C4SD7KO59CQ9N3RE12612XU1HR" quay.io
參考：https://access.redhat.com/solutions/3533201
配置 Quay：
$ podman run --privileged=true \
--name quay-config \
--pod quay \
--add-host mysql:127.0.0.1 \
--add-host redis:127.0.0.1 \
--add-host clair:127.0.0.1 \
-d quay.io/redhat/quay:v3.3.0 config fuckcloudnative.io
這一步會啟動一個配置 Quay 的行程，打開瀏覽器訪問：https://registry.openshift4.example.com，用戶名/密碼為：quayconfig/fuckcloudnative.io：

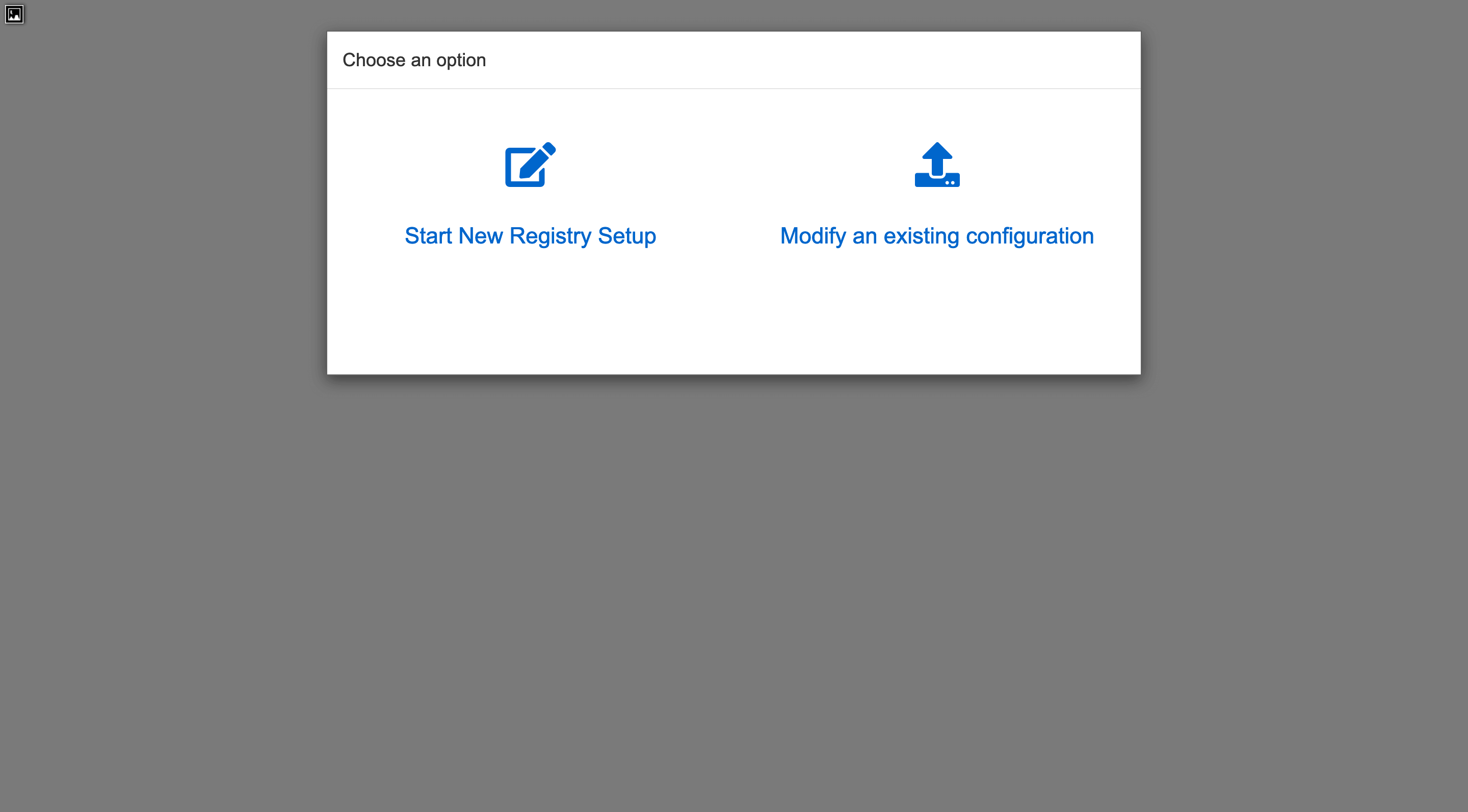

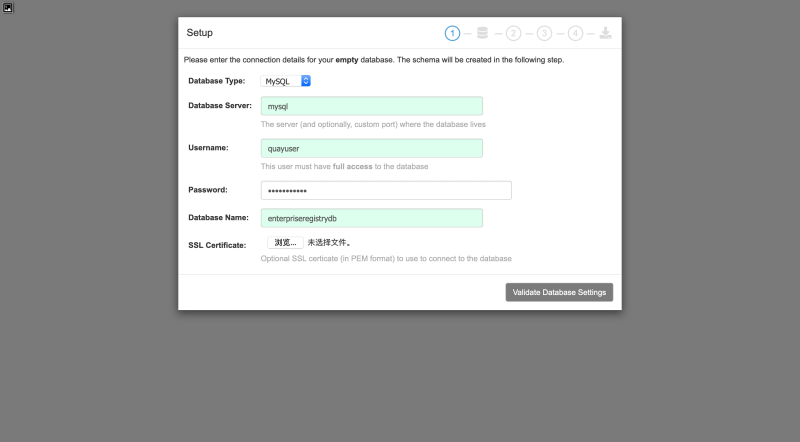

選擇新建配置，然后設定資料庫：

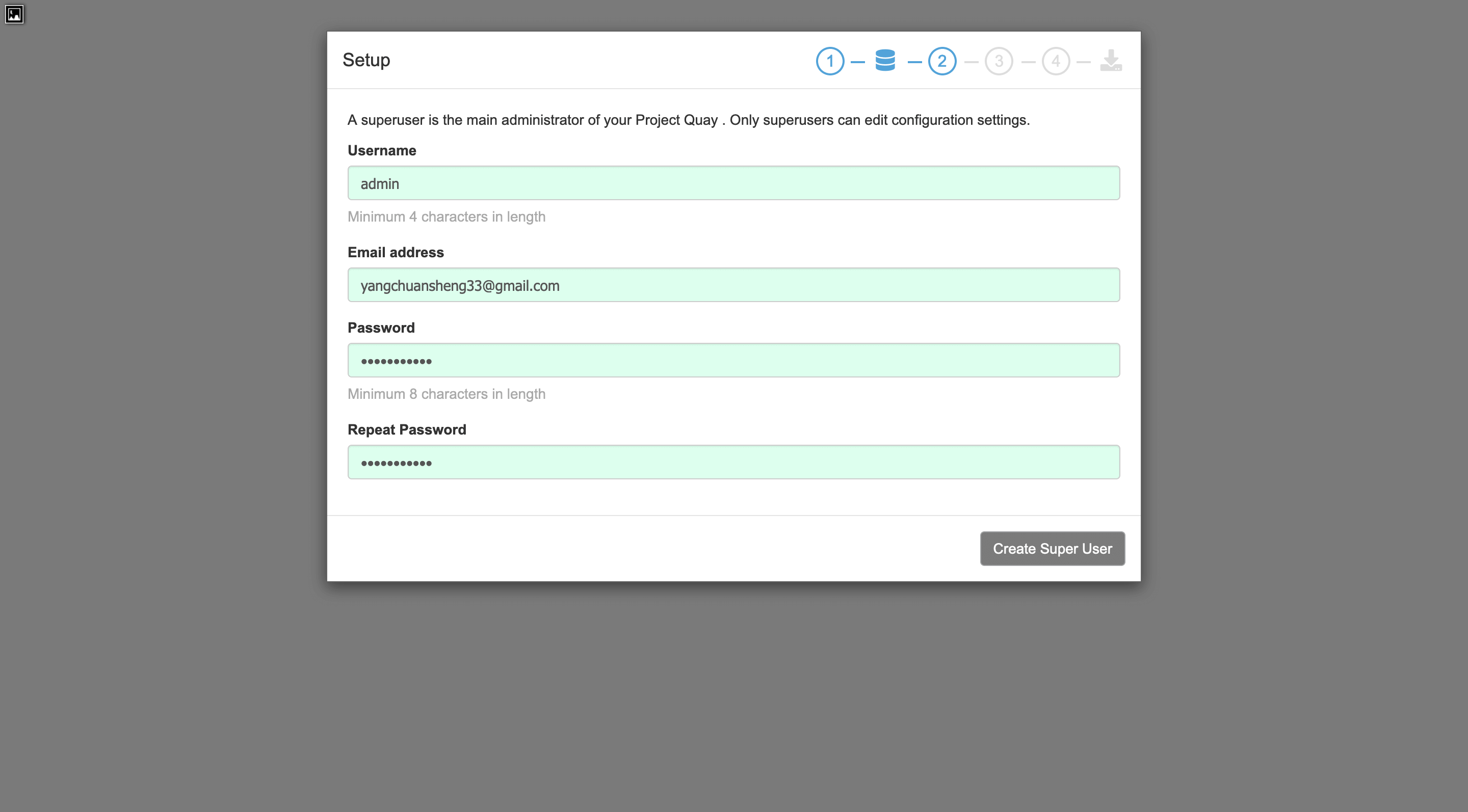

設定超級管理員：

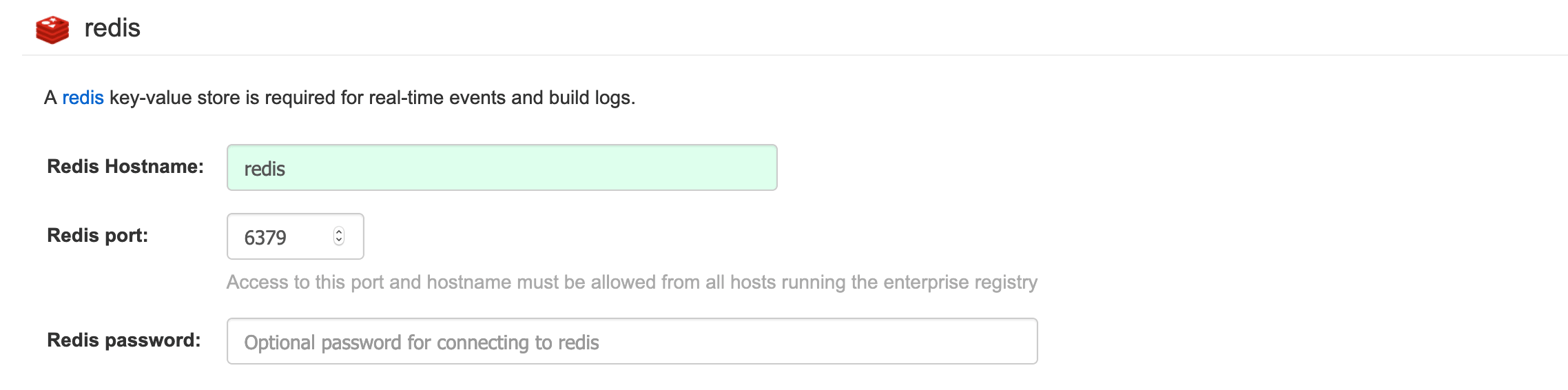

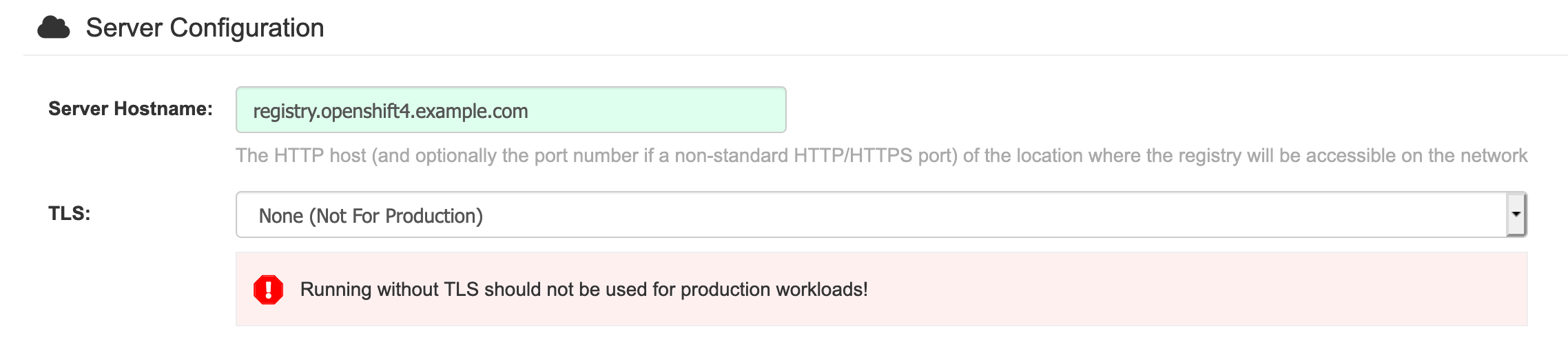

下一個界面要設定兩個地方，一個是 Server configuration 的 Server Hostname，另一個是 Redis Hostname，SSL 不用設定，后面直接通過命令列配置：

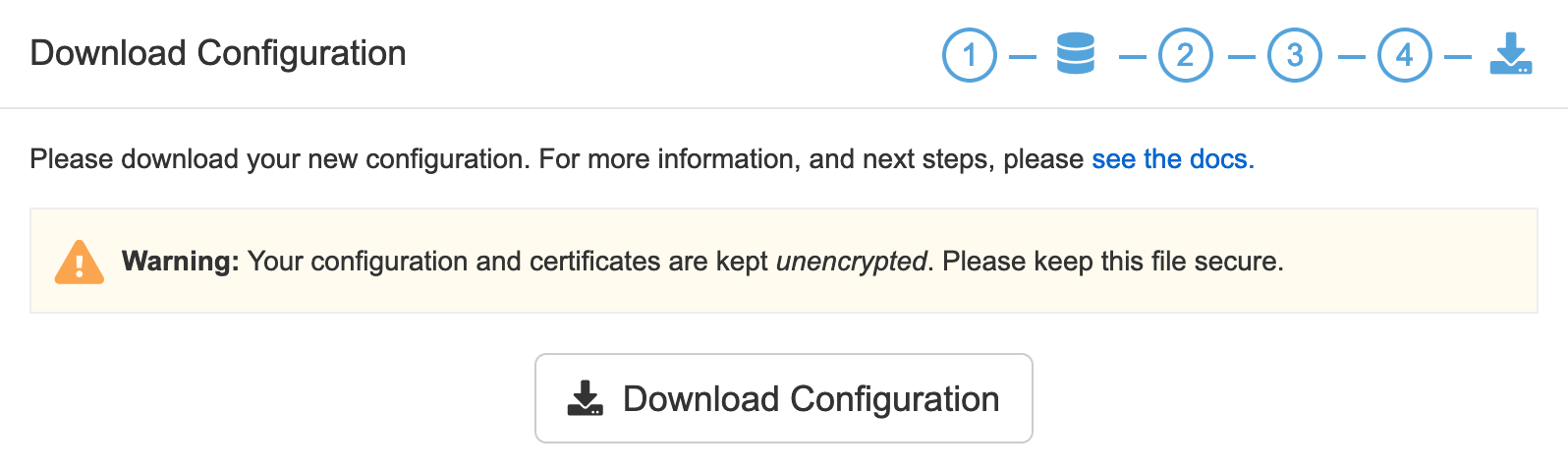

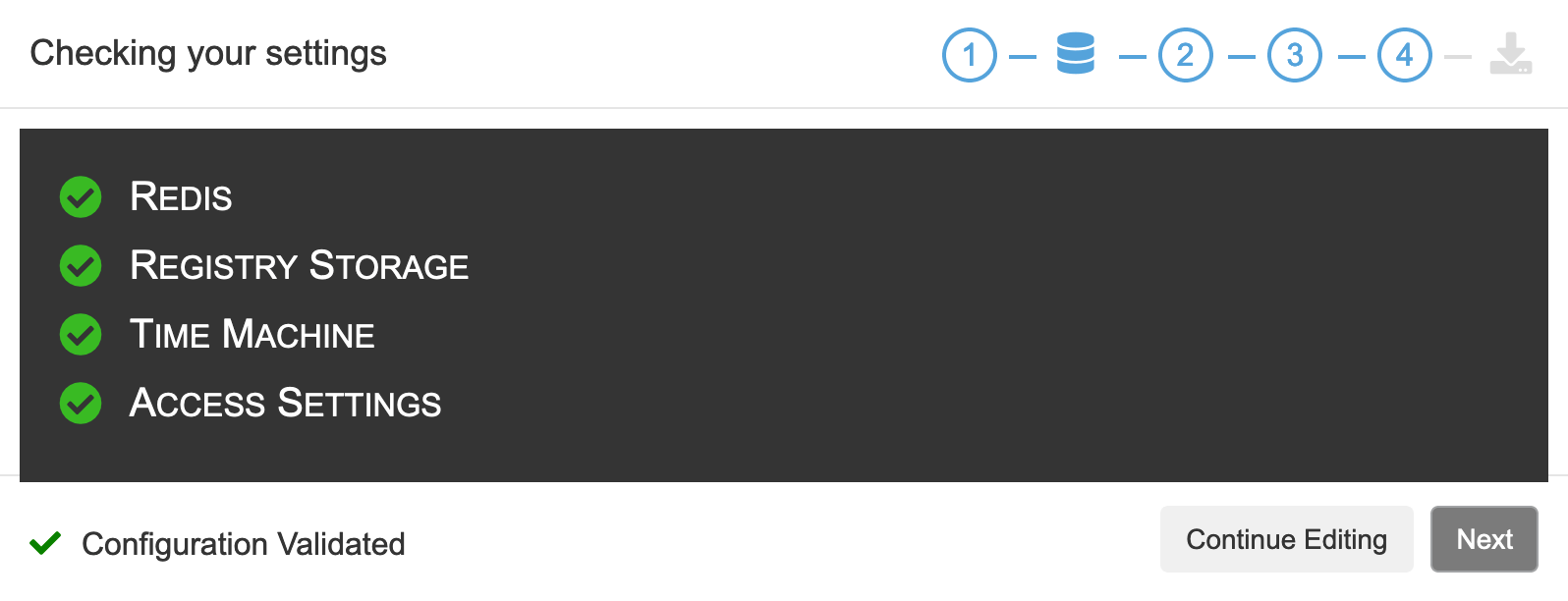

配置檢查通過后，就可以保存下載下來：
最后會匯出一個 quay-config.tar.gz，將其上傳到 Quay 所在的服務器，解壓到組態檔目錄：
$ mkdir -p /data/quay/config
$ mkdir -p /data/quay/storage
$ cp quay-config.tar.gz /data/quay/config/
$ cd /data/quay/config/
$ tar zxvf quay-config.tar.gz
生成自簽名證書：
# 生成私鑰
$ openssl genrsa -out ssl.key 1024
根據私鑰生成證書申請檔案 csr：

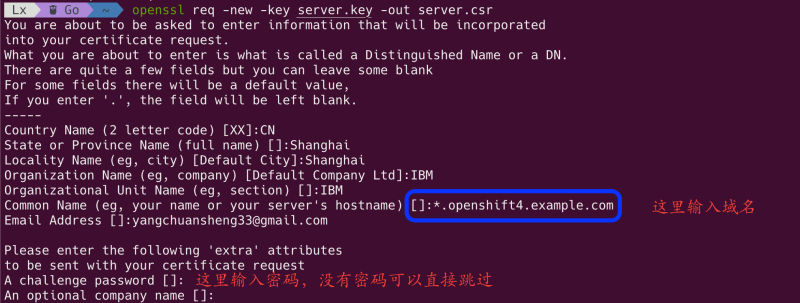

$ openssl req -new -key ssl.key -out ssl.csr
這里根據命令列向導來進行資訊輸入：
Common Name 可以輸入：*.yourdomain.com，這種方式可以生成通配符域名證書，
使用私鑰對證書申請進行簽名從而生成證書：
$ openssl x509 -req -in ssl.csr -out ssl.cert -signkey ssl.key -days 3650
這樣就生成了有效期為 10 年的證書檔案，對于自己內網服務使用足夠，
或者你也可以一步到位：
$ openssl req \
-newkey rsa:2048 -nodes -keyout ssl.key \
-x509 -days 3650 -out ssl.cert -subj \
"/C=CN/ST=Shanghai/L=Shanghai/O=IBM/OU=IBM/CN=*.openshift4.example.com"
證書搞定了之后，還需要修改 config.yaml，將協議修改為 https：
PREFERRED_URL_SCHEME: https
然后停止 quay-config：
$ podman stop quay-config
最后一步才是部署 Quay：
$ podman run --restart=always \
--sysctl net.core.somaxconn=4096 \
--privileged=true \
--name quay-master \
--pod quay \
--add-host mysql:127.0.0.1 \
--add-host redis:127.0.0.1 \
--add-host clair:127.0.0.1 \
-v /data/quay/config:/conf/stack:Z \
-v /data/quay/storage:/datastorage:Z \
-d quay.io/redhat/quay:v3.3.0
安裝成功后，將自簽名的證書復制到默認信任證書路徑：
$ cp ssl.cert /etc/pki/ca-trust/source/anchors/ssl.crt
$ update-ca-trust extract
現在可以通過 podman login 命令來測驗倉庫的連通性，看到如下字樣即表示安裝成功（也可以通過瀏覽器訪問 Web UI）：
?? → podman login registry.openshift4.example.com
Username: admin
Password: ********
Login Succeeded
如果使用 Docker 登錄，需要將證書復制到 docker 的信任證書路徑：
$ mkdir -p /etc/docker/certs.d/registry.openshift4.example.com
$ cp ssl.cert /etc/docker/certs.d/registry.openshift4.example.com/ssl.crt
$ systemctl restart docker
下載鏡像檔案
準備拉取鏡像權限認證檔案， 從 Red Hat OpenShift Cluster Manager 站點的 Pull Secret 頁面下載 registry.redhat.io 的 pull secret，
# 把下載的 txt 檔案轉出 json 格式，如果沒有 jq 命令，通過 epel 源安裝
$ cat ./pull-secret.txt | jq . > pull-secret.json
$ yum install epel-release
$ yum install jq
JSON 內容如下：
{
"auths": {
"cloud.openshift.com": {
"auth": "b3BlbnNo...",
"email": "[email protected]"
},
"quay.io": {
"auth": "b3BlbnNo...",
"email": "[email protected]"
},
"registry.connect.redhat.com": {
"auth": "NTE3Njg5Nj...",
"email": "[email protected]"
},
"registry.redhat.io": {
"auth": "NTE3Njg5Nj...",
"email": "[email protected]"
}
}
}
把本地倉庫的用戶密碼轉換成 base64 編碼：
$ echo -n 'admin:password' | base64 -w0
cm9vdDpwYXNzd29yZA==
然后在 pull-secret.json 里面加一段本地倉庫的權限，第一行倉庫域名和埠，第二行是上面的 base64，第三行隨便填個郵箱：
"auths": {
...
"registry.openshift4.example.com": {
"auth": "cm9vdDpwYXNzd29yZA==",
"email": "[email protected]"
},
...
設定環境變數：
$ export OCP_RELEASE="4.4.5-x86_64"
$ export LOCAL_REGISTRY='registry.openshift4.example.com'
$ export LOCAL_REPOSITORY='ocp4/openshift4'
$ export PRODUCT_REPO='openshift-release-dev'
$ export LOCAL_SECRET_JSON='/root/pull-secret.json'
$ export RELEASE_NAME="ocp-release"
- OCP_RELEASE : OCP 版本，可以在這個頁面查看，如果版本不對，下面執行
oc adm時會提示image does not exist， - LOCAL_REGISTRY : 本地倉庫的域名和埠，
- LOCAL_REPOSITORY : 鏡像存盤庫名稱，使用
ocp4/openshift4， PRODUCT_REPO和RELEASE_NAME都不需要改，這些都是一些版本特征，保持不變即可，- LOCAL_SECRET_JSON : 密鑰路徑，就是上面
pull-secret.json的存放路徑，
在 Quay 中創建一個組織（Organization）ocp4 用來存放同步過來的鏡像，
最后一步就是同步鏡像，這一步的動作就是把 quay 官方倉庫中的鏡像同步到本地倉庫，如果失敗了可以重新執行命令，整體內容大概 5G，
$ oc adm -a ${LOCAL_SECRET_JSON} release mirror \
--from=quay.io/${PRODUCT_REPO}/${RELEASE_NAME}:${OCP_RELEASE} \
--to=${LOCAL_REGISTRY}/${LOCAL_REPOSITORY} \
--to-release-image=${LOCAL_REGISTRY}/${LOCAL_REPOSITORY}:${OCP_RELEASE}
oc adm release mirror 命令執行完成后會輸出下面類似的資訊，保存下來，將來會用在 install-config.yaml 檔案中：
imageContentSources:
- mirrors:
- registry.openshift4.example.com/ocp4/openshift4
source: quay.io/openshift-release-dev/ocp-release
- mirrors:
- registry.openshift4.example.com/ocp4/openshift4
source: quay.io/openshift-release-dev/ocp-v4.0-art-dev
本地鏡像倉庫快取好鏡像之后，通過 tag/list 介面查看所有 tag，如果能列出來一堆就說明是正常的：
$ curl -s -X GET -H "Authorization: Bearer <token>" https://registry.openshift4.example.com/api/v1/repository/ocp4/openshift4/tag/|jq .
{
"has_additional": true,
"page": 1,
"tags": [
{
"name": "4.4.5-cluster-kube-scheduler-operator",
"reversion": false,
"start_ts": 1590821178,
"image_id": "a778898a93d4fc5413abea38aa604d14d7efbd99ee1ea75d2d1bea3c27a05859",
"last_modified": "Sat, 30 May 2020 06:46:18 -0000",
"manifest_digest": "sha256:887eda5ce495f1a33c5adbba8772064d3a8b78192162e4c75bd84763c5a1fb01",
"docker_image_id": "a778898a93d4fc5413abea38aa604d14d7efbd99ee1ea75d2d1bea3c27a05859",
"is_manifest_list": false,
"size": 103582366
},
{
"name": "4.4.5-kube-rbac-proxy",
"reversion": false,
"start_ts": 1590821178,
"image_id": "f1714cda6028bd7998fbba1eb79348f33b9ed9ccb0a69388da2eb0aefc222f85",
"last_modified": "Sat, 30 May 2020 06:46:18 -0000",
"manifest_digest": "sha256:f6351c3aa750fea93050673f66c5ddaaf9e1db241c7ebe31f555e011b20d8c30",
"docker_image_id": "f1714cda6028bd7998fbba1eb79348f33b9ed9ccb0a69388da2eb0aefc222f85",
"is_manifest_list": false,
"size": 102366055
},
{
"name": "4.4.5-cluster-kube-controller-manager-operator",
"reversion": false,
"start_ts": 1590821178,
"image_id": "bc7e19d35ec08c1a93058db1705998da2f8bbe5cdbb7f3f5974e6176e2f79eb6",
"last_modified": "Sat, 30 May 2020 06:46:18 -0000",
"manifest_digest": "sha256:0aa16b4ff32fbb9bc7b32aa1bf6441a19a1deb775fb203f21bb8792ff1a26c2e",
"docker_image_id": "bc7e19d35ec08c1a93058db1705998da2f8bbe5cdbb7f3f5974e6176e2f79eb6",
"is_manifest_list": false,
"size": 104264263
},
{
"name": "4.4.5-baremetal-operator",
"reversion": false,
"start_ts": 1590821178,
"image_id": "6ec90c0fb53125801d41b37f8f28c4679e49ce19427f7848803a2bc397e4c23b",
"last_modified": "Sat, 30 May 2020 06:46:18 -0000",
"manifest_digest": "sha256:a77ff02f349d96567da8e06018ad0dfbfb5fef6600a9a216ade15fadc574f4b4",
"docker_image_id": "6ec90c0fb53125801d41b37f8f28c4679e49ce19427f7848803a2bc397e4c23b",
"is_manifest_list": false,
"size": 110117444
},
{
"name": "4.4.5-cluster-etcd-operator",
"reversion": false,
"start_ts": 1590821178,
"image_id": "d0cf3539496e075954e53fce5ed56445ae87f9f32cfb41e9352a23af4aa04d69",
"last_modified": "Sat, 30 May 2020 06:46:18 -0000",
"manifest_digest": "sha256:9f7a02df3a5d91326d95e444e2e249f8205632ae986d6dccc7f007ec65c8af77",
"docker_image_id": "d0cf3539496e075954e53fce5ed56445ae87f9f32cfb41e9352a23af4aa04d69",
"is_manifest_list": false,
"size": 103890103
},
{
"name": "4.4.5-openshift-apiserver",
"reversion": false,
"start_ts": 1590821177,
"image_id": "eba5a051dcbab534228728c7295d31edc0323c7930fa44b40059cf8d22948363",
"last_modified": "Sat, 30 May 2020 06:46:17 -0000",
"manifest_digest": "sha256:8fd79797e6e0e9337fc9689863c3817540a003685a6dfc2a55ecb77059967cef",
"docker_image_id": "eba5a051dcbab534228728c7295d31edc0323c7930fa44b40059cf8d22948363",
"is_manifest_list": false,
"size": 109243025
},
{
"name": "4.4.5-kube-client-agent",
"reversion": false,
"start_ts": 1590821177,
"image_id": "fc1fdfb96e9cd250024094b15efa79344c955c7d0c93253df312ffdae02b5524",
"last_modified": "Sat, 30 May 2020 06:46:17 -0000",
"manifest_digest": "sha256:8eb481214103d8e0b5fe982ffd682f838b969c8ff7d4f3ed4f83d4a444fb841b",
"docker_image_id": "fc1fdfb96e9cd250024094b15efa79344c955c7d0c93253df312ffdae02b5524",
"is_manifest_list": false,
"size": 99721802
},
{
"name": "4.4.5-kube-proxy",
"reversion": false,
"start_ts": 1590821177,
"image_id": "d2577f4816cb81444ef3b441bf9769904c602cd6626982c2fd8ebba162fd0c08",
"last_modified": "Sat, 30 May 2020 06:46:17 -0000",
"manifest_digest": "sha256:886ae5bd5777773c7ef2fc76f1100cc8f592653ce46f73b816de80a20a113769",
"docker_image_id": "d2577f4816cb81444ef3b441bf9769904c602cd6626982c2fd8ebba162fd0c08",
"is_manifest_list": false,
"size": 103473573
},
...
}
這里需要創建一個 OAuth access token 來訪問 Quay 的 API，創建程序如下：
- 瀏覽器登錄 Red Hat Quay，選擇一個組織（
Organization），例如ocp4， - 在左側導航中選擇
Applications圖示， - 選擇
Create New Application，輸入 Application 的名字然后回車， - 選擇你新創建的 Application，在左側導航欄中選擇
Generate Token， - 選擇相應的權限，然后點擊
Generate Access Token， - 再次確認你設定的權限，然后點擊
Authorize Application， - 保管好生成的 token，
Quay 的 API 檔案可以參考這里：Appendix A: Red Hat Quay Application Programming Interface (API)，

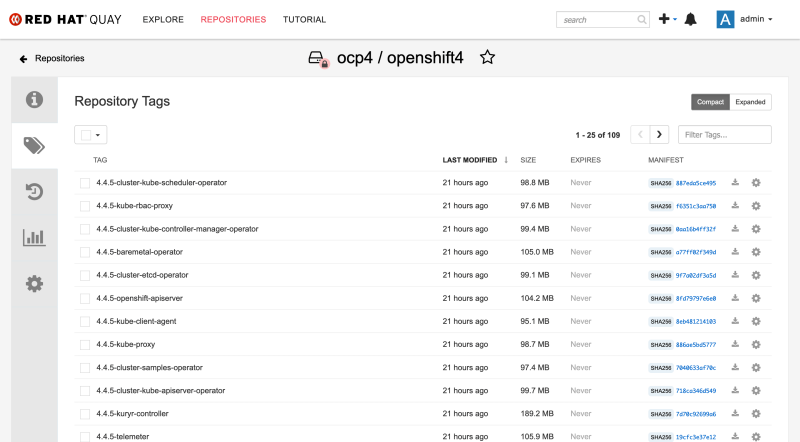

Quay 中也能看到所有的鏡像：
提取 openshift-install 命令
為了保證安裝版本一致性，需要從鏡像庫中提取 openshift-install 二進制檔案，不能直接從 https://mirror.openshift.com/pub/openshift-v4/clients/ocp/4.4.5 下載，不然后面會有 sha256 匹配不上的問題，
# 這一步需要用到上面的 export 變數
$ oc adm release extract \
-a ${LOCAL_SECRET_JSON} \
--command=openshift-install \
"${LOCAL_REGISTRY}/${LOCAL_REPOSITORY}:${OCP_RELEASE}"
如果提示 error: image dose not exist，說明拉取的鏡像不全，或者版本不對，
把檔案移動到 $PATH 并確認版本：
$ chmod +x openshift-install
$ mv openshift-install /usr/local/bin/
$ openshift-install version
openshift-install 4.4.5
built from commit 15eac3785998a5bc250c9f72101a4a9cb767e494
release image registry.openshift4.example.com/ocp4/openshift4@sha256:4a461dc23a9d323c8bd7a8631bed078a9e5eec690ce073f78b645c83fb4cdf74
3. 準備 Image Stream 樣例鏡像
準備一個鏡像串列，然后使用 oc image mirror 將鏡像同步到私有倉庫中：
cat sample-images.txt | while read line; do
target=$(echo $line | sed 's/registry.redhat.io/registry.openshift4.example.com/')
oc image mirror -a ${LOCAL_SECRET_JSON} $line $target
done
如果之前裝過 OCP 4.4.5，把 openshift-cluster-samples-operator 專案下 cluster-samples-operator Pod 的 /opt/openshift 目錄同步出來，簡單 grep 一下就都有了完整的鏡像串列，
完整串列參考這里，
同步程序中如果遇到報錯，可根據報錯資訊到 Quay 中創建相應的 Organization，不用中斷任務，這里給出一個參考，需要創建以下的 Organization：
rhscl
jboss-datavirt-6
3scale-amp21
3scale-amp22
3scale-amp23
3scale-amp24
3scale-amp25
3scale-amp26
jboss-eap-6
devtools
openshift3
rhpam-7
rhdm-7
jboss-amq-6
jboss-datagrid-7
jboss-datagrid-6
jboss-webserver-3
amq-broker-7
jboss-webserver-5
redhat-sso-7
openjdk
redhat-openjdk-18
fuse7
dotnet
4. 準備 OperatorHub 離線資源
首先在 Quay 中創建一個 devinfra 專案，然后構建 RedHat Operators 的 catalog image, 保存為 registry.openshift4.example.com/devinfra/redhat-operators:v1，
$ oc adm catalog build \
-a ${LOCAL_SECRET_JSON} \
--appregistry-endpoint https://quay.io/cnr \
--from=registry.redhat.io/openshift4/ose-operator-registry:v4.4 \
--appregistry-org redhat-operators \
--to=registry.openshift4.example.com/devinfra/redhat-operators:v1
這個 catalog image 相當于 RedHat Operators 的一個目錄，通過 catalog image 可以找到 RedHat Operators 的所有鏡像，而且 catalog image 使用 sha256 digest 來參考鏡像，能夠確保應用有穩定可重復的部署，
然后使用 catalog image 同步 RedHat Operators 的所有鏡像到私有倉庫：
$ oc adm catalog mirror \
-a ${LOCAL_SECRET_JSON} \
registry.openshift4.example.com/devinfra/redhat-operators:v1 \
registry.openshift4.example.com
如果執行程序中遇到 project not found 之類的錯誤，可根據報錯資訊到 Quay 中創建相應的專案，不用中斷任務，
這里還會遇到一個 bug，執行到最后會有如下的報錯資訊：
...
I0409 08:04:48.342110 11331 mirror.go:231] wrote database to /tmp/db-225652515/bundles.db
W0409 08:04:48.347417 11331 mirror.go:258] errors during mirroring. the full contents of the catalog may not have been mirrored: couldn't parse image for mirroring (), skipping mirror: invalid reference format
I0409 08:04:48.385816 11331 mirror.go:329] wrote mirroring manifests to redhat-operators-manifests
先來看看有哪些 Operators：
$ sqlite3 /tmp/db-225652515/bundles.db 'select * from related_image'|grep '^|'
隨便挑一個 Operator，查看其 ClusterServiceVersion 的 spec.relatedImages 欄位內容：
$ cat /tmp/cache-943388495/manifests-698804708/3scale-operator/3scale-operator-9re7jpyl/0.5.0/3scale-operator.v0.5.0.clusterserviceversion.yaml
...
spec:
replaces: 3scale-operator.v0.4.2
relatedImages:
- name: apicast-gateway-rhel8
image: registry.redhat.io/3scale-amp2/apicast-gateway-rhel8@sha256:21be62a6557846337dc0cf764be63442718fab03b95c198a301363886a9e74f9
- name: backend-rhel7
image: registry.redhat.io/3scale-amp2/backend-rhel7@sha256:ea8a31345d3c2a56b02998b019db2e17f61eeaa26790a07962d5e3b66032d8e5
- name: system-rhel7
image: registry.redhat.io/3scale-amp2/system-rhel7@sha256:93819c324831353bb8f7cb6e9910694b88609c3a20d4c1b9a22d9c2bbfbad16f
- name: zync-rhel7
image: registry.redhat.io/3scale-amp2/zync-rhel7@sha256:f4d5c1fdebe306f4e891ddfc4d3045a622d2f01db21ecfc9397cab25c9baa91a
- name: memcached-rhel7
image: registry.redhat.io/3scale-amp2/memcached-rhel7@sha256:ff5f3d2d131631d5db8985a5855ff4607e91f0aa86d07dafdcec4f7da13c9e05
- name: redis-32-rhel7
value: registry.redhat.io/rhscl/redis-32-rhel7@sha256:a9bdf52384a222635efc0284db47d12fbde8c3d0fcb66517ba8eefad1d4e9dc9
- name: mysql-57-rhel7
value: registry.redhat.io/rhscl/mysql-57-rhel7@sha256:9a781abe7581cc141e14a7e404ec34125b3e89c008b14f4e7b41e094fd3049fe
- name: postgresql-10-rhel7
value: registry.redhat.io/rhscl/postgresql-10-rhel7@sha256:de3ab628b403dc5eed986a7f392c34687bddafee7bdfccfd65cecf137ade3dfd
...
可以看到 relatedImages 串列中有些條目的鍵是 value 而不是 image，這就是問題所在！ 那些沒有 image 的條目在反序列化時會將 image 的值當成空字串 ""：
$ sqlite3 /tmp/db-225652515/bundles.db 'select * from related_image where operatorbundle_name="3scale-operator.v0.5.0"'
registry.redhat.io/3scale-amp2/zync-rhel7@sha256:f4d5c1fdebe306f4e891ddfc4d3045a622d2f01db21ecfc9397cab25c9baa91a|3scale-operator.v0.5.0
registry.redhat.io/3scale-amp2/memcached-rhel7@sha256:ff5f3d2d131631d5db8985a5855ff4607e91f0aa86d07dafdcec4f7da13c9e05|3scale-operator.v0.5.0
|3scale-operator.v0.5.0
registry.redhat.io/3scale-amp2/apicast-gateway-rhel8@sha256:21be62a6557846337dc0cf764be63442718fab03b95c198a301363886a9e74f9|3scale-operator.v0.5.0
registry.redhat.io/3scale-amp2/backend-rhel7@sha256:ea8a31345d3c2a56b02998b019db2e17f61eeaa26790a07962d5e3b66032d8e5|3scale-operator.v0.5.0
registry.redhat.io/3scale-amp2/3scale-rhel7-operator@sha256:2ba16314ee046b3c3814fe4e356b728da6853743bd72f8651e1a338e8bbf4f81|3scale-operator.v0.5.0
registry.redhat.io/3scale-amp2/system-rhel7@sha256:93819c324831353bb8f7cb6e9910694b88609c3a20d4c1b9a22d9c2bbfbad16f|3scale-operator.v0.5.0
從上面的輸出可以看到鍵為 value 的那幾個條目都反序列化失敗了，具體的討論參考：bundle validate should validate that there are no empty relatedImages，
這里給出一個臨時解決方案，先打開另外一個視窗，然后回到原來的視窗執行命令：
$ oc adm catalog mirror \
-a ${LOCAL_SECRET_JSON} \
registry.openshift4.example.com/devinfra/redhat-operators:v1 \
registry.openshift4.example.com
然后迅速切到下一個視窗，查找最新的 manifest 快取目錄：
$ ls -l /tmp/cache-*/
根據日期判斷最新的快取目錄，假設是 /tmp/cache-320634009，然后將所有的 value 替換為 image：
$ sed -i "s/value: registry/image: registry/g" $(egrep -rl "value: registry" /tmp/cache-320634009/)
同步完成后會產生 redhat-operators-manifests 目錄，下面有兩個檔案:
- imageContentSourcePolicy.yaml : 定義了一個
ImageContentSourcePolicy物件，該物件可以配置節點將其對官方 Operator manifests 中鏡像的參考改為對本地鏡像倉庫中鏡像的參考， - mapping.txt : 包含了所有的源鏡像在本地鏡像倉庫中的映射位置，
oc image mirror命令可以參考該檔案進一步修改鏡像配置，
然而目前這么做還是有問題 1800674: 同步出來的鏡像 manifest digest 不對，導致后面離線安裝 Operator 時會報鏡像無法獲取的錯誤，
暫時可以使用上面 bugzilla 鏈接里給出的臨時解決方案，先安裝 skopeo：
$ yum install -y golang gpgme-devel libassuan-devel btrfs-progs-devel device-mapper-devel
$ git clone https://github.com/containers/skopeo
$ cd skopeo
$ make binary-local
$ mv skopeo /usr/local/bin/
從 pull-secret.json 中解碼 quay.io、registry.redhat.io 和 registry.access.redhat.com 的用戶名密碼，然后通過下面的命令認證：
$ skopeo login -u <quay.io_user> -p <quay.io_psw> quay.io
$ skopeo login -u <registry.redhat.io_user> -p <registry.redhat.io_psw> registry.redhat.io
$ skopeo login -u <registry.access.redhat.com_user> -p <registry.access.redhat.com_psw> registry.access.redhat.com
最后同步鏡像的 manifest digest：
cat redhat-operators-manifests/mapping.txt | while read line; do
origin=$(echo $line | cut -d= -f1)
target=$(echo $line | cut -d= -f2)
if [[ "$origin" =~ "sha256" ]]; then
tag=$(echo $origin | cut -d: -f2 | cut -c -8)
skopeo copy --all docker://$origin docker://$target:$tag
else
skopeo copy --all docker://$origin docker://$target
fi
done
不得不說，OCP 的安裝真是個浩大的工程，這洋洋灑灑的一大篇也只是準備了離線資源，這只是安裝的一小步，還有很長的步驟要寫，心理素質不過關的同學切勿隨意模仿，
5. 參考資料
- 離線部署 Openshift Container Platform 4.3 - 1: 準備離線資源
- Chapter 9. Using Operator Lifecycle Manager on restricted networks
Kubernetes 1.18.2 1.17.5 1.16.9 1.15.12離線安裝包發布地址http://store.lameleg.com ，歡迎體驗， 使用了最新的sealos v3.3.6版本， 作了主機名決議配置優化，lvscare 掛載/lib/module解決開機啟動ipvs加載問題， 修復lvscare社區netlink與3.10內核不兼容問題,sealos生成百年證書等特性，更多特性 https://github.com/fanux/sealos ，歡迎掃描下方的二維碼加入釘釘群 ，釘釘群已經集成sealos的機器人實時可以看到sealos的動態，
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/5317.html
標籤：其他
