ROSIntegration ROSIntegrationVision與虛幻引擎4（Unreal Engine 4）的配置
作業系統：Ubuntu 18.04
虛幻引擎：4.26.2
目錄
- ROSIntegration ROSIntegrationVision與虛幻引擎4（Unreal Engine 4）的配置
- 一、虛幻引擎源代碼下載與編譯運行
- 二、ROSIntegration下載與配置運行
- 1、配置ROSBridge
- 2、配置ROSIntegration
- 3、使用ROSIntegration
- SamplePublisher.h
- SamplePublisher.cpp
- 4、測驗ROSIntegration
- 三、ROSIntegrationVision下載與配置運行
- 1、虛幻引擎配置修改
- 2、配置ROSIntegrationVision
- 3、使用ROSIntegrationVision
- 4、問題
- 四、參考資料
一、虛幻引擎源代碼下載與編譯運行
參照官方檔案：虛幻引擎Linux快速入門
二、ROSIntegration下載與配置運行
1、配置ROSBridge
要啟用虛幻和ROS之間的通信，需要一個正在運行的ROSBridge和bson_mode
注意：請使用 rosbridge 版本=>0.8.0 以獲得完整的 BSON 支持
安裝rosbridge的推薦方法是在ROS作業空間使用源代碼進行編譯，即把rosbridge作為其中一個功能包，按照如下命令順序執行
sudo apt-get install ros-ROS1_DISTRO-rosauth # 將 ROS1_DISTRO 替換為ROS對應的版本名稱
cd ~/ros_workspace/ # 替換 ros_workspace 為作業空間目錄名稱
source devel/setup.bash
cd src/
git clone -b ros1 https://github.com/RobotWebTools/rosbridge_suite.git
cd ..
catkin_make
source devel/setup.bash
此外，ROSIntegration使用包含在PyMongo包中的BSON，可以單獨安裝
sudo pip3 install pymongo
2、配置ROSIntegration
使用git命令下載ROSIntegration，放置在虛幻引擎專案檔案Plugins檔案夾下
cd unreal_engine_project # 替換 unreal_engine_project 為專案目錄檔案夾路徑
mkdir Plugins # 如果沒有 Plugins 檔案夾則手動創建
cd Plugins
git clone https://github.com/code-iai/ROSIntegration.git
此時，ROSIntegration在虛幻專案中的檔案結構如下：
unreal_engine_project/Plugins/ROSIntegration/ROSIntegration.uplugin
在虛幻引擎源代碼UnrealEngine下的Engine/Source/Developer/DesktopPlatform/Private/DesktopPlatformBase.cpp檔案中執行此操作
查找此行：
Arguments += " -Progress -NoEngineChanges -NoHotReloadFromIDE";
替換為：
Arguments += " -Progress";
然后重新編譯引擎：
cd UnrealEngine
./Setup.sh
./GenerateProjectFiles.sh
make
編譯完成后，啟動專案并接受重建
（如果不進行上述步驟可能會遇到虛幻引擎自建專案打不開或遇到engine modules are out of date and cannot be compiled while the engine is running的情況）

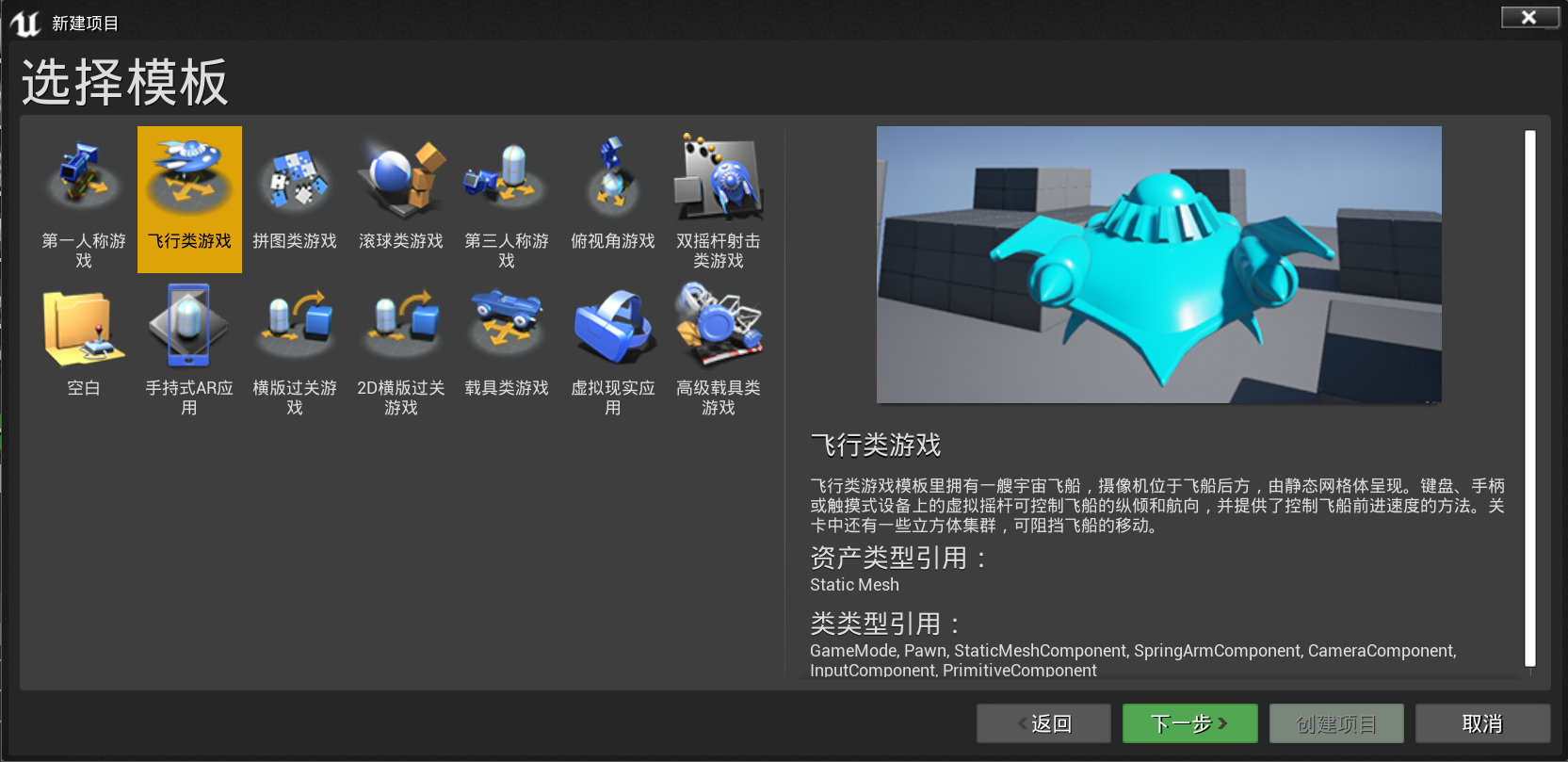

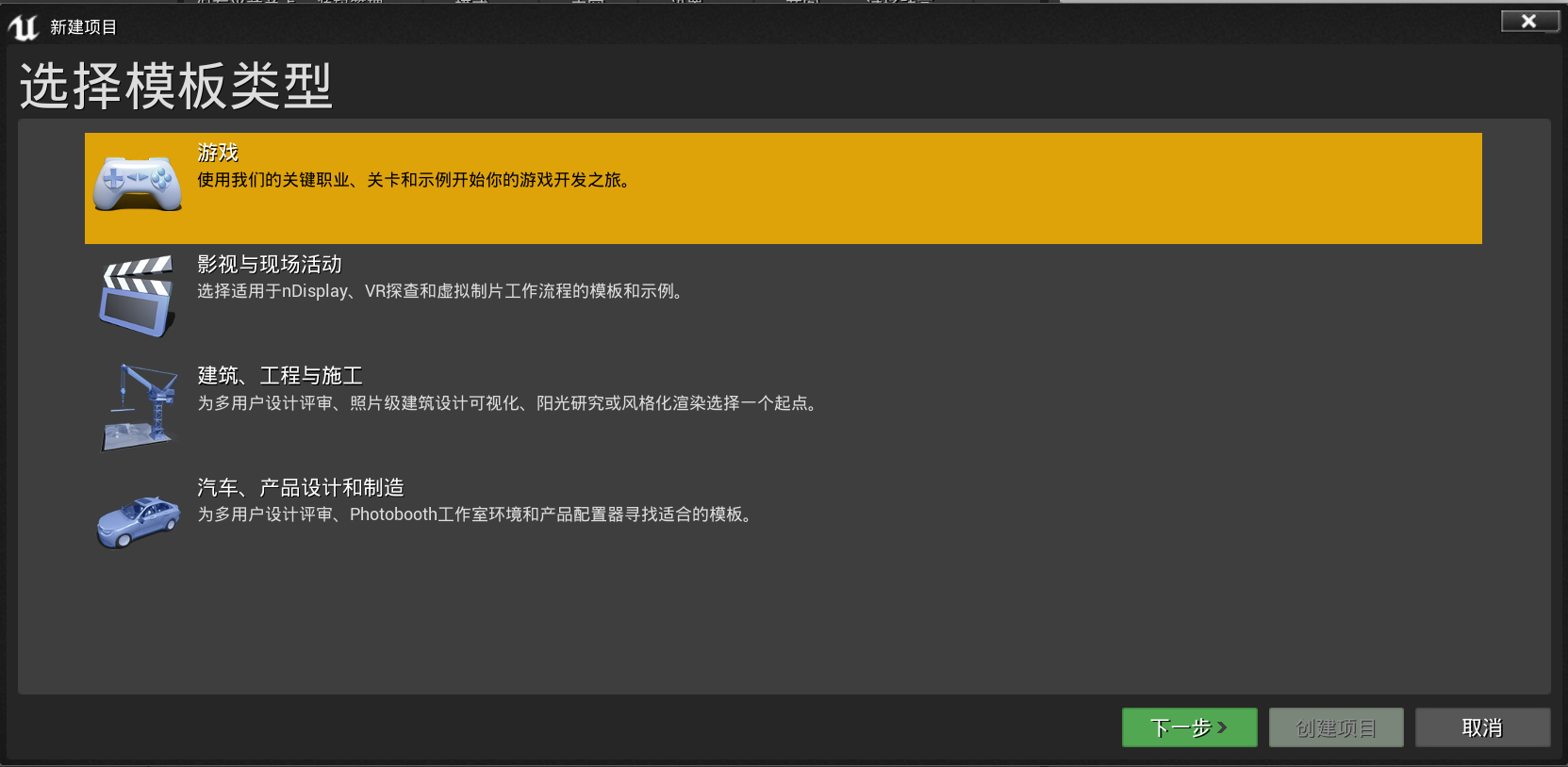

創建一個新的C++虛幻專案，或打開現有專案
在內容瀏覽器中查找（在內容瀏覽器的右下角啟用“查看選項”>“顯示插件內容”）
點擊“添加/匯入”按鈕下方的三條線按鈕，展開左側區域

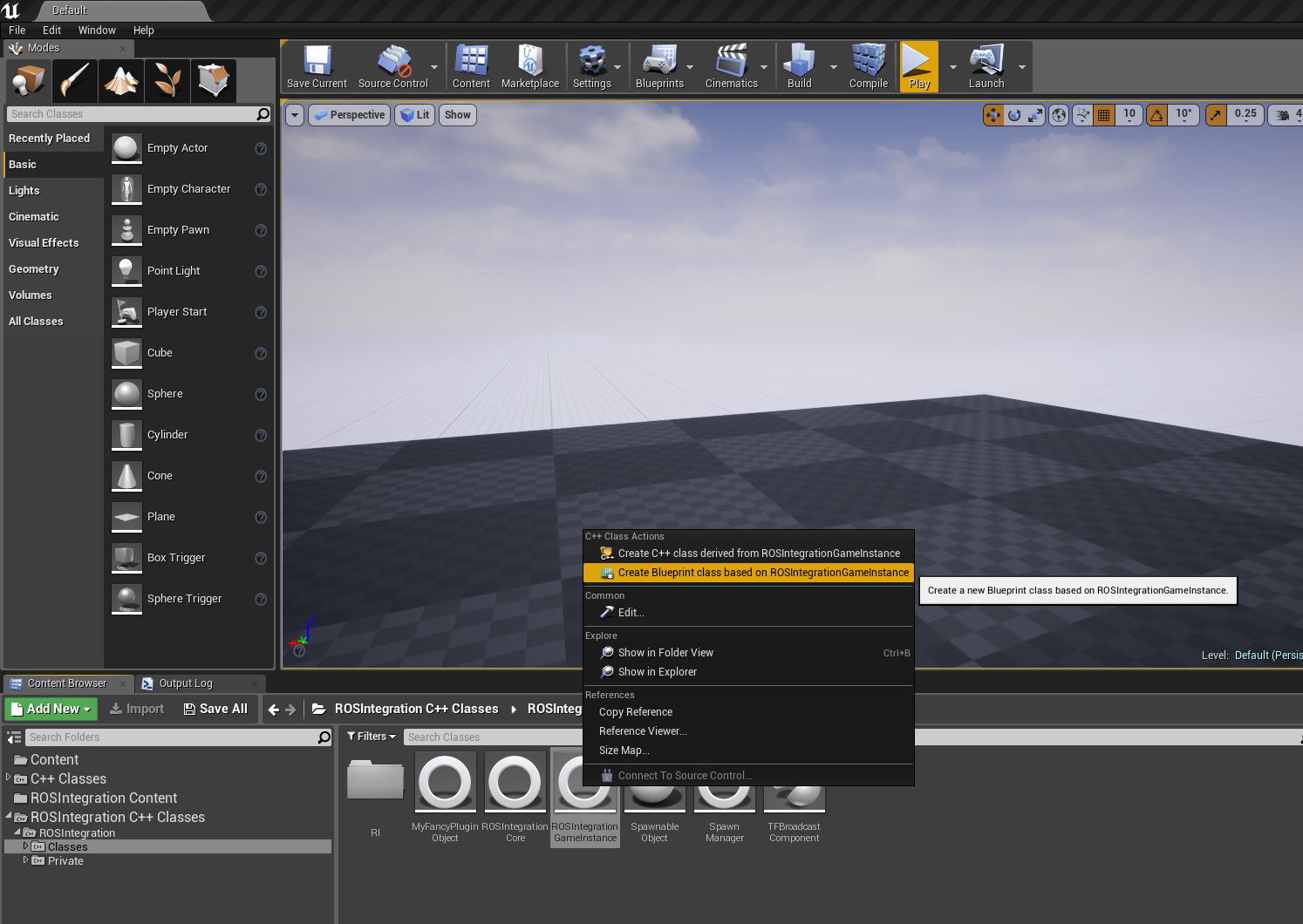

選中“ROSIntegration“>“Classes”，右鍵ROSIntegrationGameInstance，點擊下圖黃色選項

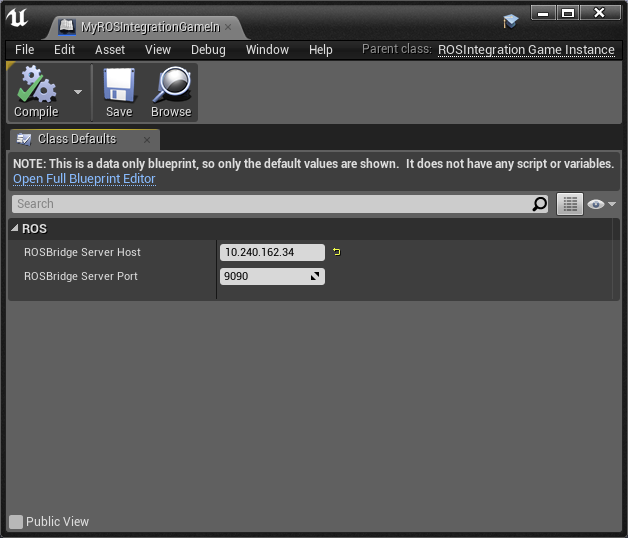

打開新的C++類/藍圖物件，并更改ROSBridgeSeverHost 和ROSBridgeServerPort，如果是本地運行的ROSBridge，則改為127.0.0.1即可

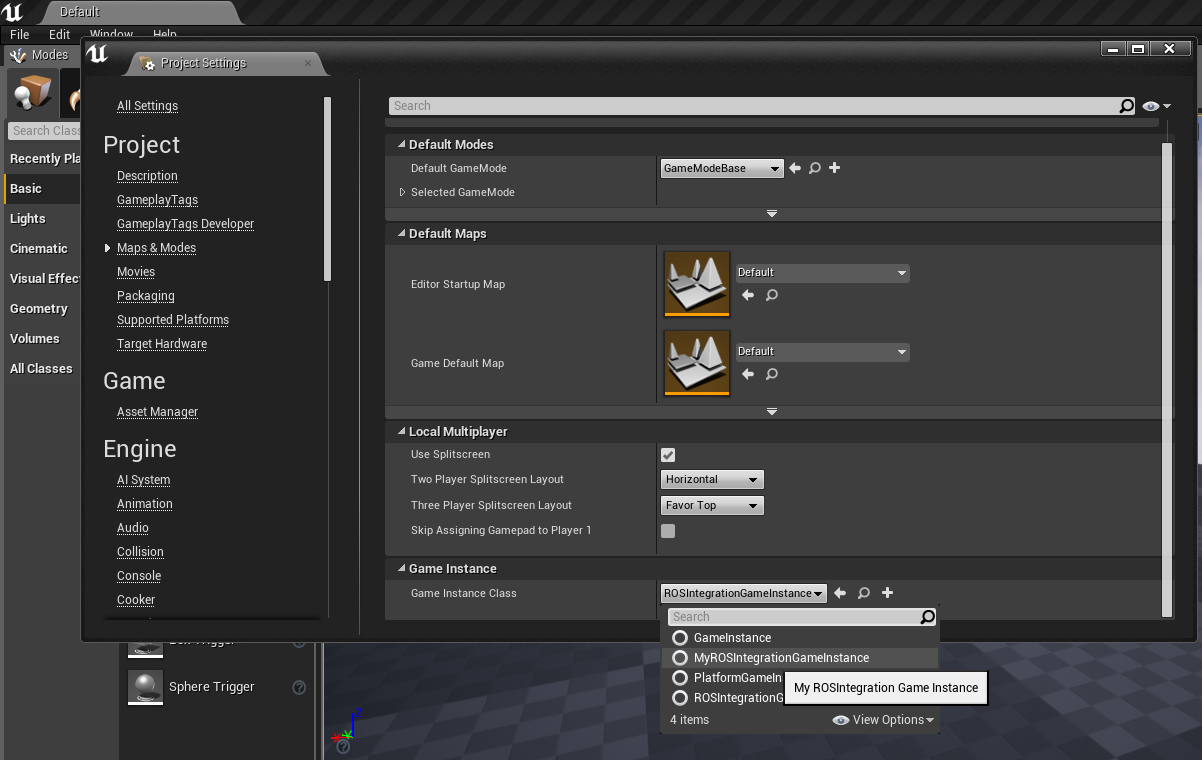

打開“地圖和模式”>“專案設定”，并將游戲實體設定為與新的游戲實體物件匹配，比如MyROSIntegrationGameInstance，而不是插件中的ROSIntegrationGameInstance
使用Ctrl + Shift + S保存所有更改
3、使用ROSIntegration
要進行與 ROS 的簡單發布/訂閱通信，需要在創建一個新的C++ Actor，而非中文的角色（Charactor），
接著創建 SamplePubliser
SamplePublisher.h
#include "ROSIntegration/Classes/RI/Topic.h"
#include "ROSIntegration/Classes/ROSIntegrationGameInstance.h"
#include "ROSIntegration/Public/std_msgs/String.h"
注意：上述代碼必須在#include "SamplePublisher.generated.h"之前，否則會報錯
SamplePublisher.cpp
// Initialize a topic
UTopic *ExampleTopic = NewObject<UTopic>(UTopic::StaticClass());
UROSIntegrationGameInstance* rosinst = Cast<UROSIntegrationGameInstance>(GetGameInstance());
ExampleTopic->Init(rosinst->ROSIntegrationCore, TEXT("/example_topic"), TEXT("std_msgs/String"));
// (Optional) Advertise the topic
ExampleTopic->Advertise();
// Publish a string to the topic
TSharedPtr<ROSMessages::std_msgs::String> StringMessage(new ROSMessages::std_msgs::String("This is an example"));
ExampleTopic->Publish(StringMessage);
注意：上述代碼放置在BeginPlay()函式中
進入unreal_engine_project/Source/unreal_engine_project目錄（替換 unreal_engine_project 為真實的專案名稱），打開unreal_engine_project.Build.cs檔案
找到:
PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore" });
添加ROSIntegrationy依賴，形如：
PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore", "ROSIntegration" });
進入ROS作業空間的src目錄，創建測驗功能包：
catkin_create_pkg ue_test std_msgs rospy roscpp
編譯并source：
catkin_make
source devel/setup.bash
創建一個監聽者cpp檔案：
cd ue_test/src
touch listener.cpp
打開cpp并鍵入如下代碼：
#include "ros/ros.h"
#include "std_msgs/String.h"
/**
* This tutorial demonstrates simple receipt of messages over the ROS system.
*/
void chatterCallback(const std_msgs::String::ConstPtr& msg)
{
ROS_INFO("I heard: [%s]", msg->data.c_str());
}
int main(int argc, char **argv)
{
/**
* The ros::init() function needs to see argc and argv so that it can perform
* any ROS arguments and name remapping that were provided at the command line.
* For programmatic remappings you can use a different version of init() which takes
* remappings directly, but for most command-line programs, passing argc and argv is
* the easiest way to do it. The third argument to init() is the name of the node.
*
* You must call one of the versions of ros::init() before using any other
* part of the ROS system.
*/
ros::init(argc, argv, "listener");
/**
* NodeHandle is the main access point to communications with the ROS system.
* The first NodeHandle constructed will fully initialize this node, and the last
* NodeHandle destructed will close down the node.
*/
ros::NodeHandle n;
/**
* The subscribe() call is how you tell ROS that you want to receive messages
* on a given topic. This invokes a call to the ROS
* master node, which keeps a registry of who is publishing and who
* is subscribing. Messages are passed to a callback function, here
* called chatterCallback. subscribe() returns a Subscriber object that you
* must hold on to until you want to unsubscribe. When all copies of the Subscriber
* object go out of scope, this callback will automatically be unsubscribed from
* this topic.
*
* The second parameter to the subscribe() function is the size of the message
* queue. If messages are arriving faster than they are being processed, this
* is the number of messages that will be buffered up before beginning to throw
* away the oldest ones.
*/
ros::Subscriber sub = n.subscribe("/example_topic", 1000, chatterCallback);
/**
* ros::spin() will enter a loop, pumping callbacks. With this version, all
* callbacks will be called from within this thread (the main one). ros::spin()
* will exit when Ctrl-C is pressed, or the node is shutdown by the master.
*/
ros::spin();
return 0;
}
在CMakeLists.txt添加：
add_executable(listener src/listener.cpp)
target_link_libraries(listener ${catkin_LIBRARIES})
add_dependencies(listener listener)
4、測驗ROSIntegration
啟動rosbridge
roslaunch rosbridge_server rosbridge_tcp.launch bson_only_mode:=True
運行新建功能包的監聽者
# rosrun <your package> talker
# 比如
rosrun ue_test talker
將在UE中新建的SamplePublisher托入三維世界中，并點擊運行
此時可以看到：
[INFO] [1588662504.536355639]: I heard: [This is an example]
恭喜你成功配置并運行了ROSIntegration！！！
三、ROSIntegrationVision下載與配置運行
1、虛幻引擎配置修改
在PATH_TO_UNREAL/Engine/Source/Programs/UnrealBuildTool/Platform/Linux/LinuxToolChain.cs中找到GetCLArguments_Global函式，并在其中添加陳述句Result += " -mf16c";，形如：
protected virtual string GetCLArguments_Global(CppCompileEnvironment CompileEnvironment)
{
string Result = "";
// build up the commandline common to C and C++
Result += " -c";
Result += " -pipe";
Result += " -mf16c";
if (ShouldUseLibcxx(CompileEnvironment.Architecture))
{
Result += " -nostdinc++";
Result += " -I" + "ThirdParty/Linux/LibCxx/include/";
Result += " -I" + "ThirdParty/Linux/LibCxx/include/c++/v1";
}
而后重新編譯虛幻引擎（注意如下陳述句必須都執行才算是重新編譯）：
cd UnrealEngine
./Setup.sh
./GenerateProjectFiles.sh
make
2、配置ROSIntegrationVision
使用git命令下載ROSIntegrationVision，放置在虛幻引擎專案檔案Plugins檔案夾下
cd unreal_engine_project # 替換 unreal_engine_project 為專案目錄檔案夾路徑
mkdir Plugins # 如果沒有 Plugins 檔案夾則手動創建
cd Plugins
git clone https://github.com/code-iai/ROSIntegrationVision/.git
如果你是在Linux上編譯虛幻引擎4而非Windows，則在打開專案時可能會遇到
Building forest2Editor...
Performing 3 actions (6 in parallel)
[1/3] Compile Module.ROSIntegrationVision.cpp
In file included from .../Plugins/ROSIntegrationVision/Intermediate/Build/Linux/B4D820EA/UE4Editor/Development/ROSIntegrationVision/Module.ROSIntegrationVision.cpp:6:
.../Plugins/ROSIntegrationVision/Source/ROSIntegrationVision/Private/VisionComponent.cpp:754:4: error: use of undeclared identifier '_mm_div_epi16'; did you mean '_mm_min_epi16'?
_mm_div_epi16(
^~~~~~~~~~~~~
_mm_min_epi16
/home/pisces/Gitware/UnrealEngine/Engine/Extras/ThirdPartyNotUE/SDKs/HostLinux/Linux_x64/v17_clang-10.0.1-centos7/x86_64-unknown-linux-gnu/lib/clang/10.0.1/include/emmintrin.h:2412:1: note: '_mm_min_epi16' declared here
_mm_min_epi16(__m128i __a, __m128i __b)
^
1 error generated.
LogInit: Warning: Still incompatible or missing module: ROSIntegrationVision
這是由于官方參考了Windows for UVisionComponent上的編譯問題：：convertDepth #28這一問題的回答，將原始碼改為了適配Windows的環境，但在Ubuntu18.04中并不存在_mm_div_epi16這一函式
因而，改變代碼
void UVisionComponent::convertDepth(const uint16_t *in, __m128 *out) const
{
const size_t size = (Width * Height) / 4;
for (size_t i = 0; i < size; ++i, in += 4, ++out)
{
// Divide by 100 here in order to convert UU (cm) into ROS units (m)
*out = _mm_cvtph_ps(
_mm_div_epi16(
_mm_set_epi16(0, 0, 0, 0, *(in + 3), *(in + 2), *(in + 1), *(in + 0)),
_mm_set_epi16(100, 100, 100, 100, 100, 100, 100, 100)
)
);// / 100;
}
}
為
void UVisionComponent::convertDepth(const uint16_t *in, __m128 *out) const
{
const size_t size = (Width * Height) / 4;
for (size_t i = 0; i < size; ++i, in += 4, ++out)
{
// Divide by 100 here in order to convert UU (cm) into ROS units (m)
*out = _mm_cvtph_ps(_mm_set_epi16(
0, 0, 0, 0, *(in + 3), *(in + 2), *(in + 1), *(in + 0))) / 100;
}
}
即可成功自動編譯打開專案
3、使用ROSIntegrationVision
在內容瀏覽器ROSIntegrationVision/ROSIntegrationVision/Private中包含VisionActor C++檔案，將其托入三維世界中即可現實攝像頭影像資訊
4、問題
注意：使用時需要先在VisionActor.cpp中作如下修改
AVisionActor::AVisionActor() : AActor()
{
UE_LOG(LogTemp, Warning, TEXT("VisionActor CTOR"));
// Set this actor to call Tick() every frame. You can turn this off to improve performance if you don't need it.
PrimaryActorTick.bCanEverTick = true;
RootComponent = CreateDefaultSubobject<USceneComponent>(TEXT("Root"));
SetRootComponent(RootComponent);
vision = CreateDefaultSubobject<UVisionComponent>(TEXT("Vision"));
vision->DisableTFPublishing = true; // 添加
//vision->ParentLink = "/world"; 注釋掉
vision->ParentLink = "desired_link"; // 添加
vision->SetupAttachment(RootComponent);
}
將ROSIntegrationVision插件中的Binaries和Intermediate檔案夾洗掉，重新打開專案，使引擎重新編譯插件

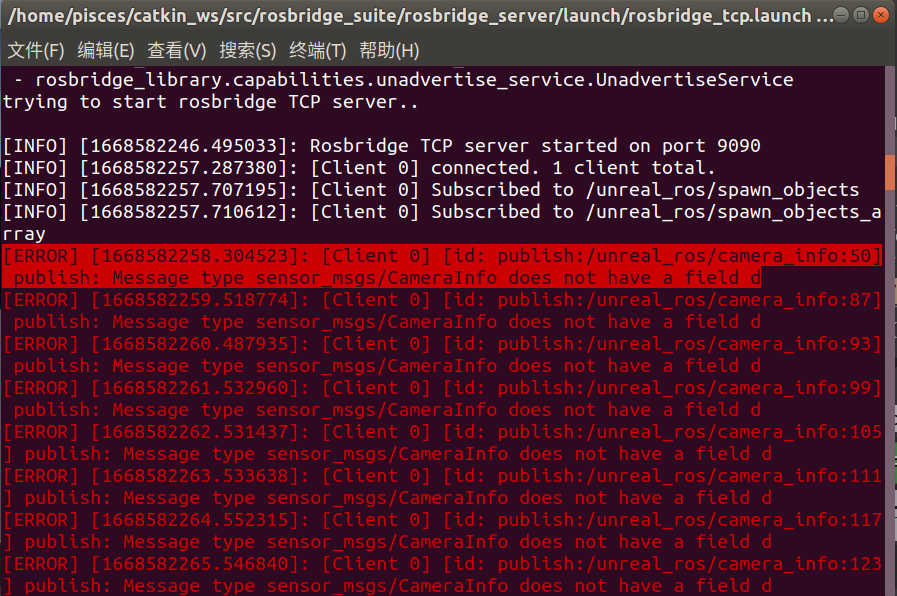

如果在運行rosbridge時遇到如下問題
可以修改ROSIntegration/Source/ROSIntegration/Private/Conversion/Messages/sensor_msgs/SensorMsgsCameraInfoConverter.h檔案
替換
static void _bson_append_camera_info(bson_t *b, const ROSMessages::sensor_msgs::CameraInfo *msg)
{
// assert(CastMsg->D.Num() == 5); // TODO: use Unreal assertions
assert(CastMsg->K.Num() == 9); // TODO: use Unreal assertions
assert(CastMsg->R.Num() == 9);
assert(CastMsg->P.Num() == 12);
UStdMsgsHeaderConverter::_bson_append_child_header(b, "header", &msg->header);
BSON_APPEND_INT32(b, "height", msg->height);
BSON_APPEND_INT32(b, "width", msg->width);
BSON_APPEND_UTF8(b, "distortion_model", TCHAR_TO_UTF8(*msg->distortion_model));
_bson_append_double_tarray(b, "d", msg->D);
_bson_append_double_tarray(b, "k", msg->K);
_bson_append_double_tarray(b, "r", msg->R);
_bson_append_double_tarray(b, "p", msg->P);
BSON_APPEND_INT32(b, "binning_x", msg->binning_x);
BSON_APPEND_INT32(b, "binning_y", msg->binning_y);
USensorMsgsRegionOfInterestConverter::_bson_append_child_roi(b, "roi", &msg->roi);
}
為
static void _bson_append_camera_info(bson_t *b, const ROSMessages::sensor_msgs::CameraInfo *msg)
{
// assert(CastMsg->D.Num() == 5); // TODO: use Unreal assertions
assert(CastMsg->K.Num() == 9); // TODO: use Unreal assertions
assert(CastMsg->R.Num() == 9);
assert(CastMsg->P.Num() == 12);
UStdMsgsHeaderConverter::_bson_append_child_header(b, "header", &msg->header);
BSON_APPEND_INT32(b, "height", msg->height);
BSON_APPEND_INT32(b, "width", msg->width);
BSON_APPEND_UTF8(b, "distortion_model", TCHAR_TO_UTF8(*msg->distortion_model));
_bson_append_double_tarray(b, "D", msg->D); // 替換
_bson_append_double_tarray(b, "K", msg->K); // 替換
_bson_append_double_tarray(b, "R", msg->R); // 替換
_bson_append_double_tarray(b, "P", msg->P); // 替換
BSON_APPEND_INT32(b, "binning_x", msg->binning_x);
BSON_APPEND_INT32(b, "binning_y", msg->binning_y);
USensorMsgsRegionOfInterestConverter::_bson_append_child_roi(b, "roi", &msg->roi);
}
如果相機圖象FPS較低，可以考慮修改VisionComponent.cpp中 Framerate(1) 為 Framerate(100)
UVisionComponent::UVisionComponent() :
Width(640),
Height(480),
Framerate(100), // change 1 to 100
UseEngineFramerate(false),
ServerPort(10000),
FrameTime(1.0f / Framerate),
TimePassed(0),
ColorsUsed(0)
四、參考資料
[1] code-iai/ROSIntegration markdown說明檔案及issues
[2] code-iai/ROSIntegrationVision markdown說明檔案及issues
[3] ROS Communication Sample on Unreal Engine Using ROSIntegration
[4] upgrade c++ project from ue 4.24 to 4.25 under Linux
部分圖片來源于網路
轉載請注明出處！
本篇發布在以下博客或網站：
雙魚座羊駝 - 知乎 (zhihu.com)
雙魚座羊駝的博客_CSDN博客
雙魚座羊駝 - SegmentFault 思否
雙魚座羊駝 的個人主頁 - 動態 - 掘金 (juejin.cn)
雙魚座羊駝 - 博客園 (cnblogs.com)
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/536006.html
標籤：其他
上一篇：攻防世界web 難度1新手練習
下一篇：0經驗轉崗測驗經歷分享
