Tomcat多實體部署

一、Tomcat多實體的操作步驟

1.1關閉防火墻，將安裝 Tomcat 所需軟體包傳到/opt目錄下

jdk-8u201-linux-x64.rpm
apache-tomcat-9.0.16.tar.gz

systemctl stop firewalld
systemctl disable firewalld
setenforce 0

1.2安裝JDK

jdk-8u201-linux-x64.rpm
apache-tomcat-9.0.16.tar.gz

vim /etc/profile.d/java.sh
export JAVA_HOME=/usr/java/jdk1.8.0_201-amd64
export CLASSPATH=.:$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jar
export PATH=$JAVA_HOME/bin:$PATH

source /etc/profile.d/java.sh
java -version

1.3安裝 tomcat

cd /opt
tar zxvf apache-tomcat-9.0.16.tar.gz
mkdir /usr/local/tomcat
mv apache-tomcat-9.0.16 /usr/local/tomcat/tomcat1
cp -a /usr/local/tomcat/tomcat1 /usr/local/tomcat/tomcat2

1.4配置 tomcat 環境變數

vim /etc/profile.d/tomcat.sh
#tomcat1
export CATALINA_HOME1=/usr/local/tomcat/tomcat1
export CATALINA_BASE1=/usr/local/tomcat/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat/tomcat1

#tomcat2
export CATALINA_HOME2=/usr/local/tomcat/tomcat2
export CATALINA_BASE2=/usr/local/tomcat/tomcat2
export TOMCAT_HOME2=/usr/local/tomcat/tomcat2


source /etc/profile.d/tomcat.sh

1.5修改 tomcat2 中的 server.xml 檔案，要求各 tomcat 實體配置不能有重復的埠號

vim /usr/local/tomcat/tomcat2/conf/server.xml
<Server port="8006" shutdown="SHUTDOWN">      #22行，修改Server prot，默認為8005 -> 修改為8006
<Connector port="8081" protocol="HTTP/1.1"       #69行，修改Connector port，HTTP/1.1  默認為8080 -> 修改為8081

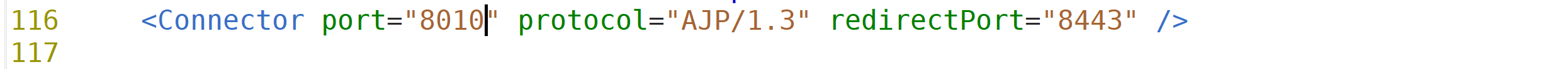

<Connector port="8010" protocol="AJP/1.3" redirectPort="8443" />  #116行，修改Connector port AJP/1.3，默認為8009 -> 修改為8010

1.6修改各 tomcat 實體中的 startup.sh 和 shutdown.sh 檔案，添加 tomcat 環境變數

vim /usr/local/tomcat/tomcat1/bin/startup.sh
# -----------------------------------------------------------------------------
# Start Script for the CATALINA Server
# -----------------------------------------------------------------------------
##添加以下內容
export CATALINA_BASE=$CATALINA_BASE1
export CATALINA_HOME=$CATALINA_HOME1
export TOMCAT_HOME=$TOMCAT_HOME1


vim /usr/local/tomcat/tomcat1/bin/shutdown.sh
# -----------------------------------------------------------------------------
# Stop script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE1
export CATALINA_HOME=$CATALINA_HOME1
export TOMCAT_HOME=$TOMCAT_HOME1


vim /usr/local/tomcat/tomcat2/bin/startup.sh
# -----------------------------------------------------------------------------
# Start Script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE2
export CATALINA_HOME=$CATALINA_HOME2
export TOMCAT_HOME=$TOMCAT_HOME2


vim /usr/local/tomcat/tomcat2/bin/shutdown.sh
# -----------------------------------------------------------------------------
# Stop script for the CATALINA Server
# -----------------------------------------------------------------------------
export CATALINA_BASE=$CATALINA_BASE2
export CATALINA_HOME=$CATALINA_HOME2
export TOMCAT_HOME=$TOMCAT_HOME2

1.7啟動各 tomcat 中的 /bin/startup.sh

/usr/local/tomcat/tomcat1/bin/startup.sh
/usr/local/tomcat/tomcat2/bin/startup.sh

netstat -natp | grep java

1.8瀏覽器訪問測驗

http://192.168.10.10:8080
http://192.168.10.10:8081　

二、實體操作：Tomcat多實體

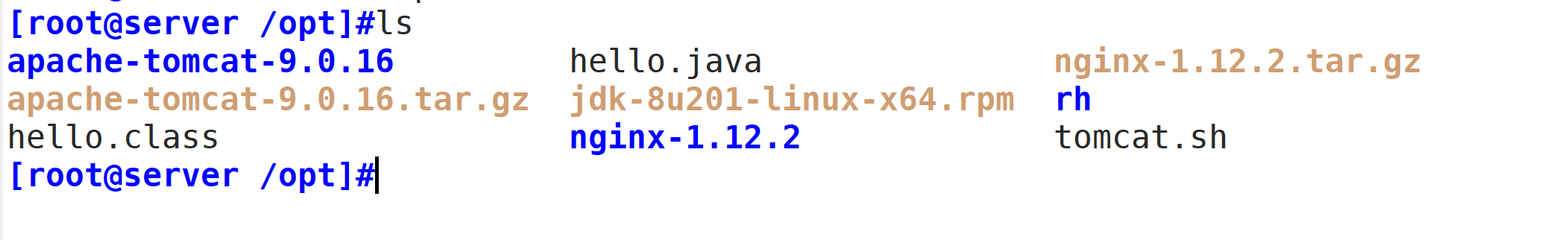

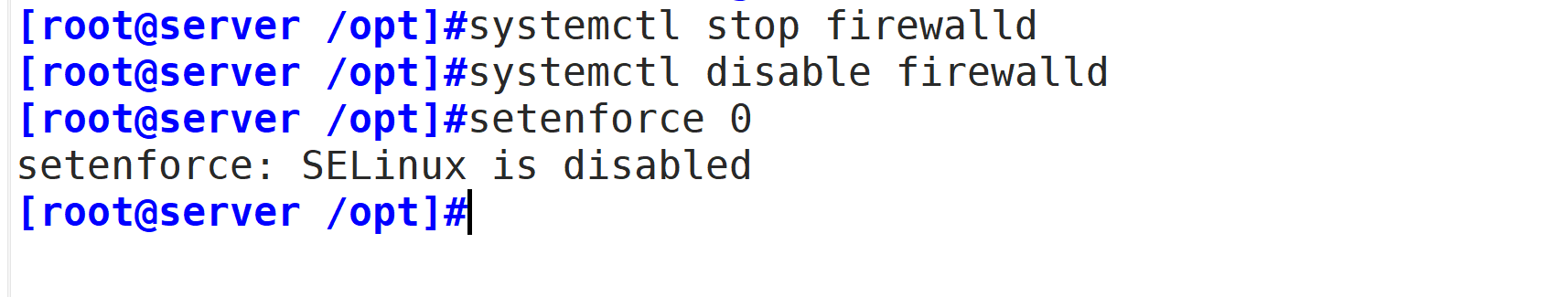

2.1關閉防火墻，將安裝 Tomcat 所需軟體包傳到/opt目錄下

2.2安裝JDK

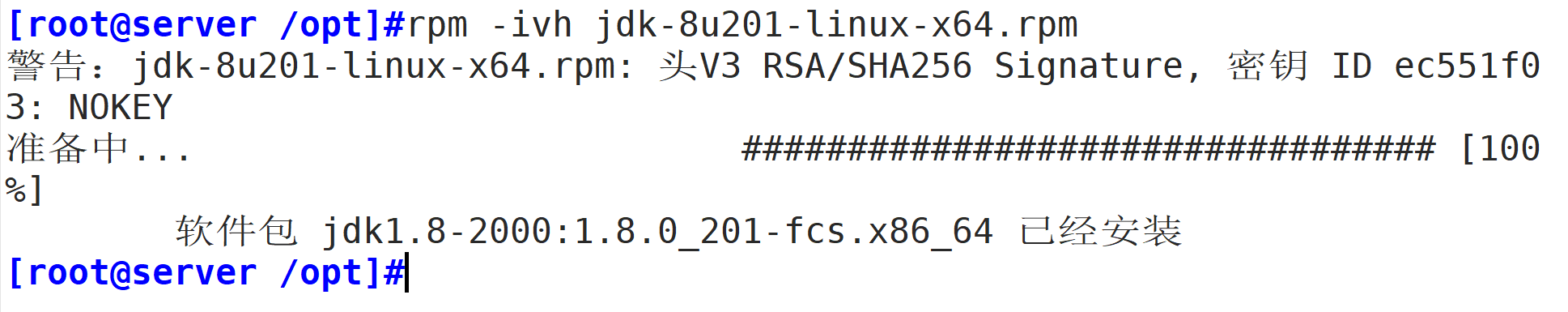

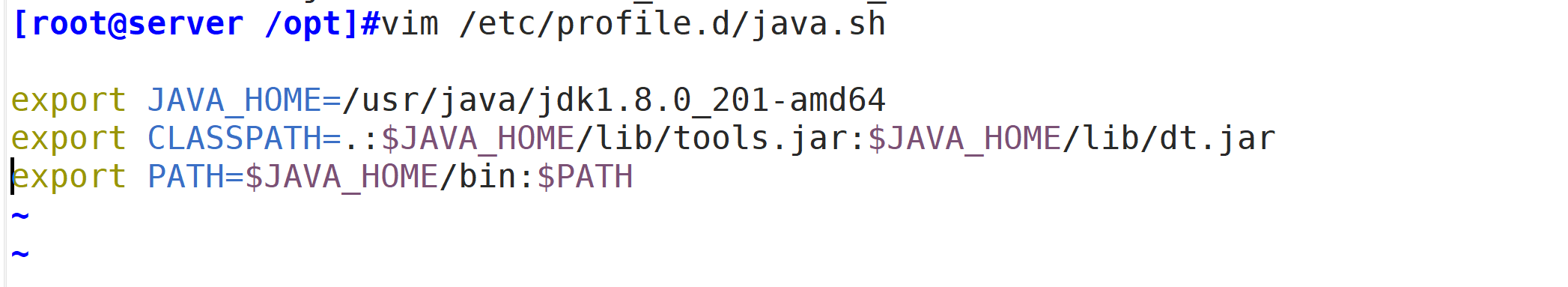

(1) 安裝JDK并加入環境變數

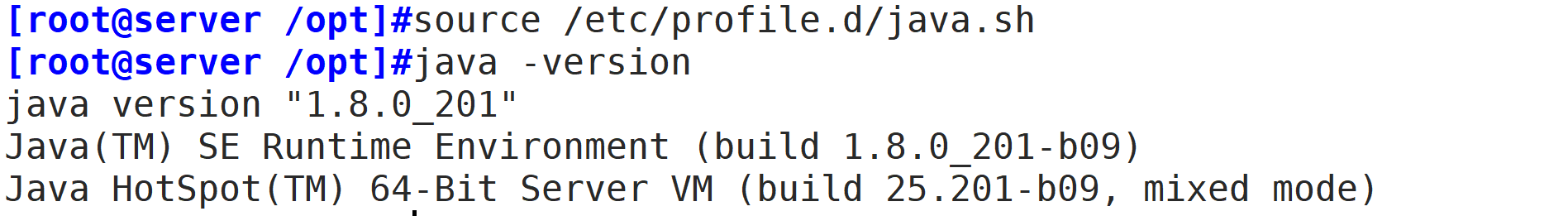

(2) 重繪腳本檔案，然后查看jdk版本

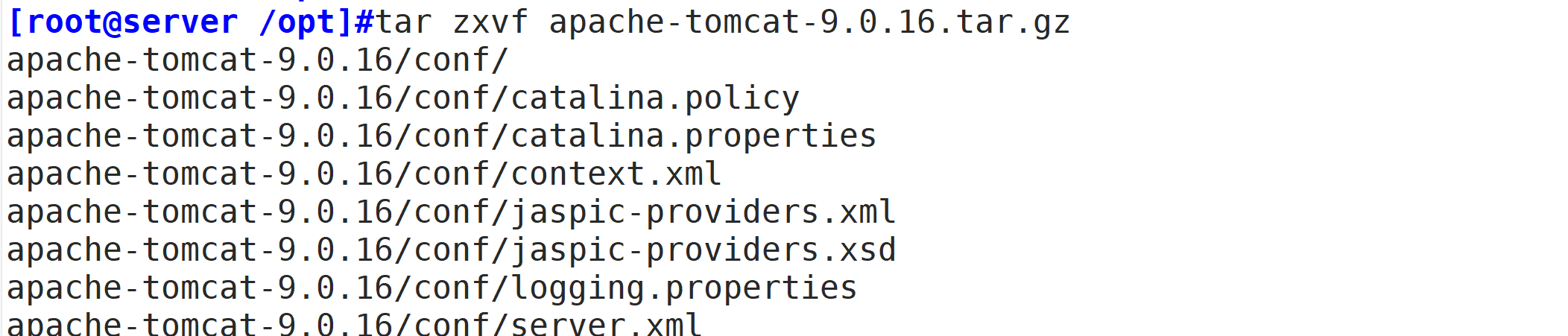

2.3安裝 tomcat

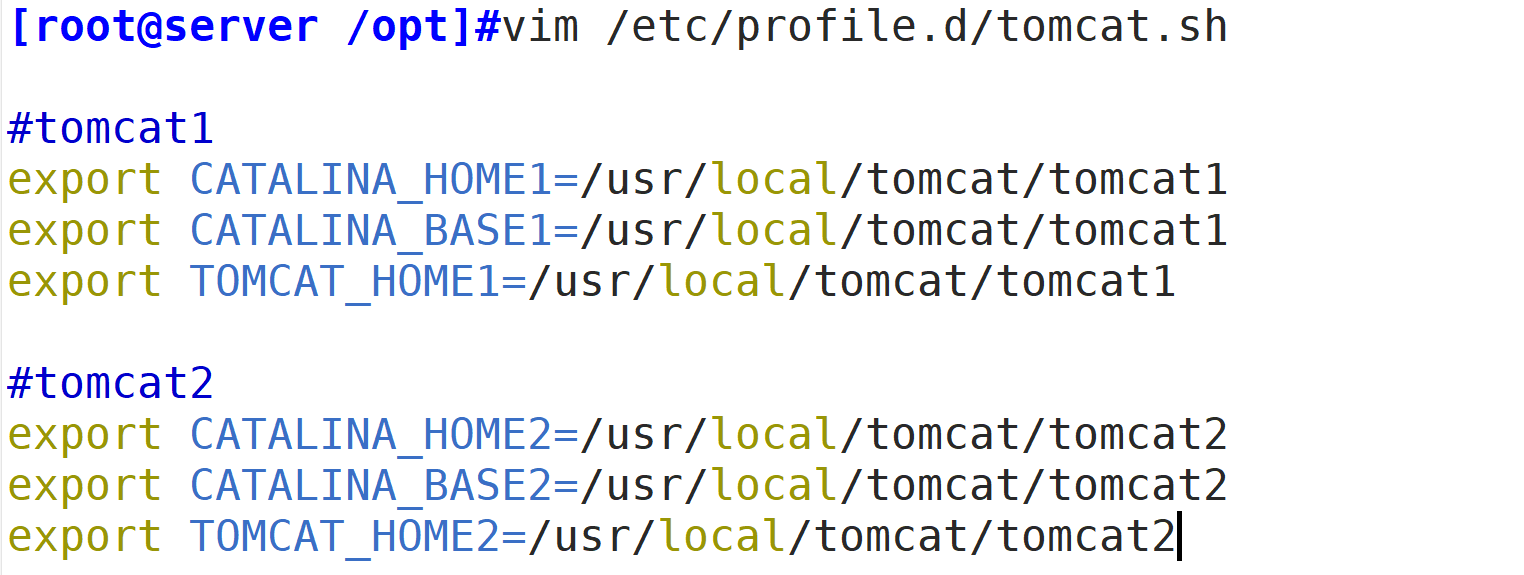

2.4配置 tomcat 環境變數

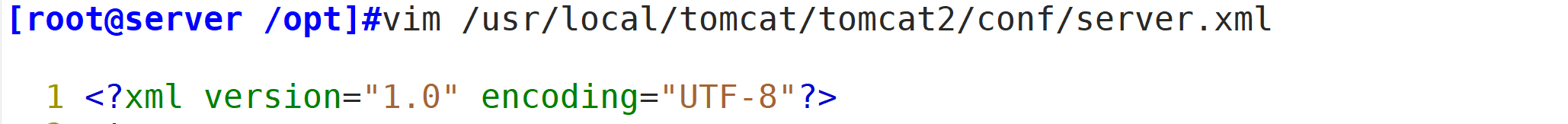

2.5修改 tomcat2 中的 server.xml 檔案，要求各 tomcat 實體配置不能有重復的埠號

2.6修改各 tomcat 實體中的 startup.sh 和 shutdown.sh 檔案，添加 tomcat 環境變數

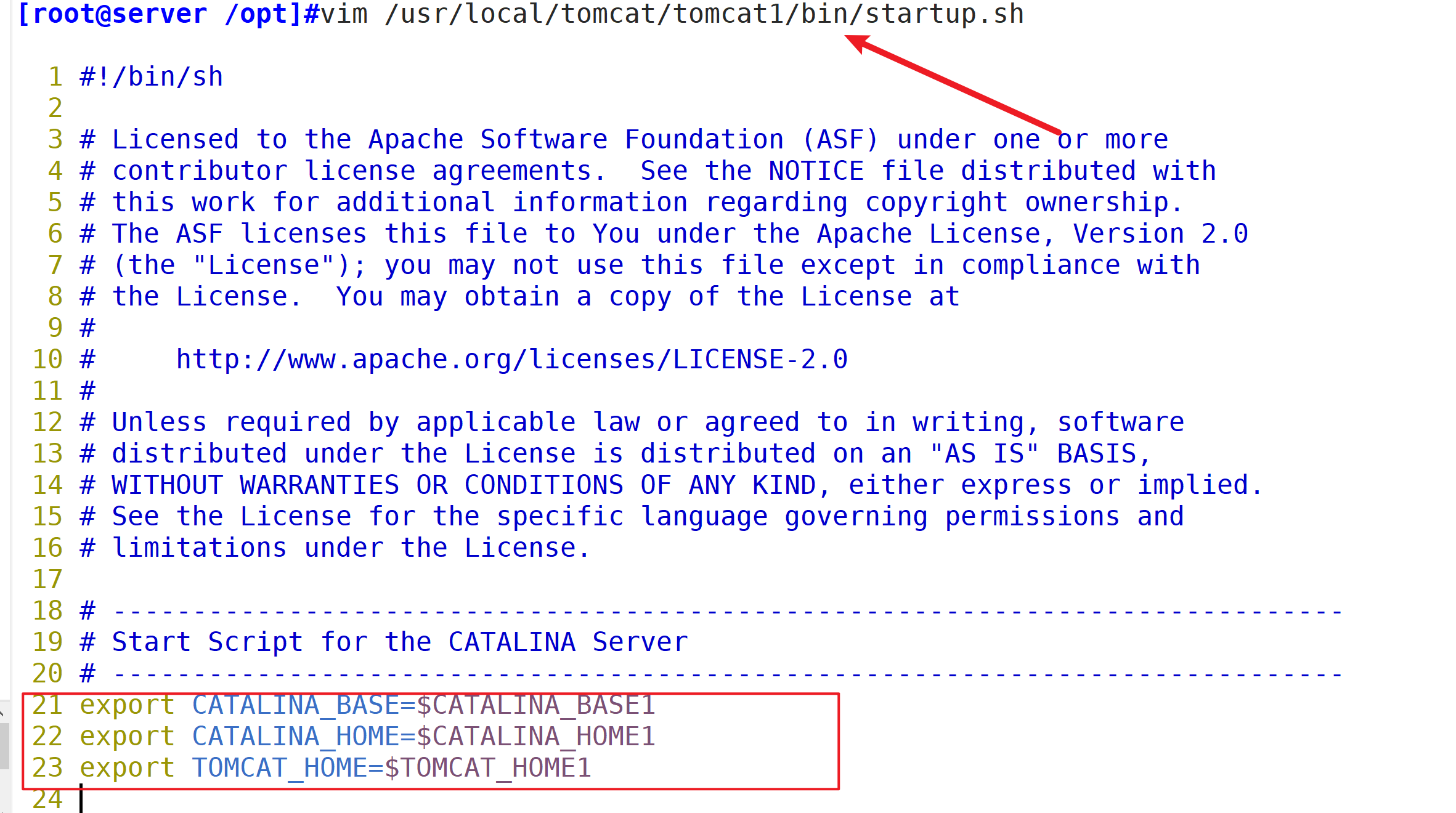

(1) 修改tomcat1的startup.sh

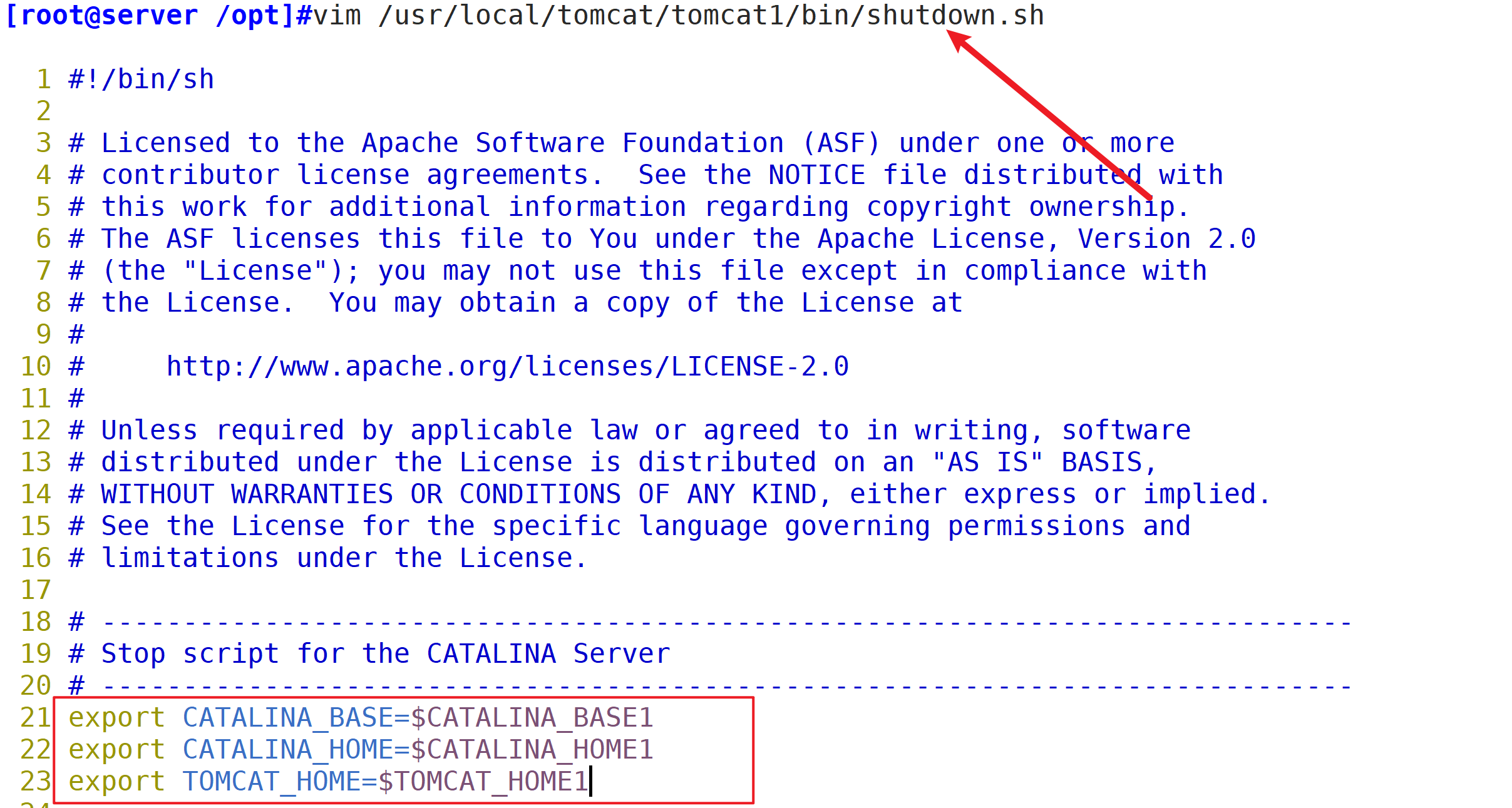

(2) 修改tomcat1的shutdown.sh

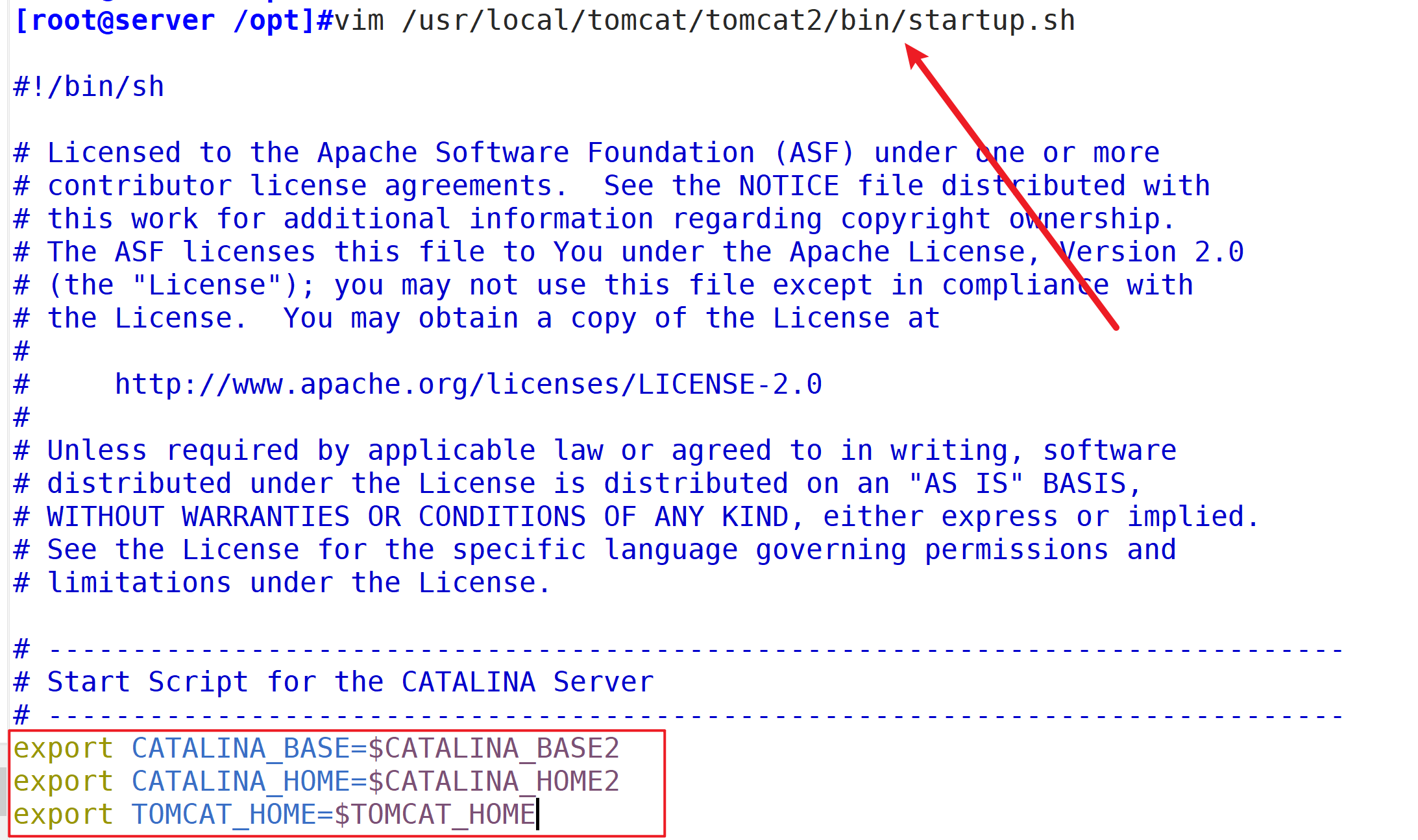

(3) 修改tomcat2的startup.sh

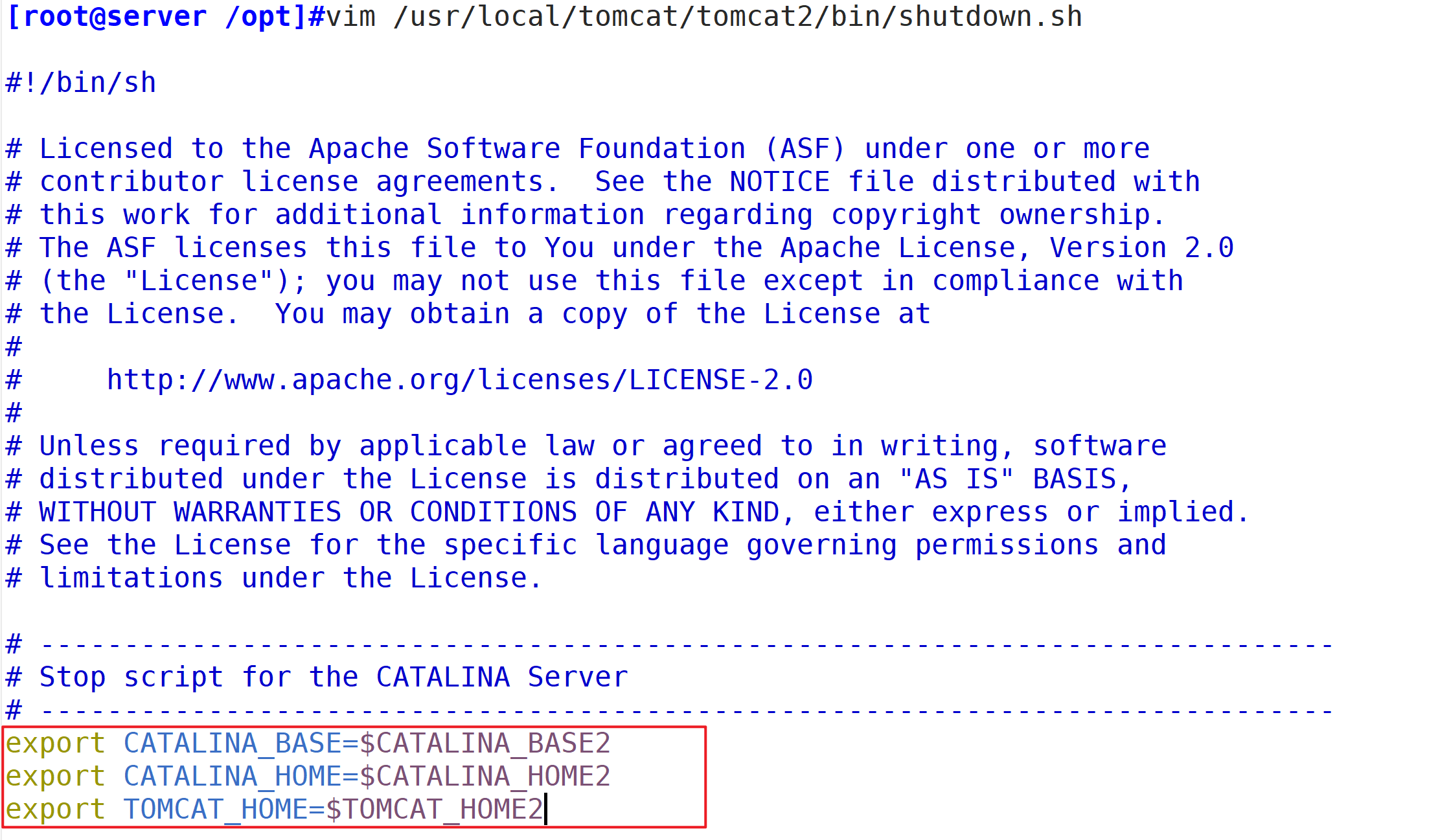

(4) 修改tomcat2的shutdown.sh

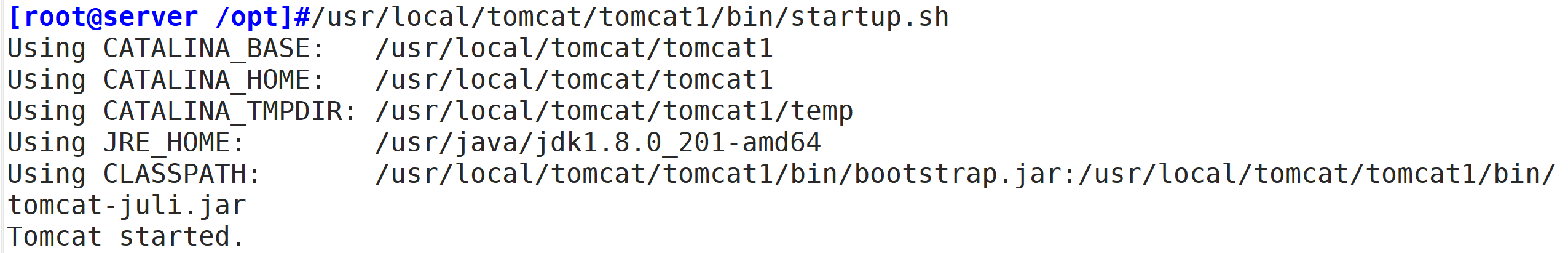

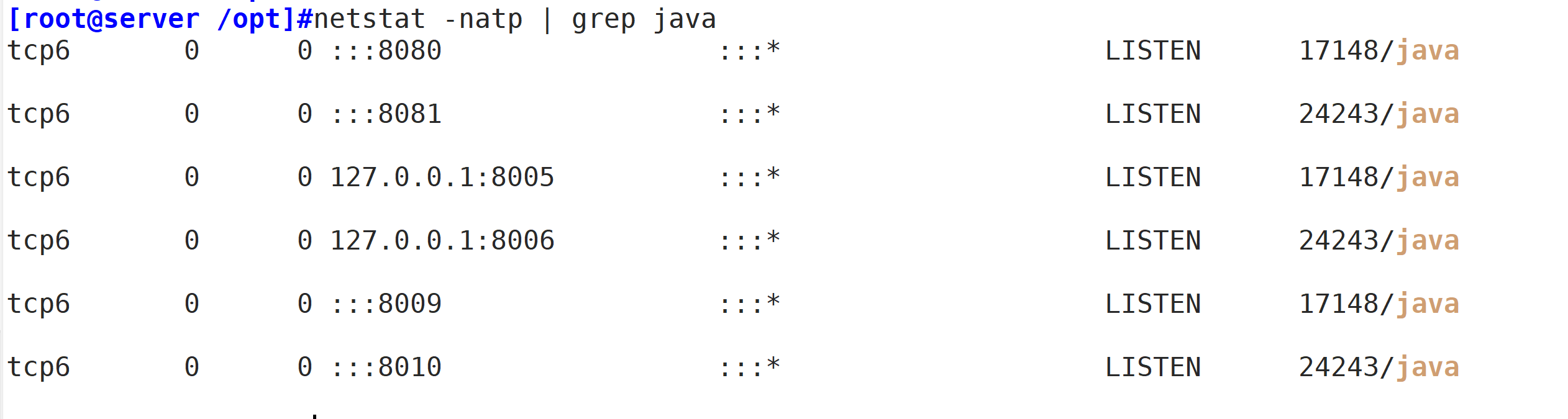

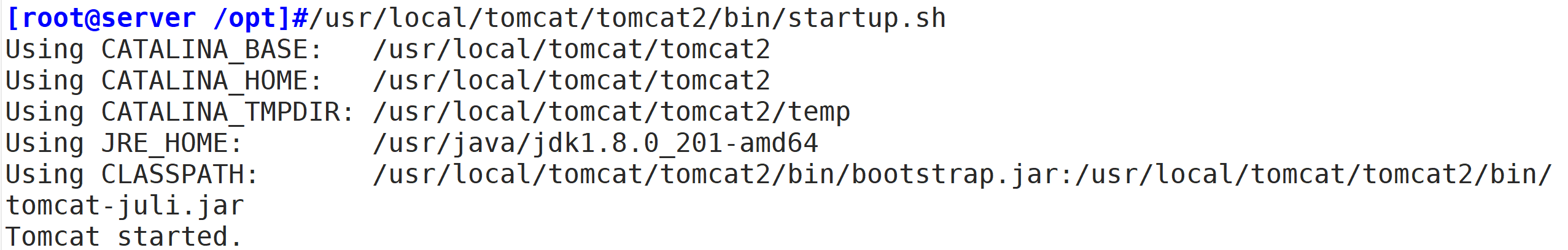

2.7啟動各 tomcat 中的 /bin/startup.sh

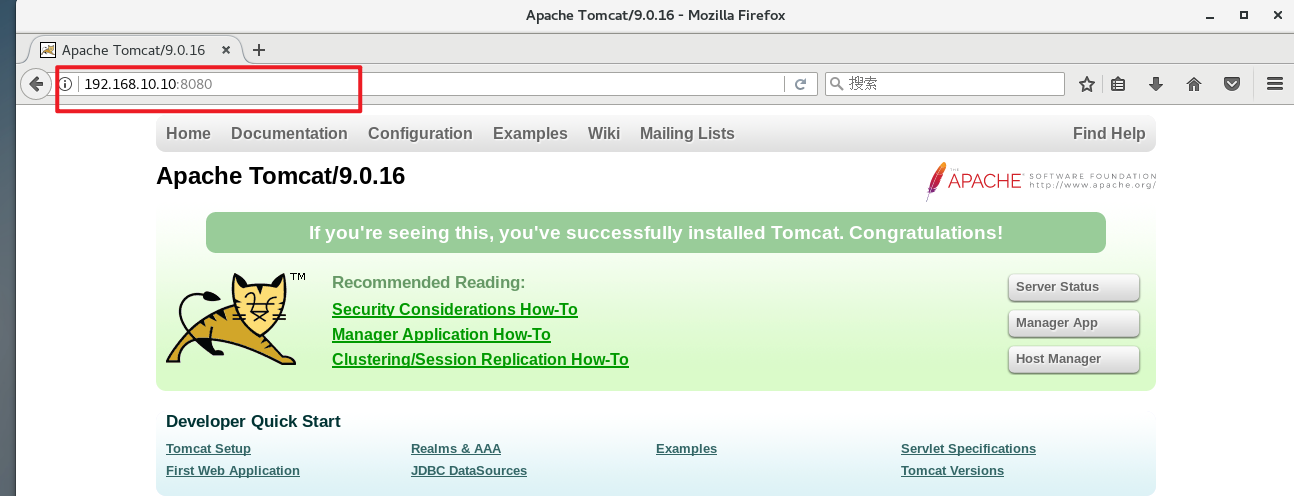

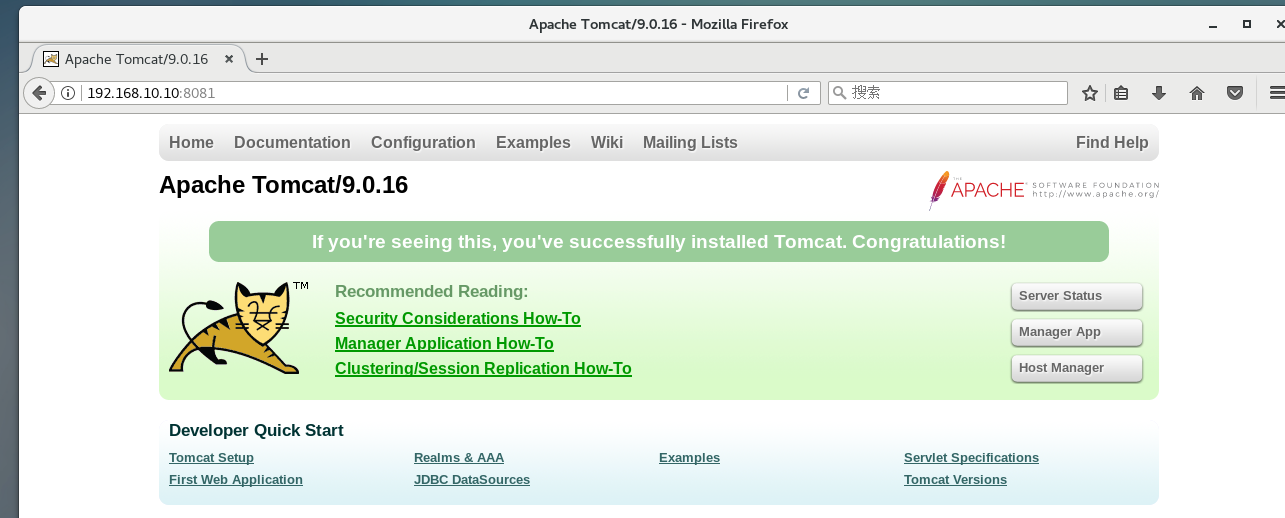

2.8瀏覽器訪問測驗
