1、前言
Pod調度運?時，如果應?不需要任何穩定的標示、有序的部署、洗掉和擴展，則應該使??組?狀態副本的控制器來部署應?，例如 Deployment 或 ReplicaSet更適合?狀態服務需求，?StatefulSet適合管理所有有狀態的服務，?如MySQL、MongoDB集群等，

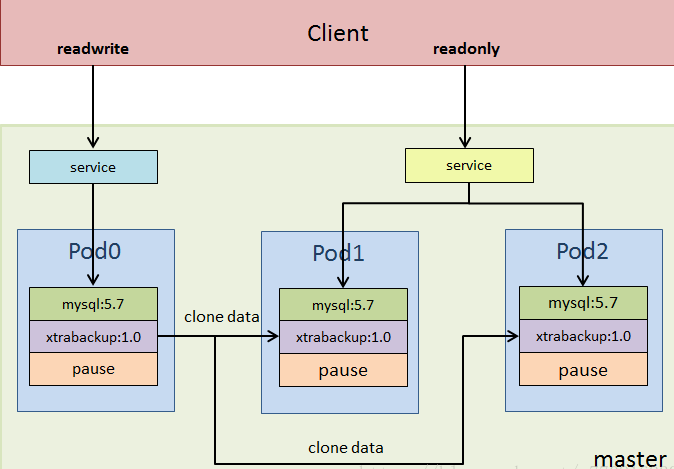

2、StatefulSet控制器運行MySQL一主多從架構圖
StatefulSet本質上是Deployment的?種變體，在v1.9版本中已成為GA版本，它為了解決有狀態服務的問題，它所管理的Pod擁有固定的Pod名稱，啟停順序，在StatefulSet中，Pod名字稱為?絡標識(hostname)，還必須要?到共享存盤，
在Deployment中，與之對應的服務是service，?在StatefulSet中與之對應的headless service，headless service，即?頭服務，與service的區別就是它沒有Cluster IP，決議它的名稱時將回傳該Headless Service對應的全部Pod的Endpoint串列，
2.1、StatefulSet控制器特點
- 給每個pod分配固定且唯?的?絡識別符號
- 給每個pod分配固定且持久化的外部存盤
- 對pod進?有序的部署和擴展
- 對pod進有序的洗掉和終?
- 對pod進有序的?動滾動更新
2.2、StatefulSet的組成部分
- Headless Service：?來定義Pod?絡標識( DNS domain)，指的是短的service(丟失了domainname)，
- StatefulSet：定義具體應?，有多少個Pod副本，并為每個Pod定義了?個域名，
- volumeClaimTemplates： 存盤卷申請模板，創建PVC，指定pvc名稱??，將?動創建pvc，且pvc必須由存盤類供應，
3、在k8s上部署mysql一主多從
3.1、基礎鏡像準備
3.1.1、準備mysql鏡像
下載鏡像
root@k8s-master01:~# nerdctl pull mysql:5.7.36
修改鏡像tag為本地harbor地址
root@k8s-master01:~# nerdctl tag mysql:5.7.36 harbor.ik8s.cc/magedu/mysql:5.7.36
上傳鏡像至本地harbor
root@k8s-master01:~# nerdctl push harbor.ik8s.cc/magedu/mysql:5.7.36
3.1.2、準備xtrabackup鏡像
下載鏡像
root@k8s-master01:~# nerdctl pull registry.cn-hangzhou.aliyuncs.com/hxpdocker/xtrabackup:1.0
修改鏡像tag為本地harbor地址
root@k8s-master01:~# nerdctl tag registry.cn-hangzhou.aliyuncs.com/hxpdocker/xtrabackup:1.0 harbor.ik8s.cc/magedu/xtrabackup:1.0
上傳鏡像至本地harbor
root@k8s-master01:~# nerdctl push harbor.ik8s.cc/magedu/xtrabackup:1.0

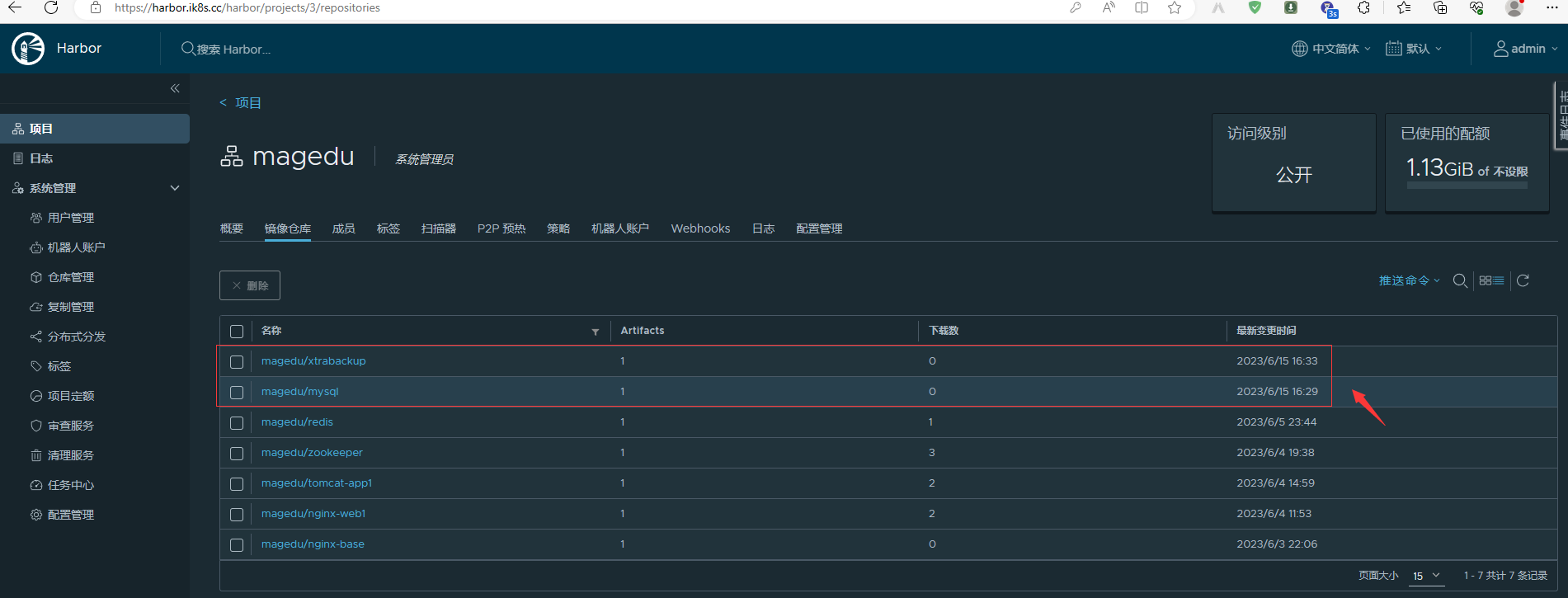

3.1.3、驗證鏡像是否上傳至harbor？
3.2、準備pv
3.2.1、在nfs服務器上創建資料存盤目錄
root@harbor:~# mkdir -pv /data/k8sdata/magedu/mysql-datadir-{1..5}
mkdir: created directory '/data/k8sdata/magedu/mysql-datadir-1'
mkdir: created directory '/data/k8sdata/magedu/mysql-datadir-2'
mkdir: created directory '/data/k8sdata/magedu/mysql-datadir-3'
mkdir: created directory '/data/k8sdata/magedu/mysql-datadir-4'
mkdir: created directory '/data/k8sdata/magedu/mysql-datadir-5'
root@harbor:~#
3.2.2、在nfs服務器上匯出資料存盤目錄
root@harbor:/data/k8sdata/magedu# cat /etc/exports
# /etc/exports: the access control list for filesystems which may be exported
# to NFS clients. See exports(5).
#
# Example for NFSv2 and NFSv3:
# /srv/homes hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
#
# Example for NFSv4:
# /srv/nfs4 gss/krb5i(rw,sync,fsid=0,crossmnt,no_subtree_check)
# /srv/nfs4/homes gss/krb5i(rw,sync,no_subtree_check)
#
/data/k8sdata/kuboard *(rw,no_root_squash)
/data/volumes *(rw,no_root_squash)
/pod-vol *(rw,no_root_squash)
/data/k8sdata/myserver *(rw,no_root_squash)
/data/k8sdata/mysite *(rw,no_root_squash)
/data/k8sdata/magedu/images *(rw,no_root_squash)
/data/k8sdata/magedu/static *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-1 *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-2 *(rw,no_root_squash)
/data/k8sdata/magedu/zookeeper-datadir-3 *(rw,no_root_squash)
/data/k8sdata/magedu/redis-datadir-1 *(rw,no_root_squash)
/data/k8sdata/magedu/redis0 *(rw,no_root_squash)
/data/k8sdata/magedu/redis1 *(rw,no_root_squash)
/data/k8sdata/magedu/redis2 *(rw,no_root_squash)
/data/k8sdata/magedu/redis3 *(rw,no_root_squash)
/data/k8sdata/magedu/redis4 *(rw,no_root_squash)
/data/k8sdata/magedu/redis5 *(rw,no_root_squash)
/data/k8sdata/magedu/mysql-datadir-1 *(rw,no_root_squash)
/data/k8sdata/magedu/mysql-datadir-2 *(rw,no_root_squash)
/data/k8sdata/magedu/mysql-datadir-3 *(rw,no_root_squash)
/data/k8sdata/magedu/mysql-datadir-4 *(rw,no_root_squash)
/data/k8sdata/magedu/mysql-datadir-5 *(rw,no_root_squash)
root@harbor:/data/k8sdata/magedu# exportfs -av
exportfs: /etc/exports [1]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/kuboard".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [2]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/volumes".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [3]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/pod-vol".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [4]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/myserver".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [5]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/mysite".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [7]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/images".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [8]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/static".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [11]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-1".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [12]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-2".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [13]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/zookeeper-datadir-3".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [16]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis-datadir-1".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [18]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis0".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [19]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis1".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [20]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis2".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [21]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis3".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [22]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis4".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [23]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/redis5".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [27]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/mysql-datadir-1".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [28]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/mysql-datadir-2".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [29]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/mysql-datadir-3".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [30]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/mysql-datadir-4".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exportfs: /etc/exports [31]: Neither 'subtree_check' or 'no_subtree_check' specified for export "*:/data/k8sdata/magedu/mysql-datadir-5".
Assuming default behaviour ('no_subtree_check').
NOTE: this default has changed since nfs-utils version 1.0.x
exporting *:/data/k8sdata/magedu/mysql-datadir-5
exporting *:/data/k8sdata/magedu/mysql-datadir-4
exporting *:/data/k8sdata/magedu/mysql-datadir-3
exporting *:/data/k8sdata/magedu/mysql-datadir-2
exporting *:/data/k8sdata/magedu/mysql-datadir-1
exporting *:/data/k8sdata/magedu/redis5
exporting *:/data/k8sdata/magedu/redis4
exporting *:/data/k8sdata/magedu/redis3
exporting *:/data/k8sdata/magedu/redis2
exporting *:/data/k8sdata/magedu/redis1
exporting *:/data/k8sdata/magedu/redis0
exporting *:/data/k8sdata/magedu/redis-datadir-1
exporting *:/data/k8sdata/magedu/zookeeper-datadir-3
exporting *:/data/k8sdata/magedu/zookeeper-datadir-2
exporting *:/data/k8sdata/magedu/zookeeper-datadir-1
exporting *:/data/k8sdata/magedu/static
exporting *:/data/k8sdata/magedu/images
exporting *:/data/k8sdata/mysite
exporting *:/data/k8sdata/myserver
exporting *:/pod-vol
exporting *:/data/volumes
exporting *:/data/k8sdata/kuboard
root@harbor:/data/k8sdata/magedu#
3.2.2、創建pv
創建pv配置清單
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-datadir-1
namespace: magedu
spec:
capacity:
storage: 50Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/k8sdata/magedu/mysql-datadir-1
server: 192.168.0.42
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-datadir-2
namespace: magedu
spec:
capacity:
storage: 50Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/k8sdata/magedu/mysql-datadir-2
server: 192.168.0.42
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-datadir-3
namespace: magedu
spec:
capacity:
storage: 50Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/k8sdata/magedu/mysql-datadir-3
server: 192.168.0.42
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-datadir-4
namespace: magedu
spec:
capacity:
storage: 50Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/k8sdata/magedu/mysql-datadir-4
server: 192.168.0.42
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: mysql-datadir-5
namespace: magedu
spec:
capacity:
storage: 50Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/k8sdata/magedu/mysql-datadir-5
server: 192.168.0.42
創建pv
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl apply -f pv/mysql-persistentvolume.yaml
persistentvolume/mysql-datadir-1 created
persistentvolume/mysql-datadir-2 created
persistentvolume/mysql-datadir-3 created
persistentvolume/mysql-datadir-4 created
persistentvolume/mysql-datadir-5 created
root@k8s-master01:~/k8s-data/yaml/magedu/mysql#
3.2.3、驗證pv
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
mysql-datadir-1 50Gi RWO Retain Available 5s
mysql-datadir-2 50Gi RWO Retain Available 5s
mysql-datadir-3 50Gi RWO Retain Available 5s
mysql-datadir-4 50Gi RWO Retain Available 5s
mysql-datadir-5 50Gi RWO Retain Available 5s
redis-cluster-pv0 5Gi RWO Retain Bound magedu/data-redis-1 8d
redis-cluster-pv1 5Gi RWO Retain Bound magedu/data-redis-3 8d
redis-cluster-pv2 5Gi RWO Retain Bound magedu/data-redis-4 8d
redis-cluster-pv3 5Gi RWO Retain Bound magedu/data-redis-0 8d
redis-cluster-pv4 5Gi RWO Retain Bound magedu/data-redis-5 8d
redis-cluster-pv5 5Gi RWO Retain Bound magedu/data-redis-2 8d
redis-datadir-pv-1 10Gi RWO Retain Bound magedu/redis-datadir-pvc-1 9d
zookeeper-datadir-pv-1 20Gi RWO Retain Bound magedu/zookeeper-datadir-pvc-1 10d
zookeeper-datadir-pv-2 20Gi RWO Retain Bound magedu/zookeeper-datadir-pvc-2 10d
zookeeper-datadir-pv-3 20Gi RWO Retain Bound magedu/zookeeper-datadir-pvc-3 10d
root@k8s-master01:~/k8s-data/yaml/magedu/mysql#
3.3、運行mysql服務
MYSQL CONFIGMAP配置清單
apiVersion: v1
kind: ConfigMap
metadata:
name: mysql
namespace: magedu
labels:
app: mysql
data:
master.cnf: |
# Apply this config only on the master.
[mysqld]
log-bin
log_bin_trust_function_creators=1
lower_case_table_names=1
slave.cnf: |
# Apply this config only on slaves.
[mysqld]
super-read-only
log_bin_trust_function_creators=1

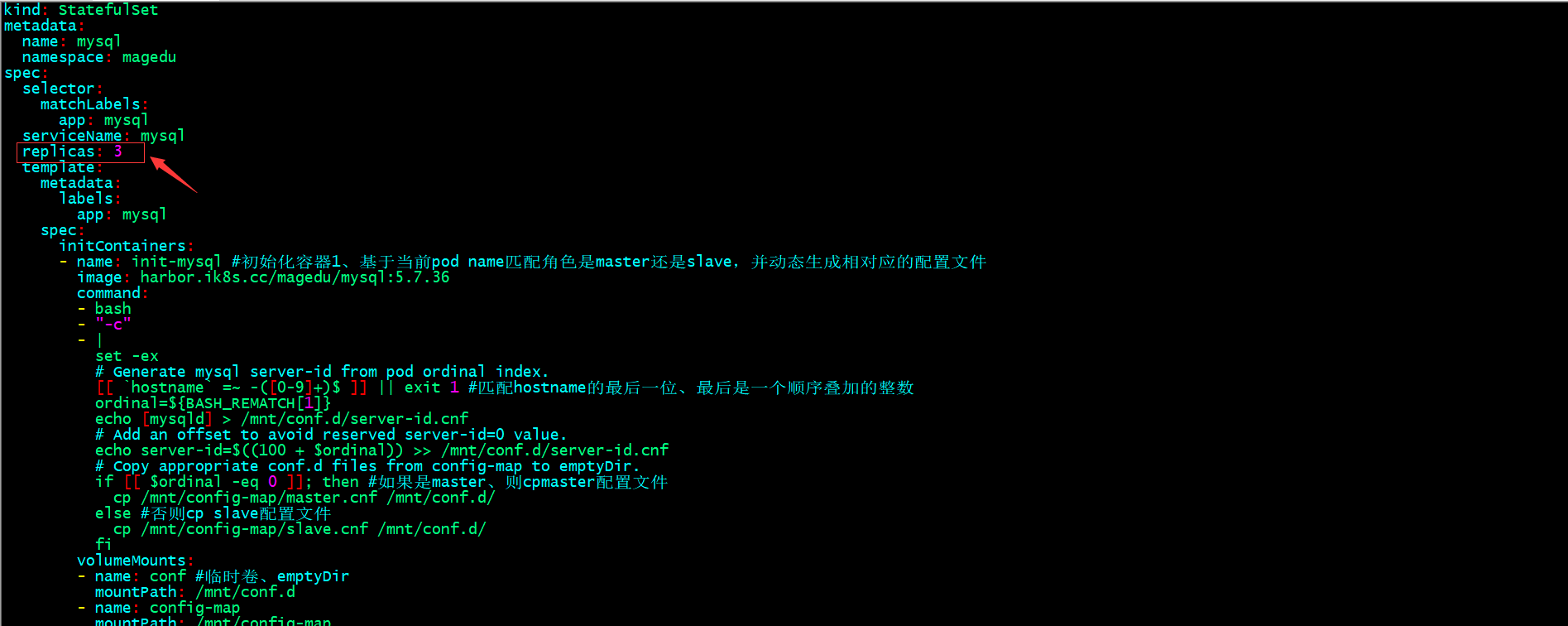

MYSQL POD配置清單
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: mysql
namespace: magedu
spec:
selector:
matchLabels:
app: mysql
serviceName: mysql
replicas: 2
template:
metadata:
labels:
app: mysql
spec:
initContainers:
- name: init-mysql #初始化容器1、基于當前pod name匹配角色是master還是slave，并動態生成相對應的組態檔
image: harbor.ik8s.cc/magedu/mysql:5.7.36
command:
- bash
- "-c"
- |
set -ex
# Generate mysql server-id from pod ordinal index.
[[ `hostname` =~ -([0-9]+)$ ]] || exit 1 #匹配hostname的最后一位、最后是一個順序疊加的整數
ordinal=${BASH_REMATCH[1]}
echo [mysqld] > /mnt/conf.d/server-id.cnf
# Add an offset to avoid reserved server-id=0 value.
echo server-id=$((100 + $ordinal)) >> /mnt/conf.d/server-id.cnf
# Copy appropriate conf.d files from config-map to emptyDir.
if [[ $ordinal -eq 0 ]]; then #如果是master、則cpmaster組態檔
cp /mnt/config-map/master.cnf /mnt/conf.d/
else #否則cp slave組態檔
cp /mnt/config-map/slave.cnf /mnt/conf.d/
fi
volumeMounts:
- name: conf #臨時卷、emptyDir
mountPath: /mnt/conf.d
- name: config-map
mountPath: /mnt/config-map
- name: clone-mysql #初始化容器2、用于生成mysql組態檔、并從上一個pod完成首次的全量資料clone(slave 3從slave2 clone，而不是每個slave都從master clone實作首次全量同步,但是后期都是與master實作增量同步)
image: harbor.ik8s.cc/magedu/xtrabackup:1.0
command:
- bash
- "-c"
- |
set -ex
# Skip the clone if data already exists.
[[ -d /var/lib/mysql/mysql ]] && exit 0
# Skip the clone on master (ordinal index 0).
[[ `hostname` =~ -([0-9]+)$ ]] || exit 1
ordinal=${BASH_REMATCH[1]}
[[ $ordinal -eq 0 ]] && exit 0 #如果最后一位是0(master)則退出clone程序
# Clone data from previous peer.
ncat --recv-only mysql-$(($ordinal-1)).mysql 3307 | xbstream -x -C /var/lib/mysql #從上一個pod執行clone(binlog),xbstream為解壓縮命令
# Prepare the backup.xue
xtrabackup --prepare --target-dir=/var/lib/mysql #通過xtrabackup恢復binlog
volumeMounts:
- name: data
mountPath: /var/lib/mysql
subPath: mysql
- name: conf
mountPath: /etc/mysql/conf.d
containers:
- name: mysql #業務容器1(mysql主容器)
image: harbor.ik8s.cc/magedu/mysql:5.7.36
env:
- name: MYSQL_ALLOW_EMPTY_PASSWORD
value: "1"
ports:
- name: mysql
containerPort: 3306
volumeMounts:
- name: data #掛載資料目錄至/var/lib/mysql
mountPath: /var/lib/mysql
subPath: mysql
- name: conf #組態檔/etc/mysql/conf.d
mountPath: /etc/mysql/conf.d
resources: #資源限制
requests:
cpu: 500m
memory: 1Gi
livenessProbe: #存活探針
exec:
command: ["mysqladmin", "ping"]
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 5
readinessProbe: #就緒探針
exec:
# Check we can execute queries over TCP (skip-networking is off).
command: ["mysql", "-h", "127.0.0.1", "-e", "SELECT 1"]
initialDelaySeconds: 5
periodSeconds: 2
timeoutSeconds: 1
- name: xtrabackup #業務容器2(xtrabackup),用于后期同步master 的binglog并恢復資料
image: harbor.ik8s.cc/magedu/xtrabackup:1.0
ports:
- name: xtrabackup
containerPort: 3307
command:
- bash
- "-c"
- |
set -ex
cd /var/lib/mysql
# Determine binlog position of cloned data, if any.
if [[ -f xtrabackup_slave_info ]]; then
# XtraBackup already generated a partial "CHANGE MASTER TO" query
# because we're cloning from an existing slave.
mv xtrabackup_slave_info change_master_to.sql.in
# Ignore xtrabackup_binlog_info in this case (it's useless).
rm -f xtrabackup_binlog_info
elif [[ -f xtrabackup_binlog_info ]]; then
# We're cloning directly from master. Parse binlog position.
[[ `cat xtrabackup_binlog_info` =~ ^(.*?)[[:space:]]+(.*?)$ ]] || exit 1
rm xtrabackup_binlog_info
echo "CHANGE MASTER TO MASTER_LOG_FILE='${BASH_REMATCH[1]}',\
MASTER_LOG_POS=${BASH_REMATCH[2]}" > change_master_to.sql.in #生成CHANGE MASTER命令
fi
# Check if we need to complete a clone by starting replication.
if [[ -f change_master_to.sql.in ]]; then
echo "Waiting for mysqld to be ready (accepting connections)"
until mysql -h 127.0.0.1 -e "SELECT 1"; do sleep 1; done
echo "Initializing replication from clone position"
# In case of container restart, attempt this at-most-once.
mv change_master_to.sql.in change_master_to.sql.orig
#執行CHANGE MASTER操作并啟動SLAVE
mysql -h 127.0.0.1 <<EOF
$(<change_master_to.sql.orig),
MASTER_HOST='mysql-0.mysql',
MASTER_USER='root',
MASTER_PASSWORD='',
MASTER_CONNECT_RETRY=10;
START SLAVE;
EOF
fi
# Start a server to send backups when requested by peers. #監聽在3307埠，用于為下一個pod同步全量資料
exec ncat --listen --keep-open --send-only --max-conns=1 3307 -c \
"xtrabackup --backup --slave-info --stream=xbstream --host=127.0.0.1 --user=root"
volumeMounts:
- name: data
mountPath: /var/lib/mysql
subPath: mysql
- name: conf
mountPath: /etc/mysql/conf.d
resources:
requests:
cpu: 100m
memory: 100Mi
volumes:
- name: conf
emptyDir: {}
- name: config-map
configMap:
name: mysql
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteOnce"]
resources:
requests:
storage: 10Gi
上述配置清單主要定義兩個mysqlPod，其中每個pod中運行4個容器，第一個容器init容器主要目的是通過sts控制器創建pod的名稱id來確定掛載master和slave配置；第二個初始化容器主要目的是用于克隆上一個pod的資料，即salve1從master上克隆資料，slave2從slave1克隆資料，以此類推；第三個就是mysql主容器，運行mysql實體；第四個容器主要用于給mysql主容器同步后期的增量資料的；
MYSQL SERVICE配置清單
# Headless service for stable DNS entries of StatefulSet members.
apiVersion: v1
kind: Service
metadata:
namespace: magedu
name: mysql
labels:
app: mysql
spec:
ports:
- name: mysql
port: 3306
clusterIP: None
selector:
app: mysql
---
# Client service for connecting to any MySQL instance for reads.
# For writes, you must instead connect to the master: mysql-0.mysql.
apiVersion: v1
kind: Service
metadata:
name: mysql-read
namespace: magedu
labels:
app: mysql
spec:
ports:
- name: mysql
port: 3306
selector:
app: mysql
上述配置清單主要創建了兩個service，第一個是一個無頭service 用戶回傳后端所有pod端點；第二個service是一個默認clusterip型別service，這兩個service都是可以的；
3.3.1、創建mysql pod
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl apply -f mysql-configmap.yaml -f mysql-services.yaml -f mysql-statefulset.yaml
configmap/mysql created
service/mysql created
service/mysql-read created
statefulset.apps/mysql created
root@k8s-master01:~/k8s-data/yaml/magedu/mysql#
3.3.2、驗證MySQL Pod狀態
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl get pods -n magedu
NAME READY STATUS RESTARTS AGE
magedu-nginx-deployment-5589bbf4bc-6gd2w 1/1 Running 8 (113m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-c7rtb 1/1 Running 4 (114m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-prglk 1/1 Running 4 (114m ago) 11d
mysql-0 2/2 Running 0 47s
mysql-1 2/2 Running 0 23s
redis-0 1/1 Running 2 (114m ago) 8d
redis-1 1/1 Running 2 (114m ago) 8d
redis-2 1/1 Running 2 (114m ago) 8d
redis-3 1/1 Running 2 (114m ago) 8d
redis-4 1/1 Running 2 (114m ago) 8d
redis-5 1/1 Running 2 (114m ago) 8d
ubuntu1804 0/1 Completed 0 8d
zookeeper1-675c5477cb-vmwwq 1/1 Running 4 (114m ago) 10d
zookeeper2-759fb6c6f-7jktr 1/1 Running 4 (114m ago) 10d
zookeeper3-5c78bb5974-vxpbh 1/1 Running 4 (114m ago) 10d
root@k8s-master01:~/k8s-data/yaml/magedu/mysql#

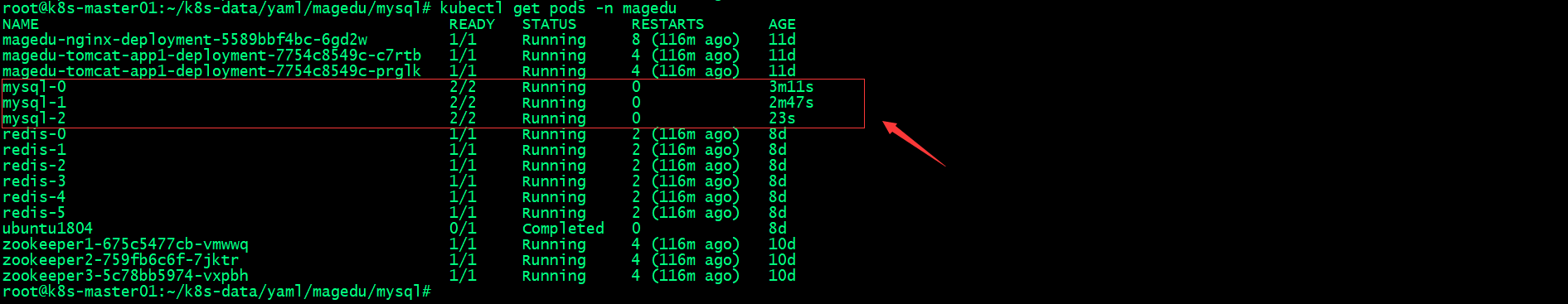

修改配置清單pod副本為3，看看對應pod是否能夠正常running?
應用配置清單
3.3.3、驗證MySQL主從同步是否正常
驗證master狀態
root@k8s-master01:~# kubectl exec -it mysql-0 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-0:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 691
Server version: 5.7.36-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show master status\G
*************************** 1. row ***************************
File: mysql-0-bin.000003
Position: 313
Binlog_Do_DB:
Binlog_Ignore_DB:
Executed_Gtid_Set:
1 row in set (0.01 sec)
mysql> exit
Bye
root@mysql-0:/# exit
exit
root@k8s-master01:~#
驗證slave狀態
root@k8s-master01:~# kubectl exec -it mysql-1 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-1:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 708
Server version: 5.7.36 MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show slave status\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: mysql-0.mysql
Master_User: root
Master_Port: 3306
Connect_Retry: 10
Master_Log_File: mysql-0-bin.000003
Read_Master_Log_Pos: 313
Relay_Log_File: mysql-1-relay-bin.000002
Relay_Log_Pos: 481
Relay_Master_Log_File: mysql-0-bin.000003
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 313
Relay_Log_Space: 690
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 100
Master_UUID: 72724f41-0b65-11ee-b561-16065cd6961a
Master_Info_File: /var/lib/mysql/master.info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
1 row in set (0.00 sec)
mysql> exit
Bye
root@mysql-1:/# exit
exit
root@k8s-master01:~# kubectl exec -it mysql-2 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-2:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 632
Server version: 5.7.36 MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show slave status\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: mysql-0.mysql
Master_User: root
Master_Port: 3306
Connect_Retry: 10
Master_Log_File: mysql-0-bin.000003
Read_Master_Log_Pos: 313
Relay_Log_File: mysql-2-relay-bin.000002
Relay_Log_Pos: 481
Relay_Master_Log_File: mysql-0-bin.000003
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 313
Relay_Log_Space: 690
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 100
Master_UUID: 72724f41-0b65-11ee-b561-16065cd6961a
Master_Info_File: /var/lib/mysql/master.info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
1 row in set (0.00 sec)
mysql> exit
Bye
root@mysql-2:/# exit
exit
root@k8s-master01:~#
能夠在slave上看到IO和SQL執行緒正常running，說明slave狀態沒有問題；
進入mysql-0創建資料庫
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl exec -it mysql-0 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-0:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 355
Server version: 5.7.36-log MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show databases;
+------------------------+
| Database |
+------------------------+
| information_schema |
| mysql |
| performance_schema |
| sys |
| xtrabackup_backupfiles |
+------------------------+
5 rows in set (0.02 sec)
mysql> create database mydb;
Query OK, 1 row affected (0.00 sec)
mysql> show databases;
+------------------------+
| Database |
+------------------------+
| information_schema |
| mydb |
| mysql |
| performance_schema |
| sys |
| xtrabackup_backupfiles |
+------------------------+
6 rows in set (0.00 sec)
mysql>
在slave pod中驗證資料是否同步？
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl exec -it mysql-1 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-1:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 437
Server version: 5.7.36 MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show databases;
+------------------------+
| Database |
+------------------------+
| information_schema |
| mydb |
| mysql |
| performance_schema |
| sys |
| xtrabackup_backupfiles |
+------------------------+
6 rows in set (0.01 sec)
mysql> exit
Bye
root@mysql-1:/# exit
exit
root@k8s-master01:~/k8s-data/yaml/magedu/mysql# kubectl exec -it mysql-2 -n magedu bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
Defaulted container "mysql" out of: mysql, xtrabackup, init-mysql (init), clone-mysql (init)
root@mysql-2:/# mysql
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 361
Server version: 5.7.36 MySQL Community Server (GPL)
Copyright (c) 2000, 2021, Oracle and/or its affiliates.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show databases;
+------------------------+
| Database |
+------------------------+
| information_schema |
| mydb |
| mysql |
| performance_schema |
| sys |
| xtrabackup_backupfiles |
+------------------------+
6 rows in set (0.02 sec)
mysql> exit
Bye
root@mysql-2:/# exit
exit
root@k8s-master01:~/k8s-data/yaml/magedu/mysql#
能夠通過上述在主庫創建資料庫，從庫能夠正常同步，則說明mysql主從同步沒有問題；
3.3.4、mysql?可?測驗

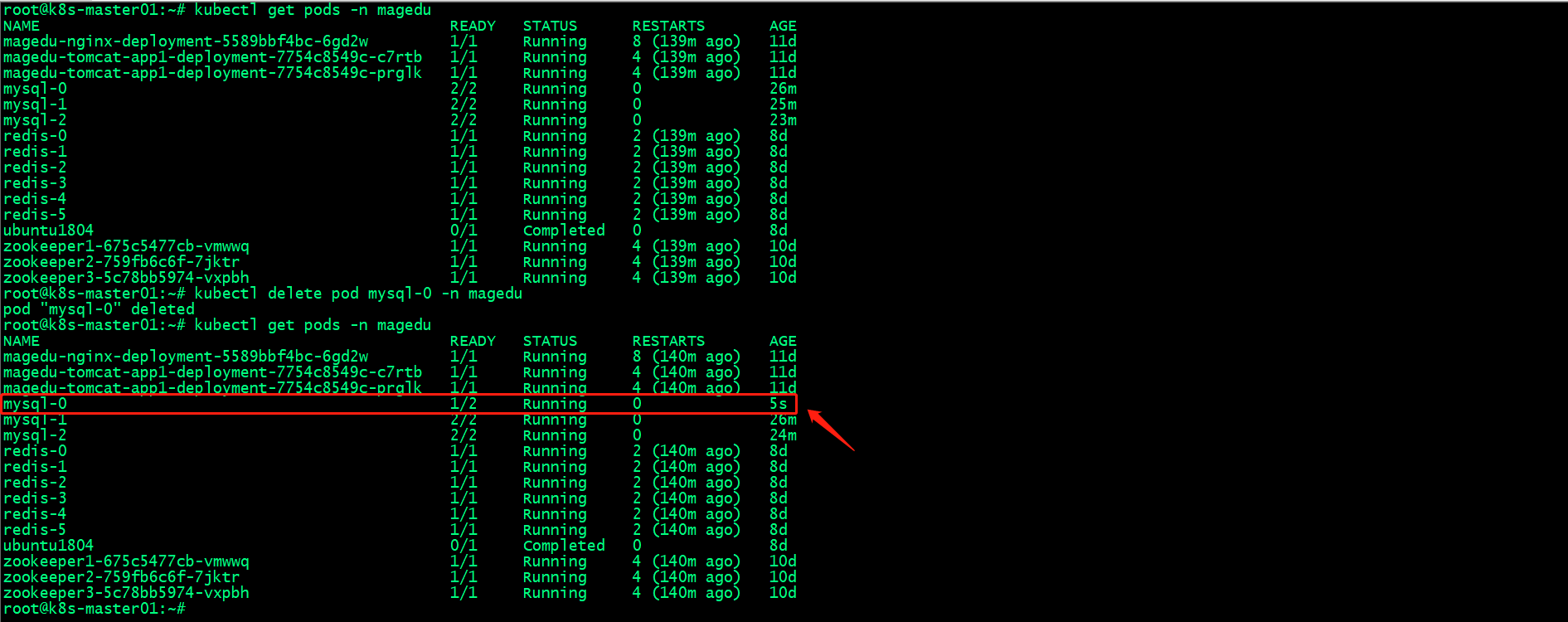

3.3.4.1、洗掉master pod驗證mysql高可用性

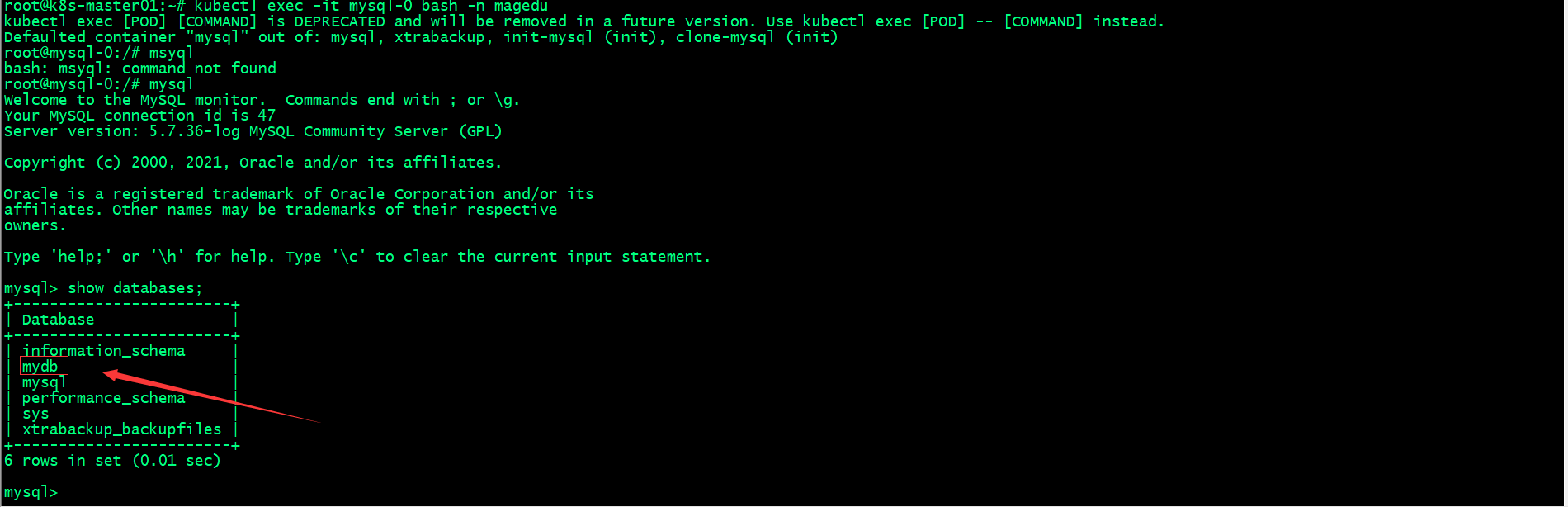

進入master，驗證master資料是否丟失？
能夠看到master資料并未丟失，這是因為該資料存放至遠端nfs存盤之上；
3.3.4.2、洗掉slave pod驗證mysql高可用性
root@k8s-master01:~# kubectl get pods -n magedu
NAME READY STATUS RESTARTS AGE
magedu-nginx-deployment-5589bbf4bc-6gd2w 1/1 Running 8 (143m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-c7rtb 1/1 Running 4 (143m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-prglk 1/1 Running 4 (143m ago) 11d
mysql-0 2/2 Running 0 3m6s
mysql-1 2/2 Running 0 29m
mysql-2 2/2 Running 0 27m
redis-0 1/1 Running 2 (143m ago) 8d
redis-1 1/1 Running 2 (143m ago) 8d
redis-2 1/1 Running 2 (143m ago) 8d
redis-3 1/1 Running 2 (143m ago) 8d
redis-4 1/1 Running 2 (143m ago) 8d
redis-5 1/1 Running 2 (143m ago) 8d
ubuntu1804 0/1 Completed 0 8d
zookeeper1-675c5477cb-vmwwq 1/1 Running 4 (143m ago) 10d
zookeeper2-759fb6c6f-7jktr 1/1 Running 4 (143m ago) 10d
zookeeper3-5c78bb5974-vxpbh 1/1 Running 4 (143m ago) 10d
root@k8s-master01:~# kubectl delete pods mysql-1 -n magedu
pod "mysql-1" deleted
root@k8s-master01:~# kubectl get pods -n magedu
NAME READY STATUS RESTARTS AGE
magedu-nginx-deployment-5589bbf4bc-6gd2w 1/1 Running 8 (144m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-c7rtb 1/1 Running 4 (145m ago) 11d
magedu-tomcat-app1-deployment-7754c8549c-prglk 1/1 Running 4 (145m ago) 11d
mysql-0 2/2 Running 0 4m55s
mysql-1 2/2 Running 0 55s
mysql-2 2/2 Running 0 28m
redis-0 1/1 Running 2 (145m ago) 8d
redis-1 1/1 Running 2 (145m ago) 8d
redis-2 1/1 Running 2 (145m ago) 8d
redis-3 1/1 Running 2 (145m ago) 8d
redis-4 1/1 Running 2 (145m ago) 8d
redis-5 1/1 Running 2 (145m ago) 8d
ubuntu1804 0/1 Completed 0 8d
zookeeper1-675c5477cb-vmwwq 1/1 Running 4 (145m ago) 10d
zookeeper2-759fb6c6f-7jktr 1/1 Running 4 (145m ago) 10d
zookeeper3-5c78bb5974-vxpbh 1/1 Running 4 (145m ago) 10d
root@k8s-master01:~#

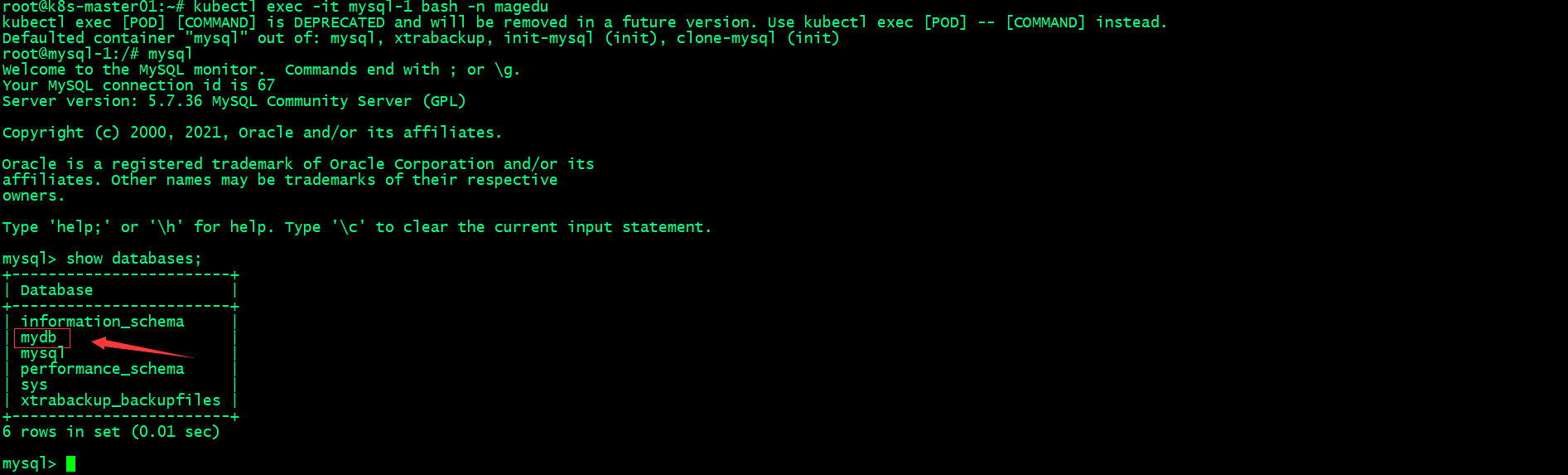

進入slave驗證資料
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/555279.html
標籤：其他
下一篇：返回列表
